JVH0738X
1. CDeject button
2. FM´AM button
3. AUXbutton
4. CDinsert slot
5.
button
6.
Backward seekbutton and
Forward
seek button 7.
BACK button
8. TUNE knob/AUDIO button
9. Display screen
10. ON´OFF button/VOL (volume) controlknob
11. CDbutton
12. SXMbutton*
FM-AM-SA TRADIO WITHCOMP ACT
DISC (CD)PLAYER (Type B)(ifso
equipped)
GUID-727 D0517-034 2-42E4-A806 -B1F3DBF29FDC
*No satellite radioreception isavailable when
the SXM button ispushed toaccess satellite
radio stations unlessoptional satellitereceiver
and antenna areinstalled andaSiriusXM
Satellite Radioservice subscription isactive.
Satellite radioisnot available inAlaska, Hawaii
and Guam.
For alloperation precautions, seeªAudio opera-
tion precautionsº (P.4-32) .
Audio mainoperation
GUID-52 945E76-4F7B -4D3D-9238-E8D2041 B313C
ON´OFF button/VOL (volume) control
knob:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Place theignition switchinthe ACC orON
position andpush theON´OFF buttonwhilethe
system isoff tocall upthe available audiosource
that was playing immediately beforethesystem
was turned off.
T o turn thesystem off,push theON´OFF button.
T urn theVOL (volume) controlknobtoadjust the
volume.
This vehicle maybeequipped withSpeed
Sensitive Volume. Whenthisfeature isactive,
the audio volume changes asthe driving speed
changes.
Heater, airconditione r,audio andphone systems
4-59
&RQGLWLRQ


> (GLW   0RGHO )'@
4-60
Heater, airconditione r,audio andphone systems
Audio settings:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
1. push the
button.
2. Touch theªSettingsº key.
3. Touch theªAudioº key.
Use thetouch-screen toadjust thefollowing
items tothe desired setting:
.
Bass:
Adjusts thebass tothe desired level.
.
T reble:
Adjusts thetreble tothe desired level.
.
Balance:
Adjusts thebalance tothe desired level.
Balance adjuststhesound levelbetween
the leftand right speakers.
.
Fade:
Adjusts thefade tothe desired level.
Fade adjusts thesound levelbetween
the front andrear speakers.
.
Speed Sensitive Vol.:
Adjusts thespeed sensitive volume
function, whichincreases thevolume of
the audio system asthe speed ofthe
vehicle increases. SettoªOFFº todis-
able thefeature. Thehigher thesetting,
the more thevolume increases inrelation
to vehicle speed.
.
AUX Volume Level:
Controls thevolume levelofincoming
sound whenanauxiliary deviceiscon- nected
tothe system. Available options
are Low (Quiet) ,Medium, andHigh
(Loud) .
Bass, treble, balance andfade canalso be
adjusted bypushing theAUDIO controlknob
and turning itto select theitem toadjust. When
the desired itemisshown onthe display ,turn the
tuning toadjust andthen push theAUDIO
button untilthedisplay returnstothe main audio
screen. Ifthe button isnot pushed forapproxi-
mately 10seconds, theradio orCD display will
automatically reappear.
SXM settings:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
T o view theSXM settings:
1. Push the
button.
2. Touch theªSettingsº key.
3. Touch theªSXMº key.
The signal strength, activation statusandother
information aredisplayed onthe screen.
FM/AM/SA Tradio operation
GUID-F4 71B34D-BB4 0-4254-905D-BAD3C 1C3D3BD
FM´AM button:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Push theFM´AM buttontochange theband as
follows:
AM ?FM1 ?FM2 ?AM
If another audiosource isplaying whenthe
FM´AM buttonispushed, theaudio source
playing willautomatically beturned offand the
last radio station playedwillbegin playing.
The FMstereo indicator (ST)isshown onthe
screen duringFMstereo reception. Whenthe
stereo broadcast signalisweak, theradio
automatically changesfromstereo tomonaural
reception.
SXM band select :
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Pushing theSXM button willchange theband
as follows:
SXM1* ?SXM2* ?SXM3* ?SXM1*
(satellite, ifso equipped)
When theSXM button ispushed whilethe
ignition switchisin the ACC orON position, the
radio willcome onatthe last station played.
The laststation playedwillalso come onwhen
the ON´OFF buttonispushed.
*When theSXM button ispushed, thesatellite
radio mode willbeskipped unlessanoptional
satellite receiver andantenna areinstalled anda
&RQGLWLRQ


> (GLW   0RGHO )'@
SiriusXM SatelliteRadioservice subscription is
active. Satellite radioisnot available inAlaska,
Hawaii andGuam.
If a compact discisplaying whentheSXM
button ispushed, thecompact discwillauto-
matically beturned offand thelast radio station
played willcome on.
While theradio isin SXM mode, theoperation
can becontrolled throughthetouch-screen.
T ouch theªChannelsº keytodisplay alist of
channels. Touch achannel displayed onthe list
to change tothat channel. Touch theªCate-
goriesº keytodisplay alist ofcategories. Touch
a category displayed onthe listtodisplay
options withinthatcategory .
T uning withthetouch-screen:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
When inAM orFM mode, theradio canbe
tuned usingthetouch-screen. To bring upthe
visual tuner, touch theªTuneº keyonthe lower
right corner ofthe screen. Ascreen appears
with abar running fromlowfrequencies onthe
left tohigh frequencies onthe right. Touch the
screen atthe location ofthe frequency youwish
to tune andthestation willchange tothat
frequency .To return tothe regular radiodisplay
screen, touchtheªOKº key.
T uning withtheTUNE knob:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
The radio canalso bemanually tunedusingthe TUNE
knob.When inFM orAM mode, turnthe
TUNE knobtothe leftforlower frequencies orto
the right forhigher frequencies. WheninSXM
mode, turntheTUNE knobtochange the
channel.
SEEK tuning:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
When inFM orAM mode, pushtheseek buttons
or
to tune from lowtohigh orhigh to
low frequencies andtostop atthe next broad-
casting station.
When inSXM mode, pushtheseek buttons
or
to change thecategory .
JVH0741X
1 to 6Station memory operations:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
T welve stations canbeset forthe FM band (6
for FM1, 6for FM2) andsixstations canbeset
for the AM band. Eighteen stationscanbeset
for the SXM band (6for SXM1, 6for SXM2, 6
for SXM3) .
1. Choose theradio band AM,FM1 orFM2
using theFM´AM selectbutton orchoose
the radio band SXM1, SXM2,SXM3using
the SXM button.
2. Tune tothe desired stationusingmanual or
seek tuning. Touch andhold anyofthe
desired stationmemory keys(1±6) until a
beep sound isheard.
Heater, airconditione r,audio andphone systems
4-61
&RQGLWLRQ


> (GLW   0RGHO )'@
4-62
Heater, airconditione r,audio andphone systems
3. The channel indicator willthen come onand
the sound willresume. Programming isnow
complete.
4. Other keyscanbeset inthe same manner.
If the battery cableisdisconnected orifthe fuse
opens, theradio memory willbeerased. Inthat
case, resetthedesired stations.
Presets canalso beselected bytouching the
desired presetnumber onthe screen.
Compact Disc(CD) player operation
GUID-22B6B 76F-6FCF-458E-A1BC-11D 6DA23716D
If the radio isalready operating, itautomatically
turns offand thecompact discbegins toplay .
CD button:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
When theCD button ispushed withthesystem
off and thecompact discloaded, thesystem will
turn onand thecompact discwillstart toplay .
When theCD button ispushed withacompact
disc loaded andtheradio playing, theradio will
automatically beturned offand thecompact
disc willstart toplay . CD/MP3/WMA
displaymode:
Menu item
CD/MP3 displaymode While
listening toaCD oran MP3/WMA CD,certain textmay bedisplayed (whena
CD encoded withtextisbeing used).Depending onhow theCD orMP3/WMA CD
is encoded, thetext isdisplayed listingtheartist, album andsong title.There are
other keysdisplayed onthe screen whenaCD isplaying:
Random T
ouch theªRandomº keytoapply arandom playpattern tothe CD. Ifan MP3 CDis
playing, touching ªRandomº oralternates betweenRandomFolder,andRandom All.
This textwillappear onthe display .To cancel Random mode,touchtheªRandomº
key until thekey isno longer highlighted.
Repeat T
ouch theªRepeatº keytoapply arepeat playpattern tothe CD. Ifan MP3 CDis
playing, touching ªRepeatº alternates betweenrepeating thecurrent songand
repeating thecurrent folder.Thistextwillappear onthe display .To cancel Repeat
mode, touchtheªRepeatº keyuntil thekey isno longer highlighted.
Browse T
ouch theªBrowseº keytodisplay thetitles onthe CD inlist format. Touch thetitle of
a song inthe listtobegin playing thatsong. Ifan MP3 CDisplaying, touching the
ªBrowseº keywillalso listthe folders onthe disc. Follow theprocedure forselecting
a song withthetouch-screen tochoose afolder.
&RQGLWLRQ

 
> (GLW   0RGHO )'@

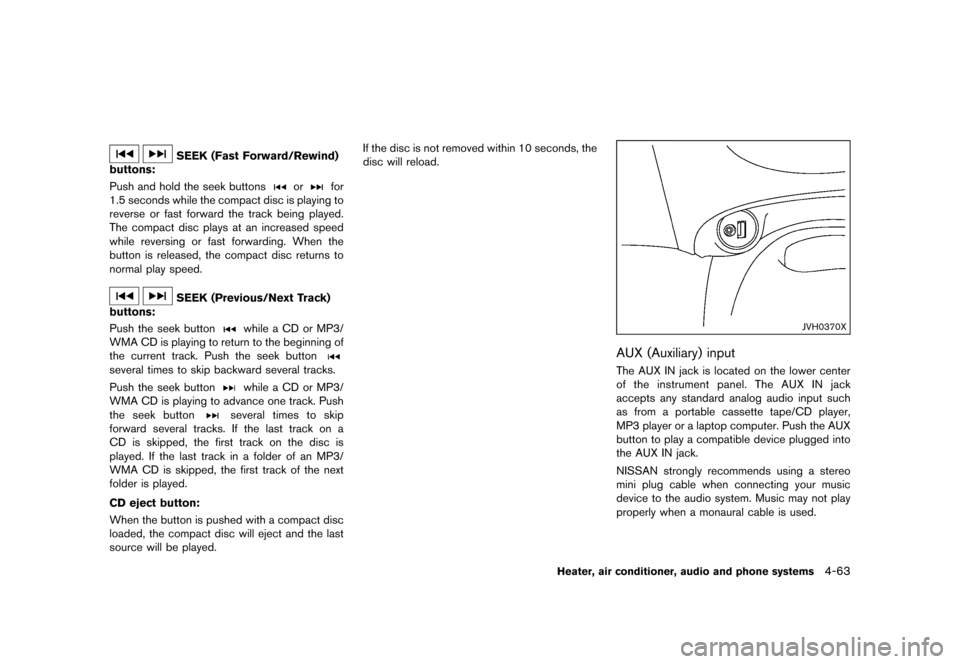

SEEK (FastForward/Rewind)
buttons:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Push andhold theseek buttons
or
for
1.5 seconds whilethecompact discisplaying to
reverse orfast forward thetrack being played.
The compact discplays atan increased speed
while reversing orfast forwarding. Whenthe
button isreleased, thecompact discreturns to
normal playspeed.
SEEK (Previous/Next Track)
buttons:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Push theseek button
while aCD orMP3/
WMA CDisplaying toreturn tothe beginning of
the current track.Pushtheseek button
several timestoskip backward severaltracks.
Push theseek button
while aCD orMP3/
WMA CDisplaying toadvance onetrack. Push
the seek button
several timestoskip
forward severaltracks.Ifthe last track ona
CD isskipped, thefirst track onthe disc is
played. Ifthe last track inafolder ofan MP3/
WMA CDisskipped, thefirst track ofthe next
folder isplayed.
CD eject button:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
When thebutton ispushed withacompact disc
loaded, thecompact discwilleject andthelast
source willbeplayed. If
the disc isnot removed within10seconds, the
disc willreload.
JVH0370X
AUX (Auxiliary )input
GUID-A 871C1F0-4 2F3-402B-8 49C-74B6117EE37F
The AUX INjack islocated onthe lower center
of the instrument panel.TheAUX INjack
accepts anystandard analogaudioinputsuch
as from aportable cassette tape/CD player,
MP3 player oralaptop computer. PushtheAUX
button toplay acompatible deviceplugged into
the AUX INjack.
NISSAN stronglyrecommends usingastereo
mini plug cable whenconnecting yourmusic
device tothe audio system. Musicmaynotplay
properly whenamonaural cableisused.
Heater, airconditione r,audio andphone systems
4-63
&RQGLWLRQ


> (GLW   0RGHO )'@
4-64
Heater, airconditione r,audio andphone systems
JVH0742X
USB (Universal SerialBus)connection
port
GUID-55 592140-02 51-4082-9B9 B-66E35E1E6B02
Connecting adevice tothe USB port:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
WARNING
Do not connect, disconnect, oroperate
the USB device whiledriving. Doingso
can beadistraction. Ifdistracted you
could losecontrol ofyour vehicle and
cause anaccident orserious injury.
CAUTION
. Donot force theUSB device intothe
USB port. Inserting theUSB device
tilted orup-side-down intotheport
may damage theport. Make sure
that theUSB device isconnected
correctly intotheUSB port.
. Do not grab theUSB portcover (if
so equipped) whenpulling theUSB
device outofthe port. Thiscould
damage theport andthecover.
. Do not leave theUSB cable ina
place where itcan bepulled unin-
tentionally. Pullingthecable may
damage theport
Refer toyour device manufacturer's owner
information regardingtheproper useand care
of the device.
The USB portislocated onthe lower center of
the instrument panel.InserttheUSB device into
the port.
When acompatible storagedeviceisplugged
into theport, compatible audiofilesonthe
storage devicecanbeplayed through the
vehicle's audiosystem. Audio
fileoperation:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
AUX button:
Place theignition switchinthe ON orACC
position andpush theAUX button toswitch to
the USB input mode. Ifanother audiosource is
playing andaUSB memory deviceisinserted,
push theAUX button untilthecenter display
changes tothe USB memory mode.
If the system hasbeen turned offwhile theUSB
memory wasplaying, pushtheON´OFF button
to restart theUSB memory .
&RQGLWLRQ


> (GLW   0RGHO )'@
JVH0743X
Play information:
Information abouttheaudio filesbeing played is
shown onthe display screenofthe vehicle's
audio system. Touch ªBrowseº todisplay thelist
of categories thatcanbeused tonarrow the
search. Touch thename ofasong onthe screen
to begin playing thatsong.
Seek button:
Push the
button whileanaudio fileonthe
USB device isplaying toreturn tothe beginning
of the current track.Pushthe
button several
times toskip backward severaltracks.
Push the
button whileanaudio fileonthe
USB device isplaying toadvance onetrack. Push
the
button several timestoskip
forward severaltracks.Ifthe last track inafolder
on the USB device isskipped, thefirst track of
the next folder isplayed.
Random andrepeat playmode:
While filesonaUSB device areplaying, theplay
pattern canbealtered sothat songs are
repeated orplayed randomly .
. Random:
T ouch theªRandomº keytoapply arandom
play pattern tothe USB device. To cancel
Random mode,touchtheªRandomº key
again.
. Repeat:
T ouch theªRepeatº keytoapply arepeat
play pattern tothe USB device. To cancel
Repeat mode,touchtheªRepeatº key
again.
SAA3445
iP od


> (GLW   0RGHO )'@
4-66
Heater, airconditione r,audio andphone systems
CAUTION
. Donot force theUSB device intothe
USB port. Inserting theUSB device
tilted orup-side-down intotheport
may damage theport. Make sure
that theUSB device isconnected
correctly intotheUSB port.
. Do not grab theUSB portcover (if
so equipped) whenpulling theUSB
device outofthe port. Thiscould
damage theport andthecover.
. Do not leave theUSB cable ina
place where itcan bepulled unin-
tentionally. Pullingthecable may
damage theport.
Refer toyour device manufacturer's owner
information regardingtheproper useand care
of the device.
T o connect aniPod
