2015 NISSAN JUKE Owners Manual


> (GLW   0RGHO )'@
GUID-10 596176-D8 CC-4ED7-A5 3D-90D6F730AAC5
Occasionally removeloosedustfrom theinterior
trim, plastic partsandseats using avacuum
cleaner orsoft bristled brush.Wipethevinyl and
leather surfaces withaclean, softcloth dam-
pened inmild soap solution, thenwipe clean
with adry soft cloth.
Regular careandcleaning isrequired inorder to
maintain theappearance ofthe leather.
Before usinganyfabric protector, readthe
manufacturer's recommendations. Somefabric
protectors containchemicals thatmay stain or
bleach theseat material.
Use acloth dampened onlywith water, toclean
the meter andgauge lens.
WARNING
Do not use water oracidic cleaners (hot
steam cleaners) onthe seat. Thiscan
damage theseat oroccupant classifica-
tion sensors. Thiscanalso affect the
operation ofthe airbag system and
result inserious personal injury.
CAUTION
. Never usebenzine, thinner,orany
similar material.
. For cleaning, useasoft cloth, dam-
pened withwater. Neverusearough
cloth, alcohol, benzine, thinneror
any kind ofsolvent orpaper towel
with achemical cleaningagent.
They willscratch orcause discolora-
tion tothe lens.
. Do not spray anyliquid suchas
water onthe meter lens.Spraying
liquid maycause thesystem to
malfunction.
. Small dirtparticles canbeabrasive
and damaging tothe leather sur-
faces andshould beremoved
promptly. Donot use saddle soap,
car waxes, polishes, oils,cleaning
fluids, solvents, detergents oram-
monia-based cleanersasthey may
damage theleather's naturalfinish.
. Never usefabric protectors unless
recommended bythe manufacturer.
. Do not use glass orplastic cleaner
on meter orgauge lenscovers. It may
damage thelens cover.
AIR FRESHENER S
GUID-E3FD8C E0-974F-4A98-BFAE-0E7A4 0A53F62
Most airfresheners useasolvent thatcould
affect thevehicle interior. Ifyou use anair
freshener, takethefollowing precautions:
. Hanging-type airfresheners cancause
permanent discoloration whentheycontact
vehicle interiorsurfaces. Placetheair
freshener inalocation thatallows itto hang
free andnotcontact aninterior surface.
. Liquid-type airfresheners typicallyclipon
the vents. These products cancause
immediate damageanddiscoloration when
spilled oninterior surfaces.
Carefully readandfollow themanufacturer's
instructions beforeusingairfresheners.
FL OOR MATS
GUID-C61B CC4D-3D4A-4774-A3 2F-F2158F91 2ECC
WARNING
T o avoid potential pedalinterference
that may result inacollision orinjury:
. NEVER placeafloor matontop of
another floormatinthe driver front
position.
Appeara nceand care
7-5
CLEANING INTERIOR
&RQGLWLRQ


> (GLW   0RGHO )'@
7-6
Appeara nceand care

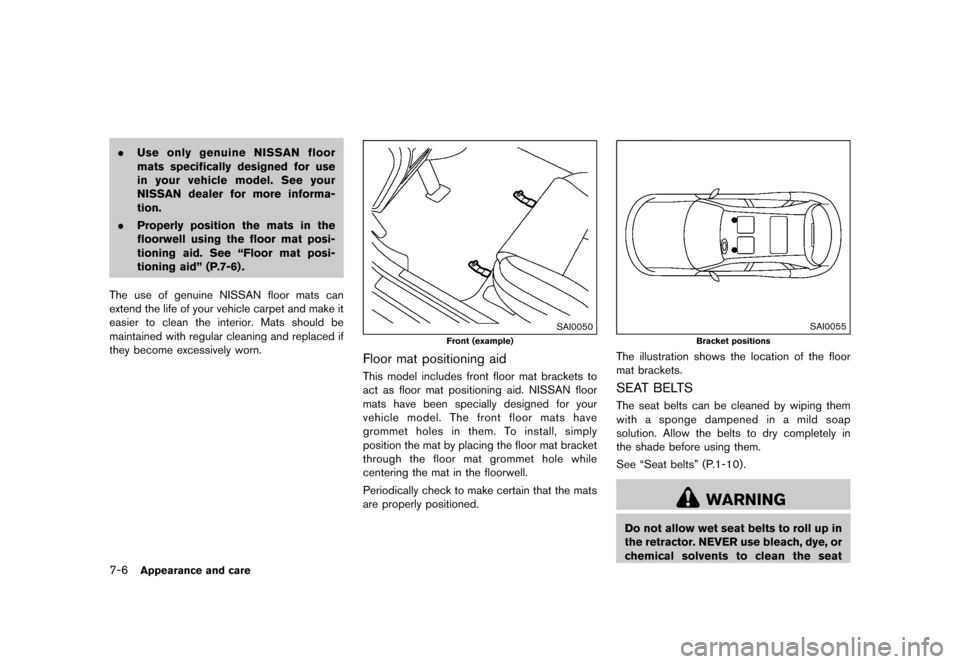

. Use only genuine NISSANfloor
mats specifically designedforuse
in your vehicle model.Seeyour
NISSAN dealerformore informa-
tion.
. Properly positionthemats inthe
floorwell usingthefloor matposi-
tioning aid.See ªFloor matposi-
tioning aidº(P.7-6) .
The useofgenuine NISSAN floormats can
extend thelifeofyour vehicle carpetandmake it
easier toclean theinterior. Matsshould be
maintained withregular cleaning andreplaced if
they become excessively
worn.
SAI0050
Front (example)
Floor matpositioning aid
GUID-44AD D536-A773-492F-A9 BE-7AE08262 2EB3
This model includes frontfloormatbrackets to
act asfloor matpositioning aid.NISSAN floor
mats havebeen specially designed foryour
vehicle model.Thefront floormats have
grommet holesinthem. To install, simply
position themat byplacing thefloor matbracket
through thefloor matgrommet holewhile
centering themat inthe floorwell.
Periodically checktomake certain thatthemats
are properly
positioned.
SAI0055
Bracket positions
The illustration showsthelocation ofthe floor
mat brackets.
SEA TBEL TS
GUID-4B8B 9D33-257C-4 C6A-A088-D5EF5494B6F8
The seat belts canbecleaned bywiping them
with asponge dampened inamild soap
solution. Allowthebelts todry completely in
the shade before usingthem.
See ªSeat beltsº (P.1-10) .
WARNING
Do not allow wetseat belts toroll upin
the retractor. NEVERusebleach, dye,or
chemical solventstoclean theseat
&RQGLWLRQ


> (GLW   0RGHO )'@
belts, sincethese materials mayse-
verely weaken theseat beltwebbing.
GUID-32A8 9872-22C3-4DD8-851F-2F0534F26 333
MOST COMMO NFACT ORS CONTRI-
BUTING TO VEHICLE CORROSIO N
GUID-4F 19D920-9 FE4-4367- 859F-298D54 E2CA6D
. The accumulation ofmoisture-retaining dirt
and debris inbody panel sections, cavities,
and other areas.
. Damage topaint andother protective coat-
ings caused bygravel andstone chipsor
minor traffic accidents.
ENVIRONMEN TAL FACT ORS INFLU-
ENCE THERATE OF CORROSIO N
GUID-95BF 4D2E-F4B4-4 354-ADB7-25BFC814FCC 9
Moisture
GUID-368 833C3-233 C-4429-90E7 -B606193D7281
Accumulation ofsand, dirtand water onthe
vehicle bodyunderside canaccelerate corro-
sion. Wet floor coverings willnotdrycompletely
inside thevehicle, andshould beremoved for
drying toavoid floorpanel corrosion.
Relative humidity
GUID-A F355B12-E47 7-4AE7-9F6C-518C2C 99106A
Corrosion willbeaccelerated inareas ofhigh
relative humidity ,especially thoseareaswhere
the temperatures stayabove freezing where
atmospheric pollutionexists,orwhere roadsalt
is used.
T emperatu re
GUID-8A62 F287-A12D-4083-8666 -642B95E9DDCF
A temperature increasewillaccelerate therate
of corrosion tothose partswhich arenot well
ventilated.
Air pollution
GUID-011 1D033-62 4A-4AB7-89F 6-BD34B852B0D0
Industrial pollution,thepresence ofsalt inthe air
in coastal areas,orheavy roadsaltuse will
accelerate thecorrosion process.Roadsaltwill
also accelerate thedisintegration ofpaint
surfaces.
T O PRO TECT YOUR VEHICLE FROM
CORROSIO N
GUID-048 F72A8-ED8A- 4835-BF83-E8ED8F6FC8C 7
. Wash and wax your vehicle oftentokeep the
vehicle clean.
. Always checkforminor damage tothe paint
and repair itas soon aspossible.
. Keep drain holes atthe bottom ofthe doors
open toavoid water accumulation.
. Check theunderbody foraccumulation of
sand, dirtorsalt. Ifpresent, washwithwater
as soon aspossible.
CAUTION
. NEVER remove dirt,sand orother
debris fromthepassenger compart-
ment bywashing itout with ahose.
Appeara nceand care
7-7
CORROSIO NPRO TECTION
&RQGLWLRQ


> (GLW   0RGHO )'@
7-8
Appeara nceand care

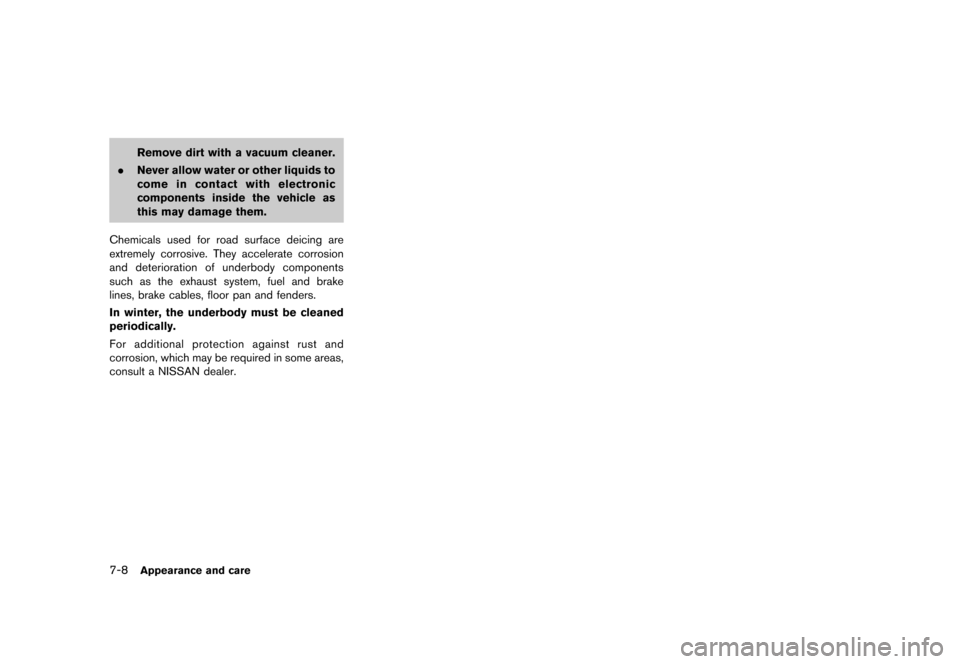

Remove dirtwith avacuum cleaner.
. Never allowwater orother liquids to
come incontact withelectronic
components insidethevehicle as
this may damage them.
Chemicals usedforroad surface deicingare
extremely corrosive. Theyaccelerate corrosion
and deterioration ofunderbody components
such asthe exhaust system,fueland brake
lines, brake cables, floorpanand fenders.
In winter, theunderbody mustbecleaned
periodically.
For additional protection againstrustand
corrosion, whichmayberequired insome areas,
consult aNISSAN dealer.
&RQGLWLRQ


> (GLW   0RGHO )'@
8 Maintenance anddo-it-yourself
Maintenance requirement ...
........................................................ 8-2
Scheduled maintenance ...
.................................................... 8-2
General maintenance ...
......................................................... 8-2
Where togo for service ...
.................................................... 8-2
General maintenance ...
............................................................... 8-2
Explanation ofmaintenance items...
................................... 8-2
Maintenance precautions ...
........................................................ 8-5
Engine compartment checklocations ...
.................................. 8-6
MR16DD Tengine ...
............................................................... 8-6
Engine cooling system ...
............................................................. 8-7
Checking enginecoolant level...
......................................... 8-8
Changing enginecoolant ...
.................................................. 8-8
Engine oil...
.................................................................................... 8-8
Checking engineoillevel ...
.................................................. 8-8
Changing engineoiland filter ...
.......................................... 8-9
Continuously Variable Transmission (CVT)fluid...
............ 8-11
For NISMO RSmodels ...
.................................................. 8-11
Except forNISMO RSmodels ...
..................................... 8-11
Brake andclutch (ifso equipped) fluid...
............................ 8-12
Window washerfluid...
............................................................ 8-12
Battery ...
....................................................................................... 8-13
Jump starting ...
..................................................................... 8-15
V ariable voltage controlsystem ...
.......................................... 8-15
Drive belt...
.................................................................................. 8-15Spark
plugs ...
............................................................................. 8-16
Replacing sparkplugs ...
.................................................. 8-16
Air cleaner ...
............................................................................... 8-17
Windshield wiperblades ...
..................................................... 8-18
Cleaning ...
........................................................................... 8-18
Replacing ...
......................................................................... 8-18
Rear window wiperblade ...
................................................... 8-19
Brakes ...
...................................................................................... 8-19
Self-adjusting brakes...
.................................................... 8-19
Brake padwear warning ...
.............................................. 8-19
Fuses ...
........................................................................................ 8-20
Engine compartment ...
..................................................... 8-20
Passenger compartment ...
.............................................. 8-22
Intelligent Key battery replacement ...
................................... 8-23
Lights ...
........................................................................................ 8-26
Headlights ...
........................................................................ 8-27
Exterior andinterior lights...
............................................ 8-29
Wheels andtires ...
................................................................... 8-31
Tire pressure ...
................................................................... 8-31
Tire labeling ...
..................................................................... 8-36
T ypes oftires ...
................................................................... 8-38
Tire chains ...
....................................................................... 8-39
Changing wheelsandtires ...
.......................................... 8-40
&RQGLWLRQ


> (GLW   0RGHO )'@
8-2
Maintenan ceand do-it-you rself
GUID-F9 6B6657-8490 -48CF-8E36-2FC0C96EB EFB
Some day-to-day andregular maintenance is
essential tomaintain yourvehicle goodmechan-
ical condition, aswell asitsemission andengine
performance.
It is the owner's responsibility tomake surethat
the scheduled maintenance, aswell asgeneral
maintenance, isperformed.
As the vehicle owner,youarethe only onewho
can ensure thatyour vehicle receives theproper
maintenance care.You are avital linkinthe
maintenance chain.
SCHEDULED MAINTENANCE
GUID-3B 7A96FC-E80 F-4057-8D4E -C9FA6EC67DE 7
For your convenience, bothrequired andop-
tional scheduled maintenance itemsarede-
scribed andlisted inyour ªNISSAN Serviceand
Maintenance Guideº.You must refertothat
guide toensure thatnecessary maintenance is
performed onyour vehicle atregular intervals.
GENERAL MAINTENAN CE
GUID-49 3839A7-B51 E-43D6-8709-886EBB7EF3EF
General maintenance includesthoseitems
which should bechecked duringnormal day-
to-day operation. Theyareessential forproper
vehicle operation. Itis your responsibility to
perform theseprocedures regularlyaspre-
scribed.
Performing generalmaintenance checksre-
quires minimal mechanical skilland only afew
general automotive tools. These
checks orinspections canbedone by
yourself, aqualified technician or,ifyou prefer, a
NISSAN dealer.
WHERE TO GO FOR SERVICE
GUID-9AC69 D8A-FA6E-4549-95 A3-251C43F083A7
If maintenance serviceisrequired oryour vehicle
appears tomalfunction, havethesystems
checked andserviced byaNISSAN dealer.
NISSAN technicians arewell-trained specialists
and arekept up-to-date withthelatest service
information throughtechnical bulletins,service
tips, andin-dealership informationsystems.
They arecompletely qualifiedtowork on
NISSAN vehiclesbeforeworkbegins.
Y ou can beconfident thataNISSAN dealer's
service department performsthebest jobto
meet themaintenance requirements onyour
vehicle.
GUID-B5 6933A5-9FB0 -4EF0-9C66-D5A1231C0 588
During thenormal day-to-day operationofthe
vehicle, generalmaintenance shouldbeper-
formed regularly asprescribed inthis section. If
you detect anyunusual sounds, vibrations or
smell, besure tocheck forthe cause orhave a
NISSAN dealerdoitpromptly .In addition, you
should notifyaNISSAN dealerifyou think that
repairs arerequired.
When performing anychecks ormaintenance
work, seeªMaintenance precautionsº(P.8-5) .
EXPLANA TIONOFMAINTEN ANCE
ITEMS
GUID-87019D A8-A907-41B0-8B95- 6248ACACE5 9B
Additional information onthe following
items withª*ºisfound laterinthis section.
Outside thevehicle
GUID-FAF E9F42-4CDC-4F7F-AD 9D-4E5B63D18CFE
The maintenance itemslistedhereshould be
performed fromtimetotime, unless otherwise
specified.
Doors andengine hood:Check thatalldoors
and theengine hoodoperate properly.Also
ensure thatalllatches locksecurely .Lubricate
hinges, latches, latchpins,rollers andlinks if
necessary .Make surethatthesecondary latch
keeps thehood fromopening whentheprimary
latch isreleased.
When driving inareas usingroadsaltorother
corrosive materials, checklubrication frequently.
MAINTENAN CEREQUIREME NT GENERALMAINTENANCE
&RQGLWLRQ


> (GLW   0RGHO )'@
Lights*: Cleantheheadlights onaregular basis.
Make surethattheheadlights, stoplights, tail
lights, turnsignal lights, andother lights areall
operating properlyandinstalled securely.Also
check headlight aim.
Road wheel nuts(lugnuts)*: Whenchecking
the tires, make surenowheel nutsaremissing,
and check forany loose wheel nuts.Tighten if
necessary .
Tire rotation*: Tiresshould berotated every
5,000 miles(8,000 km).
Tires*: Checkthepressure withagauge often
and always priortolong distance trips.If
necessary ,adjust thepressure inall tires,
including thespare, tothe pressure specified.
Check carefully fordamage, cutsorexcessive
wear.
Tire Pressure Monitoring System(TPMS)
transmitter components: ReplacetheTPMS
transmitter grommetseal,valve coreandcap
when thetires arereplaced duetowear orage.
Wheel alignment andbalance: Ifthe vehicle
should pulltoeither sidewhile driving ona
straight andlevel road, orifyou detect uneven or
abnormal tirewear, theremaybeaneed for
wheel alignment.
If the steering wheelorseat vibrates atnormal
highway speeds,wheelbalancing maybe
needed. For
additional information regardingtires,refer
to ªImportant TireSafety Informationº (US)or
ªTire Safety Informationº (Canada)inthe War-
ranty Information Booklet.
Windshield: Cleanthewindshield onaregular
basis. Check thewindshield atleast every six
months forcracks orother damage. Havea
damaged windshield repairedbyaqualified
repair facility.
Windshield wiperblades*: Checkforcracks
or wear ifthey donot wipe properly .
Inside thevehicle
GUID-91 3C1231-5D 46-4E18-A23 4-394D01EAA769
The maintenance itemslistedhereshould be
checked onaregular basis,suchaswhen
performing scheduledmaintenance, cleaning
the vehicle, etc.
Accelerator pedal:Checkthepedal for
smooth operation andmake surethepedal
does notcatch orrequire uneven effort.Keep
the floor mataway fromthepedal.
Brake pedal: Checkthepedal forsmooth
operation. Ifthe brake pedalsuddenly goes
down further thannormal, thepedal feels
spongy orthe vehicle seemstotake longer to
stop, seeaNISSAN dealerimmediately .Keep
the floor mataway fromthepedal.
Brakes: Checkthatthebrakes donot pull the
vehicle toone side when applied. Continuously
Variable Transmission (CVT)
P (Park) position mechanism: Onafairly
steep hill,check thatthevehicle isheld securely
with theshift lever inthe P(Park) position
without applying anybrakes.
Parking brake:Checktheparking brake
operation regularly.The vehicle shouldbe
securely heldonafairly steep hillwith onlythe
parking brakeapplied. Ifthe parking brakeneeds
adjusted, seeaNISSAN dealer.
Seat belts: Check thatallparts ofthe seat belt
system (forexample, buckles,anchors, adjusters
and retractors) operateproperly andsmoothly ,
and areinstalled securely.Check thebelt
webbing forcuts, fraying, wearordamage.
Seats: Checkseatposition controls suchas
seat adjusters, seatbackrecliners,etc.toensure
they operate smoothly andthat alllatches lock
securely inevery position. Checkthatthehead
restraints moveupand down smoothly andthat
the locks (ifso equipped) holdsecurely inall
latched positions.
Steering wheel:Checkforchanges inthe
steering conditions, suchasexcessive freeplay,
hard steering orstrange noises.
Warning lightsandchimes: Makesurethat
all warning lightsandchimes areoperating
properly .
Maintena nceand do-it-yo urself
8-3
&RQGLWLRQ


> (GLW   0RGHO )'@
8-4
Maintenan ceand do-it-you rself

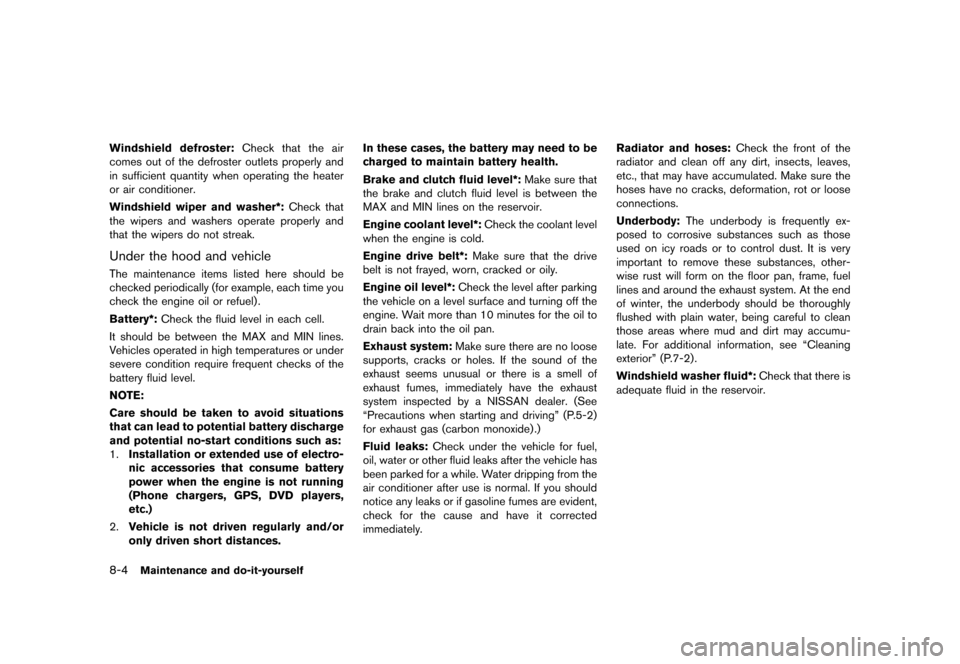

Windshield defroster:Checkthattheair
comes outofthe defroster outletsproperly and
in sufficient quantitywhenoperating theheater
or air conditioner.
Windshield wiperandwasher*: Checkthat
the wipers andwashers operateproperly and
that thewipers donot streak.
Under thehood andvehicle
GUID-597 AB0E2-6F94-48AA-BE D6-41A6FA4A8B49
The maintenance itemslistedhereshould be
checked periodically (forexample, eachtimeyou
check theengine oilorrefuel) .
Battery*: Checkthefluid level ineach cell.
It should bebetween theMAX andMIN lines.
V ehicles operated inhigh temperatures orunder
severe condition requirefrequent checksofthe
battery fluidlevel.
NO TE:
Care should betaken toavoid situations
that canlead topotential batterydischarge
and potential no-startconditions suchas:
1. Installation orextended useofelectro-
nic accessories thatconsume battery
power whentheengine isnot running
(Phone chargers, GPS,DVDplayers,
etc .)
2. Vehicle isnot driven regularly and/or
only driven shortdistances. In
these cases, thebattery mayneed tobe
charged tomaintain batteryhealth.
Brake andclutch fluidlevel*: Makesurethat
the brake andclutch fluidlevel isbetween the
MAX andMIN lines onthe reservoir.
Engine coolant level*:Checkthecoolant level
when theengine iscold.
Engine drivebelt*: Makesurethatthedrive
belt isnot frayed, worn,cracked oroily .
Engine oillevel*: Checkthelevel afterparking
the vehicle onalevel surface andturning offthe
engine. Wait more than10minutes forthe oilto
drain backintotheoilpan.
Exhaust system:Makesurethere arenoloose
supports, cracksorholes. Ifthe sound ofthe
exhaust seemsunusual orthere isasmell of
exhaust fumes,immediately havetheexhaust
system inspected byaNISSAN dealer.(See
ªPrecautions whenstarting anddrivingº (P.5-2)
for exhaust gas(carbon monoxide) .)
Fluid leaks: Checkunderthevehicle forfuel,
oil, water orother fluidleaks afterthevehicle has
been parked forawhile. Water dripping fromthe
air conditioner afteruseisnormal. Ifyou should
notice anyleaks orifgasoline fumesareevident,
check forthe cause andhave itcorrected
immediately . Radiator
andhoses: Checkthefront ofthe
radiator andclean offany dirt, insects, leaves,
etc., thatmay have accumulated. Makesurethe
hoses havenocracks, deformation, rotorloose
connections.
Underbody: Theunderbody isfrequently ex-
posed tocorrosive substances suchasthose
used onicy roads ortocontrol dust.Itis very
important toremove thesesubstances, other-
wise rustwillform onthe floor pan,frame, fuel
lines andaround theexhaust system.Atthe end
of winter, theunderbody shouldbethoroughly
flushed withplain water, beingcareful toclean
those areaswhere mudanddirtmay accumu-
late. Foradditional information, seeªCleaning
exteriorº (P.7-2) .
Windshield washerfluid*:Checkthatthere is
adequate fluidinthe reservoir.
&RQGLWLRQ
