2015 NISSAN JUKE Owners Manual


> (GLW   0RGHO )'@
Ð CDs thatarenot round
Ð CDs with apaper label
Ð CDs thatarewarped, scratched, or
have abnormal edges
. This audio system canonly playpre-
recorded CDs.Ithas nocapabilities to
record orburn CDs.
. Ifthe CDcannot beplayed, error
messages asthe following examples
will bedisplayed.
Check Disc:
Ð Confirm thattheCDisinserted
correctly (thelabel sideisfacing
up, etc.).
Ð Confirm thattheCDisnot bent or
warped anditis free ofscratches.
Push Eject:
This isan error duetothe temperature
inside theplayer istoo high. Remove
the CDbypushing theEJECT button,
and after ashort timereinsert theCD.
The CDcan beplayed whenthetem-
perature ofthe player returns tonor-
mal.
Unplayable Track:
The fileisunplayable inthis audio
system (onlyMP3orWMA CD).
USB (Universal SerialBus)Connection
P ort
GUID-AE 871D1B-37D8 -4EF8-B321-689D7D95CD8C
WARNING
Do not connect, disconnect oroperate
the USB device whiledriving. Doingso
can beadistraction. Ifdistracted you
could losecontrol ofyour vehicle and
cause anaccident orserious injury.
CAUTION
. Donot force theUSB device intothe
USB port. Inserting theUSB device
tilted orup-side-down intotheport
may damage theport. Make sure
that theUSB device isconnected
correctly intotheUSB port.
. Do not grab theUSB portcover (if
so equipped) whenpulling theUSB
device outofthe port. Thiscould
damage theport andthecover.
. Do not leave theUSB cable ina
place where itcan bepulled unin-
tentionally. Pullingthecable may
damage theport. The
vehicle isnot equipped withaUSB device.
USB devices shouldbepurchased separately
as necessary .
This system cannotbeused toformat USB
devices. To format aUSB device, useapersonal
computer.
In some states/area, theUSB device forthe
front seats playsonlysound without imagesfor
regulatory reasons,evenwhen thevehicle is
parked.
This system supports variousUSBmemory
devices, USBharddrives andiPod


> (GLW   0RGHO )'@
4-36
Heater, airconditione r,audio andphone systems
Notes foriPod


> (GLW   0RGHO )'@
SAA1025

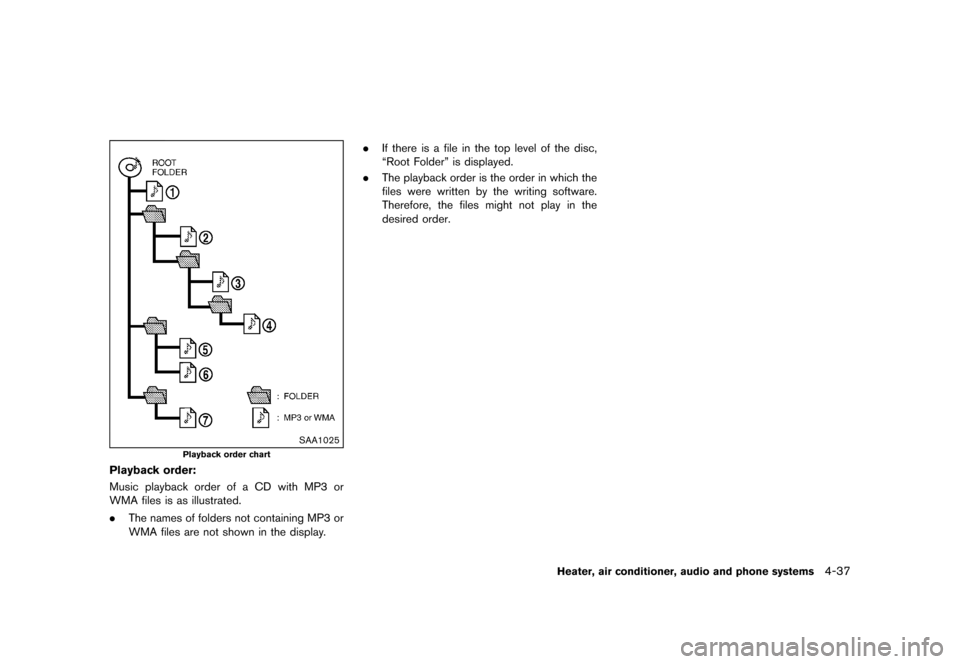

Playback orderchart
Playback order:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Music playback orderofaCD with MP3 or
WMA filesisas illustrated.
. The names offolders notcontaining MP3or
WMA filesarenot shown inthe display . .
Ifthere isafile inthe top level ofthe disc,
ªRoot Folderº isdisplayed.
. The playback orderisthe order inwhich the
files were written bythe writing software.
Therefore, thefiles might notplay inthe
desired order.
Heater, airconditione r,audio andphone systems
4-37
&RQGLWLRQ


> (GLW   0RGHO )'@
4-38
Heater, airconditione r,audio andphone systems
Specification chart(formodels without navigation system):
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Supported media CD,
CD-R, CD-RW ,USB2.0
Supported filesystems CD,
CD-R, CD-RW: ISO9660 LEVEL1,ISO9660 LEVEL2,Romeo,Joliet
* ISO9660 Level3(packet writing)isnot supported.
* Files saved usingtheLive FileSystem component (onaWindows Vista-based computer)are
not supported.
USB memory: FA T16, FA T32
Supported versions*1 MP3
V
ersion MPEG1
AudioLayer3
Sampling frequency 32
kHz -48 kHz
Bit rate 32
kbps -320 kbps, VBR*4
WMA*2 V
ersion WMA7,
WMA8,WMA9
Sampling frequency 32
kHz -48 kHz
Bit rate 32
kbps -192 kbps, VBR4, 32kbps -320 kbps (WMA9 only)
T ag information (Songtitleand Artist name) ID3
tagVER1.0, VER1.1, VER2.2,VER2.3,VER2.4(MP3only)
WMA tag(WMA only)
Folder levels CD,
CD-R, CD-RW Folderlevels:8,Folders: 255,Files: 999(Max. 255filesforone folder)
USB Folder
levels:8,Folders 255,Files: 2500 (Max.255filesforone folder)
Memory size:4GB
Displayable charactercodes*3 01:
ASCII, 02:ISO-8859-1, 03:UNICODE (UTF-16BOMBigEndian) ,04: UNICODE (UTF-16
Non-BOM BigEndian) ,05: UNICODE (UTF-8)
*1 Filescreated withacombination of48 kHz sampling frequency and64kbps bitrate cannot beplayed.
*2 Protected WMAfiles(DRM) cannot beplayed.
*3 Available codesdepend onwhat kindofmedia, versions andinformation aregoing tobe displayed.
*4 When VBRfilesareplayed, theplayback timemaynotbedisplayed correctly.
&RQGLWLRQ


> (GLW   0RGHO )'@
Specification chart(formodels withnavigation system):
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Supported media CD,
CD-R, CD-RW
Supported filesystems ISO9660
LEVEL1,ISO9660 LEVEL2,AppleISO,Romeo, Joliet*ISO9660 Level3(packet writing) isnot
supported.
Supported
versions*1 MP3
V
ersion MPEG1,
MPEG2,MPEG2.5
Sampling frequency 8
kHz -48 kHz
Bit rate 8
kbps -320 kbps, VBR
WMA*2 V
ersion WMA7,
WMA8,WMA9
Sampling frequency 32
kHz -48 kHz
Bit rate 48
kbps -192 kbps, VBR
T ag information ID3
tagVER1.0, VER1.1,VER2.2,VER2.3(MP3only)
Folder levels Folder
levels:8,Max folders: 255(including rootfolder) ,Files: 512(Max. 255filesforone folder)
T ext character numberlimitation 128
characters
Displayable charactercodes*2 01:
ASCII, 02:ISO-8859-1, 03:UNICODE (UTF-16BOMBigEndian) ,04: UNICODE (UTF-16Non-BOM Big
Endian) ,05: UNICODE (UTF-8),06: UNICODE (Non-UTF-16 BOMLittleEndian)
*1 Filescreated withacombination of48 kHz sampling frequency and64kbps bitrate cannot beplayed.
*2 Available codesdepend onwhat kindofmedia, versions andinformation aregoing tobe displayed.
Heater, airconditione r,audio andphone systems
4-39
&RQGLWLRQ


> (GLW   0RGHO )'@
4-40
Heater, airconditione r,audio andphone systems
T roubleshooting guide:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Symptom Cause
andCountermeasure
Cannot play Check
ifthe disc orUSB device wasinserted correctly.
Check ifthe disc isscratched ordirty .
Check ifthere iscondensation insidetheplayer. Ifthere is,wait until thecondensation isgone (about 1hour) before usingtheplayer.
If there isatemperature increaseerror,theCD player willplay correctly afteritreturns tothe normal temperature.
If there isamixture ofmusic CDfiles (CD-DA data)andMP3/WMA filesonaCD, only themusic CDfiles (CD-DA data)willbe
played.
Files withextensions otherthanª.MP3º ,ª.WMA º, ª.mp3º orª.wmaº cannotbeplayed. Inaddition, thecharacter codesandnumber of
characters forfolder names andfilenames should beincompliance withthespecifications.
Check ifthe finalization process,suchassession closeanddisc close, isdone forthe disc.
Check ifthe disc orUSB device isprotected bycopyright.
P oor sound quality Check
ifthe disc isscratched ordirty .
Bit rate may betoo low.
It takes arelatively longtimebefore
the music startsplaying. If
there aremany folders orfile levels onthe MP3/WMA disc,orifit is amultisession disc,orUSB device, sometimemayberequired
before themusic startsplaying.
Music cutsofforskips The
writing software andhardware combination mightnotmatch, orthe writing speed, writingdepth,writing width,etc.,might not
match thespecifications. Try using theslowest writingspeed.
Skipping withhigh bitrate files Skipping
mayoccur withlarge quantities ofdata, suchasfor high bitrate data.
Move immediately tothe next song
when playing When
anon-MP3/WMA filehas been given anextension ofª.MP3º ,ª.WMA º, .ªmp3º orª.wmaº ,or when playisprohibited by
copyright protection, therewillbeapproximately 5seconds ofno sound andthen theplayer willskip tothe next song.
Songs donot play back inthe
desired order The
playback orderisthe order inwhich thefiles were written bythe writing software. Therefore, thefiles might notplay inthe desired
order.
&RQGLWLRQ


> (GLW   0RGHO )'@
Bluetooth


> (GLW   0RGHO )'@
4-42
Heater, airconditione r,audio andphone systems
JVH0866X
1. DISP (display) button
2. MEDIA button
3. CDeject button
4. FM´AM button
5. CDbutton
6. Color display
7. Apps button 8.
SEEK TRACK (rewind) button
9. Radio SCAN tuningbutton
10. SEEK TRACK (forward) button
11. BACK button
12. Power button/VOL (volume)controlknob
13. RPT(repeat) playbutton
14. RDM (random) playbutton 15.
Radio station presetselectbuttons
16. TUNE´FOLDER knob
17. ENTER/SETTING button
FM-AM RADIOWITHCOMP ACTDISC
(CD) PLAYER (ifso equipped)
GUID-6DCAF DD0-A600-4480-AA2 2-B476B499 161B
Audio mainoperation
GUID-43F0A3 8C-D866-41B3-B8ED-B236DBF90316
Head unit:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
The auto loudness circuitenhances thelow and
high frequency rangesautomatically .
Power button/VOL (volume)control
knob:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Push thePower button/VOL (volume)control
knob toturn onand offthe audio system.
T urn thePower button/VOL (volume)control
knob toadjust thevolume.
Audio settings:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
The settings screenwillappear whenthe
ENTER/SETTING buttonispushed.
The following itemsareavailable inthe settings
screen.
. Bluetooth
It is possible toset the Bluetooth
