2015 NISSAN JUKE Owners Manual


> (GLW   0RGHO )'@
SDI1606
Example
*
1
Tire size (example: P215/60R16 94H)
1. P:The ªPºindicates thetireisdesigned
for passenger vehicles.(Notalltires
have thisinformation.)
2. Three-digit number(215):Thisnumber
gives thewidth inmillimeters ofthe tire
from sidewall edgetosidewall edge.
3. Two-digit number(60):Thisnumber,
known asthe aspect ratio,gives the
tire's ratioofheight towidth.
4. R:The ªRºstands forradial. 5.
Two-digit number(16):Thisnumber is
the wheel orrim diameter ininches.
6. Two- orthree-digit number(94):This
number isthe tire's loadindex. Itis a
measurement ofhow much weight each
tire can support. You may notfind this
information onalltires because itis not
required bylaw .
7. H: Tire speed rating.You should not
drive thevehicle fasterthanthetire
speed rating.
SDI1607
Example
*
2
TIN (Tire Identification Number)fora
new tire(example: DOTXX XX XXX XXXX)
1. DOT: Abbreviation forthe ªDepartment
of Transportationº .The symbol canbe
placed above,belowortothe leftor
right ofthe Tire Identification Number.
2. Two-digit code:Manufacturer's identifi-
cation mark
3. Two-digit code:Tiresize
4. Three-digit code:Tiretype code (Op-
tional)
Maintenance anddo-it-yo urself
8-37
&RQGLWLRQ


> (GLW   0RGHO )'@

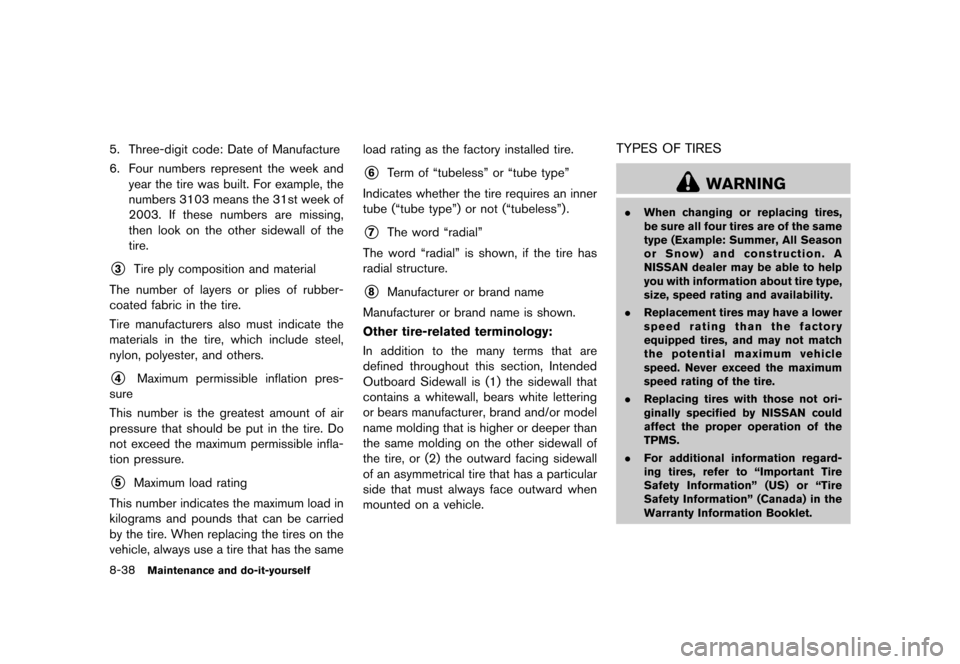

8-38
Maintenance anddo-it-yours elf
5. Three-digit code:DateofManufacture
6. Four numbers represent theweek and
year thetirewas built. Forexample, the
numbers 3103means the31st week of
2003. Ifthese numbers aremissing,
then lookonthe other sidewall ofthe
tire.
*
3
Tire plycomposition andmaterial
The number oflayers orplies ofrubber-
coated fabricinthe tire.
Tire manufacturers alsomust indicate the
materials inthe tire, which include steel,
nylon, polyester, andothers.
*
4
Maximum permissible inflationpres-
sure
This number isthe greatest amountofair
pressure thatshould beput inthe tire. Do
not exceed themaximum permissible infla-
tion pressure.
*
5
Maximum loadrating
This number indicates themaximum loadin
kilograms andpounds thatcanbecarried
by the tire. When replacing thetires onthe
vehicle, alwaysuseatire that hasthesame load
rating asthe factory installed tire.
*
6
T erm ofªtubelessº orªtube typeº
Indicates whetherthetirerequires aninner
tube (ªtube typeº)ornot (ªtubelessº) .
*
7
The word ªradialº
The word ªradialº isshown, ifthe tire has
radial structure.
*
8
Manufacturer orbrand name
Manufacturer orbrand nameisshown.
Other tire-related terminology:
In addition tothe many terms thatare
defined throughout thissection, Intended
Outboard Sidewallis(1) the sidewall that
contains awhitewall, bearswhitelettering
or bears manufacturer, brandand/or model
name molding thatishigher ordeeper than
the same molding onthe other sidewall of
the tire, or(2) the outward facingsidewall
of an asymmetrical tirethat hasaparticular
side thatmust always faceoutward when
mounted onavehicle.
TYPES OFTIRES
GUID-14B1 EE5B-969F-4D 42-8FEC-234497556FC 0
WARNING
. When changing orreplacing tires,
be sure allfour tires areofthe same
type (Example: Summer,AllSeason
or Snow) andconstruction. A
NISSAN dealermaybeable tohelp
you with information abouttiretype,
size, speed ratingandavailability.
. Replacement tiresmayhave alower
speed ratingthanthefactory
equipped tires,andmay notmatch
the potential maximum vehicle
speed. Neverexceed themaximum
speed ratingofthe tire.
. Replacing tireswiththose notori-
ginally specified byNISSAN could
affect theproper operation ofthe
TPMS.
. For additional information regard-
ing tires, refertoªImportant Tire
Safety Informationº (US)orªTire
Safety Informationº (Canada)inthe
Warranty Information Booklet.
&RQGLWLRQ


> (GLW   0RGHO )'@
All season tires
GUID-41 6D8104-CC7 B-46FA-B4CA-B53 7AF5AE9CE
NISSAN specifies allseason tiresonsome
models toprovide goodperformance allyear,
including snowyandicyroad conditions. All
Season tiresareidentified byALL SEASON
and/or M&S(Mud andSnow) onthe tire
sidewall. Snowtireshave better snowtraction
than AllSeason tiresandmay bemore appro-
priate insome areas.
Summer tires
GUID-07 88A270-69FF -49A1-ACEC- 39C92FC91344
NISSAN specifies summertiresonsome
models toprovide superior performance ondry
roads. Summer tireperformance issubstantially
reduced insnow andice.Summer tiresdonot
have thetire traction ratingM&Sonthe tire
sidewall.
If you plan tooperate yourvehicle insnowy or
icy conditions, NISSANrecommends theuse of
SNOW tiresorALL SEASON tiresonallfour
wheels.
Snow tires
GUID-7DBD9 178-687B-4889-BA79 -417F594D0 842
If snow tiresareneeded, itis necessary toselect
tires equivalent insize andload rating tothe
original equipment tires.Ifyou donot, itcan
adversely affectthesafety andhandling ofyour
vehicle.
Generally ,snow tireswillhave lower speed
ratings thanfactory equipped tiresandmay not match
thepotential maximum vehiclespeed.
Never exceed themaximum speedratingofthe
tire.
If you install snowtires,theymust bethe same
size, brand, construction andtread pattern onall
four wheels.
For additional tractiononicy roads, studded
tires maybeused. However, someU.S.states
and Canadian provinces prohibittheiruse.
Check local,stateandprovincial lawsbefore
installing studdedtires.Skidandtraction cap-
abilities ofstudded snowtires,onwet ordry
surfaces, maybepoorer thanthatofnon-
studded snowtires.
TIRE CHAINS
GUID-74 141916-76 68-4C78-8B 9E-6B18B49D3DE7
Use oftire chains maybeprohibited according
to location. Checkthelocal lawsbefore instal-
ling tirechains. Wheninstalling tirechains, make
sure theyarethe proper sizeforthe tires onyour
vehicle andareinstalled according tothe chain
manufacturer's suggestions.Useonly SAE
Class Schains. ClassªSºchains areused on
vehicles withrestricted tiretovehicle clearance.
V ehicles thatcanuseClass ªSºchains are
designed tomeet theSAE standard minimum
clearances betweenthetireand theclosest
vehicle suspension orbody component required
to accommodate theuse ofawinter traction
device (tirechains orcables) .The minimum clearances
aredetermined usingthefactory
equipped tiresize. Other typesmaydamage
your vehicle. Usechain tensioners whenre-
commended bythe tirechain manufacturer to
ensure atight fit.Loose endlinks ofthe tire
chain mustbesecured orremoved toprevent
the possibility ofwhipping actiondamage tothe
fenders orunderbody .If possible, avoidfully
loading yourvehicle whenusingtirechains. In
addition, driveatareduced speed.Otherwise,
your vehicle maybedamaged and/orvehicle
handling andperformance maybeadversely
affected.
Tire chains mustbeinstalled onlyonthe
front wheels andnotonthe rear wheels.
Never installtirechains onaTEMPORAR YUSE
ONL Yspare tire.
Do not use tirechains ondry roads. Driving with
tire chains insuch conditions cancause damage
to the various mechanisms ofthe vehicle dueto
some overstress.
Maintenance anddo-it-yo urself
8-39
&RQGLWLRQ


> (GLW   0RGHO )'@
8-40
Maintenance anddo-it-yours elf
SDI1662
CHANGING WHEELSANDTIRES
GUID-41BC 763C-419B-45A4-AD0 E-D41987D9B9CC
Tire rotation
GUID-F 5986E33-082B -45E2-BD27-0D11FB4C 108F
NISSAN recommends rotatingthetires
every 5,000 miles(8,000 km).(See ªFlat
tireº (P.6-3) fortire replacing procedures.)
As soon aspossible, tightenthewheel
nuts tothe specified torquewitha
torque wrench.
Wheel nuttightening torque:
80 ft-lb (108 N´m) The
wheel nutsmust bekept tigh-
tened tothe specification atall times.
It is recommended thatwheel nutsbe
tightened tothe specification ateach
tire rotation interval.
WARNING
.
After rotating thetires, check
and adjust thetire pressure.
.
Retighten thewheel nutswhen
the vehicle hasbeen driven for
600 miles (1,000 km)(also in
cases ofaflat tire, etc.).
.
Do not include thespare tireor
any other small sizespare tirein
the tire rotation.
.
For additional information re-
garding tires,refertoªImportant
Tire Safety Informationº (US)or
ªTire Safety Informationº (Cana-
da) inthe Warranty Information
Booklet.
SDI1663
1. Wear indicator
2. Wear indicator locationmark
Tire wear anddamage
GUID-31749D 32-974E-4A82-89B7-A06D0BF3E07F
WARNING
.
Tires should beperiodically in-
spected forwear, cracking, bul-
ging orobjects caughtinthe
tread. Ifexcessive wear,cracks,
bulging ordeep cutsarefound,
the tire(s) should bereplaced.
.
The original tireshave built-in
tread wearindicators. When
&RQGLWLRQ


> (GLW   0RGHO )'@
wear indicators arevisible, the
tire(s) should bereplaced.
.
Tires degrade withageand use.
Have tires,including thespare,
over 6years oldchecked bya
qualified technician, because
some tiredamage maynotbe
obvious. Replacethetires as
necessary toprevent tirefailure
and possible personal injury.
.
Improper serviceofthe spare
tire may result inserious perso-
nal injury. Ifitis necessary to
repair thespare tire,contact a
NISSAN dealer.
.
For additional information re-
garding tires,refertoªImportant
Tire Safety Informationº (US)or
ªTire Safety Informationº (Cana-
da) inthe Warranty Information
Booklet.
Replacing wheelsandtires
GUID-230 95086-9B18-4 E25-B69C-85FAB59BB 518
When replacing atire, usethesame size,tread
design, speedratingandload carrying capacity
as originally equipped. (SeeªSpecificationsº
(P .9-8) forrecommended typesandsizes of
tires andwheels.)
WARNING
. The useoftires other thanthose
recommended orthe mixed useof
tires ofdifferent brands,construc-
tion (bias, bias-belted orradial) ,or
tread patterns canadversely affect
the ride, braking, handling, ground
clearance, body-to-tire clearance,
tire chain clearance, speedometer
calibration, headlightaimand bum-
per height. Someofthese effects
may lead toaccidents andcould
result inserious personal injury.
. For Two-Wheel Drive(2WD) models,
if your vehicle wasoriginally
equipped with4tires thatwere the
same sizeandyouareonly repla-
cing 2of the 4tires, install thenew
tires onthe rear axle. Placing new
tires onthe front axlemay cause
loss ofvehicle control insome driving
conditions andcause an
accident andpersonal injury.
. Ifthe wheels arechanged forany
reason, alwaysreplace withwheels
which havethesame off-set dimen-
sion. Wheels ofadifferent off-set
could cause premature tirewear,
degrade vehiclehandling character-
istic sand/or interference withthe
brake discs/drums. Suchinterfer-
ence canlead todecreased braking
efficiency and/orearlybrake pad/
shoe wear. SeeªWheels andtiresº
(P .9-9) ofthis manual forwheel off-
set dimensions.
. When aspare tireismounted ora
wheel isreplaced, theTPMS willnot
function andthelow tirepressure
warning lightwillflash forapproxi-
mately 1minute. Thelight will
remain onafter 1minute. Contact
your NISSAN dealerassoon as
possible fortire replacement and/
or system resetting.
. Replacing tireswiththose notori-
ginally specified byNISSAN could
affect theproper operation ofthe
TPMS.
Maintenance anddo-it-yo urself
8-41
&RQGLWLRQ


> (GLW   0RGHO )'@
8-42
Maintenance anddo-it-yours elf
. Do not install adamaged orde-
formed wheelortire even ifithas
been repaired. Suchwheels ortires
could havestructural damageand
could failwithout warning.
. The useofretread tireisnot re-
commended.
. For additional information regard-
ing tires, refertoªImportant Tire
Safety Informationº (US)orªTire
Safety Informationº (Canada)inthe
Warranty Information Booklet.
All-Wheel Drive(AWD) models
GUID-98BA F2A8-B68B-4B03-94 73-BDE7F96 77004
CAUTION
. Always usetires ofthe same size,
brand, construction (bias,bias-
belted orradial) ,and tread pattern
on allfour wheels. Failuretodo so
may result inacircumference differ-
ence between tiresonthe front and
rear axles which willcause exces-
sive tirewear andmay damage the
transmission, transfercaseandrear
differential gears. .
Only usespare tiresspecified for
each AWD model.
If excessive tirewear isfound, itis recom-
mended thatallfour tires bereplaced withtires
of the same size,brand, construction andtread
pattern. Thetirepressure andwheel alignment
should alsobechecked andcorrected as
necessary .Contact aNISSAN dealer.
Wheel balance
GUID-89D C94BE-30B 6-4D4F-83D4 -7CDA2484D5 D9
Unbalanced wheelsmayaffect vehicle handling
and tirelife. Even withregular use,wheels can
get outofbalance. Therefore, theyshould be
balanced asrequired.
Wheel balance serviceshouldbeper-
formed withthewheels offthe vehicle.
Spin balancing thewheels onthe vehicle
could leadtomechanical damage.
For additional information regardingtires,refer
to ªImportant TireSafety Informationº (US)or
ªTire Safety Informationº (Canada)inthe War-
ranty Information Booklet.
Care ofwheels
GUID-22 21D553-79 8A-4070-BF97-2228C8 0D3EF8
See ªCleaning exteriorº(P.7-2) fordetails about
care ofthe wheels.
Spare tire
GUID-45 B66525-EAC 8-4147-B096-8 F8081E1C4C1
When aspare tireismounted (TEMPORAR Y
USE ONLY),the TPMS willnotfunction.
Observe thefollowing precautions ifthe TEM-
PORAR YUSE ONLYspare tiremust beused,
otherwise yourvehicle couldbedamaged or
involved inan accident.
WARNING
. The TEMPORAR YUSE ONLYspare
tire should beused foremergency
use. Itshould bereplaced withthe
standard tireatthe first opportunity
to avoid possible tireordifferential
damage.
. Drive carefully whiletheTEMPOR-
AR YUSE ONLYspare tireisin-
stalled. Avoidsharpturnsand
abrupt braking whiledriving.
. Periodically checksparetireinfla-
tion pressure. Alwayskeepthe
pressure ofthe TEMPORAR YUSE
ONL Yspare tireat60 psi (420 kPa,
4.2 bar) .
&RQGLWLRQ


> (GLW   0RGHO )'@
. With theTEMPORAR YUSE ONLY
spare tireinstalled donot drive your
vehicle atspeeds fasterthan50
MPH (80km/h) .
. When driving onroads covered with
snow orice, theTEMPORAR YUSE
ONL Yspare tireshould beused on
the rear wheels andoriginal tire
used onthe front wheels (drive
wheels) .Use tirechains onlyon
the front (original) tires.
. Tire tread ofthe TEMPORAR YUSE
ONL Yspare tirewill wear atafaster
rate than thestandard tire.Replace
the spare tireassoon asthe tread
wear indicators appear.
. Do not use thespare tireonother
vehicles.
. Donot use more thanonespare tire
at the same time.
CAUTION
. Do not use tirechains onaTEM-
PORAR YUSE ONLYspare tire.Tire
chains willnotfitproperly andmay
cause damage tothe vehicle. .
Because theTEMPORAR YUSE
ONL Yspare tireissmaller thanthe
original tire,ground clearance is
reduced. To avoid damage tothe
vehicle, donot drive overobstacles.
Also donot drive thevehicle
through anautomatic carwash
since itmay getcaught.
Maintenance anddo-it-yo urself
8-43
&RQGLWLRQ


> (GLW   0RGHO )'@

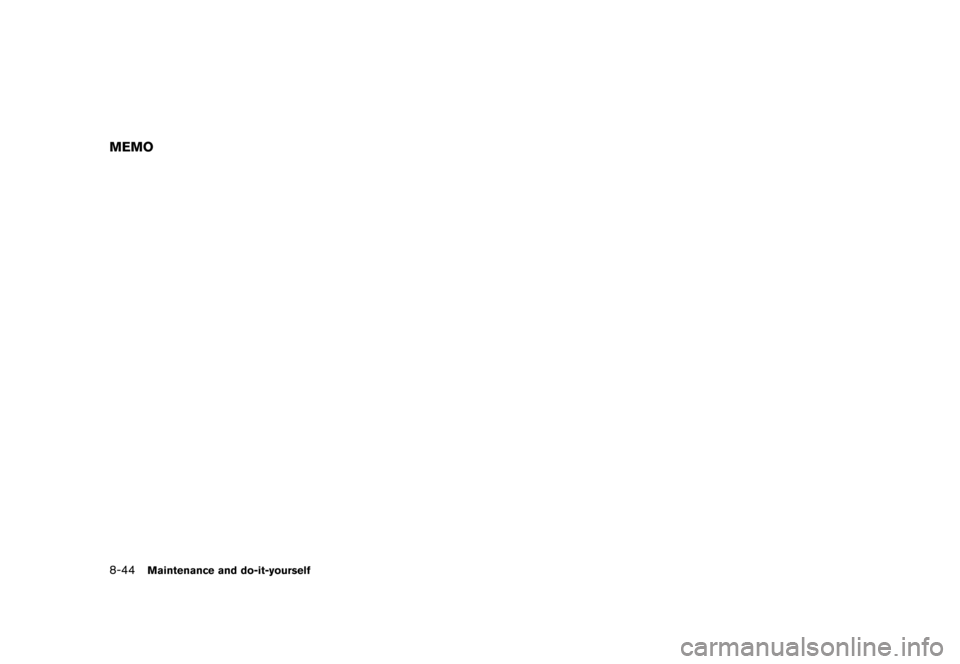

8-44
Maintenance anddo-it-yours elf
MEMO
&RQGLWLRQ
