2015 NISSAN JUKE Owners Manual


> (GLW   0RGHO )'@
TROUBLESH OOTING GUIDE
GUID-FD 003181-72 3A-472E-84F 6-40154676082B
Symptom Possible cause Action
totake
When pushing theignition switch
to stop theengine The
Pposition selecting warninglightinthe
meter illuminates andtheinside warning chime
sounds continuously (Continuously Variable
T ransmission models). The
shift lever isnot inthe P(Park)
position. Shift
theshift lever tothe P(Park) position.
When shifting theshift lever tothe
P (Park) position. The
inside warning chimesounds continuously
(Continuously Variable Transmission models).The
ignition switchisin the ACC orON
position. Push
theignition switchtothe OFF posi-
tion.
When opening thedriver's door
to get outofthe vehicle The
inside warning chimesounds continuously .The
ignition switchisin the ACC
position. Push
theignition switchtothe OFF posi-
tion.
When closing thedoor afterget-
ting outofthe vehicle The
Intelligent Key system warning lightinthe
meter blinks inyellow ,and theoutside chime
sounds 3times andtheinside warning chime
sounds forafew seconds. The
ignition switchisin the ACC orON
position. Push
theignition switchtothe OFF posi-
tion.
The Pposition selecting warninglightinthe
meter illuminates andtheoutside chime
sounds continuously (Continuously Variable
T ransmission models). The
ignition switchisin the ACC orOFF
position andtheshift lever isnot inthe P
(Park) position. Move
theshift lever tothe P(Park) position
and push theignition switchtothe OFF
position.
When closing thedoor withthe
inside lockknob turned toLOCK The
outside chimesounds forafew seconds
and allthe doors unlock. The
Intelligent Key isinside thevehicle. Carry
theIntelligent Key with you.
When pushing therequest switch
or the LOCK
button onthe
Intelligent Key tolock thedoor The
outside chimesounds forafew seconds. The
Intelligent Key isinside thevehicle. Carry
theIntelligent Key with you.
A door isnot closed securely . Close
thedoor securely .
When pushing theignition switch
to start theengine The
Intelligent Key system warning lightinthe
meter blinks ingreen. The
battery charge islow . Replace
thebattery withanew one. (See
ªIntelligent Key battery replacementº (P.8-
23) .)
The Intelligent Key system warning lightinthe
meter blinks inyellow andtheinside warning
chime sounds forafew seconds. The
Intelligent Key isnot inthe vehicle. Carry
theIntelligent Key with you.
When pushing theignition switch The
Intelligent Key system warning lightinthe
meter illuminates inyellow . It
warns ofamalfunction withthe
Intelligent Key system. Contact
aNISSAN dealer.
Pre-d riving checks andadjustments
3-11
&RQGLWLRQ


> (GLW   0RGHO )'@
3-12
Pre-driving checksandadjustment s
HOW TO USE REMO TEKEYLESS
ENTR YFUNCTION
GUID-CF76A 4ED-43D7-44C7-A605-B A799B1A10EE
WARNING
. Radio waves couldadversely affect
electric medical equipment. Those
who useapacemaker shouldcon-
tact theelectric medical equipment
manufacturer forthe possible influ-
ences before use.
. The Intelligent Keytransmits radio
waves whenthebuttons are
pushed. TheFAAadvises thatthe
radio waves mayaffect aircraft na-
vigation andcommunication sys-
tems. Donot operate the
Intelligent Keywhile onanairplane.
Make surethebuttons arenot
operated unintentionally whenthe
unit isstored during aflight.
CAUTION
. Do not allow theIntelligent Key,
which contains electrical compo-
nents, tocome intocontact with
water orsalt water. Thiscould affect the
system function.
. Do not drop theIntelligent Key.
. Do not strike theIntelligent Key
sharply against another object.
. Do not change ormodify theIntel-
ligent Key.
. Wetting maydamage theIntelligent
Key. Ifthe Intelligent Keygets wet,
immediately wipeuntilitis comple-
tely dry.
. Ifthe outside temperature isbelow
148F (-108C) degrees, thebattery of
the intelligent keymay notfunction
properly.
. Do not place theIntelligent Keyfor
an extended periodinan area where
temperatures exceed1408F(608C).
. Do not attach theIntelligent Key
with akey holder thatcontains a
magnet.
. Donot place theIntelligent Keynear
equipment thatproduces amag-
netic field, suchasaTV,audio
equipment, personalcomputers or
cellular phone.
The remote keyless entryfunction canoperate
all door locks using theremote keyless entry function
ofthe Intelligent Key .The remote
keyless entryfunction canoperate atadistance
of approximately 33ft(10 m)from thevehicle.
(The operating distancedepends uponthe
conditions aroundthevehicle.)
The remote keyless entryfunction willnot
operate:
. When theIntelligent Key isnot within the
operational range.
. When thedoors areopen ornot closed
securely .
. When theIntelligent Key battery isdis-
charged.
The remote keyless entryfunction canalso
operate thevehicle alarm.
&RQGLWLRQ


> (GLW   0RGHO )'@
SP A2252
*
1
L OCK
button
*
2
UNL OCK
button
*
3
P ANIC
button
When youlock orunlock thedoors, thehazard
indicator willflash andthehorn willsound asa
confirmation. Fordetails, seeªSetting hazard
indicator andhorn modeº (P.3-13) .
Locking doors
GUID-D5 262080-ABD 1-4D76-9C95-01FC9F73DFE8
1. Place theignition switchinthe OFF position
and carry theIntelligent Key with you.*
2. Carry theIntelligent Key with you.
3. Close allthe doors.
4. Push theLOCK
button
*
1
on the
Intelligent Key . 5.
Allthe doors andtheliftgate willlock.
6. The hazard indicator flashestwiceandthe
horn chirps once.
*: Doors willlock with theIntelligent Key while the
ignition switchisin the ACC orON position.
Operate thedoor handles toconfirm thatthe
doors havebeen securely locked.
Unlocking doors
GUID-A 93EF8B5-C 1CC-498F-9 1E8-A405D4 27718F
1. Push theUNL OCK
button
*
2
on the
Intelligent Key once.
2. The hazard indicator flashesonce.The
driver's doorwillunlock.
3. Push theUNL OCK
button againwithin
1 minute.
4. The hazard indicator flashesonce.Allthe
doors andtheliftgate willunlock.
All doors willbelocked automatically unlessone
of the following operations isperformed within1
minute afterpushing theUNL OCK
button
while thedoors arelocked.
. Opening anydoor (including theliftgate) .
. Pushing theignition switch.
During this1-minute timeperiod, ifthe UNL OCK
button ispushed, alldoors willbelocked
automatically afteranother 1minute.
Using panicalarm
GUID-51 3ECE9A-40 D5-44E1-AED9-89539 DD3CB29
If you arenear yourvehicle andfeelthreatened,
you may activate thealarm tocall attention as
follows:
1. Push thePANIC
button
*
3
on the
Intelligent Key for more than1second.
2. The theft warning alarmandheadlights will
stay onfor 25 seconds.
3. The panic alarmstops when:
.
It has runfor25 seconds, or
.
Any ofthe buttons onthe Intelligent Key
is pushed. (Note:thePANIC button must
be pushed formore than1second.)
Setting hazardindicator andhorn mode
GUID-3F B89421-3312 -403E-A809-6994604156A 8
This vehicle isset inhazard indicator andhorn
mode whenyoufirst receive thevehicle.
In hazard indicator andhorn mode, whenthe
L OCK
button
*
1
is pushed, thehazard
indicator flashestwiceandthehorn chirps once.
When theUNL OCK
button
*
2
is pushed,
the hazard indicator flashesonce.
If horns arenot necessary ,the system canbe
switched tothe hazard indicator mode.
In hazard indicator mode,whentheLOCK
button ispushed, thehazard indicator flashes
twice. When theUNLOCK
button is
pushed, neitherthehazard indicator northe
Pre-d riving checks andadjustments
3-13
&RQGLWLRQ


> (GLW   0RGHO )'@
3-14
Pre-driving checksandadjustment s

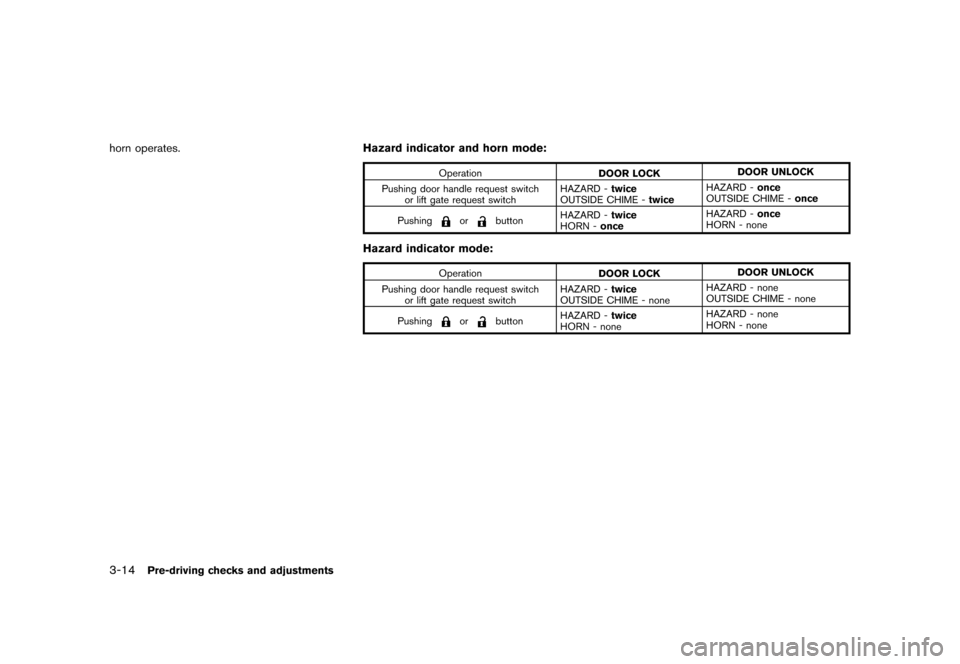

horn operates. Hazardindicator andhorn mode:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Operation
DOORLOCK DOOR
UNLOCK
Pushing doorhandle request switch
or lift gate request switch HAZARD
-twice
OUTSIDE CHIME-twice HAZARD
-once
OUTSIDE CHIME-once
Pushing
or
button HAZARD
-twice
HORN -once HAZARD
-once
HORN -none
Hazard indicator mode:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Operation
DOORLOCK DOOR
UNLOCK
Pushing doorhandle request switch
or lift gate request switch HAZARD
-twice
OUTSIDE CHIME-none HAZARD
-none
OUTSIDE CHIME-none
Pushing
or
button HAZARD
-twice
HORN -none HAZARD
-none
HORN -none
&RQGLWLRQ


> (GLW   0RGHO )'@
Switching procedure:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
T o switch thehazard indicator andhorn (chime)
operation, pushtheLOCK
*
1
and UN-
L OCK
*
2
buttons onthe Intelligent Key
simultaneously formore than2seconds.
. When thehazard indicator modeisset, the
hazard indicator flashes3times.
. When thehazard indicator andhorn mode is
set, thehazard indicator flashesonceand
the horn chirps
once.
NOS1695
GUID-DDF6 7E0E-97E9-4 54E-A431-36 E50A96E436
WARNING
. Make surethehood iscompletely
closed andlatched beforedriving.
Failure todo socould cause the
hood tofly open andresult inan
accident.
. Ifyou seesteam orsmoke coming
from theengine compartment, to
avoid injury donot open thehood.
Pre-d riving checks andadjustments
3-15
HOOD
&RQGLWLRQ


> (GLW   0RGHO )'@
3-16
Pre-driving checksandadjustment s

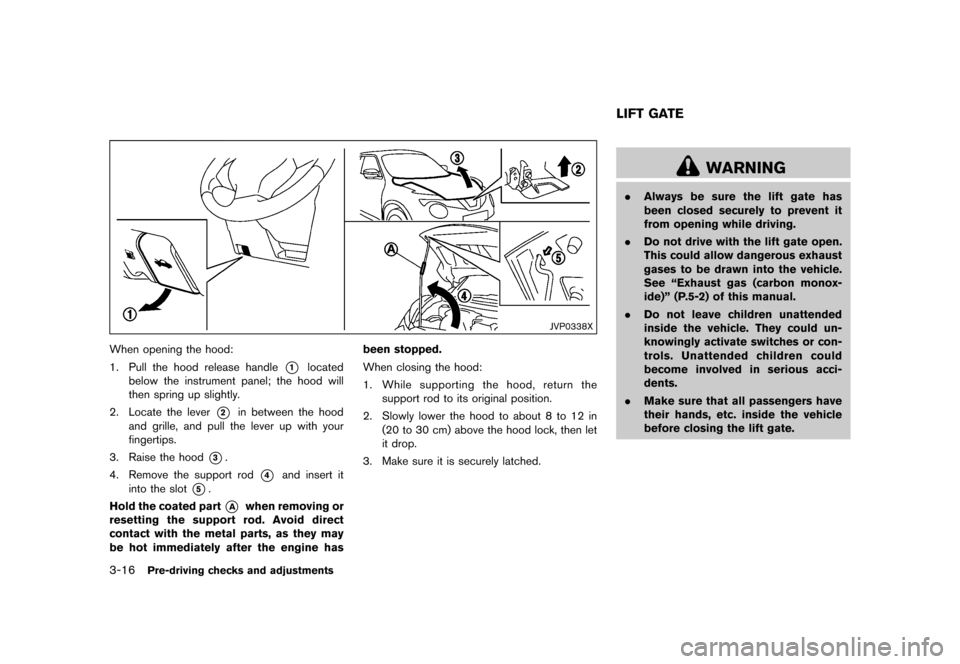

JVP0338X
When opening thehood:
1. Pull thehood release handle
*
1
located
below theinstrument panel;thehood will
then spring upslightly .
2. Locate thelever
*
2
in between thehood
and grille, andpullthelever upwith your
fingertips.
3. Raise thehood
*
3
.
4. Remove thesupport rod
*
4
and insert it
into theslot
*
5
.
Hold thecoated part
*
A
when removing or
resetting thesupport rod.Avoid direct
contact withthemetal parts,asthey may
be hot immediately aftertheengine hasbeen
stopped.
When closing thehood:
1. While supporting thehood, return the
support rodtoits original position.
2. Slowly lowerthehood toabout 8to 12 in
(20 to30 cm) above thehood lock,thenlet
it drop.
3. Make sureitis securely latched.
GUID-9CA2 02EA-33F9- 40ED-9CE7-7 9784558EBE6
WARNING
. Always besure theliftgate has
been closed securely toprevent it
from opening whiledriving.
. Do not drive withtheliftgate open.
This could allowdangerous exhaust
gases tobe drawn intothevehicle.
See ªExhaust gas(carbon monox-
ide)º (P.5-2) ofthis manual.
. Do not leave children unattended
inside thevehicle. Theycould un-
knowingly activateswitches orcon-
trols. Unattended childrencould
become involved inserious acci-
dents.
. Make surethatallpassengers have
their hands, etc.inside thevehicle
before closing theliftgate.
LIFT GATE
&RQGLWLRQ


> (GLW   0RGHO )'@

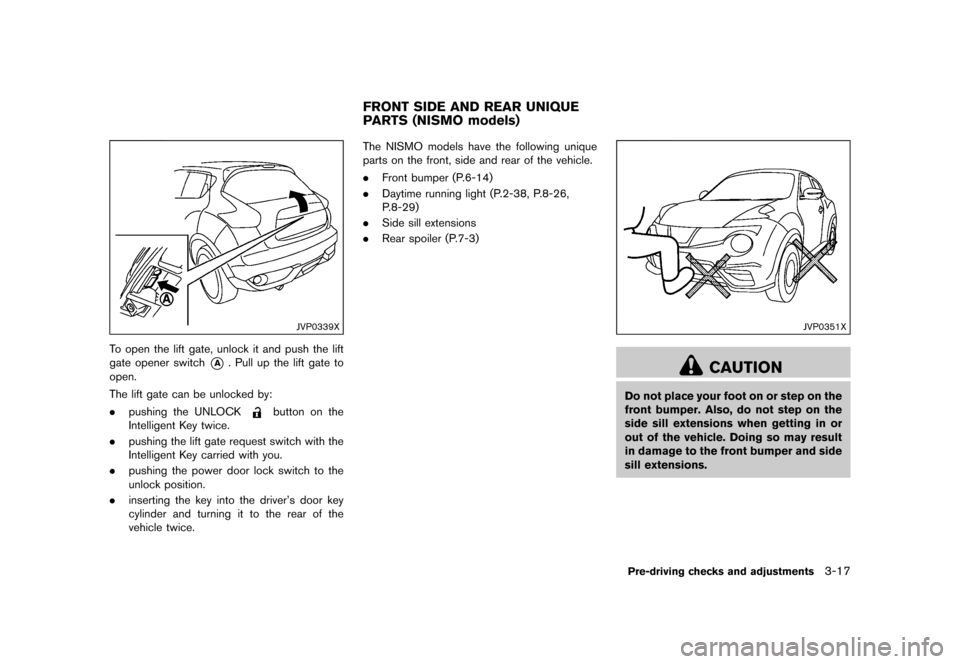

JVP0339X
T o open theliftgate, unlock itand push thelift
gate opener switch
*
A
. Pull upthe liftgate to
open.
The liftgate canbeunlocked by:
. pushing theUNL OCK
button onthe
Intelligent Key twice.
. pushing theliftgate request switchwiththe
Intelligent Key carried withyou.
. pushing thepower doorlockswitch tothe
unlock position.
. inserting thekey into thedriver's doorkey
cylinder andturning itto the rear ofthe
vehicle twice.
GUID-689 3FD6A-D4A4 -4A5C-8794-88271F6F 883D
The NISMO modelshavethefollowing unique
parts onthe front, sideandrear ofthe vehicle.
. Front bumper (P.6-14)
. Daytime runninglight(P.2-38, P.8-26,
P .8-29)
. Side sillextensions
. Rear spoiler (P
.7-3)
JVP0351X
CAUTION
Do not place yourfootonorstep onthe
front bumper. Also,donot step onthe
side sillextensions whengetting inor
out ofthe vehicle. Doingsomay result
in damage tothe front bumper andside
sill extensions.
Pre-d riving checks andadjustments
3-17
FRONT SIDEANDREAR UNIQUE
P ARTS (NISMO models)
&RQGLWLRQ


> (GLW   0RGHO )'@
3-18
Pre-driving checksandadjustment s
GUID-00F6 53FB-C04F-403C-85F5 -83A24D309 0E8
SP A2336
OPENING THEFUEL -FILLER DOOR
GUID-232 776DC-41D5 -442C-B49A- 681435FB8699
T o open thefuel-filler door,pulltherelease
handle located belowtheinstrument panel.To
lock, close thefuel-filler doorsecurely
.
SP A2800
FUEL -FILLER CAP
GUID-D78 C472D-DEB1 -43D1-82E6-5180D4CDB920
T o remove thefuel-filler cap:
1. Turn thefuel-filler capcounterclockwise
*
1
to remove.
2. Put thefuel-filler caponthe cap holder
*
A
while refueling.
T o install thefuel-filler cap:
1. Insert thefuel-filler capstraight intothefuel-
filler tube.
2. Turn thefuel-filler capclockwise
*
2
until a
single clickisheard.
WARNING
. Gasoline isextremely flammable
and highly explosive undercertain
conditions. You could beburned or
seriously injuredifitis misused or
mishandled. Alwaysstopengine
and donot smoke orallow open
flames orsparks nearthevehicle
when refueling.
. Do not attempt totop offthe fuel
tank after thefuel pump nozzle
shuts offautomatically. Continued
refueling maycause fueloverflow,
resulting infuel spray andpossibly
a fire.
. Use only anoriginal equipment type
fuel-filler capasareplacement. It
has abuilt-in safetyvalveneeded
for proper operation ofthe fuel
system andemission controlsys-
tem. Anincorrect capcanresult ina
serious malfunction andpossible
injury. Itcould alsocause themal-
function indicator lighttocome on.
. Never pourfuelinto thethrottle
body toattempt tostart yourvehi-
cle.
FUEL -FILLER DOOR
&RQGLWLRQ
