2015 NISSAN JUKE Owners Manual


> (GLW   0RGHO )'@
GUID-073 2A6EE-A1B 3-4CC3-BD33 -7DB3C73B83E2
The Integrated ControlSystemislocated below
the audio system ornavigation system(ifso
equipped) .Two Integrated ControlSystem
modes canbeselected: Drivemode and
Climate Controlmode.
Depending onwhich Integrated ControlSystem
mode selected (DrivemodeorClimate Control
mode) ,the screen display andsome button
functions willchange.
. Drive mode
In the Drive mode, threetypes ofdriving
modes canbeselected: NORMAL, SPORT
and ECO. SeeªDrive modeº (P.5-21) .In
addition, whileinthe Drive mode, SETUP,
Drive information andECO information can
be displayed andadjusted. SeeªIntegrated
control systemº (P.2-21) .
. Climate Controlmode
In the Climate Controlmode,theclimate
control canbeset and adjusted. See
ª Automatic airconditioner (withIntegrated
Control System)º (P.4-29)
.
SSD1154
DRIVE MODE
GUID-2823EE 2D-393A-4DD 3-A706-4BE90023CB7 7
1. NORMAL drivemode button
2. Climate controlmodeselect button
3. Drive mode select button
4. SETUP button
5. SPORT drivemode button
6. ECO drivemode button 7.
Display screen
8. Enter button/Selection dial
Starting anddriving
5-21
INTEGRA TEDCONTROL SY STEM (if
so equippe d)
&RQGLWLRQ


> (GLW   0RGHO )'@

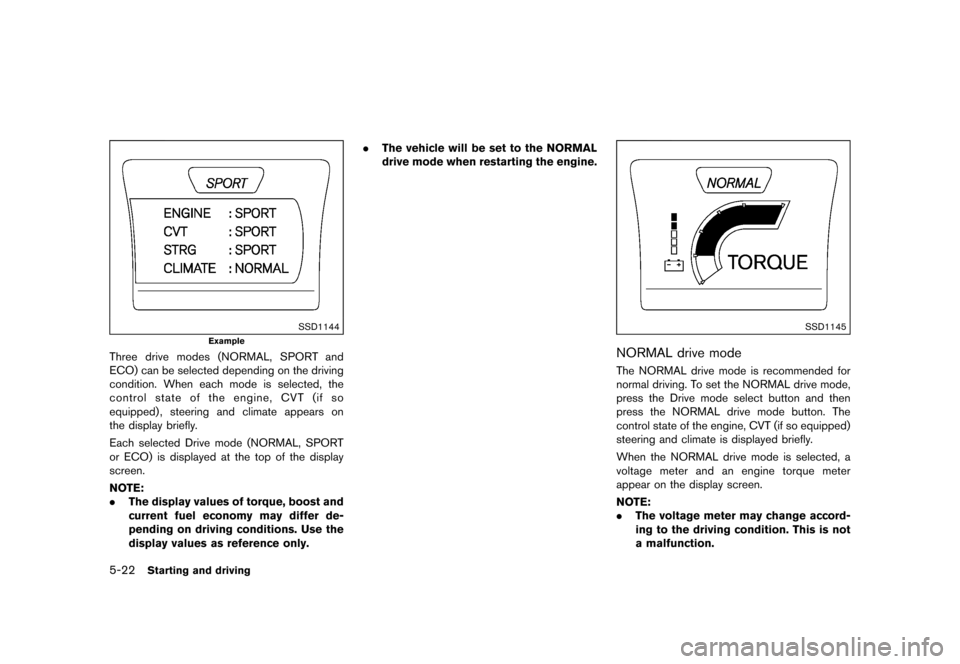

5-22
Starting anddriving
SSD1144
Example
Three drivemodes (NORMAL, SPORTand
ECO) canbeselected depending onthe driving
condition. Wheneachmode isselected, the
control stateofthe engine, CVT(ifso
equipped) ,steering andclimate appears on
the display briefly.
Each selected Drivemode (NORMAL, SPORT
or ECO) isdisplayed atthe top ofthe display
screen.
NO TE:
. The display valuesoftorque, boostand
current fueleconomy maydiffer de-
pending ondriving conditions. Usethe
display valuesasreference only. .
The vehicle willbeset tothe NORMAL
drive mode whenrestarting the engine.
SSD1145
NORMAL drivemode
GUID-671 4E0F5-DB61 -4CAD-BB14- F2E233E040A 2
The NORMAL drivemode isrecommended for
normal driving. To set the NORMAL drivemode,
press theDrive mode select button andthen
press theNORMAL drivemode button. The
control stateofthe engine, CVT(ifso equipped)
steering andclimate isdisplayed briefly.
When theNORMAL drivemode isselected, a
voltage meterandanengine torquemeter
appear onthe display screen.
NO TE:
. The voltage metermaychange accord-
ing tothe driving condition. Thisisnot
a malfunction.
&RQGLWLRQ


> (GLW   0RGHO )'@
. Atstart up,the vehicle isautomatically
set tothe NORMAL drive
mode.
SSD1146
SPORT drivemode
GUID-0A6 211E0-42EC -41E4-8E12-C8C5047006 D5
The SPORT drivemode isrecommended foran
enhanced performance feel.To set the SPORT
drive mode, pressthedrive mode select button.
The control stateofthe engine, CVT(ifso
equipped) ,steering andclimate controlis
displayed briefly.In the SPORT mode,the
engine, CVT(ifso equipped) andsteering are
set toSPORT .Climate controlisset to
NORMAL.
When theSPORT drivemode isselected, a
boost meter appears onthe display screen. NO
TE:
In the SPORT mode,fueleconomy maybe
reduced.
Starting anddriving
5-23
&RQGLWLRQ


> (GLW   0RGHO )'@

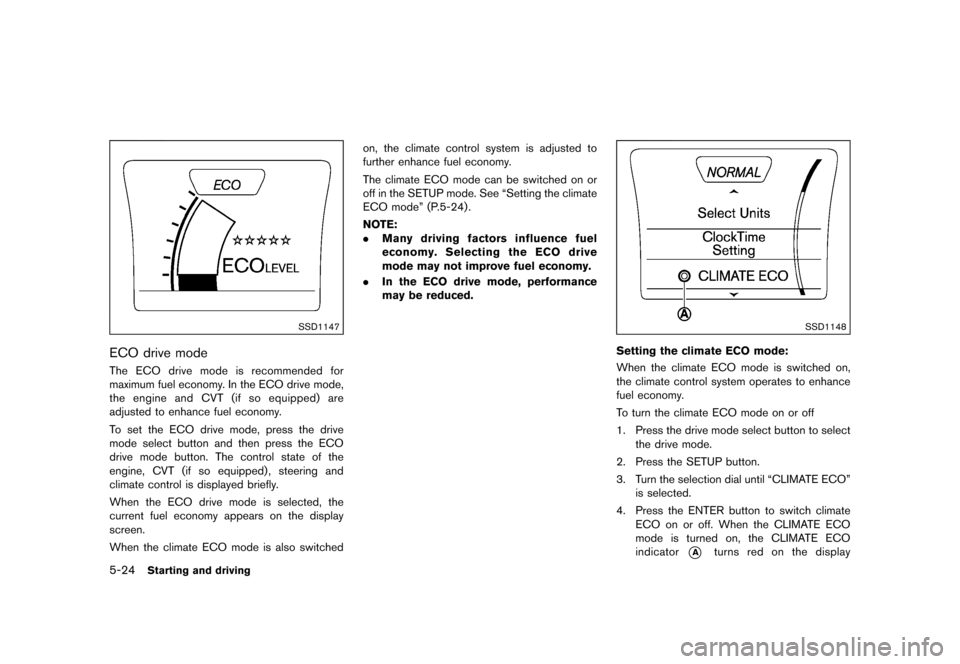

5-24
Starting anddriving
SSD1147
ECO drivemode
GUID-10 A07907-CE 8F-47A6-BE BC-E458A0664066
The ECO drivemode isrecommended for
maximum fueleconomy .In the ECO drivemode,
the engine andCVT (ifso equipped) are
adjusted toenhance fueleconomy .
T o set the ECO drivemode, pressthedrive
mode select button andthen press theECO
drive mode button. Thecontrol stateofthe
engine, CVT(ifso equipped) ,steering and
climate controlisdisplayed briefly.
When theECO drivemode isselected, the
current fueleconomy appearsonthe display
screen.
When theclimate ECOmode isalso switched on,
the climate controlsystem isadjusted to
further enhance fueleconomy .
The climate ECOmode canbeswitched onor
off inthe SETUP mode.SeeªSetting theclimate
ECO modeº (P.5-24) .
NO TE:
. Many driving factors influence fuel
economy. SelectingtheECO drive
mode maynotimprove fueleconomy.
. Inthe ECO drive mode, performance
may be reduced.
SSD1148
Setting theclimate ECOmode:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
When theclimate ECOmode isswitched on,
the climate controlsystem operates toenhance
fuel economy .
T o turn theclimate ECOmode onoroff
1. Press thedrive mode select button toselect
the drive mode.
2. Press theSETUP button.
3. Turn theselection dialuntil ªCLIMA TEECOº
is selected.
4. Press theENTER buttontoswitch climate
ECO onoroff. When theCLIMA TEECO
mode isturned on,the CLIMA TEECO
indicator
*
A
turns redonthe display
&RQGLWLRQ


> (GLW   0RGHO )'@

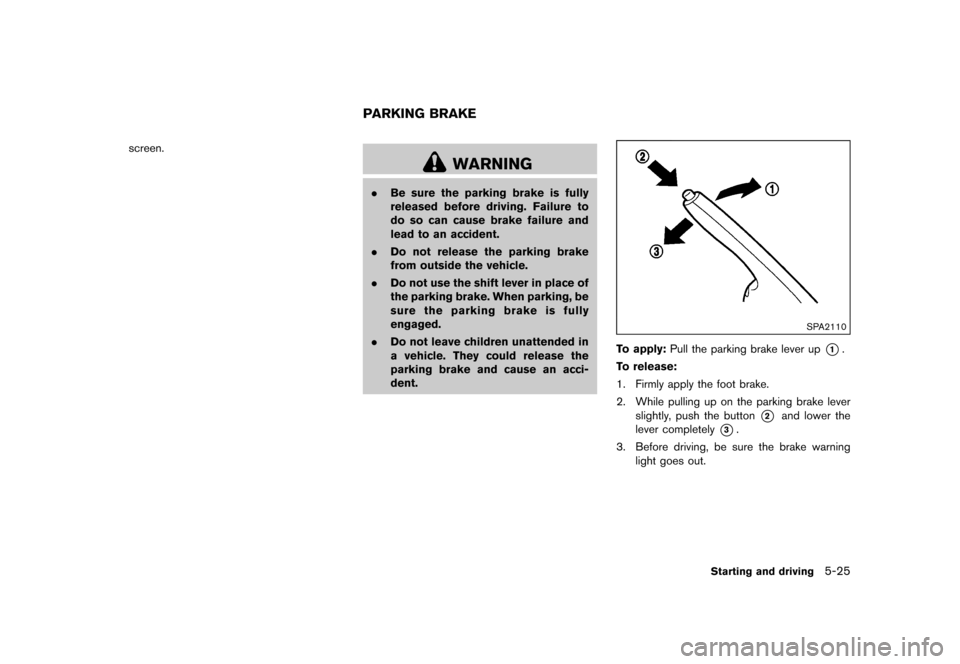

screen.
GUID-31E C2358-F7E 9-4615-836 7-3344BACF 4D60
WARNING
. Be sure theparking brakeisfully
released beforedriving. Failureto
do socan cause brakefailure and
lead toan accident.
. Do not release theparking brake
from outside thevehicle.
. Donot use theshift lever inplace of
the parking brake.Whenparking, be
sure theparking brakeisfully
engaged.
. Donot leave children unattended in
a vehicle. Theycould release the
parking brakeandcause anacci-
dent.
SP A2110
T o apply: Pulltheparking brakeleverup
*
1
.
T o release:
1. Firmly applythefoot brake.
2. While pulling uponthe parking brakelever
slightly ,push thebutton
*
2
and lower the
lever completely
*
3
.
3. Before driving, besure thebrake warning
light goes out.
Starting anddriving
5-25
P ARKING BRAKE
&RQGLWLRQ


> (GLW   0RGHO )'@
5-26
Starting anddriving
GUID-3CB 05FA0-A686-4 8B9-AC8C-D8BD471B4 E3D
PRECAUTION SON CRUISE CON-
TROL
GUID-C1B 3FBF6-66A0 -4E6D-A05B-28AC5FADAA48
. Ifthe cruise control system malfunctions, it
will cancel automatically .The CRUISE in-
dicator lightonthe meter panelwillthen
blink towarn thedriver.
. Ifthe engine coolant temperature becomes
excessively high,thecruise control system
will cancel automatically .
. Ifthe CRUISE indicator lightblinks, turnthe
cruise control MAINswitch offand have the
system checked byaNISSAN dealer.
. The CRUISE indicator lightmayblink when
the cruise control MAINswitch isturned ON
while pushing theACCEL/RES, COAST/
SET orCANCEL switch.To properly setthe
cruise control system, perform thefollowing
procedures.
WARNING
Do not use thecruise control when
driving underthefollowing conditions:
. when itis not possible tokeep the
vehicle ataset speed
. inheavy traffic orintraffic that
varies inspeed .
onwinding orhilly roads
. on slippery roads(rain,snow, ice,
etc .)
. invery windy areas
Doing socould cause aloss ofvehicle
control andresult inan accident.
CAUTION
On Manual Transmission (MT)models,
do not shift intoN(Neutral) without
depressing theclutch pedalwhenthe
cruise control isset. Should thisoccur,
depress theclutch pedalandturn the
MAIN switch offimmediately. Failureto
do somay cause engine
damage.
SSD1128
1. ACCEL/RES switch
2. COAST/SET switch
3. CANCEL switch
4. MAIN (ON´OFF) switch
CRUISE CONTROL OPERATIONS
GUID-F2559 FA0-5502 -40A0-AC47- 17C1EEC38DDF
The cruise control allowsdriving ataspeed
between 25to89 MPH (40to144 km/h)
without keeping yourfootonthe accelerator
pedal.
T o turn onthe cruise control, pushtheMAIN
switch on.The CRUISE indicator lightwill
illuminate.
T o set cruising speed,accelerate thevehicle
to the desired speed,pushtheCOAST/SET
switch andrelease it.Take your footoffthe
CRUISE CONTROL
&RQGLWLRQ


> (GLW   0RGHO )'@
accelerator pedal.Your vehicle willmaintain the
set speed.
. To pass another vehicle,depressthe
accelerator pedal.Whenyourelease the
pedal, thevehicle willreturn tothe previously
set speed.
. The vehicle maynotmaintain thesetspeed
on winding orhilly roads. Ifthis happens,
drive without thecruise control.
T o cancel thepreset speed, useone ofthe
following methods:
a) PushtheCANCEL switch.
b) Tap the brake pedal.
c) Turn theMAIN switch off.The CRUISE indicator
light willturn off.
. Ifyou depress thebrake pedalwhilepushing
the ACCEL/RES orCOAST/SET switchand
reset atthe cruising speed,thecruise
control willdisengage. Turn theMAIN switch
off once andthen turniton again.
. The cruise control willautomatically cancelif
the vehicle slowsmorethan8MPH (13
km/h) below thesetspeed.
. Ifyou move theshift lever tothe N(Neutral)
position (Continuously Variable Transmis-
sion models) ordepressing theclutch pedal
(Manual Transmission models),the cruise
control willbecanceled. T
o reset atafaster cruising speed,useone
of the following methods:
. Depress theaccelerator pedal.Whenthe
vehicle attainsthedesired speed,pushand
release theCOAST/SET switch.
. Push andhold theACCEL/RES switch.
When thevehicle attainsthedesired speed,
release theswitch.
. Push, thenquickly release theACCEL/RES
switch. Eachtimeyoudothis, thesetspeed
will increase byabout 1MPH (1.6km/h) .
T o reset ataslower cruising speed,useone
of the following methods:
. Lightly tapthebrake pedal. Whenthe
vehicle attainsthedesired speed,pushthe
COAST/SET switchandrelease it.
. Push andhold theCOAST/SET switch.
Release theswitch whenthevehicle slows
down tothe desired speed.
. Push, thenquickly release theCOAST/SET
switch. Eachtimeyoudothis, thesetspeed
will decrease byabout 1MPH (1.6km/h) .
T o resume thepreset speed, pushand
release theACCEL/RES switch.Thevehicle
will resume thelast setcruising speedwhenthe
vehicle speedisover 25MPH (40km/h) .
GUID-EC2F D794-8914-4CC0-A38E-2BDC09 CE9FF5
CAUTION
During thefirst 1,200 miles (2,000 km),
follow theserecommendations toob-
tain maximum engineperformance and
ensure thefuture reliability andecono-
my ofyour newvehicle. Failureto
follow theserecommendations may
result inshortened enginelifeand
reduced engineperformance.
. Avoid driving forlong periods atconstant
speed, eitherfastorslow .Do not run the
engine over4,000 rpm.
. Donot accelerate atfull throttle inany gear.
. Avoid quickstarts.
. Avoid hardbraking asmuch aspossible.
Starting anddriving
5-27
BREAK-IN SCHEDULE
&RQGLWLRQ


> (GLW   0RGHO )'@
5-28
Starting anddriving
GUID-7C03 A534-EF0E- 40B7-84F0-1 3B8CB4EE473
Follow theseeasy-to-use FuelEfficient Driving
Tips tohelp youachieve themost fueleconomy
from yourvehicle.
1. Use smooth accelerator andbrake pedal
application.
.
Avoid rapidstarts andstops.
.
Use smooth, gentleaccelerator and
brake application wheneverpossible.
.
Maintain constant speedwhilecommut-
ing and coast whenever possible.
2. Maintain constant speed.
.
Look ahead totry and anticipate and
minimize stops.
.
Synchronizing yourspeed withtraffic
lights allows youtoreduce yournumber
of stops.
.
Maintaining asteady speedcanminimize
red light stops andimprove fueleffi-
ciency .
3. Use airconditioning (A/C)athigher vehicle
speeds.
.
Below 40MPH (64km/h) ,it is more
efficient toopen windows tocool the
vehicle duetoreduced engineload.
.
Above 40MPH (64km/h) ,it is more
efficient touse A/C tocool thevehicle
due toincreased aerodynamic drag.
.
Recirculating thecool airinthe cabin
when theA/C ison reduces coolingload.
4. Drive ateconomical speedsanddistances.
.
Observing thespeed limitandnotex-
ceeding 60MPH (97km/h) (where
legally allowed) canimprove fueleffi-
ciency duetoreduced aerodynamic
drag.
.
Maintaining asafe following distance
behind othervehicles reduces unneces-
sary braking.
.
Safely monitoring traffictoanticipate
changes inspeed permits reduced brak-
ing and smooth acceleration changes.
.
Select agear range suitable toroad
conditions.
5. Use cruise control.
.
Using cruise control duringhighway
driving helpsmaintain asteady speed.
.
Cruise control isparticularly effectivein
providing fuelsavings whendriving on
flat terrains.
6. Plan forthe shortest route.
.
Utilize amap ornavigation systemto
determine thebest route tosave time.
7. Avoid idling.
.
Shutting offyour engine whensafefor
stops exceeding 30-60seconds saves fuel
and reduces emissions.
8. Buy anautomated passfortoll roads.
.
Automated passespermitdrivers touse
special lanestomaintain cruisingspeed
through thetolland avoid stopping and
starting.
9. Winter warmup.
.
Limit idling timetominimize impacttofuel
economy .
.
V ehicles typically neednomore than30
seconds ofidling atstart-up toeffectively
circulate theengine oilbefore driving.
.
Y our vehicle willreach itsideal operating
temperature morequickly whiledriving
versus idling.
10. Keeping yourvehicle cool.
.
Park yourvehicle inacovered parking
area orinthe shade whenever possible.
.
When entering ahot vehicle, opening the
windows willhelp toreduce theinside
temperature faster,resulting inreduced
demand onyour A/Csystem.
FUEL EFFICIENT DRIVINGTIPS
&RQGLWLRQ
