> (GLW   0RGHO )'@
the lens, amalfunction, fireoran
electric shock.
. Do not strike thecamera. Itis a
precision instrument. Otherwise,it
may malfunction orcause damage
resulting inafire oran electric
shock.
CAUTION
Do not scratch thecamera lenswhen
cleaning dirtorsnow fromthe
lens.
SAA2776

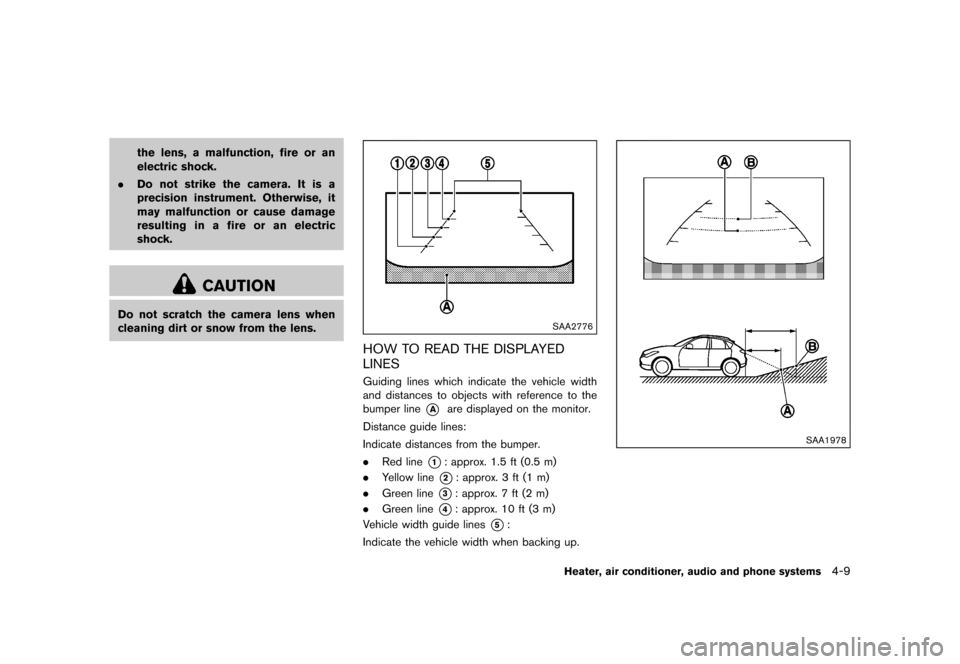

HOW TO READ THEDISPLA YED
LINES
GUID-D20 F3487-0821 -4A93-857D-7 074E42B5DCE
Guiding lineswhich indicate thevehicle width
and distances toobjects withreference tothe
bumper line
*
A
are displayed onthe monitor.
Distance guidelines:
Indicate distances fromthebumper.
. Red line
*
1
: approx. 1.5ft(0.5 m)
. Yellow line
*
2
: approx. 3ft(1 m)
. Green line
*
3
: approx. 7ft(2 m)
. Green line
*
4
: approx. 10ft(3 m)
V ehicle widthguide lines
*
5
:
Indicate thevehicle widthwhenbacking
up.
SAA1978
Heater, airconditioner ,audio andphone systems
4-9
&RQGLWLRQ


> (GLW   0RGHO )'@
4-10
Heater, airconditione r,audio andphone systems

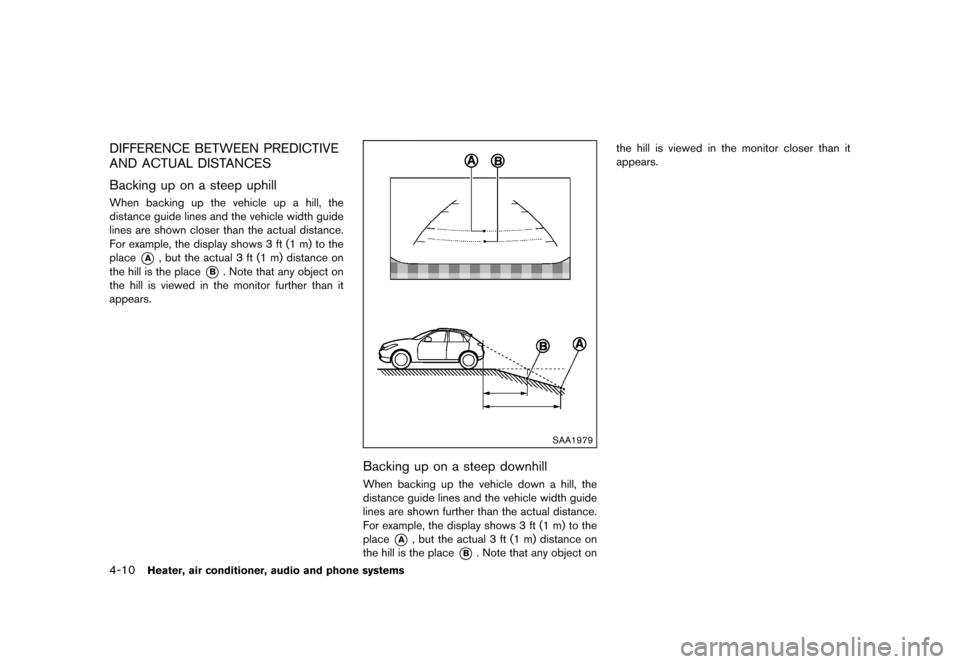

DIFFERENC EBETWEEN PREDICTIVE
AND ACTUAL DISTANCES
GUID-B0 CBD45C-C473-4E14-9 E08-0ADAA810B264
Backing uponasteep uphill
GUID-ABB 4F164-EF54 -4B24-ACD2-1C3596241898
When backing upthe vehicle upahill, the
distance guidelinesandthevehicle widthguide
lines areshown closerthantheactual distance.
For example, thedisplay shows3ft(1 m) tothe
place
*
A
, but theactual 3ft(1 m) distance on
the hillisthe place
*
B
. Note thatanyobject on
the hillisviewed inthe monitor furtherthanit
appears.
SAA1979
Backing uponasteep downhill
GUID-95 A46842-4A E4-436D-95 B9-7D9305583349
When backing upthe vehicle downahill, the
distance guidelinesandthevehicle widthguide
lines areshown furtherthantheactual distance.
For example, thedisplay shows3ft(1 m) tothe
place
*
A
, but theactual 3ft(1 m) distance on
the hillisthe place
*
B
. Note thatanyobject onthe
hillisviewed inthe monitor closerthanit
appears.
&RQGLWLRQ


> (GLW   0RGHO )'@
4-14
Heater, airconditione r,audio andphone systems

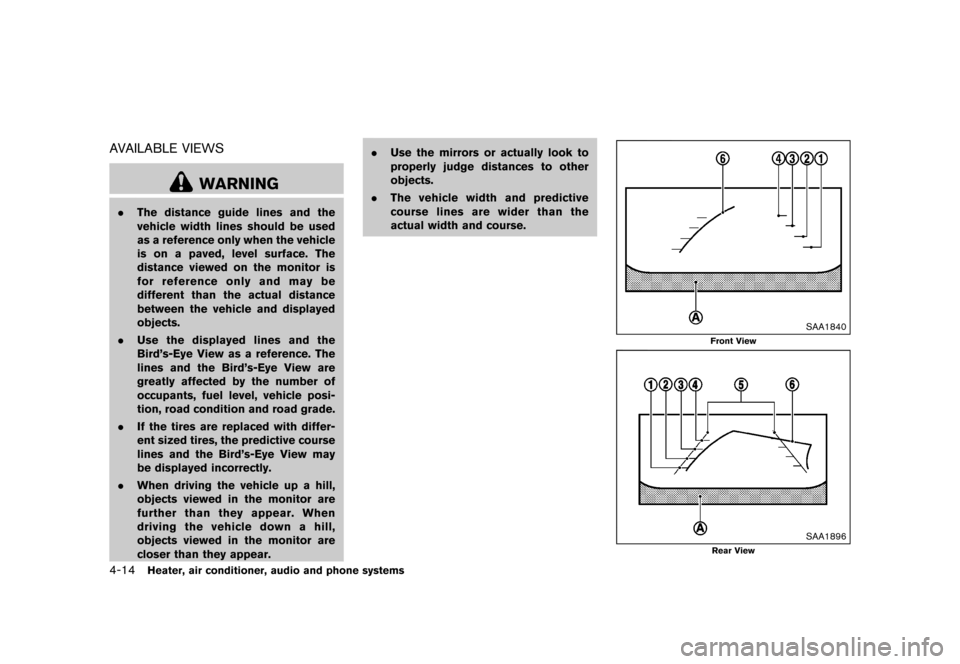

A VAILABLE VIEWS
GUID-757 2CB5C-AACC -45EB-97C2-D9FFC5DFBA 77
WARNING
. The distance guidelinesandthe
vehicle widthlinesshould beused
as areference onlywhen thevehicle
is on apaved, levelsurface. The
distance viewedonthe monitor is
for reference onlyandmay be
different thantheactual distance
between thevehicle anddisplayed
objects.
. Use thedisplayed linesandthe
Bird's-Eye Viewasareference. The
lines andtheBird's-Eye Vieware
greatly affected bythe number of
occupants, fuellevel, vehicle posi-
tion, road condition androad grade.
. Ifthe tires arereplaced withdiffer-
ent sized tires,thepredictive course
lines andtheBird's-Eye Viewmay
be displayed incorrectly.
. When driving thevehicle upahill,
objects viewedinthe monitor are
further thantheyappear. When
driving thevehicle downahill,
objects viewedinthe monitor are
closer thantheyappear. .
Use themirrors oractually lookto
properly judgedistances toother
objects.
. The vehicle widthandpredictive
course linesarewider thanthe
actual widthand
course.
SAA1840
Front View
SAA1896
Rear View
&RQGLWLRQ


> (GLW   0RGHO )'@

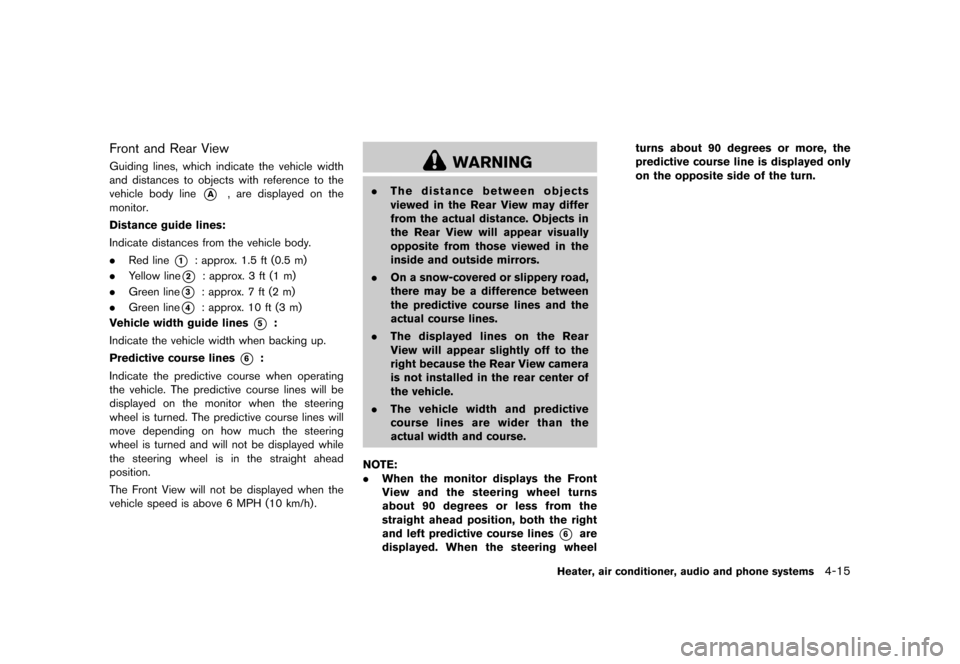

Front andRear View
GUID-6E 127E5E-2C37 -4640-94C4-6CB99058AC18
Guiding lines,which indicate thevehicle width
and distances toobjects withreference tothe
vehicle bodyline
*
A
, are displayed onthe
monitor.
Distance guidelines:
Indicate distances fromthevehicle body.
. Red line
*
1
: approx. 1.5ft(0.5 m)
. Yellow line
*
2
: approx. 3ft(1 m)
. Green line
*
3
: approx. 7ft(2 m)
. Green line
*
4
: approx. 10ft(3 m)
V ehicle widthguide lines
*
5
:
Indicate thevehicle widthwhenbacking up.
Predictive courselines
*
6
:
Indicate thepredictive coursewhenoperating
the vehicle. Thepredictive courselineswillbe
displayed onthe monitor whenthesteering
wheel isturned. Thepredictive courselineswill
move depending onhow much thesteering
wheel isturned andwillnotbedisplayed while
the steering wheelisin the straight ahead
position.
The Front Viewwillnotbedisplayed whenthe
vehicle speedisabove 6MPH (10km/h) .
WARNING
. The distance between objects
viewed inthe Rear View maydiffer
from theactual distance. Objectsin
the Rear View willappear visually
opposite fromthose viewed inthe
inside andoutside mirrors.
. On asnow-covered orslippery road,
there maybeadifference between
the predictive courselinesandthe
actual course lines.
. The displayed linesonthe Rear
View willappear slightly offtothe
right because theRear View camera
is not installed inthe rear center of
the vehicle.
. The vehicle widthandpredictive
course linesarewider thanthe
actual widthandcourse.
NO TE:
. When themonitor displays theFront
View andthesteering wheelturns
about 90degrees orless from the
straight aheadposition, boththeright
and leftpredictive courselines
*
6
are
displayed. Whenthesteering wheel turns
about 90degrees ormore, the
predictive courselineisdisplayed only
on the opposite sideofthe turn.
Heater, airconditione r,audio andphone systems
4-15
&RQGLWLRQ


> (GLW   0RGHO )'@
SAA3571

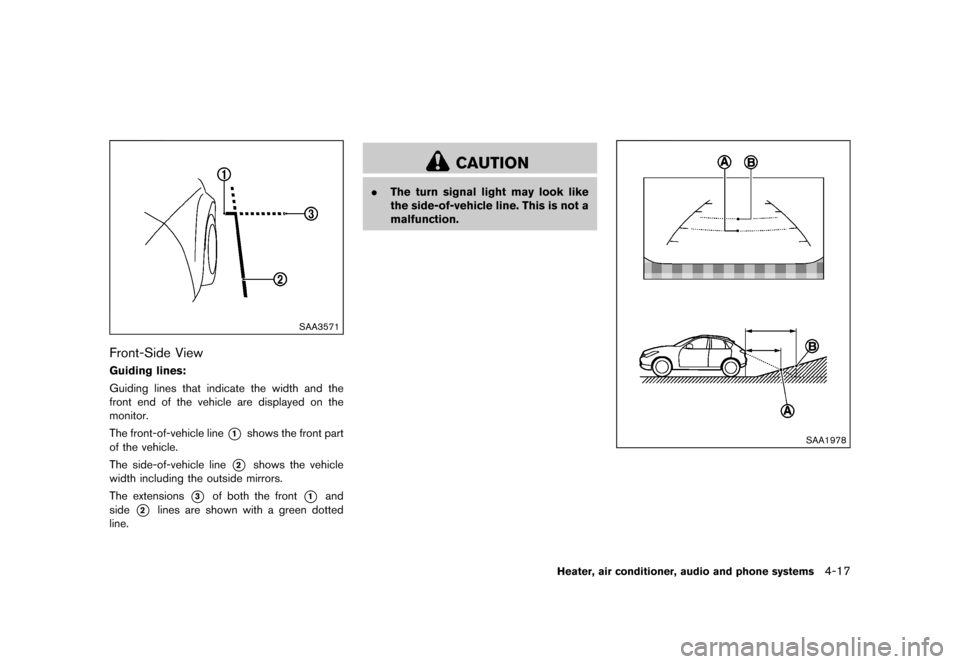

Front-Side View
GUID-172098 37-FDF0-47B6-9F9E-C9 71AE9CE9FA
Guiding lines:
Guiding linesthatindicate thewidth andthe
front endofthe vehicle aredisplayed onthe
monitor.
The front-of-vehicle line
*
1
shows thefront part
of the vehicle.
The side-of-vehicle line
*
2
shows thevehicle
width including theoutside mirrors.
The extensions
*
3
of both thefront
*
1
and
side
*
2
lines areshown withagreen dotted
line.
CAUTION
. The turn signal lightmaylook like
the side-of-vehicle line.Thisisnot a
malfunction.
SAA1978
Heater, airconditione r,audio andphone systems
4-17
&RQGLWLRQ


> (GLW   0RGHO )'@
4-18
Heater, airconditione r,audio andphone systems
DIFFERENC EBETWEEN PREDICTIVE
AND ACTUAL DISTANCES
GUID-B6ACF5 C4-134C-4B68-A0ED-CB DAFF972849
Backing uponasteep uphill
GUID-897F7 90A-B46D-4 367-8938-80D41FAF36B8
When backing upthe vehicle upahill, the
distance guidelinesandthevehicle widthguide
lines areshown closerthantheactual distance.
For example, thedisplay shows3ft(1 m) tothe
place
*
A
, but theactual 3ft(1 m) distance on
the hillisthe place
*
B
. Note thatanyobject on
the hillisviewed inthe monitor furtherthanit
appears.
SAA1979
Backing uponasteep downhill
GUID-4F C2A1D2-0 49C-4E81-A 31F-D1859779952D
When backing upthe vehicle downahill, the
distance guidelinesandthevehicle widthguide
lines areshown furtherthantheactual distance.
For example, thedisplay shows3ft(1 m) tothe
place
*
A
, but theactual 3ft(1 m) distance on
the hillisthe place
*
B
. Note thatanyobject onthe
hillisviewed inthe monitor closerthanit
appears.
&RQGLWLRQ


> (GLW   0RGHO )'@
4-40
Heater, airconditione r,audio andphone systems
T roubleshooting guide:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Symptom Cause
andCountermeasure
Cannot play Check
ifthe disc orUSB device wasinserted correctly.
Check ifthe disc isscratched ordirty .
Check ifthere iscondensation insidetheplayer. Ifthere is,wait until thecondensation isgone (about 1hour) before usingtheplayer.
If there isatemperature increaseerror,theCD player willplay correctly afteritreturns tothe normal temperature.
If there isamixture ofmusic CDfiles (CD-DA data)andMP3/WMA filesonaCD, only themusic CDfiles (CD-DA data)willbe
played.
Files withextensions otherthanª.MP3º ,ª.WMA º, ª.mp3º orª.wmaº cannotbeplayed. Inaddition, thecharacter codesandnumber of
characters forfolder names andfilenames should beincompliance withthespecifications.
Check ifthe finalization process,suchassession closeanddisc close, isdone forthe disc.
Check ifthe disc orUSB device isprotected bycopyright.
P oor sound quality Check
ifthe disc isscratched ordirty .
Bit rate may betoo low.
It takes arelatively longtimebefore
the music startsplaying. If
there aremany folders orfile levels onthe MP3/WMA disc,orifit is amultisession disc,orUSB device, sometimemayberequired
before themusic startsplaying.
Music cutsofforskips The
writing software andhardware combination mightnotmatch, orthe writing speed, writingdepth,writing width,etc.,might not
match thespecifications. Try using theslowest writingspeed.
Skipping withhigh bitrate files Skipping
mayoccur withlarge quantities ofdata, suchasfor high bitrate data.
Move immediately tothe next song
when playing When
anon-MP3/WMA filehas been given anextension ofª.MP3º ,ª.WMA º, .ªmp3º orª.wmaº ,or when playisprohibited by
copyright protection, therewillbeapproximately 5seconds ofno sound andthen theplayer willskip tothe next song.
Songs donot play back inthe
desired order The
playback orderisthe order inwhich thefiles were written bythe writing software. Therefore, thefiles might notplay inthe desired
order.
&RQGLWLRQ


> (GLW   0RGHO )'@
SDI1606

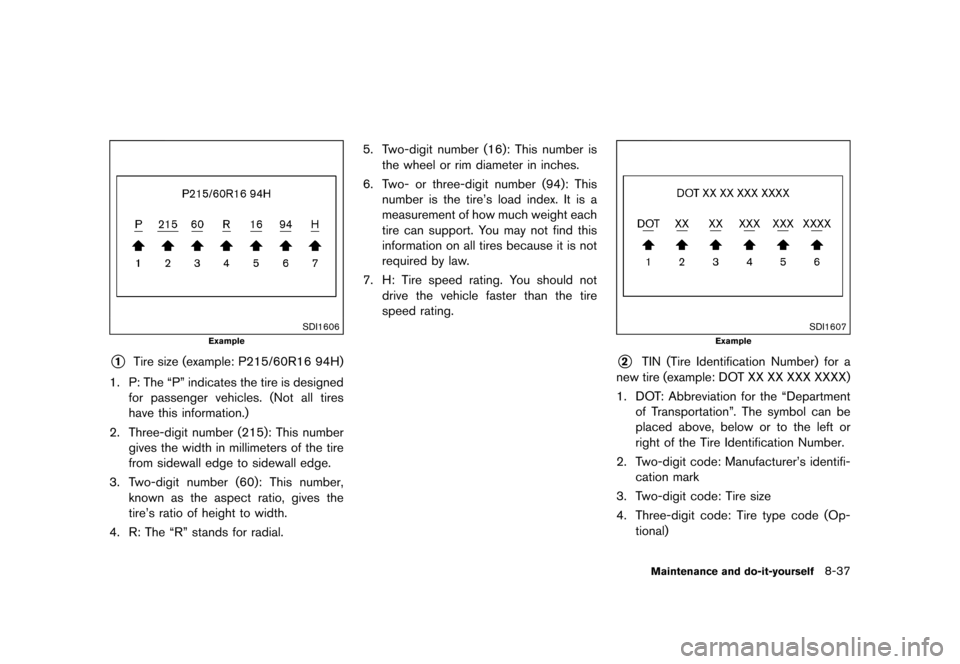

Example
*
1
Tire size (example: P215/60R16 94H)
1. P:The ªPºindicates thetireisdesigned
for passenger vehicles.(Notalltires
have thisinformation.)
2. Three-digit number(215):Thisnumber
gives thewidth inmillimeters ofthe tire
from sidewall edgetosidewall edge.
3. Two-digit number(60):Thisnumber,
known asthe aspect ratio,gives the
tire's ratioofheight towidth.
4. R:The ªRºstands forradial. 5.
Two-digit number(16):Thisnumber is
the wheel orrim diameter ininches.
6. Two- orthree-digit number(94):This
number isthe tire's loadindex. Itis a
measurement ofhow much weight each
tire can support. You may notfind this
information onalltires because itis not
required bylaw .
7. H: Tire speed rating.You should not
drive thevehicle fasterthanthetire
speed rating.
SDI1607
Example
*
2
TIN (Tire Identification Number)fora
new tire(example: DOTXX XX XXX XXXX)
1. DOT: Abbreviation forthe ªDepartment
of Transportationº .The symbol canbe
placed above,belowortothe leftor
right ofthe Tire Identification Number.
2. Two-digit code:Manufacturer's identifi-
cation mark
3. Two-digit code:Tiresize
4. Three-digit code:Tiretype code (Op-
tional)
Maintenance anddo-it-yo urself
8-37
