2015 NISSAN JUKE mirror controls


> (GLW   0RGHO )'@
GUID-B18D9 21D-58BF-4E F2-ABA7-71D 7C369DE1 4
JVC0725X
1. Outside mirrorremote controlswitch(P.3-22)
2. Headlight, foglight andturn signal switch
Ð Headlight (P.2-36)
Ð Turn signal light(P.2-39)
Ð Fog light* (P.2-40)
3. Paddle shifter*(P.5-16) 4.
Steering wheel
Ð Electric powersteering system(P.5-34)
Ð Horn (P.2-40)
Ð Driver's supplemental airbag (P.1-38)
5. Wiper andwasher switch(P.2-32) 6.
Shiftlever
Ð Continuously Variable Transmission (CVT)
(P .5-14)
Ð Manual Transmission (MT)(P.5-19)
7. Fuseboxcover (P.8-22)
8. Vehicle Dynamic Control(VDC)OFFswitch
(P .5-37)
9. All-Wheel Drive(AWD) switch* (P.5-29)
10. Tilting steering wheellever(P.3-20)
11. Steering-wheel-mounted controls(leftside)
Ð Audio control (P.4-70)
Ð Bluetooth


> (GLW   0RGHO )'@

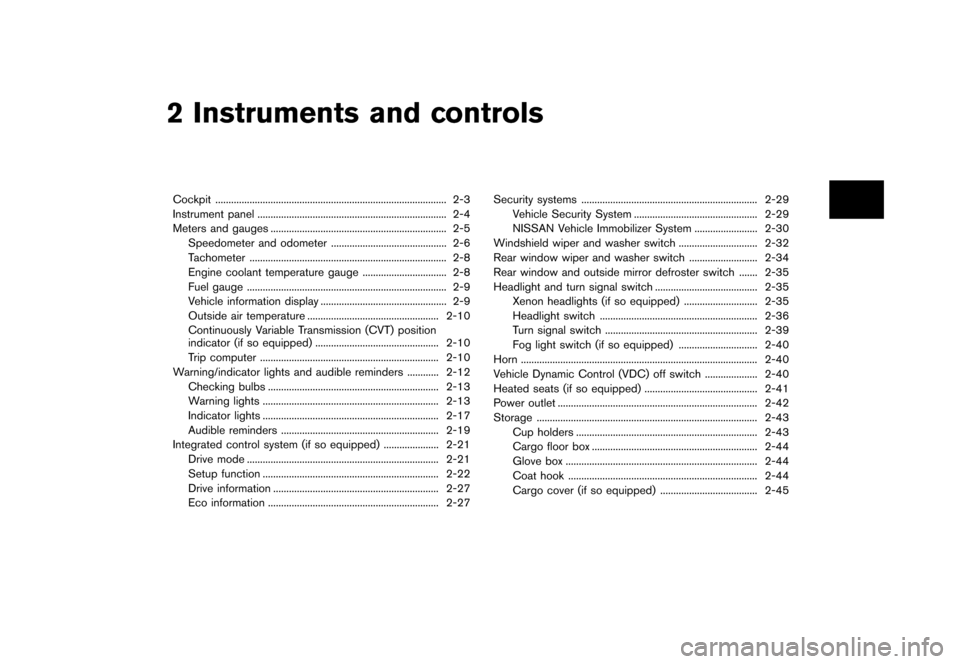

2 Instruments andcontrols
Cockpit ...
........................................................................................ 2-3
Instrument panel...
........................................................................ 2-4
Meters andgauges ...
................................................................... 2-5
Speedometer andodometer ...
............................................ 2-6
T achometer ...
........................................................................... 2-8
Engine coolant temperature gauge...
................................ 2-8
Fuel gauge ...
............................................................................ 2-9
V ehicle information display...
................................................ 2-9
Outside airtemperature ...
.................................................. 2-10
Continuously Variable Transmission (CVT)position
indicator (ifso equipped) ...
............................................... 2-10
T rip computer ...
.................................................................... 2-10
W arning/indicator lightsandaudible reminders ...
............ 2-12
Checking bulbs...
................................................................. 2-13
W arning lights ...
................................................................... 2-13
Indicator lights...
................................................................... 2-17
Audible reminders ...
............................................................ 2-19
Integrated controlsystem (ifso equipped) ...
..................... 2-21
Drive mode ...
......................................................................... 2-21
Setup function ...
................................................................... 2-22
Drive information ...
............................................................... 2-27
Eco information ...
................................................................. 2-27Security
systems ...
................................................................... 2-29
V ehicle Security System ...
............................................... 2-29
NISSAN Vehicle Immobilizer System...
........................ 2-30
Windshield wiperandwasher switch ...
.............................. 2-32
Rear window wiperandwasher switch ...
.......................... 2-34
Rear window andoutside mirrordefroster switch...
....... 2-35
Headlight andturn signal switch ...
....................................... 2-35
X enon headlights (ifso equipped) ...
............................ 2-35
Headlight switch...
............................................................ 2-36
T urn signal switch ...
.......................................................... 2-39
Fog light switch (ifso equipped) ...
.............................. 2-40
Horn ...
.......................................................................................... 2-40
V ehicle Dynamic Control(VDC)offswitch ...
.................... 2-40
Heated seats(ifso equipped) ...
........................................... 2-41
P ower outlet ...
............................................................................ 2-42
Storage ...
.................................................................................... 2-43
Cup holders ...
..................................................................... 2-43
Cargo floorbox ...
............................................................... 2-44
Glove box...
......................................................................... 2-44
Coat hook ...
........................................................................ 2-44
Cargo cover(ifso equipped) ...
..................................... 2-45
&RQGLWLRQ
!


> (GLW   0RGHO )'@
GUID-3F DA5A2B-0FD 2-4B28-A467-442E14E4 66B3
JVC0725X
1. Outside mirrorremote controlswitch
2. Headlight, foglight andturn signal switch
Ð Headlight
Ð Turn signal light
Ð Fog light*
3. Paddle shifter* 4.
Steering wheel
Ð Electric powersteering system
Ð Horn
Ð Driver's supplemental airbag
5. Wiper andwasher switch 6.
Shiftlever
Ð Continuously Variable Transmission (CVT)
Ð Manual Transmission (MT)
7. Fuseboxcover
8. Vehicle Dynamic Control(VDC)OFFswitch
9. All-Wheel Drive(AWD) switch*
10. Tilting steering wheellever
11. Steering-wheel-mounted controls(leftside)
Ð Audio control
Ð Bluetooth


> (GLW   0RGHO )'@
GUID-A 6ACEC3D-5 69F-4102-A2B6-4DE76 F74F79B

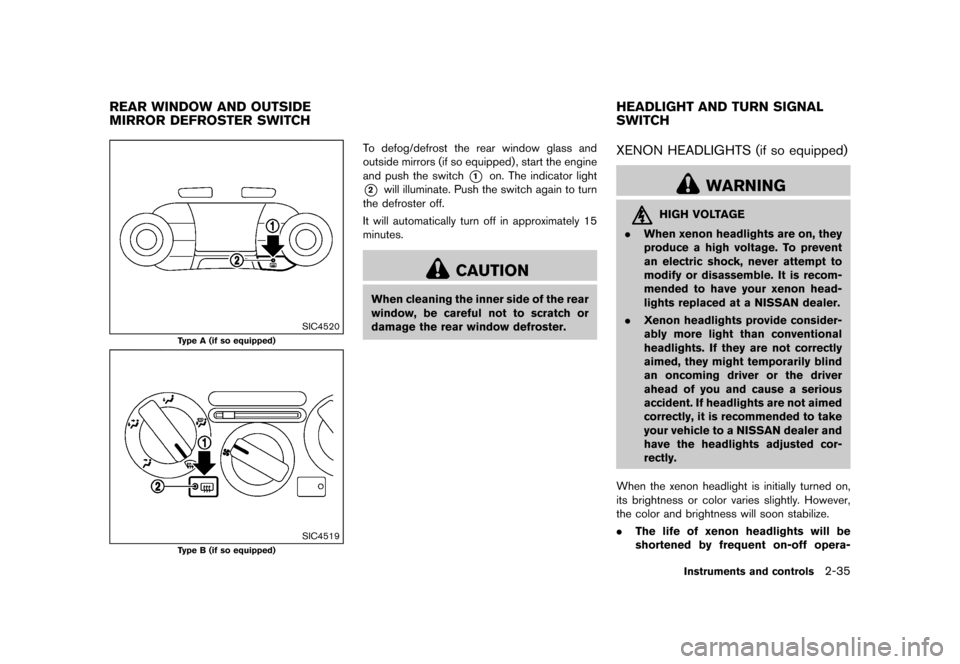

SIC4520
T ype A(if so equipped)
SIC4519
T ype B(if so equipped)
T o defog/defrost therear window glassand
outside mirrors(ifso equipped) ,start theengine
and push theswitch
*
1
on. The indicator light
*
2
will illuminate. Pushtheswitch againtoturn
the defroster off.
It will automatically turnoffinapproximately 15
minutes.
CAUTION
When cleaning theinner sideofthe rear
window, becareful nottoscratch or
damage therear window defroster.
GUID-260 8E54F-A0CB -4CE9-8864-9C61F0 1ED6F7
XENON HEADLIG HTS(ifso equipped)
GUID-C62 86FEB-AC40 -4B02-B2DC-4018531 5008C
WARNING
HIGH VOLTAGE
. When xenon headlights areon,they
produce ahigh voltage. To prevent
an electric shock,neverattempt to
modify ordisassemble. Itis recom-
mended tohave yourxenon head-
lights replaced ataNISSAN dealer.
. Xenon headlights provideconsider-
ably more lightthanconventional
headlights. Ifthey arenot correctly
aimed, theymight temporarily blind
an oncoming driverorthe driver
ahead ofyou and cause aserious
accident. Ifheadlights arenot aimed
correctly, itis recommended totake
your vehicle toaNISSAN dealerand
have theheadlights adjustedcor-
rectly.
When thexenon headlight isinitially turnedon,
its brightness orcolor varies slightly .However,
the color andbrightness willsoon stabilize.
. The lifeofxenon headlights willbe
shortened byfrequent on-offopera-
Instrume ntsand controls
2-35
REAR WINDOW ANDOUTSIDE
MIRROR DEFROSTER SWITCH HEADLIGHT
ANDTURN SIGNAL
SWIT CH
&RQGLWLRQ


> (GLW   0RGHO )'@
4-26
Heater, airconditione r,audio andphone systems

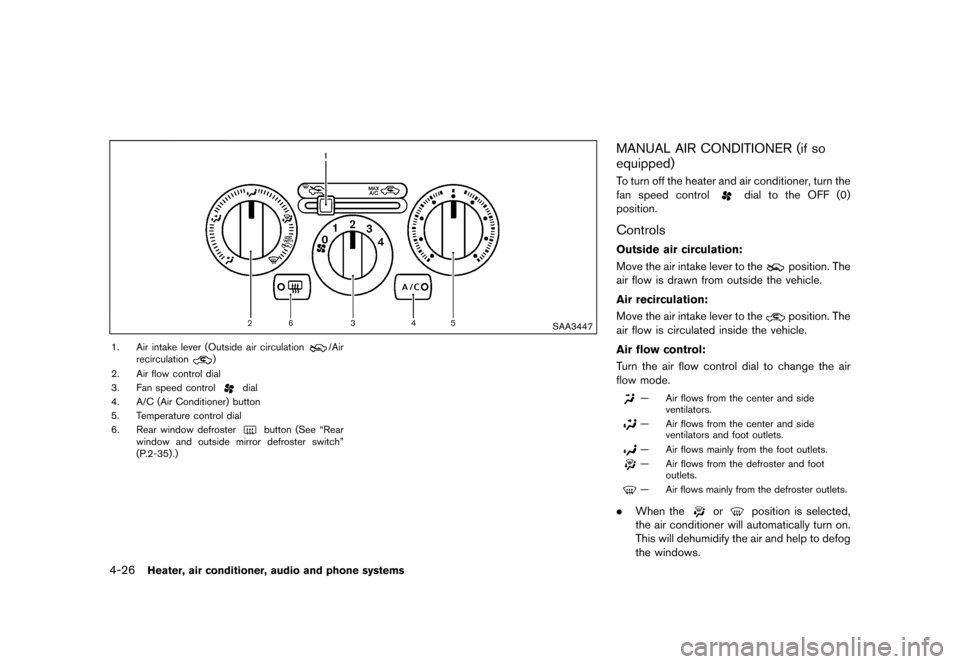

SAA3447
1. Airintake lever(Outside air circulation
/Air
recirculation
)
2. Airflow control dial
3. Fanspeed
control
dial
4. A/C(AirConditioner) button
5. Temperature controldial
6. Rearwindow
defroster
button (SeeªRear
window andoutside mirrordefroster switchº
(P .2-35) .)
MANUAL AIRCONDITIONER (ifso
equipped)
GUID-0B7EA AF5-3B63-4A28-A9B 4-0A19613B C0A2
T o turn offthe heater andairconditioner, turnthe
fan speed control
dial tothe OFF (0)
position.
Controls
GUID-344 8E018-0BC4 -4D17-AD0E-3BB85 0F23C53
Outside aircirculation:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Move theairintake levertothe
position. The
air flow isdrawn fromoutside thevehicle.
Air recirculation:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Move theairintake levertothe
position. The
air flow iscirculated insidethevehicle.
Air flow control:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
T urn theairflow control dialtochange theair
flow mode.
Ð Airflows fromthecenter andside
ventilators.
Ð Airflows fromthecenter andside
ventilators andfoot
outlets.
Ð Airflows mainly fromthefoot outlets.
Ð Airflows fromthedefroster andfoot
outlets.
Ð Airflows mainly fromthedefroster outlets.
. When the
or
position isselected,
the airconditioner willautomatically turnon.
This willdehumidify theairand help todefog
the windows.
&RQGLWLRQ


> (GLW   0RGHO )'@

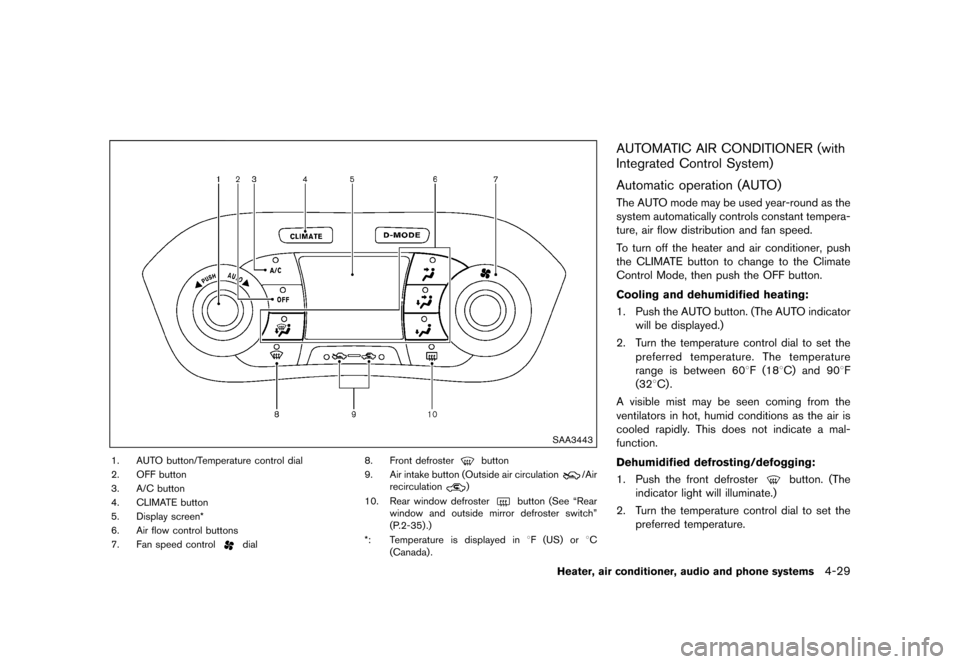

SAA3443
1. AUTObutton/T emperature controldial
2. OFFbutton
3. A/Cbutton
4. CLIMA TEbutton
5. Display screen*
6. Airflow control buttons
7. Fanspeed control
dial 8.
Front defroster
button
9. Airintake button (Outside aircirculation
/Air
recirculation
)
10. Rearwindow defroster
button (SeeªRear
window andoutside mirrordefroster switchº
(P .2-35) .)
*: Temperature isdisplayed in8F (US) or8C
(Canada) .
AUT OMA TICAIR CONDITION ER(with
Integrated ControlSystem)
GUID-E565 6247-BCEF -4D17-B8ED-1DDD0B568CAB
Automatic operation(AUTO)
GUID-EA 5A1D8F-7A7 7-47B0-ADB5-C8E5A7F686B7
The AUTOmode maybeused year-round asthe
system automatically controlsconstant tempera-
ture, airflow distribution andfanspeed.
T o turn offthe heater andairconditioner, push
the CLIMA TEbutton tochange tothe Climate
Control Mode,thenpush theOFF button.
Cooling anddehumidified heating:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
1. Push theAUT Obutton. (TheAUTOindicator
will bedisplayed.)
2. Turn thetemperature controldialtoset the
preferred temperature. Thetemperature
range isbetween 608F(188C) and908F
(328C) .
A visible mistmaybeseen coming fromthe
ventilators inhot, humid conditions asthe airis
cooled rapidly.This does notindicate amal-
function.
Dehumidified defrosting/defogging:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
1. Push thefront defroster
button. (The
indicator lightwillilluminate.)
2. Turn thetemperature controldialtoset the
preferred temperature.
Heater, airconditione r,audio andphone systems
4-29
&RQGLWLRQ


> (GLW   0RGHO )'@
10-2
Cruise control ...
................................................. ..............5-26
Cup holders ...
....................................... ...........................2-43
CVT ,Driving withCVT (Continuously
V ariable Transmission) ...
............................................... 5-14
D
Daytime runninglightsystem ...
................................... 2-38
Defroster switch,Rearwindow andoutside
mirror defroster switch...
............................................... 2-35
Dimensions andweights ...
............................................. 9-9
Displaying Climatecontrol...
........................................ 4-31
Door open warning light...
............................................ 2-14
Drive belt...
............................................ ...........................8-15
Driving All-wheel drive(AWD) ...
........................................ 5-29
Cold weather driving...
........................................... 5-39
Driving withCVT (Continuously
V ariable Transmission) ...
........................................ 5-14
Driving withmanual transmission ...
..................... 5-19
Precautions whenstarting anddriving ...
.............. 5-2
Safety precautions ...
............................................ ......5-7
E
Economy ,Fuel ...
....................................... .......................5-29
Elapsed time...
..................................................... 2-11,2-27
Electric powersteering system...
............................... 5-34
Electric powersteering warninglight...
.................... 2-14
Emission controlinformation label...
.......................... 9-11
Emission controlsystem warranty ...
........................... 9-19
Engine Before starting theengine ...
................................. 5-12
Break -inschedule ...
................................................ 5-27
Capacities and
recommended fluids/lubricants ...
............................ 9-2
Changing enginecoolant ...
...................................... 8-8Changing
engineoiland filter ...
.............................. 8-9
Checking enginecoolant level...
............................. 8-8
Checking engineoillevel ...
...................................... 8-8
Coolant temperature gauge...
................................. 2-8
Emergency engineshutoff...
....................... 5-11,6-2
Engine blockheater ...
............................................. 5-40
Engine compartment checklocations ...
................ 8-6
Engine cooling system...
........................................... 8-7
Engine oil...
............................................ .......................8-8
Engine oiland oilfilter recommendation ...
........... 9-7
Engine oilviscosity ...
............................................ ......9-7
Engine serialnumber ...
........................................... 9-11
Engine specifications ...
....................................... ......9-8
If your vehicle overheats ...
..................................... 6-10
Starting theengine ...
....................................... .......5-13
Event DataRecorders (EDR)...
................................... 9-21
Exhaust gas(carbon monoxide) ...
................................ 5-2
Extended storagefusewarning ...
................................. 2-7
F
F .M.V .S.S./C.M.V .S.S.certification label...
............... 9-11
Filter
Aircleaner housing filter...
.................................... 8-17
Changing engineoiland filter ...
.............................. 8-9
Flashers (Seehazard warning flasherswitch) ...
....... 6-2
Flat tire...
............................................ .................................6-3
Flat towing ...
...................................................... ..............9-17
Floor matcleaning ...
............................................ ............7-5
Fluid Brake andclutch fluid...
......................................... 8-12
Capacities and
recommended fluids/lubricants ...
............................ 9-2
Continuously Variable Transmission
(CVT) fluid...
........................................................... ...8-11
Engine coolant ...
......................................................... 8-7
Engine oil...
............................................ .......................8-8Window
washerfluid...
....................................... ...8-12
FM-AM radiowithCompact Disc(CD) player ...
.... 4-42
FM-AM-SA Tradio withCompact Disc(CD)
player (Type A)...
............................................................. 4-50
FM-AM-SA Tradio withCompact Disc(CD)
player (Type B)...
...................................................... ......4-59
Fog light switch ...
................................................. ..........2-40
Front manual seatadjustment ...
.................................... 1-3
Front passenger airbag andstatus light...
.............. 1-46
Front seat,Front seatadjustment ...
............................. 1-3
Front-seat activeheadrestraints ...
.............................. 1-9
Fuel Capacities and
recommended fluids/lubricants ...
............................ 9-2
Distance toempty ...
................................................ 2-10
Fuel economy ...
................................................. .......5-29
Fuel information ...
................................................. ......9-4
Fuel octane rating...
................................................. ..9-4
Fuel-filler cap...
...................................................... ...3-18
Fuel-filler door...
....................................... ................3-18
Gauge ...
................................................. .......................2-9
Fuel Efficient DrivingTips...
......................................... 5-28
Fuses ...
................................................................ ..............8-20
Fusible links...
....................................... ...........................8-21
G
Gas cap...
........................................................... ..............3-18
Gauge ...
................................................. .............................2-5
Engine coolant temperature gauge...
.................... 2-8
Fuel gauge ...
...................................................... ..........2-9
Odometer ...
....................................... ...........................2-6
Speedometer ...
...................................................... ......2-6
T achometer ...
............................................ ...................2-8
T rip computer ...
................................................. .......2-10
General maintenance ...
....................................... ............8-2
Giving voicecommands ...
............................................ 4-90
&RQGLWLRQ


> (GLW   0RGHO )'@

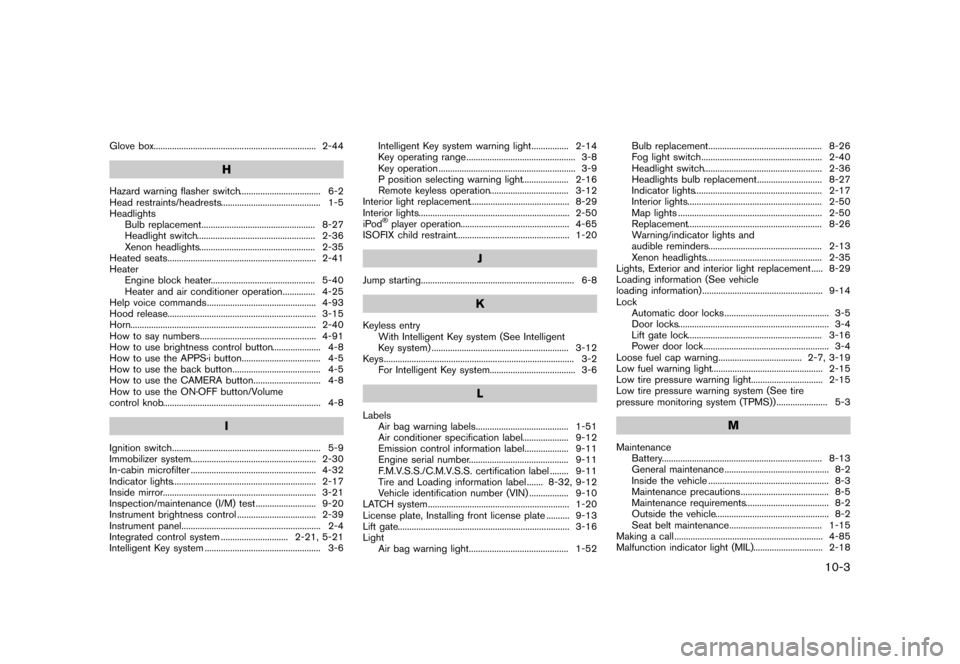

Glove box...
....................................... ...............................2-44
H
Hazard warning flasherswitch...
................................... 6-2
Head restraints/headrests ...
........................................... 1-5
Headlights Bulb replacement ...
................................................. 8-27
Headlight switch...
............................................ .......2-36
X enon headlights ...
.................................................. 2-35
Heated seats...
...................................................... ..........2-41
Heater Engine blockheater ...
............................................. 5-40
Heater andairconditioner operation...
.............. 4-25
Help voice commands ...
............................................... 4-93
Hood release ...
...................................................... ..........3-15
Horn ...
................................................. ...............................2-40
How tosay numbers ...
............................................ ......4-91
How touse brightness controlbutton...
..................... 4-8
How touse theAPPS´i button...
.................................. 4-5
How touse theback button ...
...................................... 4-5
How touse theCAMERA button...
............................. 4-8
How touse theON´OFF button/Volume
control knob...
....................................... .............................4-8
I
Ignition switch...
....................................... .........................5-9
Immobilizer system...
............................................ ..........2-30
In-cabin microfilter ...
............................................ ..........4-32
Indicator lights...
....................................... .......................2-17
Inside mirror...
....................................... ...........................3-21
Inspection/maintenance (I/M)test...
.......................... 9-20
Instrument brightnesscontrol...
.................................. 2-39
Instrument panel...
............................................ ................2-4
Integrated controlsystem ...
............................. 2-21,5-21
Intelligent Key system ...
.................................................. 3-6Intelligent
Key system warning light...
................ 2-14
K ey operating range...
............................................... 3-8
K ey operation ...
................................................. ..........3-9
P position selecting warninglight...
.................... 2-16
Remote keylessoperation ...
.................................. 3-12
Interior lightreplacement ...
........................................... 8-29
Interior lights...
........................................................... ......2-50
iP od
