> (GLW   0RGHO )'@
ging aflat tire.)
. When aspare tireismounted ora
wheel isreplaced, theTPMS willnot
function andthelow tirepressure
warning lightwillflash forapproxi-
mately 1minute. Thelight will
remain onafter 1minute. Contact
your NISSAN dealerassoon as
possible fortire replacement and/
or system resetting.
. Replacing tireswiththose notori-
ginally specified byNISSAN could
affect theproper operation ofthe
TPMS.
. Do not inject anytireliquid or
aerosol tiresealant intothetires,
as this may cause amalfunction of
the tire pressure sensors.
CAUTION
. The TPMS maynotfunction properly
when thewheels areequipped with
tire chains orthe wheels areburied
in snow.
. Do not place metalized filmorany
metal parts(antenna, etc.)on the windows.
Thismay cause poorre-
ception ofthe signals fromthetire
pressure sensors,andtheTPMS will
not function properly.
Some devices andtransmitters maytemporarily
interfere withtheoperation ofthe TPMS and
cause thelow tirepressure warninglightto
illuminate. Someexamples are:
. Facilities orelectric devices usingsimilar
radio frequencies arenear thevehicle.
. Ifatransmitter settosimilar frequencies is
being usedinor near thevehicle.
. Ifa computer (orsimilar equipment) oraDC/
AC converter isbeing usedinor near the
vehicle.
FCC Notice:
For USA:
This device complies withPart15ofthe
FCC Rules. Operation issubject tothe
following twoconditions: (1)This device
may notcause harmful interference, and
(2) this device mustaccept anyinterfer-
ence received, including interference that
may cause undesired operation.
Note: Changes ormodifications notex-
pressly approved bythe party responsible
for compliance couldvoidtheuser's authority
tooperate theequipment.
For Canada:
This device complies withIndustry Canada
licence-exempt RSSstandard(s) .Opera-
tion issubject tothe following twocondi-
tions: (1)this device maynotcause
interference, and(2)this device must
accept anyinterference, includinginterfer-
ence thatmay cause undesired operation
of the device.
A VOIDING COLLISION ANDROLL -
OVER
GUID-666 C7BC2-4377 -4277-8619-BA0591C76 DA3
WARNING
Failure tooperate thisvehicle inasafe
and prudent mannermayresult inloss
of control oran accident.
Be alert anddrive defensively atall times. Obey
all traffic regulations. Avoidexcessive speed,
high speed cornering, orsudden steering
maneuvers, becausethesedriving practices
could cause youtolose control ofyour vehicle.
As with anyvehicle, aloss ofcontrol could
result inacollision withother vehicles or
objects, orcause thevehicle torollover,
particularly ifthe loss ofcontrol causesthe
Starting anddriving
5-5
&RQGLWLRQ


> (GLW   0RGHO )'@
5-36
Starting anddriving
GUID-EC3 A4D5C-5B0D -4B05-8797-16078A3B B5CF
BRAKE ASSIST
GUID-4F7C1 0AE-4D30-42D8-A185-FF 61F97693EE
When theforce applied tothe brake pedal
exceeds acertain level,theBrake Assist is
activated generating greaterbraking forcethana
conventional brakebooster evenwithlight pedal
force.
WARNING
The Brake Assist isonly anaid toassist
braking operation andisnot acollision
warning oravoidance device.Itis the
driver's responsibility tostay alert, drive
safely andbeincontrol ofthe vehicle at
all times.
ANTI-L OCKBRAKING SYSTEM (ABS)
GUID-AD93 4732-3AE5-459A-B8C3 -7A014C0C24D9
WARNING
. The Anti-lock BrakingSystem(ABS)
is asophisticated device,butit
cannot prevent accidents resulting
from careless ordangerous driving
techniques. Itcan help maintain
vehicle control duringbraking on
slippery surfaces. Remember that
stopping distances onslippery sur-
faces willbelonger thanonnormal surfaces
evenwithABS. Stopping
distances mayalso belonger on
rough, gravelorsnow covered
roads, orifyou areusing tirechains.
Always maintain asafe distance
from thevehicle infront ofyou.
Ultimately, thedriver isresponsible
for safety.
. Tire type andcondition mayalso
affect braking effectiveness.
Ð When replacing tires,install the
specified sizeoftires onallfour
wheels.
Ð When installing aspare tire,
make surethatitis the proper
size andtype asspecified onthe
Tire andLoading Information
label. SeeªTire andLoading
Information labelº(P.9-12) of
this manual.
Ð For detailed information, see
ª Wheels andtiresº (P.8-31) of
this manual.
The Anti-lock BrakingSystem(ABS)controls
the brakes sothe wheels donot lock during hard
braking orwhen braking onslippery surfaces.
The system detects therotation speedateach wheel
andvaries thebrake fluidpressure to
prevent eachwheel fromlocking andsliding. By
preventing eachwheel fromlocking, thesystem
helps thedriver maintain steeringcontroland
helps tominimize swerving andspinning on
slippery surfaces.
Using thesystem
GUID-597 530BD-6BA 0-4B9D-B015-6FBB8D 66C7EE
Depress thebrake pedalandhold itdown.
Depress thebrake pedalwithfirmsteady
pressure, butdonot pump thebrakes. The
ABS willoperate toprevent thewheels from
locking up.Steer thevehicle toavoid obstacles.
WARNING
Do not pump thebrake pedal. Doingso
may result inincreased stoppingdis-
tances.
Self-test feature
GUID-A 2B20D88- 3F8D-458B-A0 1C-ABFC4E8BBA39
The ABS includes electronic sensors,electric
pumps, hydraulic solenoids andacomputer. The
computer hasabuilt-in diagnostic featurethat
tests thesystem eachtimeyoustart theengine
and move thevehicle atalow speed inforward
or reverse. Whentheself-test occurs,youmay
hear aªclunkº noiseand/or feelapulsation inthe
brake pedal. Thisisnormal anddoes not
BRAKE ASSIST
&RQGLWLRQ


> (GLW   0RGHO )'@
5-38
Starting anddriving
occurs, youmay hear aªclunkº noiseand/or feel
a pulsation inthe brake pedal. Thisisnormal and
is not anindication ofamalfunction.
WARNING
. The VDC system isdesigned tohelp
improve drivingstability butdoes
not prevent accidents duetoabrupt
steering operation athigh speeds or
by careless ordangerous driving
techniques. Reducevehiclespeed
and beespecially carefulwhendriv-
ing and cornering onslippery sur-
faces andalways drivecarefully.
. Do not modify thevehicle's suspen-
sion. Ifsuspension partssuchas
shock absorbers, struts,springs,
stabilizer bars,bushings and
wheels arenot NISSAN recom-
mended foryour vehicle orare
extremely deteriorated, theVDC
system maynotoperate properly.
This could adversely affectvehicle
handling performance, andtheVDC
warning light
may illuminate.
. Ifbrake related partssuchasbrake
pads, rotors andcalipers arenot
NISSAN recommended orare extre- mely
deteriorated, theVDC system
may notoperate properly andthe
VDC warning light
may illumi-
nate.
. Ifengine control relatedpartsare
not NISSAN recommended orare
extremely deteriorated, theVDC
warning light
may illuminate.
. When driving onextremely inclined
surfaces suchashigher banked
corners, theVDC system maynot
operate properly andtheVDC warn-
ing light
may illuminate. Donot
drive onthese typesofroads.
. When driving onanunstable sur-
face such asaturntable, ferry,
elevator orramp, theVDC warning
light
may illuminate. Thisisnot
a malfunction. Restarttheengine
after driving ontoastable surface.
. Ifwheels ortires other thanthe
NISSAN recommended onesare
used, theVDC system maynot
operate properly andtheVDC warn-
ing light
may illuminate.
. The VDC system isnot asubstitute
for winter tiresortire chains ona
snow covered road.
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-5460F B5E-5751-4144-BEDA-9 C44CC26E1E8
FREEING AFROZEN DOORLOCK
GUID-C74 B4044-96AE-491C-B C91-45A9E CC9A5E7
T o prevent adoor lockfrom freezing, apply
deicer through thekey hole. Ifthe lock becomes
frozen, heatthekey before inserting itinto the
key hole oruse theIntelligent Key system.
ANTI-FREEZE
GUID-90BF B791-C394 -4902-BD39-3C2F719 5DC93
In the winter whenitis anticipated thatthe
outside temperature willdrop below 328F(08C) ,
check theanti-freeze toassure proper winter
protection. Foradditional information, seeªEn-
gine cooling systemº (P.8-7) .
BA TTER Y
GUID-EB5 AE933-122D -4608-B599-298971BE3 1E0
If the battery isnot fully charged during
extremely coldweather conditions, thebattery
fluid mayfreeze anddamage thebattery .To
maintain maximum efficiency,the battery should
be checked regularly.For additional information,
see ªBatteryº (P.8-13) .
DRAINING OFCOOLANT WATER
GUID-A4BF6 6A7-0598-4C 4A-8F3F-1B3EE14A1F6A
If the vehicle isto be left outside withoutanti-
freeze, drainthecooling system, including the
engine block.Refillbefore operating thevehicle.
For details, seeªEngine coolingsystemº (P.8-7) .
TIRE EQUIPMENT
GUID-9C84 39E1-BA84-4 85E-ACF6-DFC2574800 D6
SUMMER tireshave atread designed toprovide
superior performance ondry pavement. How-
ever, theperformance ofthese tireswillbe
substantially reducedinsnowy andicycondi-
tions. Ifyou operate yourvehicle onsnowy oricy
roads, NISSAN recommends theuse ofMUD &
SNOW orALL SEASON tiresonallfour wheels.
Consult aNISSAN dealerforthe tiretype, size,
speed ratingandavailability information.
For additional tractiononicy roads, studded
tires maybeused. However, someU.S.states
and Canadian provinces prohibittheiruse.
Check local,stateandprovincial lawsbefore
installing studdedtires.
Skid andtraction capabilities ofstudded
snow tires,onwet ordry surfaces, maybe
poorer thanthatofnon-studded snow
tires.
Tire chains maybeused. Fordetails, seeªTire
chainsº (P.8-39) ofthis manual.
All-Wheel Drive(AWD) model
GUID-CA 8E5B24-EE0 B-4E6E-8EC1-7A9D 3E4537A5
If you install snowtires,theymust alsobethe
same size,brand, construction andtread pattern
on allfour wheels.
SPECIAL WINTEREQUIPMENT
GUID-349 1A18F-97B 7-48DE-9D7 7-0C0C0BB3803C
It is recommended thatthefollowing itemsbe
carried inthe vehicle duringwinter:
. Ascraper andstiff-bristled brushtoremove
ice and snow fromthewindows andwiper
blades.
. Asturdy ,flat board tobe placed underthe
jack togive itfirm support.
. Ashovel todig thevehicle outofsnow-
drifts.
. Extra window washerfluidtorefill the
reservoir tank.
DRIVING ONSNOW ORICE
GUID-286 40823-2F38 -49A8-9D56- 4832A7583977
WARNING
. Wet ice(328F ,08C and freezing rain),
very cold snow orice can beslick
and very hard todrive on.The
vehicle willhave much lesstraction
or ªgripº undertheseconditions. Try
to avoid driving onwet iceuntil the
road issalted orsanded.
. Whatever thecondition, drivewith
caution. Accelerate andslow down
with care. Ifaccelerating ordown-
shifting toofast, thedrive wheels
will lose even more traction.
Starting anddriving
5-39
COLD WEATHER DRIVING
&RQGLWLRQ


> (GLW   0RGHO )'@

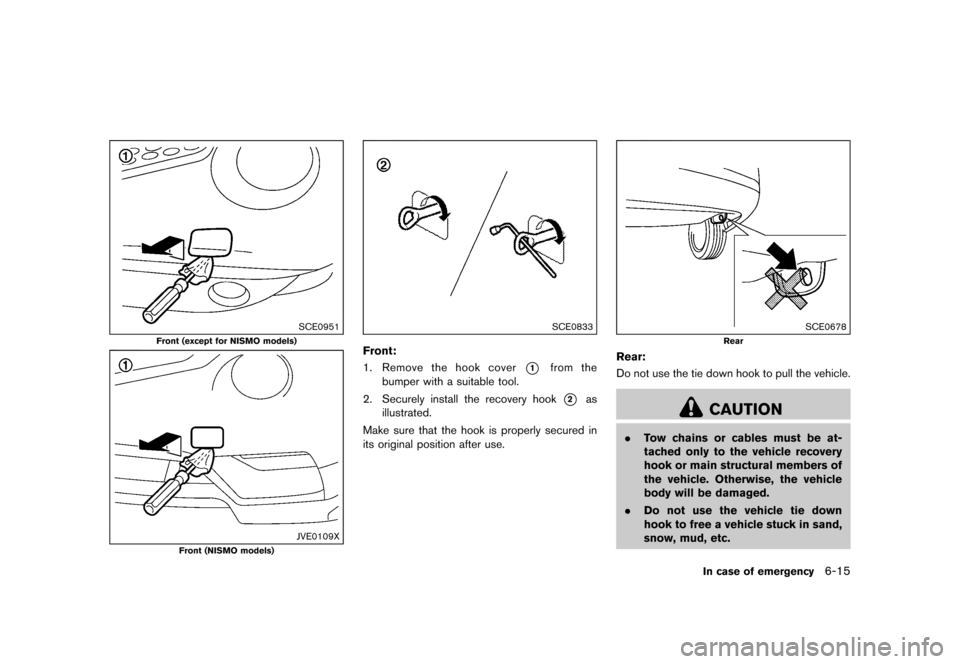

SCE0951
Front (except forNISMO models)
JVE0109X
Front (NISMO models)
SCE0833
Front :
GUID-F 83C168B-173D -4313-B631-F712588C04 63
1. Remove thehook cover
*
1
from the
bumper withasuitable tool.
2. Securely installtherecovery hook
*
2
as
illustrated.
Make surethatthehook isproperly securedin
its original position after
use.
SCE0678
Rear
Rear:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Do not use thetiedown hooktopull thevehicle.
CAUTION
. Tow chains orcables mustbeat-
tached onlytothe vehicle recovery
hook ormain structural membersof
the vehicle. Otherwise, thevehicle
body willbedamaged.
. Do not use thevehicle tiedown
hook tofree avehicle stuckinsand,
snow, mud,etc.
In case ofemergency
6-15
&RQGLWLRQ


> (GLW   0RGHO )'@
All season tires
GUID-41 6D8104-CC7 B-46FA-B4CA-B53 7AF5AE9CE
NISSAN specifies allseason tiresonsome
models toprovide goodperformance allyear,
including snowyandicyroad conditions. All
Season tiresareidentified byALL SEASON
and/or M&S(Mud andSnow) onthe tire
sidewall. Snowtireshave better snowtraction
than AllSeason tiresandmay bemore appro-
priate insome areas.
Summer tires
GUID-07 88A270-69FF -49A1-ACEC- 39C92FC91344
NISSAN specifies summertiresonsome
models toprovide superior performance ondry
roads. Summer tireperformance issubstantially
reduced insnow andice.Summer tiresdonot
have thetire traction ratingM&Sonthe tire
sidewall.
If you plan tooperate yourvehicle insnowy or
icy conditions, NISSANrecommends theuse of
SNOW tiresorALL SEASON tiresonallfour
wheels.
Snow tires
GUID-7DBD9 178-687B-4889-BA79 -417F594D0 842
If snow tiresareneeded, itis necessary toselect
tires equivalent insize andload rating tothe
original equipment tires.Ifyou donot, itcan
adversely affectthesafety andhandling ofyour
vehicle.
Generally ,snow tireswillhave lower speed
ratings thanfactory equipped tiresandmay not match
thepotential maximum vehiclespeed.
Never exceed themaximum speedratingofthe
tire.
If you install snowtires,theymust bethe same
size, brand, construction andtread pattern onall
four wheels.
For additional tractiononicy roads, studded
tires maybeused. However, someU.S.states
and Canadian provinces prohibittheiruse.
Check local,stateandprovincial lawsbefore
installing studdedtires.Skidandtraction cap-
abilities ofstudded snowtires,onwet ordry
surfaces, maybepoorer thanthatofnon-
studded snowtires.
TIRE CHAINS
GUID-74 141916-76 68-4C78-8B 9E-6B18B49D3DE7
Use oftire chains maybeprohibited according
to location. Checkthelocal lawsbefore instal-
ling tirechains. Wheninstalling tirechains, make
sure theyarethe proper sizeforthe tires onyour
vehicle andareinstalled according tothe chain
manufacturer's suggestions.Useonly SAE
Class Schains. ClassªSºchains areused on
vehicles withrestricted tiretovehicle clearance.
V ehicles thatcanuseClass ªSºchains are
designed tomeet theSAE standard minimum
clearances betweenthetireand theclosest
vehicle suspension orbody component required
to accommodate theuse ofawinter traction
device (tirechains orcables) .The minimum clearances
aredetermined usingthefactory
equipped tiresize. Other typesmaydamage
your vehicle. Usechain tensioners whenre-
commended bythe tirechain manufacturer to
ensure atight fit.Loose endlinks ofthe tire
chain mustbesecured orremoved toprevent
the possibility ofwhipping actiondamage tothe
fenders orunderbody .If possible, avoidfully
loading yourvehicle whenusingtirechains. In
addition, driveatareduced speed.Otherwise,
your vehicle maybedamaged and/orvehicle
handling andperformance maybeadversely
affected.
Tire chains mustbeinstalled onlyonthe
front wheels andnotonthe rear wheels.
Never installtirechains onaTEMPORAR YUSE
ONL Yspare tire.
Do not use tirechains ondry roads. Driving with
tire chains insuch conditions cancause damage
to the various mechanisms ofthe vehicle dueto
some overstress.
Maintenance anddo-it-yo urself
8-39
&RQGLWLRQ


> (GLW   0RGHO )'@
. With theTEMPORAR YUSE ONLY
spare tireinstalled donot drive your
vehicle atspeeds fasterthan50
MPH (80km/h) .
. When driving onroads covered with
snow orice, theTEMPORAR YUSE
ONL Yspare tireshould beused on
the rear wheels andoriginal tire
used onthe front wheels (drive
wheels) .Use tirechains onlyon
the front (original) tires.
. Tire tread ofthe TEMPORAR YUSE
ONL Yspare tirewill wear atafaster
rate than thestandard tire.Replace
the spare tireassoon asthe tread
wear indicators appear.
. Do not use thespare tireonother
vehicles.
. Donot use more thanonespare tire
at the same time.
CAUTION
. Do not use tirechains onaTEM-
PORAR YUSE ONLYspare tire.Tire
chains willnotfitproperly andmay
cause damage tothe vehicle. .
Because theTEMPORAR YUSE
ONL Yspare tireissmaller thanthe
original tire,ground clearance is
reduced. To avoid damage tothe
vehicle, donot drive overobstacles.
Also donot drive thevehicle
through anautomatic carwash
since itmay getcaught.
Maintenance anddo-it-yo urself
8-43
&RQGLWLRQ
