2015 MITSUBISHI OUTLANDER SPORT Owners Manual

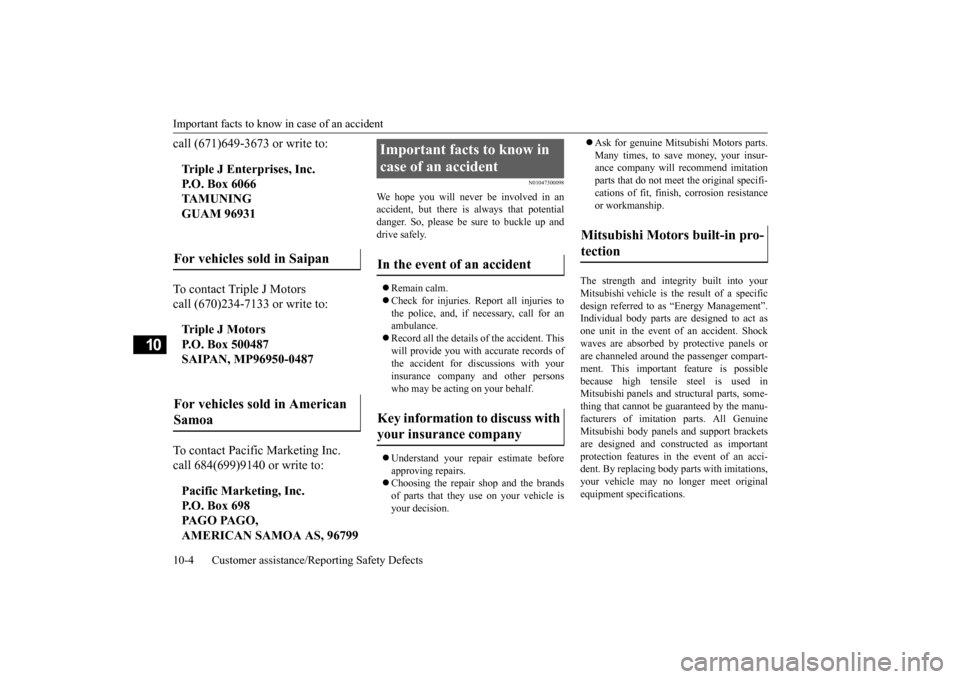

Important facts to know in case of an accident 10-4 Customer assistance/Reporting Safety Defects
10
call (671)649-3673 or write to: To contact Triple J Motors call (670)234-7133 or write to: To contact Pacific Marketing Inc. call 684(699)9140 or write to:
N01047300098
We hope you will never be involved in an accident, but there is always that potentialdanger. So, please be sure to buckle up and drive safely.  Remain calm.  Check for injuries. Report all injuries to the police, and, if necessary, call for an ambulance.  Record all the details of the accident. This will provide you with accurate records of the accident for discussions with your insurance company and other personswho may be acting on your behalf.  Understand your repair estimate before approving repairs.  Choosing the repair
shop and the brands
of parts that they use on your vehicle isyour decision.
 Ask for genuine Mitsubishi Motors parts. Many times, to save money, your insur- ance company will recommend imitation parts that do not meet the original specifi-cations of fit, finish, corrosion resistance or workmanship.
The strength and integrity built into your Mitsubishi vehicle is the result of a specific design referred to as “Energy Management”.Individual body parts are designed to act as one unit in the event of an accident. Shock waves are absorbed by protective panels orare channeled around the passenger compart- ment. This important feature is possible because high tensile steel is used inMitsubishi panels and structural parts, some- thing that cannot be guaranteed by the manu- facturers of imitation parts. All GenuineMitsubishi body panels and support brackets are designed and constructed as important protection features in the event of an acci-dent. By replacing body parts with imitations, your vehicle may no longer meet original equipment specifications.
Triple J Enterprises, Inc. P.O. Box 6066 TAMUNING GUAM 96931For vehicles sold in Saipan Triple J Motors P.O. Box 500487 SAIPAN, MP96950-0487For vehicles sold in American Samoa Pacific Marketing, Inc. P.O. Box 698 PAGO PAGO, AMERICAN SAMOA AS, 96799
Important facts to know in case of an accident In the event of an accident Key information to discuss with your insurance company
Mitsubishi Motors built-in pro- tection
BK0206700US.bo
ok 4 ページ ２０１４年３月２５日　火曜日　午後４時４２分

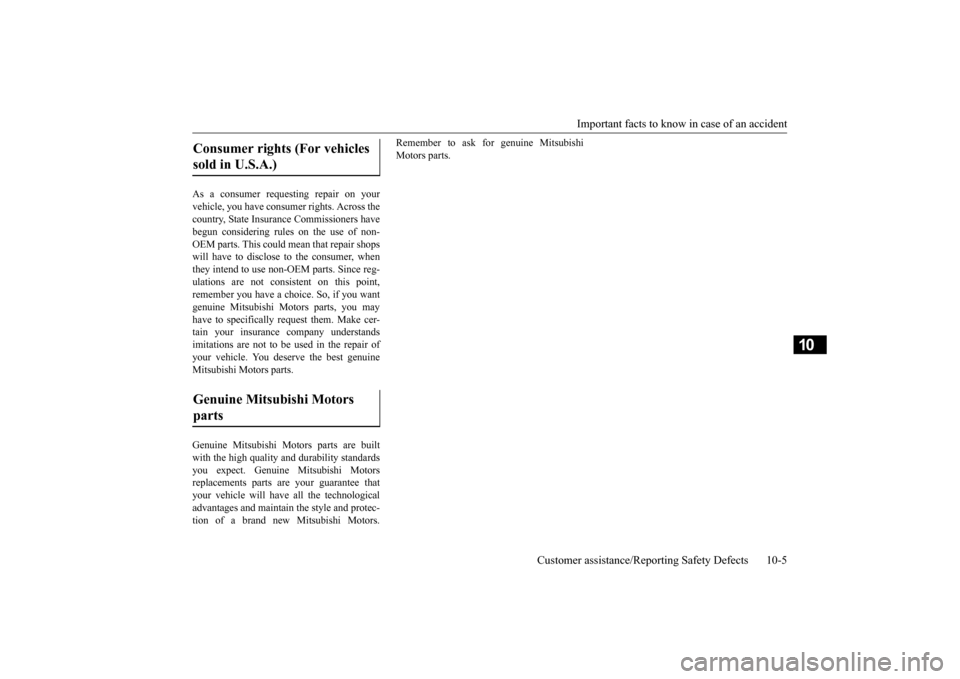

Important facts to know in case of an accident
Customer assistance/Reporting Safety Defects 10-5
10
As a consumer requesting repair on your vehicle, you have consumer rights. Across the country, State Insurance Commissioners have begun considering rules on the use of non-OEM parts. This could mean that repair shops will have to disclose to the consumer, when they intend to use non-OEM parts. Since reg-ulations are not consistent on this point,remember you have a choice. So, if you want genuine Mitsubishi Motors parts, you may have to specifically request them. Make cer-tain your insurance company understands imitations are not to be used in the repair of your vehicle. You deserve the best genuineMitsubishi Motors parts. Genuine Mitsubishi Motors parts are built with the high quality and durability standards you expect. Genuine Mitsubishi Motorsreplacements parts are your guarantee that your vehicle will have all the technological advantages and maintain the style and protec-tion of a brand new Mitsubishi Motors.
Remember to ask for genuine Mitsubishi Motors parts.
Consumer rights (For vehicles sold in U.S.A.) Genuine Mitsubishi Motors parts
BK0206700US.bo
ok 5 ページ ２０１４年３月２５日　火曜日　午後４時４２分

BK0206700US.book 6 ページ ２０１４年３月２５日　火曜日　午後４時４２分

11

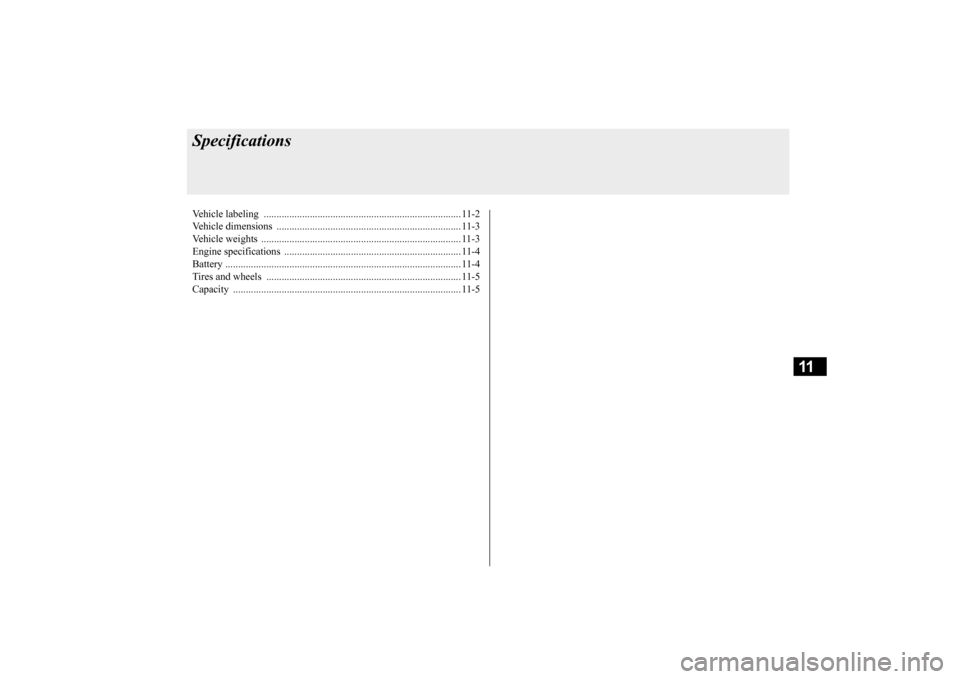

SpecificationsVehicle labeling ....
.................................................
........................ 11-2
Vehicle dimensions
................................................
........................ 11-3
Vehicle weights ...............
............................................................... 11-3
Engine specifications
.............................................
........................ 11-4
Battery .......................................
..................................................... 11-4
Tires and wheels .............
............................................................... 11-5
Capacity ....................................
..................................................... 11-5
BK0206700US.bo
ok 1 ページ ２０１４年３月２５日　火曜日　午後４時４２分

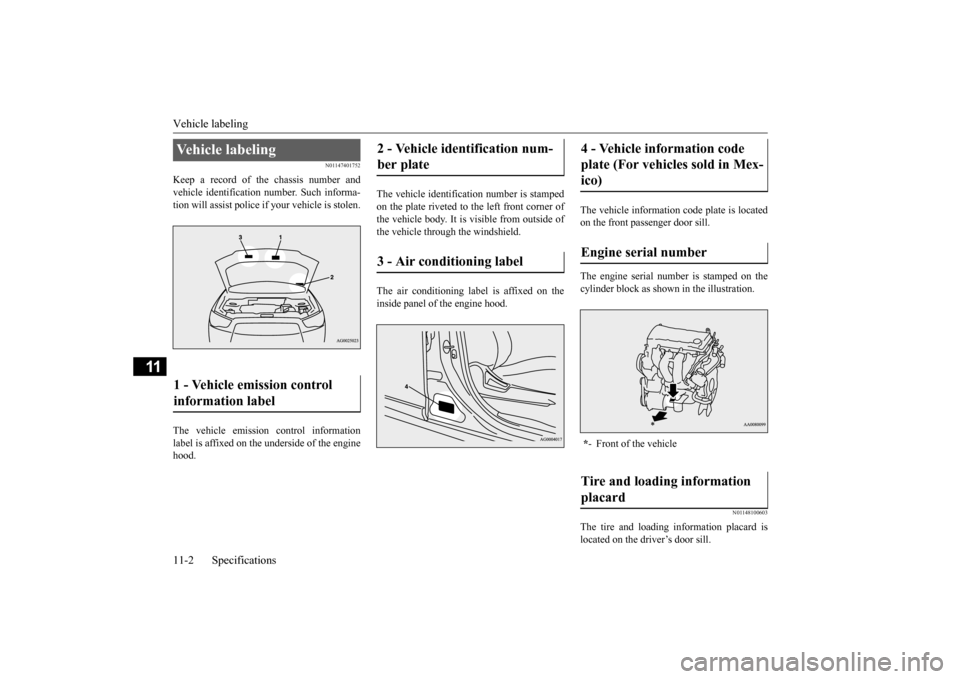

Vehicle labeling 11-2 Specifications
11
N01147401752
Keep a record of the chassis number and vehicle identification number. Such informa-tion will assist police if your vehicle is stolen. The vehicle emission control information label is affixed on the underside of the engine hood.
The vehicle identification number is stamped on the plate riveted to the left front corner of the vehicle body. It is visible from outside of the vehicle through the windshield. The air conditioning label is affixed on the inside panel of the engine hood.
The vehicle information code plate is located on the front passenger door sill. The engine serial number is stamped on the cylinder block as shown in the illustration.
N01148100603
The tire and loading information placard islocated on the driver’s door sill.
Vehicle labeling 1 - Vehicle emission control information label
2 - Vehicle identification num-ber plate 3 - Air conditioning label
4 - Vehicle information code plate (For vehicles sold in Mex- ico) Engine serial number * - Front of the vehicleTire and loading information placard
BK0206700US.bo
ok 2 ページ ２０１４年３月２５日　火曜日　午後４時４２分

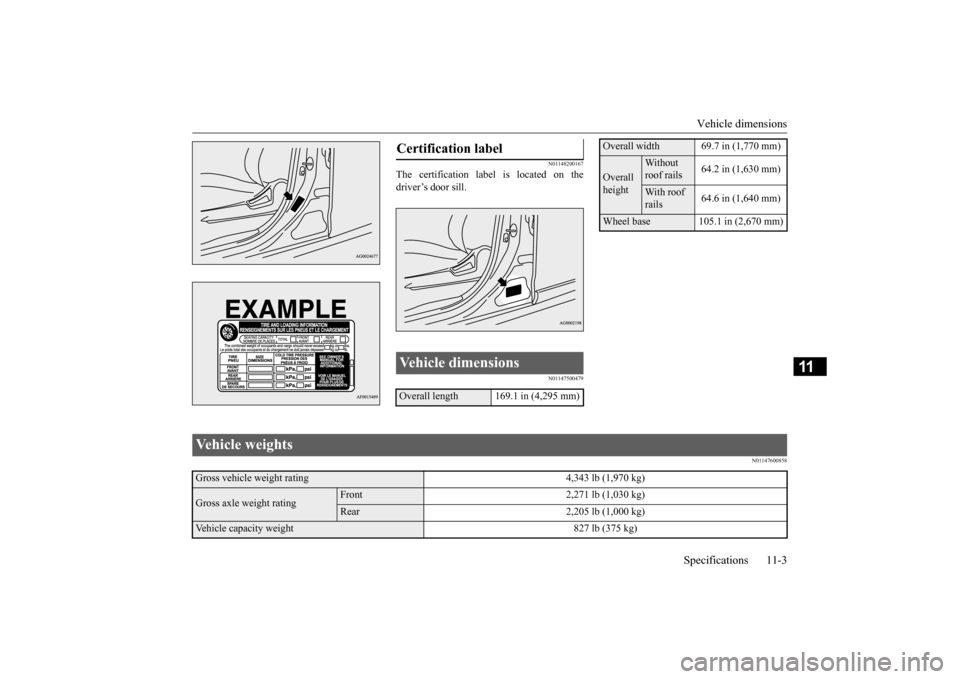

Vehicle dimensions
Specifications 11-3
11
N01148200167
The certification label is located on the driver’s door sill.
N01147500479
N01147600858
Certification label Vehicle dimensions Overall length 169.1 in (4,295 mm)
Overall width 69.7 in (1,770 mm)Overall height
Without roof rails
64.2 in (1,630 mm)
With roof rails
64.6 in (1,640 mm)
Wheel base 105.1 in (2,670 mm)
Vehicle weights Gross vehicle weight rating 4,343 lb (1,970 kg)Gross axle weight rating
Front 2,271 lb (1,030 kg)Rear 2,205 lb (1,000 kg)
Vehicle capacity weight 827 lb (375 kg)
BK0206700US.bo
ok 3 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Engine specifications 11-4 Specifications
11
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Seating capacity: the maximum number of occupants
N01147700442
N01147800283
Battery is a 12 volt type.
Maximum roof load 176 lb (80 kg)Seating capacity 5 persons
NOTE
 Roof load is important because it affects the vehicle capacity
weight. Refer to “Loading cargo on the roof” on page 6-11.
Engine specifications Engine model
4B11
Engine displacement
121.9 CID (1,998 cm
3)
No. of cylinders and cylinder arrangement 4 in lineBore
3.39 in (86.0 mm)
Stroke
3.39 in (86.0 mm)
Compression ratio 10.0Thermostat valve opening temperature 189 °F (87 °C)Spark plugs
NGK DIFR6C11
Spark plug gap .040 to .043 in (1.0 to 1.1 mm)Firing order
1-3-4-2
Battery
BCI Group No.35 (530CCA/118RC)
BK0206700US.bo
ok 4 ページ ２０１４年３月２５日　火曜日　午後４時４２分

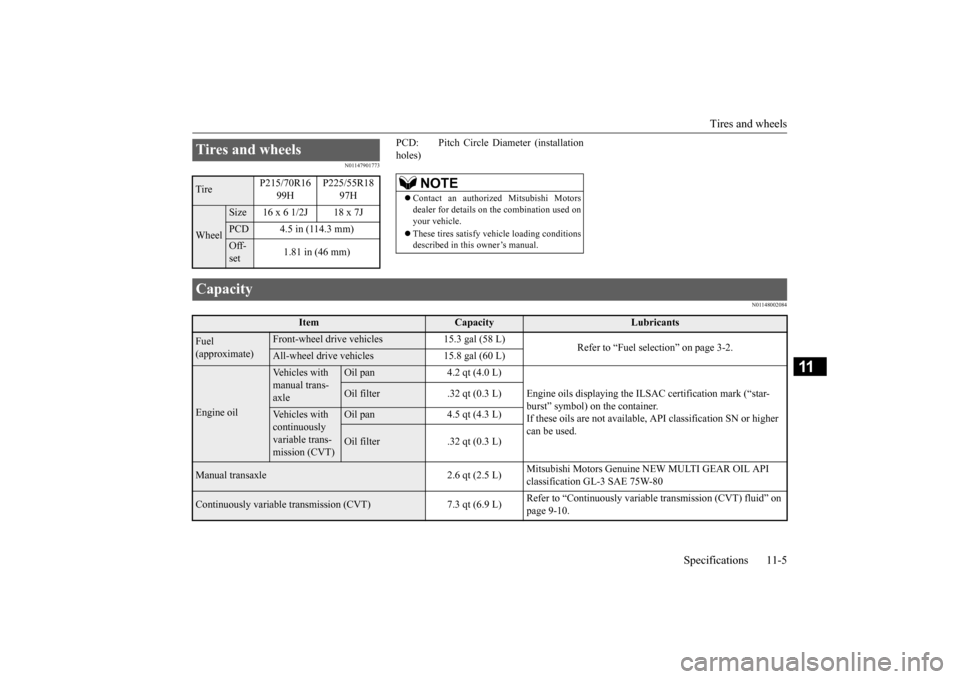

Tires and wheels
Specifications 11-5
11
N01147901773
PCD: Pitch Circle Diameter (installation holes)
N01148002084
Tires and wheels Tire
P215/70R16
99H
P225/55R18
97H
Wheel
Size 16 x 6 1/2J 18 x 7JPCD 4.5 in (114.3 mm)Off- set
1.81 in (46 mm)
NOTE
 Contact an authorized Mitsubishi Motors dealer for details on the combination used on your vehicle.  These tires satisfy vehicle loading conditions described in this owner’s manual.
Capacity
Item
Capacity
Lubricants
Fuel (approximate)
Front-wheel drive vehicles 15.3 gal (58 L)
Refer to “Fuel selection” on page 3-2.
All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
Vehicles with manual trans- axle
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the IL
SAC certification mark (“star-
burst” symbol) on the container. If these oils are not available,
API classification SN or higher
can be used.
Oil filter .32 qt (0.3 L)
Vehicles with continuously variable trans- mission (CVT)
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Manual transaxle 2.6 qt (2.5 L)
Mitsubishi Motors Genuine NEW MULTI GEAR OIL API classification GL-3 SAE 75W-80
Continuously variable transmission (CVT) 7.3 qt (6.9 L)
Refer to “Continuously variable
transmission (CVT) fluid” on
page 9-10.
