2015 MITSUBISHI OUTLANDER SPORT Owners Manual

Indicator light, warning light, an
d information screen display list
5-106 Features and controls
5
N00557900082
When there is information to be announced,
such as light reminder, the tone sounds an
d the screen switches to the displays show
n below. Refer to

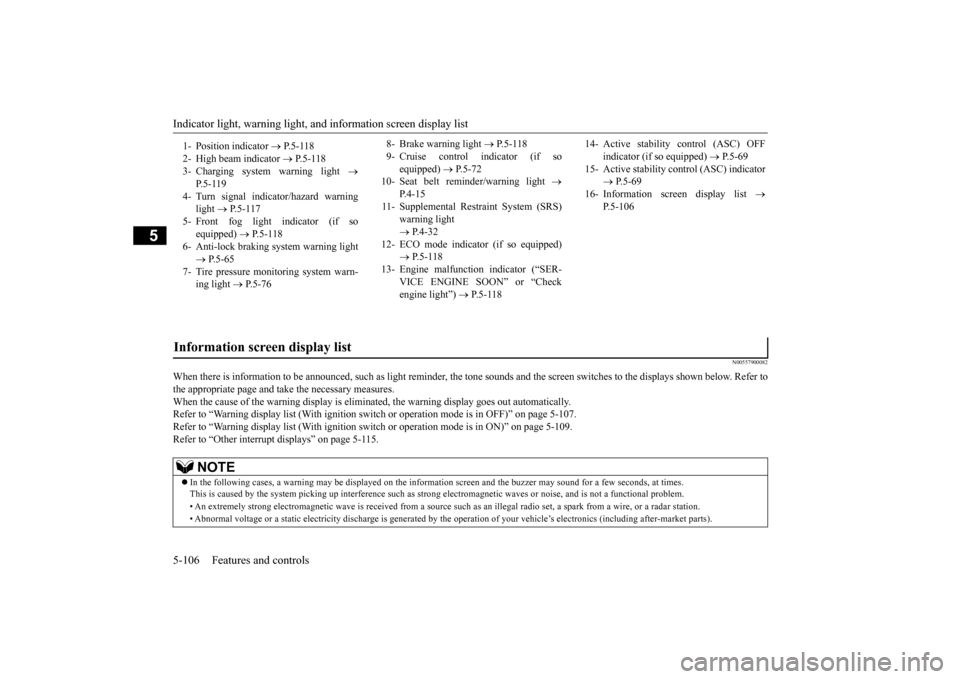

the appropriate page and take the necessary measures. When the cause of the warning display is eliminated, the warning display goes out automatically.Refer to “Warning display list (With ignition switch or operation mode is in OFF)” on page 5-107. Refer to “Warning display list (With ignition switch or operation mode is in ON)” on page 5-109. Refer to “Other interrupt displays” on page 5-115. 1- Position indicator
 P.5-118
2- High beam indicator
 P.5-118
3- Charging system warning light

P. 5 - 1 1 9
4- Turn signal indicator/hazard warning
light
 P.5-117
5- Front fog light indicator (if so
equipped)
 P.5-118
6- Anti-lock braking system warning light
 P.5-65
7- Tire pressure monitoring system warn-
ing light
 P.5-76
8- Brake warning light
 P. 5 - 1 1 8
9- Cruise control indicator (if so
equipped)
 P.5-72
10- Seat belt reminder/warning light

P. 4 - 1 5
11- Supplemental Restraint System (SRS)
warning light  P.4-32
12- ECO mode indicator (if so equipped)
 P.5-118
13- Engine malfunction indicator (“SER-
VICE ENGINE SOON” or “Checkengine light”)
 P.5-118
14- Active stability control (ASC) OFF
indicator (if so equipped)
 P.5-69
15- Active stability control (ASC) indicator
 P.5-69
16- Information screen display list

P.5-106
Information screen display list
NOTE
 In the following cases, a warning may be displayed on the inform
ation screen and the buzzer may
sound for a few seconds, at tim
es.
This is caused by the system picking up interference such as stro
ng electromagnetic waves or nois
e, and is not a functional pro
blem.
• An extremely strong electromagnetic wave is received from a source
such as an illegal radio set,
a spark from a wire, or a rad
ar station.
• Abnormal voltage or a static electricity discharge is genera
ted by the operation of your vehicle’s electronics (including afte
r-market parts).
BK0206700US.book
106 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Indicator light, warning light, an
d information screen display list Features and controls 5-107
5
N00558000224
If the warning display has occurred a number of times, take your ve
hicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and
have the system checked.
Warning display list (With ignition swit
ch or operation mode is in OFF)
Screen type 1
Screen type 2
Cause
Do this (Reference)
 You have forgotten to remove the key from the ignition switch.
 Remove the key. Refer to “Key reminder system” on page 5-29.
 You have forgotten to turn off the lights.
Refer to “Light auto-cutout function (head- lights and other lights)” on page 5-124.
 The theft-alarm system is operating. Refer to “Theft-alarm system” on page 5-33.  Immobilizer is registered. Refer to “Customer key programming (Except
for vehicles sold in Canada)” on page 5-6. Refer to “Customer F.A.S.T.-key program- ming (Except for vehicles sold in Canada)” on page 5-23.
NOTE
BK0206700US.book
107 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Indicator light, warning light, an
d information screen display list
5-108 Features and controls
5
—

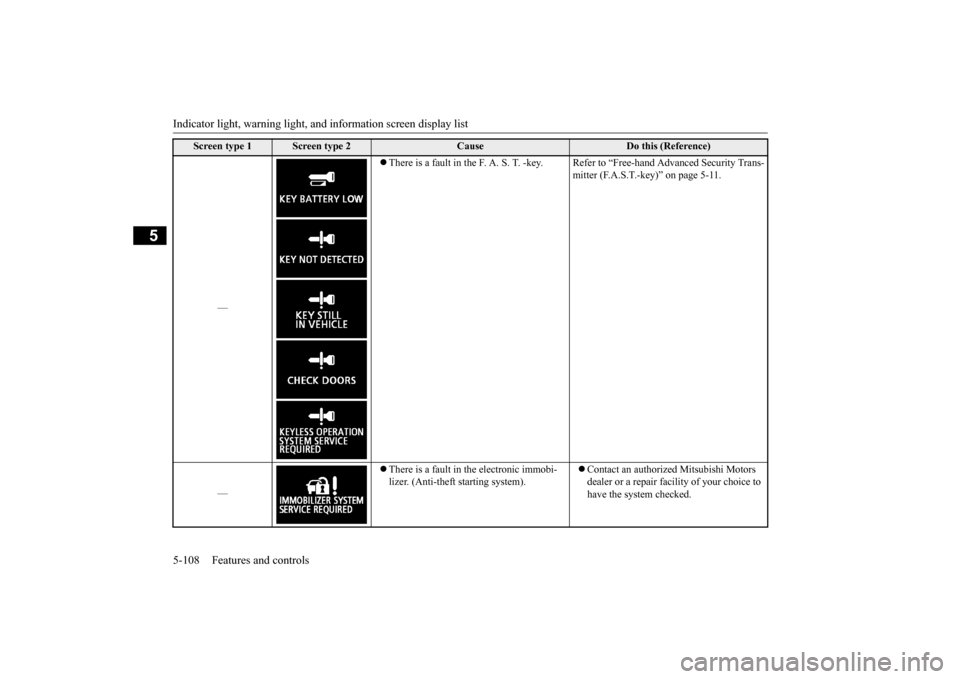

 There is a fault in the F. A. S. T. -key. R
efer to “Free-hand Advanced Security Trans- mitter (F.A.S.T.-key)” on page 5-11.
—
 There is a fault in the electronic immobi- lizer. (Anti-theft starting system).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0206700US.book
108 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Indicator light, warning light, an
d information screen display list Features and controls 5-109
5
N00558101310
—

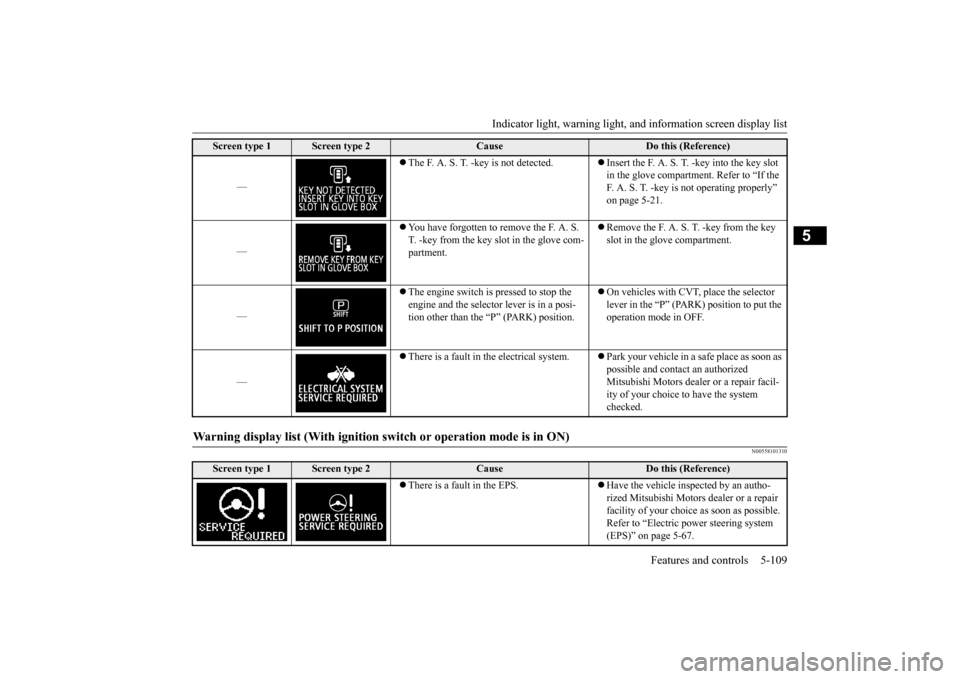

 The F. A. S. T. -key is not detected.
Insert the F. A. S. T. -key into the key slot in the glove compartment. Refer to “If the F. A. S. T. -key is not operating properly” on page 5-21.
—
 You have forgotten to remove the F. A. S. T. -key from the key slot in the glove com-partment.
 Remove the F. A. S. T. -key from the key slot in the glove compartment.
—
 The engine switch is pressed to stop the engine and the selector lever is in a posi-tion other than the “P” (PARK) position.
 On vehicles with CVT, place the selector lever in the “P” (PARK) position to put the operation mode in OFF.
—
 There is a fault in the electrical system.
Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice to have the system checked.
Warning display list (With ignition sw
itch or operation mode is in ON)
Screen type 1
Screen type 2
Cause
Do this (Reference)
 There is a fault in the EPS.
Have the vehicle inspected by an autho- rized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible. Refer to “Electric power steering system (EPS)” on page 5-67.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0206700US.book
109 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Indicator light, warning light, an
d information screen display list
5-110 Features and controls
5
—

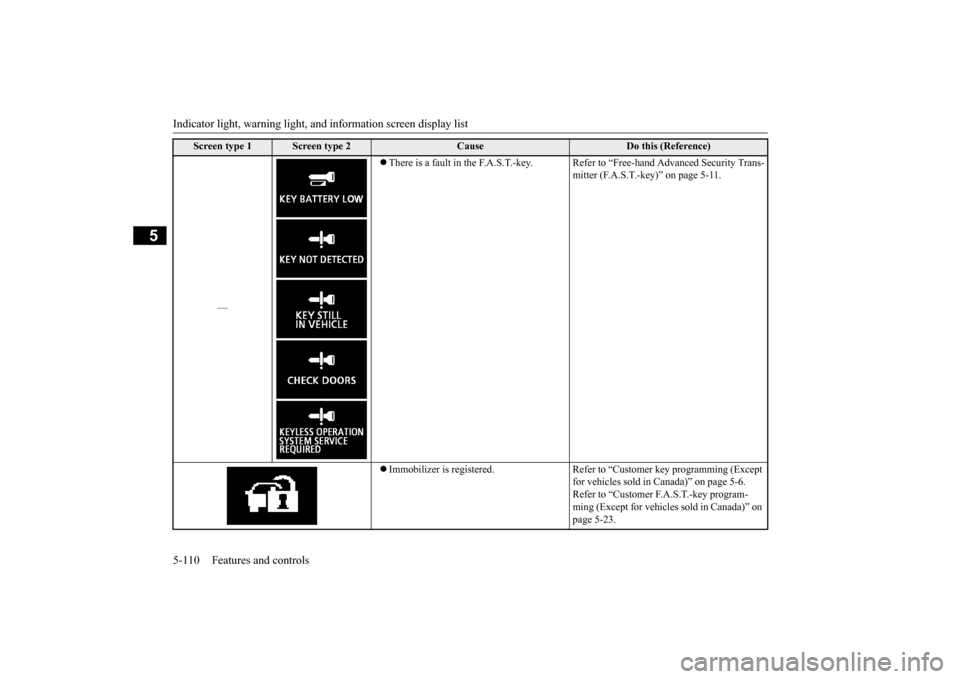

 There is a fault in the F.A.S.T.-key. Refer
to “Free-hand Advanced Security Trans-
mitter (F.A.S.T.-key)” on page 5-11.
 Immobilizer is registered. Refer to “Customer key programming (Except
for vehicles sold in Canada)” on page 5-6.Refer to “Customer F.A.S.T.-key program- ming (Except for vehicles sold in Canada)” on page 5-23.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0206700US.book
110 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Indicator light, warning light, an
d information screen display list Features and controls 5-111
5

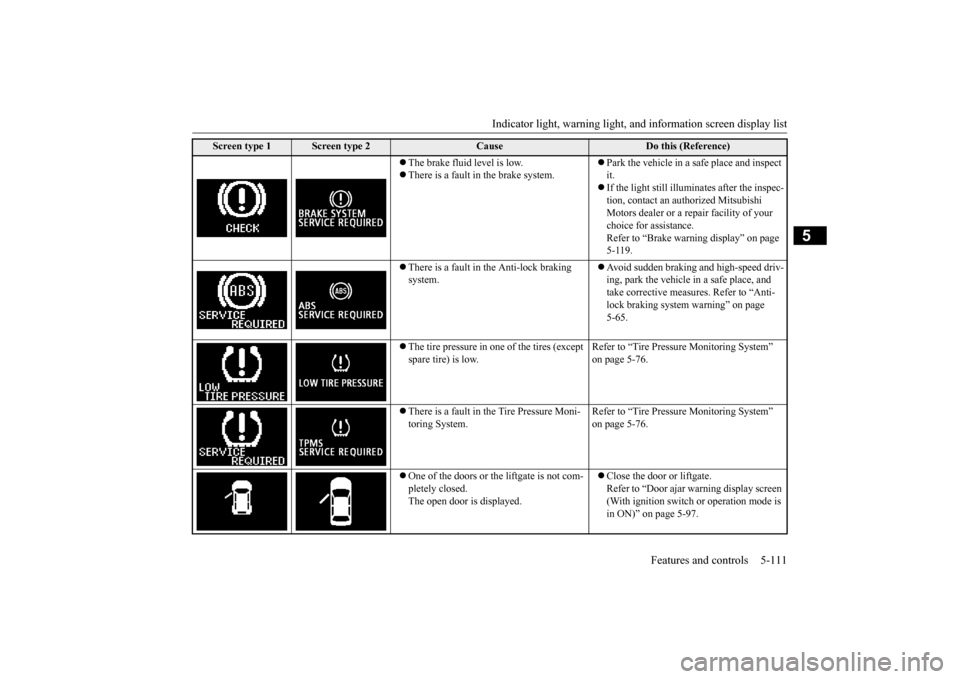

 The brake fluid level is low.  There is a fault in the brake system.
 Park the vehicle in a safe place and inspect it.  If the light still illuminates after the inspec- tion, contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.Refer to “Brake warning display” on page 5-119.
 There is a fault in the Anti-lock braking system.
 Avoid sudden braking and high-speed driv- ing, park the vehicle in a safe place, and take corrective measures. Refer to “Anti- lock braking system warning” on page 5-65.
 The tire pressure in one of the tires (except spare tire) is low.
Refer to “Tire Pressure Monitoring System” on page 5-76.
 There is a fault in the Tire Pressure Moni- toring System.
Refer to “Tire Pressure Monitoring System” on page 5-76.
 One of the doors or the liftgate is not com- pletely closed.The open door is displayed.
 Close the door or liftgate. Refer to “Door ajar warning display screen (With ignition switch or operation mode is in ON)” on page 5-97.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0206700US.book
111 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Indicator light, warning light, an
d information screen display list
5-112 Features and controls
5

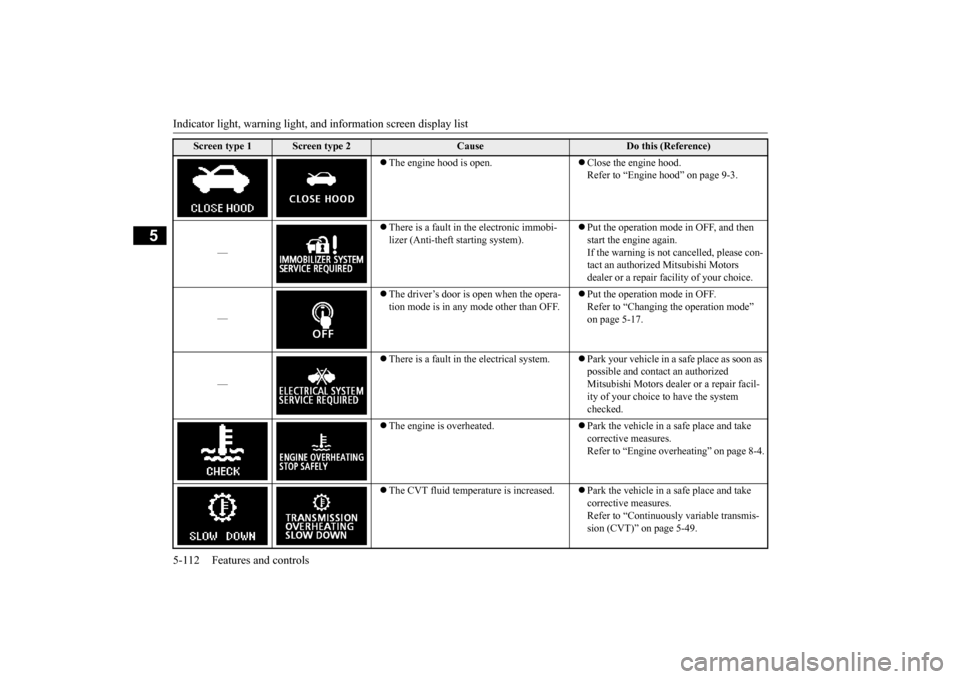

 The engine hood is open.
Close the engine hood. Refer to “Engine hood” on page 9-3.
—
 There is a fault in the electronic immobi- lizer (Anti-theft starting system).
 Put the operation mode in OFF, and then start the engine again.If the warning is not cancelled, please con- tact an authorized Mitsubishi Motors dealer or a repair facility of your choice.
—
 The driver’s door is open when the opera- tion mode is in any mode other than OFF.
 Put the operation mode in OFF. Refer to “Changing the operation mode” on page 5-17.
—
 There is a fault in the electrical system.
Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice to have the system checked.
 The engine is overheated.
Park the vehicle in a safe place and take corrective measures. Refer to “Engine overheating” on page 8-4.
 The CVT fluid temperature is increased.
Park the vehicle in a safe place and take corrective measures.Refer to “Continuously variable transmis- sion (CVT)” on page 5-49.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0206700US.book
112 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Indicator light, warning light, an
d information screen display list Features and controls 5-113
5
 The seat belt is not fastened when the igni- tion switch or operation mode is in ON.
 Wear your seat belt properly. Refer to “Seat belt warning” on page 4-15.
 There is a fault in the fuel system.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
 The vehicle is being driven with the park- ing brake still applied.
 Release the parking brake. Refer to “Brake warning display” on page 5-119.
 There is a fault in the engine oil circulation system.
 Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice to have the system checked. Refer to “Oil pressure warning display” on page 5-121.
 There is a fault in the charging system.
Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice for assistance.Refer to “Charging system warning light” on page 5-119.
Screen type 1
Screen type 2
Cause
Do this (Reference)
