2015 MITSUBISHI OUTLANDER SPORT Owners Manual

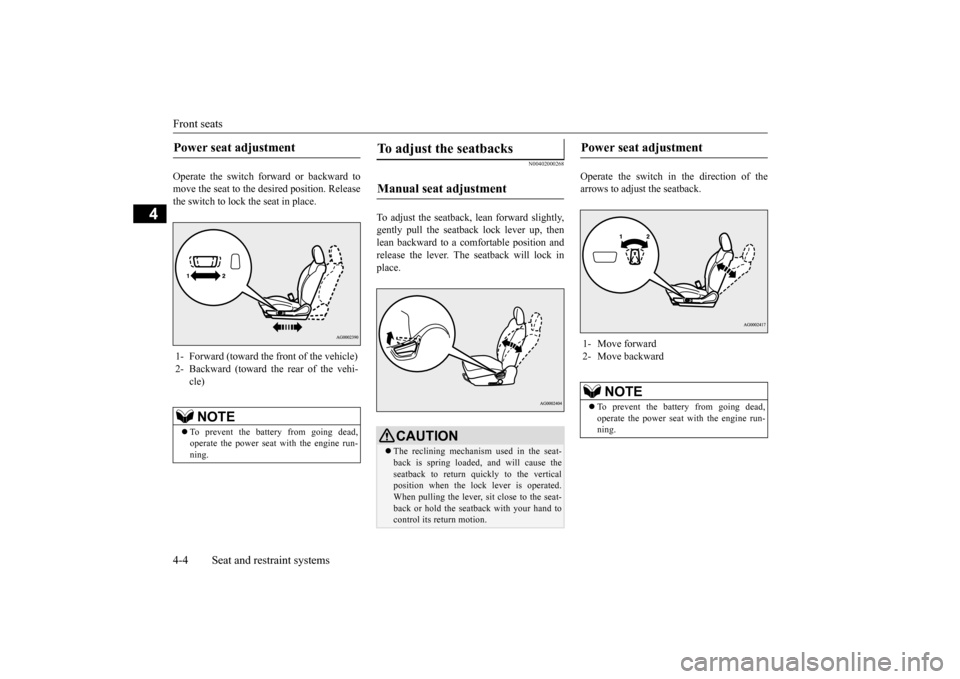

Front seats 4-4 Seat and restraint systems
4
Operate the switch forward or backward to move the seat to the desired position. Releasethe switch to lock the seat in place.
N00402000268
To adjust the seatback,
lean forward slightly,
gently pull the seatb
ack lock lever up, then
lean backward to a comfortable position and release the lever. The seatback will lock in place.
Operate the switch in the direction of the arrows to adjust the seatback.
Power seat adjustment 1- Forward (toward the front of the vehicle)2- Backward (toward the rear of the vehi-
cle)NOTE
 To prevent the battery from going dead, operate the power seat with the engine run-ning.
To adjust the seatbacks Manual seat adjustment
CAUTION The reclining mechanism used in the seat- back is spring loaded, and will cause the seatback to return quickly to the verticalposition when the lock lever is operated. When pulling the lever, sit close to the seat- back or hold the seatback with your hand tocontrol its return motion.
Power seat adjustment 1- Move forward 2- Move backward
NOTE
 To prevent the battery from going dead, operate the power seat with the engine run- ning.
BK0206700US.bo
ok 4 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Front seats
Seat and restraint systems 4-5
4
N00402100197
Operate the lever repeatedly to raise or lower the seat.
Operate the switch in the direction of the arrows to raise or lower the seat.
WA R N I N G To reduce the risk of serious injury or death in the event of an accident or sud- den stop, all seatbacks should be kept in the upright position while the vehicle is in motion.Seat belt performance during an accident can be adversely affected if the seatbacks are reclined. The more a seatback isreclined, the more likely seat belt perfor- mance will be adversely affected. If the seat belt is not properly positioned againstthe body during an accident, there is increased risk you will slide under the belt and receive serious injury or death.
To adjust the seat height (Driver’s seat only) Manual seat adjustment
1- Raise 2- LowerPower seat adjustment
NOTE
 To prevent the battery from going dead, operate the power seat with the engine run- ning.
1- Raise or lower the front end of the seat 2- Raise or lower the back end of the seat
BK0206700US.bo
ok 5 ページ ２０１４年３月２５日　火曜日　午後４時４２分

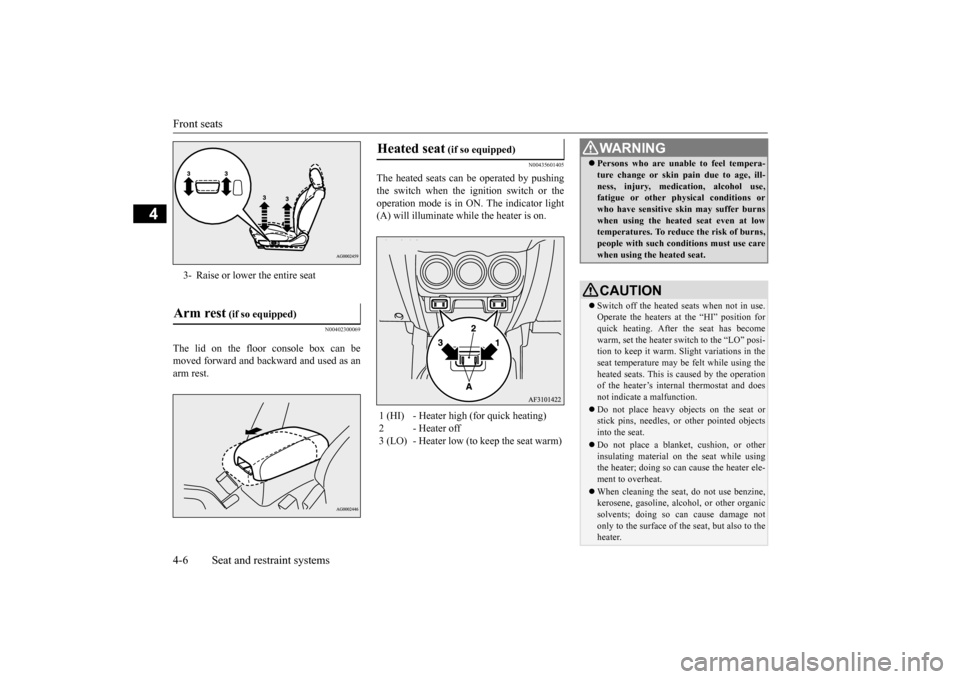

Front seats 4-6 Seat and restraint systems
4
N00402300069
The lid on the floor console box can be moved forward and backward and used as an arm rest.
N00435601405
The heated seats can be operated by pushingthe switch when the ignition switch or theoperation mode is in ON. The indicator light (A) will illuminate while
the heater is on.
3- Raise or lower the entire seatArm rest
(if so equipped)
Heated seat
(if so equipped)
1 (HI) - Heater high (for quick heating) 2 - Heater off3 (LO) - Heater low (to keep the seat warm)
WA R N I N G Persons who are unable to feel tempera- ture change or skin pain due to age, ill- ness, injury, medication, alcohol use, fatigue or other physical conditions or who have sensitive skin may suffer burnswhen using the heated seat even at low temperatures. To reduce the risk of burns, people with such conditions must use carewhen using the heated seat.CAUTION Switch off the heated seats when not in use. Operate the heaters at the “HI” position forquick heating. After the seat has become warm, set the heater switch to the “LO” posi- tion to keep it warm. Slight variations in theseat temperature may be felt while using the heated seats. This is caused by the operation of the heater’s internal thermostat and doesnot indicate a malfunction. Do not place heavy objects on the seat or stick pins, needles, or other pointed objects into the seat. Do not place a blanket,
cushion, or other
insulating material on the seat while using the heater; doing so can cause the heater ele- ment to overheat. When cleaning the seat, do not use benzine, kerosene, gasoline, alcohol, or other organic solvents; doing so can cause damage notonly to the surface of th
e seat, but also to the
heater.
BK0206700US.bo
ok 6 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Rear seats
Seat and restraint systems 4-7
4
N00402500191 N00403000308
Tilt the arm rest down for use as shown. The arm rest includes a cup holder. (Refer to “Cup holder: For the rear seat” on page 5-168.)
N00404300542
Padded head restraints for the seats can reduce the risk of a whiplash injury if your vehicle is hit from the rear.The head restraints are equipped in the illus-trated position. To maximize the effectiveness of your head restraint, adjust the front seatback to theupright position, the rear seatback to the nor- mal seating position, and the head restraint to the proper position. Sit
back against the seat-
back with your head close to the head restraint.
 If water or any other li
quid is spilled on the
seat, allow it to dry thoroughly before attempting to use the heater. Turn the heater off immediately if it appears to be malfunc- tioning during use.
Rear seats Arm rest
(if so equipped)
CAUTION
NOTE
 Never sit on the arm rest. Doing so could damage the arm rest.
Head restraints
WA R N I N G Driving without the head restraints in place can cause you and your passengers serious injury or death in an accident. To reduce the risk of injury in an accident, always make sure the head restraints areinstalled and properly positioned when the seat is occupied. In order to minimize the risk of a neck injury due to a rear impact, the front seat- back must be adjusted to the upright posi-tion, the rear seatback to the normal seating position, and the head restraint to the proper position before vehicle opera-tion. The driver should never adjust the seat while the vehicle is in motion. Never place a cushion or similar device on the seatback. This can adversely affect head restraint performance by increasingthe distance between your head and the restraint.
BK0206700US.bo
ok 7 ページ ２０１４年３月２５日　火曜日　午後４時４２分

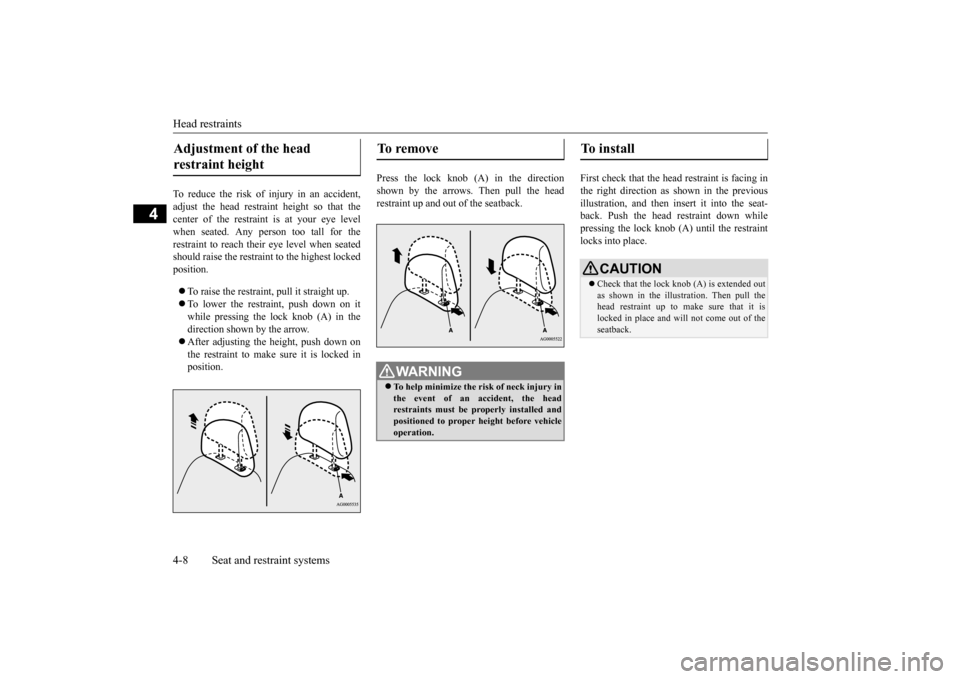

Head restraints 4-8 Seat and restraint systems
4
To reduce the risk of injury in an accident, adjust the head restraint height so that the center of the restraint is at your eye level when seated. Any person too tall for therestraint to reach their eye level when seated should raise the restraint to the highest locked position.  To raise the restraint, pull it straight up.  To lower the restraint, push down on it while pressing the lock knob (A) in the direction shown by the arrow.  After adjusting the height, push down on the restraint to make sure it is locked in position.
Press the lock knob (A) in the direction shown by the arrows. Then pull the headrestraint up and out of the seatback.
First check that the head restraint is facing in the right direction as shown in the previousillustration, and then insert it into the seat- back. Push the head restraint down while pressing the lock knob (A) until the restraintlocks into place.
Adjustment of the head restraint height
To remove
WA R N I N G To help minimize the risk of neck injury in the event of an accident, the head restraints must be properly installed and positioned to proper height before vehicleoperation.
To install
CAUTION Check that the lock knob (A) is extended out as shown in the illustration. Then pull the head restraint up to make sure that it islocked in place and will not come out of the seatback.
BK0206700US.bo
ok 8 ページ ２０１４年３月２５日　火曜日　午後４時４２分

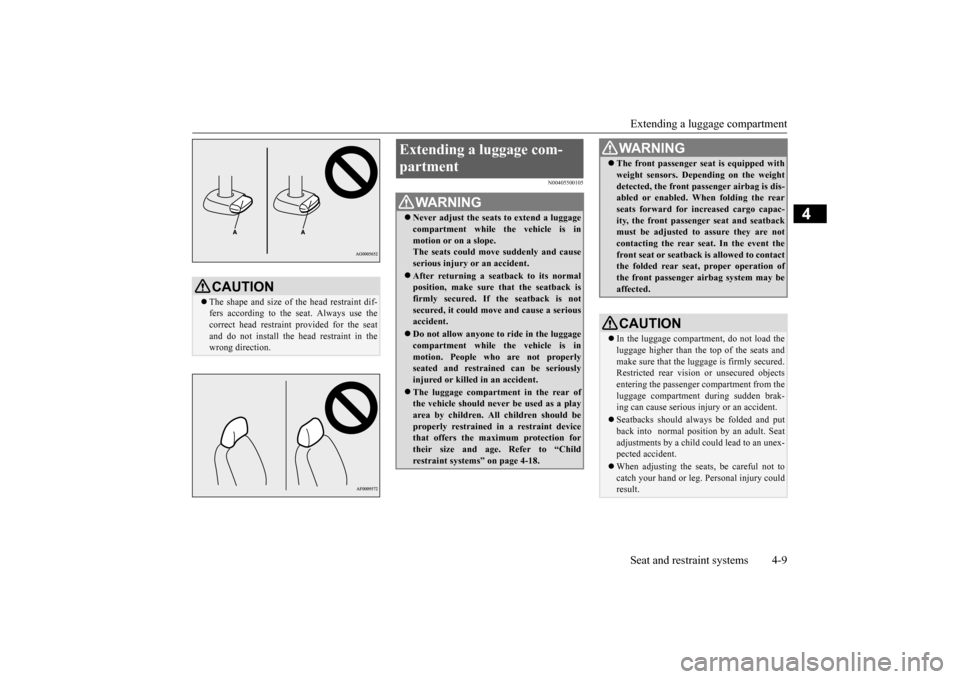

Extending a luggage compartment Seat and restraint systems 4-9
4
N00405500105
CAUTION The shape and size of the head restraint dif- fers according to the seat. Always use thecorrect head restraint provided for the seat and do not install the head restraint in the wrong direction.
Extending a luggage com- partment
WA R N I N G Never adjust the seats to extend a luggage compartment while the vehicle is in motion or on a slope. The seats could move suddenly and causeserious injury or an accident. After returning a seatback to its normal position, make sure that the seatback is firmly secured. If the seatback is not secured, it could move and cause a seriousaccident. Do not allow anyone to
ride in the luggage
compartment while the vehicle is in motion. People who are not properly seated and restrained can be seriouslyinjured or killed in an accident. The luggage compartment in the rear of the vehicle should never be used as a play area by children. All children should be properly restrained in a restraint devicethat offers the maximum protection for their size and age. Refer to “Child restraint systems” on page 4-18.
 The front passenger seat is equipped with weight sensors. Depending on the weight detected, the front passenger airbag is dis- abled or enabled. When folding the rear seats forward for increased cargo capac-ity, the front passenger seat and seatback must be adjusted to assure they are not contacting the rear seat. In the event thefront seat or seatback is allowed to contact the folded rear seat, proper operation of the front passenger airbag system may beaffected.CAUTION In the luggage compartment, do not load the luggage higher than the top of the seats and make sure that the luggage is firmly secured.Restricted rear vision or unsecured objects entering the passenger compartment from the luggage compartment during sudden brak-ing can cause serious injury or an accident. Seatbacks should always be folded and put back into normal position by an adult. Seat adjustments by a child could lead to an unex- pected accident. When adjusting the seats, be careful not to catch your hand or leg. Personal injury could result.WA R N I N G
BK0206700US.bo
ok 9 ページ ２０１４年３月２５日　火曜日　午後４時４２分

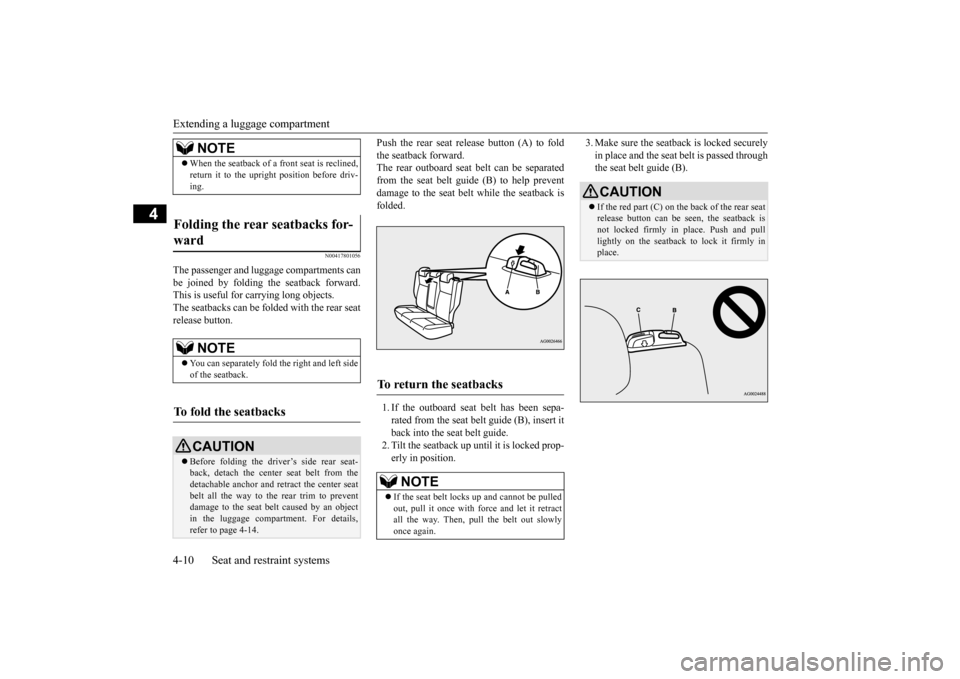

Extending a luggage compartment 4-10 Seat and restraint systems
4
N00417801056
The passenger and luggage compartments can be joined by folding the seatback forward. This is useful for carrying long objects. The seatbacks can be folded with the rear seatrelease button.
Push the rear seat release button (A) to fold the seatback forward. The rear outboard seat belt can be separated from the seat belt guide (B) to help preventdamage to the seat belt while the seatback is folded. 1. If the outboard seat belt has been sepa- rated from the seat belt guide (B), insert itback into the seat belt guide. 2. Tilt the seatback up until it is locked prop- erly in position.
3. Make sure the seatback is locked securely in place and the seat belt is passed through the seat belt guide (B).
NOTE
 When the seatback of a front seat is reclined, return it to the upright position before driv- ing.
Folding the rear seatbacks for- ward
NOTE
 You can separately fold the right and left side of the seatback.
To fold the seatbacks
CAUTION Before folding the driver’s side rear seat- back, detach the center seat belt from the detachable anchor and retract the center seat belt all the way to the rear trim to preventdamage to the seat belt caused by an object in the luggage compartment. For details, refer to page 4-14.
To return the seatbacks
NOTE
 If the seat belt locks up and cannot be pulled out, pull it once with force and let it retractall the way. Then, pull the belt out slowly once again.
CAUTION If the red part (C) on the back of the rear seat release button can be seen, the seatback is not locked firmly in place. Push and pulllightly on the seatback to lock it firmly in place.
BK0206700US.bo
ok 10 ページ ２０１４年３月２５日　火曜日　午後４時４２分

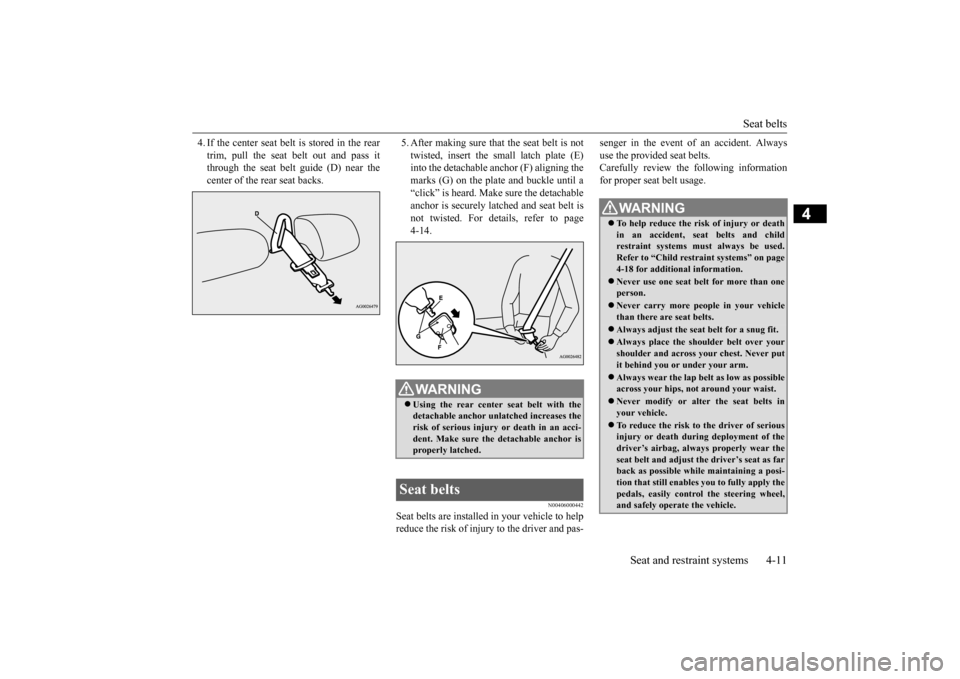

Seat belts
Seat and restraint systems 4-11
4
4. If the center seat belt is stored in the rear trim, pull the seat belt out and pass it through the seat belt guide (D) near the center of the rear seat backs.
5. After making sure that the seat belt is not twisted, insert the small latch plate (E) into the detachable anchor (F) aligning the marks (G) on the plate and buckle until a“click” is heard. Make sure the detachable anchor is securely latched and seat belt is not twisted. For details, refer to page4-14.
N00406000442
Seat belts are installed in your vehicle to helpreduce the risk of injury to the driver and pas-
senger in the event of an accident. Always use the provided seat belts. Carefully review the following information for proper seat belt usage.
WA R N I N G Using the rear center seat belt with the detachable anchor unlatched increases therisk of serious injury or death in an acci- dent. Make sure the detachable anchor is properly latched.
Seat belts
WA R N I N G To help reduce the risk of injury or death in an accident, seat belts and childrestraint systems must always be used. Refer to “Child restraint systems” on page 4-18 for additional information. Never use one seat belt for more than one person.  Never carry more people in your vehicle than there are seat belts.  Always adjust the seat belt for a snug fit.Always place the shoulder belt over your shoulder and across your chest. Never put it behind you or under your arm.  Always wear the lap belt as low as possible across your hips, not around your waist. Never modify or alter the seat belts in your vehicle. To reduce the risk to the driver of serious injury or death during deployment of thedriver’s airbag, always properly wear the seat belt and adjust th
e driver’s seat as far
back as possible while maintaining a posi- tion that still enables
you to fully apply the
pedals, easily control the steering wheel,and safely operate the vehicle.
BK0206700US.bo
