2015 MITSUBISHI OUTLANDER SPORT Owners Manual

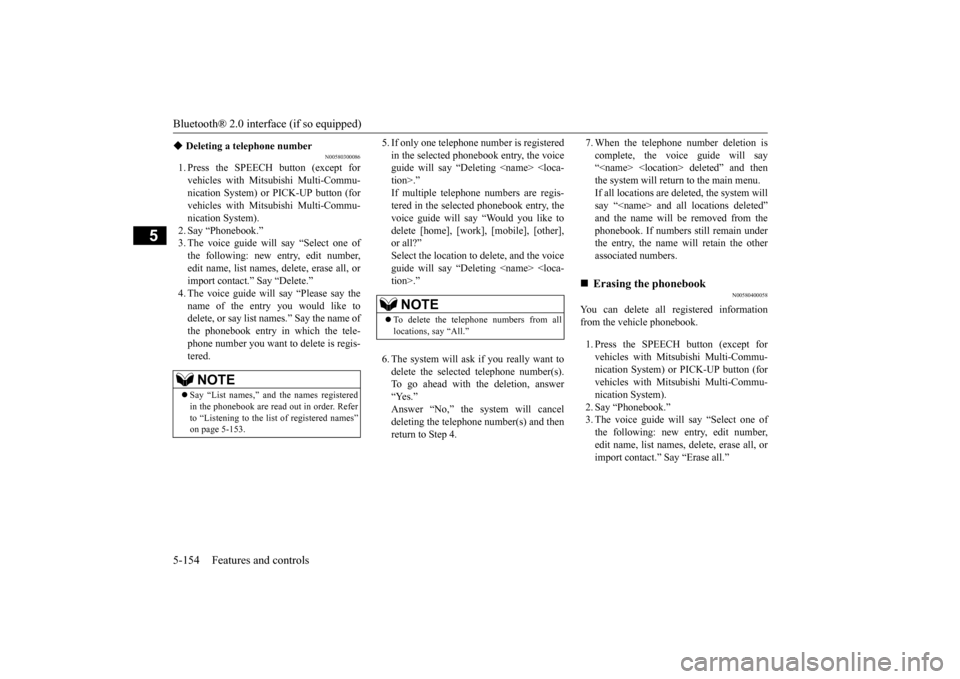

Bluetooth® 2.0 interface (if so equipped) 5-154 Features and controls
5
N00580300086
1. Press the SPEECH button (except for vehicles with Mitsubishi Multi-Commu-nication System) or PICK-UP button (for vehicles with Mitsubishi Multi-Commu- nication System).2. Say “Phonebook.” 3. The voice guide will say “Select one of the following: new entry, edit number,edit name, list names, delete, erase all, orimport contact.” Say “Delete.” 4. The voice guide will say “Please say the name of the entry you would like todelete, or say list names.” Say the name of the phonebook entry in which the tele- phone number you want to delete is regis-tered.
5. If only one telephone number is registered in the selected phonebook entry, the voice guide will say “Deleting .”If multiple telephone numbers are regis- tered in the selected phonebook entry, the voice guide will say “Would you like todelete [home], [work], [mobile], [other], or all?” Select the location to delete, and the voiceguide will say “Deleting .” 6. The system will ask if you really want to delete the selected telephone number(s). To go ahead with the deletion, answer “Yes.”Answer “No,” the system will cancel deleting the telephone number(s) and then return to Step 4.
7. When the telephone number deletion is complete, the voice guide will say “ deleted” and then the system will return to the main menu.If all locations are deleted, the system will say “ and all locations deleted” and the name will be removed from thephonebook. If numbers still remain under the entry, the name will retain the other associated numbers.
N00580400058
You can delete all registered informationfrom the vehicle phonebook. 1. Press the SPEECH button (except for vehicles with Mitsubishi Multi-Commu- nication System) or PICK-UP button (forvehicles with Mitsubishi Multi-Commu- nication System). 2. Say “Phonebook.”3. The voice guide will say “Select one of the following: new entry, edit number, edit name, list names, delete, erase all, orimport contact.” Say “Erase all.”

Deleting a telephone number NOTE
Say “List names,” and the names registered in the phonebook are read out in order. Refer to “Listening to the list of registered names”on page 5-153.
NOTE
 To delete the telephone numbers from all locations, say “All.”

Erasing the phonebook
BK0206700US.book
154 ページ ２０１４年３月２５日　火曜日　午後４時４２分

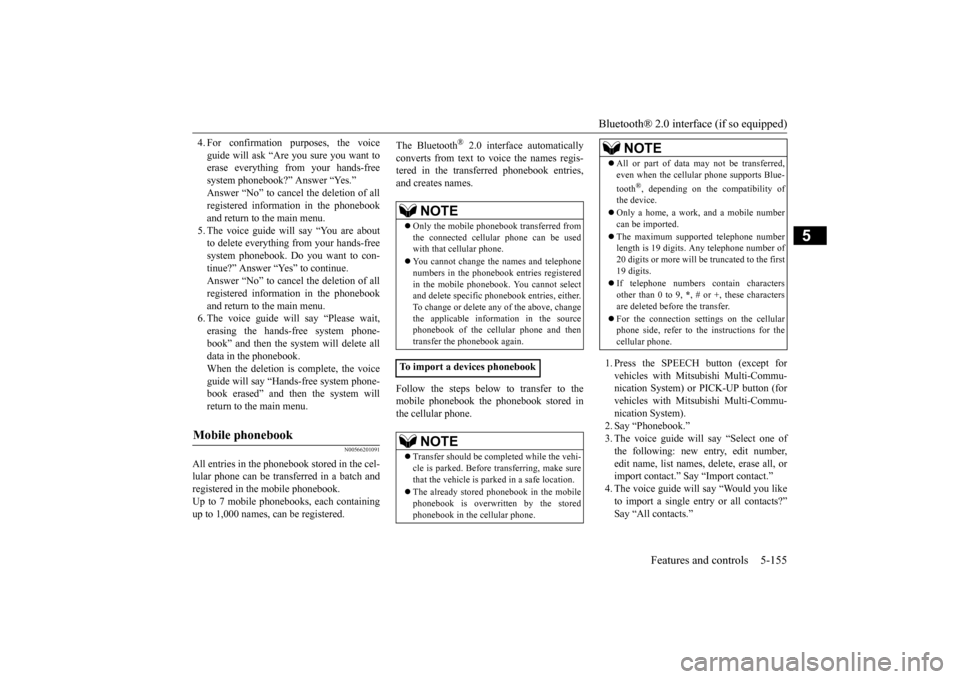

Bluetooth® 2.0 interface (if so equipped)
Features and controls 5-155
5
4. For confirmation purposes, the voice guide will ask “Are you sure you want to erase everything from your hands-free system phonebook?” Answer “Yes.”Answer “No” to cancel the deletion of all registered information in the phonebook and return to the main menu. 5. The voice guide will say “You are about to delete everything from your hands-free system phonebook. Do you want to con-tinue?” Answer “Yes” to continue.Answer “No” to cancel the deletion of all registered information in the phonebook and return to the main menu.6. The voice guide will say “Please wait, erasing the hands-free system phone- book” and then the system will delete alldata in the phonebook. When the deletion is complete, the voice guide will say “Hands-free system phone-book erased” and then the system will return to the main menu.
N00566201091
All entries in the phonebook stored in the cel-lular phone can be transferred in a batch and registered in the mobile phonebook.Up to 7 mobile phonebooks, each containing up to 1,000 names, can be registered.
The Bluetooth
® 2.0 interface automatically
converts from text to voice the names regis- tered in the transferred phonebook entries, and creates names. Follow the steps below to transfer to the mobile phonebook the phonebook stored inthe cellular phone.
1. Press the SPEECH button (except for vehicles with Mitsubishi Multi-Commu- nication System) or PICK-UP button (for vehicles with Mitsubishi Multi-Commu-nication System). 2. Say “Phonebook.” 3. The voice guide will say “Select one ofthe following: new entry, edit number,edit name, list names, delete, erase all, or import contact.” Say “Import contact.” 4. The voice guide will say “Would you liketo import a single entry or all contacts?” Say “All contacts.”
Mobile phonebook
NOTE
 Only the mobile phonebook transferred from the connected cellular phone can be usedwith that cellular phone.  You cannot change the names and telephone numbers in the phonebook entries registered in the mobile phonebook. You cannot select and delete specific phonebook entries, either.To change or delete any of the above, change the applicable information in the source phonebook of the cellular phone and thentransfer the phonebook again.
To import a devices phonebook
NOTE
 Transfer should be completed while the vehi- cle is parked. Before transferring, make sure that the vehicle is parked in a safe location.  The already stored phonebook in the mobile phonebook is overwritten by the storedphonebook in the cellular phone.
 All or part of data may not be transferred, even when the cellular phone supports Blue- tooth
®, depending on the compatibility of
the device.  Only a home, a work, and a mobile number can be imported.  The maximum supported telephone number length is 19 digits. Any telephone number of 20 digits or more will be truncated to the first19 digits.  If telephone numbers contain characters other than 0 to 9,
*, # or +, these characters
are deleted before the transfer.  For the connection sett
ings on the cellular
phone side, refer to the instructions for the cellular phone.NOTE
BK0206700US.book
155 ページ ２０１４年３月２５日　火曜日　午後４時４２分

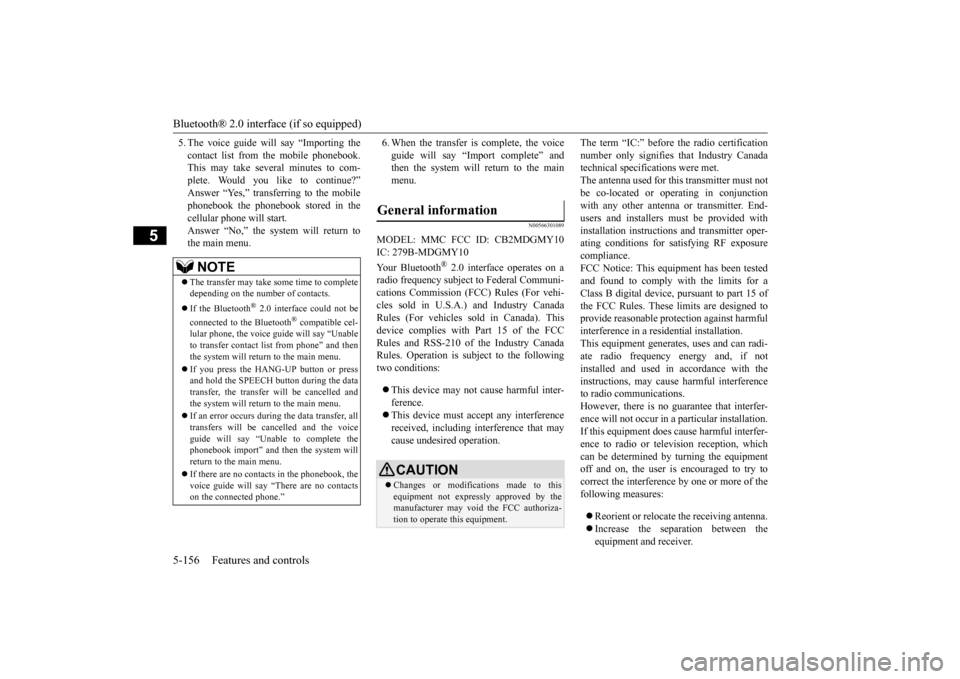

Bluetooth® 2.0 interface (if so equipped) 5-156 Features and controls
5
5. The voice guide will say “Importing the contact list from the mobile phonebook. This may take several minutes to com- plete. Would you like to continue?”Answer “Yes,” transferring to the mobile phonebook the phonebook stored in the cellular phone will start.Answer “No,” the system will return to the main menu.
6. When the transfer is complete, the voice guide will say “Import complete” and then the system will return to the main menu.
N00566301089
MODEL: MMC FCC ID: CB2MDGMY10IC: 279B-MDGMY10 Your Bluetooth
® 2.0 interface operates on a
radio frequency subject to Federal Communi- cations Commission (FCC) Rules (For vehi- cles sold in U.S.A.) and Industry CanadaRules (For vehicles sold in Canada). This device complies with Part 15 of the FCC Rules and RSS-210 of the Industry CanadaRules. Operation is subject to the following two conditions:  This device may not cause harmful inter- ference. This device must accept any interference received, including interference that may cause undesired operation.
The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. The antenna used for this transmitter must notbe co-located or operating in conjunction with any other antenna or transmitter. End- users and installers must be provided withinstallation instructions and transmitter oper- ating conditions for satisfying RF exposure compliance.FCC Notice: This equipment has been testedand found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radi-ate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation.If this equipment does cause harmful interfer- ence to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.
NOTE
 The transfer may take some time to complete depending on the number of contacts.  If the Bluetooth
® 2.0 interface could not be
connected to the Bluetooth
® compatible cel-
lular phone, the voice guide will say “Unable to transfer contact list from phone” and then the system will return to the main menu.  If you press the HANG-UP button or press and hold the SPEECH button during the datatransfer, the transfer will be cancelled and the system will return to the main menu.  If an error occurs during the data transfer, all transfers will be cancelled and the voice guide will say “Unable to complete thephonebook import” and then the system will return to the main menu.  If there are no contacts in the phonebook, the voice guide will say “There are no contacts on the connected phone.”
General information
CAUTION Changes or modifications made to this equipment not expressly approved by themanufacturer may void the FCC authoriza- tion to operate this equipment.
BK0206700US.book
156 ページ ２０１４年３月２５日　火曜日　午後４時４２分

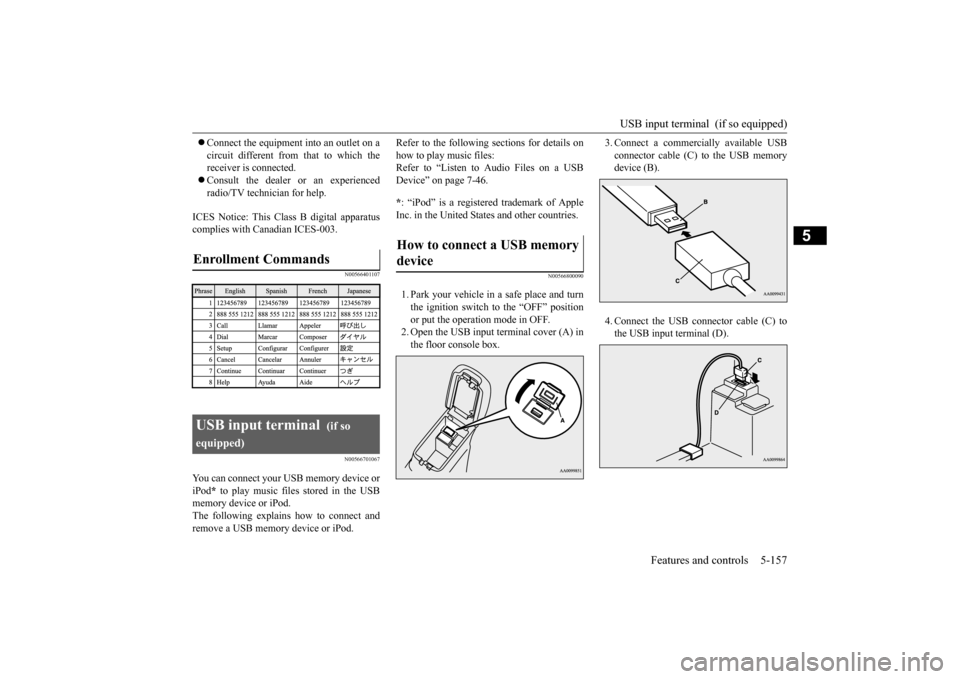

USB input terminal (if so equipped)
Features and controls 5-157
5
 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.
ICES Notice: This Class B digital apparatus complies with Canadian ICES-003.
N00566401107 N00566701067
You can connect your USB memory device or iPod
* to play music files stored in the USB
memory device or iPod. The following explains how to connect andremove a USB memory device or iPod.
Refer to the following sections for details on how to play music files: Refer to “Listen to Audio Files on a USB Device” on page 7-46. * : “iPod” is a registered trademark of Apple Inc. in the United States and other countries.
N00566800090
1. Park your vehicle in a safe place and turn the ignition switch to the “OFF” position or put the operation mode in OFF.2. Open the USB input terminal cover (A) in the floor console box.
3. Connect a commercially available USB connector cable (C) to the USB memory device (B). 4. Connect the USB connector cable (C) to the USB input terminal (D).
Enrollment Commands USB input terminal
(if so
equipped)
How to connect a USB memory device

BK0206700US.book
157 ページ ２０１４年３月２５日　火曜日　午後４時４２分

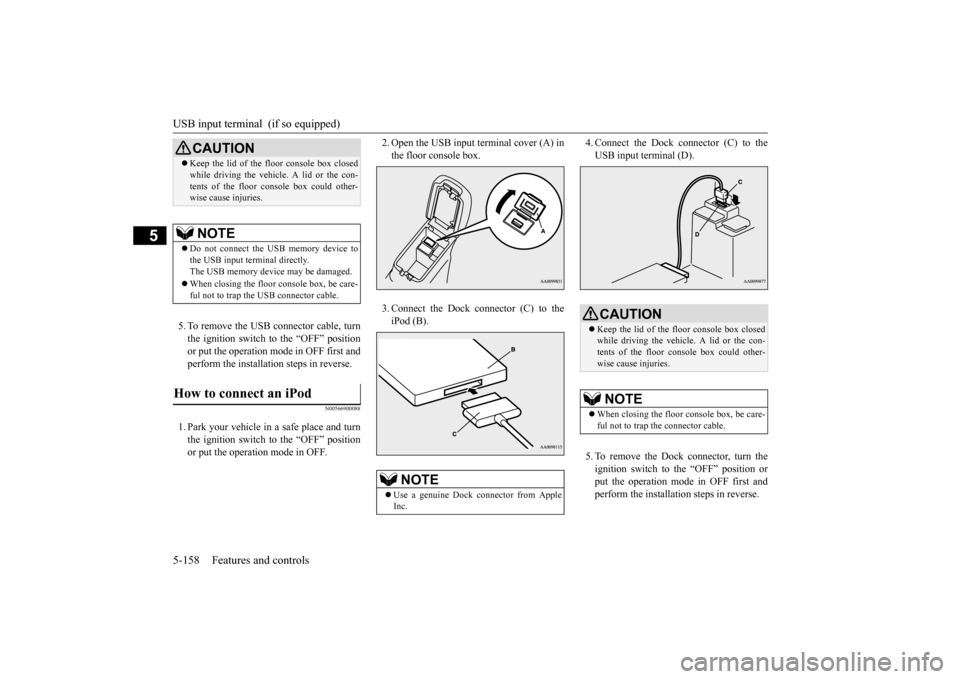

USB input terminal (if so equipped) 5-158 Features and controls
5
5. To remove the USB connector cable, turn the ignition switch to the “OFF” positionor put the operation mode in OFF first and perform the installation steps in reverse.
N00566900088
1. Park your vehicle in a safe place and turn the ignition switch to the “OFF” positionor put the operation mode in OFF.
2. Open the USB input terminal cover (A) in the floor console box. 3. Connect the Dock connector (C) to the iPod (B).
4. Connect the Dock connector (C) to the USB input terminal (D). 5. To remove the Dock connector, turn the ignition switch to the “OFF” position or put the operation mode in OFF first and perform the installation steps in reverse.
CAUTION Keep the lid of the floor console box closed while driving the vehicle. A lid or the con- tents of the floor console box could other- wise cause injuries.NOTE
 Do not connect the USB memory device to the USB input terminal directly. The USB memory device may be damaged.  When closing the floor console box, be care- ful not to trap the USB connector cable.
How to connect an iPod

NOTE
 Use a genuine Dock connector from Apple Inc.
CAUTION Keep the lid of the floor console box closed while driving the vehicle. A lid or the con-tents of the floor console box could other- wise cause injuries.NOTE
 When closing the floor console box, be care- ful not to trap the connector cable.
BK0206700US.book
158 ページ ２０１４年３月２５日　火曜日　午後４時４２分

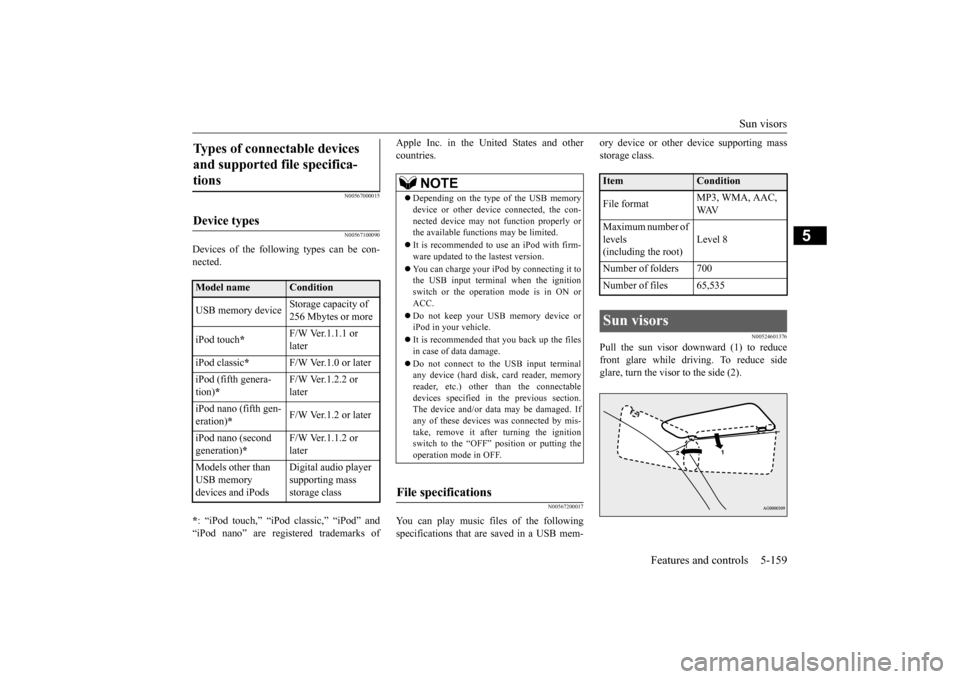

Sun visors
Features and controls 5-159
5
N00567000015 N00567100090
Devices of the following types can be con- nected. * : “iPod touch,” “iPod classic,” “iPod” and “iPod nano” are registered trademarks of
Apple Inc. in the United States and other countries.
N00567200017
You can play music files of the followingspecifications that are saved in a USB mem-
ory device or other device supporting mass storage class.
N00524601376
Pull the sun visor downward (1) to reducefront glare while driving. To reduce sideglare, turn the visor to the side (2).
Types of connectable devices and supported file specifica- tions

Device types

Model name
Condition
USB memory device
Storage capacity of 256 Mbytes or more
iPod touch
*
F/W Ver.1.1.1 or later
iPod classic
*
F/W Ver.1.0 or later
iPod (fifth genera- tion)
*
F/W Ver.1.2.2 or later
iPod nano (fifth gen- eration)
*
F/W Ver.1.2 or later
iPod nano (second generation)
*
F/W Ver.1.1.2 or later
Models other than USB memory devices and iPods
Digital audio player supporting mass storage class
NOTE
 Depending on the type of the USB memory device or other device connected, the con- nected device may not function properly orthe available functions may be limited.  It is recommended to use an iPod with firm- ware updated to the lastest version.  You can charge your iPod by connecting it to the USB input terminal when the ignition switch or the operation mode is in ON or ACC.  Do not keep your USB memory device or iPod in your vehicle.  It is recommended that you back up the files in case of data damage.  Do not connect to the USB input terminal any device (hard disk, card reader, memoryreader, etc.) other than the connectable devices specified in the previous section. The device and/or data may be damaged. Ifany of these devices was connected by mis- take, remove it after turning the ignition switch to the “OFF”
position or putting the
operation mode in OFF.
File specifications

Item
Condition
File format
MP3, WMA, AAC, WAV
Maximum number of levels (including the root)
Level 8
Number of folders 700 Number of files 65,535Sun visors
BK0206700US.book
159 ページ ２０１４年３月２５日　火曜日　午後４時４２分

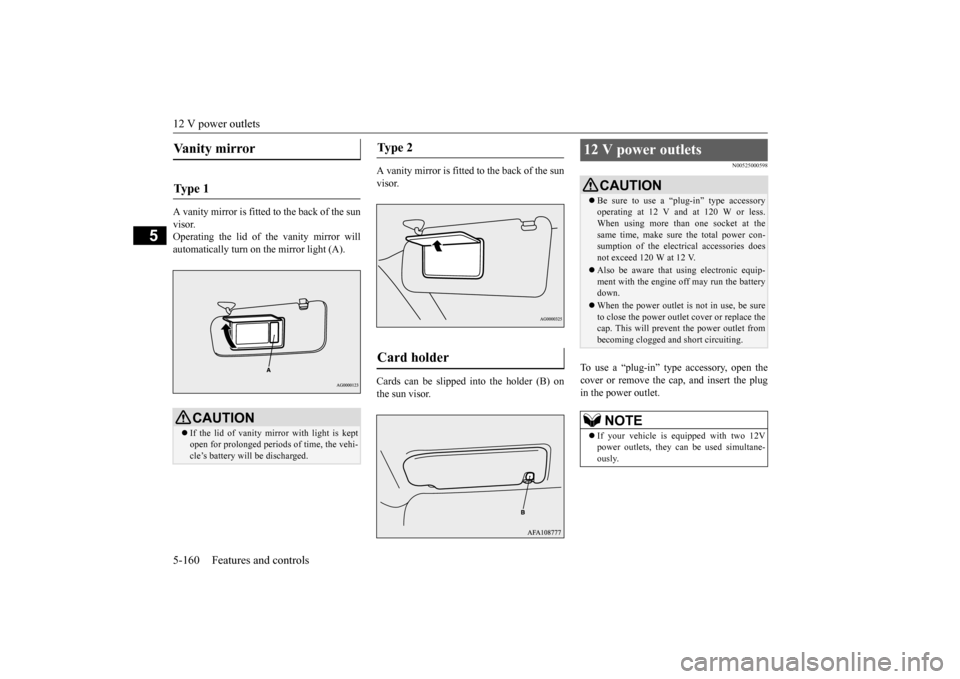

12 V power outlets 5-160 Features and controls
5
A vanity mirror is fitted to the back of the sun visor. Operating the lid of the vanity mirror willautomatically turn on the mirror light (A).
A vanity mirror is fitted to the back of the sun visor. Cards can be slipped into the holder (B) on the sun visor.
N00525000598
To use a “plug-in” type accessory, open thecover or remove the cap, and insert the plug in the power outlet.
Vanity mirror Ty p e 1
CAUTION If the lid of vanity mirror with light is kept open for prolonged periods of time, the vehi-cle’s battery will be discharged.
Ty p e 2 Card holder
12 V power outlets
CAUTION Be sure to use a “plug-in” type accessory operating at 12 V and at 120 W or less. When using more than one socket at the same time, make sure the total power con-sumption of the electrical accessories does not exceed 120 W at 12 V. Also be aware that using electronic equip- ment with the engine off may run the battery down. When the power outlet is not in use, be sure to close the power outlet cover or replace thecap. This will prevent the power outlet from becoming clogged and short circuiting.NOTE
 If your vehicle is equipped with two 12V power outlets, they can be used simultane- ously.
BK0206700US.book
160 ページ ２０１４年３月２５日　火曜日　午後４時４２分

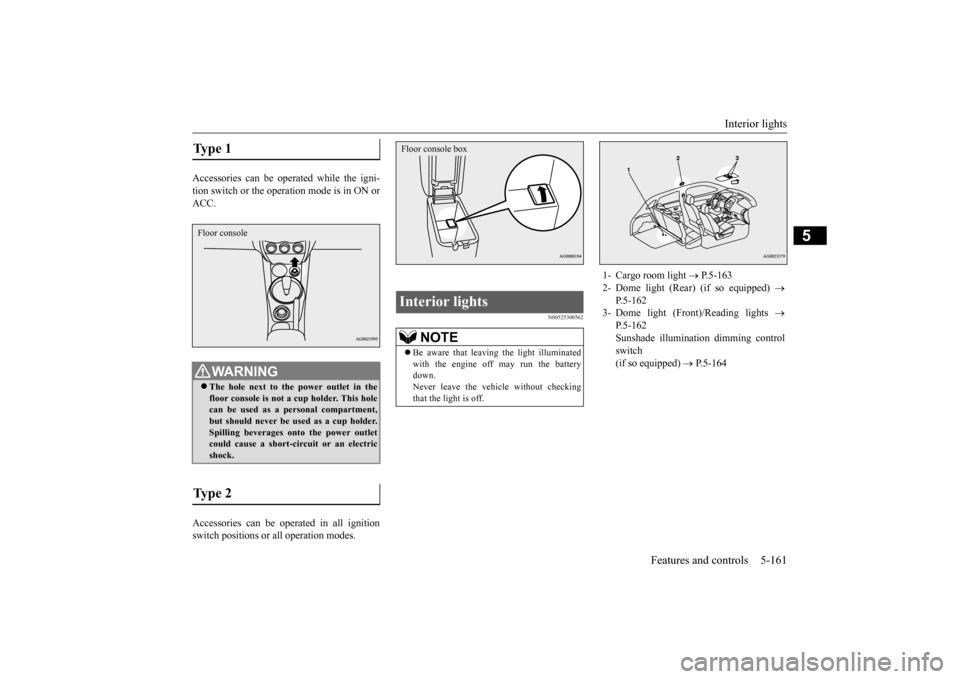

Interior lights
Features and controls 5-161
5
Accessories can be operated while the igni- tion switch or the operat
ion mode is in ON or
ACC. Accessories can be operated in all ignition switch positions or all operation modes.
N00525300562
Type 1
WA R N I N G The hole next to the power outlet in the floor console is not a cup holder. This hole can be used as a personal compartment, but should never be used as a cup holder.Spilling beverages onto the power outlet could cause a short-circuit or an electric shock.
Type 2 Floor console
Interior lights
NOTE
 Be aware that leaving the light illuminated with the engine off may run the battery down. Never leave the vehicle without checkingthat the light is off.
Floor console box
1- Cargo room light
 P.5-163
2- Dome light (Rear) (if so equipped)

P.5-162
3- Dome light (Front)/Reading lights

P.5-162Sunshade illumination dimming control switch (if so equipped)
 P.5-164
