2015 MITSUBISHI OUTLANDER SPORT Owners Manual

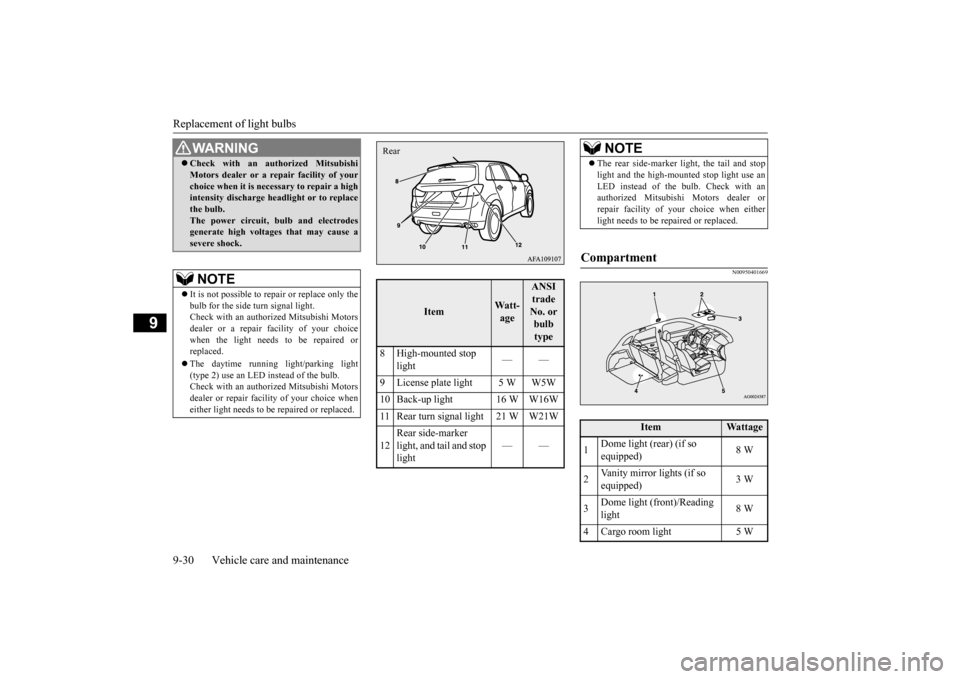

Replacement of light bulbs 9-30 Vehicle care and maintenance
9
N00950401669
WA R N I N G Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when it is necessary to repair a high intensity discharge headlight or to replace the bulb.The power circuit, bulb and electrodes generate high voltages that may cause a severe shock.NOTE
 It is not possible to re
pair or replace only the
bulb for the side turn signal light. Check with an authorized Mitsubishi Motorsdealer or a repair facility of your choice when the light needs to be repaired or replaced.  The daytime running light/parking light (type 2) use an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or repair facility of your choice when either light needs to be repaired or replaced.
Item
Wa t t - age
ANSI trade No. or bulb type
8 High-mounted stop
light
——
9 License plate light 5 W W5W 10 Back-up light 16 W W16W11 Rear turn signal light 21 W W21W 12
Rear side-marker light, and tail and stop light
——
Rear
NOTE
 The rear side-marker light, the tail and stop light and the high-mounted stop light use an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or repair facility of your choice when eitherlight needs to be repaired or replaced.
Compartment
Item
Wattage
1
Dome light (rear) (if so equipped)
8 W
2
Vanity mirror lights (if so equipped)
3 W
3
Dome light (front)/Reading light
8 W
4 Cargo room light 5 W
BK0206700US.bo
ok 30 ページ ２０１４年３月２５日　火曜日　午後４時４２分

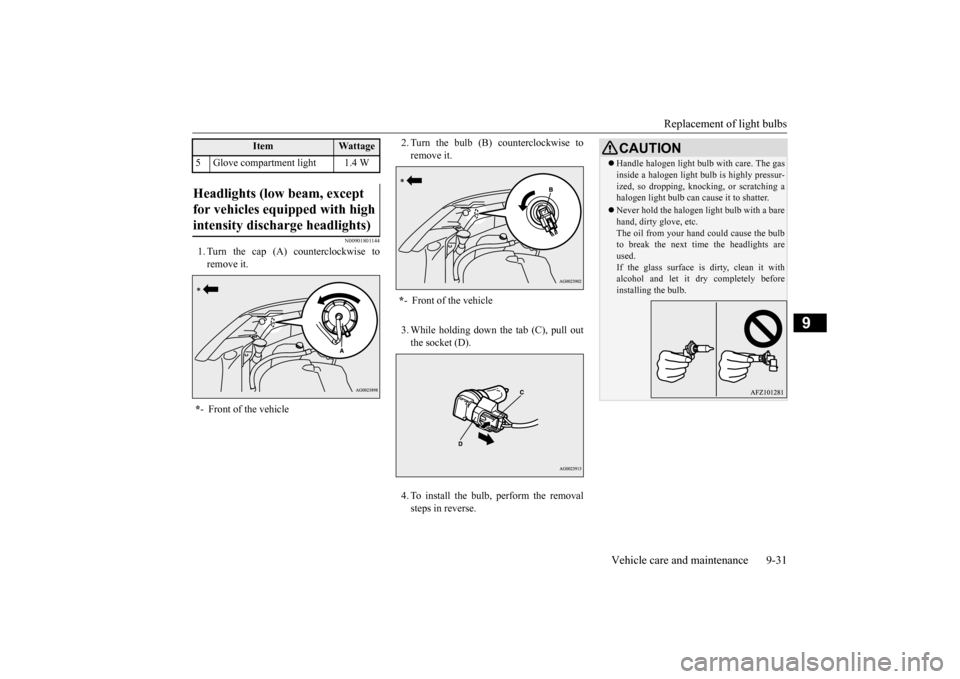

Replacement of light bulbs
Vehicle care and maintenance 9-31
9
N00901801144
1. Turn the cap (A) counterclockwise to remove it.
2. Turn the bulb (B) counterclockwise to remove it. 3. While holding down the tab (C), pull out the socket (D). 4. To install the bulb, perform the removal steps in reverse.
5 Glove compartment light 1.4 WHeadlights (low beam, except for vehicles equipped with high intensity discharge headlights) * - Front of the vehicle
Item
Wattage
*- Front of the vehicle
CAUTIONHandle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter. Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulbto break the next time the headlights are used. If the glass surface is dirty, clean it withalcohol and let it dry completely before installing the bulb.
BK0206700US.bo
ok 31 ページ ２０１４年３月２５日　火曜日　午後４時４２分

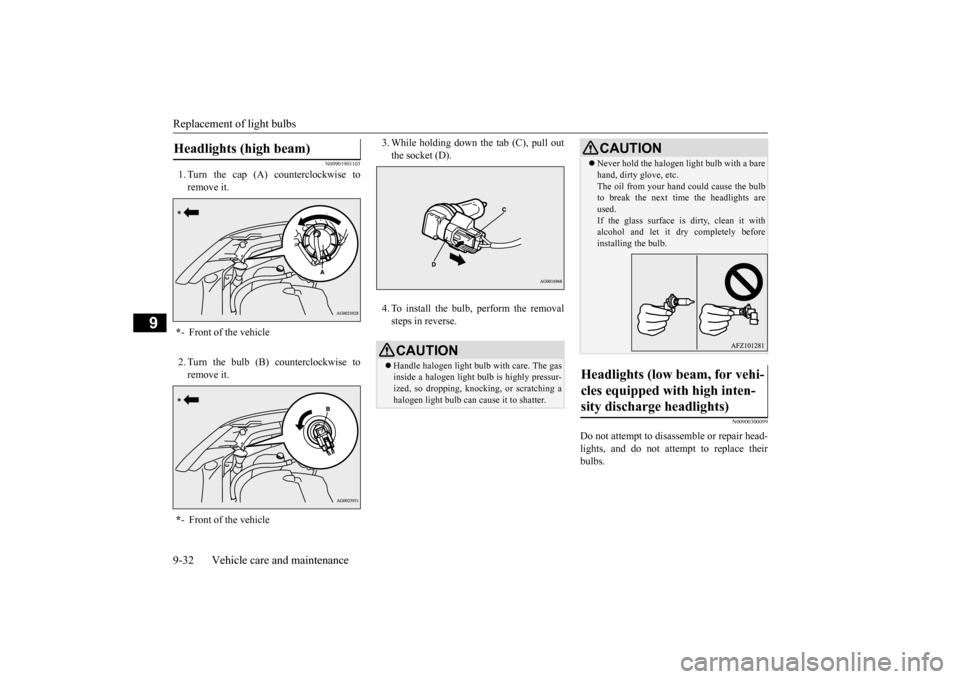

Replacement of light bulbs 9-32 Vehicle care and maintenance
9
N00901901103
1. Turn the cap (A) counterclockwise to remove it. 2. Turn the bulb (B) counterclockwise to remove it.
3. While holding down the tab (C), pull out the socket (D). 4. To install the bulb, perform the removal steps in reverse.
N00900300099
Do not attempt to disassemble or repair head-lights, and do not attempt to replace their bulbs.
Headlights (high beam) * - Front of the vehicle * - Front of the vehicle
CAUTIONHandle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter.
 Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the headlights are used.If the glass surface is dirty, clean it with alcohol and let it dry completely before installing the bulb.
Headlights (low beam, for vehi- cles equipped with high inten- sity discharge headlights)
CAUTION
BK0206700US.bo
ok 32 ページ ２０１４年３月２５日　火曜日　午後４時４２分

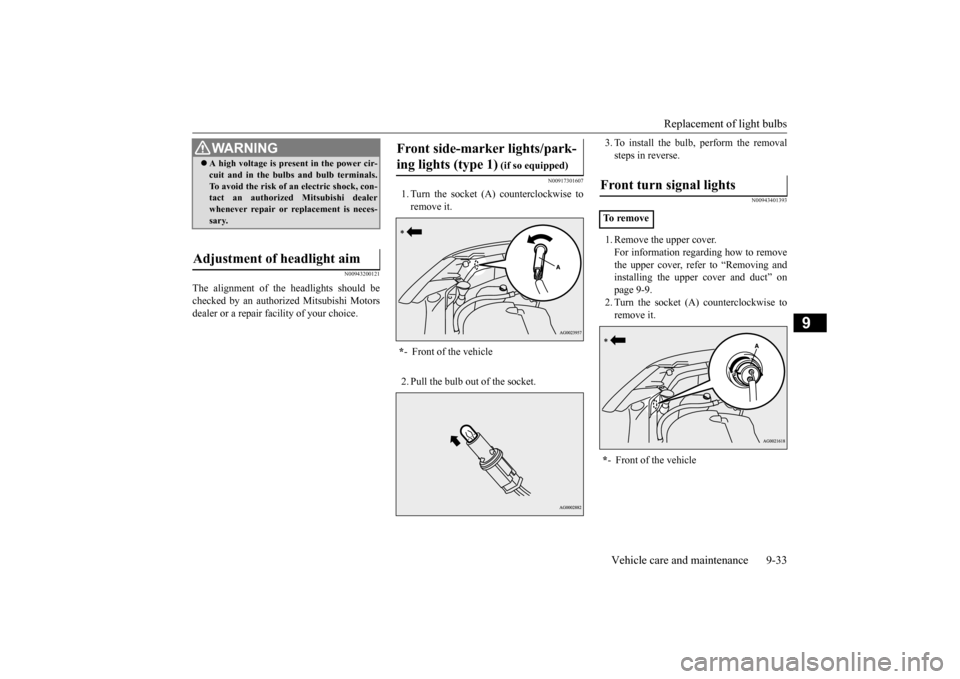

Replacement of light bulbs
Vehicle care and maintenance 9-33
9
N00943200121
The alignment of the headlights should be checked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00917301607
1. Turn the socket (A) counterclockwise toremove it. 2. Pull the bulb out of the socket.
3. To install the bulb, perform the removal steps in reverse.
N00943401393
1. Remove the upper cover.For information regarding how to removethe upper cover, refer to “Removing andinstalling the upper cover and duct” on page 9-9. 2. Turn the socket (A) counterclockwise toremove it.
WA R N I N G A high voltage is present in the power cir- cuit and in the bulbs and bulb terminals. To avoid the risk of an electric shock, con- tact an authorized Mitsubishi dealer whenever repair or replacement is neces-sary.
Adjustment of headlight aim
Front side-marker lights/park- ing lights (type 1)
(if so equipped)
* - Front of the vehicle
Front turn signal lights To r e m o v e * - Front of the vehicle
BK0206700US.bo
ok 33 ページ ２０１４年３月２５日　火曜日　午後４時４２分

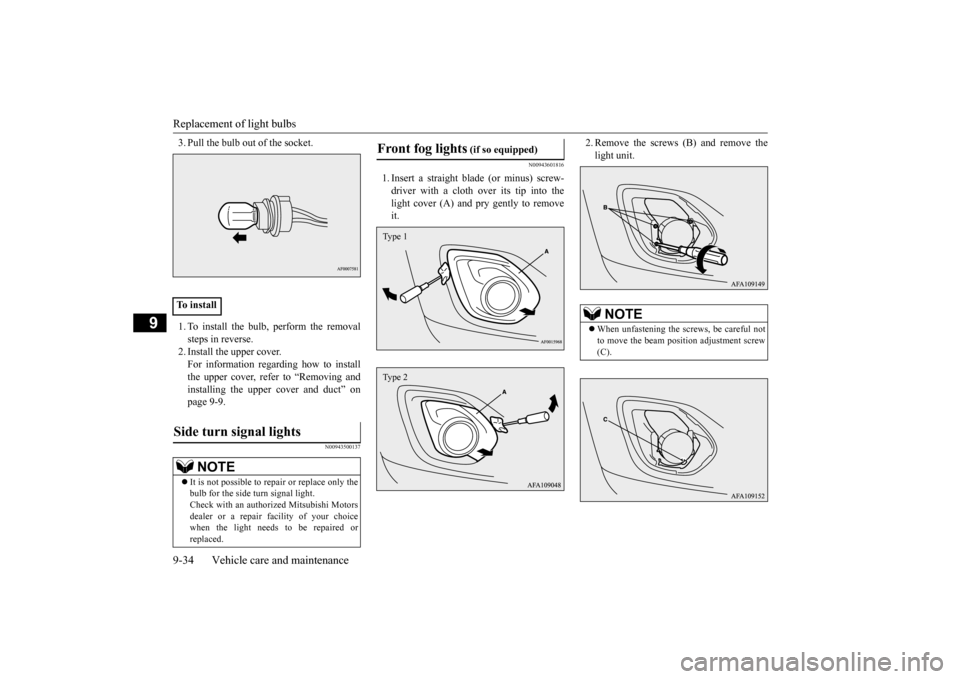

Replacement of light bulbs 9-34 Vehicle care and maintenance
9
3. Pull the bulb out of the socket. 1. To install the bulb, perform the removal steps in reverse. 2. Install the upper cover. For information regarding how to installthe upper cover, refer to “Removing andinstalling the upper cover and duct” on page 9-9.
N00943500137
N00943601816
1. Insert a straight blade (or minus) screw- driver with a cloth over its tip into thelight cover (A) and pry gently to remove it.
2. Remove the screws (B) and remove the light unit.
To installSide turn signal lights
NOTE
 It is not possible to re
pair or replace only the
bulb for the side turn signal light. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choicewhen the light needs to be repaired or replaced.
Front fog lights
(if so equipped)
Type 1Type 2
NOTE
 When unfastening the screws, be careful not to move the beam position adjustment screw (C).
BK0206700US.bo
ok 34 ページ ２０１４年３月２５日　火曜日　午後４時４２分

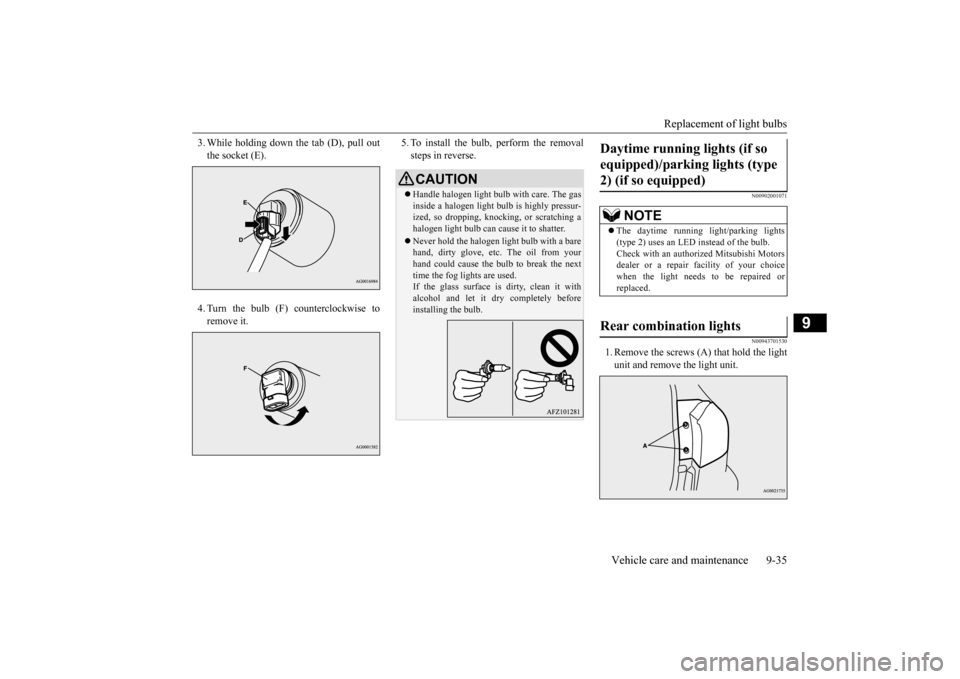

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
3. While holding down
the tab (D), pull out
the socket (E). 4. Turn the bulb (F) counterclockwise to remove it.
5. To install the bulb, perform the removal steps in reverse.
N00902001071 N00943701530
1. Remove the screws (A) that hold the light unit and remove the light unit.
CAUTION Handle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur-ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter. Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the nexttime the fog lights are used. If the glass surface is dirty, clean it with alcohol and let it dry completely beforeinstalling the bulb.
Daytime running lights (if so equipped)/parking lights (type 2) (if so equipped)
NOTE
 The daytime running light/parking lights (type 2) uses an LED instead of the bulb. Check with an authorized Mitsubishi Motorsdealer or a repair facility of your choice when the light needs to be repaired or replaced.
Rear combination lights
BK0206700US.bo
ok 35 ページ ２０１４年３月２５日　火曜日　午後４時４２分

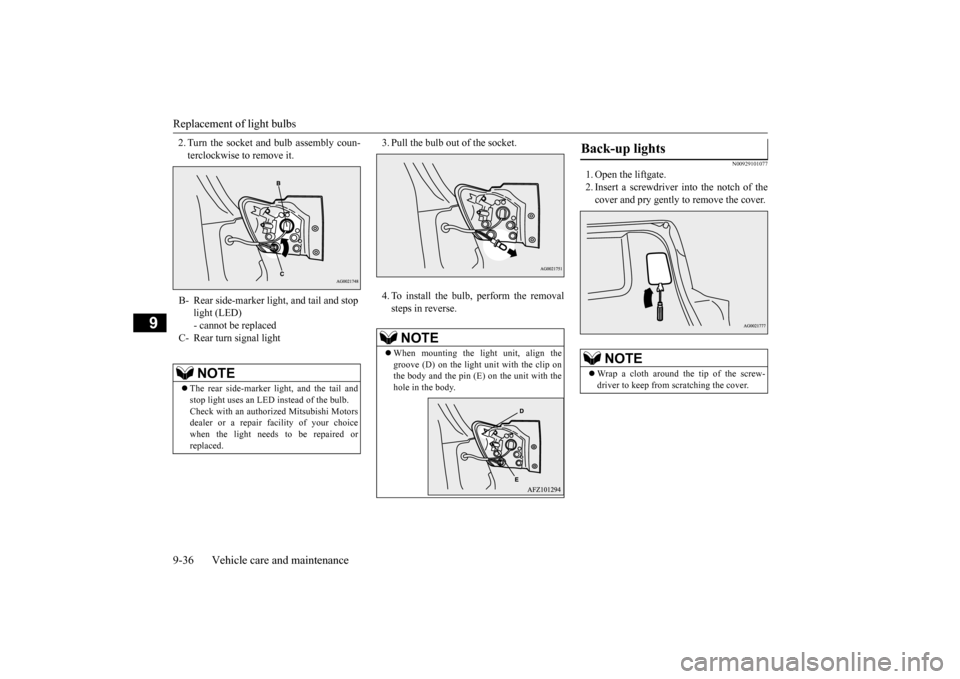

Replacement of light bulbs 9-36 Vehicle care and maintenance
9
2. Turn the socket and bulb assembly coun- terclockwise to remove it.
3. Pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
N00929101077
1. Open the liftgate.2. Insert a screwdriver into the notch of thecover and pry gently to remove the cover.
B- Rear side-marker light, and tail and stop
light (LED) - cannot be replaced
C- Rear turn signal light
NOTE
 The rear side-marker light, and the tail and stop light uses an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choicewhen the light needs to be repaired or replaced.
NOTE
 When mounting the light unit, align the groove (D) on the light unit with the clip onthe body and the pin (E) on the unit with the hole in the body.
Back-up lights
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the cover.
BK0206700US.bo
ok 36 ページ ２０１４年３月２５日　火曜日　午後４時４２分

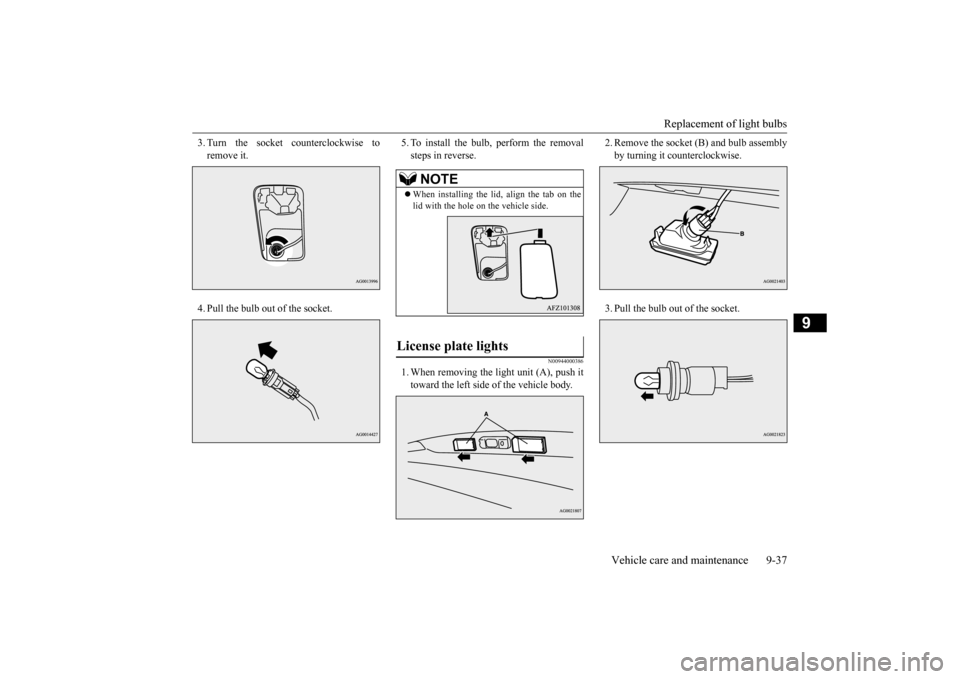

Replacement of light bulbs
Vehicle care and maintenance 9-37
9
3. Turn the socket counterclockwise to remove it. 4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
N00944000386
1. When removing the light unit (A), push ittoward the left side of the vehicle body.
2. Remove the socket (B) and bulb assembly by turning it counterclockwise. 3. Pull the bulb out of the socket.
NOTE
 When installing the lid, align the tab on the lid with the hole on the vehicle side.
License plate lights
BK0206700US.bo
