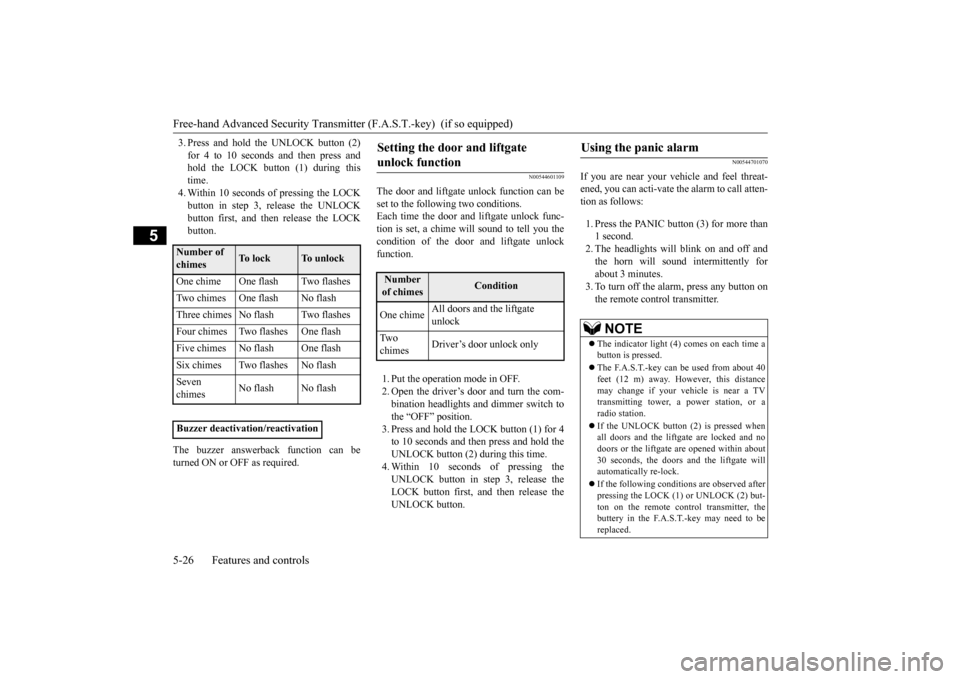

2015 MITSUBISHI OUTLANDER SPORT Owners Manual

Free-hand Advanced Security Transmitte
r (F.A.S.T.-key) (if so equipped)
5-26 Features and controls
5
3. Press and hold the UNLOCK button (2) for 4 to 10 seconds and then press and hold the LOCK button (1) during this time.4. Within 10 seconds of pressing the LOCK button in step 3, release the UNLOCK button first, and then release the LOCKbutton.
The buzzer answerback function can be turned ON or OFF as required.
N00544601109
The door and liftgate unlock function can be set to the following two conditions. Each time the door and liftgate unlock func-tion is set, a chime will sound to tell you the condition of the door and liftgate unlock function. 1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch tothe “OFF” position. 3. Press and hold the LOCK button (1) for 4 to 10 seconds and then press and hold theUNLOCK button (2) during this time. 4. Within 10 seconds of pressing the UNLOCK button in step 3, release theLOCK button first, and then release the UNLOCK button.
N00544701070
If you are near your vehicle and feel threat- ened, you can acti-vate the alarm to call atten-tion as follows: 1. Press the PANIC button (3) for more than 1 second. 2. The headlights will blink on and off andthe horn will sound intermittently for about 3 minutes. 3. To turn off the alarm, press any button onthe remote control transmitter.
Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes Two chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes
No flash No flash
Buzzer deactivation/reactivation
Setting the door and liftgate unlock function

Number of chimes
Condition
One chime
All doors and the liftgate unlock
Tw o chimes
Driver’s door unlock only
Using the panic alarm

NOTE
 The indicator light (4) comes on each time a button is pressed.  The F.A.S.T.-key can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle is near a TVtransmitting tower, a power station, or a radio station.  If the UNLOCK button (2) is pressed when all doors and the liftgate are locked and no doors or the liftgate are opened within about 30 seconds, the doors and the liftgate will automatically re-lock.  If the following conditions are observed after pressing the LOCK (1) or UNLOCK (2) but-ton on the remote control transmitter, the buttery in the F.A.S.T.-key may need to be replaced.
BK0206700US.bo
ok 26 ページ ２０１４年３月２５日　火曜日　午後４時４２分

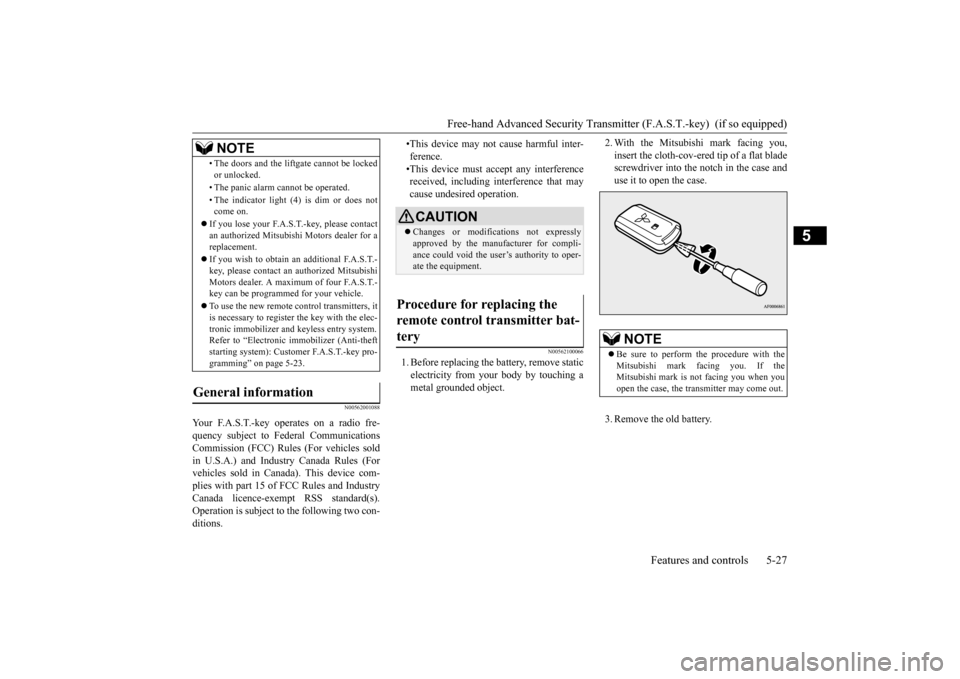

Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-27
5
N00562001088
N00562100066
1. Before replacing the battery, remove static electricity from your body by touching a metal grounded object.
2. With the Mitsubishi mark facing you, insert the cloth-cov-ered tip of a flat blade screwdriver into the notch in the case and use it to open the case. 3. Remove the old battery.
• The doors and the liftgate cannot be locked or unlocked. • The panic alarm cannot be operated. • The indicator light (4) is dim or does not come on.
 If you lose your F.A.S.T.-key, please contact an authorized Mitsubish
i Motors dealer for a
replacement.  If you wish to obtain an
additional F.A.S.T.-
key, please contact an authorized MitsubishiMotors dealer. A maximum of four F.A.S.T.- key can be programmed for your vehicle.  To use the new remote control transmitters, it is necessary to register the key with the elec- tronic immobilizer and keyless entry system.Refer to “Electronic immobilizer (Anti-theft starting system): Customer F.A.S.T.-key pro- gramming” on page 5-23.
General information

Your F.A.S.T.-key operates on a radio fre- quency subject to Federal Communications Commission (FCC) Rules (For vehicles soldin U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device com- plies with part 15 of FCC Rules and IndustryCanada licence-exempt RSS standard(s). Operation is subject to the following two con- ditions.
NOTE
•This device may not cause harmful inter-ference.•This device must accept any interference received, including interference that may cause undesired operation.CAUTION Changes or modifications not expressly approved by the manufacturer for compli-ance could void the user’s authority to oper- ate the equipment.
Procedure for replacing the remote control transmitter bat-tery

NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If theMitsubishi mark is not facing you when you open the case, the transmitter may come out.
BK0206700US.bo
ok 27 ページ ２０１４年３月２５日　火曜日　午後４時４２分

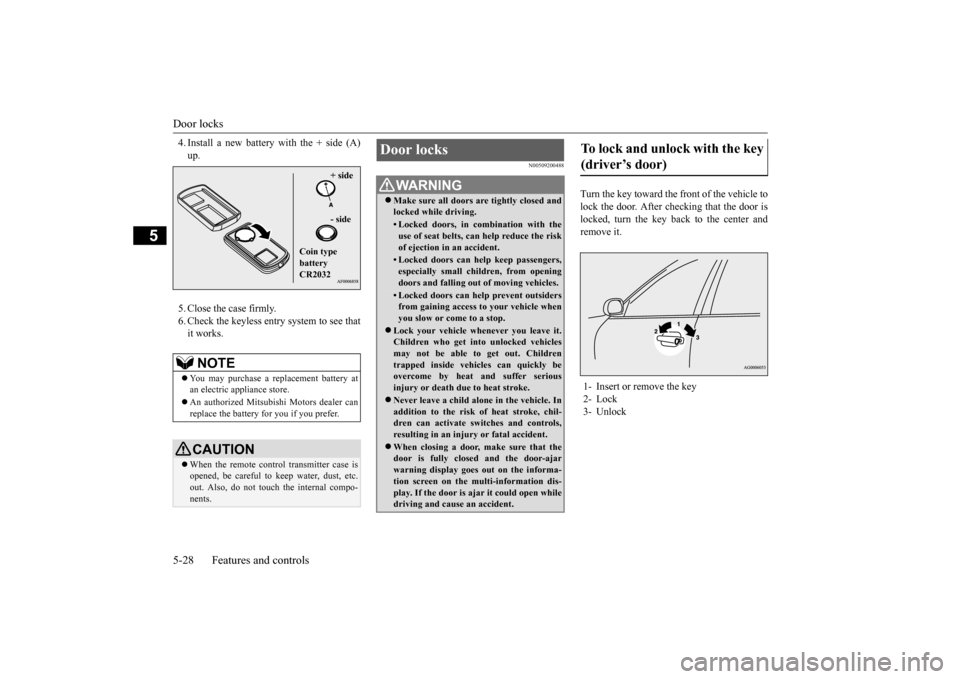

Door locks 5-28 Features and controls
5
4. Install a new battery with the + side (A) up. 5. Close the case firmly. 6. Check the keyless entry system to see that it works.
N00509200488
Turn the key toward the front of the vehicle tolock the door. After checking that the door is locked, turn the key back to the center and remove it.
NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-nents.
+ side - side
Coin type battery CR2032
Door locks
WA R N I N G Make sure all doors are tightly closed and locked while driving.• Locked doors, in combination with theuse of seat belts, can help reduce the risk of ejection in an accident.• Locked doors can help keep passengers,especially small children, from opening doors and falling out of moving vehicles.• Locked doors can help prevent outsidersfrom gaining access to your vehicle whenyou slow or come to a stop.
 Lock your vehicle whenever you leave it. Children who get into unlocked vehicles may not be able to get out. Children trapped inside vehicles can quickly beovercome by heat and suffer serious injury or death due to heat stroke. Never leave a child alone in the vehicle. In addition to the risk of heat stroke, chil- dren can activate switches and controls,resulting in an injury or fatal accident. When closing a door, make sure that the door is fully closed and the door-ajar warning display goes out on the informa- tion screen on the multi-information dis- play. If the door is ajar it could open while driving and cause an accident.
To lock and unlock with the key (driver’s door) 1- Insert or remove the key 2- Lock 3- Unlock
BK0206700US.bo
ok 28 ページ ２０１４年３月２５日　火曜日　午後４時４２分

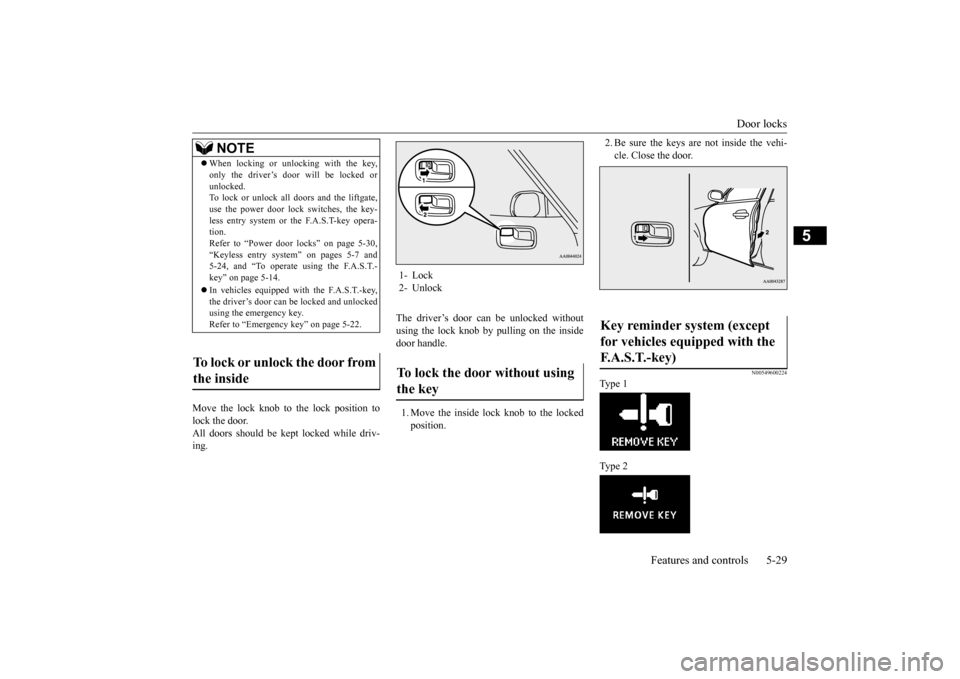

Door locks
Features and controls 5-29
5
Move the lock knob to the lock position to lock the door.All doors should be kept locked while driv- ing.
The driver’s door can be unlocked without using the lock knob by pulling on the insidedoor handle. 1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehi- cle. Close the door.
N00549600224
Type 1 Type 2
NOTE
 When locking or unlocking with the key, only the driver’s door will be locked or unlocked. To lock or unlock all doors and the liftgate, use the power door lock switches, the key-less entry system or the F.A.S.T-key opera- tion. Refer to “Power door locks” on page 5-30,“Keyless entry system” on pages 5-7 and 5-24, and “To operate using the F.A.S.T.- key” on page 5-14.  In vehicles equipped with the F.A.S.T.-key, the driver’s door can be locked and unlockedusing the emergency key. Refer to “Emergency key” on page 5-22.
To lock or unlock the door from the inside
1- Lock 2- UnlockTo lock the door without using the key
Key reminder system (except for vehicles equipped with the F. A . S . T. - k e y )
BK0206700US.bo
ok 29 ページ ２０１４年３月２５日　火曜日　午後４時４２分

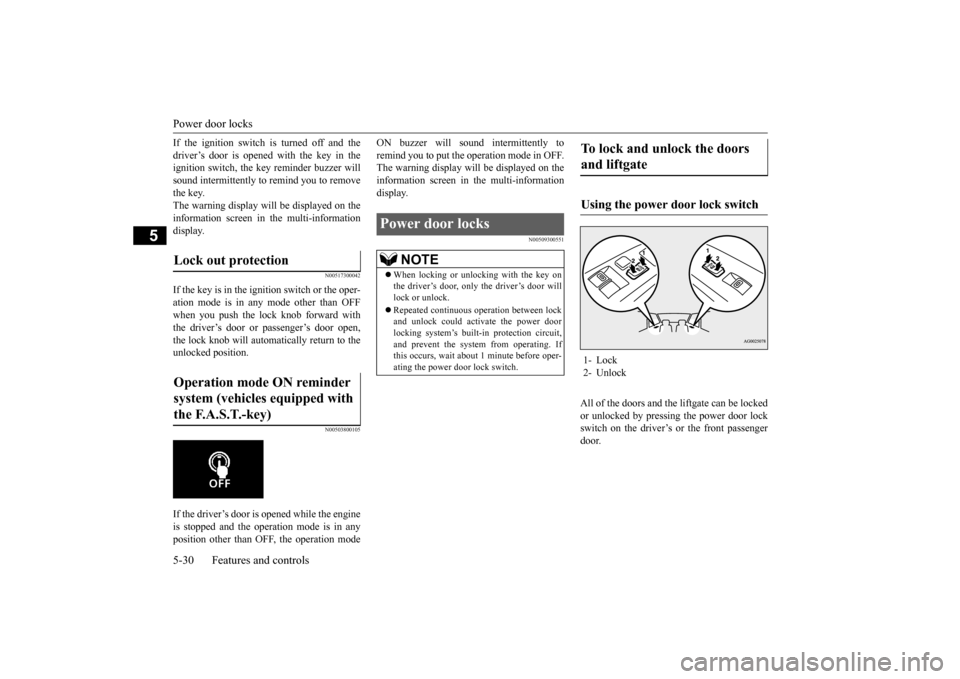

Power door locks 5-30 Features and controls
5
If the ignition switch is turned off and the driver’s door is opened with the key in the ignition switch, the key reminder buzzer will sound intermittently to remind you to removethe key. The warning display will be displayed on the information screen in the multi-informationdisplay.
N00517300042
If the key is in the ignition switch or the oper-ation mode is in any mode other than OFFwhen you push the lock knob forward with the driver’s door or passenger’s door open, the lock knob will automatically return to theunlocked position.
N00503800105
If the driver’s door is opened while the engineis stopped and the operation mode is in anyposition other than OFF, the operation mode
ON buzzer will sound intermittently to remind you to put the operation mode in OFF. The warning display will be displayed on the information screen in the multi-informationdisplay.
N00509300551
All of the doors and the
liftgate can be locked
or unlocked by pressing the power door lock switch on the driver’s or the front passenger door.
Lock out protection Operation mode ON reminder system (vehicles equipped with the F.A.S.T.-key)
Power door locks
NOTE
 When locking or unlocking with the key on the driver’s door, only the driver’s door willlock or unlock.  Repeated continuous operation between lock and unlock could activate the power door locking system’s built
-in protection circuit,
and prevent the system from operating. Ifthis occurs, wait about 1 minute before oper- ating the power door lock switch.
To lock and unlock the doors and liftgate Using the power door lock switch 1- Lock 2- Unlock
BK0206700US.bo
ok 30 ページ ２０１４年３月２５日　火曜日　午後４時４２分

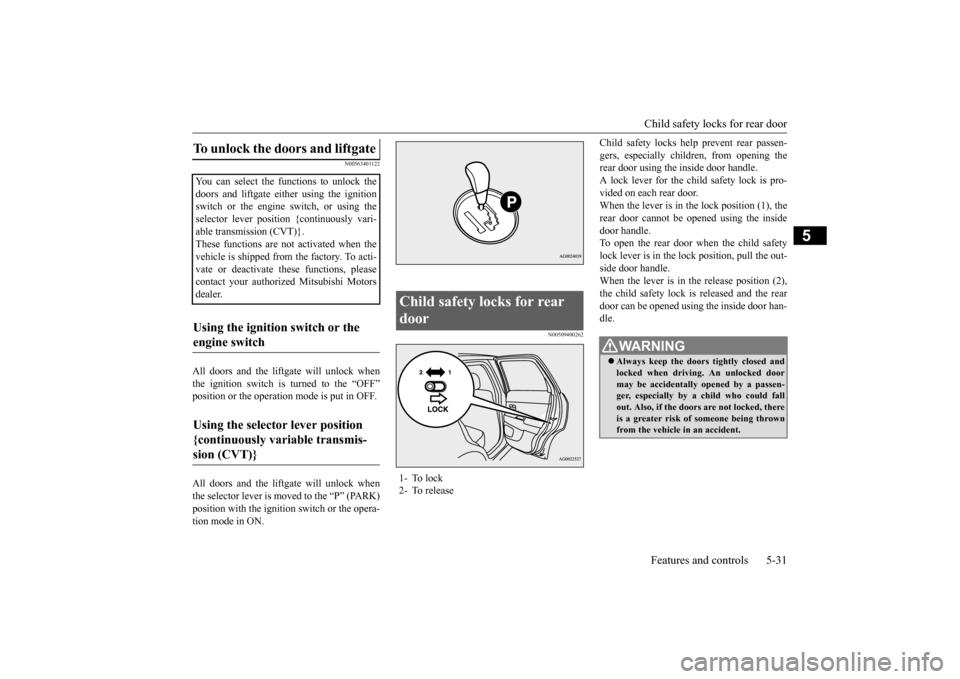

Child safety locks for rear door Features and controls 5-31
5
N00563401122
All doors and the liftgate will unlock when the ignition switch is turned to the “OFF” position or the operation mode is put in OFF. All doors and the liftgate will unlock when the selector lever is moved to the “P” (PARK) position with the ignition switch or the opera- tion mode in ON.
N00509400262
Child safety locks help prevent rear passen-gers, especially children, from opening the rear door using the inside door handle. A lock lever for the chil
d safety lock is pro-
vided on each rear door. When the lever is in the lock position (1), the rear door cannot be opened using the insidedoor handle. To open the rear door when the child safety lock lever is in the lock position, pull the out-side door handle.When the lever is in th
e release position (2),
the child safety lock is released and the rear door can be opened using the inside door han-dle.
To unlock the doors and liftgate You can select the functions to unlock thedoors and liftgate either using the ignition switch or the engine switch, or using the selector lever position {continuously vari-able transmission (CVT)}. These functions are no
t activated when the
vehicle is shipped from the factory. To acti-vate or deactivate these functions, please contact your authorized Mitsubishi Motors dealer.Using the ignition switch or the engine switch Using the selector lever position {continuously variable transmis- sion (CVT)}
Child safety locks for rear door 1- To lock 2- To release
WA R N I N G Always keep the doors tightly closed and locked when driving. An unlocked door may be accidentally opened by a passen- ger, especially by a child who could fallout. Also, if the doors are not locked, there is a greater risk of someone being thrown from the vehicle in an accident.
BK0206700US.bo
ok 31 ページ ２０１４年３月２５日　火曜日　午後４時４２分

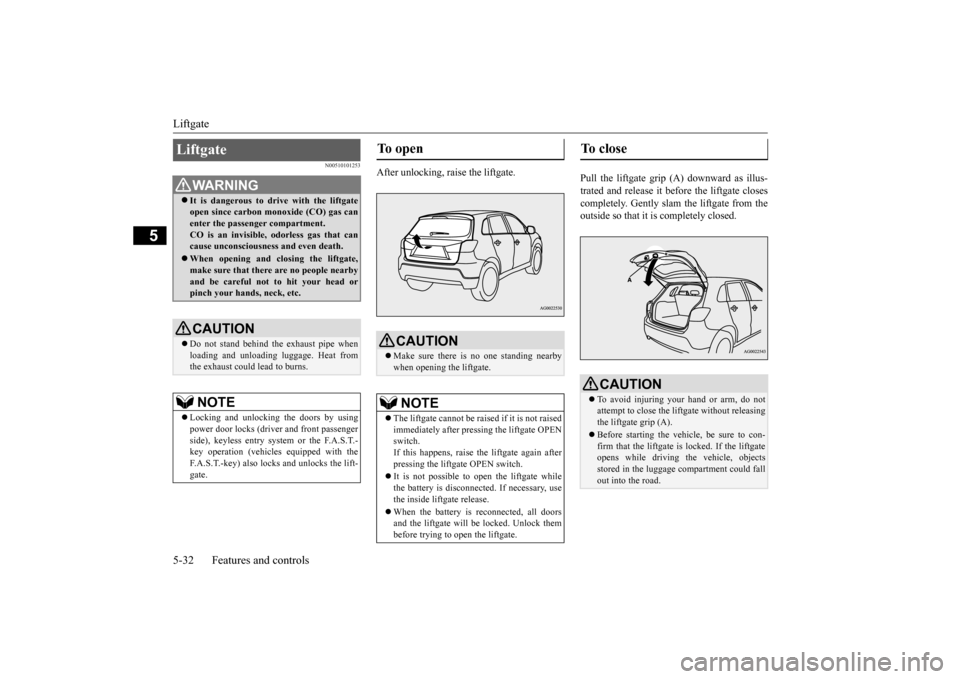

Liftgate 5-32 Features and controls
5
N00510101253
After unlocking, raise the liftgate.
Pull the liftgate grip
(A) downward as illus-
trated and release it before the liftgate closescompletely. Gently slam the liftgate from the outside so that it is completely closed.
Liftgate
WA R N I N G It is dangerous to drive with the liftgate open since carbon monoxide (CO) gas can enter the passenger compartment. CO is an invisible, odorless gas that cancause unconsciousness and even death. When opening and closing the liftgate, make sure that there are no people nearby and be careful not to hit your head or pinch your hands, neck, etc.CAUTION Do not stand behind the exhaust pipe when loading and unloading luggage. Heat from the exhaust could lead to burns.NOTE
 Locking and unlocking the doors by using power door locks (driver and front passenger side), keyless entry system or the F.A.S.T.- key operation (vehicles equipped with the F.A.S.T.-key) also locks and unlocks the lift-gate.
To open
CAUTION Make sure there is no one standing nearby when opening the liftgate.NOTE
 The liftgate cannot be raised if it is not raised immediately after pressing the liftgate OPENswitch. If this happens, raise the liftgate again after pressing the liftgate OPEN switch.  It is not possible to open the liftgate while the battery is disconnected. If necessary, usethe inside liftgate release.  When the battery is reconnected, all doors and the liftgate will be locked. Unlock them before trying to open the liftgate.
To close
CAUTION To avoid injuring your hand or arm, do not attempt to close the liftgate without releasingthe liftgate grip (A). Before starting the vehicle, be sure to con- firm that the liftgate
is locked. If the liftgate
opens while driving the vehicle, objects stored in the luggage compartment could fallout into the road.
BK0206700US.bo
ok 32 ページ ２０１４年３月２５日　火曜日　午後４時４２分

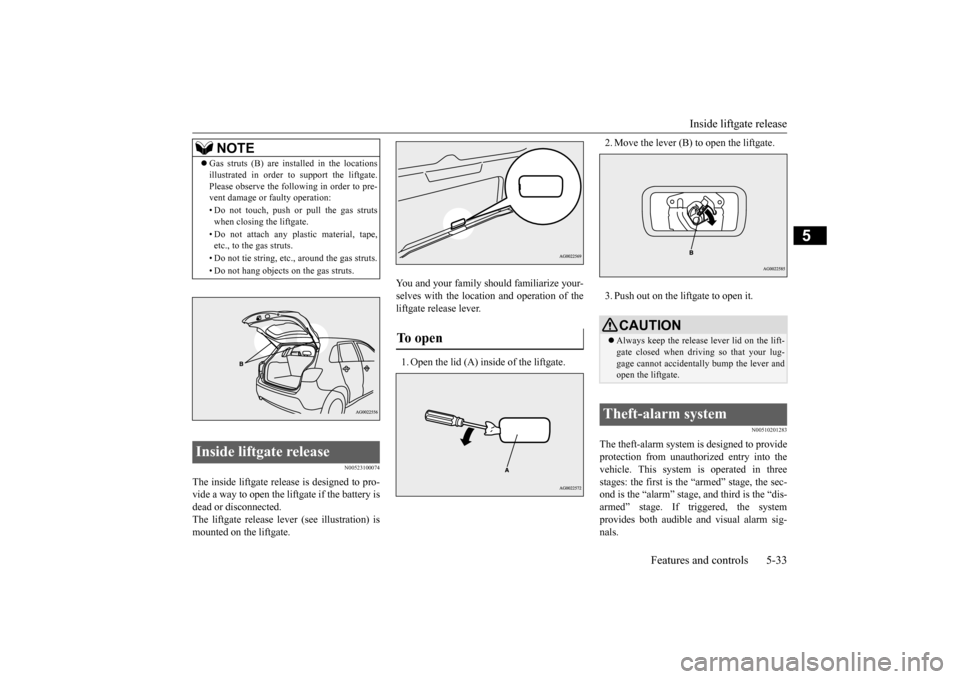

Inside liftgate release
Features and controls 5-33
5
N00523100074
The inside liftgate release is designed to pro- vide a way to open the liftgate if the battery is dead or disconnected. The liftgate release lever (see illustration) ismounted on the liftgate.
You and your family should familiarize your- selves with the location and operation of the liftgate release lever. 1. Open the lid (A) inside of the liftgate.
2. Move the lever (B) to open the liftgate. 3. Push out on the liftgate to open it.
N00510201283
The theft-alarm system is designed to provide protection from unauthorized entry into the vehicle. This system is operated in three stages: the first is the “armed” stage, the sec-ond is the “alarm” stage,
and third is the “dis-
armed” stage. If triggered, the system provides both audible and visual alarm sig-nals.
NOTE
 Gas struts (B) are installed in the locations illustrated in order to support the liftgate. Please observe the following in order to pre- vent damage or faulty operation: • Do not touch, push or pull the gas struts when closing the liftgate. • Do not attach any plastic material, tape, etc., to the gas struts. • Do not tie string, etc., around the gas struts. • Do not hang objects
on the gas struts.
Inside liftgate release
To open
CAUTIONAlways keep the release lever lid on the lift- gate closed when driving so that your lug- gage cannot accidentally bump the lever and open the liftgate.
Theft-alarm system
