Indicator light, warning light, an
d information screen display list
5-114 Features and controls
5

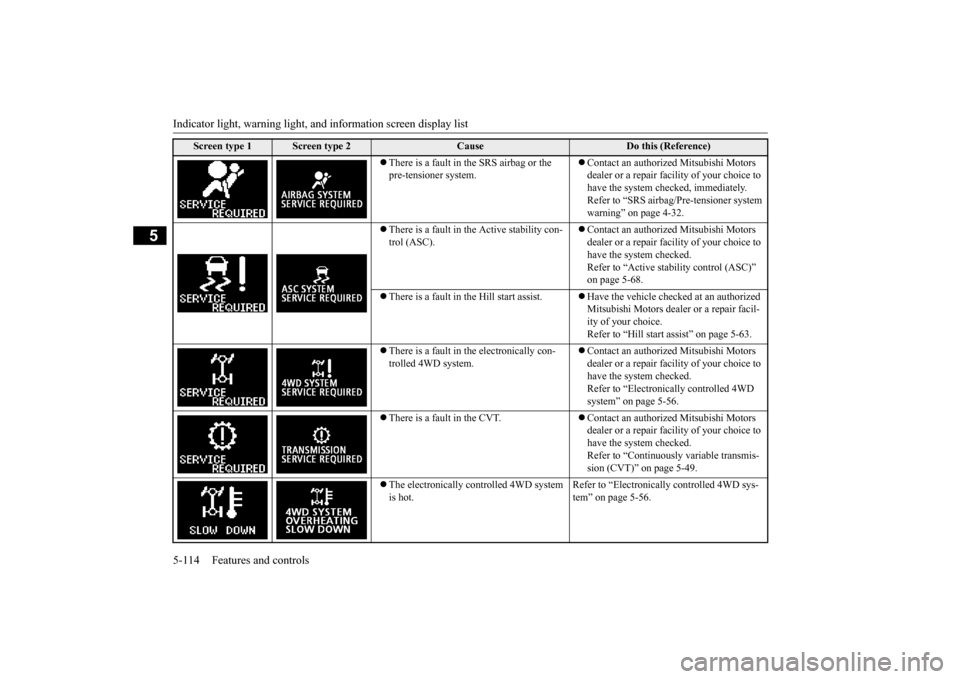

 There is a fault in the SRS airbag or the pre-tensioner system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked, immediately.Refer to “SRS airbag/Pre-tensioner system warning” on page 4-32.
 There is a fault in the Active stability con- trol (ASC).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Active stability control (ASC)” on page 5-68.
 There is a fault in the Hill start assist.
Have the vehicle checked at an authorized Mitsubishi Motors deal
er or a repair facil-
ity of your choice. Refer to “Hill start assist” on page 5-63.
 There is a fault in the electronically con- trolled 4WD system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Electronically controlled 4WD system” on page 5-56.
 There is a fault in the CVT.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “Continuously variable transmis- sion (CVT)” on page 5-49.
 The electronically controlled 4WD system is hot.
Refer to “Electronically controlled 4WD sys- tem” on page 5-56.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0206700US.book
114 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Indicator light, warning light, an
d information screen display list Features and controls 5-115
5
N00558200242

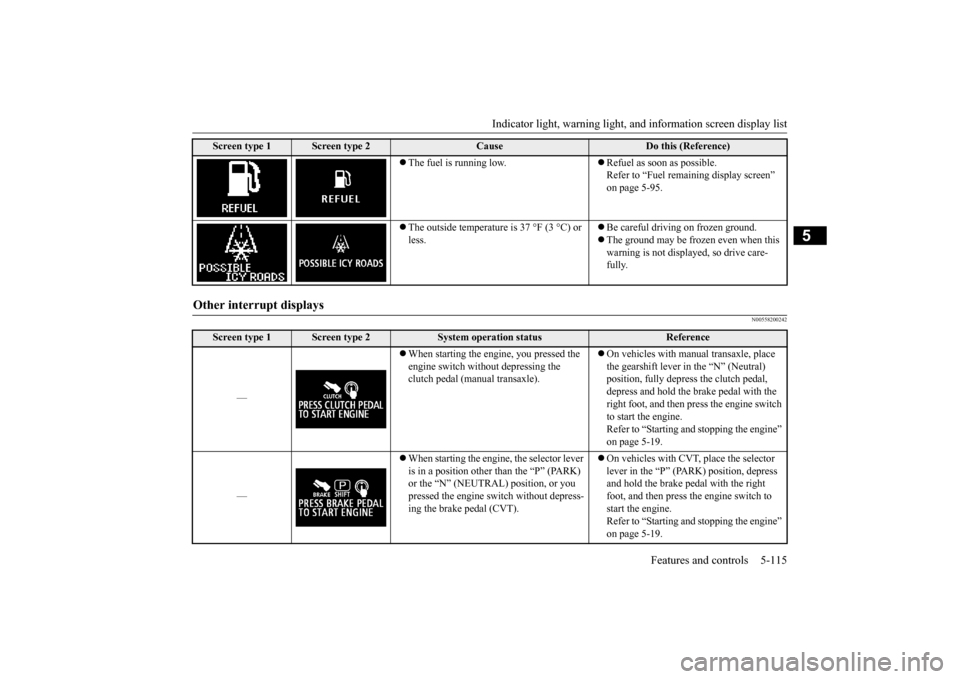

 The fuel is running low.
Refuel as soon as possible. Refer to “Fuel remaining display screen” on page 5-95.
 The outside temperature is 37 °F (3 °C) or less.
 Be careful driving on frozen ground.  The ground may be frozen even when this warning is not displayed, so drive care- fully.
Other interrupt displays
Screen type 1
Screen type 2
System operation status
Reference
—
 When starting the engine, you pressed the engine switch without depressing the clutch pedal (manual transaxle).
 On vehicles with manual transaxle, place the gearshift lever in
the “N” (Neutral)
position, fully depress the clutch pedal, depress and hold the brake pedal with the right foot, and then press the engine switch to start the engine. Refer to “Starting and stopping the engine” on page 5-19.
—
 When starting the engine, the selector lever is in a position other than the “P” (PARK) or the “N” (NEUTRAL) position, or you pressed the engine switch without depress- ing the brake pedal (CVT).
 On vehicles with CVT, place the selector lever in the “P” (PARK) position, depress and hold the brake pedal with the right foot, and then press the engine switch to start the engine. Refer to “Starting and stopping the engine” on page 5-19.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0206700US.book
115 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Indicator light, warning light, an
d information screen display list
5-116 Features and controls
5

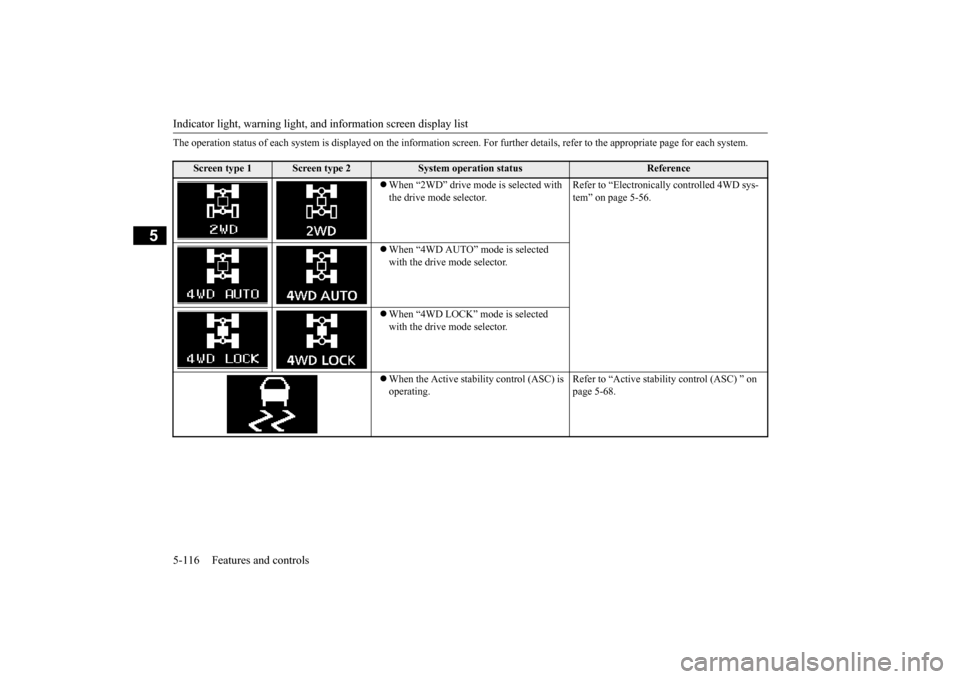

The operation status of each system is displayed on the informa
tion screen. For further details, refer to the appropriate page
for each system.
Screen type 1
Screen type 2
System operation status
Reference
 When “2WD” drive mode is selected with the drive mode selector.
Refer to “Electronically controlled 4WD sys- tem” on page 5-56.
 When “4WD AUTO” mode is selected with the drive mode selector.  When “4WD LOCK” mode is selected with the drive mode selector.  When the Active stability control (ASC) is operating.
Refer to “Active stability control (ASC) ” on page 5-68.
BK0206700US.book
116 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Indicators
Features and controls 5-117
5

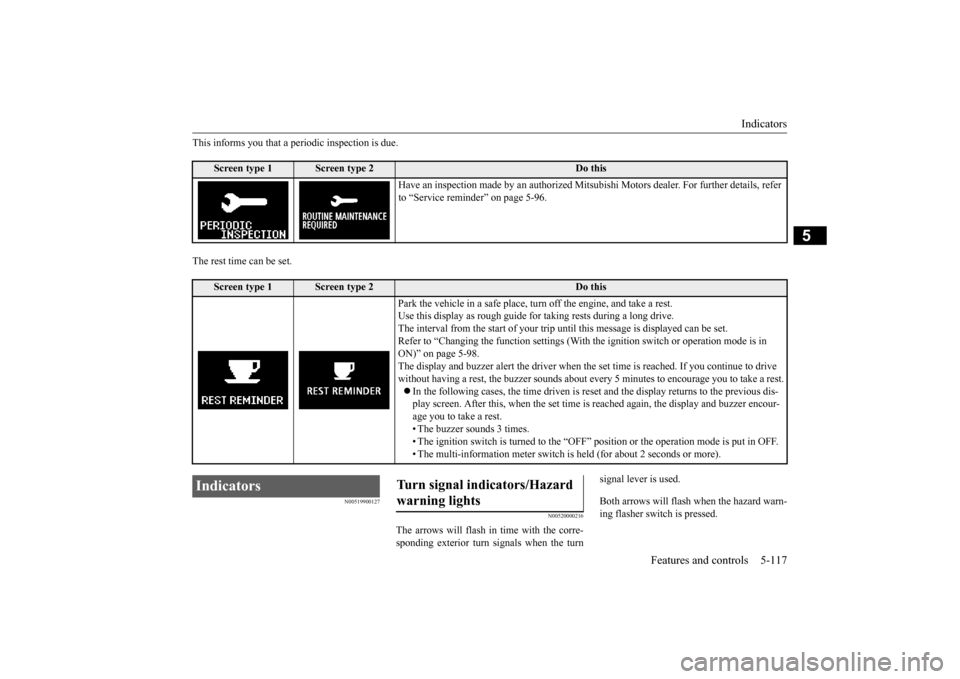

This informs you that a periodic inspection is due. The rest time can be set.
N00519900127
N00520000216
The arrows will flash in time with the corre- sponding exterior turn signals when the turn
signal lever is used. Both arrows will flash when the hazard warn- ing flasher switch is pressed.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsub
ishi Motors dealer. For further details, refer
to “Service reminder” on page 5-96.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest. Use this display as rough guide for taking rests during a long drive. The interval from the start of your trip un
til this message is displayed can be set.
Refer to “Changing the function settings (With
the ignition switch or operation mode is in
ON)” on page 5-98. The display and buzzer alert the driver when th
e set time is reached. If you continue to drive
without having a rest, the buzzer sounds about ev
ery 5 minutes to encourage you to take a rest.
 In the following cases, the time driven is rese
t and the display return
s to the previous dis-
play screen. After this, when the set time is
reached again, the display and buzzer encour-
age you to take a rest.• The buzzer sounds 3 times. • The ignition switch is turned to the “OFF”
position or the operation mode is put in OFF.
• The multi-information meter switch is
held (for about 2 seconds or more).
Indicators
Turn signal indicators/Hazard warning lights
BK0206700US.book
117 ページ ２０１４年３月２５日　火曜日　午後４時４２分

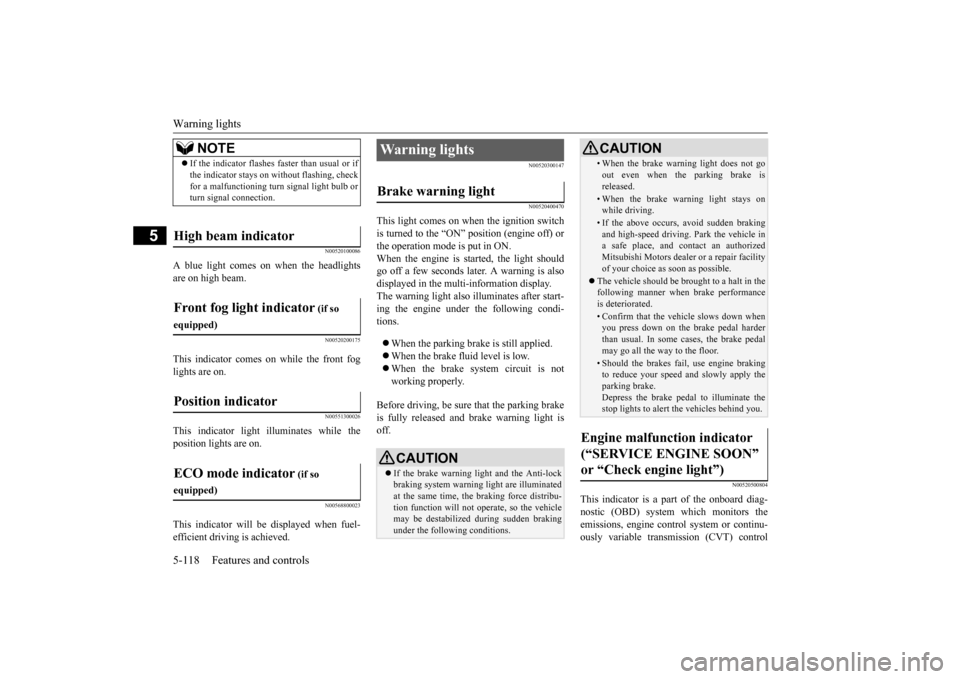

Warning lights 5-118 Features and controls
5
N00520100086
A blue light comes on when the headlights are on high beam.
N00520200175
This indicator comes on while the front fog lights are on.
N00551300026
This indicator light illuminates while theposition lights are on.
N00568800023
This indicator will be displayed when fuel-efficient driving is achieved.
N00520300147 N00520400470
This light comes on when the ignition switch is turned to the “ON” position (engine off) orthe operation mode is put in ON. When the engine is started, the light should go off a few seconds later. A warning is alsodisplayed in the multi-information display.The warning light also illuminates after start- ing the engine under the following condi- tions.  When the parking brake is still applied.  When the brake fluid level is low.  When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released and brake warning light is off.
N00520500804
This indicator is a part of the onboard diag- nostic (OBD) system which monitors the emissions, engine contro
l system or continu-
ously variable transmission (CVT) control
NOTE
 If the indicator flashes faster than usual or if the indicator stays on without flashing, check for a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator Front fog light indicator
(if so
equipped)Position indicator ECO mode indicator
(if so
equipped)
Warning lights Brake warning light
CAUTION If the brake warning light and the Anti-lock braking system warning light are illuminated at the same time, the braking force distribu- tion function will not operate, so the vehiclemay be destabilized during sudden braking under the following conditions.
• When the brake warning light does not goout even when the parking brake is released.• When the brake warning light stays onwhile driving.• If the above occurs, avoid sudden brakingand high-speed driving. Park the vehicle in a safe place, and contact an authorized Mitsubishi Motors dealer or a repair facilityof your choice as soon as possible.
 The vehicle should be brought to a halt in the following manner when brake performance is deteriorated.• Confirm that the vehicle slows down whenyou press down on the brake pedal harder than usual. In some cases, the brake pedalmay go all the way to the floor.• Should the brakes fail, use engine brakingto reduce your speed and slowly apply the parking brake. Depress the brake pedal to illuminate thestop lights to alert the vehicles behind you.
Engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”)
CAUTION
BK0206700US.book
118 ページ ２０１４年３月２５日　火曜日　午後４時４２分

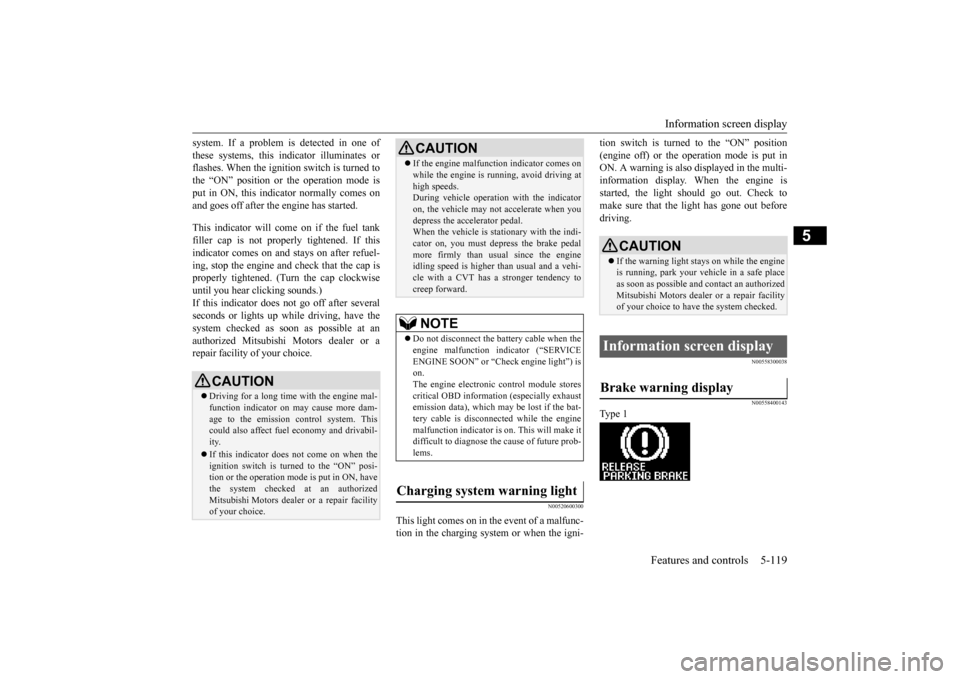

Information screen display
Features and controls 5-119
5
system. If a problem is detected in one of these systems, this indicator illuminates or flashes. When the igniti
on switch is turned to
the “ON” position or the operation mode isput in ON, this indicator normally comes on and goes off after the engine has started. This indicator will come on if the fuel tank filler cap is not properly tightened. If thisindicator comes on and stays on after refuel- ing, stop the engine and check that the cap is properly tightened. (Turn the cap clockwiseuntil you hear clicking sounds.)If this indicator does not go off after several seconds or lights up while driving, have the system checked as soon as possible at anauthorized Mitsubishi Motors dealer or a repair facility of your choice.
N00520600300
This light comes on in the event of a malfunc-tion in the charging system or when the igni-
tion switch is turned to the “ON” position (engine off) or the operation mode is put in ON. A warning is also displayed in the multi- information display. When the engine isstarted, the light should go out. Check to make sure that the light has gone out before driving.
N00558300038 N00558400143
Type 1
CAUTION Driving for a long time with the engine mal- function indicator on may cause more dam-age to the emission control system. This could also affect fuel economy and drivabil- ity. If this indicator does not come on when the ignition switch is turned to the “ON” posi- tion or the operation mode is put in ON, have the system checked at an authorizedMitsubishi Motors dealer or a repair facility of your choice.
 If the engine malfunction indicator comes on while the engine is running, avoid driving at high speeds. During vehicle operation with the indicator on, the vehicle may not accelerate when youdepress the accelerator pedal. When the vehicle is stationary with the indi- cator on, you must depress the brake pedalmore firmly than usual since the engine idling speed is higher than usual and a vehi- cle with a CVT has a stronger tendency tocreep forward.NOTE
 Do not disconnect the battery cable when the engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”) ison. The engine electronic control module stores critical OBD information (especially exhaustemission data), which may be lost if the bat- tery cable is disconnected while the engine malfunction indicator is on. This will make itdifficult to diagnose the cause of future prob- lems.
Charging system warning light
CAUTION
CAUTION If the warning light stays on while the engine is running, park your vehicle in a safe placeas soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
Information screen display Brake warning display
BK0206700US.book
119 ページ ２０１４年３月２５日　火曜日　午後４時４２分

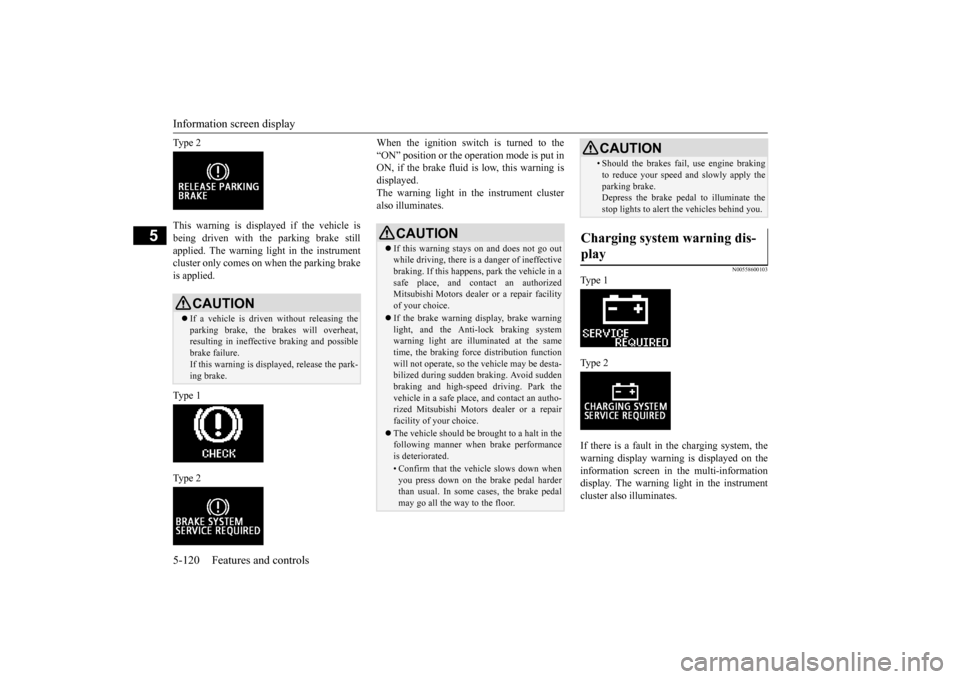

Information screen display 5-120 Features and controls
5
Ty p e 2 This warning is displayed if the vehicle is being driven with the parking brake still applied. The warning light in the instrumentcluster only comes on when the parking brake is applied. Ty p e 1 Ty p e 2
When the ignition switch is turned to the “ON” position or the operation mode is put in ON, if the brake fluid is low, this warning is displayed.The warning light in the instrument cluster also illuminates.
N00558600103
Ty p e 1 Ty p e 2 If there is a fault in the charging system, the warning display warning is displayed on theinformation screen in the multi-information display. The warning light in the instrument cluster also illuminates.
CAUTION If a vehicle is driven without releasing the parking brake, the brakes will overheat,resulting in ineffective braking and possible brake failure. If this warning is displayed, release the park- ing brake.
CAUTION  If this warning stays on and does not go out while driving, there is a danger of ineffective braking. If this happens, park the vehicle in a safe place, and contact an authorizedMitsubishi Motors dealer or a repair facility of your choice. If the brake warning display, brake warning light, and the Anti-lock braking system warning light are illuminated at the sametime, the braking force distribution function will not operate, so the vehicle may be desta- bilized during sudden braking. Avoid suddenbraking and high-speed driving. Park the vehicle in a safe place, and contact an autho- rized Mitsubishi Motors dealer or a repairfacility of your choice. The vehicle should be brought to a halt in the following manner when brake performance is deteriorated.• Confirm that the vehicle slows down when you press down on the brake pedal harderthan usual. In some cases, the brake pedal may go all the way to the floor.
• Should the brakes fail, use engine brakingto reduce your speed and slowly apply the parking brake. Depress the brake pedal to illuminate the stop lights to alert the vehicles behind you.
Charging system warning dis- play
CAUTION
BK0206700US.book
120 ページ ２０１４年３月２５日　火曜日　午後４時４２分

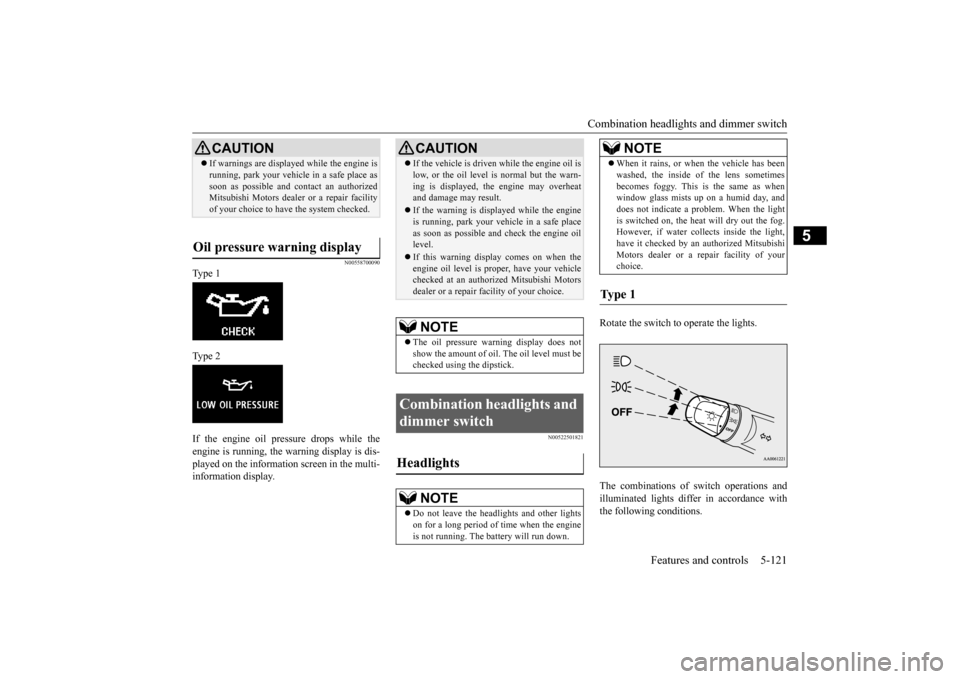

Combination headlights and dimmer switch
Features and controls 5-121
5
N00558700090
Type 1 Type 2 If the engine oil pressure drops while the engine is running, the warning display is dis-played on the information screen in the multi- information display.
N00522501821
Rotate the switch to operate the lights. The combinations of switch operations and illuminated lights differ in accordance with the following conditions.
CAUTION If warnings are displayed while the engine is running, park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
Oil pressure warning display
CAUTION If the vehicle is driven while the engine oil is low, or the oil level is normal but the warn- ing is displayed, the engine may overheat and damage may result. If the warning is displayed while the engine is running, park your vehicle in a safe place as soon as possible and check the engine oillevel. If this warning display comes on when the engine oil level is proper, have your vehicle checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice.NOTE
 The oil pressure warning display does not show the amount of oil. The oil level must be checked using the dipstick.
Combination headlights and dimmer switch Headlights
NOTE
 Do not leave the headlights and other lights on for a long period of time when the engineis not running. The battery will run down.
 When it rains, or when the vehicle has been washed, the inside of the lens sometimes becomes foggy. This is the same as when window glass mists up on a humid day, and does not indicate a problem. When the lightis switched on, the heat will dry out the fog. However, if water collects inside the light, have it checked by an authorized MitsubishiMotors dealer or a repair facility of your choice.
Ty p e 1
NOTE
BK0206700US.book
