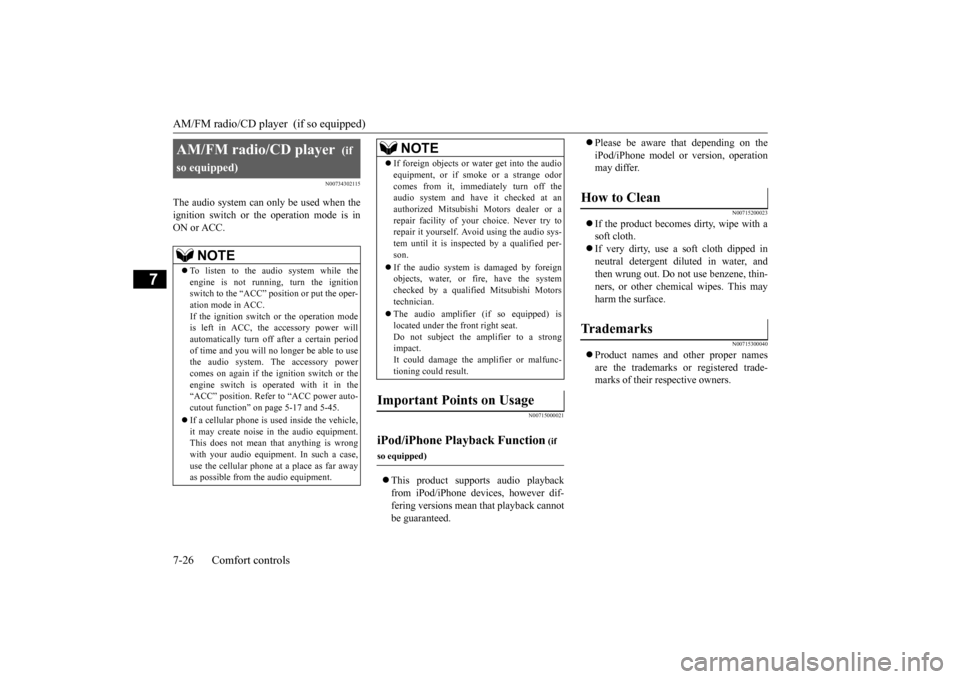

2015 MITSUBISHI OUTLANDER SPORT Owners Manual

AM/FM radio/CD player (if so equipped) 7-26 Comfort controls
7
N00734302115
The audio system can only be used when the ignition switch or the operation mode is in ON or ACC.
N00715000021
 This product supports audio playback from iPod/iPhone devices, however dif- fering versions mean that playback cannot be guaranteed.
 Please be aware that depending on the iPod/iPhone model or version, operation may differ.
N00715200023
 If the product becomes dirty, wipe with a soft cloth.  If very dirty, use a soft cloth dipped in neutral detergent diluted in water, andthen wrung out. Do not use benzene, thin- ners, or other chemical wipes. This may harm the surface.
N00715300040
 Product names and other proper names are the trademarks or registered trade-marks of their respective owners.
AM/FM radio/CD player
(if
so equipped)
NOTE
 To listen to the audio system while the engine is not running, turn the ignition switch to the “ACC” position or put the oper- ation mode in ACC.If the ignition switch or the operation mode is left in ACC, the accessory power will automatically turn off after a certain periodof time and you will no longer be able to use the audio system. The accessory power comes on again if the ignition switch or theengine switch is operated with it in the “ACC” position. Refer to “ACC power auto- cutout function” on page 5-17 and 5-45.  If a cellular phone is used inside the vehicle, it may create noise in the audio equipment.This does not mean that anything is wrong with your audio equipment. In such a case, use the cellular phone at a place as far away as possible from the audio equipment.
 If foreign objects or water get into the audio equipment, or if sm
oke or a strange odor
comes from it, immediately turn off the audio system and have it checked at an authorized Mitsubishi Motors dealer or arepair facility of your choice. Never try to repair it yourself. Avoid using the audio sys- tem until it is inspected by a qualified per-son.  If the audio system is damaged by foreign objects, water, or fire, have the system checked by a qualified Mitsubishi Motors technician.  The audio amplifier (if so equipped) is located under the front right seat.Do not subject the amplifier to a strong impact. It could damage the amplifier or malfunc-tioning could result.
Important Points on Usage

iPod/iPhone Playback Function
(if
so equipped)
NOTE
How to Clean

Trademarks

BK0206700US.bo
ok 26 ページ ２０１４年３月２５日　火曜日　午後４時４２分

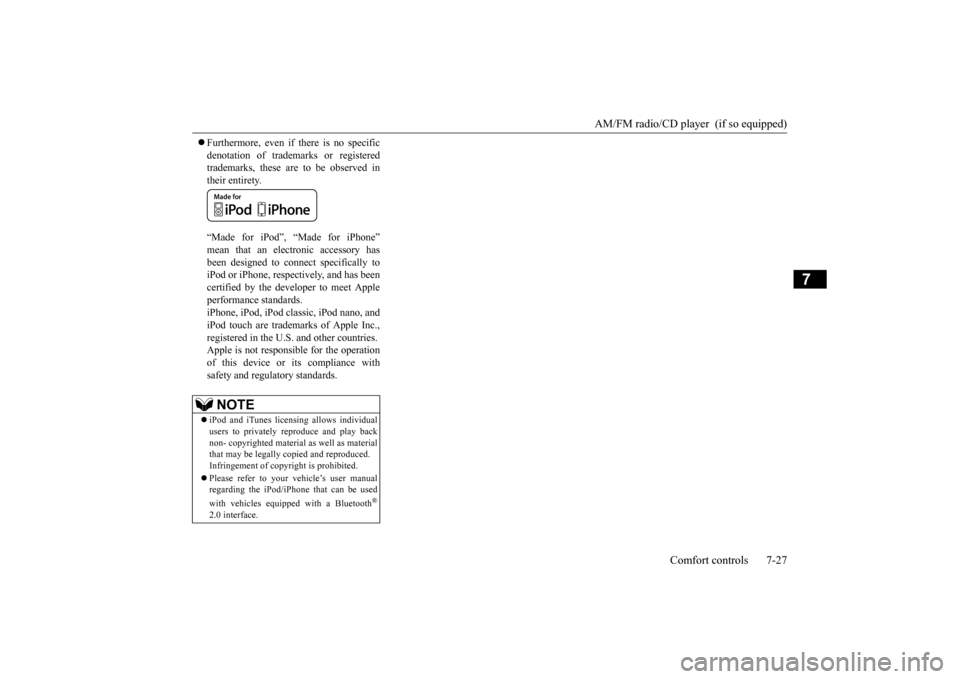

AM/FM radio/CD player (if so equipped)
Comfort controls 7-27
7
 Furthermore, even if there is no specific denotation of trademarks or registered trademarks, these are to be observed in their entirety. “Made for iPod”, “Made for iPhone” mean that an electronic accessory has been designed to connect specifically toiPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.Apple is not responsib
le for the operation
of this device or its compliance with safety and regulatory standards.NOTE
 iPod and iTunes licensing allows individual users to privately reproduce and play backnon- copyrighted material as well as material that may be legally copied and reproduced. Infringement of copyright is prohibited.  Please refer to your vehicle’s user manual regarding the iPod/iPhone that can be used with vehicles equipped with a Bluetooth
®
2.0 interface.
BK0206700US.bo
ok 27 ページ ２０１４年３月２５日　火曜日　午後４時４２分

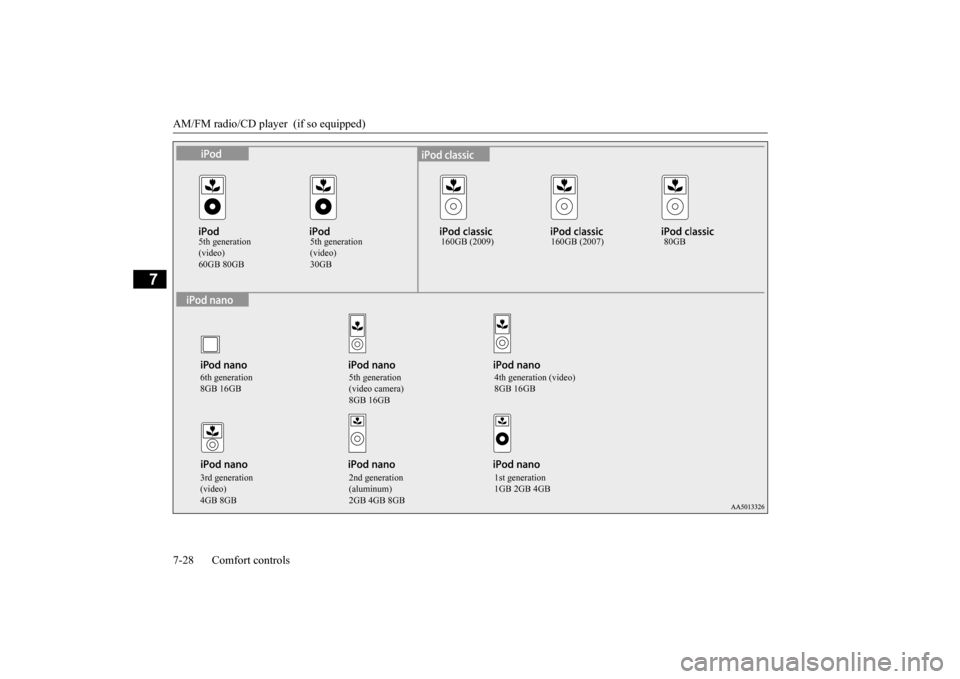

AM/FM radio/CD player (if so equipped) 7-28 Comfort controls
7
5th generation (video) 60GB 80GB
5th generation (video) 30GB
160GB (2009) 160GB (2007) 80GB
6th generation 8GB 16GB
5th generation (video camera) 8GB 16GB
4th generation (video) 8GB 16GB
3rd generation (video) 4GB 8GB
2nd generation (aluminum) 2GB 4GB 8GB
1st generation 1GB 2GB 4GB
BK0206700US.bo
ok 28 ページ ２０１４年３月２５日　火曜日　午後４時４２分

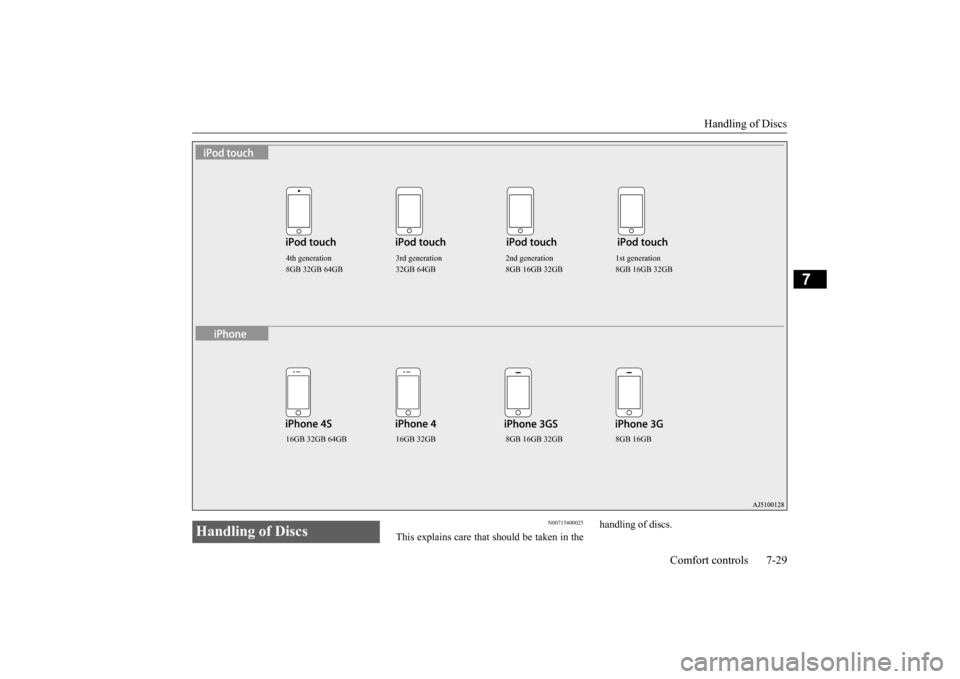

Handling of Discs
Comfort controls 7-29
7
N00715400025
This explains care that should be taken in the
handling of discs.
4th generation 8GB 32GB 64GB
3rd generation 32GB 64GB
2nd generation 8GB 16GB 32GB
1st generation 8GB 16GB 32GB
16GB 32GB 64GB 16GB 32G
B 8GB 16GB 32GB 8GB 16GB
Handling of Discs
BK0206700US.bo
ok 29 ページ ２０１４年３月２５日　火曜日　午後４時４２分

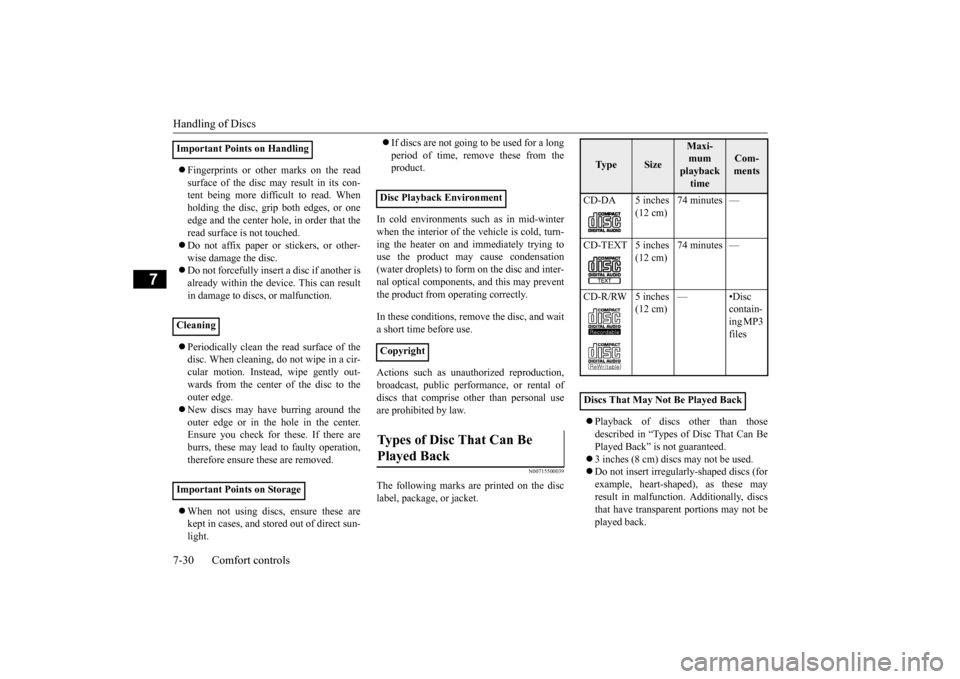

Handling of Discs 7-30 Comfort controls
7
 Fingerprints or other marks on the read surface of the disc may result in its con- tent being more difficult to read. When holding the disc, grip both edges, or oneedge and the center hole, in order that the read surface is not touched.  Do not affix paper or stickers, or other- wise damage the disc.  Do not forcefully insert a disc if another is already within the device. This can resultin damage to discs, or malfunction.  Periodically clean the read surface of the disc. When cleaning, do not wipe in a cir- cular motion. Instead, wipe gently out- wards from the center of the disc to theouter edge.  New discs may have burring around the outer edge or in the hole in the center.Ensure you check for these. If there are burrs, these may lead to faulty operation, therefore ensure these are removed.  When not using discs, ensure these are kept in cases, and stored out of direct sun- light.
 If discs are not going to be used for a long period of time, remove these from the product.
In cold environments such as in mid-winter when the interior of the vehicle is cold, turn-ing the heater on and immediately trying to use the product may cause condensation (water droplets) to form
on the disc and inter-
nal optical components, and this may preventthe product from operating correctly. In these conditions, remove the disc, and wait a short time before use. Actions such as unauthorized reproduction, broadcast, public performance, or rental of discs that comprise other than personal use are prohibited by law.
N00715500039
The following marks are printed on the disclabel, package, or jacket.
 Playback of discs other than those described in “Types of Disc That Can Be Played Back” is not guaranteed.  3 inches (8 cm) discs may not be used.  Do not insert irregularly-shaped discs (for example, heart-shaped), as these may result in malfunction. Additionally, discsthat have transparent portions may not be played back.
Important Points on Handling Cleaning Important Points on Storage
Disc Playback Environment CopyrightTypes of Disc That Can Be Played Back
Ty p e
Size
Maxi- mum playback time
Com-ments
CD-DA 5 inches
(12 cm)
74 minutes —
CD-TEXT 5 inches
(12 cm)
74 minutes —
CD-R/RW 5 inches
(12 cm)
—•Disc
contain- ing MP3 files
Discs That May Not Be Played Back
BK0206700US.bo
ok 30 ページ ２０１４年３月２５日　火曜日　午後４時４２分

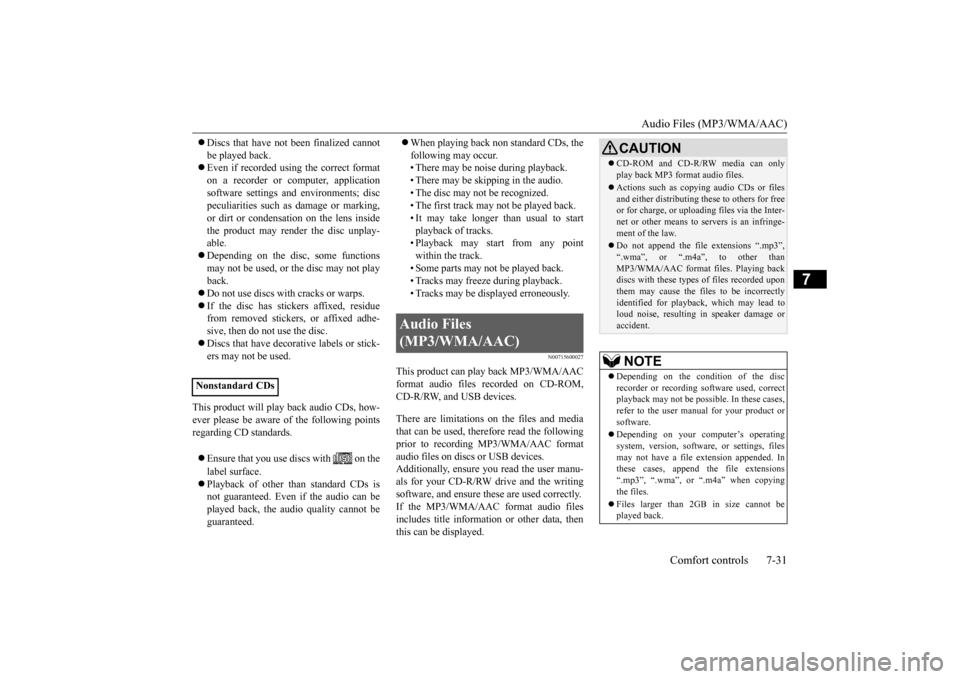

Audio Files (MP3/WMA/AAC)
Comfort controls 7-31
7
 Discs that have not been finalized cannot be played back.  Even if recorded using the correct format on a recorder or computer, applicationsoftware settings and environments; disc peculiarities such as damage or marking, or dirt or condensation on the lens insidethe product may render the disc unplay- able.  Depending on the disc, some functions may not be used, or the disc may not playback.  Do not use discs with cracks or warps.  If the disc has stickers affixed, residue from removed stickers, or affixed adhe- sive, then do not use the disc.  Discs that have decorative labels or stick- ers may not be used.
This product will play back audio CDs, how- ever please be aware of the following points regarding CD standards.  Ensure that you use discs with on the label surface.  Playback of other than standard CDs is not guaranteed. Even if the audio can be played back, the audio quality cannot beguaranteed.
 When playing back non standard CDs, the following may occur. • There may be noise during playback. • There may be skipping in the audio.• The disc may not be recognized. • The first track may not be played back. • It may take longer than usual to startplayback of tracks. • Playback may start from any point within the track.• Some parts may not be played back.• Tracks may freeze during playback. • Tracks may be displayed erroneously.
N00715600027
This product can play back MP3/WMA/AACformat audio files recorded on CD-ROM, CD-R/RW, and USB devices. There are limitations on the files and media that can be used, therefore read the following prior to recording MP3/WMA/AAC format audio files on discs or USB devices.Additionally, ensure you read the user manu- als for your CD-R/RW drive and the writing software, and ensure these are used correctly.If the MP3/WMA/AAC format audio files includes title information or other data, then this can be displayed.
Nonstandard CDs
Audio Files (MP3/WMA/AAC)
CAUTION CD-ROM and CD-R/RW media can only play back MP3 format audio files. Actions such as copying audio CDs or files and either distributing these to others for freeor for charge, or uploading files via the Inter- net or other means to servers is an infringe- ment of the law. Do not append the file extensions “.mp3”, “.wma”, or “.m4a”, to other thanMP3/WMA/AAC format files. Playing back discs with these types of files recorded upon them may cause the files to be incorrectlyidentified for playback, which may lead to loud noise, resulting in speaker damage or accident.NOTE
 Depending on the condition of the disc recorder or recording software used, correct playback may not be possible. In these cases,refer to the user manual for your product or software.  Depending on your computer’s operating system, version, software, or settings, files may not have a file extension appended. In these cases, append the file extensions “.mp3”, “.wma”, or “.m4a” when copyingthe files.  Files larger than 2GB in size cannot be played back.
BK0206700US.bo
ok 31 ページ ２０１４年３月２５日　火曜日　午後４時４２分

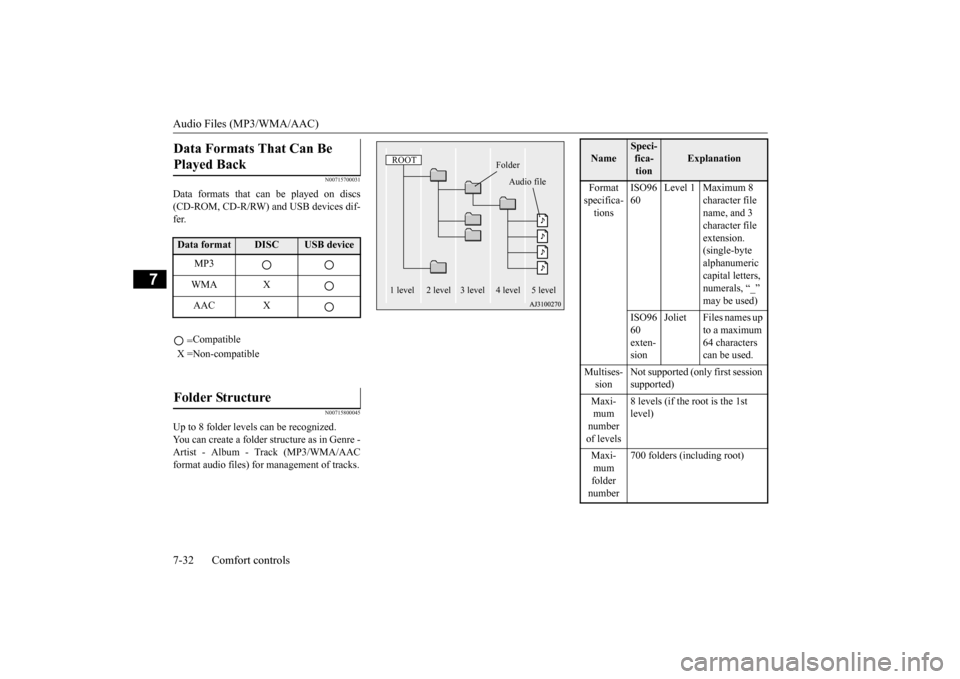

Audio Files (MP3/WMA/AAC) 7-32 Comfort controls
7
N00715700031
Data formats that can be played on discs (CD-ROM, CD-R/RW) and USB devices dif- fer.
N00715800045
Up to 8 folder levels can be recognized. You can create a folder structure as in Genre - Artist - Album - Track (MP3/WMA/AAC format audio files) for management of tracks.Data Formats That Can Be Played Back Data format
DISC
USB device
MP3 WMA XAAC X = Compatible
X =Non-compatibleFolder Structure
ROOT
Folder
Audio file
1 level 2 level 3 level 4 level 5 level
Name
Speci- fica- tion
Explanation
Format specifica- tions
ISO96 60
Level 1 Maximum 8
character file name, and 3 character file extension. (single-byte alphanumeric capital letters, numerals, “_” may be used)
ISO96 60 exten- sion
Joliet Files names up
to a maximum 64 characters can be used.
Multises- sion
Not supported (only first session supported)
Maxi- mum number of levels
8 levels (if the root is the 1st level)
Maxi- mum folder number
700 folders (including root)
BK0206700US.bo
ok 32 ページ ２０１４年３月２５日　火曜日　午後４時４２分

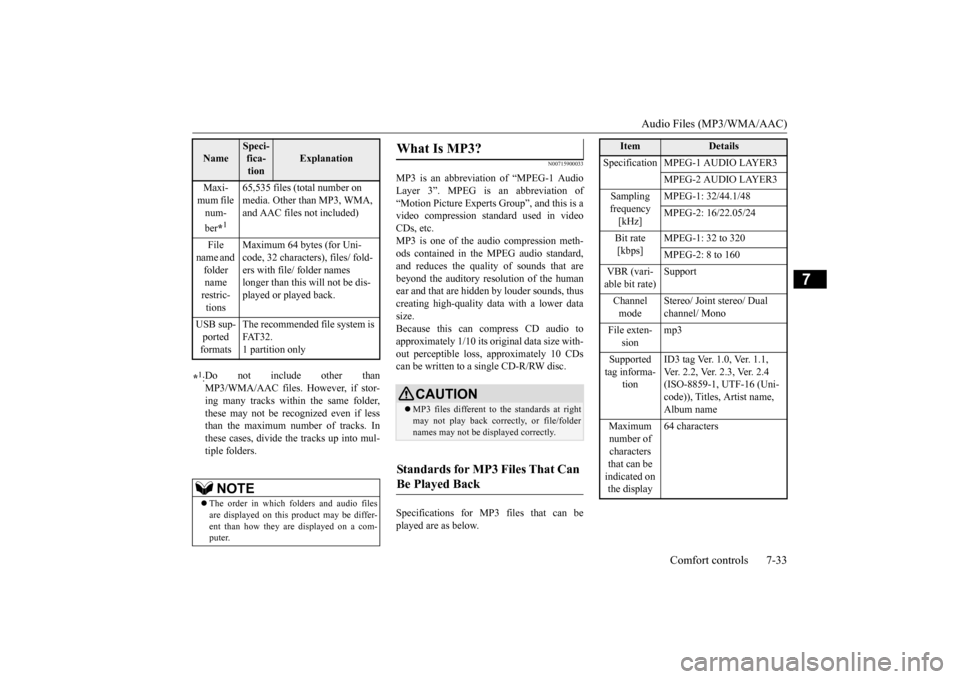

Audio Files (MP3/WMA/AAC)
Comfort controls 7-33
7
N00715900033
MP3 is an abbreviation of “MPEG-1 Audio Layer 3”. MPEG is an abbreviation of“Motion Picture Experts Group”, and this is a video compression stan
dard used in video
CDs, etc.MP3 is one of the audio compression meth- ods contained in the MPEG audio standard, and reduces the quality of sounds that arebeyond the auditory resolution of the humanear and that are hidden by louder sounds, thus creating high-quality data with a lower data size.Because this can compress CD audio to approximately 1/10 its original data size with- out perceptible loss, approximately 10 CDscan be written to a single CD-R/RW disc. Specifications for MP3 files that can be played are as below.
Maxi- mum file num- ber
*1
65,535 files (total number on media. Other than MP3, WMA, and AAC files not included)
File
name and folder name restric- tions
Maximum 64 bytes (for Uni- code, 32 characters), files/ fold- ers with file/ folder names longer than this will not be dis-played or played back.
USB sup- ported formats
The recommended file system is FAT32.1 partition only
*1: Do not include other than MP3/WMA/AAC files. However, if stor- ing many tracks within the same folder, these may not be recognized even if lessthan the maximum number of tracks. In these cases, divide the tracks up into mul- tiple folders.
NOTE
 The order in which folders and audio files are displayed on this product may be differ-ent than how they are displayed on a com- puter.Name
Speci- fica- tion
Explanation
What Is MP3?
CAUTION MP3 files different to the standards at right may not play back correctly, or file/folder names may not be displayed correctly.
Standards for MP3 Files That Can Be Played Back
Item
Details
Specification MPEG-1 AUDIO LAYER3
MPEG-2 AUDIO LAYER3
Sampling frequency [kHz]
MPEG-1: 32/44.1/48 MPEG-2: 16/22.05/24
Bit rate [kbps]
MPEG-1: 32 to 320 MPEG-2: 8 to 160
VBR (vari- able bit rate)
Support
Channel mode
Stereo/ Joint stereo/ Dual channel/ Mono
File exten-
sion
mp3
Supported tag informa-
tion
ID3 tag Ver. 1.0, Ver. 1.1, Ver. 2.2, Ver. 2.3, Ver. 2.4 (ISO-8859-1, UTF-16 (Uni- code)), Titles, Artist name, Album name
Maximum number of characters that can be indicated on the display
64 characters
BK0206700US.bo
ok 33 ページ ２０１４年３月２５日　火曜日　午後４時４２分
