2015 MITSUBISHI OUTLANDER SPORT Owners Manual

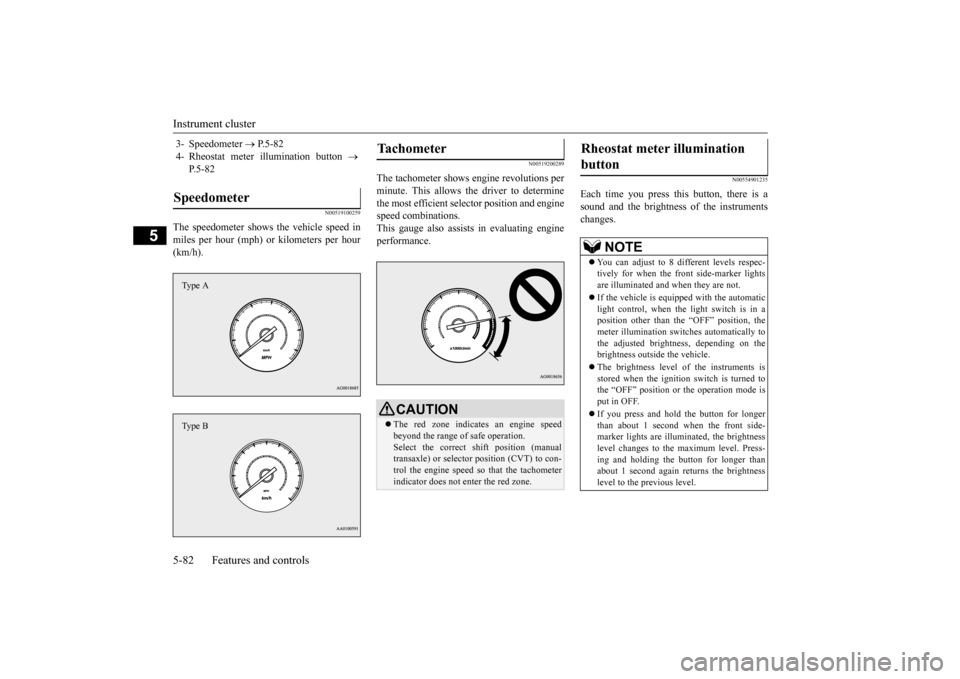

Instrument cluster 5-82 Features and controls
5
N00519100259
The speedometer shows the vehicle speed in miles per hour (mph) or kilometers per hour (km/h).
N00519200289
The tachometer shows engine revolutions perminute. This allows the driver to determinethe most efficient selector position and engine speed combinations. This gauge also assists in evaluating engineperformance.
N00554901235
Each time you press this button, there is asound and the brightness of the instruments changes.
3- Speedometer
 P.5-82
4- Rheostat meter illumination button

P.5-82
Speedometer Type AType B
Tachometer
CAUTION The red zone indicates an engine speed beyond the range of safe operation. Select the correct shift position (manual transaxle) or selector position (CVT) to con-trol the engine speed so that the tachometer indicator does not enter the red zone.
Rheostat meter illumination button
NOTE
 You can adjust to 8 different levels respec- tively for when the front side-marker lights are illuminated and when they are not.  If the vehicle is equipped with the automatic light control, when the light switch is in a position other than the “OFF” position, themeter illumination switches automatically to the adjusted brightness, depending on the brightness outside the vehicle.  The brightness level of the instruments is stored when the ignition switch is turned tothe “OFF” position or the operation mode is put in OFF.  If you press and hold the button for longer than about 1 second when the front side- marker lights are illuminated, the brightnesslevel changes to the maximum level. Press- ing and holding the button for longer than about 1 second again returns the brightness level to the previous level.
BK0206700US.bo
ok 82 ページ ２０１４年３月２５日　火曜日　午後４時４２分

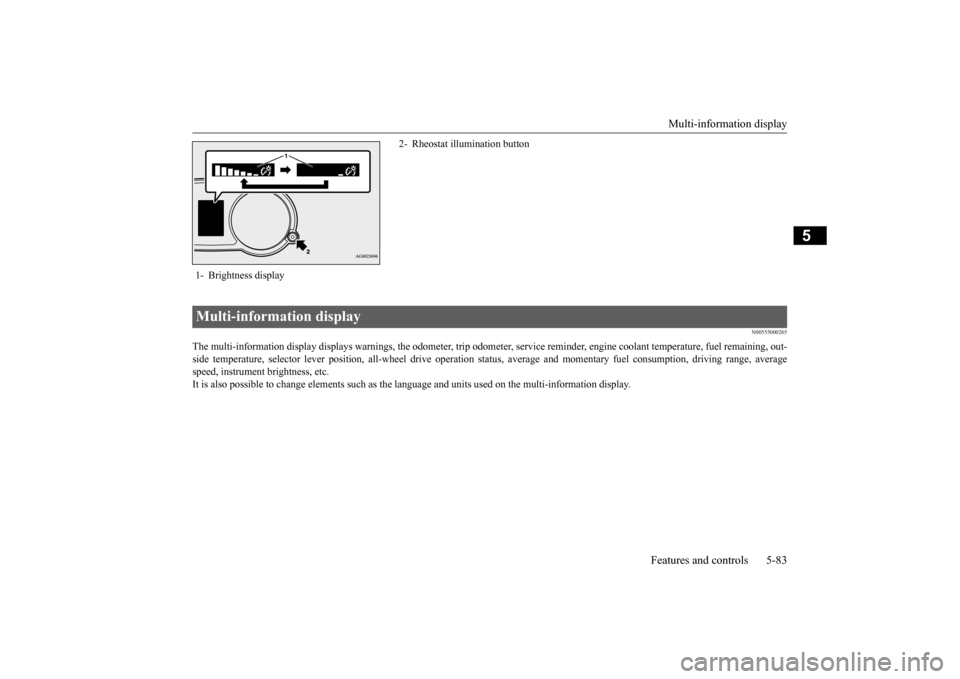

Multi-information display
Features and controls 5-83
5
N00555000265
The multi-information display displays warnings, the odometer, tr
ip odometer, service reminder, engine coolant temperature, fue
l remaining, out-
side temperature, selector lever position, all-wheel drive opera
tion status, average and momentar
y fuel consumption, driving ra
nge, average
speed, instrument brightness, etc.It is also possible to change elements such as the
language and units used on the multi-information display.
1- Brightness display
2- Rheostat illumination button
Multi-information display
BK0206700US.bo
ok 83 ページ ２０１４年３月２５日　火曜日　午後４時４２分

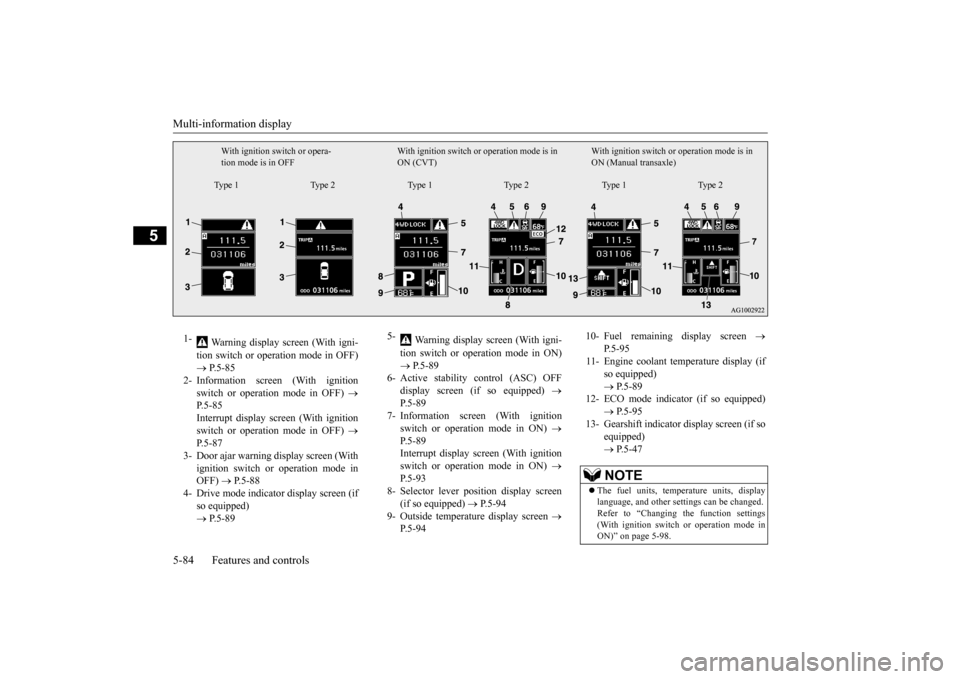

Multi-information display 5-84 Features and controls
5
With ignition switch or opera- tion mode is in OFF
With ignition switch or operation mode is in ON (CVT)
With ignition switch or
operation mode is in
ON (Manual transaxle)
Type 1 Type 2 Type 1 Type 2 Type 1 Type 2
1-
Warning display screen (With igni- tion switch or operation mode in OFF)  P.5-85
2- Information screen (With ignition
switch or operation mode in OFF)

P.5-85 Interrupt display screen (With ignitionswitch or operation mode in OFF)

P.5-87
3- Door ajar warning display screen (With
ignition switch or operation mode in OFF)
 P.5-88
4- Drive mode indicator display screen (if
so equipped)  P.5-89
5-
Warning display screen (With igni- tion switch or operation mode in ON)  P.5-89
6- Active stability control (ASC) OFF
display screen (if so equipped)

P.5-89
7- Information screen (With ignition
switch or operation mode in ON)

P.5-89 Interrupt display screen (With ignition switch or operation mode in ON)

P.5-93
8- Selector lever position display screen
(if so equipped)
 P.5-94
9- Outside temperature display screen

P.5-94
10- Fuel remaining display screen

P.5-95
11- Engine coolant temperature display (if
so equipped)  P.5-89
12- ECO mode indicator (if so equipped)
 P.5-95
13- Gearshift indicator display screen (if so
equipped)  P.5-47NOTE
The fuel units, temperature units, display language, and other settings can be changed.Refer to “Changing the function settings (With ignition switch or operation mode in ON)” on page 5-98.
BK0206700US.bo
ok 84 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Multi-information display

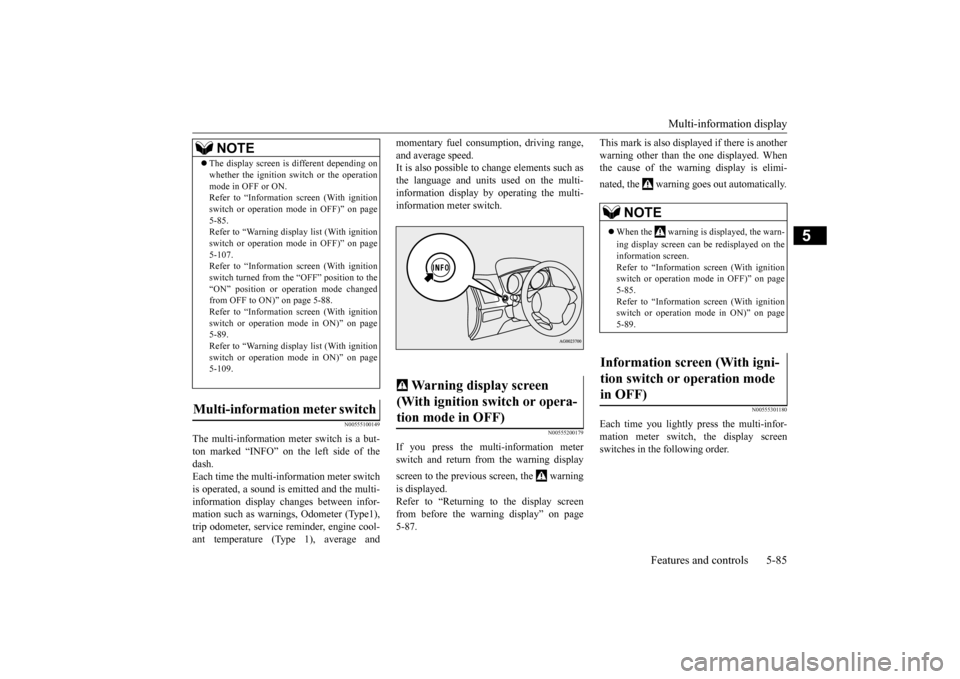

Features and controls 5-85
5
N00555100149
The multi-information meter switch is a but- ton marked “INFO” on the left side of thedash. Each time the multi-information meter switch is operated, a sound is emitted and the multi-information display changes between infor- mation such as warnings, Odometer (Type1), trip odometer, service reminder, engine cool-ant temperature (Type 1), average and
momentary fuel consumption, driving range, and average speed. It is also possible to change elements such as the language and units used on the multi-information display by operating the multi- information meter switch.
N00555200179
If you press the multi-information meter switch and return from the warning display screen to the previous screen, the warning is displayed. Refer to “Returning to the display screenfrom before the warning display” on page5-87.
This mark is also displayed if there is another warning other than the one displayed. When the cause of the warning display is elimi- nated, the warning goes out automatically.
N00555301180
Each time you lightly press the multi-infor- mation meter switch, the display screenswitches in the following order.
 The display screen is different depending on whether the ignition switch or the operation mode in OFF or ON. Refer to “Information screen (With ignition switch or operation mode in OFF)” on page5-85. Refer to “Warning displa
y list (With ignition
switch or operation mode in OFF)” on page5-107. Refer to “Information screen (With ignition switch turned from the “OFF” position to the“ON” position or operation mode changed from OFF to ON)” on page 5-88. Refer to “Information screen (With ignitionswitch or operation mode in ON)” on page 5-89. Refer to “Warning displa
y list (With ignition
switch or operation mode in ON)” on page 5-109.
Multi-information meter switch
NOTE
Warning display screen (With ignition switch or opera- tion mode in OFF)
NOTE
 When the warning is displayed, the warn- ing display screen can be redisplayed on the information screen.Refer to “Information screen (With ignition switch or operation mode in OFF)” on page 5-85.Refer to “Information screen (With ignition switch or operation mode in ON)” on page 5-89.
Information screen (With igni- tion switch or operation mode in OFF)
BK0206700US.bo
ok 85 ページ ２０１４年３月２５日　火曜日　午後４時４２分

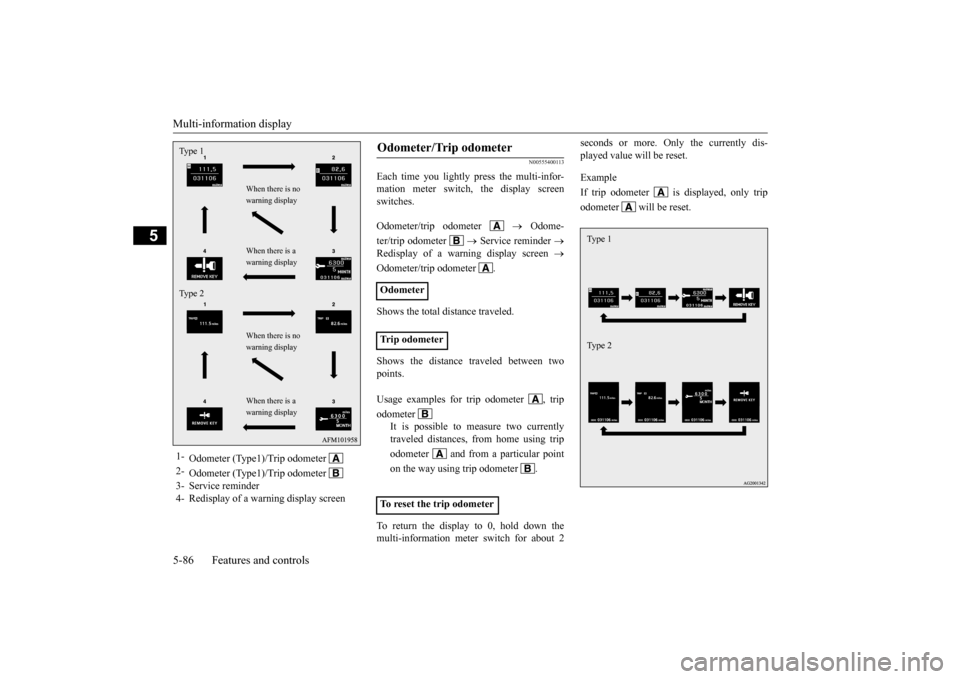

Multi-information display 5-86 Features and controls
5
N00555400113
Each time you lightly press the multi-infor- mation meter switch, the display screenswitches. Odometer/trip odometer
 Odome-
ter/trip odometer
 Service reminder

Redisplay of a warning display screen

Odometer/trip odometer . Shows the total distance traveled. Shows the distance traveled between two points. To return the display to 0, hold down the multi-information meter switch for about 2
seconds or more. Only the currently dis- played value will be reset. Example If trip odometer is displayed, only tripodometer will be reset.
1-
Odometer (Type1)/Trip odometer
2-
Odometer (Type1)/Trip odometer
3- Service reminder4- Redisplay of a warning display screenType 1 Type 2
When there is no warning display When there is a warning display When there is no warning display When there is a warning display
Odometer/Trip odometer Odometer Trip odometer Usage examples for trip odometer , trip odometer
It is possible to measure two currently traveled distances, from home using trip odometer and from a particular pointon the way using trip odometer . To reset the trip odometer
Ty p e 1 Ty p e 2
BK0206700US.bo
ok 86 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Multi-information display

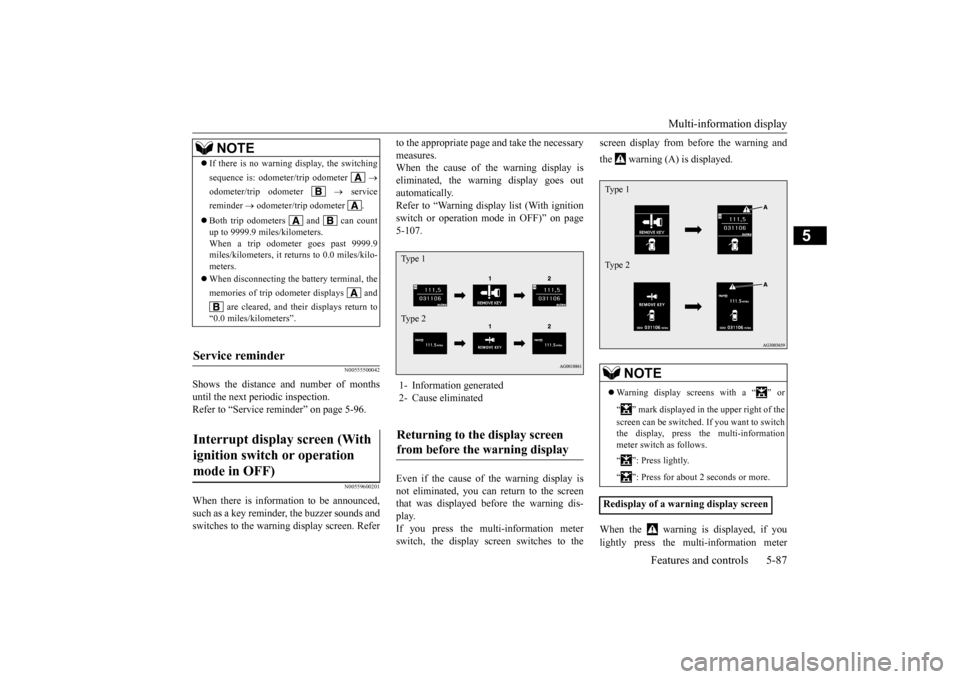

Features and controls 5-87
5
N00555500042
Shows the distance and number of months until the next periodic inspection. Refer to “Service reminder” on page 5-96.
N00559600201
When there is information to be announced, such as a key reminder, the buzzer sounds andswitches to the warning display screen. Refer
to the appropriate page and take the necessary measures. When the cause of the warning display is eliminated, the warning display goes outautomatically. Refer to “Warning display list (With ignition switch or operation mode in OFF)” on page5-107. Even if the cause of the warning display is not eliminated, you can return to the screen that was displayed before the warning dis- play.If you press the multi-information meter switch, the display screen switches to the
screen display from before the warning and the warning (A) is displayed. When the warning is displayed, if you lightly press the multi-information meter
NOTE
 If there is no warning display, the switching sequence is: odometer/trip odometer

odometer/trip odometer
 service
reminder
 odometer/trip odometer .
 Both trip odometers and can count up to 9999.9 miles/kilometers. When a trip odometer goes past 9999.9 miles/kilometers, it returns to 0.0 miles/kilo-meters.  When disconnecting the battery terminal, the memories of trip odometer displays and
are cleared, and their displays return to
“0.0 miles/kilometers”.
Service reminder Interrupt display screen (With ignition switch or operation mode in OFF)
1- Information generated 2- Cause eliminatedReturning to the display screen from before the warning display Ty p e 1 Ty p e 2
NOTE
 Warning display screens with a “ ” or “ ” mark displayed in the upper right of the screen can be switched. If you want to switch the display, press the multi-information meter switch as follows. “ ”: Press lightly. “ ”: Press for about 2 seconds or more.
Redisplay of a warning display screenType 1 Type 2
BK0206700US.bo
ok 87 ページ ２０１４年３月２５日　火曜日　午後４時４２分

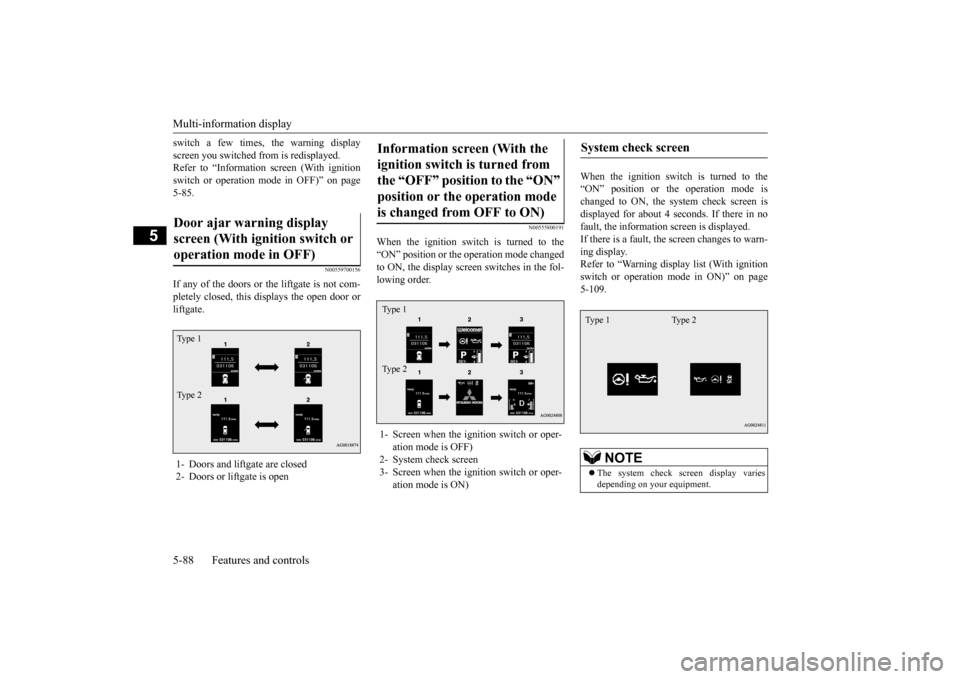

Multi-information display 5-88 Features and controls
5
switch a few times, the warning display screen you switched from is redisplayed. Refer to “Information screen (With ignition switch or operation mode in OFF)” on page5-85.
N00559700156
If any of the doors or the liftgate is not com- pletely closed, this displays the open door or liftgate.
N00555800191
When the ignition switch is turned to the“ON” position or the operation mode changed to ON, the display screen switches in the fol- lowing order.
When the ignition switch is turned to the “ON” position or the operation mode ischanged to ON, the system check screen is displayed for about 4 seconds. If there in no fault, the information screen is displayed.If there is a fault, the screen changes to warn- ing display. Refer to “Warning display list (With ignitionswitch or operation mode in ON)” on page5-109.
Door ajar warning display screen (With ignition switch or operation mode in OFF) 1- Doors and liftgate are closed 2- Doors or liftgate is openTy p e 1 Ty p e 2
Information screen (With the ignition switch is turned from the “OFF” position to the “ON” position or the operation mode is changed from OFF to ON) 1- Screen when the ignition switch or oper-
ation mode is OFF)
2- System check screen3- Screen when the ignition switch or oper-
ation mode is ON)Ty p e 1 Ty p e 2
System check screen
NOTE
 The system check screen display varies depending on your equipment.
Type 1 Type 2
BK0206700US.bo
ok 88 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Multi-information display

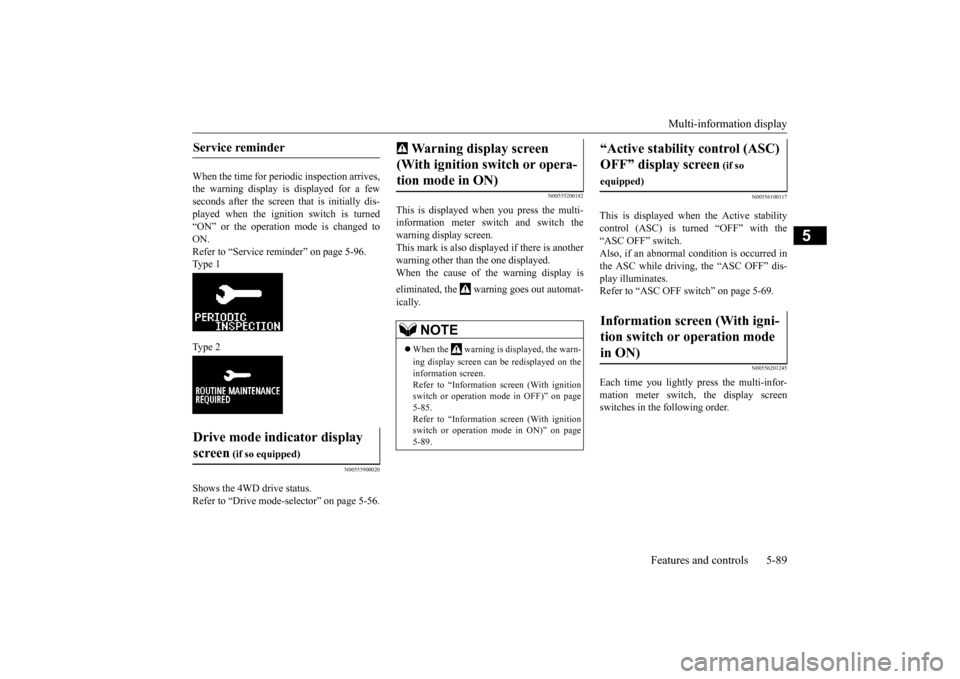

Features and controls 5-89
5
When the time for periodic inspection arrives, the warning display is displayed for a fewseconds after the screen
that is initially dis-
played when the ignition switch is turned “ON” or the operation mode is changed toON. Refer to “Service reminder” on page 5-96. Type 1 Type 2
N00555900020
Shows the 4WD drive status. Refer to “Drive mode-selector” on page 5-56.
N00555200182
This is displayed when you press the multi- information meter switch and switch the warning display screen.This mark is also displayed if there is another warning other than the one displayed. When the cause of the warning display is eliminated, the warning goes out automat- ically.
N00556100117
This is displayed when the Active stability control (ASC) is turned “OFF” with the“ASC OFF” switch. Also, if an abnormal condition is occurred in the ASC while driving, the “ASC OFF” dis-play illuminates.Refer to “ASC OFF switch” on page 5-69.
N00556201245
Each time you lightly press the multi-infor-mation meter switch, the display screenswitches in the following order.
Service reminder Drive mode indicator display screen
(if so equipped)
Warning display screen (With ignition switch or opera- tion mode in ON)
NOTE
 When the warning is displayed, the warn- ing display screen can be redisplayed on the information screen. Refer to “Information screen (With ignition switch or operation mode in OFF)” on page5-85. Refer to “Information screen (With ignition switch or operation mode in ON)” on page 5-89.
“Active stability control (ASC) OFF” display screen
(if so
equipped)Information screen (With igni- tion switch or operation mode in ON)
BK0206700US.bo
