2015 MITSUBISHI OUTLANDER SPORT Owners Manual

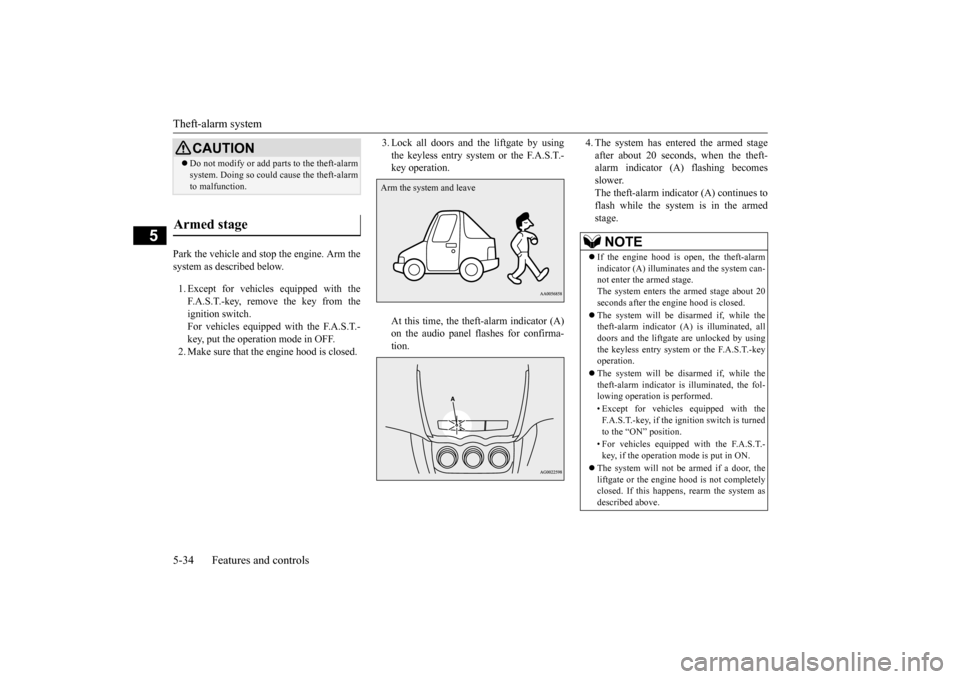

Theft-alarm system 5-34 Features and controls
5
Park the vehicle and stop the engine. Arm the system as described below. 1. Except for vehicles equipped with the F.A.S.T.-key, remove the key from the ignition switch. For vehicles equipped with the F.A.S.T.-key, put the operation mode in OFF. 2. Make sure that the engine hood is closed.
3. Lock all doors and the liftgate by using the keyless entry system or the F.A.S.T.- key operation. At this time, the theft-alarm indicator (A) on the audio panel flashes for confirma- tion.
4. The system has entered the armed stage after about 20 seconds, when the theft- alarm indicator (A) flashing becomes slower.The theft-alarm indicator (A) continues to flash while the system is in the armed stage.
CAUTION Do not modify or add parts to the theft-alarm system. Doing so could cause the theft-alarm to malfunction.
Armed stage
Arm the system and leave
NOTE
 If the engine hood is open, the theft-alarm indicator (A) illuminates and the system can- not enter the armed stage. The system enters the armed stage about 20seconds after the engine hood is closed.  The system will be disarmed if, while the theft-alarm indicator (A) is illuminated, all doors and the liftgate are unlocked by using the keyless entry system or the F.A.S.T.-keyoperation.  The system will be disarmed if, while the theft-alarm indicator is illuminated, the fol- lowing operation is performed. • Except for vehicles equipped with the F.A.S.T.-key, if the ignition switch is turned to the “ON” position. • For vehicles equipped with the F.A.S.T.- key, if the operation mode is put in ON.
 The system will not be armed if a door, the liftgate or the engine hood is not completely closed. If this happens, rearm the system as described above.
BK0206700US.bo
ok 34 ページ ２０１４年３月２５日　火曜日　午後４時４２分

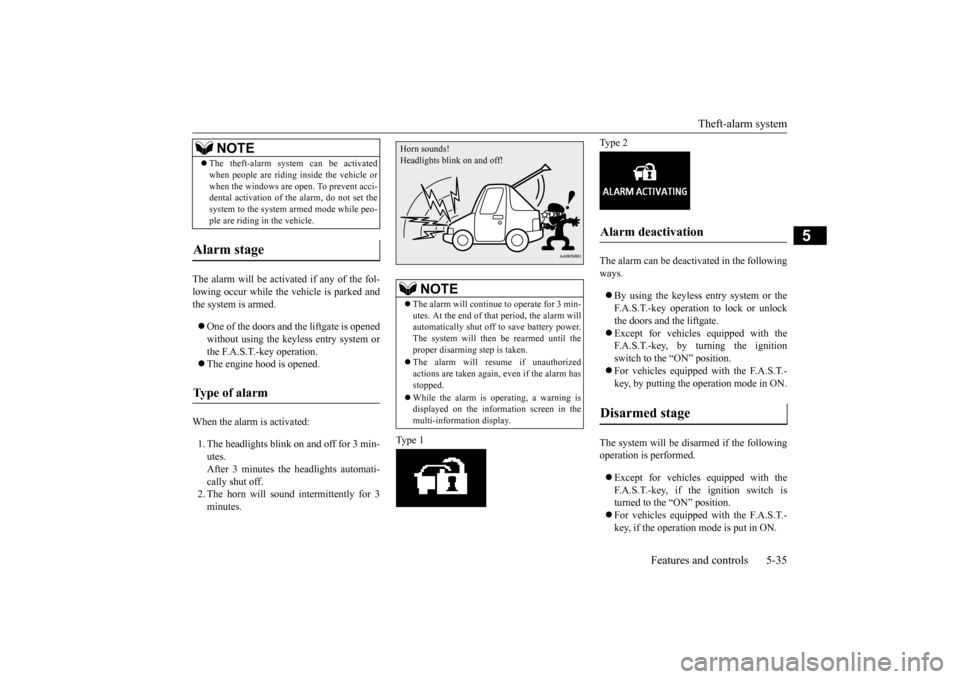

Theft-alarm system
Features and controls 5-35
5
The alarm will be activated if any of the fol- lowing occur while the vehicle is parked and the system is armed.  One of the doors and the liftgate is opened without using the keyless entry system or the F.A.S.T.-key operation.  The engine hood is opened.
When the alarm is activated: 1. The headlights blink on and off for 3 min- utes.After 3 minutes the headlights automati- cally shut off. 2. The horn will sound intermittently for 3minutes.
Type 1
Type 2 The alarm can be deactivated in the following ways.  By using the keyless entry system or the F.A.S.T.-key operation to lock or unlock the doors and the liftgate. Except for vehicles equipped with the F.A.S.T.-key, by turning the ignition switch to the “ON” position. For vehicles equipped with the F.A.S.T.- key, by putting the operation mode in ON.
The system will be disarmed if the following operation is performed.  Except for vehicles equipped with the F.A.S.T.-key, if the ignition switch is turned to the “ON” position. For vehicles equipped with the F.A.S.T.- key, if the operation mode is put in ON.
 The theft-alarm system can be activated when people are riding inside the vehicle or when the windows are open. To prevent acci- dental activation of th
e alarm, do not set the
system to the system armed mode while peo-ple are riding in the vehicle.
Alarm stage Type of alarm
NOTE
NOTE
 The alarm will continue to operate for 3 min- utes. At the end of that period, the alarm will automatically shut off to save battery power.The system will then
be rearmed until the
proper disarming step is taken.  The alarm will resume if unauthorized actions are taken again, even if the alarm has stopped.  While the alarm is operating, a warning is displayed on the information screen in themulti-information display.
Horn sounds!Headlights blink on and off!
Alarm deactivation Disarmed stage
BK0206700US.bo
ok 35 ページ ２０１４年３月２５日　火曜日　午後４時４２分

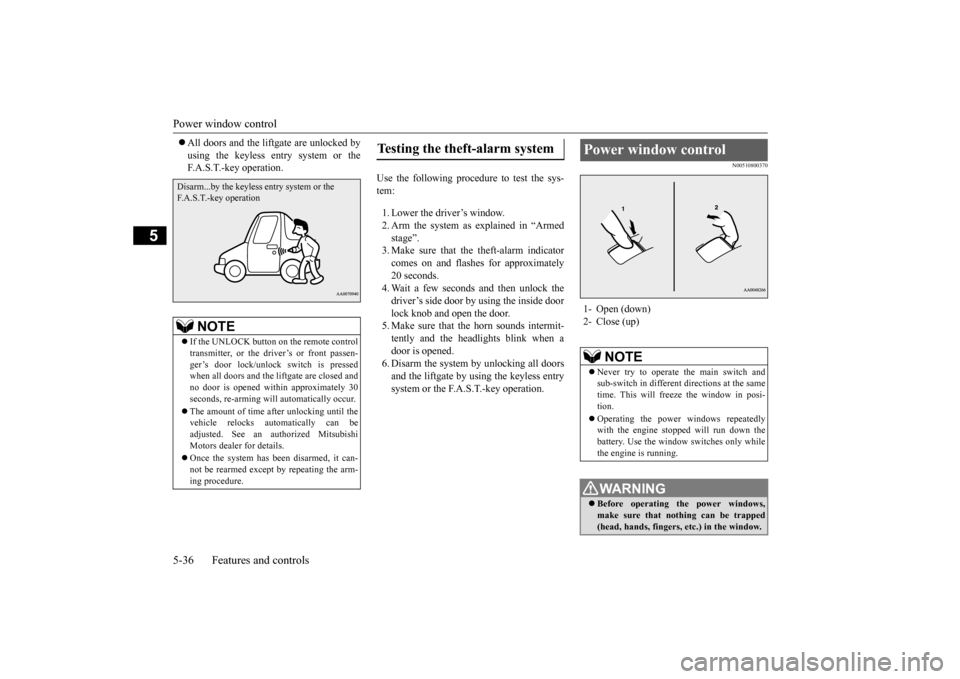

Power window control 5-36 Features and controls
5
 All doors and the liftgate are unlocked by using the keyless entry system or the F.A.S.T.-key operation.
Use the following procedure to test the sys- tem: 1. Lower the driver’s window. 2. Arm the system as explained in “Armed stage”. 3. Make sure that the theft-alarm indicatorcomes on and flashes for approximately20 seconds. 4. Wait a few seconds and then unlock the driver’s side door by using the inside doorlock knob and open the door. 5. Make sure that the horn sounds intermit- tently and the headlights blink when adoor is opened. 6. Disarm the system by unlocking all doors and the liftgate by using the keyless entrysystem or the F.A.S.T.-key operation.
N00510800370
NOTE
 If the UNLOCK button on the remote control transmitter, or the driver’s or front passen- ger’s door lock/unlock switch is pressedwhen all doors and the liftgate are closed and no door is opened within approximately 30 seconds, re-arming will automatically occur.  The amount of time after unlocking until the vehicle relocks automatically can beadjusted. See an authorized Mitsubishi Motors dealer for details.  Once the system has been disarmed, it can- not be rearmed except by repeating the arm- ing procedure.
Disarm...by the keyless entry system or the F.A.S.T.-key operation
Testing the theft-alarm system
Power window control 1- Open (down) 2- Close (up)
NOTE
 Never try to operate the main switch and sub-switch in different directions at the sametime. This will freeze the window in posi- tion.  Operating the power windows repeatedly with the engine stopped will run down the battery. Use the window switches only whilethe engine is running.WA R N I N G Before operating the power windows, make sure that nothing can be trapped(head, hands, fingers, etc.) in the window.
BK0206700US.bo
ok 36 ページ ２０１４年３月２５日　火曜日　午後４時４２分

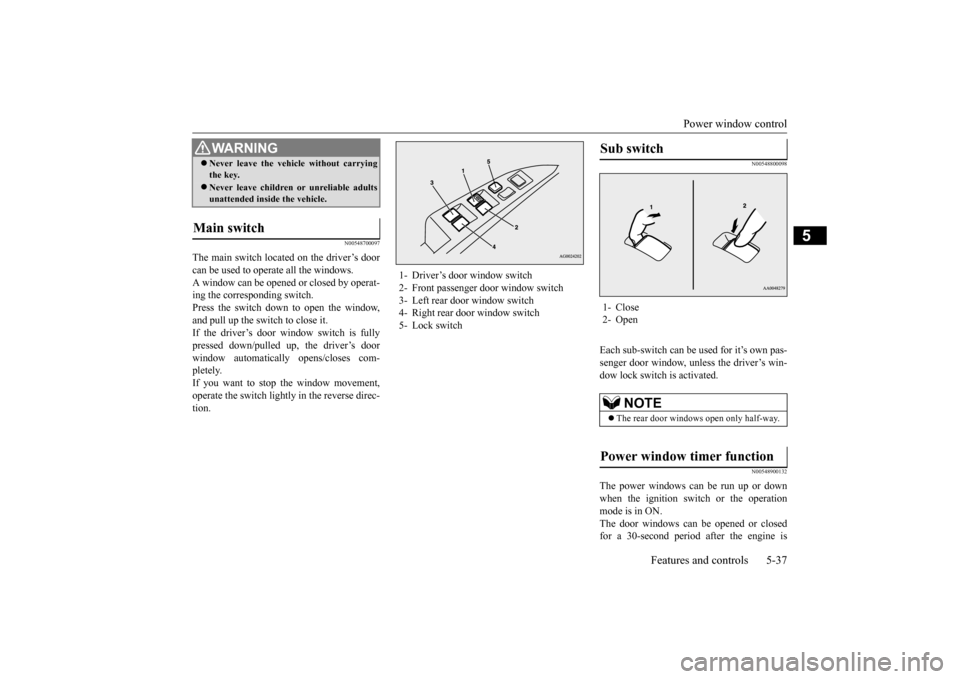

Power window control
Features and controls 5-37
5
N00548700097
The main switch located on the driver’s door can be used to operate all the windows.A window can be opened or closed by operat- ing the corresponding switch. Press the switch down to open the window,and pull up the switch to close it. If the driver’s door window switch is fully pressed down/pulled up, the driver’s doorwindow automatically opens/closes com- pletely. If you want to stop the window movement,operate the switch lightly in the reverse direc- tion.
N00548800098
Each sub-switch can be used for it’s own pas-senger door window, unless the driver’s win- dow lock switch is activated.
N00548900132
The power windows can be run up or down when the ignition switch or the operation mode is in ON.The door windows can be opened or closed for a 30-second period after the engine is
 Never leave the vehicle without carrying the key. Never leave children or unreliable adults unattended inside the vehicle.
Main switch
WA R N I N G
1- Driver’s door window switch 2- Front passenger door window switch3- Left rear door window switch 4- Right rear door window switch 5- Lock switch
Sub switch 1- Close 2- Open
NOTE
 The rear door windows open only half-way.
Power window timer function
BK0206700US.bo
ok 37 ページ ２０１４年３月２５日　火曜日　午後４時４２分

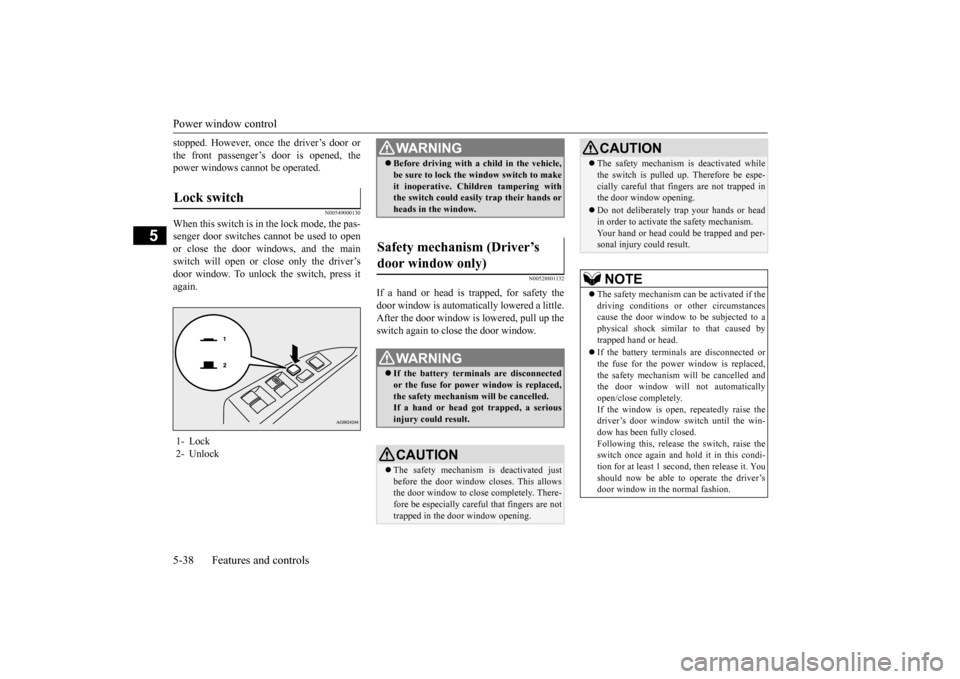

Power window control 5-38 Features and controls
5
stopped. However, once the driver’s door or the front passenger’s door is opened, the power windows cannot be operated.
N00549000130
When this switch is in the lock mode, the pas-senger door switches cannot be used to open or close the door windows, and the mainswitch will open or close only the driver’sdoor window. To unlock
the switch, press it
again.
N00528801132
If a hand or head is trapped, for safety thedoor window is automatically lowered a little. After the door window is lowered, pull up theswitch again to close the door window.
Lock switch 1- Lock 2- Unlock
WA R N I N G Before driving with a child in the vehicle, be sure to lock the window switch to make it inoperative. Children tampering with the switch could easily trap their hands or heads in the window.
Safety mechanism (Driver’s door window only)
WA R N I N G If the battery terminals are disconnected or the fuse for power window is replaced, the safety mechanism will be cancelled. If a hand or head got trapped, a seriousinjury could result.CAUTION The safety mechanism is deactivated just before the door window closes. This allows the door window to close completely. There- fore be especially careful that fingers are nottrapped in the door window opening.
 The safety mechanism is deactivated while the switch is pulled up. Therefore be espe- cially careful that fingers are not trapped in the door window opening. Do not deliberately trap your hands or head in order to activate the safety mechanism. Your hand or head could be trapped and per-sonal injury could result.NOTE
 The safety mechanism can be activated if the driving conditions or other circumstances cause the door window to be subjected to aphysical shock similar to that caused by trapped hand or head.  If the battery terminals are disconnected or the fuse for the power window is replaced, the safety mechanism will be cancelled andthe door window will not automatically open/close completely. If the window is open, repeatedly raise thedriver’s door window switch until the win- dow has been fully closed. Following this, release the switch, raise the switch once again and hol
d it in this condi-
tion for at least 1 second, then release it. Youshould now be able to operate the driver’s door window in the normal fashion.CAUTION
BK0206700US.bo
ok 38 ページ ２０１４年３月２５日　火曜日　午後４時４２分

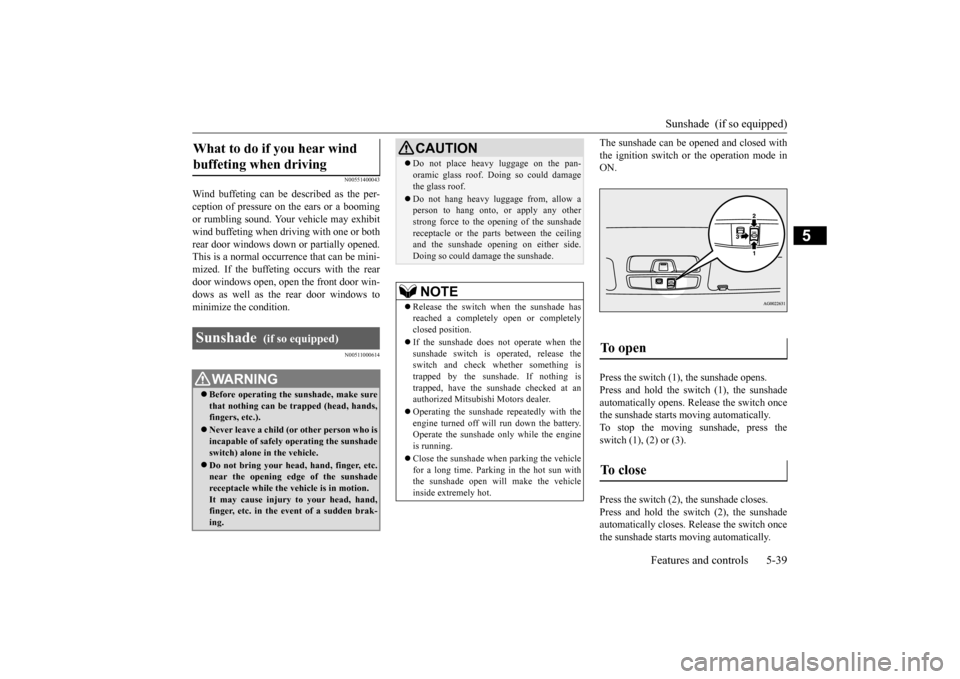

Sunshade (if so equipped)
Features and controls 5-39
5
N00551400043
Wind buffeting can be described as the per- ception of pressure on
the ears or a booming
or rumbling sound. Your vehicle may exhibit wind buffeting when driving with one or bothrear door windows down or partially opened. This is a normal occurrence that can be mini- mized. If the buffeting occurs with the reardoor windows open, open the front door win-dows as well as the rear door windows to minimize the condition.
N00511000614
The sunshade can be opened and closed with the ignition switch or the operation mode in ON. Press the switch (1), the sunshade opens. Press and hold the switch (1), the sunshade automatically opens. Release the switch once the sunshade starts moving automatically.To stop the moving sunshade, press the switch (1), (2) or (3). Press the switch (2), the sunshade closes. Press and hold the switch (2), the sunshade automatically closes. Release the switch oncethe sunshade starts moving automatically.
What to do if you hear wind buffeting when driving Sunshade
(if so equipped)
WA R N I N G Before operating the sunshade, make sure that nothing can be trapped (head, hands,fingers, etc.). Never leave a child (or other person who is incapable of safely operating the sunshade switch) alone in the vehicle. Do not bring your head, hand, finger, etc. near the opening edge of the sunshadereceptacle while the vehicle is in motion. It may cause injury to your head, hand, finger, etc. in the event of a sudden brak-ing.
CAUTION Do not place heavy luggage on the pan- oramic glass roof. Doing so could damage the glass roof. Do not hang heavy luggage from, allow a person to hang onto, or apply any other strong force to the opening of the sunshade receptacle or the parts between the ceilingand the sunshade opening on either side. Doing so could damage the sunshade.NOTE
 Release the switch when the sunshade has reached a completely open or completely closed position.  If the sunshade does not operate when the sunshade switch is operated, release the switch and check whether something istrapped by the sunshade. If nothing is trapped, have the sunshade checked at an authorized Mitsubishi Motors dealer.  Operating the sunshade repeatedly with the engine turned off will run down the battery.Operate the sunshade only while the engine is running.  Close the sunshade when parking the vehicle for a long time. Parking in the hot sun withthe sunshade open will make the vehicle inside extremely hot.
To open

To close

BK0206700US.bo
ok 39 ページ ２０１４年３月２５日　火曜日　午後４時４２分

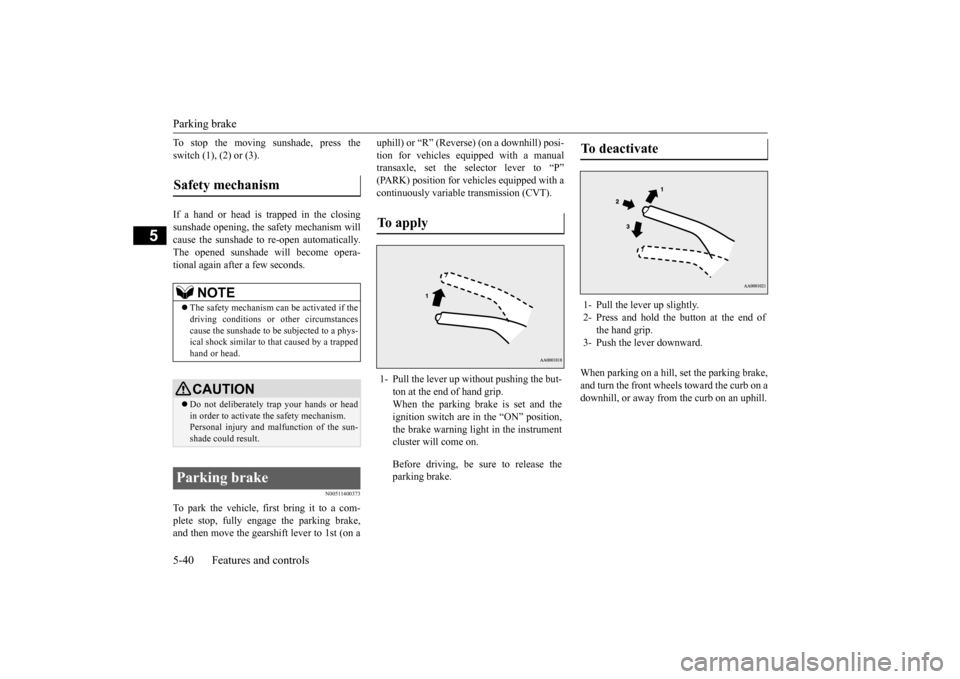

Parking brake 5-40 Features and controls
5
To stop the moving sunshade, press the switch (1), (2) or (3). If a hand or head is trapped in the closing sunshade opening, the safety mechanism will cause the sunshade to re-open automatically. The opened sunshade will become opera-tional again after a few seconds.
N00511400373
To park the vehicle, first bring it to a com-plete stop, fully engage the parking brake, and then move the gearshift lever to 1st (on a
uphill) or “R” (Reverse) (on a downhill) posi- tion for vehicles equipped with a manual transaxle, set the selector lever to “P” (PARK) position for vehicles equipped with acontinuously variable transmission (CVT).
When parking on a hill, set the parking brake, and turn the front wheels toward the curb on adownhill, or away from the curb on an uphill.
Safety mechanism

NOTE
 The safety mechanism can be activated if the driving conditions or other circumstances cause the sunshade to be subjected to a phys-ical shock similar to that caused by a trapped hand or head.CAUTION Do not deliberately trap your hands or head in order to activate the safety mechanism. Personal injury and malfunction of the sun- shade could result.
Parking brake
To apply 1- Pull the lever up without pushing the but-
ton at the end of hand grip. When the parking brake is set and the ignition switch are in the “ON” position,the brake warning light in the instrument cluster will come on. Before driving, be sure to release the parking brake.
To deactivate 1- Pull the lever up slightly.2- Press and hold the button at the end of
the hand grip.
3- Push the lever downward.
BK0206700US.bo
ok 40 ページ ２０１４年３月２５日　火曜日　午後４時４２分

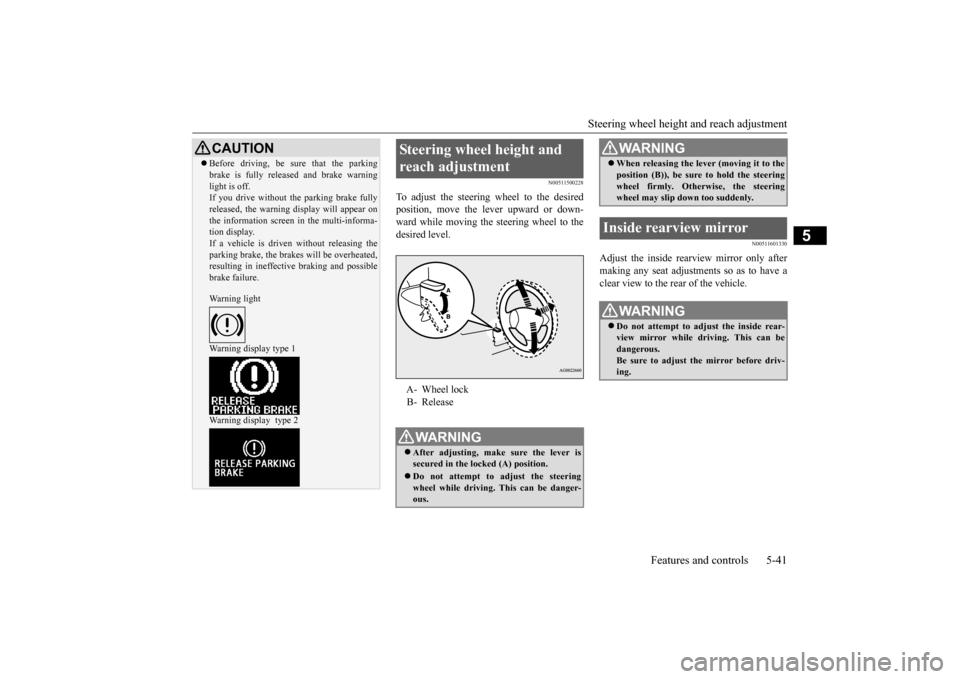

Steering wheel height and reach adjustment
Features and controls 5-41
5
N00511500228
To adjust the steering wheel to the desired position, move the lever upward or down-ward while moving the steering wheel to the desired level.
N00511601330
Adjust the inside rearview mirror only after making any seat adjustments so as to have a clear view to the rear of the vehicle.
CAUTION Before driving, be sure that the parking brake is fully released and brake warning light is off. If you drive without the parking brake fully released, the warning display will appear onthe information screen in the multi-informa- tion display. If a vehicle is driven without releasing theparking brake, the brakes will be overheated, resulting in ineffective braking and possible brake failure. Warning light Warning display type 1 Warning display type 2
Steering wheel height and reach adjustment A- Wheel lock B- ReleaseWA R N I N G After adjusting, make sure the lever is secured in the locked (A) position. Do not attempt to adjust the steering wheel while driving. This can be danger-ous.
 When releasing the lever (moving it to the position (B)), be sure to hold the steering wheel firmly. Otherwise, the steering wheel may slip down too suddenly.
Inside rearview mirror
WA R N I N G Do not attempt to adjust the inside rear- view mirror while driving. This can bedangerous. Be sure to adjust the mirror before driv- ing.WA R N I N G
BK0206700US.bo
