Vents 7-2 Comfort controls
7
N00729900249 N00730200327
Move the knob (A) to make adjustments. To close the vent, move the knob (A) to the inside as far as possible.
Move the knob (A) to make adjustments. To close the vent, move the knob (A) to the outside as far as possible.
N00736400552
To change the position and amount of airflowing from the vents, turn the mode selec-tion dial. Refer to “Mode selection dial” on page7-5, 7-10, 7-16, 7-21. These symbols are used in the next severalillustrations to demonstrate the quantity of air coming from the vents. : Small amount of air from the vents : Medium amount of air from the vents : Large amount of air from the vents Air flows only to the up
per part of the passen-
ger compartment.

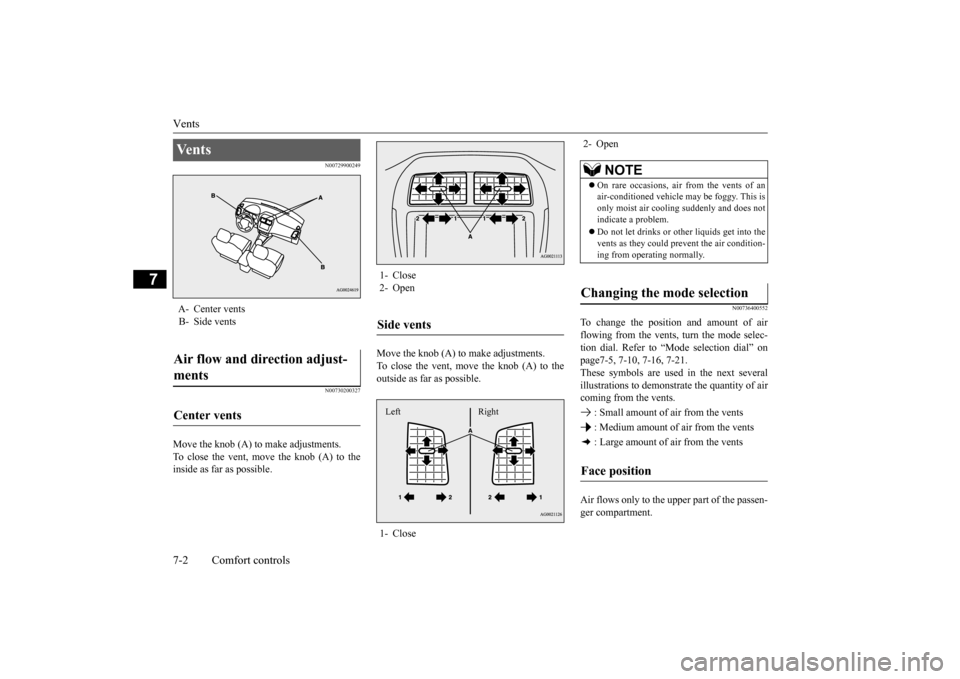

Ve n t s A- Center vents B- Side ventsAir flow and direction adjust- ments Center vents
1- Close 2- OpenSide vents 1- CloseLeft Right
2- Open
NOTE
 On rare occasions, air from the vents of an air-conditioned vehicle may be foggy. This is only moist air cooling suddenly and does not indicate a problem.  Do not let drinks or ot
her liquids get into the
vents as they could prevent the air condition-ing from operating normally.
Changing the mode selection Face position
BK0206700US.bo
ok 2 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Vents
Comfort controls 7-3
7

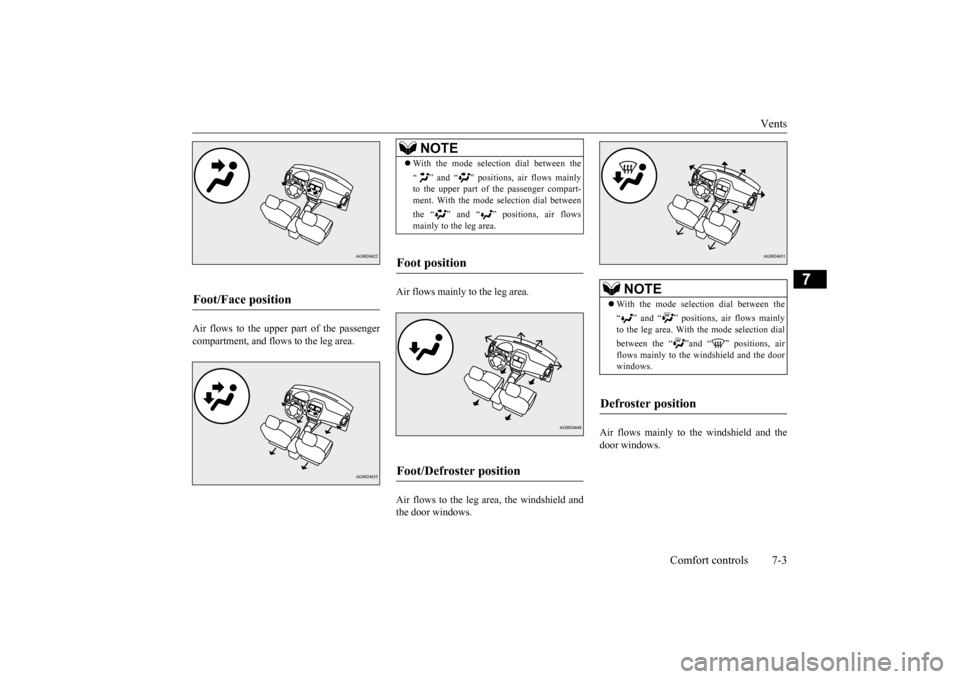

Air flows to the upper part of the passenger compartment, and flows to the leg area.
Air flows mainly to the leg area. Air flows to the leg area, the windshield and the door windows.
Air flows mainly to the windshield and the door windows.
Foot/Face position
NOTE
 With the mode selection dial between the “ ” and “ ” positions, air flows mainly to the upper part of the passenger compart- ment. With the mode selection dial between the “ ” and “ ” positions, air flows mainly to the leg area.
Foot position Foot/Defroster position
NOTE
 With the mode selection dial between the “ ” and “ ” positions, air flows mainly to the leg area. With the mode selection dial between the “ ”and “ ” positions, air flows mainly to the windshield and the door windows.
Defroster position
BK0206700US.bo
ok 3 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Manual air conditioning-T
ype 1 (if so equipped)
7-4 Comfort controls
7
N00730300331 N00730500258
N00736500175
When the ignition switch or the operation mode is in ON, select the blower speed byturning the blower speed selection dial. Turning the dial clockwise will increase the blower speed; turning the dial counterclock-wise will decrease it. When the dial is set to the “OFF” position, all fan-driven airflow will stop.
N00736600222
Turn the temperature control dial clockwiseto make the air warmer. Turn it counterclock-wise to make the air cooler.
Manual air conditioning- Ty p e 1
(if so equipped)
Control panel

A- Temperature control dial B- Air selection switch
C- Blower speed selection dial D- Air conditioning switchE- Mode selection dial F-
Electric rear window defogger switch
 P.5-134
Blower speed selection dial

Temperature control dial

NOTE
While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until the engine warms up, even if you have selected warm air with thedial.  For instructions on how to use the “MAX A/C” position (A), refer to “For quick cool- ing” on page7-7.
BK0206700US.bo
ok 4 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Manual air conditioning-Type 1 (if so equipped)
Comfort controls 7-5
7
N00736700151
To change the amount of air flowing from the vents, turn the mode selection dial. Refer to“Changing the mode selection” on page 7-2.
N00736800383

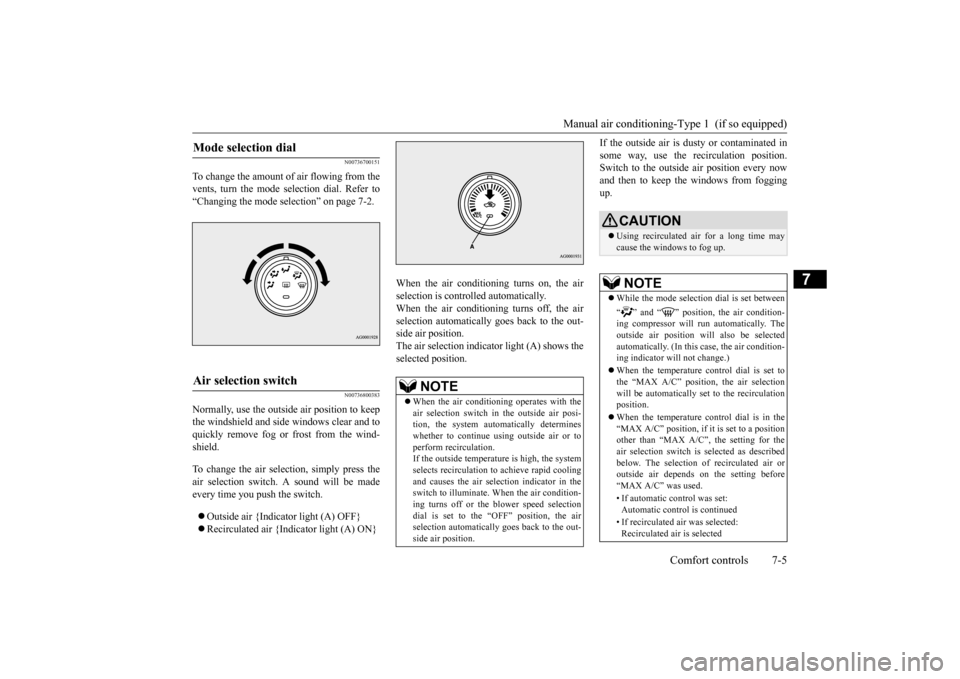

Normally, use the outside air position to keepthe windshield and side windows clear and toquickly remove fog or frost from the wind- shield. To change the air selection, simply press the air selection switch. A sound will be madeevery time you push the switch.  Outside air {Indicator light (A) OFF}  Recirculated air {Indicator light (A) ON}
When the air conditioning turns on, the air selection is controlled automatically. When the air conditioning turns off, the airselection automatically goes back to the out- side air position. The air selection indicator light (A) shows theselected position.
If the outside air is dusty or contaminated in some way, use the recirculation position. Switch to the outside air position every now and then to keep th
e windows from fogging
up.
Mode selection dial

Air selection switch

NOTE
 When the air conditioning operates with the air selection switch in
the outside air posi-
tion, the system automatically determineswhether to continue using outside air or to perform recirculation. If the outside temperature is high, the systemselects recirculation to achieve rapid cooling and causes the air selection indicator in the switch to illuminate. When the air condition-ing turns off or the blower speed selection dial is set to the “OFF” position, the air selection automatically goes back to the out-side air position.
CAUTION Using recirculated air for a long time may cause the windows to fog up.NOTE
 While the mode selection dial is set between “ ” and “ ” position, the air condition- ing compressor will run automatically. The outside air position will also be selected automatically. (In this case, the air condition-ing indicator will not change.)  When the temperature control dial is set to the “MAX A/C” position, the air selection will be automatically set to the recirculation position.  When the temperature control dial is in the “MAX A/C” position, if it is set to a positionother than “MAX A/C”, the setting for the air selection switch is selected as described below. The selection of recirculated air oroutside air depends on the setting before “MAX A/C” was used. • If automatic control was set: Automatic control is continued • If recirculated air was selected: Recirculated air is selected
BK0206700US.bo
ok 5 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Manual air conditioning-T
ype 1 (if so equipped)
7-6 Comfort controls
7
N00702101067

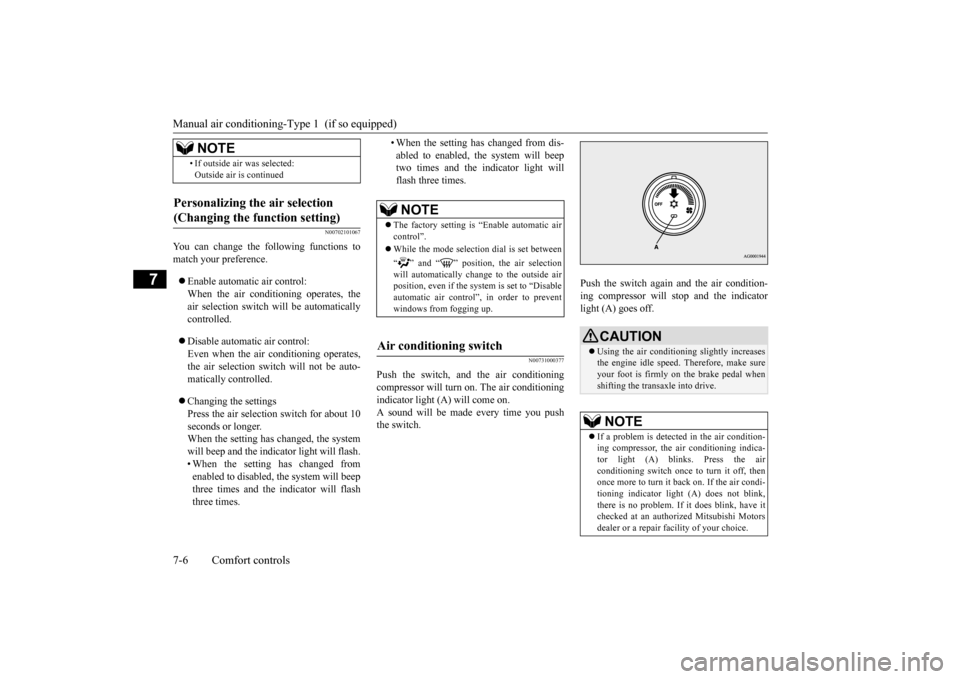

You can change the following functions to match your preference.  Enable automatic air control: When the air conditioning operates, theair selection switch will be automatically controlled.  Disable automatic air control: Even when the air conditioning operates,the air selection switch will not be auto- matically controlled.  Changing the settings Press the air selection switch for about 10seconds or longer. When the setting has changed, the system will beep and the indicator light will flash.• When the setting has changed from enabled to disabled, the system will beep three times and the indicator will flashthree times.
• When the setting has changed from dis- abled to enabled, the system will beep two times and the indicator light will flash three times.
N00731000377
Push the switch, and the air conditioning compressor will turn
on. The air conditioning
indicator light (A) will come on.A sound will be made every time you push the switch.
Push the switch again and the air condition- ing compressor will stop and the indicator light (A) goes off.
• If outside air was selected: Outside air is continued
Personalizing the air selection (Changing the function setting)

NOTE
NOTE
 The factory setting is “Enable automatic air control”.  While the mode selection dial is set between “ ” and “ ” position, the air selection will automatically change to the outside air position, even if the sy
stem is set to “Disable
automatic air control”, in order to prevent windows from fogging up.
Air conditioning switch

CAUTION Using the air conditioning slightly increases the engine idle speed. Therefore, make sureyour foot is firmly on the brake pedal when shifting the transaxle into drive.NOTE
 If a problem is detected in the air condition- ing compressor, the air conditioning indica- tor light (A) blinks. Press the air conditioning switch once to turn it off, thenonce more to turn it b
ack on. If the air condi-
tioning indicator light (A) does not blink, there is no problem. If it does blink, have itchecked at an authorized Mitsubishi Motors dealer or a repair facility of your choice.
BK0206700US.bo
ok 6 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Manual air conditioning-Type 1 (if so equipped)
Comfort controls 7-7
7
N00731101287
Set the mode selection dial to the “ ” posi- tion and set the air sel
ection switch (A) to the
outside air position. Turn the temperature control dial clockwise or counterclockwise to the desired tempera-ture. Select the best speed to fit your needs.
N00731201350

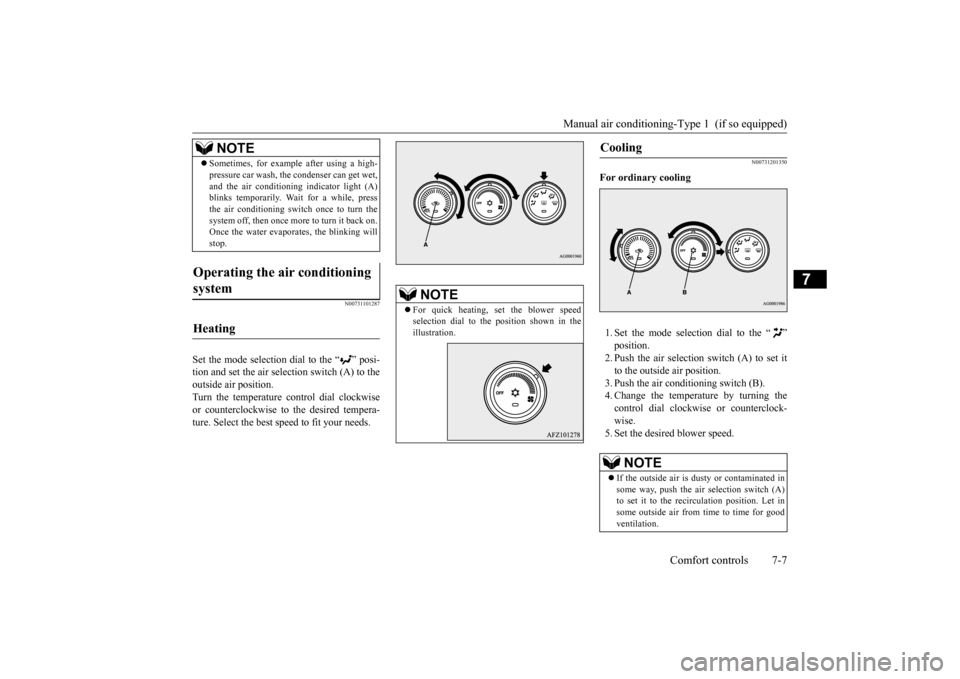

For ordinary cooling 1. Set the mode selection dial to the “ ” position.2. Push the air selection switch (A) to set itto the outside air position. 3. Push the air conditioning switch (B). 4. Change the temperature by turning thecontrol dial clockwise or counterclock- wise. 5. Set the desired blower speed.
 Sometimes, for example after using a high- pressure car wash, the condenser can get wet, and the air conditioning indicator light (A) blinks temporarily. Wait for a while, press the air conditioning switch once to turn thesystem off, then once more to turn it back on. Once the water evaporates, the blinking will stop.
Operating the air conditioning system

Heating

NOTE
NOTE
 For quick heating, set the blower speed selection dial to the position shown in the illustration.
Cooling

NOTE
 If the outside air is dusty or contaminated in some way, push the air selection switch (A) to set it to the recirculation position. Let insome outside air from time to time for good ventilation.
BK0206700US.bo
ok 7 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Manual air conditioning-T
ype 1 (if so equipped)
7-8 Comfort controls
7

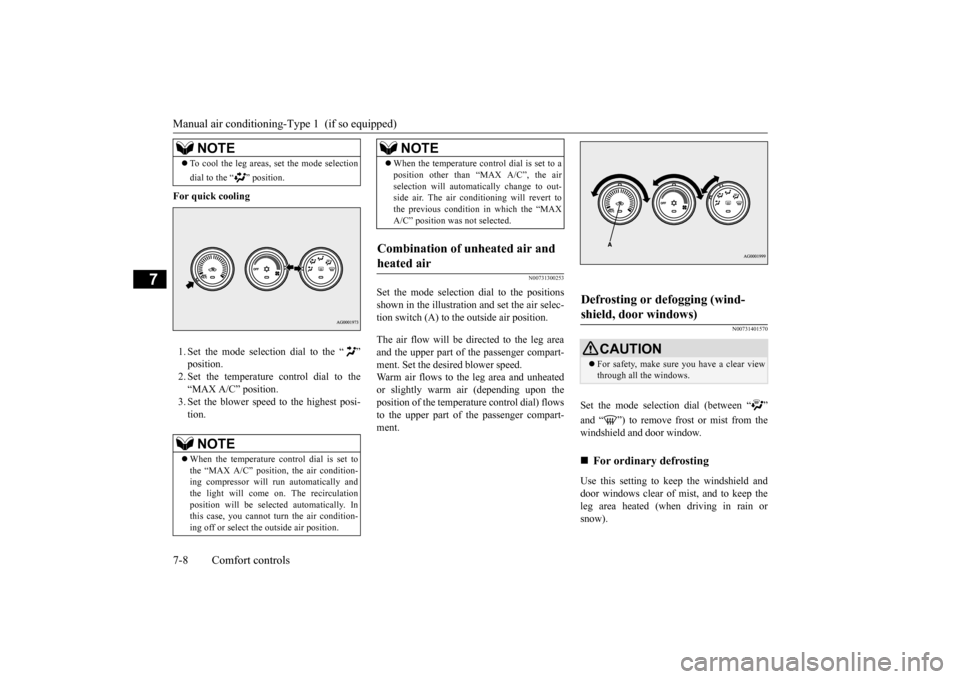

For quick cooling 1. Set the mode selection dial to the “ ” position. 2. Set the temperature control dial to the“MAX A/C” position. 3. Set the blower speed to the highest posi- tion.
N00731300253
Set the mode selection dial to the positionsshown in the illustration and set the air selec- tion switch (A) to the outside air position. The air flow will be di
rected to the leg area
and the upper part of the passenger compart-ment. Set the desired blower speed. Warm air flows to the leg area and unheated or slightly warm air (depending upon theposition of the temperat
ure control dial) flows
to the upper part of the passenger compart- ment.
N00731401570
Set the mode selection dial (between “ ” and “ ”) to remove frost or mist from the windshield and door window. Use this setting to keep the windshield and door windows clear of mist, and to keep the leg area heated (when driving in rain or snow).
 To cool the leg areas, set the mode selection dial to the “ ” position.NOTE
 When the temperature control dial is set to the “MAX A/C” position, the air condition-ing compressor will run automatically and the light will come on. The recirculation position will be selected automatically. Inthis case, you cannot turn the air condition- ing off or select th
e outside air position.
NOTE
When the temperature control dial is set to a position other than “MAX A/C”, the air selection will automatically change to out- side air. The air conditioning will revert to the previous condition in which the “MAXA/C” position was not selected.
Combination of unheated air and heated air

NOTE
Defrosting or defogging (wind-shield, door windows)

CAUTION For safety, make sure you have a clear view through all the windows.

For ordinary defrosting
BK0206700US.bo
ok 8 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Manual air conditioning-Type 2 (if so equipped)
Comfort controls 7-9
7

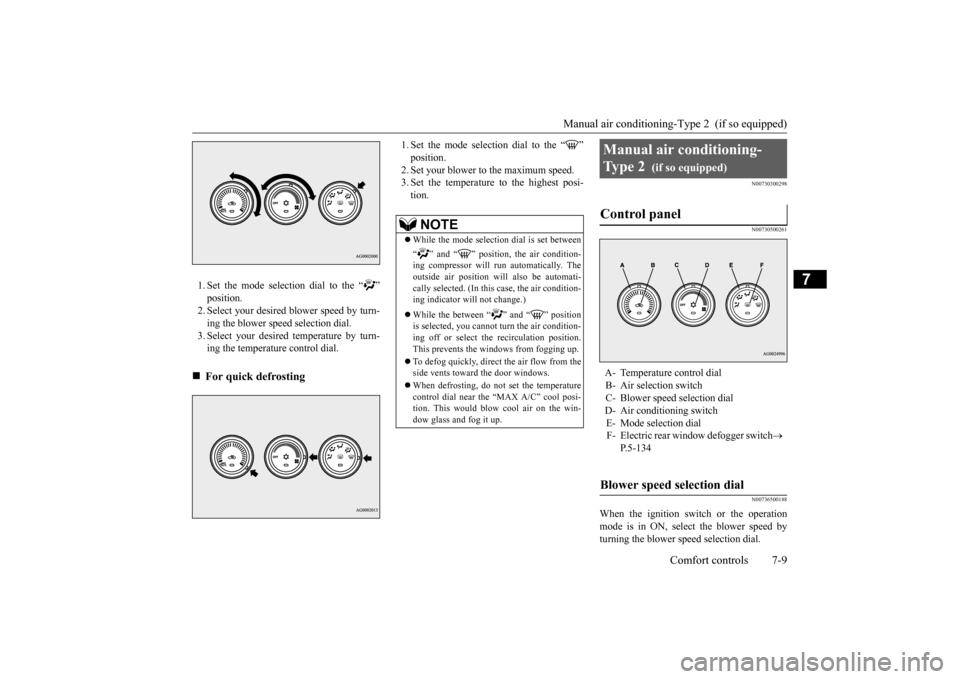

1. Set the mode selection dial to the “ ” position. 2. Select your desired blower speed by turn- ing the blower speed selection dial.3. Select your desired temperature by turn- ing the temperature control dial.
1. Set the mode selection dial to the “ ” position.2. Set your blower to the maximum speed. 3. Set the temperature to the highest posi- tion.
N00730300298 N00730500261 N00736500188
When the ignition switch or the operation mode is in ON, select the blower speed byturning the blower speed selection dial.

For quick defrosting
NOTE
While the mode selection dial is set between “ ” and “ ” position, the air condition- ing compressor will run automatically. The outside air position will also be automati-cally selected. (In this case, the air condition- ing indicator will not change.)  While the between “ ” and “ ” position is selected, you cannot turn the air condition- ing off or select the recirculation position. This prevents the windows from fogging up.  To defog quickly, direct
the air flow from the
side vents toward the door windows.  When defrosting, do not set the temperature control dial near the “MAX A/C” cool posi-tion. This would blow cool air on the win- dow glass and fog it up.
Manual air conditioning- Ty p e 2
(if so equipped)
Control panel

A- Temperature control dial B- Air selection switch C- Blower speed selection dialD- Air conditioning switch E- Mode selection dial F- Electric rear window defogger switch

P.5-134
Blower speed selection dial
