2015 MITSUBISHI OUTLANDER SPORT Owners Manual

5

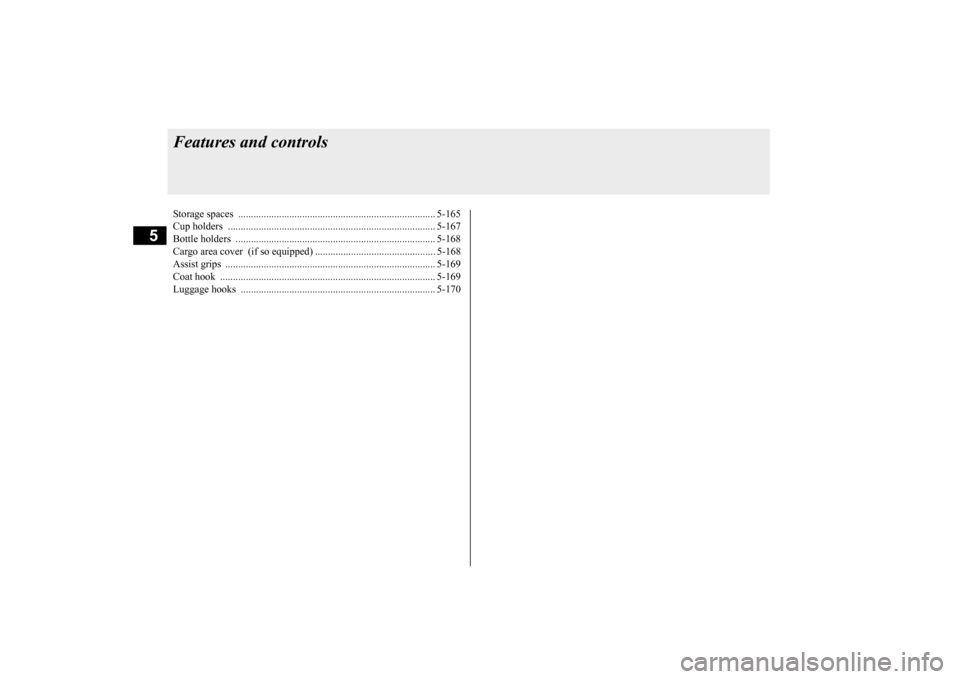

Features and controlsStorage spaces ..............
............................................................... 5-165
Cup holders ............................
..................................................... 5-167
Bottle holders ...............
............................................................... 5-168
Cargo area cover (if so equipped) ............................................... 5-168Assist grips ...................
............................................................... 5-169
Coat hook ...............................
..................................................... 5-169
Luggage hooks .............
............................................................... 5-170
BK0206700US.bo
ok 2 ページ ２０１４年３月２５日　火曜日　午後４時４２分

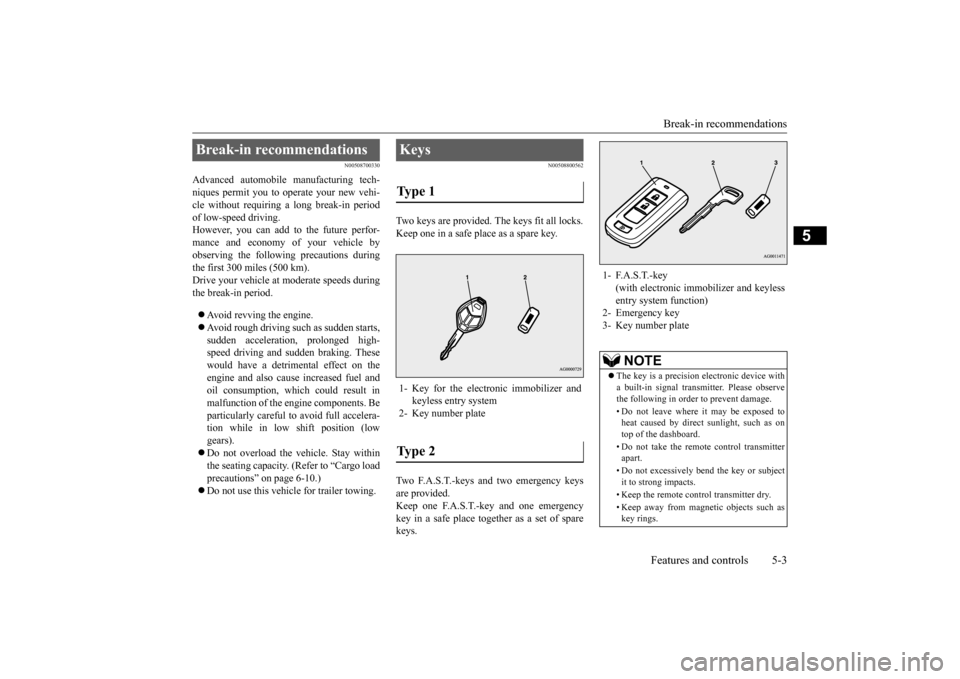

Break-in recommendations
Features and controls 5-3
5
N00508700330
Advanced automobile manufacturing tech- niques permit you to operate your new vehi-cle without requiring a long break-in period of low-speed driving. However, you can add to the future perfor-mance and economy of your vehicle by observing the following precautions during the first 300 miles (500 km).Drive your vehicle at moderate speeds duringthe break-in period.  Avoid revving the engine.  Avoid rough driving such as sudden starts, sudden acceleration, prolonged high-speed driving and sudden braking. These would have a detrimental effect on the engine and also cause increased fuel andoil consumption, which could result in malfunction of the engine components. Be particularly careful to avoid full accelera-tion while in low shift position (low gears).  Do not overload the vehicle. Stay within the seating capacity. (Refer to “Cargo load precautions” on page 6-10.)  Do not use this vehicle for trailer towing.
N00508800562
Two keys are provided. The keys fit all locks. Keep one in a safe place as a spare key. Two F.A.S.T.-keys and two emergency keys are provided. Keep one F.A.S.T.-key and one emergencykey in a safe place together as a set of spare keys.
Break-in recommendations
Keys Type 1 1- Key for the electronic immobilizer and
keyless entry system
2- Key number plateType 2
1- F.A.S.T.-key
(with electronic immob
ilizer and keyless
entry system function)
2- Emergency key 3- Key number plate
NOTE
 The key is a precision electronic device with a built-in signal transmitter. Please observe the following in order to prevent damage. • Do not leave where it may be exposed to heat caused by direct sunlight, such as ontop of the dashboard. • Do not take the remote control transmitter apart. • Do not excessively bend the key or subject it to strong impacts. • Keep the remote control transmitter dry.• Keep away from magnetic objects such as key rings.
BK0206700US.bo
ok 3 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Electronic immobilizer (Anti-theft starting system) 5-4 Features and controls
5
N00509101859
[For vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.- key)] For information on operations for vehiclesequipped with the Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key), refer to “Free-hand Advanced Security Transmitter(F.A.S.T.-key): Electronic immobilizer (Anti- theft starting system)” on page 5-23. [Except for vehicles equipped with the Free- hand Advanced Security Transmitter(F.A.S.T.-key)] The electronic immobilizer is designed to sig- nificantly reduce the possibility of vehicletheft. The purpose of the system is to immo- bilize the vehicle if an invalid start is
attempted. A valid start attempt can only be achieved (subject to certain conditions) using a key “registered” to the immobilizer system. All of the keys provided with your new vehi-cle have been programmed to the vehicle’s electronics.
• Keep away from devices that produce mag- netism, such as audio systems, computers and televisions. • Keep away from devices that emit strong electromagnetic waves, such as cellular phones, wireless devices and high fre- quency equipment (including medicaldevices). • Do not clean with ultrasonic cleaners.• Do not leave the key where it may be exposed to high temperature or high humid-ity.
 If you lose your key, to prevent the theft of the vehicle immediately contact an autho- rized Mitsubishi Motors dealer. If you notify an authorized MitsubishiMotors dealer of the key number, they can make a new key. The key number is stamped on the key number plate. Keep the key num-ber plate in a safe place separate from the key itself.  No keys other than those registered in advance can be used to start the engine. Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-4. Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key): “Electronic immobilizer (Anti-theft starting system)” on page 5-23.NOTE
 When the theft-alarm is in the system opera- tional status, the alarm operates if a door or liftgate is opened after using the key, the door lock knob or the power door lock switch to unlock the vehicle.  The system does not enter the preparation status if the keyless entry system or theF.A.S.T.-key was not used to lock the vehi- cle.
Electronic immobilizer (Anti-theft starting system)
NOTE
NOTE
 In the following cases, the vehicle may not be able to recognize the registered ID code from the key. This means the engine will not start even when the key is turned to the“START” position. • When the key contacts a key ring or other metallic or magnetic object
BK0206700US.bo
ok 4 ページ ２０１４年３月２５日　火曜日　午後４時４２分

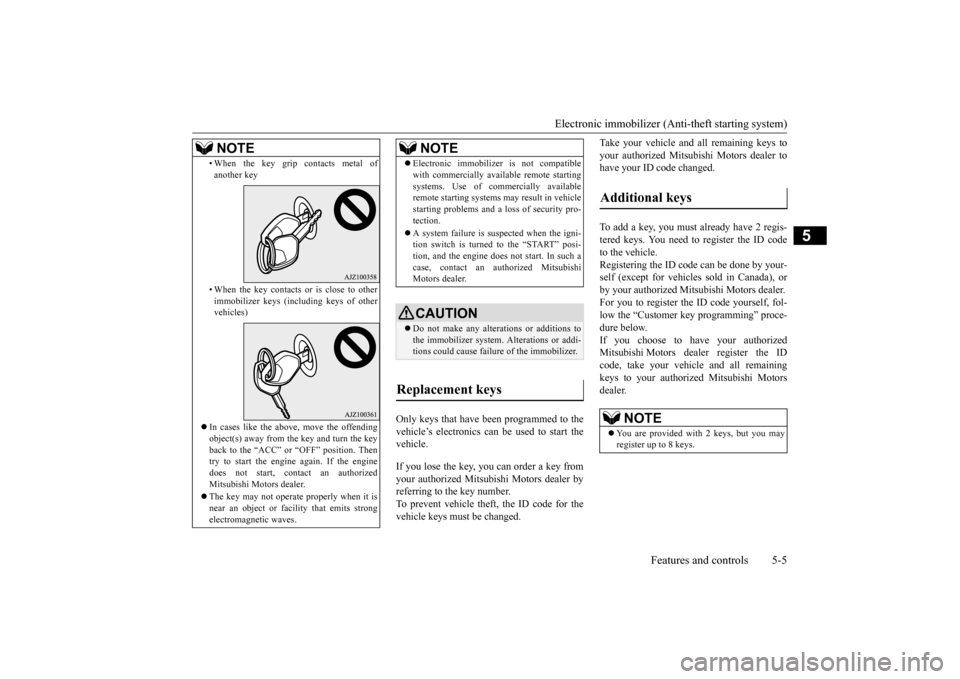

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-5
5
Only keys that have been programmed to the vehicle’s electronics can be used to start the vehicle. If you lose the key, you can order a key from your authorized Mitsubishi Motors dealer byreferring to the key number. To prevent vehicle theft, the ID code for the vehicle keys must be changed.
Take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer to have your ID code changed. To add a key, you must already have 2 regis- tered keys. You need to register the ID code to the vehicle.Registering the ID code can be done by your-self (except for vehicles sold in Canada), or by your authorized Mitsubishi Motors dealer. For you to register the ID code yourself, fol-low the “Customer key programming” proce- dure below. If you choose to have your authorizedMitsubishi Motors dealer register the ID code, take your vehicle and all remaining keys to your authorized Mitsubishi Motorsdealer.
• When the key grip contacts metal of another key • When the key contacts or is close to other immobilizer keys (including keys of othervehicles)
 In cases like the above, move the offending object(s) away from the key and turn the key back to the “ACC” or “OFF” position. Then try to start the engine again. If the enginedoes not start, contact an authorized Mitsubishi Motors dealer.  The key may not operate properly when it is near an object or facility that emits strong electromagnetic waves.NOTE
 Electronic immobilizer is not compatible with commercially available remote starting systems. Use of commercially available remote starting systems may result in vehicle starting problems and a lo
ss of security pro-
tection.  A system failure is suspected when the igni- tion switch is turned to the “START” posi- tion, and the engine does not start. In such a case, contact an authorized MitsubishiMotors dealer.CAUTION Do not make any alterations or additions to the immobilizer system. Alterations or addi- tions could cause failure of the immobilizer.
Replacement keys
NOTE
Additional keys
NOTE
 You are provided with 2 keys, but you may register up to 8 keys.
BK0206700US.bo
ok 5 ページ ２０１４年３月２５日　火曜日　午後４時４２分

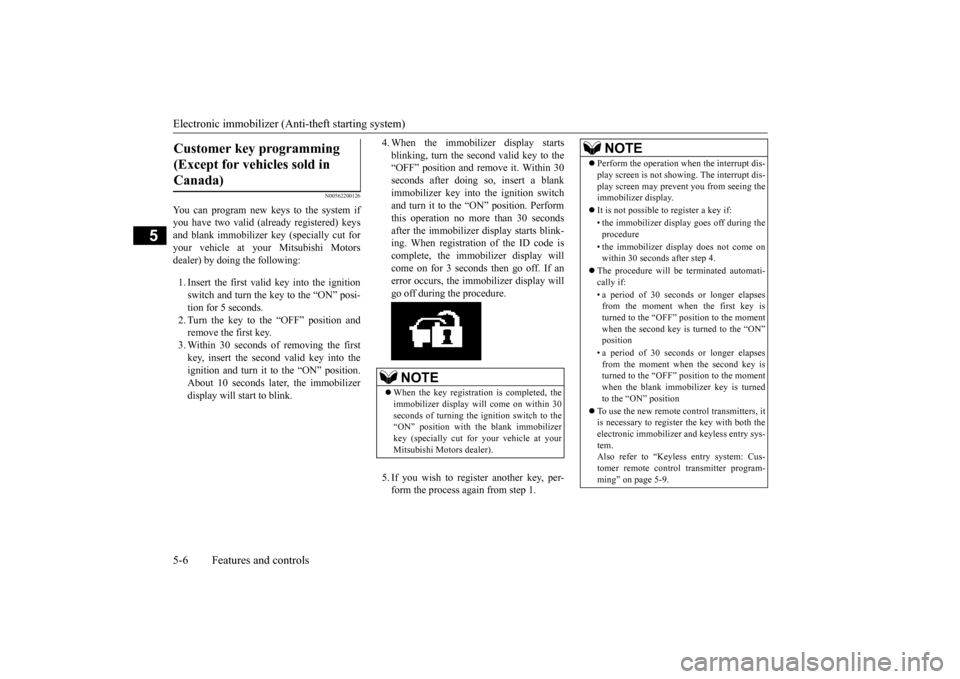

Electronic immobilizer (Anti-theft starting system) 5-6 Features and controls
5
N00562200126
You can program new keys to the system if you have two valid (already registered) keys and blank immobilizer key (specially cut foryour vehicle at your Mitsubishi Motors dealer) by doing the following: 1. Insert the first valid key into the ignition switch and turn the key to the “ON” posi- tion for 5 seconds.2. Turn the key to the “OFF” position and remove the first key. 3. Within 30 seconds of removing the firstkey, insert the second valid key into the ignition and turn it to the “ON” position. About 10 seconds later, the immobilizerdisplay will start to blink.
4. When the immobilizer display starts blinking, turn the second valid key to the “OFF” position and remove it. Within 30 seconds after doing so, insert a blankimmobilizer key into the ignition switch and turn it to the “ON” position. Perform this operation no more than 30 secondsafter the immobilizer display starts blink- ing. When registration of the ID code is complete, the immobilizer display willcome on for 3 seconds then go off. If anerror occurs, the immobilizer display will go off during the procedure. 5. If you wish to register another key, per- form the process again from step 1.
Customer key programming (Except for vehicles sold in Canada)
NOTE
 When the key registration is completed, the immobilizer display will come on within 30seconds of turning the ignition switch to the “ON” position with the blank immobilizer key (specially cut for your vehicle at your Mitsubishi Motors dealer).
NOTE
 Perform the operation when the interrupt dis- play screen is not showing. The interrupt dis- play screen may prevent you from seeing the immobilizer display.  It is not possible to register a key if: • the immobilizer display goes off during the procedure • the immobilizer display does not come on within 30 seconds after step 4.
 The procedure will be terminated automati- cally if: • a period of 30 seconds or longer elapses from the moment when the first key is turned to the “OFF” position to the moment when the second key is turned to the “ON”position • a period of 30 seconds or longer elapses from the moment when the second key is turned to the “OFF” position to the moment when the blank immobilizer key is turnedto the “ON” position
 To use the new remote control transmitters, it is necessary to register the key with both the electronic immobilizer and keyless entry sys- tem.Also refer to “Keyless entry system: Cus- tomer remote control transmitter program- ming” on page 5-9.
BK0206700US.bo
ok 6 ページ ２０１４年３月２５日　火曜日　午後４時４２分

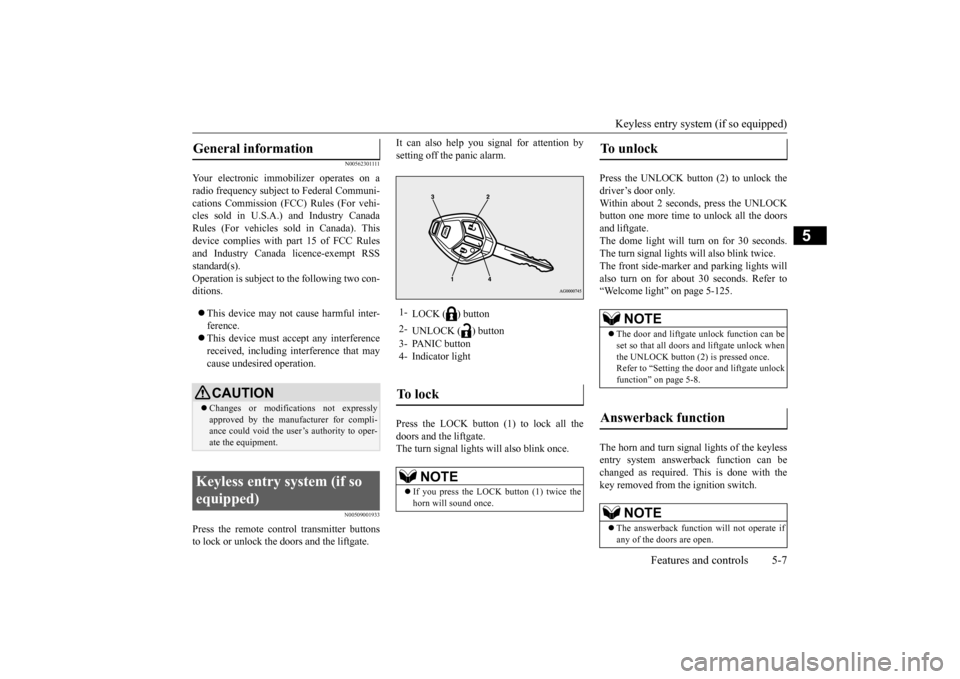

Keyless entry system (if so equipped)
Features and controls 5-7
5
N0056230
1111
Your electronic immobilizer operates on a radio frequency subject to Federal Communi-cations Commission (FCC) Rules (For vehi- cles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). Thisdevice complies with part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s).Operation is subject to the following two con-ditions.  This device may not cause harmful inter- ference.  This device must accept any interference received, including interference that may cause undesired operation.
N00509001933
Press the remote control transmitter buttonsto lock or unlock the doors and the liftgate.
It can also help you signal for attention by setting off the panic alarm. Press the LOCK button (1) to lock all the doors and the liftgate. The turn signal lights will also blink once.
Press the UNLOCK button (2) to unlock the driver’s door only.Within about 2 seconds, press the UNLOCK button one more time to unlock all the doors and liftgate.The dome light will turn on for 30 seconds. The turn signal lights will also blink twice. The front side-marker and parking lights willalso turn on for about 30 seconds. Refer to“Welcome light” on page 5-125. The horn and turn signal lights of the keyless entry system answerback function can bechanged as required. This is done with the key removed from the ignition switch.
General information
CAUTION Changes or modifications not expressly approved by the manufacturer for compli-ance could void the user’s authority to oper- ate the equipment.
Keyless entry system (if so equipped)
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button 4- Indicator lightTo l o c k
NOTE
 If you press the LOCK button (1) twice the horn will sound once.
To u n l o c k
NOTE
 The door and liftgate unlock function can be set so that all doors and liftgate unlock when the UNLOCK button (2) is pressed once. Refer to “Setting the door and liftgate unlockfunction” on page 5-8.
Answerback function
NOTE
 The answerback function will not operate if any of the doors are open.
BK0206700US.bo
ok 7 ページ ２０１４年３月２５日　火曜日　午後４時４２分

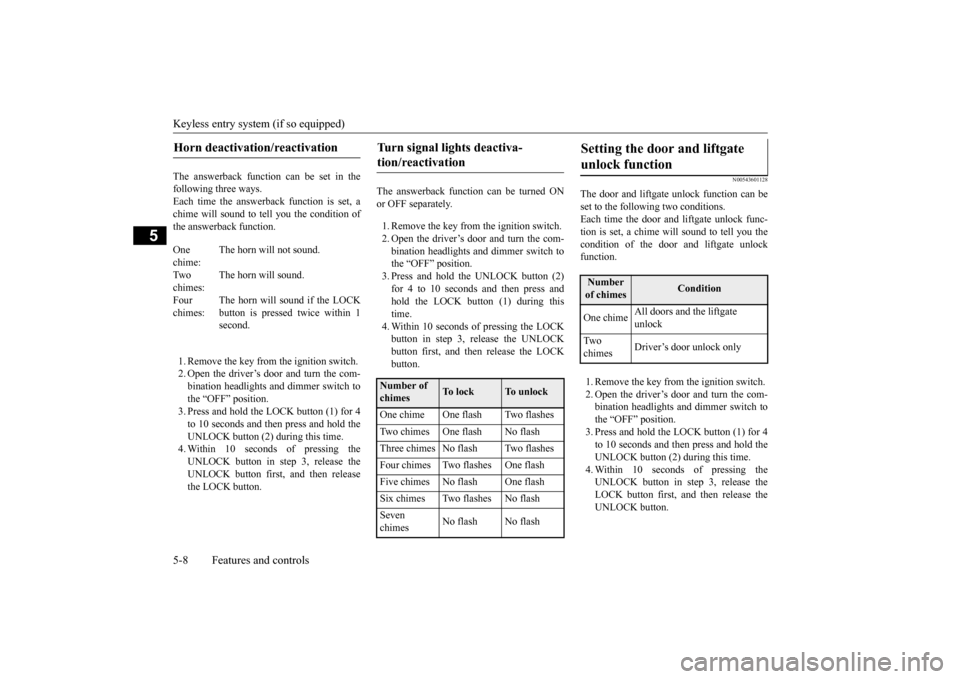

Keyless entry system (if so equipped) 5-8 Features and controls
5
The answerback function can be set in the following three ways.Each time the answerback function is set, a chime will sound to tell
you the condition of
the answerback function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch tothe “OFF” position. 3. Press and hold the LOCK button (1) for 4 to 10 seconds and then press and hold theUNLOCK button (2) during this time. 4. Within 10 seconds of pressing the UNLOCK button in step 3, release theUNLOCK button first, and then release the LOCK button.
The answerback function can be turned ON or OFF separately. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position. 3. Press and hold the UNLOCK button (2)for 4 to 10 seconds and then press andhold the LOCK button (1) during this time. 4. Within 10 seconds of pressing the LOCKbutton in step 3, release the UNLOCK button first, and then release the LOCK button.
N00543601128
The door and liftgate unlock function can beset to the following two conditions. Each time the door and liftgate unlock func- tion is set, a chime will sound to tell you thecondition of the door and liftgate unlock function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press and hold the LOCK button (1) for 4 to 10 seconds and then press and hold the UNLOCK button (2) during this time.4. Within 10 seconds of pressing the UNLOCK button in step 3, release the LOCK button first, and then release theUNLOCK button.
Horn deactivation/reactivation Onechime:
The horn will not sound.
Tw o chimes:
The horn will sound.
Four chimes:
The horn will sound if the LOCK button is pressed twice within 1second.
Turn signal lights deactiva- tion/reactivation Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes Two chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes
No flash No flash
Setting the door and liftgate unlock function Number of chimes
Condition
One chime
All doors and the liftgate unlock
Tw o chimes
Driver’s door unlock only
BK0206700US.bo
ok 8 ページ ２０１４年３月２５日　火曜日　午後４時４２分

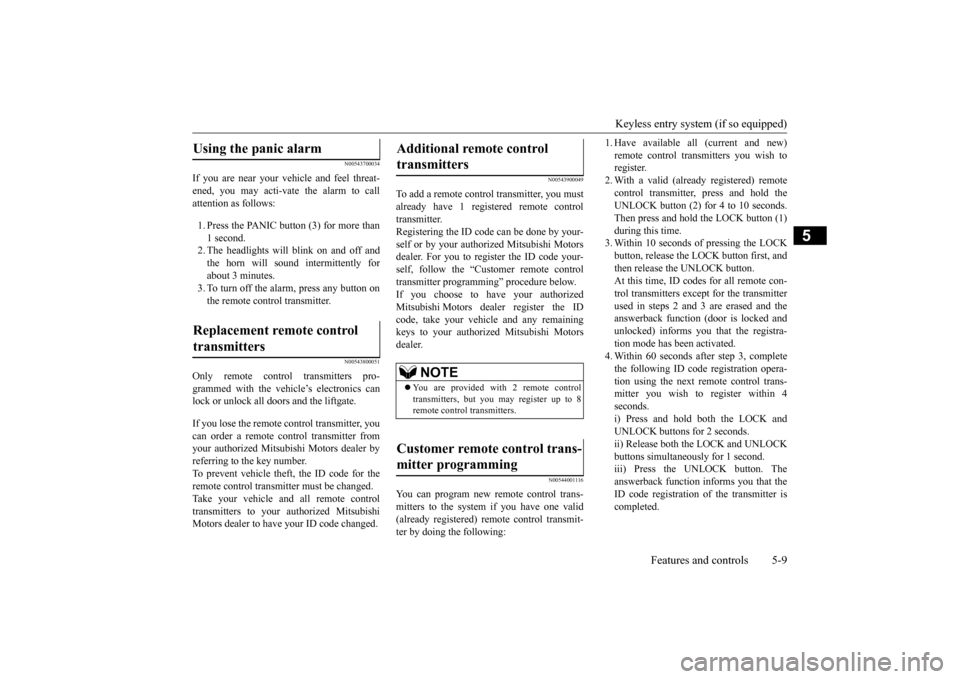

Keyless entry system (if so equipped)
Features and controls 5-9
5
N00543700034
If you are near your vehicle and feel threat- ened, you may acti-vate the alarm to callattention as follows: 1. Press the PANIC button (3) for more than 1 second. 2. The headlights will blink on and off andthe horn will sound intermittently forabout 3 minutes. 3. To turn off the alarm, press any button on the remote control transmitter.
N00543800051
Only remote control transmitters pro-grammed with the vehicle’s electronics can lock or unlock all doors and the liftgate. If you lose the remote control transmitter, you can order a remote control transmitter fromyour authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, the ID code for theremote control transmitter must be changed. Take your vehicle and all remote control transmitters to your authorized MitsubishiMotors dealer to have your ID code changed.
N00543900049
To add a remote control transmitter, you mustalready have 1 registered remote control transmitter. Registering the ID code can be done by your-self or by your authorized Mitsubishi Motors dealer. For you to register the ID code your- self, follow the “Customer remote controltransmitter programming” procedure below.If you choose to have your authorized Mitsubishi Motors dealer register the ID code, take your vehicle and any remainingkeys to your authorized Mitsubishi Motors dealer.
N00544001116
You can program new remote control trans- mitters to the system if you have one valid (already registered) remote control transmit- ter by doing the following:
1. Have available all (current and new) remote control transmitters you wish to register. 2. With a valid (already registered) remotecontrol transmitter, press and hold the UNLOCK button (2) for 4 to 10 seconds. Then press and hold the LOCK button (1)during this time. 3. Within 10 seconds of pressing the LOCK button, release the LOCK
button first, and
then release the UNLOCK button.At this time, ID codes for all remote con- trol transmitters except for the transmitter used in steps 2 and 3 are erased and theanswerback function (door is locked and unlocked) informs you
that the registra-
tion mode has been activated.4. Within 60 seconds after step 3, complete the following ID code registration opera- tion using the next remote control trans-mitter you wish to register within 4 seconds. i) Press and hold both the LOCK andUNLOCK buttons for 2 seconds. ii) Release both the LOCK and UNLOCK buttons simultaneously for 1 second.iii) Press the UNLOCK button. The answerback function informs you that the ID code registration of the transmitter iscompleted.
Using the panic alarm Replacement remote control transmitters
Additional remote control transmitters
NOTE
 You are provided with 2 remote control transmitters, but you may register up to 8remote control transmitters.
Customer remote control trans- mitter programming
BK0206700US.bo
ok 9 ページ ２０１４年３月２５日　火曜日　午後４時４２分
