2014 Peugeot 508 Owner's Manual - RHD (UK, Australia)

4
127
Driving

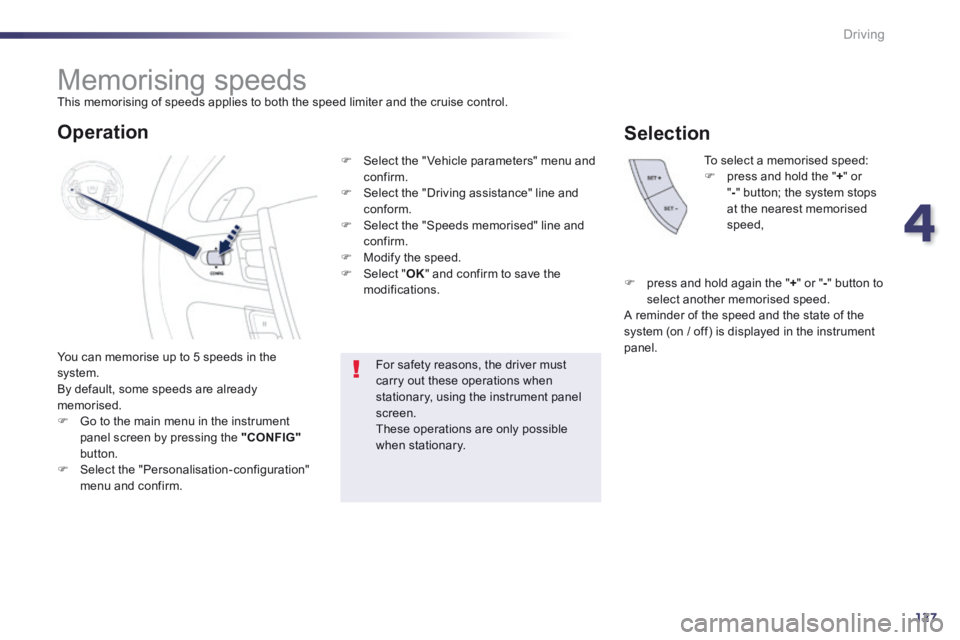

Memorising speeds This memorising of speeds applies to both the speed limiter and the cruise control.
You can memorise up to 5 speeds in the system. By default, some speeds are already memorised.  Go to the main menu in the instrument panel screen by pressing the "CONFIG"button.  Select the "Personalisation-configuration" menu and confirm.
To select a memorised speed:  press and hold the " + " or " - " button; the system stops at the nearest memorised speed,
For safety reasons, the driver must carry out these operations when stationary, using the instrument panel screen. These operations are only possible when stationary.
Operation
 Select the " Vehicle parameters" menu and confirm.  Select the "Driving assistance" line and conform.  Select the "Speeds memorised" line and confirm.  Modify the speed.  Select " OK " and confirm to save the modifications.
Selection
 press and hold again the " + " or " - " button to select another memorised speed. A reminder of the speed and the state of the system (on / off) is displayed in the instrument panel.

128
Driving

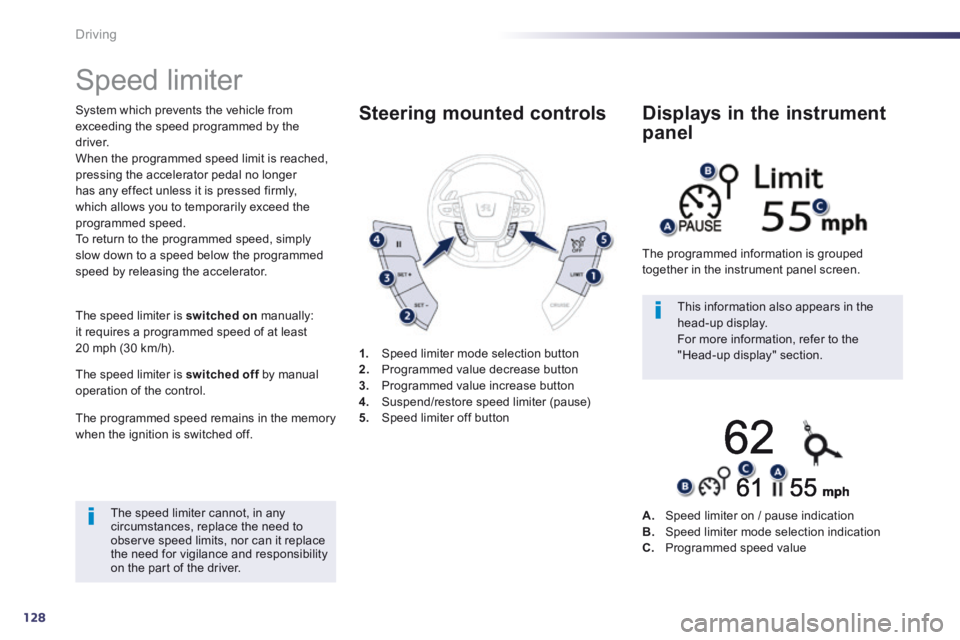

Speed limiter
System which prevents the vehicle from exceeding the speed programmed by the driver. When the programmed speed limit is reached, pressing the accelerator pedal no longer has any effect unless it is pressed firmly, which allows you to temporarily exceed the programmed speed. To return to the programmed speed, simply slow down to a speed below the programmed speed by releasing the accelerator.
The speed limiter is switched on manually: it requires a programmed speed of at least 20 mph (30 km/h).
The speed limiter is switched off by manual switched off by manual switched offoperation of the control.
The programmed speed remains in the memory
when the ignition is switched off.
The speed limiter cannot, in any circumstances, replace the need to observe speed limits, nor can it replace the need for vigilance and responsibility on the part of the driver.
This information also appears in the head-up display. For more information, refer to the "Head-up display" section. 1. Speed limiter mode selection button 2. Programmed value decrease button 3. Programmed value increase button 4. Suspend/restore speed limiter (pause) 5. Speed limiter off button
Steering mounted controls
The programmed information is grouped together in the instrument panel screen.
Displays in the instrument
panel
A. Speed limiter on / pause indication B. Speed limiter mode selection indication C. Programmed speed value

4
129
Driving

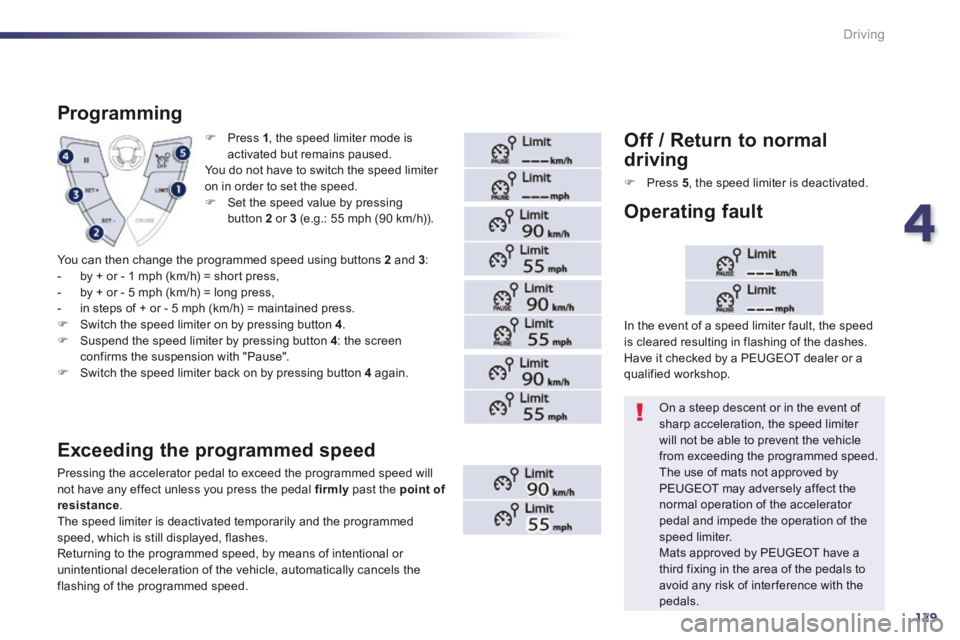

 Press 1 , the speed limiter mode is activated but remains paused. You do not have to switch the speed limiter on in order to set the speed.  Set the speed value by pressing button 2 or 3 (e.g.: 55 mph (90 km/h)).
Programming
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have any effect unless you press the pedal firmly past the point of resistance . The speed limiter is deactivated temporarily and the programmed speed, which is still displayed, flashes. Returning to the programmed speed, by means of intentional or unintentional deceleration of the vehicle, automatically cancels the
flashing of the programmed speed.
Off / Return to normal
driving
 Press 5 , the speed limiter is deactivated.
On a steep descent or in the event of sharp acceleration, the speed limiter will not be able to prevent the vehicle from exceeding the programmed speed. The use of mats not approved by PEUGEOT may adversely affect the normal operation of the accelerator pedal and impede the operation of the speed limiter. Mats approved by PEUGEOT have a third fixing in the area of the pedals to avoid any risk of inter ference with the pedals.
In the event of a speed limiter fault, the speed is cleared resulting in flashing of the dashes. Have it checked by a PEUGEOT dealer or a qualified workshop.
Operating fault
You can then change the programmed speed using buttons 2 and 3 : - by + or - 1 mph (km/h) = short press, - by + or - 5 mph (km/h) = long press, - in steps of + or - 5 mph (km/h) = maintained press.  Switch the speed limiter on by pressing button 4 .  Suspend the speed limiter by pressing button 4 : the screen confirms the suspension with "Pause".  Switch the speed limiter back on by pressing button 4 again.

130
Driving

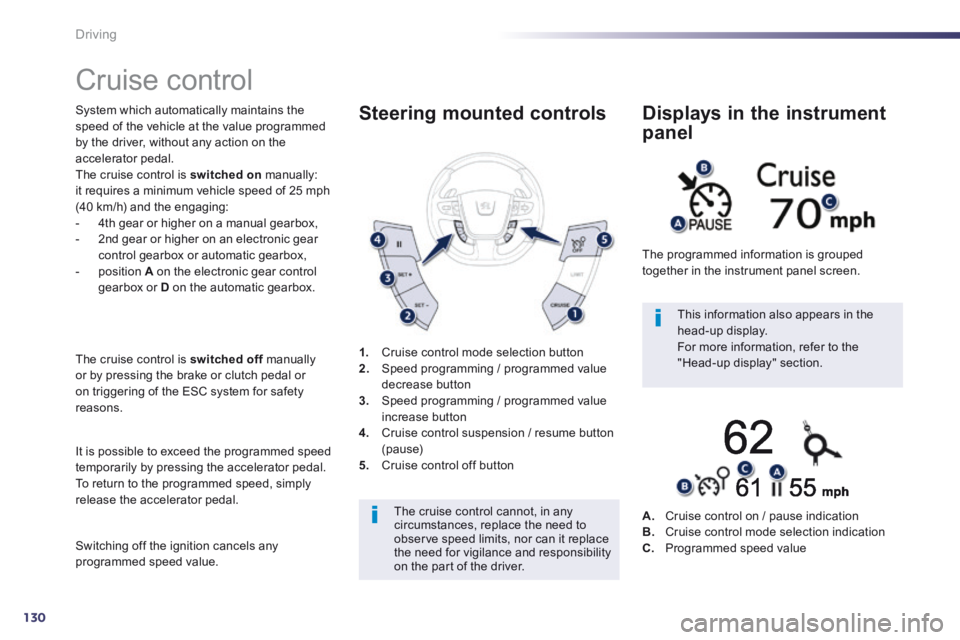

Cruise control
System which automatically maintains the speed of the vehicle at the value programmed by the driver, without any action on the accelerator pedal. The cruise control is switched on manually: it requires a minimum vehicle speed of 25 mph (40 km/h) and the engaging: - 4th gear or higher on a manual gearbox, - 2nd gear or higher on an electronic gear control gearbox or automatic gearbox, - position A on the electronic gear control gearbox or D on the automatic gearbox.
The cruise control is switched off manually switched off manually switched offor by pressing the brake or clutch pedal or on triggering of the ESC system for safety reasons.
It is possible to exceed the programmed speed temporarily by pressing the accelerator pedal. To return to the programmed speed, simply release the accelerator pedal.
Switching off the ignition cancels any programmed speed value.
1. Cruise control mode selection button 2. Speed programming / programmed value decrease button 3. Speed programming / programmed value increase button 4. Cruise control suspension / resume button (pause) 5. Cruise control off button
Steering mounted controls
The cruise control cannot, in any circumstances, replace the need to observe speed limits, nor can it replace the need for vigilance and responsibility on the part of the driver.
This information also appears in the head-up display. For more information, refer to the "Head-up display" section.
The programmed information is grouped together in the instrument panel screen.
Displays in the instrument
panel
A. Cruise control on / pause indication B. Cruise control mode selection indication C. Programmed speed value

4
131
Driving

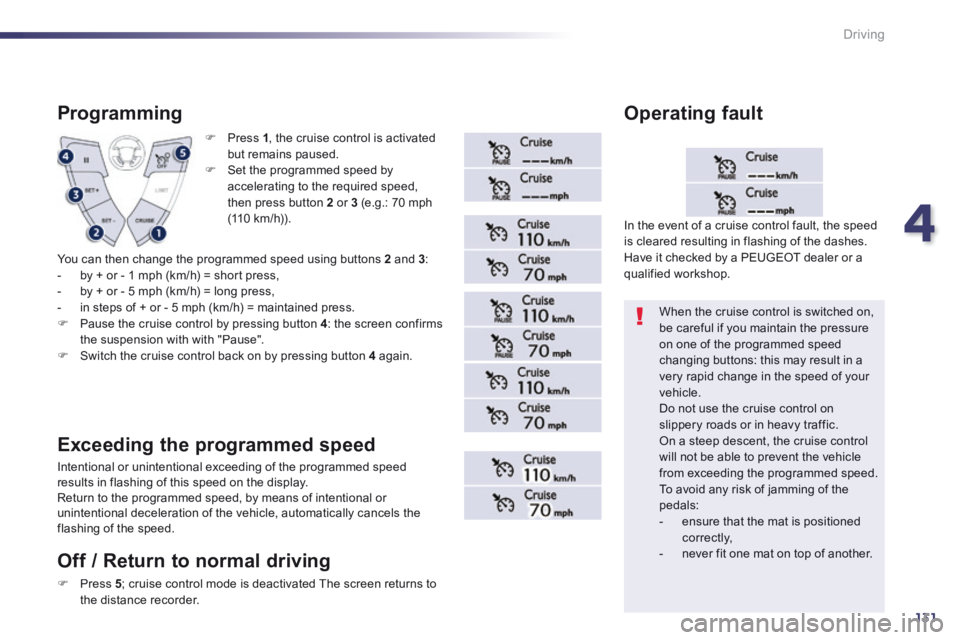

 Press 1 , the cruise control is activated but remains paused.  Set the programmed speed by accelerating to the required speed, then press button 2 or 3 (e.g.: 70 mph (110 km/h)).
Programming
You can then change the programmed speed using buttons 2 and 3 : - by + or - 1 mph (km/h) = short press, - by + or - 5 mph (km/h) = long press, - in steps of + or - 5 mph (km/h) = maintained press.  Pause the cruise control by pressing button 4 : the screen confirms the suspension with with "Pause".  Switch the cruise control back on by pressing button 4 again.
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results in flashing of this speed on the display. Return to the programmed speed, by means of intentional or unintentional deceleration of the vehicle, automatically cancels the flashing of the speed.
When the cruise control is switched on, be careful if you maintain the pressure on one of the programmed speed changing buttons: this may result in a very rapid change in the speed of your vehicle. Do not use the cruise control on slippery roads or in heavy traffic. On a steep descent, the cruise control will not be able to prevent the vehicle from exceeding the programmed speed. To avoid any risk of jamming of the pedals: - ensure that the mat is positioned c o r r e c t l y, - never fit one mat on top of another.
In the event of a cruise control fault, the speed is cleared resulting in flashing of the dashes. Have it checked by a PEUGEOT dealer or a qualified workshop.
Operating fault
Off / Return to normal driving
 Press 5 ; cruise control mode is deactivated The screen returns to
the distance recorder.

132
Driving

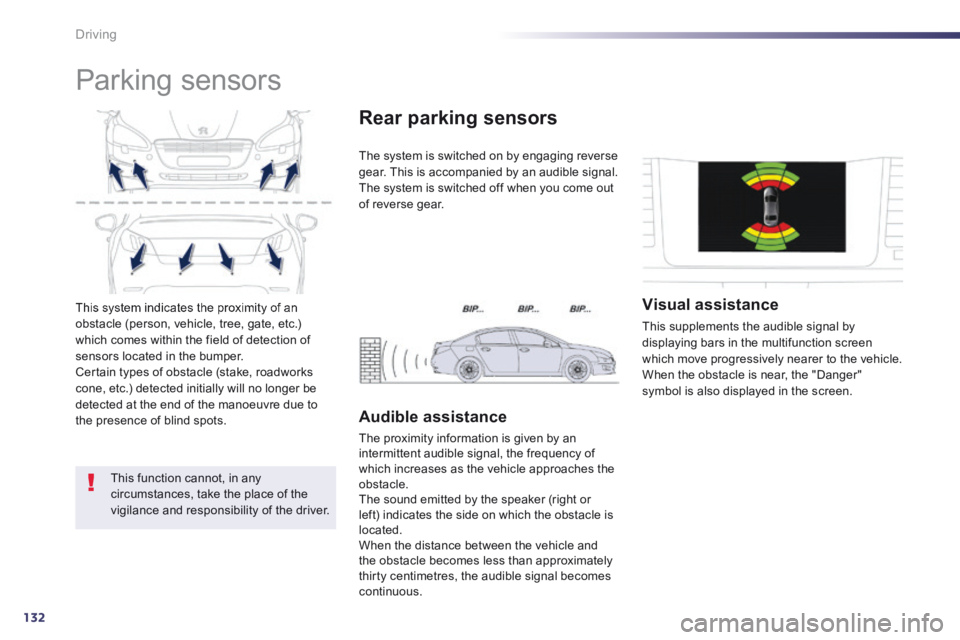

This system indicates the proximity of an obstacle (person, vehicle, tree, gate, etc.) which comes within the field of detection of sensors located in the bumper. Certain types of obstacle (stake, roadworks cone, etc.) detected initially will no longer be detected at the end of the manoeuvre due to the presence of blind spots.

Parking sensors
This function cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.
The system is switched on by engaging reverse gear. This is accompanied by an audible signal. The system is switched off when you come out of reverse gear.
Rear parking sensors
Audible assistance
The proximity information is given by an intermittent audible signal, the frequency of which increases as the vehicle approaches the obstacle. The sound emitted by the speaker (right or left) indicates the side on which the obstacle is located. When the distance between the vehicle and the obstacle becomes less than approximately thirty centimetres, the audible signal becomes continuous.
Visual assistance
This supplements the audible signal by displaying bars in the multifunction screen which move progressively nearer to the vehicle. When the obstacle is near, the "Danger" symbol is also displayed in the screen.

4
133
Driving
In bad weather or in winter, ensure that the sensors are not covered with mud, ice or snow. When reverse gear is engaged, an audible signal (long beep) indicates that the sensors may be dirty. Certain sound sources (motorcycle, lorry, pneumatic drill, etc.) may trigger the audible signals of the parking sensor system.
In the event of a malfunction of the system, when reverse gear is engaged this warning lamp is displayed in the instrument panel and/or a message appears in the screen, accompanied by an audible signal (short beep). Contact a PEUGEOT dealer or a qualified workshop.
Operating fault

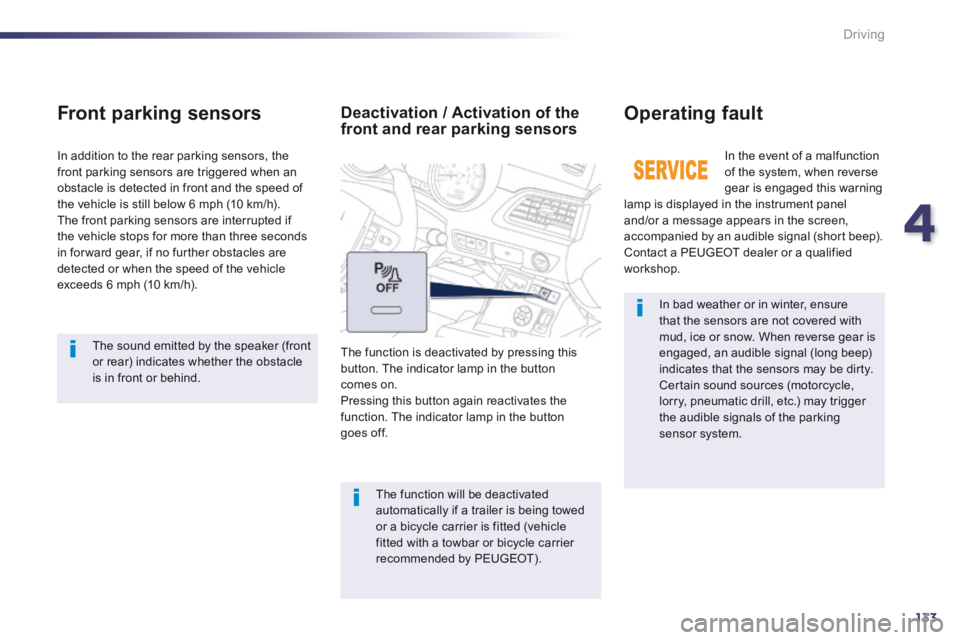

In addition to the rear parking sensors, the front parking sensors are triggered when an obstacle is detected in front and the speed of the vehicle is still below 6 mph (10 km/h). The front parking sensors are interrupted if
the vehicle stops for more than three seconds in for ward gear, if no further obstacles are detected or when the speed of the vehicle exceeds 6 mph (10 km/h).
Front parking sensors
The function will be deactivated automatically if a trailer is being towed or a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by PEUGEOT).
Deactivation / Activation of the front and rear parking sensors
The function is deactivated by pressing this button. The indicator lamp in the button comes on. Pressing this button again reactivates the function. The indicator lamp in the button goes off.
The sound emitted by the speaker (front or rear) indicates whether the obstacle is in front or behind.

134
Driving

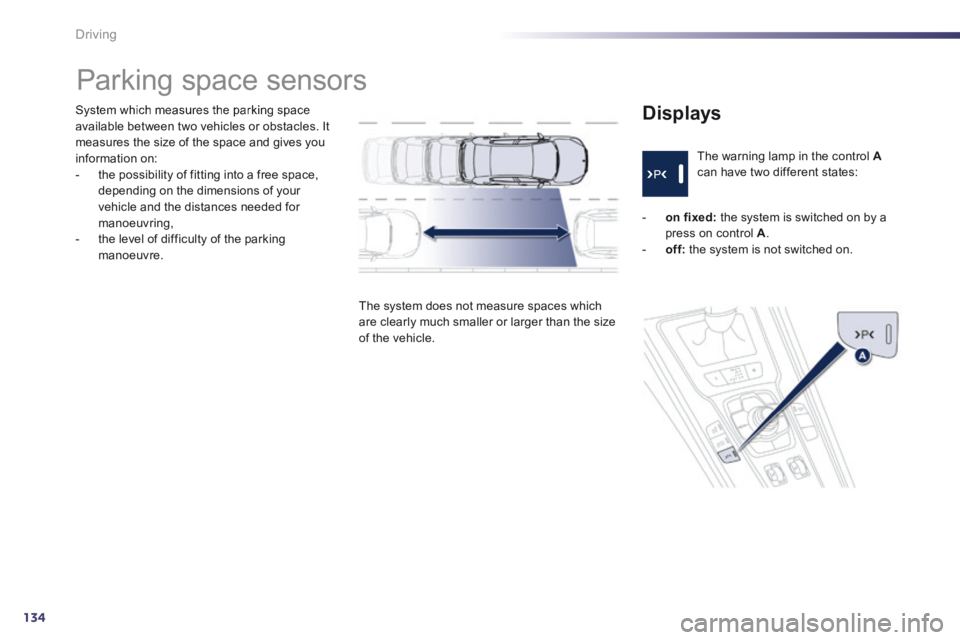

System which measures the parking space available between two vehicles or obstacles. It measures the size of the space and gives you information on: - the possibility of fitting into a free space, depending on the dimensions of your vehicle and the distances needed for manoeuvring,
- the level of difficulty of the parking manoeuvre.
The system does not measure spaces which are clearly much smaller or larger than the size of the vehicle.
The warning lamp in the control Acan have two different states:
Displays
- on fixed: the system is switched on by a press on control A . - off: the system is not switched on.

Parking space sensors
