2014 Peugeot 508 Owner's Manual - RHD (UK, Australia)

3
71
Comfort

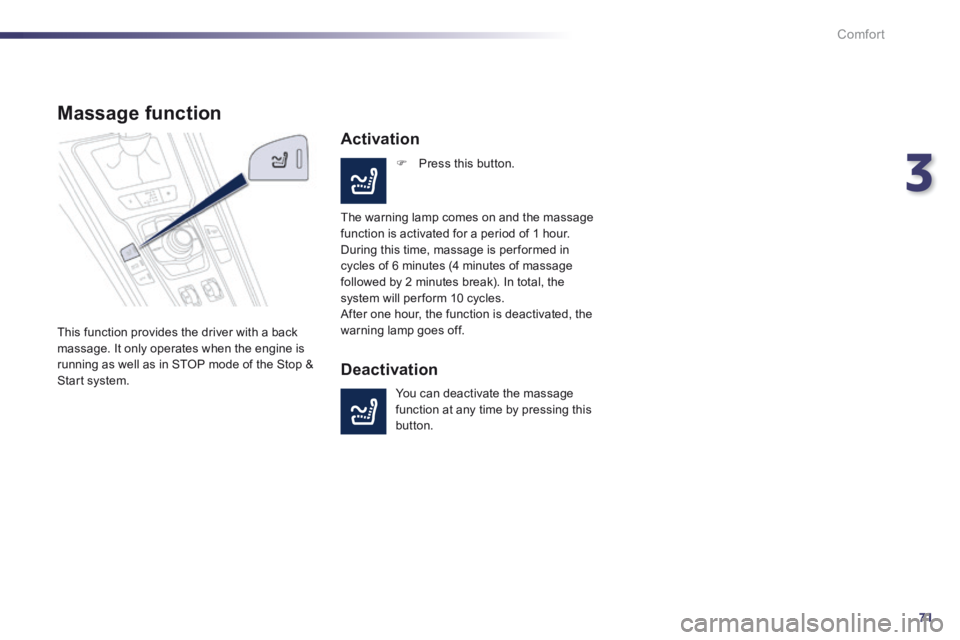

Massage function
This function provides the driver with a back massage. It only operates when the engine is running as well as in STOP mode of the Stop & Start system.
Activation
 Press this button.
The warning lamp comes on and the massage
function is activated for a period of 1 hour. During this time, massage is per formed in cycles of 6 minutes (4 minutes of massage followed by 2 minutes break). In total, the system will per form 10 cycles. After one hour, the function is deactivated, the warning lamp goes off.
Deactivation
You can deactivate the massage function at any time by pressing this button.

72
Comfort
Rear seats Bench seat the left-hand (1/3) or right-hand (2/3) section of which can be folded to adapt the boot load space.
Outer rear seat head restraints
These have a high position (comfort and safety), a low position (rear visibility) and can also be removed.
To remove a head restraint:  pull the head restraint fully upwards,  then, press the lug A .
Never drive with rear passengers when the head restraints are removed; the head restraints must be in place and in the high position.
Folding the seat
from the boot
 Check that nothing is preventing the seat back from folding (head restraint, seat belts, ...),  check also that no object on or under the seat could hinder its movement,
 pull the control from the boot and push the seat backrest.
(SW)
Each section of the bench seat (1/3 or 2/3) has its own control to release the seat back and its seat cushion from the boot.

3
73
Comfort
Folding the seat from the
rear
Check that no object, either on or underneath the seat, could hinder its movement.
Returning the seat back to its original position
 Put the seat back in the upright position
and secure it, the seat cushion also returns to its original position,  check that the red indicator, located at the control 1 , is no longer visible,  refit the head restraints or put them back in place.
 Move the corresponding front seat
for wards if necessary,  check that the seat belt is positioned correctly on the side of the seat back,  place the head restraints in the low position or remove them if necessary,
 pull the control 1 for wards to release the
seat backrest 2 then fold it for wards.
When returning the rear seat back to its original position, take care not to trap the seat belts and ensure that their buckles are positioned c o r r e c t l y.

74
Comfort

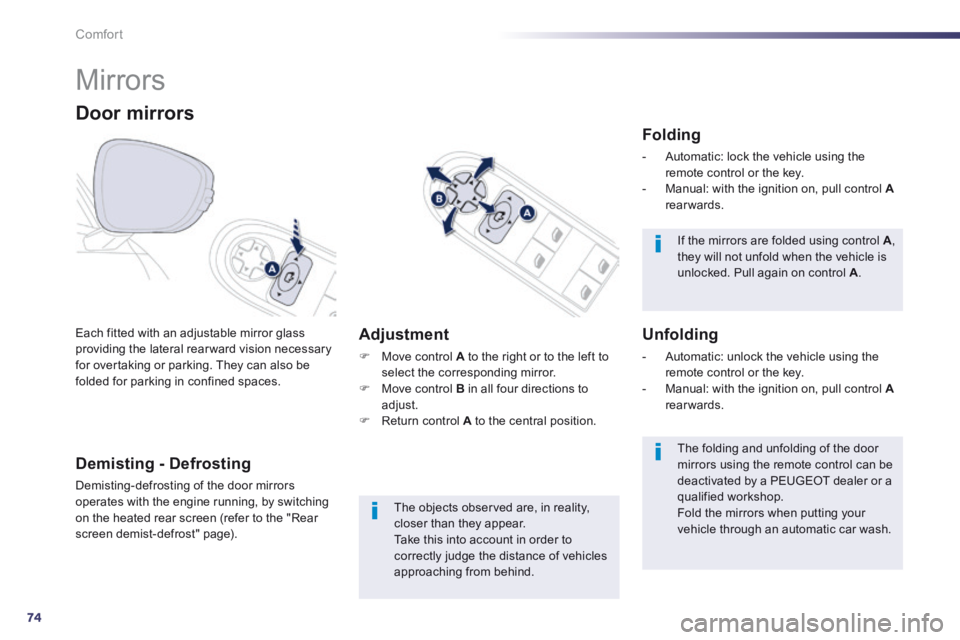

Mirrors
Each fitted with an adjustable mirror glass providing the lateral rear ward vision necessary for overtaking or parking. They can also be folded for parking in confined spaces.
Door mirrors
If the mirrors are folded using control A , they will not unfold when the vehicle is unlocked. Pull again on control A .
The folding and unfolding of the door mirrors using the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop. Fold the mirrors when putting your vehicle through an automatic car wash.
The objects observed are, in reality, closer than they appear. Take this into account in order to correctly judge the distance of vehicles approaching from behind.
Demisting - Defrosting
Demisting-defrosting of the door mirrors operates with the engine running, by switching on the heated rear screen (refer to the "Rear screen demist-defrost" page).
Adjustment
 Move control A to the right or to the left to select the corresponding mirror.  Move control B in all four directions to adjust.  Return control A to the central position.
Folding
- Automatic: lock the vehicle using the remote control or the key. - Manual: with the ignition on, pull control Arearwards.
Unfolding
- Automatic: unlock the vehicle using the remote control or the key. - Manual: with the ignition on, pull control Arearwards.

3
75
Comfort

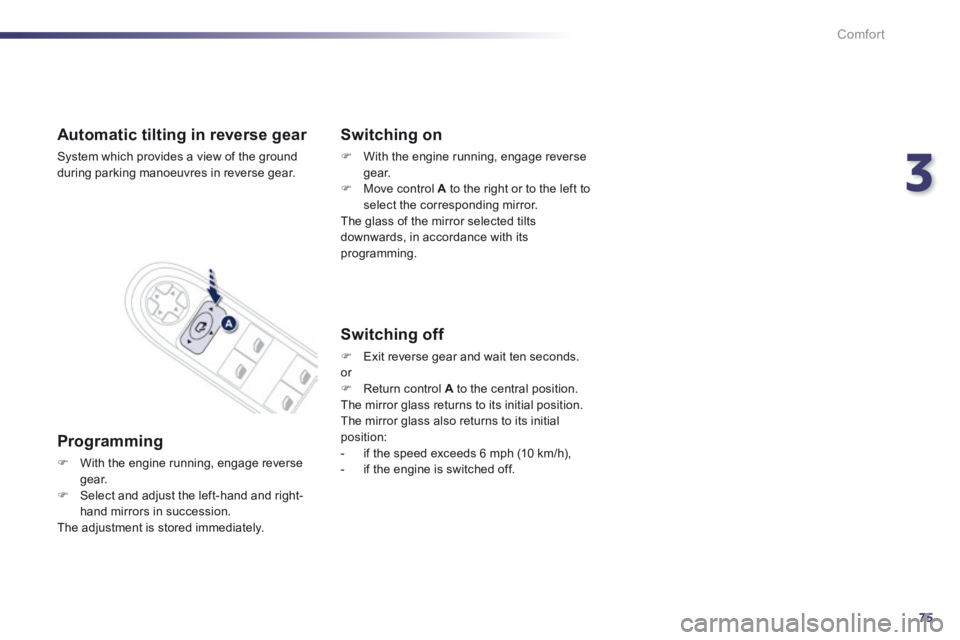

Automatic tilting in reverse gear
System which provides a view of the ground during parking manoeuvres in reverse gear.
Programming
 With the engine running, engage reverse g e a r.  Select and adjust the left-hand and right-hand mirrors in succession. The adjustment is stored immediately.
Switching on
 With the engine running, engage reverse g e a r.  Move control A to the right or to the left to select the corresponding mirror. The glass of the mirror selected tilts downwards, in accordance with its programming.
Switching off
 Exit reverse gear and wait ten seconds. or  Return control A to the central position. The mirror glass returns to its initial position. The mirror glass also returns to its initial position: - if the speed exceeds 6 mph (10 km/h), - if the engine is switched off.

76
Comfort
Automatic day/night model
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes between the day and night uses.
Adjustable mirror providing a central rearward view. Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the driver caused by the sun, headlamps from other vehicles...
Rear view mirror
Manual day/night model
Adjustment
 Adjust the mirror so that the glass is directed correctly in the "day" position.
Day / night position
 Pull the lever to change to the "night" anti-dazzle position.  Push the lever to change to the normal "day" position. In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.
Steering wheel adjustment
 When stationary , lower the control lever When stationary , lower the control lever When stationaryto release the steering wheel adjustment mechanism.  Adjust the height and reach to suit your driving position.  Pull the control lever to lock the steering wheel adjustment mechanism.
As a safety precaution, these operations should only be carried out while the vehicle is stationary. As a safety measure, the mirrors should be adjusted to reduce the "blind spot".

3
77
Comfort

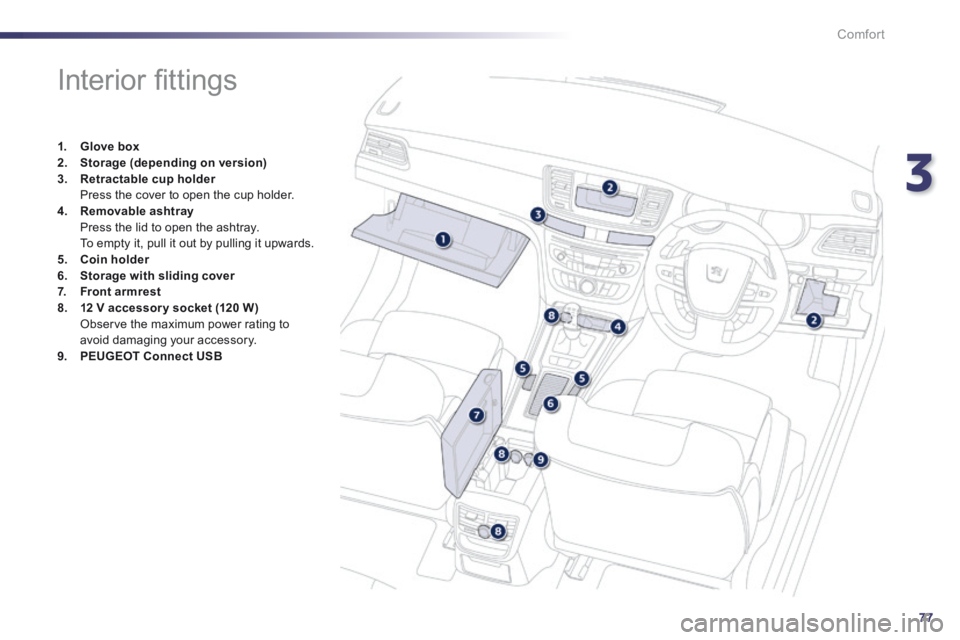

Interior fi ttings
1. Glove box2. Storage (depending on version)3. Retractable cup holder Retractable cup holder Retractable cup holder Press the cover to open the cup holder .4. Removable ashtray
Press the lid to open the ashtray. To empty it, pull it out by pulling it upwards. 5. Coin holder6. Storage with sliding cover7. Front armrest8. 12 V accessory socket (120 W ) Observe the maximum power rating to avoid damaging your accessory .9. PEUGEOT Connect USB

78
Comfort

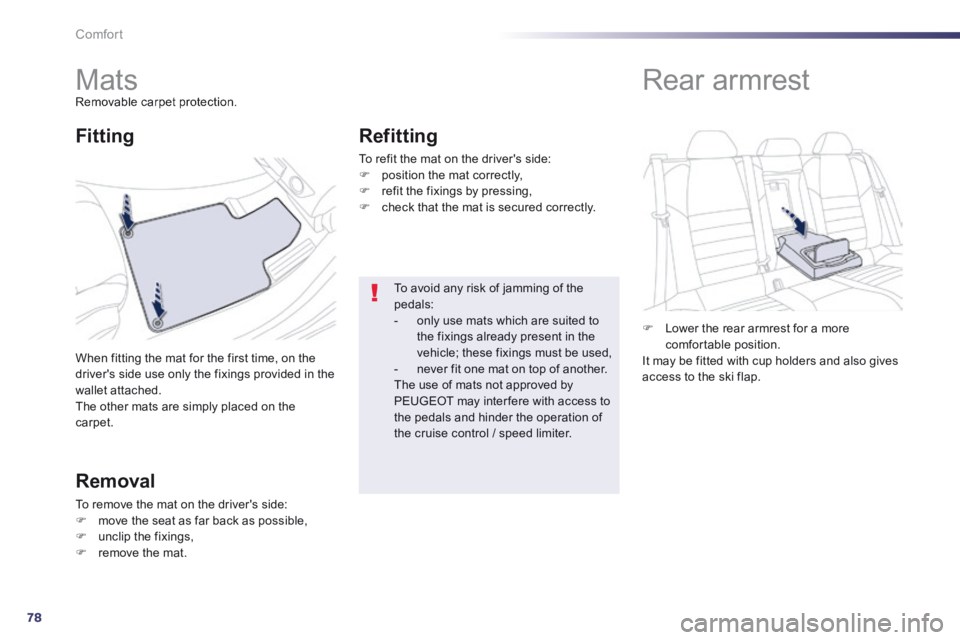

Mats Removable carpet protection.
When fitting the mat for the first time, on the driver's side use only the fixings provided in the wallet attached. The other mats are simply placed on the carpet.
Fitting
Removal
To remove the mat on the driver's side:  move the seat as far back as possible,  unclip the fixings,  remove the mat.
Refitting
To refit the mat on the driver's side:  position the mat correctly,  refit the fixings by pressing,  check that the mat is secured correctly.
To avoid any risk of jamming of the pedals: - only use mats which are suited to the fixings already present in the vehicle; these fixings must be used, - never fit one mat on top of another. The use of mats not approved by PEUGEOT may inter fere with access to the pedals and hinder the operation of
the cruise control / speed limiter.
 Lower the rear armrest for a more comfortable position. It may be fitted with cup holders and also gives access to the ski flap.
Rear armrest
