2014 Peugeot 508 Owner's Manual - RHD (UK, Australia)

2
47
Access

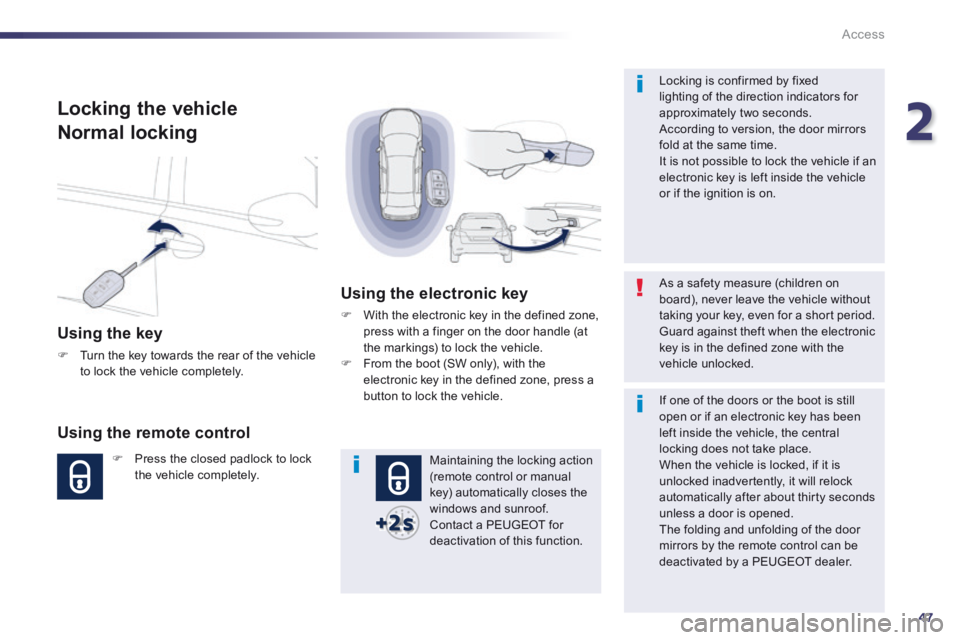

Locking the vehicle
Normal locking
Using the key
 Turn the key towards the rear of the vehicle to lock the vehicle completely.
Using the remote control
 Press the closed padlock to lock the vehicle completely.
Using the electronic key
 With the electronic key in the defined zone, press with a finger on the door handle (at the markings) to lock the vehicle.  From the boot (SW only), with the electronic key in the defined zone, press a button to lock the vehicle.
Maintaining the locking action (remote control or manual key) automatically closes the windows and sunroof. Contact a PEUGEOT for deactivation of this function.
As a safety measure (children on board), never leave the vehicle without taking your key, even for a short period. Guard against theft when the electronic key is in the defined zone with the vehicle unlocked.
Locking is confirmed by fixed lighting of the direction indicators for approximately two seconds. According to version, the door mirrors fold at the same time. It is not possible to lock the vehicle if an electronic key is left inside the vehicle or if the ignition is on.
If one of the doors or the boot is still open or if an electronic key has been
left inside the vehicle, the central locking does not take place. When the vehicle is locked, if it is unlocked inadvertently, it will relock automatically after about thirty seconds unless a door is opened. The folding and unfolding of the door mirrors by the remote control can be deactivated by a PEUGEOT dealer.

48
Access

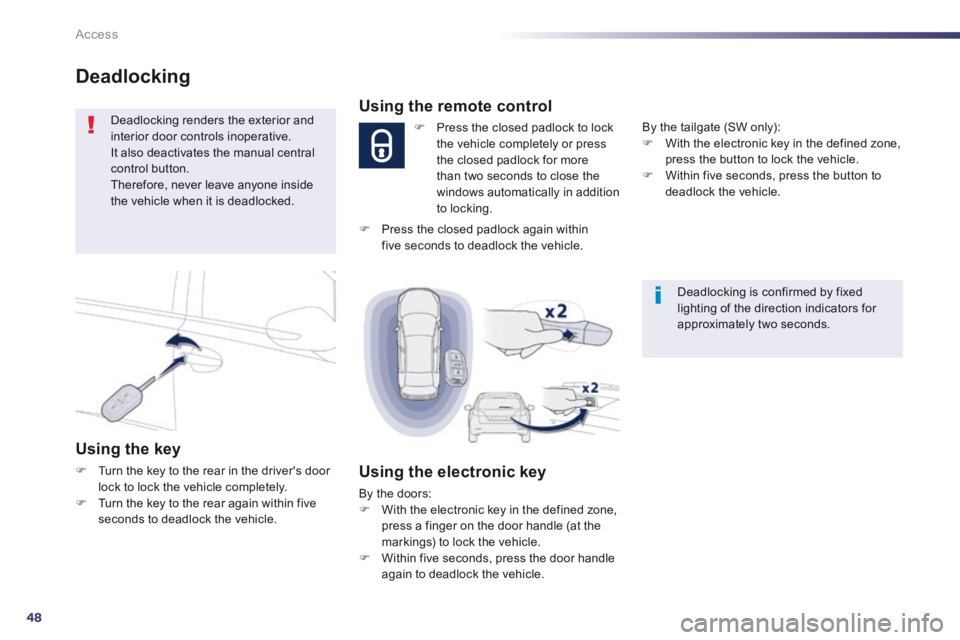

Deadlocking
Deadlocking renders the exterior and interior door controls inoperative. It also deactivates the manual central control button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
Using the key
 Turn the key to the rear in the driver's door lock to lock the vehicle completely.  Turn the key to the rear again within five seconds to deadlock the vehicle.
Deadlocking is confirmed by fixed lighting of the direction indicators for approximately two seconds.
Using the remote control
 Press the closed padlock to lock the vehicle completely or press the closed padlock for more than two seconds to close the windows automatically in addition to locking.
Using the electronic key
By the doors:  With the electronic key in the defined zone, press a finger on the door handle (at the markings) to lock the vehicle.  Within five seconds, press the door handle again to deadlock the vehicle.
By the tailgate (SW only):  With the electronic key in the defined zone, press the button to lock the vehicle.  Within five seconds, press the button to deadlock the vehicle.
 Press the closed padlock again within five seconds to deadlock the vehicle.

2
49
Access

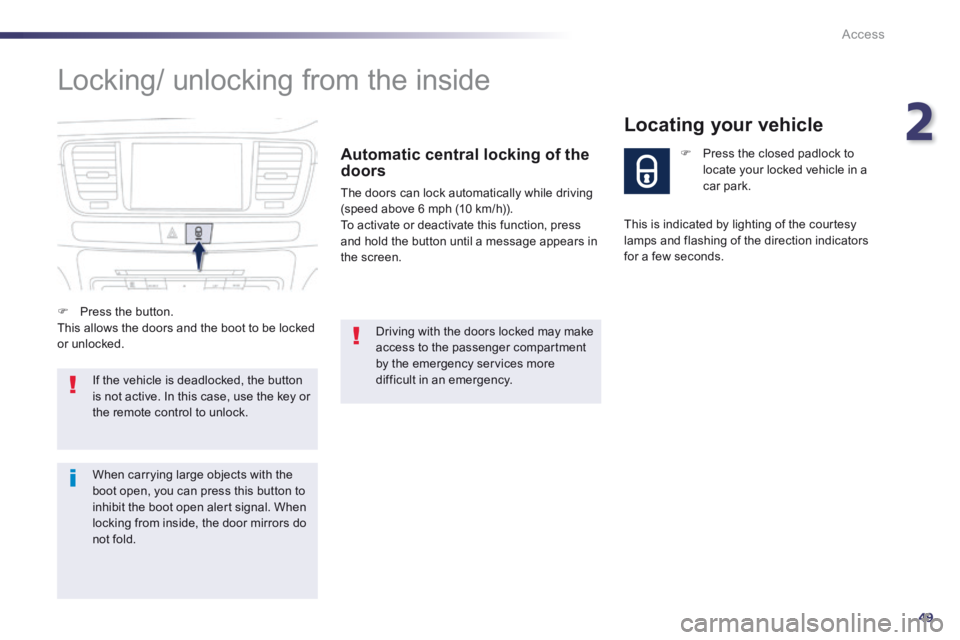

Locking/ unlocking from the inside
Automatic central locking of the doors
The doors can lock automatically while driving (speed above 6 mph (10 km/h)). To activate or deactivate this function, press and hold the button until a message appears in the screen.
If the vehicle is deadlocked, the button is not active. In this case, use the key or the remote control to unlock.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
 Press the closed padlock to locate your locked vehicle in a car park.
Locating your vehicle
 Press the button. This allows the doors and the boot to be locked or unlocked.
This is indicated by lighting of the courtesy lamps and flashing of the direction indicators for a few seconds.
When carrying large objects with the boot open, you can press this button to inhibit the boot open alert signal. When locking from inside, the door mirrors do
not fold.

50
Access

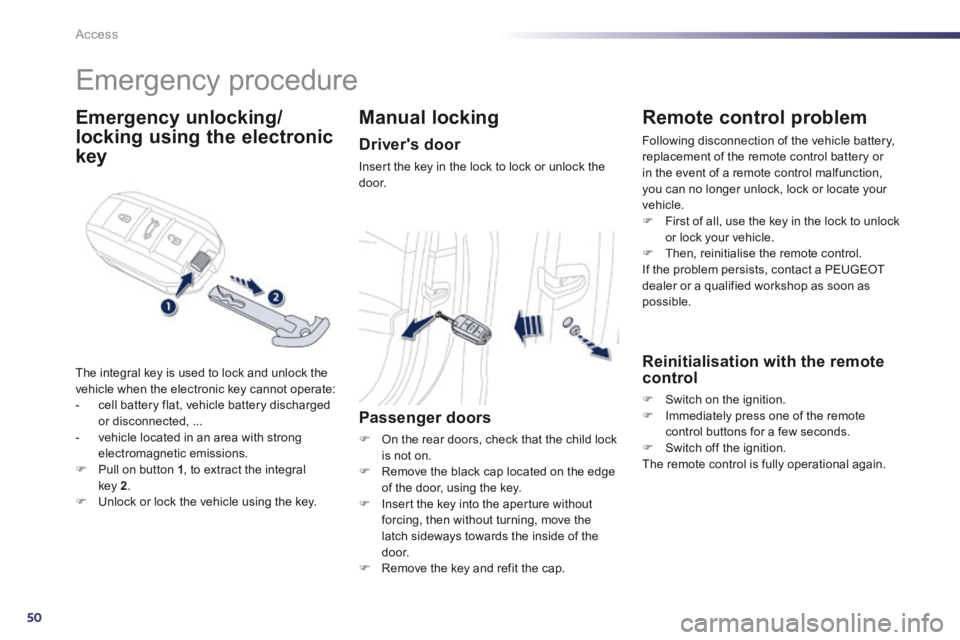

Emergency procedure
Emergency unlocking/
locking using the electronic
key
The integral key is used to lock and unlock the vehicle when the electronic key cannot operate: - cell battery flat, vehicle battery discharged or disconnected, ... - vehicle located in an area with strong electromagnetic emissions.  Pull on button 1 , to extract the integral key 2 .  Unlock or lock the vehicle using the key.
Manual locking
Driver's door
Insert the key in the lock to lock or unlock the d o o r.
Passenger doors
 On the rear doors, check that the child lock is not on.  Remove the black cap located on the edge of the door, using the key.  Insert the key into the aperture without forcing, then without turning, move the
latch sideways towards the inside of the d o o r.  Remove the key and refit the cap.
Remote control problem
Following disconnection of the vehicle battery, replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.  First of all, use the key in the lock to unlock
or lock your vehicle.  Then, reinitialise the remote control. If the problem persists, contact a PEUGEOT dealer or a qualified workshop as soon as possible.
Reinitialisation with the remote control
 Switch on the ignition.  Immediately press one of the remote control buttons for a few seconds.  Switch off the ignition. The remote control is fully operational again.

2
51
Access

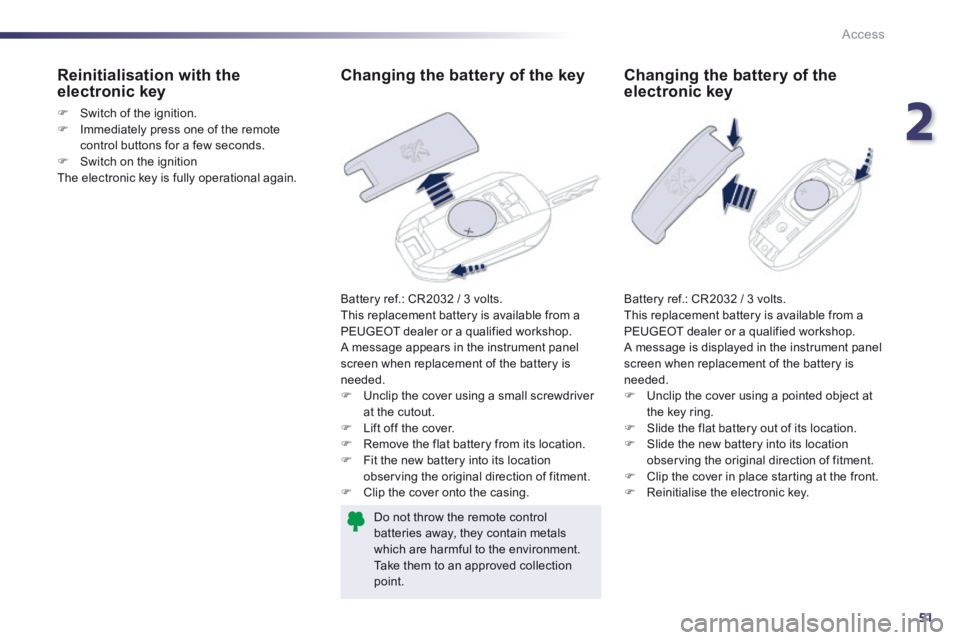

Changing the battery of the key
Battery ref.: CR2032 / 3 volts. This replacement battery is available from a PEUGEOT dealer or a qualified workshop. A message appears in the instrument panel screen when replacement of the battery is needed.  Unclip the cover using a small screwdriver at the cutout.  Lift off the cover.
 Remove the flat battery from its location.  Fit the new battery into its location observing the original direction of fitment.  Clip the cover onto the casing.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment. Take them to an approved collection point.
Reinitialisation with the electronic key
 Switch of the ignition.  Immediately press one of the remote control buttons for a few seconds.  Switch on the ignition The electronic key is fully operational again.
Changing the battery of the electronic key
Battery ref.: CR2032 / 3 volts. This replacement battery is available from a PEUGEOT dealer or a qualified workshop. A message is displayed in the instrument panel screen when replacement of the battery is needed.  Unclip the cover using a pointed object at the key ring.  Slide the flat battery out of its location.
 Slide the new battery into its location observing the original direction of fitment.  Clip the cover in place starting at the front.  Reinitialise the electronic key.

52
Access

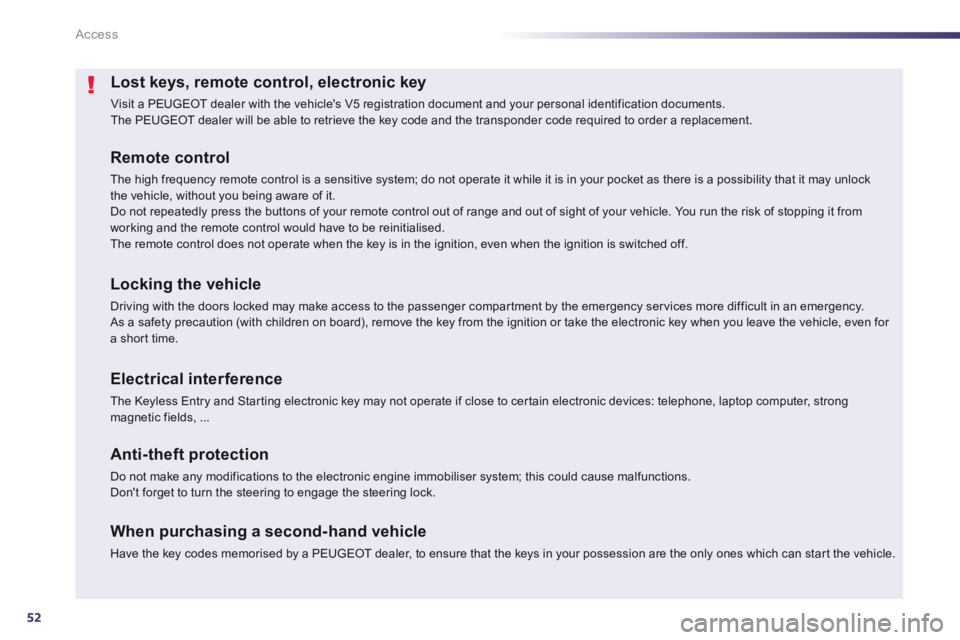

Lost keys, remote control, electronic key
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your personal identification documents. The PEUGEOT dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it. Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised. The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency. As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for a short time.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions. Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.

2
53
Access

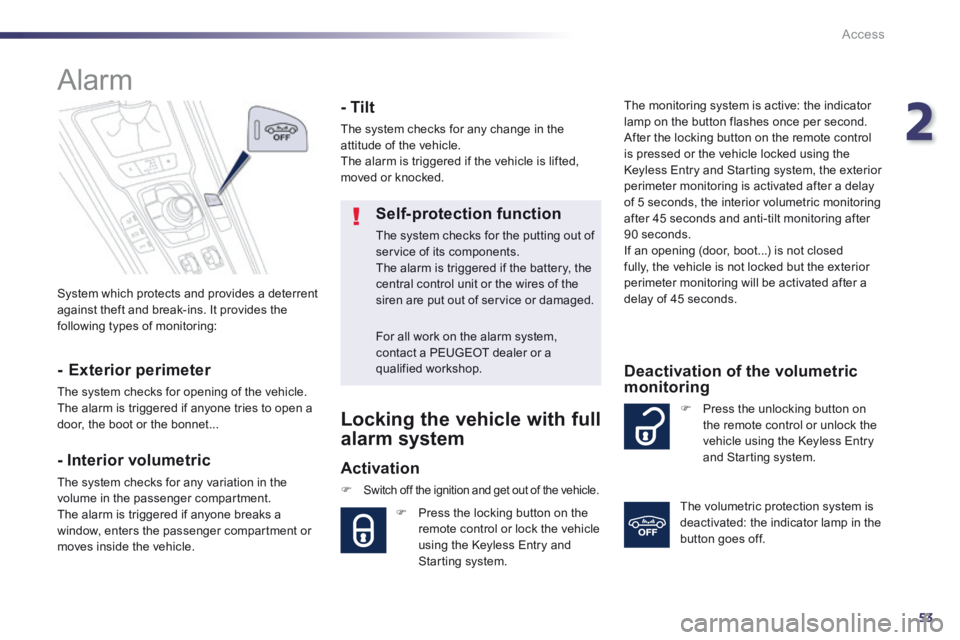

System which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring:

Alarm
- Exterior perimeter
The system checks for opening of the vehicle. The alarm is triggered if anyone tries to open a door, the boot or the bonnet...
- Interior volumetric
The system checks for any variation in the volume in the passenger compartment. The alarm is triggered if anyone breaks a window, enters the passenger compartment or
moves inside the vehicle.
- Tilt
The system checks for any change in the attitude of the vehicle. The alarm is triggered if the vehicle is lifted, moved or knocked.
Self-protection function
The system checks for the putting out of service of its components. The alarm is triggered if the battery, the central control unit or the wires of the siren are put out of service or damaged.
For all work on the alarm system, contact a PEUGEOT dealer or a qualified workshop.
Locking the vehicle with full
alarm system
Activation
Switch off the ignition and get out of the vehicle.
 Press the locking button on the remote control or lock the vehicle
using the Keyless Entry and Starting system.
The monitoring system is active: the indicator lamp on the button flashes once per second. After the locking button on the remote control is pressed or the vehicle locked using the Keyless Entry and Starting system, the exterior perimeter monitoring is activated after a delay of 5 seconds, the interior volumetric monitoring after 45 seconds and anti-tilt monitoring after
90 seconds. If an opening (door, boot...) is not closed fully, the vehicle is not locked but the exterior perimeter monitoring will be activated after a delay of 45 seconds.
 Press the unlocking button on the remote control or unlock the
vehicle using the Keyless Entry and Starting system.
Deactivation of the volumetric monitoring
The volumetric protection system is deactivated: the indicator lamp in the
button goes off.

54
Access

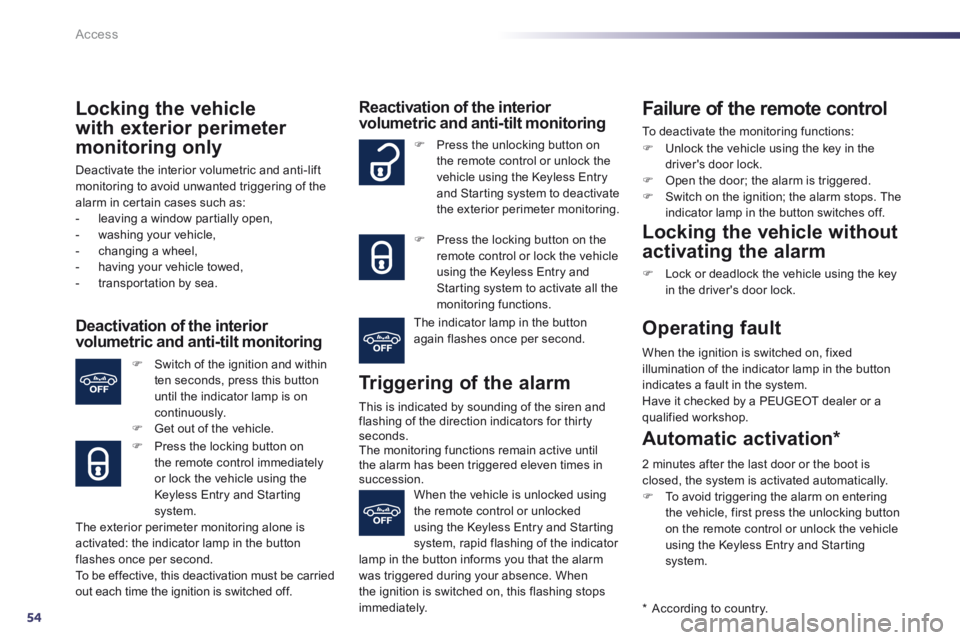

Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-lift monitoring to avoid unwanted triggering of the alarm in certain cases such as: - leaving a window partially open, - washing your vehicle, - changing a wheel, - having your vehicle towed, - transportation by sea.
Deactivation of the interior volumetric and anti-tilt monitoring
 Switch of the ignition and within ten seconds, press this button until the indicator lamp is on continuously.  Get out of the vehicle.
 Press the locking button on the remote control immediately or lock the vehicle using the Keyless Entry and Starting system.
The exterior perimeter monitoring alone is activated: the indicator lamp in the button flashes once per second. To be effective, this deactivation must be carried out each time the ignition is switched off.
Reactivation of the interior volumetric and anti-tilt monitoring
Triggering of the alarm
This is indicated by sounding of the siren and flashing of the direction indicators for thirty seconds. The monitoring functions remain active until the alarm has been triggered eleven times in succession.
 Press the unlocking button on the remote control or unlock the vehicle using the Keyless Entry and Starting system to deactivate the exterior perimeter monitoring.
 Press the locking button on the remote control or lock the vehicle using the Keyless Entry and Starting system to activate all the monitoring functions.
The indicator lamp in the button again flashes once per second.
When the vehicle is unlocked using the remote control or unlocked using the Keyless Entry and Starting system, rapid flashing of the indicator lamp in the button informs you that the alarm was triggered during your absence. When the ignition is switched on, this flashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:
 Unlock the vehicle using the key in the driver's door lock.  Open the door; the alarm is triggered.  Switch on the ignition; the alarm stops. The indicator lamp in the button switches off.
Locking the vehicle without
activating the alarm
 Lock or deadlock the vehicle using the key in the driver's door lock.
Operating fault
When the ignition is switched on, fixed illumination of the indicator lamp in the button indicates a fault in the system. Have it checked by a PEUGEOT dealer or a qualified workshop.
* According to country.
Automatic activation *
2 minutes after the last door or the boot is closed, the system is activated automatically.  To avoid triggering the alarm on entering the vehicle, first press the unlocking button on the remote control or unlock the vehicle
using the Keyless Entry and Starting system.
