2014 Peugeot 508 Owner's Manual - RHD (UK, Australia)

5
151
Visibility

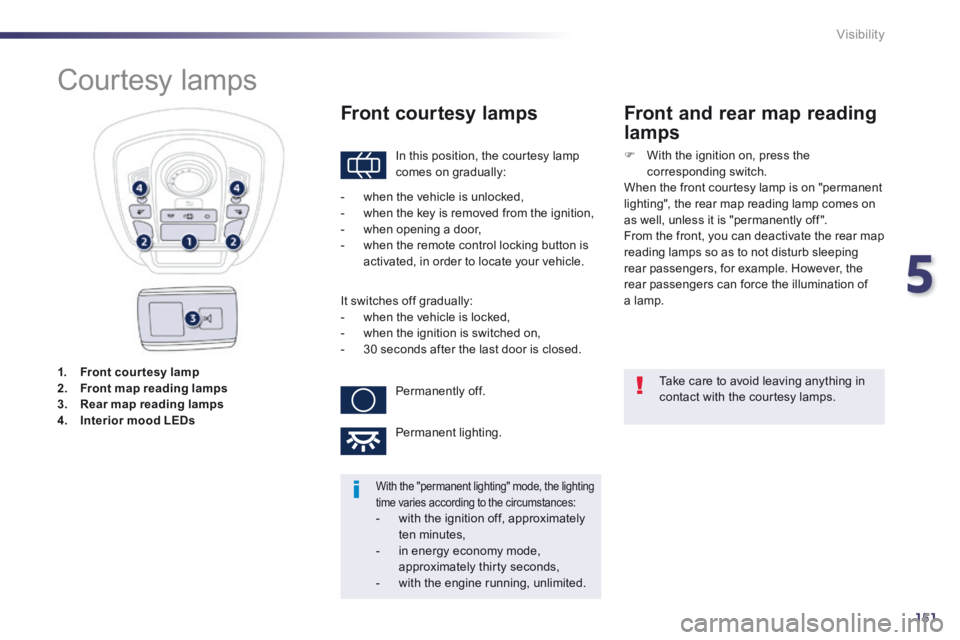

1. Front courtesy lamp2. Front map reading lamp s3. Rear map reading lamps4. Interior mood LEDs
Courtesy lamps
In this position, the courtesy lamp comes on gradually:
Front courtesy lamps
Take care to avoid leaving anything in contact with the courtesy lamps.
With the "permanent lighting" mode, the lighting time varies according to the circumstances: - with the ignition off, approximately ten minutes, - in energy economy mode, approximately thirty seconds, - with the engine running, unlimited.
- when the vehicle is unlocked, - when the key is removed from the ignition, - when opening a door, - when the remote control locking button is activated, in order to locate your vehicle.
It switches off gradually: - when the vehicle is locked, - when the ignition is switched on, - 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
Front and rear map reading
lamps
 With the ignition on, press the corresponding switch. When the front courtesy lamp is on "permanent lighting", the rear map reading lamp comes on as well, unless it is "permanently off ".
From the front, you can deactivate the rear map reading lamps so as to not disturb sleeping rear passengers, for example. However, the rear passengers can force the illumination of a lamp.

152
Visibility
Interior mood lighting The dimmed passenger compartment lighting improves visibility in the vehicle when the light is p o o r.
Switching on
At night, interior mood light emitting diodes - LEDs come on automatically when the
sidelamps are switched on.
Switching off
The interior mood lighting switches off automatically when the sidelamps are switched of f. It can be switched off manually by adjusting the
instrument panel lighting dimmer button to the lowest setting.

6
153
Child safety

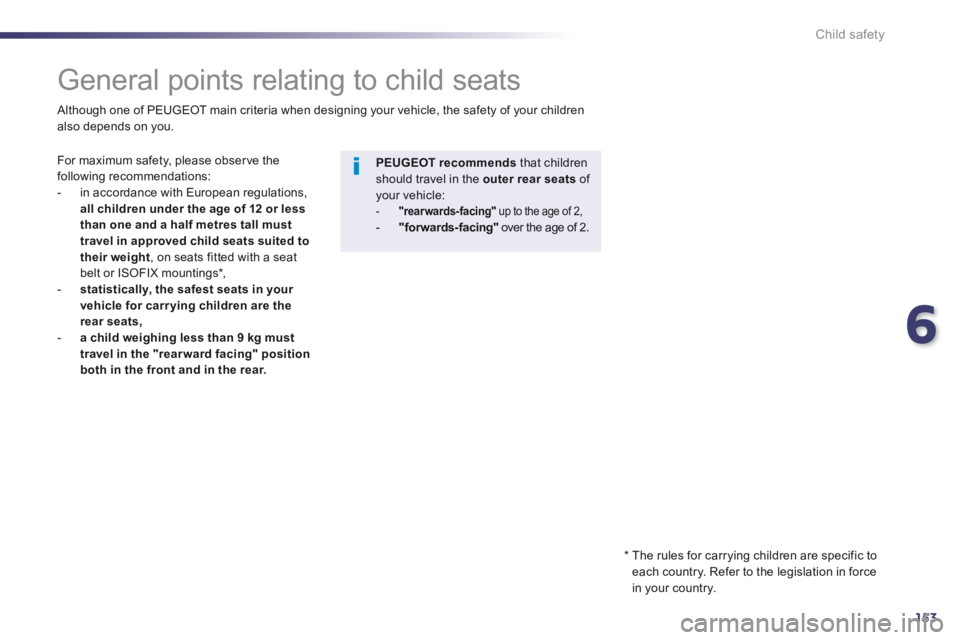

General points relating to child seats
For maximum safety, please observe the following recommendations: - in accordance with European regulations, all children under the age of 12 or less than one and a half metres tall must travel in approved child seats suited to their weight , on seats fitted with a seat belt or ISOFIX mountings * , - statistically, the safest seats in your vehicle for carr ying children are the rear seats, - a child weighing less than 9 kg must travel in the "rearward facing" position both in the front and in the rear.
PEUGEOT recommends that children should travel in the outer outer outerrear seats of your vehicle: - "rearwards-facing" up to the age of 2, - "forwards-facing" over the age of 2.
Although one of PEUGEOT main criteria when designing your vehicle, the safety of your children also depends on you.
* The rules for carrying children are specific to each country. Refer to the legislation in force in your country.

154
Child safety
"Rearwards-facing"
When a "rearwards-facing" child seat is installed on the front passenger seat , it is essential that the passenger airbag is deactivated. Otherwise, the child would risk being seriously injured or killed if the airbag were to inflate .
"Forwards-facing"
When a "for wards-facing" child seat is installed on the front passenger seat , adjust the vehicle's seat to the fully back and highest position with the seat back upright and leave the passenger's airbag activated.

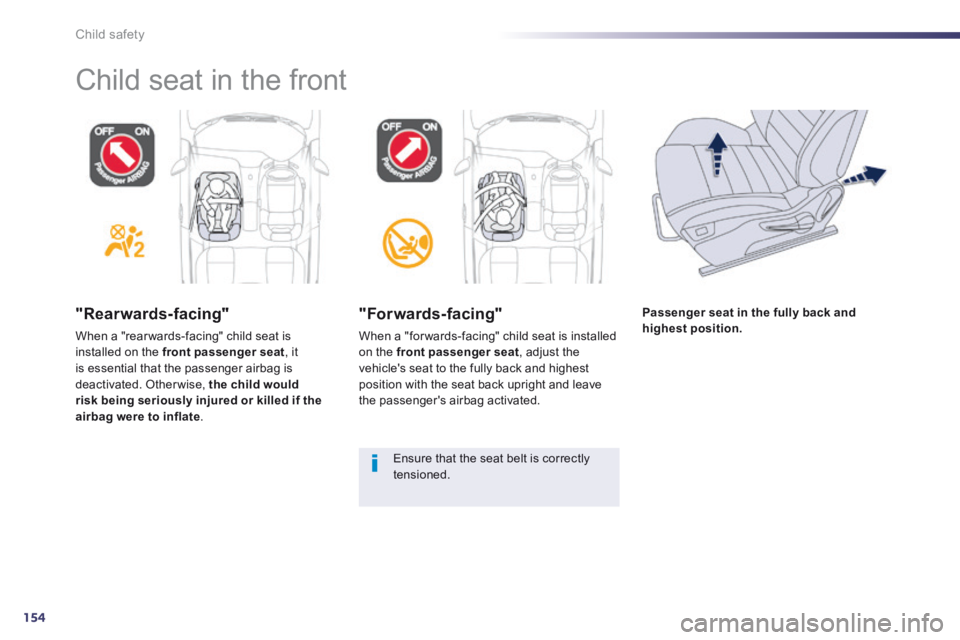

Child seat in the front
Ensure that the seat belt is correctly tensioned.
Passenger seat in the fully back and highest position.

6
155
Child safety

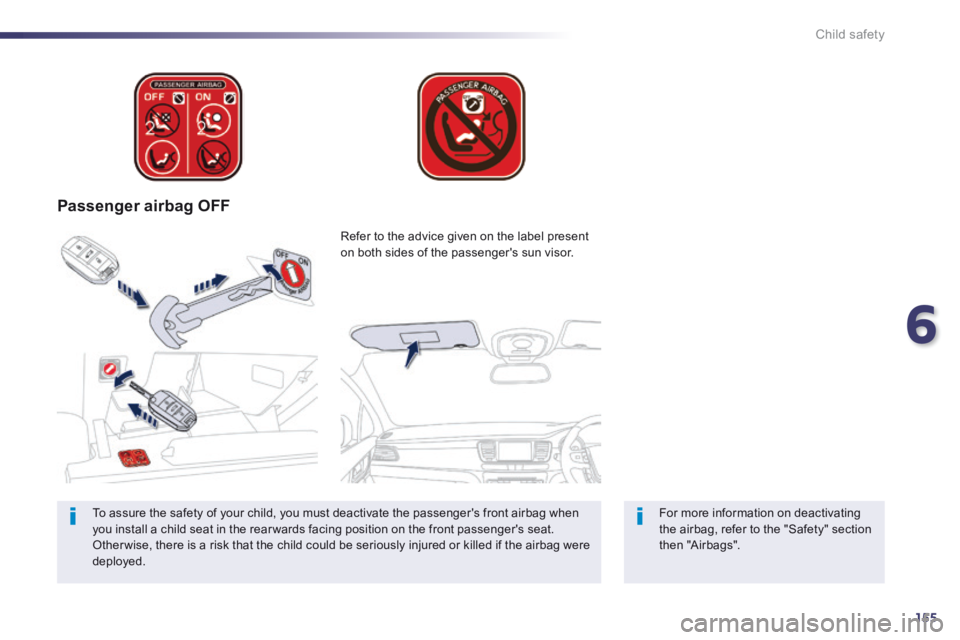

Passenger airbag OFF
For more information on deactivating the airbag, refer to the "Safety" section then "Airbags".
Refer to the advice given on the label present on both sides of the passenger's sun visor.
To assure the safety of your child, you must deactivate the passenger's front airbag when you install a child seat in the rear wards facing position on the front passenger's seat. Other wise, there is a risk that the child could be seriously injured or killed if the airbag were deployed.

156
Child safety

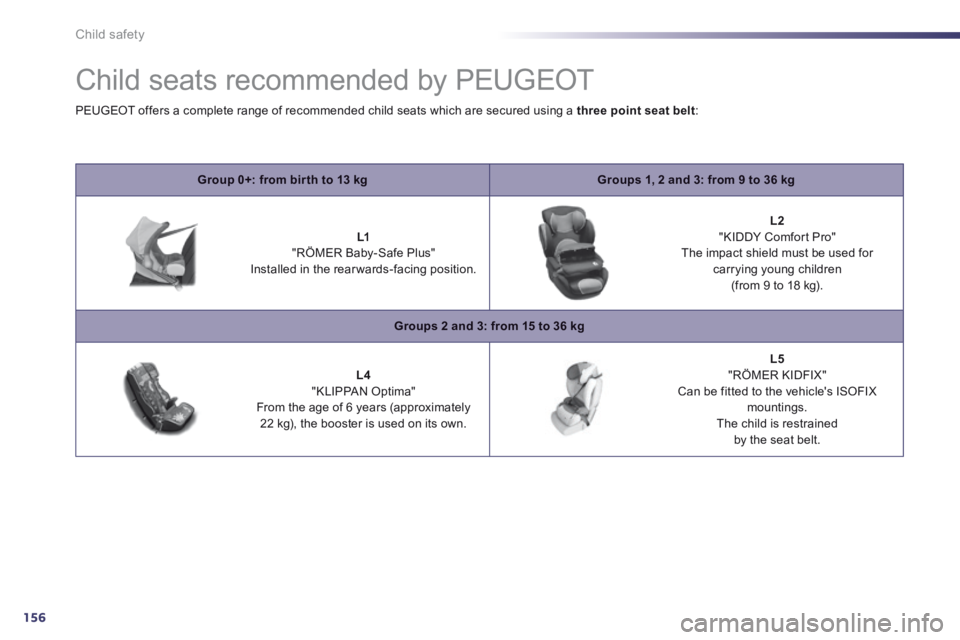

Child seats recommended by PEUGEOT
Group 0+: from bir th to 13 kgGroups 1, 2 and 3: from 9 to 36 kg
L1 "RÖMER Baby-Safe Plus" Installed in the rearwards-facing position.
L2 "KIDDY Comfort Pro" The impact shield must be used for carrying young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4 "KLIPPAN Optima" From the age of 6 years (approximately 22 kg), the booster is used on its own.
L5 "RÖMER KIDFIX" Can be fitted to the vehicle's ISOFIX mountings. The child is restrained
by the seat belt.
PEUGEOT offers a complete range of recommended child seats which are secured using a three point seat belt :

6
157. /..
Child safety
Installing child seats attached using the seat belt In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)in accordance with the weight of the child and the seat in the vehicle.
Weight of the child and indicative age
SeatUnder 13 kg (groups 0 ( b ) and 0+) Up to approx 1 year
From 9 to 18 kg (group 1) 1 to 3 years approx
From 15 to 25 kg (group 2) 3 to 6 years approx
From 22 to 36 kg (group 3) 6 to 10 years approx
Front passenger seat ( c )with height adjuster U (R)U (R)U (R)U (R)
Front passenger seat (c)without height adjuster UUUU
Saloon
Outer rear seats UUUU
Centre rear seat XXXX
SW
Outer rear seats UUUU
Centre rear seat XXXX

158Child safety
a: universal child seat, child seat that can be installed in all vehicles using a seat belt. b: group 0, from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat. c: consult the legislation in force in your country before installing your child on this seat. U: seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear wards-facing" and/or "for wards-facing". U (R): idem U , with the vehicle's seat adjusted to the highest position and as far back as possible. X: seat position not suitable for installation of a child seat for the weight class indicated.
