2014 Peugeot 508 Owner's Manual - RHD (UK, Australia)

10
247
Technical data
Identifi cation markings Various visible markings for the identification and tracing of your vehicle.
A. Vehicle Identification Number (VIN) under the bonnet. This number is engraved on the bodywork near the damper support.
The tyre pressures must be checked when the tyres are cold, at least once a month.
Low tyre pressures increase fuel consumption. B. Vehicle identification Number (VIN) on the windscreen lower crossmember. This number is indicated on a self-adhesive label which is visible through the windscreen.
C. Manufacturer's label. The VIN is indicated on a self-destroying label affixed to the door aperture, on the driver's side.
D. Tyre/paint label. This label is fitted to the middle pillar, on the driver's side.
It bears the following information: - the tyre inflation pressures with and without load, - the tyre sizes, - the brands of tyre recommended by the manufacturer, - the inflation pressure of the spare wheel, - the paint colour code.

248Technical data

249

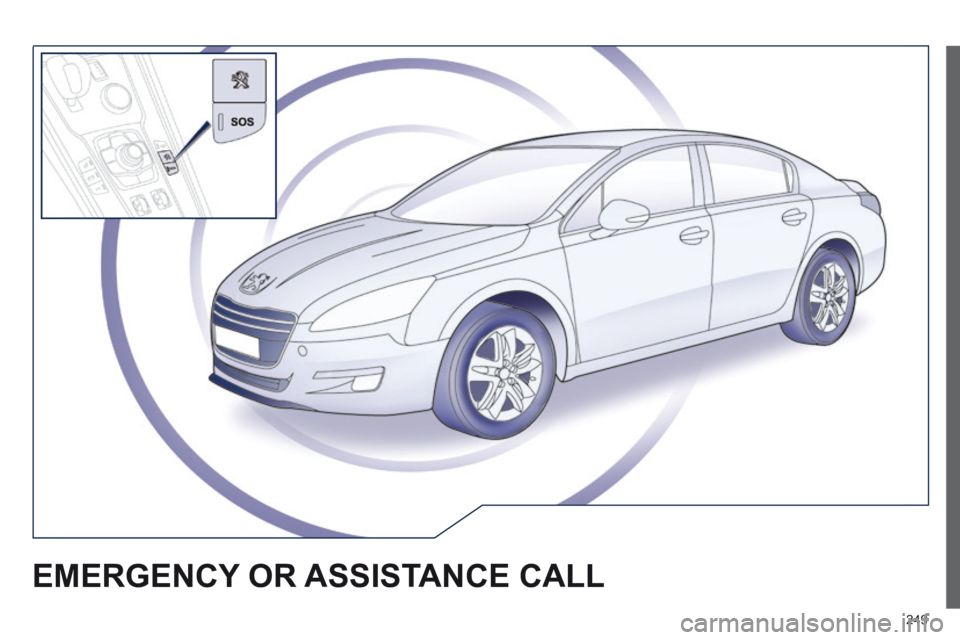

EMERGENCY OR ASSISTANCE CALL

250

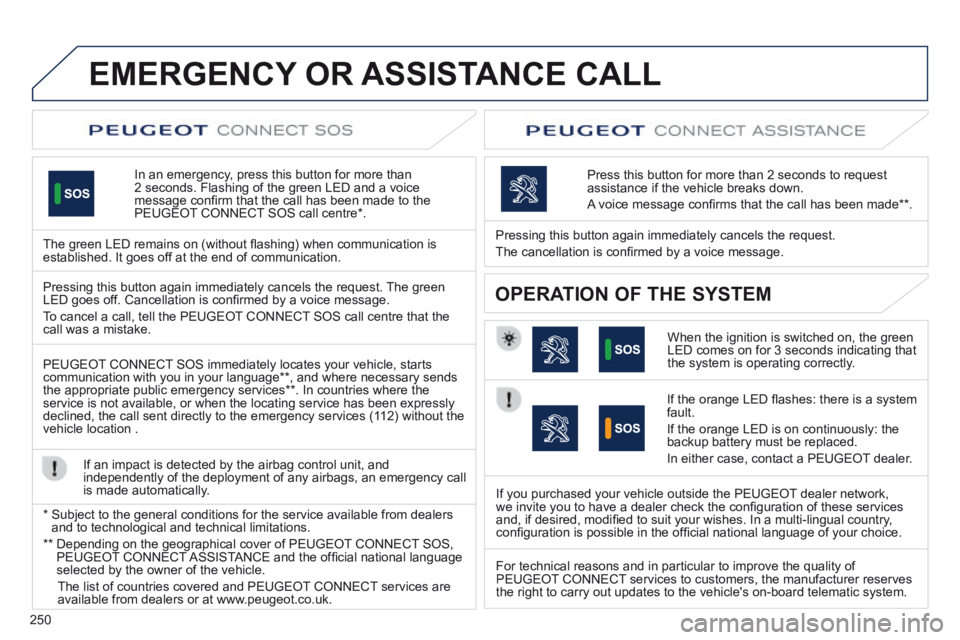

EMERGENCY OR ASSISTANCE CALL
In an emergency, press this button for more than 2 seconds. Flashing of the green LED and a voice message confi rm that the call has been made to the PEUGEOT CONNECT SOS call centre * .
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
When the ignition is switched on, the green LED comes on for 3 seconds indicating that the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A voice message confi rms that the call has been made ** .
OPERATION OF THE SYSTEM Pressing this button again immediately cancels the request. The green LED goes off. Cancellation is confi rmed by a voice message .
To cancel a call, tell the PEUGEOT CONNECT SOS call centre that the call was a mistake.
PEUGEOT CONNECT SOS immediately locates your vehicle, starts communication with you in your language ** , and where necessary sends the appropriate public emergency services ** . In countries where the service is not available, or when the locating service has been expressl\
y declined, the call sent directly to the emergency services (112) without the vehicle location .
If an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made automatically.
* Subject to the general conditions for the service available from dealers\
and to technological and technical limitations.
** Depending on the geographical cover of PEUGEOT CONNECT SOS, PEUGEOT CONNECT ASSISTANCE and the offi cial national language selected by the owner of the vehicle.
The list of countries covered and PEUGEOT CONNECT services are available from dealers or at www.peugeot.co.uk.
If the orange LED fl ashes: there is a system fault.
If the orange LED is on continuously: the backup battery must be replaced.
In either case, contact a PEUGEOT dealer.
If you purchased your vehicle outside the PEUGEOT dealer network, we invite you to have a dealer check the confi guration of these services and, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.
For technical reasons and in particular to improve the quality of PEUGEOT CONNECT services to customers, the manufacturer reserves the right to carry out updates to the vehicle's on-board telematic syste\
m.

251

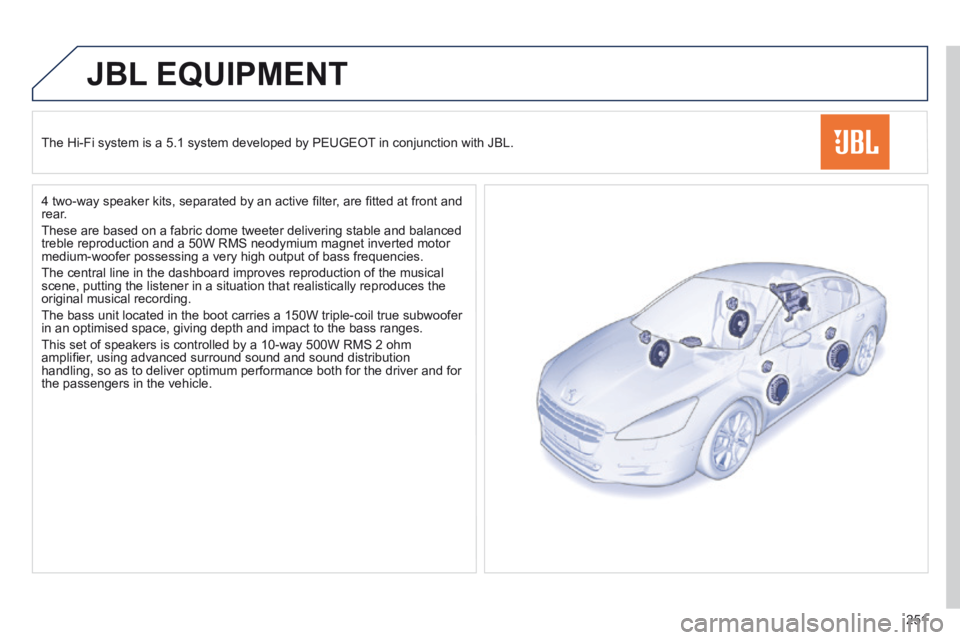

JBL EQUIPMENT
The Hi-Fi system is a 5.1 system developed by PEUGEOT in conjunction with JBL.
4 two-way speaker kits, separated by an active fi lter, are fi tted at front and rear.
These are based on a fabric dome tweeter delivering stable and balanced \
treble reproduction and a 50W RMS neodymium magnet inverted motor medium-woofer possessing a very high output of bass frequencies.
The central line in the dashboard improves reproduction of the musical scene, putting the listener in a situation that realistically reproduces\
the original musical recording.
The bass unit located in the boot carries a 150W triple-coil true subwoo\
fer in an optimised space, giving depth and impact to the bass ranges.
This set of speakers is controlled by a 10-way 500W RMS 2 ohm amplifi er, using advanced surround sound and sound distribution handling, so as to deliver optimum performance both for the driver and f\
or the passengers in the vehicle.

252

253
The system is protected in such a way that it will only operate in your vehicle.

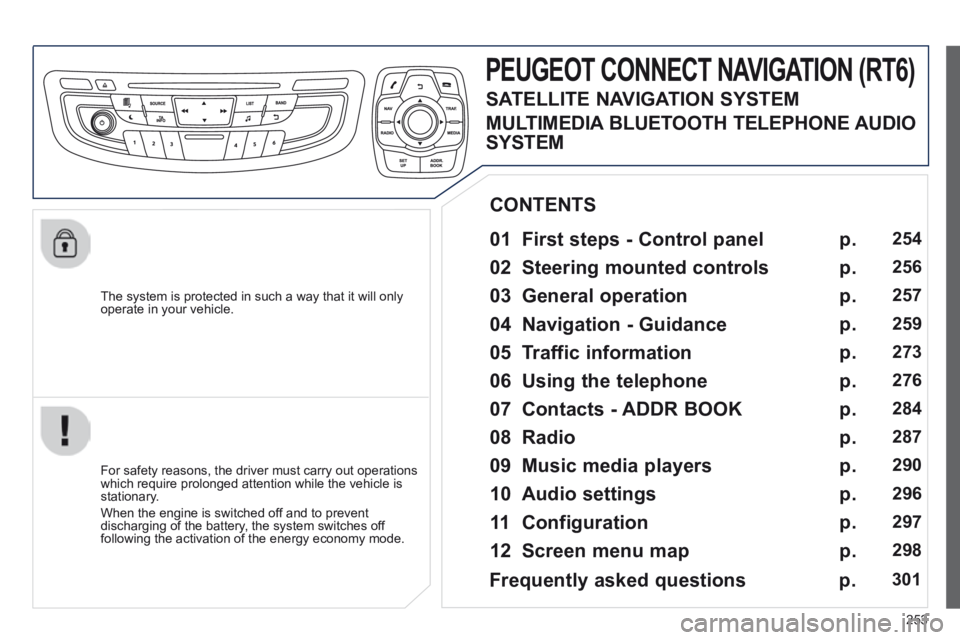

PEUGEOT CONNECT NAVIGATION (RT6)
01 First steps - Control panel
For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the system switches off following the activation of the energy economy mode.
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Using the telephone
07 Contacts - ADDR BOOK
08 Radio
09 Music media players
10 Audio settings
11 Configuration
12 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
254
256
257
259
273
276
284
287
290
296
297
298
Frequently asked questions
p. 301
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM

254

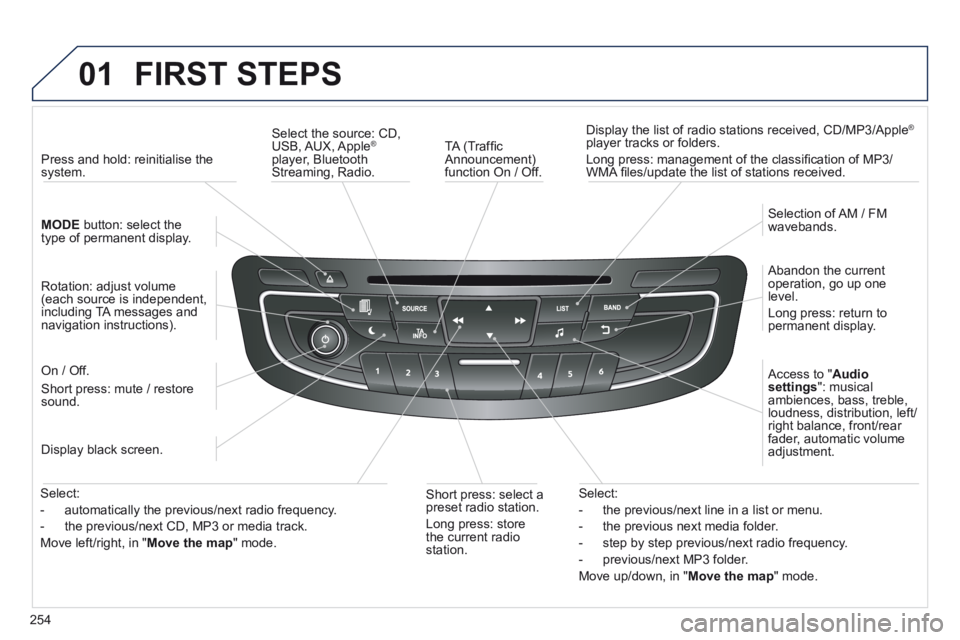

01 FIRST STEPS
TA (Traffi c Announcement) function On / Off.
Display the list of radio stations received, CD/MP3/Apple ®
player tracks or folders.
Long press: management of the classifi cation of MP3/WMA fi les/update the list of stations received.
Select the source: CD, USB, AUX, Apple ®
player, Bluetooth Streaming, Radio.
Access to " Audio settings ": musical ambiences, bass, treble, loudness, distribution, left/right balance, front/rear fader, automatic volume adjustment.
Abandon the current operation, go up one level.
Long press: return to permanent display.
Selection of AM / FM wavebands.
Display black screen.
MODE button: select the type of permanent display.
Short press: mute / restore sound.
Press and hold: reinitialise the system.
Short press: select a preset radio station.
Long press: store the current radio station.
Select:
- the previous/next line in a list or menu.
- the previous next media folder.
- step by step previous/next radio frequency.
- previous/next MP3 folder.
Move up/down, in " Move the map " mode.
Rotation: adjust volume (each source is independent, including TA messages and navigation instructions).
Select:
- automatically the previous/next radio frequency.
- the previous/next CD, MP3 or media track.
Move left/right, in " Move the map " mode.
On / Off.
