2014 Peugeot 508 Owner's Manual - RHD (UK, Australia)

10
239
Technical data
Diesel engine2.0 litre HDi 14 0 hp2.0 litre HDi 163 hp
Gearbox Manual (6-speed) Automatic (6-speed) Manual (6-speed)
Model code 8DRHR8 - 8ERHR8 8DRHF8 - 8ERHF8 8DRHHA - 8ERHHA 8DRHDA - 8DRHDA 8DRHH8 - 8ERHH8
Body Saloon SW Saloon SW Saloon SW
Cubic capacity (cc) 1 997 1 997
Bore x stroke (mm) 85 x 88 85 x 88
Max power: EU standard (kW) 10 0 103 10 0 120
Max power engine speed (rpm) 4 000 3 750
Max torque: EU standard (Nm) 320 340
Max torque engine speed (rpm) 2 000 2 000
Fuel Diesel
Catalytic converter yes
Particle emission filter yes no
Oil capacity (in litres)
Engine (with filter replacement) 5.25 5
Diesel engines and gearboxes

240
Technical data
Diesel engines and gearboxes
Diesel engine2.2 litre HDi 204 hp
Gearbox Automatic (6-speed)
Model code 8D4HLA - 8E4HLA
Body Saloon SW
Cubic capacity (cc) 2 179
Bore x stroke (mm) 85 x 96
Max power: EU standard (kW) 150
Max power engine speed (rpm) 3 500
Max torque: EU standard (Nm) 450
Max torque engine speed (rpm) 2 000
Fuel Diesel
Catalytic converter yes
Particle emissions filter yes
Oil capacity (in litres)
Engine (with filter replacement) 5.25

10
241
Technical data
Blue HDi Diesel engines and gearboxes
Diesel engine2.0 litre Blue HDi 1502.0 litre Blue HDi 180
Gearbox Manual (6-speed) Automatic (6-speed)
Model code 8DAHXM/S 8EAHXM/S 8DAHWT/S 8 E A HW T/S
Body Saloon SW Saloon SW
Cubic capacity (cc) 1 997 1 997
Bore x stroke (mm) 85 x 88 85 x 88
Max power: EU standard (kW) 11 0 13 3
Max power engine speed (rpm) 4 000 3 750
Max torque: EU standard (Nm) 370 400
Max torque engine speed (rpm) 2 000 2 000
Fuel Diesel Diesel
Catalytic converter yes yes
Particle emissions filter yes yes
Oil capacity (in litres)
Engine (with filter replacement) - -

242
Technical data
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
Diesel weights and towed loads (in kg)
Diesel engine1.6 litre HDi 110 h p
Gearbox Manual (5-speed) Electronic gear control (6-speed)
Model code 8D9HL0 - 8E9HL0 8D9HR8/PS - 8E9HR8/PS
Body Saloon SW Saloon SW
- Unladen weight 1 405 1 425 1 410 1 430
- Kerb weight * 1 480 1 500 1 485 1 505
- Gross vehicle weight (GV W) 1 975 2 080 2 005 2 100
- Gross train weight (GTW) on a 12% gradient 3 175 3 180 3 205 3 200
- Braked trailer (within GTW limit) on a 10% or 12% gradient 1 200 1 100 1 200 1 100
- Braked trailer ** (with load transfer with the GTW limit) 1 475 1 375 1 475 1 375
- Unbraked trailer 74 0 74 5 74 0 750
- Recommended nose weight 75

10
243
Technical data
Diesel engine2.0 litre HDi 14 0 hp2.0 litre HDi 163 hp
Gearbox Manual (6-speed) Automatic (6-speed) Manual (6-speed)
Model code 8DRHR8 - 8ERHR8 8DRHF8 - 8ERHF8 8DRHHA - 8ERHHA 8DRHDA - 8ERHDA 8DRHH8 - 8ERHH8
Body Saloon SW Saloon SW Saloon SW
- Unladen weight 1 430 1 500 1 520 1 540 1 480 1 500
- Kerb weight * 1 505 1 575 1 595 1 615 1 555 1 575
- Gross vehicle weight (GV W) 2 065 2 140 2 105 2 180 2 075 2 140
- Gross train weight (GTW) on a 12% gradient 3 665 3 640 3 405 3 380 3 675 3 640
- Braked trailer (within GTW limit) on a 10% or 12% gradient 1 600 1 500 1 300 1 200 1 600 1 500
- Braked trailer ** (with load transfer with the GTW limit) 1 875 1 775 1 575 1 475 1 875 1 775
- Unbraked trailer 750 750
- Recommended nose weight 75 75
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
Diesel weights and towed loads (in kg)

244
Technical data
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
Diesel weights and towed loads (in kg)
Diesel engine2.2 litre HDi 204 hp
Gearbox Automatic (6-speed)
Model code 8D4HLA - 8E4HLA
Body Saloon SW
- Unladen weight 1 540 1 660
- Kerb weight * 1 615 1 735
- Gross vehicle weight (GV W) 2 155 2 280
- Gross train weight (GTW) on a 12% gradient 3 855 3 880
- Braked trailer (within GTW limit) on a 10% or 12% gradient 1 700 1 600
- Braked trailer ** (with load transfer with the GTW limit) 1 975 1 875
- Unbraked trailer 750
- Recommended nose weight 75

10
245
Technical data
Blue HDi Diesel weights and towed loads (in kg)
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
Diesel engine2.0 litre Blue HDi 1502.0 litre Blue HDi 180
Gearbox Manual (6-speed) Automatic (6-speed)
Model code 8DAHXM/S - 8EAHXM/S 8DAHWT/S - 8EAHWT/S
Body Saloon SW Saloon SW
- Unladen weight - - - -
- Kerb weight * - - - -
- Gross vehicle weight (GV W) - - - -
- Gross train weight (GTW) on a 12% gradient - - - -
- Braked trailer (within GTW limit) on a 10% or 12% gradient - - - -
- Braked trailer ** (with load transfer with the GTW limit) - - - -
- Unbraked trailer 750 750
- Recommended nose weight 75 75

246
Technical data
Saloon SW

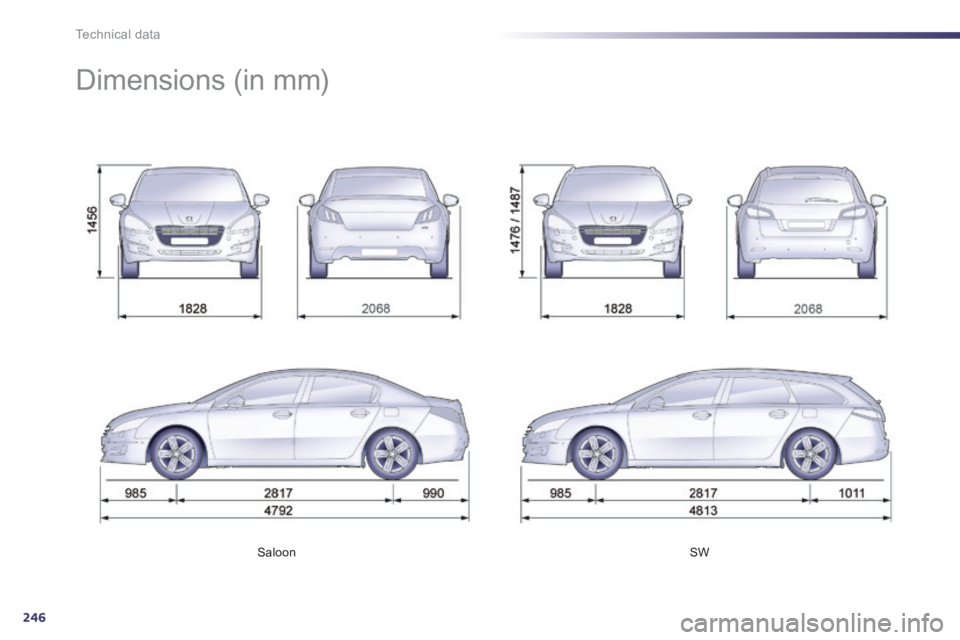

Dimensions (in mm)
