2014 Peugeot 508 Owner's Manual - RHD (UK, Australia)

8
215
Practical information

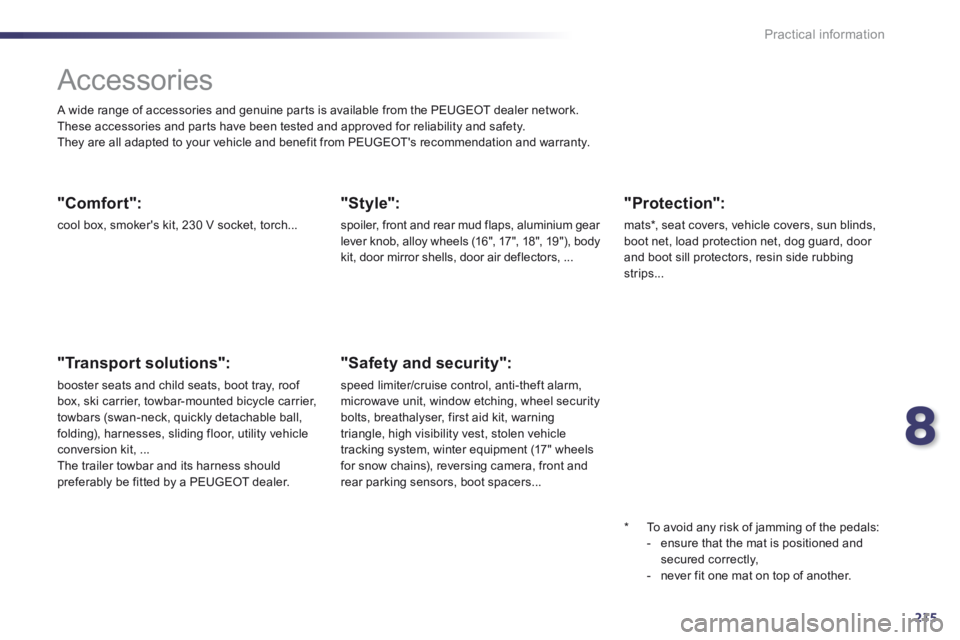

Accessories
A wide range of accessories and genuine parts is available from the PEUGEOT dealer network. These accessories and parts have been tested and approved for reliability and safety. They are all adapted to your vehicle and benefit from PEUGEOT's recommendation and warranty.
"Comfort":
cool box, smoker's kit, 230 V socket, torch...
"Transport solutions":
booster seats and child seats, boot tray, roof box, ski carrier, towbar-mounted bicycle carrier, towbars (swan-neck, quickly detachable ball, folding), harnesses, sliding floor, utility vehicle conversion kit, ... The trailer towbar and its harness should preferably be fitted by a PEUGEOT dealer.
"Style":
spoiler, front and rear mud flaps, aluminium gear lever knob, alloy wheels (16", 17", 18", 19"), body kit, door mirror shells, door air deflectors, ...
* To avoid any risk of jamming of the pedals: - ensure that the mat is positioned and secured correctly, - never fit one mat on top of another.
"Safety and security":
speed limiter/cruise control, anti-theft alarm, microwave unit, window etching, wheel security bolts, breathalyser, first aid kit, warning triangle, high visibility vest, stolen vehicle tracking system, winter equipment (17" wheels for snow chains), reversing camera, front and rear parking sensors, boot spacers...
"Protection":
mats * , seat covers, vehicle covers, sun blinds, boot net, load protection net, dog guard, door and boot sill protectors, resin side rubbing strips...

216
Practical information

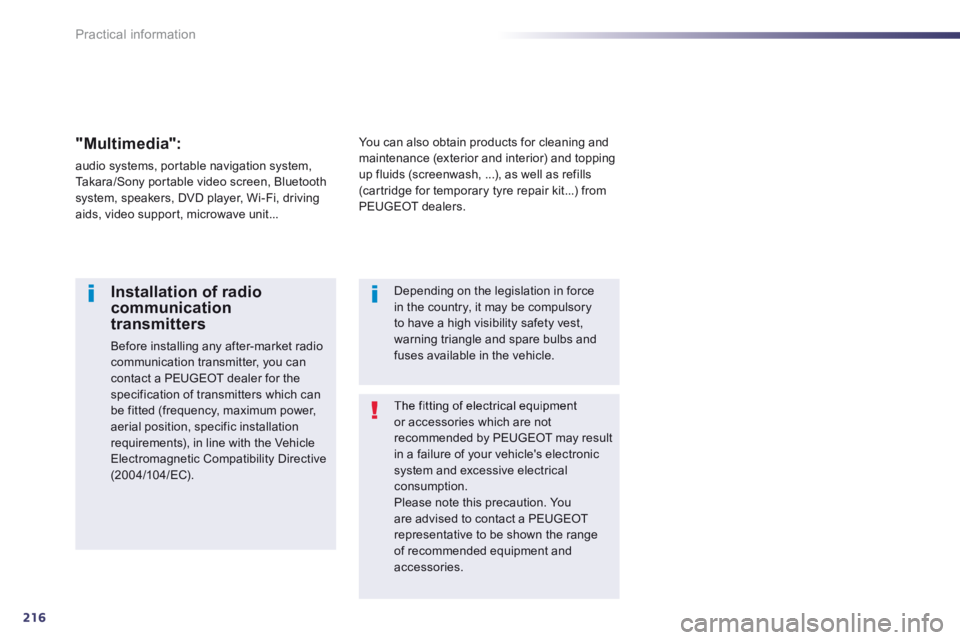

The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system and excessive electrical consumption. Please note this precaution. You are advised to contact a PEUGEOT representative to be shown the range of recommended equipment and accessories.
Installation of radio communication transmitters
Before installing any after-market radio communication transmitter, you can contact a PEUGEOT dealer for the specification of transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive (2004/104/EC).
Depending on the legislation in force in the country, it may be compulsory to have a high visibility safety vest, warning triangle and spare bulbs and fuses available in the vehicle.
You can also obtain products for cleaning and maintenance (exterior and interior) and topping up fluids (screenwash, ...), as well as refills (cartridge for temporary tyre repair kit...) from PEUGEOT dealers.
"Multimedia":
audio systems, portable navigation system, Takara/Sony portable video screen, Bluetooth system, speakers, DVD player, Wi-Fi, driving aids, video support, microwave unit...

9
217
Checks

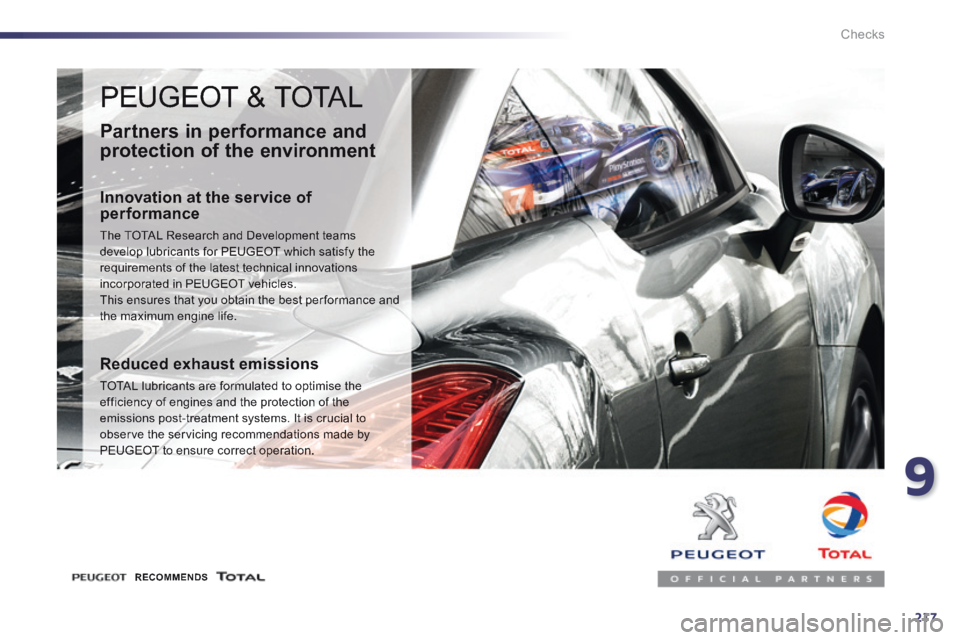

PEUGEOT & TOTAL
Partners in performance and
protection of the environment
Innovation at the service of performance
The TOTAL Research and Development teams develop lubricants for PEUGEOT which satisfy the requirements of the latest technical innovations incorporated in PEUGEOT vehicles. This ensures that you obtain the best per formance and the maximum engine life.
Reduced exhaust emissions
TOTAL lubricants are formulated to optimise the efficiency of engines and the protection of the emissions post-treatment systems. It is crucial to
observe the servicing recommendations made by PEUGEOT to ensure correct operation.
RECOMMENDS RECOMMENDS

218
Checks

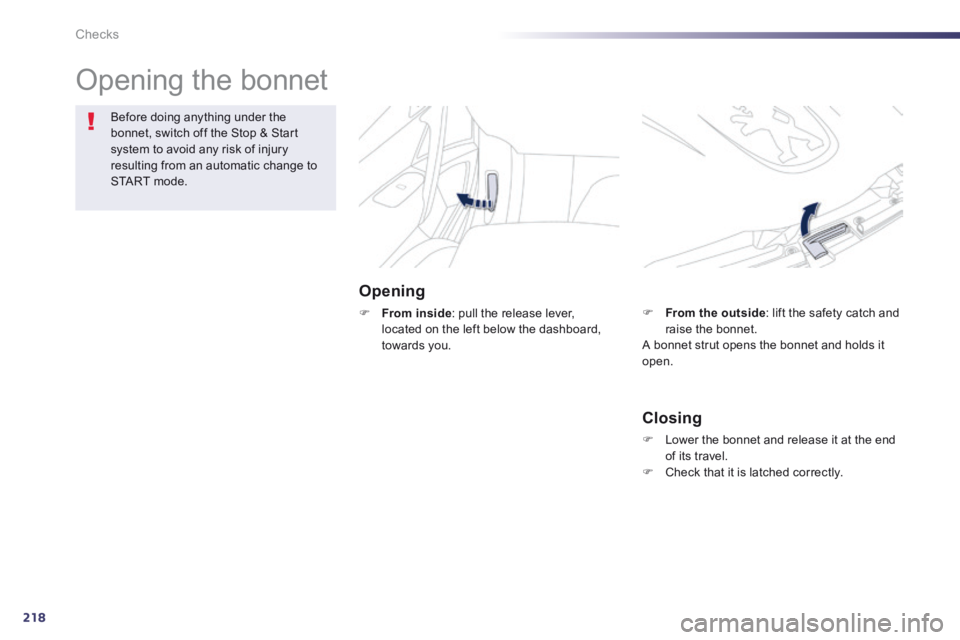

Opening the bonnet
Opening
 From inside : pull the release lever, located on the left below the dashboard, towards you.
Before doing anything under the bonnet, switch off the Stop & Start system to avoid any risk of injury resulting from an automatic change to START mode.
Closing
 Lower the bonnet and release it at the end of its travel.  Check that it is latched correctly.
 From the outside : lift the safety catch and raise the bonnet. A bonnet strut opens the bonnet and holds it open.

9
219
Checks
On vehicle fitted with HDi engines, the fuel system must be primed if you run out of fuel; refer to the corresponding engine compartment view.

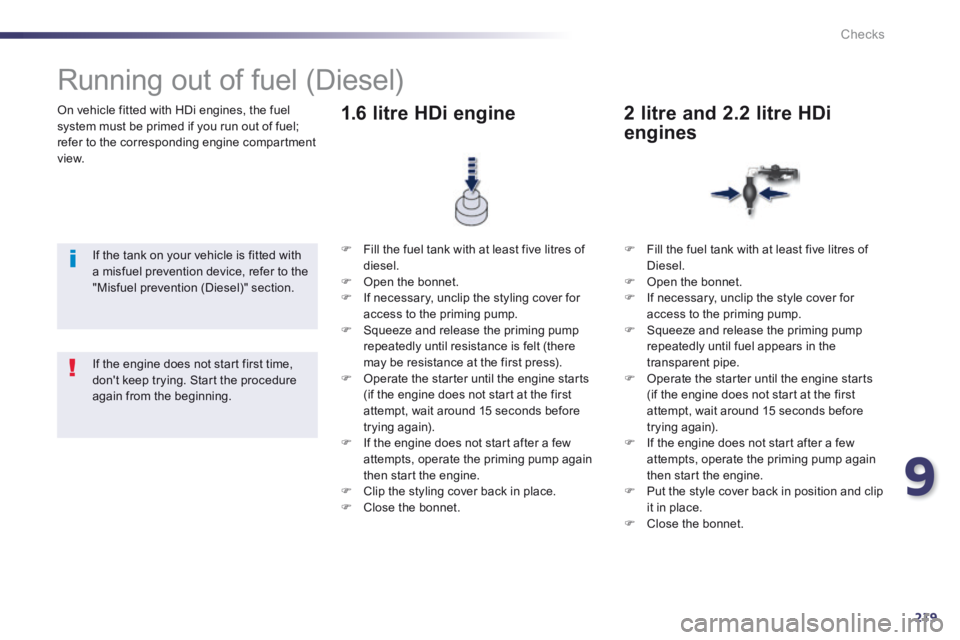

Running out of fuel (Diesel)
If the tank on your vehicle is fitted with a misfuel prevention device, refer to the "Misfuel prevention (Diesel)" section.
 Fill the fuel tank with at least five litres of diesel.  Open the bonnet.  If necessary, unclip the styling cover for access to the priming pump.  Squeeze and release the priming pump repeatedly until resistance is felt (there may be resistance at the first press).  Operate the starter until the engine starts (if the engine does not start at the first attempt, wait around 15 seconds before trying again).  If the engine does not start after a few attempts, operate the priming pump again then start the engine.  Clip the styling cover back in place.  Close the bonnet.
1.6 litre HDi engine
 Fill the fuel tank with at least five litres of Diesel.  Open the bonnet.  If necessary, unclip the style cover for access to the priming pump.  Squeeze and release the priming pump repeatedly until fuel appears in the transparent pipe.  Operate the starter until the engine starts (if the engine does not start at the first attempt, wait around 15 seconds before trying again).  If the engine does not start after a few attempts, operate the priming pump again then start the engine.  Put the style cover back in position and clip it in place.  Close the bonnet.
2 litre and 2.2 litre HDi
engines
If the engine does not start first time, don't keep trying. Start the procedure again from the beginning.

220Checks

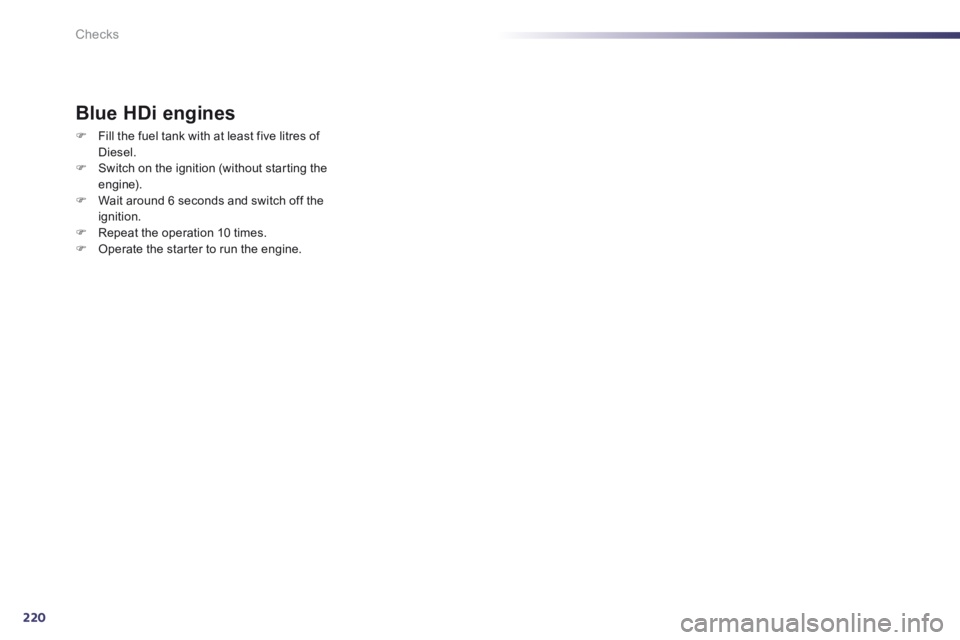

Blue HDi engines
 Fill the fuel tank with at least five litres of Diesel.  Switch on the ignition (without starting the engine).  Wait around 6 seconds and switch off the ignition.  Repeat the operation 10 times.  Operate the starter to run the engine.

9
221
Checks
The various caps and covers allow access for checking the levels of the various fluids and for replacing certain components.

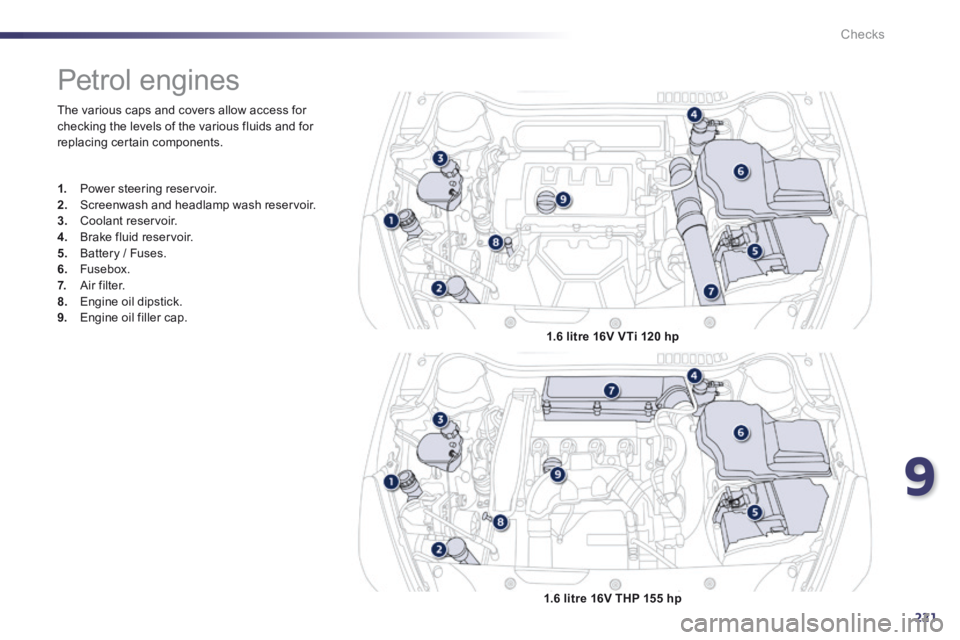

Petrol engines
1. Power steering reservoir. 2. Screenwash and headlamp wash reservoir. 3. Coolant reservoir.
4. Brake fluid reservoir. 5. Battery / Fuses. 6. Fusebox. 7. Air filter. 8. Engine oil dipstick. 9. Engine oil filler cap.
1.6 litre 16V VTi 120 hp
1.6 litre 16V THP 155 hp

222
Checks
The various caps and covers allow access for checking the levels of the various fluids, for replacing certain components and for priming the fuel system.
* According to engine.

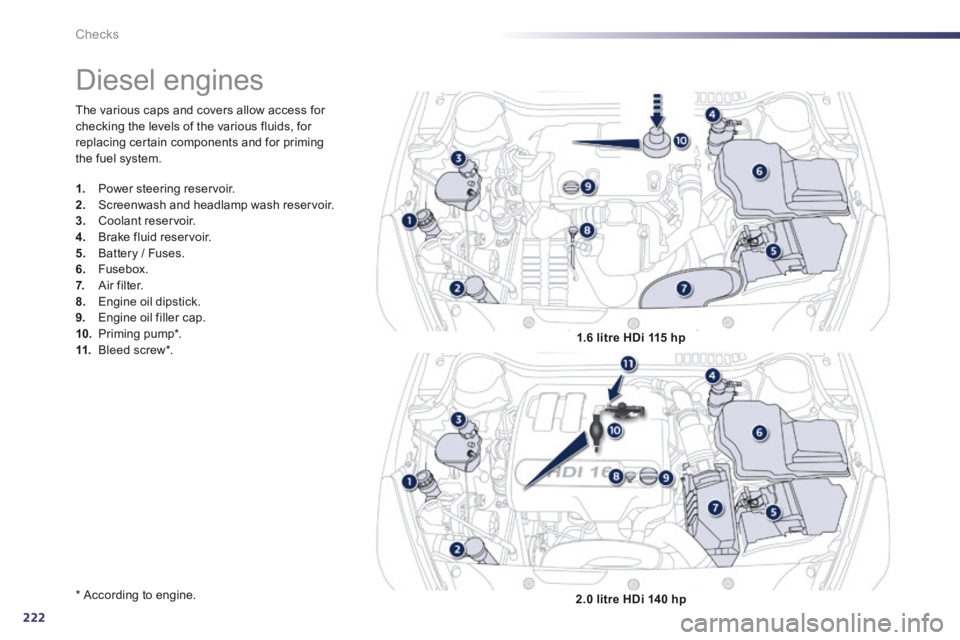

Diesel engines
1. Power steering reservoir. 2. Screenwash and headlamp wash reservoir. 3. Coolant reservoir.
4. Brake fluid reservoir. 5. Battery / Fuses. 6. Fusebox. 7. Air filter. 8. Engine oil dipstick. 9. Engine oil filler cap. 10. Priming pump * . 11. Bleed screw * . 1.6 litre HDi 115 hp
2.0 litre HDi 140 hp
