2014 Peugeot 508 Owner's Manual - RHD (UK, Australia)

2
55
Access

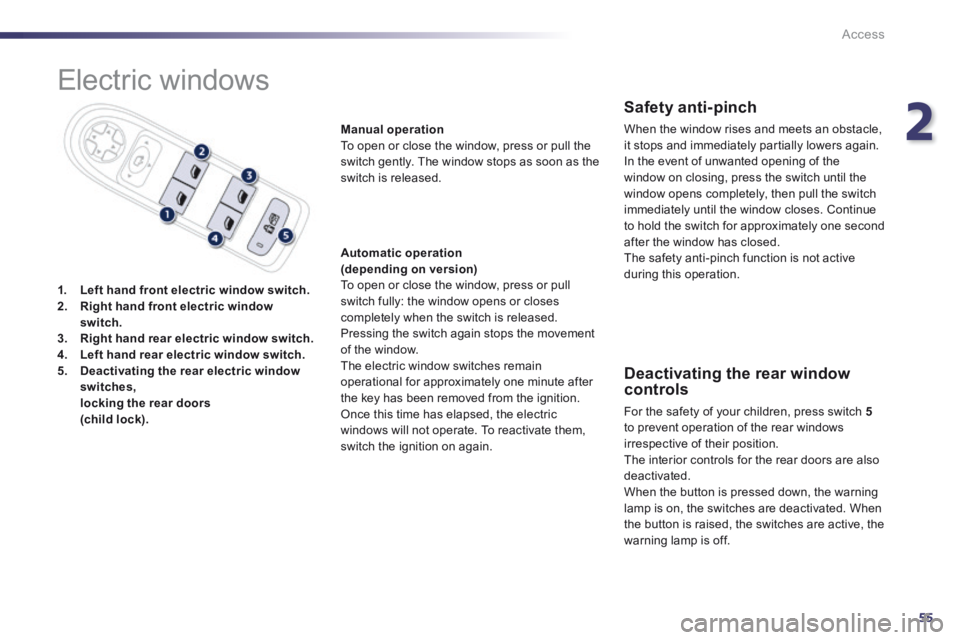

Electric windows
1. Left hand front electric window switch.2. Right hand front electric window switch.3. Right hand rear electric window switch.4. Left hand rear electric window switch.5. Deactivating the rear electric window switches, locking the rear doors (child lock).
Manual operation To open or close the window, press or pull the switch gently. The window stops as soon as the switch is released.
Automatic operation (depending on version) To open or close the window, press or pull switch fully: the window opens or closes completely when the switch is released. Pressing the switch again stops the movement of the window. The electric window switches remain operational for approximately one minute after the key has been removed from the ignition. Once this time has elapsed, the electric
windows will not operate. To reactivate them, switch the ignition on again.
Safety anti-pinch
When the window rises and meets an obstacle, it stops and immediately partially lowers again. In the event of unwanted opening of the window on closing, press the switch until the window opens completely, then pull the switch immediately until the window closes. Continue to hold the switch for approximately one second after the window has closed. The safety anti-pinch function is not active during this operation.
Deactivating the rear window controls
For the safety of your children, press switch 5to prevent operation of the rear windows
irrespective of their position. The interior controls for the rear doors are also deactivated. When the button is pressed down, the warning lamp is on, the switches are deactivated. When the button is raised, the switches are active, the warning lamp is off.

56
Access

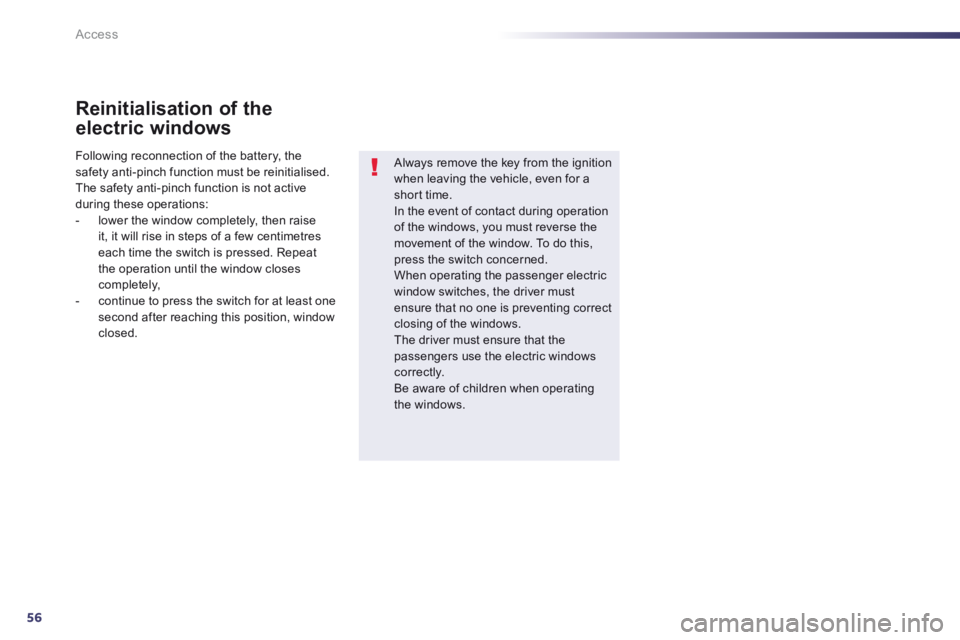

Reinitialisation of the
electric windows
Always remove the key from the ignition when leaving the vehicle, even for a short time. In the event of contact during operation of the windows, you must reverse the movement of the window. To do this, press the switch concerned. When operating the passenger electric window switches, the driver must ensure that no one is preventing correct closing of the windows. The driver must ensure that the passengers use the electric windows c o r r e c t l y. Be aware of children when operating the windows.
Following reconnection of the battery, the safety anti-pinch function must be reinitialised. The safety anti-pinch function is not active during these operations: - lower the window completely, then raise it, it will rise in steps of a few centimetres each time the switch is pressed. Repeat the operation until the window closes completely, - continue to press the switch for at least one second after reaching this position, window closed.

2
57
Access

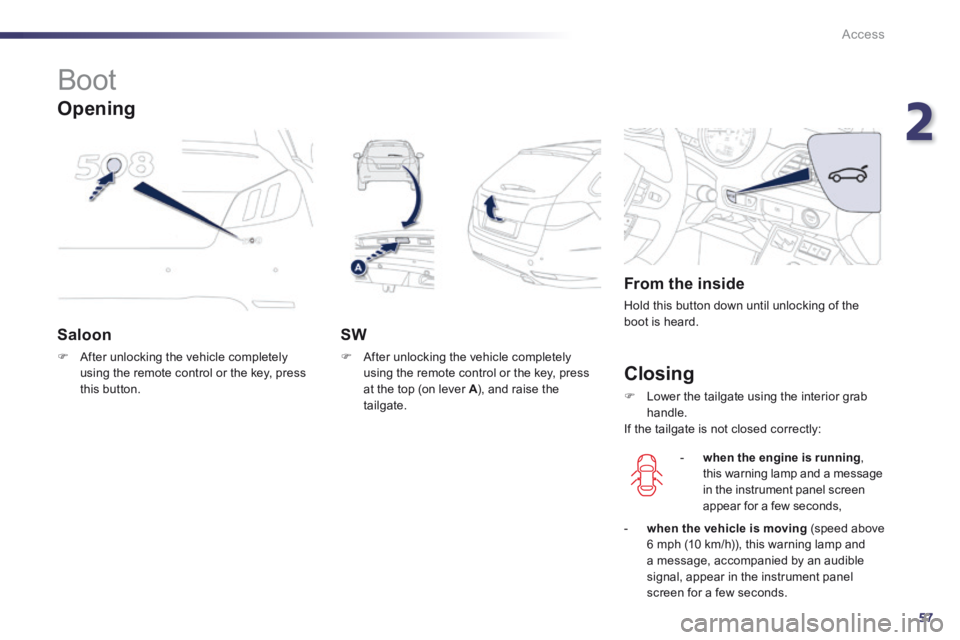

Boot
Saloon
 After unlocking the vehicle completely using the remote control or the key, press this button.
SW
 After unlocking the vehicle completely using the remote control or the key, press at the top (on lever A ), and raise the A ), and raise the Atailgate.
From the inside
Hold this button down until unlocking of the boot is heard.
Opening
Closing
 Lower the tailgate using the interior grab handle. If the tailgate is not closed correctly:
- when the engine is running , this warning lamp and a message in the instrument panel screen appear for a few seconds,
- when the vehicle is moving (speed above
6 mph (10 km/h)), this warning lamp and a message, accompanied by an audible signal, appear in the instrument panel screen for a few seconds.

58
Access

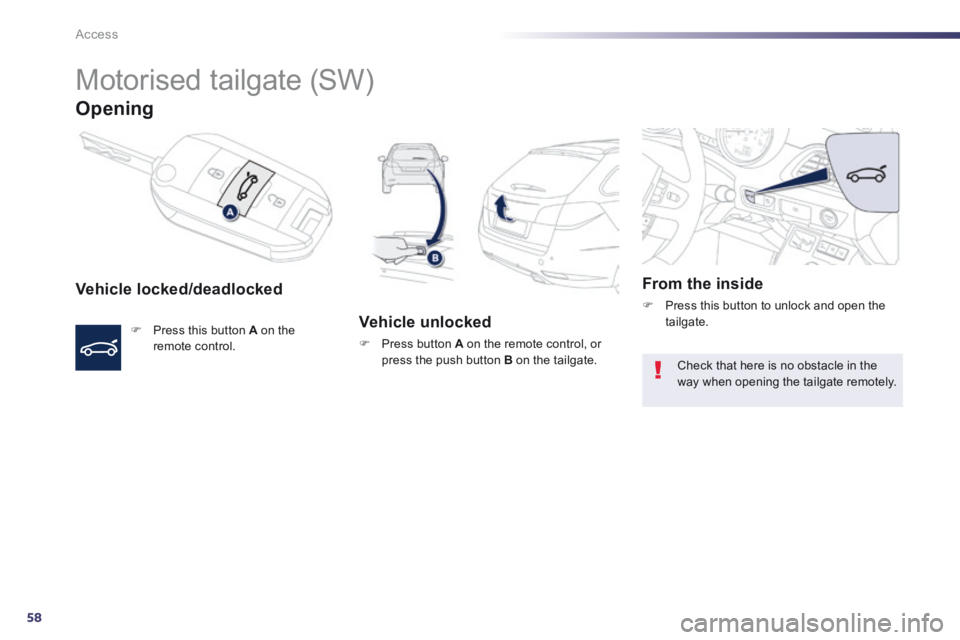

Motorised tailgate (SW)
Opening
Vehicle locked/deadlocked
 Press this button A on the remote control.
Vehicle unlocked
 Press button A on the remote control, or press the push button B on the tailgate.
From the inside
 Press this button to unlock and open the tailgate.
Check that here is no obstacle in the way when opening the tailgate remotely.

2
59
Access
Closing
 Press this button C to close the tailgate electrically.
Do not hinder closing of the tailgate: any obstacle to closing causes the tailgate to stop and rise a few centimetres automatically. To close the tailgate manually: move the tailgate slightly up then down to disengage it from its drive then lower it until closed.
To avoid the risk of injur y, ensure that no one is close to the rear of the vehicle when opening or closing the tailgate.
While electric opening or closing of the tailgate is in progress, you can stop its movement at any time:  press the interior button or button A on the remote control or button B or C on the tailgate.
Stopping the opening or
closing
Adjusting the opening
height
The maximum opening height of the tailgate can be set and memorised (restricted overhead clearance, ...). This memorisation is done in two steps, by successive presses on button C :
- during opening, a first press stops the tailgate at the desired height, - a second maintained press memorises the position of the tailgate; an audible signal confirms the memorisation. To delete this memorisation, make a new maintained press until the audible signal is heard.
"Boot open" warning
With the engine running or when the vehicle is moving, if the tailgate is not properly closed, a message accompanied by an audible signal (from 6 mph (10 km/h)) is displayed in the instrument panel screen.

60
Access

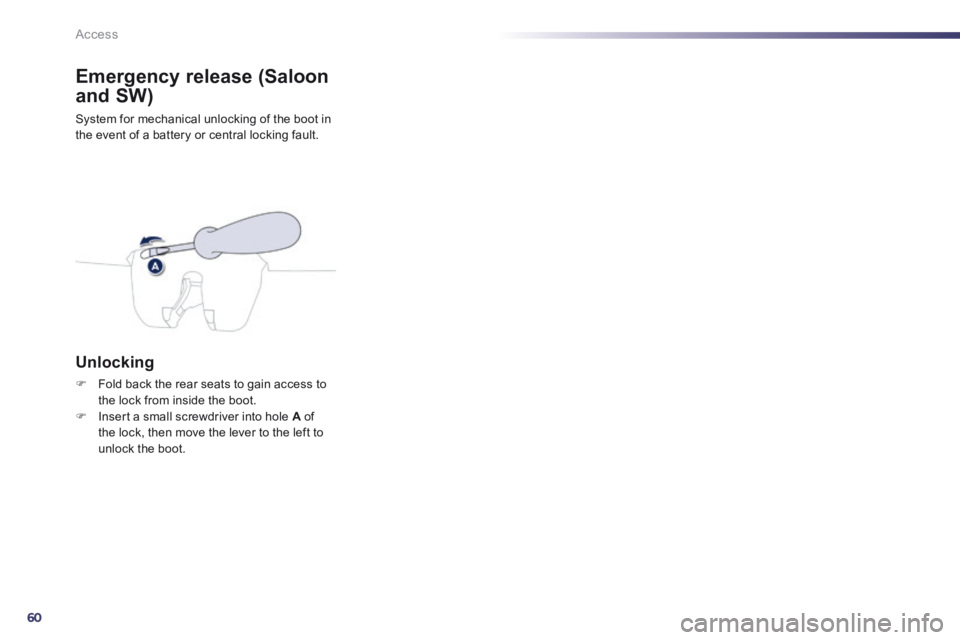

Emergency release (Saloon
and SW)
System for mechanical unlocking of the boot in the event of a battery or central locking fault.
Unlocking
 Fold back the rear seats to gain access to the lock from inside the boot.  Insert a small screwdriver into hole A of
the lock, then move the lever to the left to unlock the boot.

2
61
Access

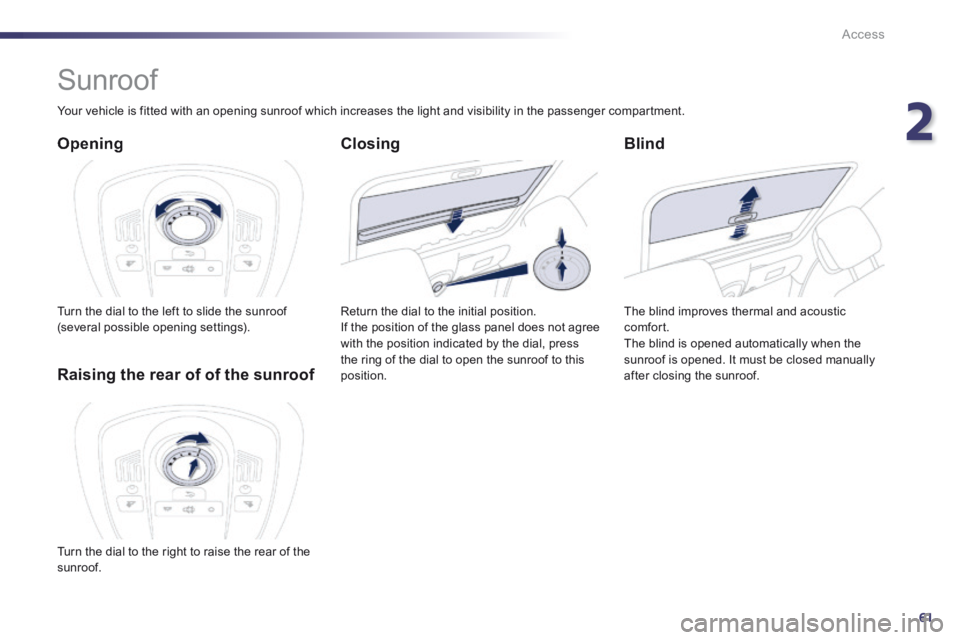

Sunroof
Opening
Turn the dial to the left to slide the sunroof (several possible opening settings).
Blind
The blind improves thermal and acoustic comfort. The blind is opened automatically when the sunroof is opened. It must be closed manually after closing the sunroof. Raising the rear of of the sunroof
Your vehicle is fitted with an opening sunroof which increases the light and visibility in the passenger compartment.
Return the dial to the initial position. If the position of the glass panel does not agree with the position indicated by the dial, press the ring of the dial to open the sunroof to this position.
Closing
Turn the dial to the right to raise the rear of the sunroof.

62
Access

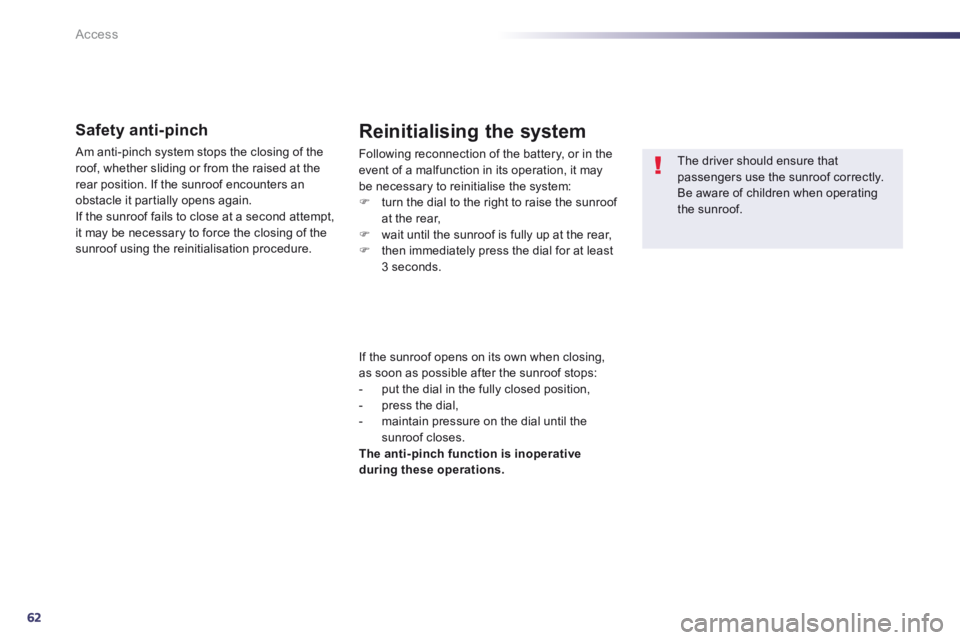

Safety anti-pinch
Am anti-pinch system stops the closing of the roof, whether sliding or from the raised at the rear position. If the sunroof encounters an obstacle it partially opens again. If the sunroof fails to close at a second attempt, it may be necessary to force the closing of the sunroof using the reinitialisation procedure.
Reinitialising the system
Following reconnection of the battery, or in the event of a malfunction in its operation, it may be necessary to reinitialise the system:  turn the dial to the right to raise the sunroof at the rear,  wait until the sunroof is fully up at the rear,  then immediately press the dial for at least 3 seconds.
If the sunroof opens on its own when closing, as soon as possible after the sunroof stops: - put the dial in the fully closed position, - press the dial, - maintain pressure on the dial until the sunroof closes. The anti-pinch function is inoperative during these operations.
The driver should ensure that passengers use the sunroof correctly. Be aware of children when operating the sunroof.
