2014 Peugeot 508 Owner's Manual - RHD (UK, Australia)

3
95
Comfort

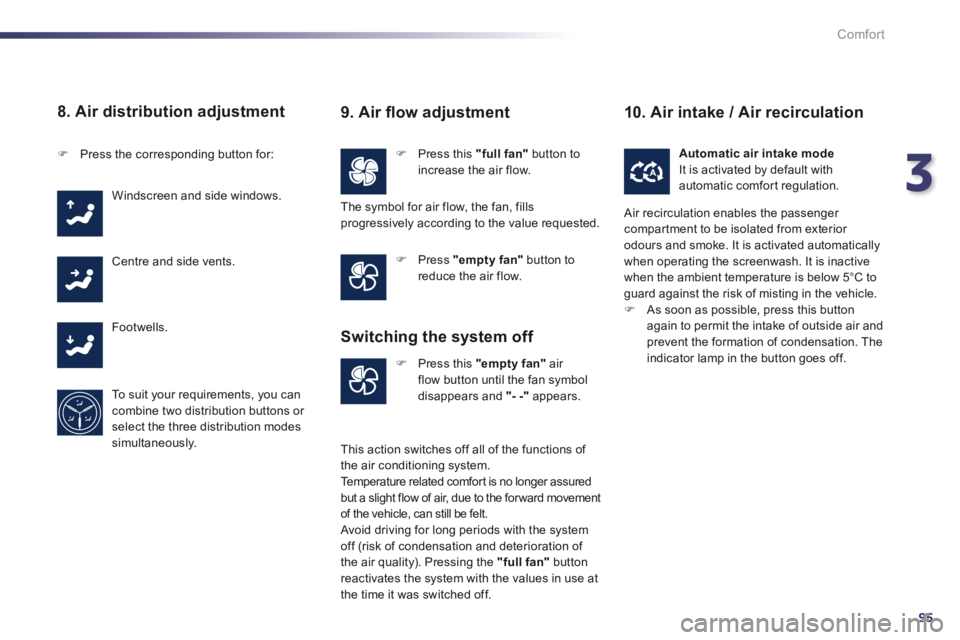

8. Air distribution adjustment
 Press this "full fan" button to increase the air flow.  Press the corresponding button for:
Windscreen and side windows.
Centre and side vents.
Footwells.
To suit your requirements, you can combine two distribution buttons or select the three distribution modes
simultaneously.
 Press "empty fan" button to reduce the air flow.
 Press this "empty fan" air flow button until the fan symbol disappears and "- -" appears.
Automatic air intake mode It is activated by default with automatic comfort regulation.
9. Air fl ow adjustment
The symbol for air flow, the fan, fills progressively according to the value requested.
Switching the system off
This action switches off all of the functions of the air conditioning system. Temperature related comfort is no longer assured but a slight flow of air, due to the for ward movement of the vehicle, can still be felt. Avoid driving for long periods with the system off (risk of condensation and deterioration of the air quality). Pressing the "full fan" button reactivates the system with the values in use at the time it was switched off.
10. Air intake / Air recirculation
Air recirculation enables the passenger compartment to be isolated from exterior odours and smoke. It is activated automatically when operating the screenwash. It is inactive when the ambient temperature is below 5°C to guard against the risk of misting in the vehicle.  As soon as possible, press this button again to permit the intake of outside air and prevent the formation of condensation. The indicator lamp in the button goes off.

96
Comfort

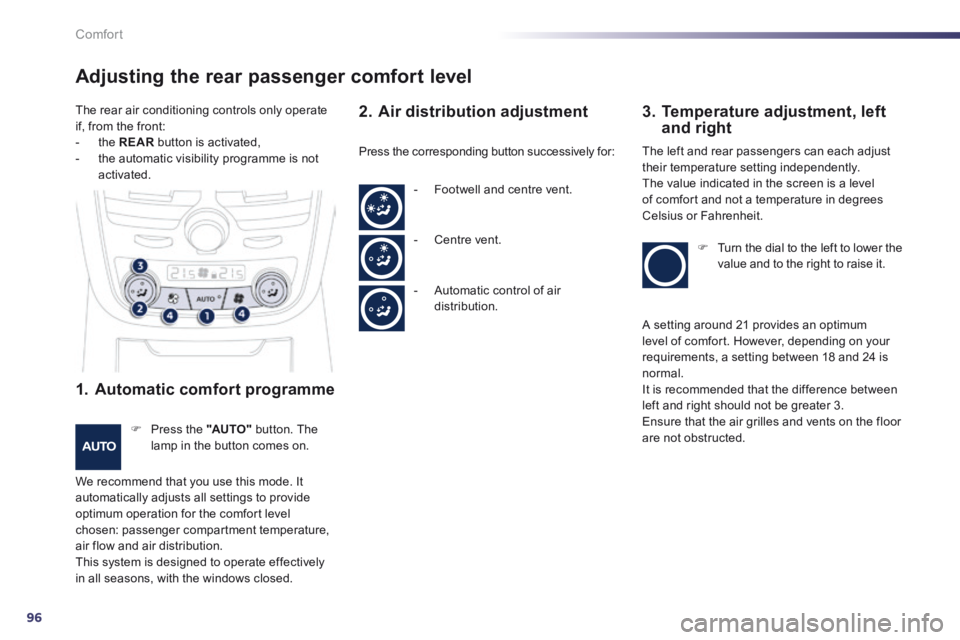

Adjusting the rear passenger comfort level
1. Automatic comfort programme
 Press the "AUTO" button. The
lamp in the button comes on.
We recommend that you use this mode. It automatically adjusts all settings to provide optimum operation for the comfort level chosen: passenger compartment temperature, air flow and air distribution. This system is designed to operate effectively in all seasons, with the windows closed.
2. Air distribution adjustment 3. Temperature adjustment, left and right
Press the corresponding button successively for: The left and rear passengers can each adjust their temperature setting independently. The value indicated in the screen is a level of comfort and not a temperature in degrees Celsius or Fahrenheit.
 Turn the dial to the left to lower the value and to the right to raise it.
- Footwell and centre vent.
- Centre vent.
- Automatic control of air distribution.
The rear air conditioning controls only operate if, from the front: - the REAR button is activated, - the automatic visibility programme is not activated.
A setting around 21 provides an optimum level of comfort. However, depending on your requirements, a setting between 18 and 24 is normal. It is recommended that the difference between left and right should not be greater 3. Ensure that the air grilles and vents on the floor are not obstructed.

3
97
Comfort
4. Air fl ow adjustment
 Press this "full fan" button to increase the air flow.
 Press this "empty fan" button to reduce the air flow.
The air flow symbol, the fan, fills progressively as the fan speed increases.
Deactivating the system
 Press the "empty fan" air flow button until the fan disappears and "- -" appears.
This action stops all of the functions of the air conditioning system. Thermal comfort is no longer controlled. However, a slight air flow may still be felt, resulting from the for ward movement of the vehicle.

98
Comfort
 Switch off the demist /defrost of the rear screen and door mirrors as soon as it is no longer needed as lower current consumption results in reduced fuel consumption.

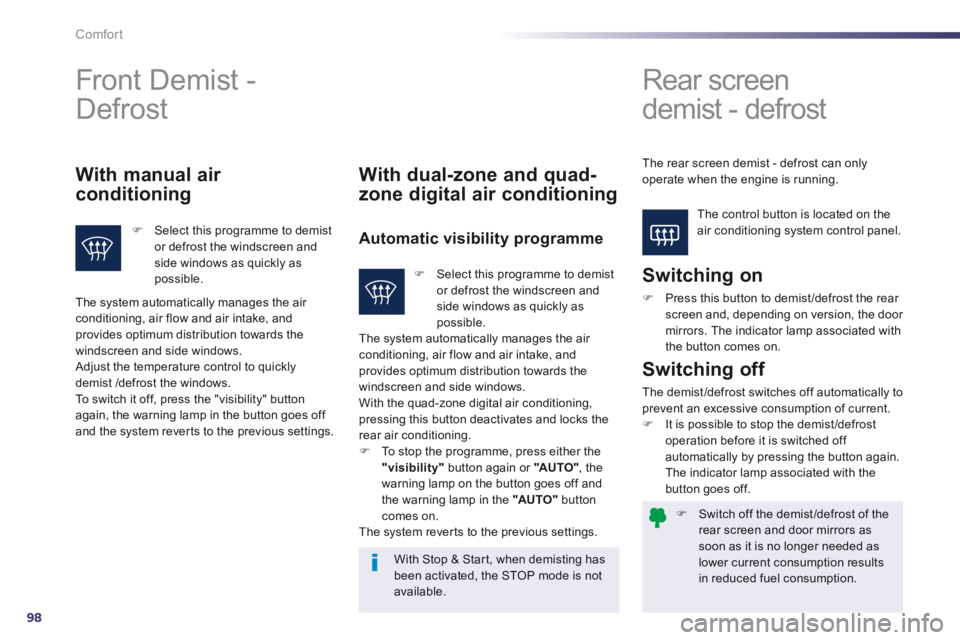

Front Demist -
Defrost Rear screen
demist - defrost
The control button is located on the air conditioning system control panel.
With manual air
conditioning
 Select this programme to demist or defrost the windscreen and side windows as quickly as possible.
With dual-zone and quad-
zone digital air conditioning
Automatic visibility programme
Switching on
 Press this button to demist /defrost the rear screen and, depending on version, the door mirrors. The indicator lamp associated with the button comes on.
With Stop & Start, when demisting has been activated, the STOP mode is not available.
Switching off
The demist /defrost switches off automatically to prevent an excessive consumption of current.  It is possible to stop the demist /defrost operation before it is switched off automatically by pressing the button again. The indicator lamp associated with the button goes off.
The system automatically manages the air conditioning, air flow and air intake, and provides optimum distribution towards the windscreen and side windows. Adjust the temperature control to quickly demist /defrost the windows. To switch it off, press the "visibility" button again, the warning lamp in the button goes off and the system reverts to the previous settings.
 Select this programme to demist or defrost the windscreen and side windows as quickly as possible. The system automatically manages the air conditioning, air flow and air intake, and provides optimum distribution towards the windscreen and side windows. With the quad-zone digital air conditioning, pressing this button deactivates and locks the rear air conditioning.  To stop the programme, press either the "visibility" button again or "AUTO" , the warning lamp on the button goes off and the warning lamp in the "AUTO" button comes on. The system reverts to the previous settings.
The rear screen demist - defrost can only operate when the engine is running.

3
99
Comfort

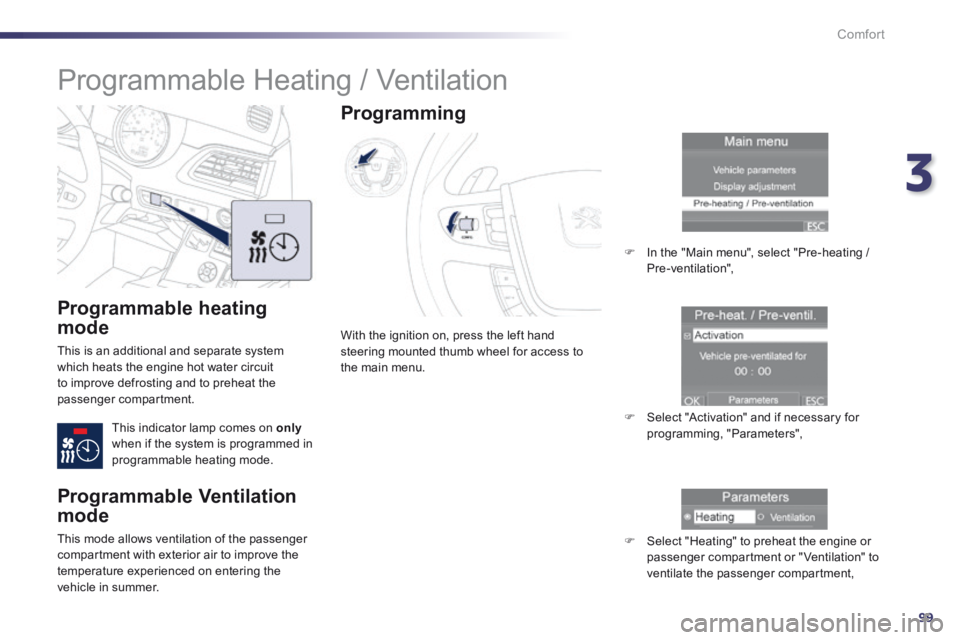

Programmable heating
mode
This is an additional and separate system which heats the engine hot water circuit to improve defrosting and to preheat the passenger compartment.
This indicator lamp comes on onlywhen if the system is programmed in programmable heating mode.
With the ignition on, press the left hand steering mounted thumb wheel for access to the main menu.
Programming
 In the "Main menu", select "Pre-heating / Pre-ventilation",
 Select "Activation" and if necessary for programming, "Parameters",
 Select "Heating" to preheat the engine or passenger compartment or "Ventilation" to ventilate the passenger compartment,
Programmable Heating / Ventilation
Programmable Ventilation
mode
This mode allows ventilation of the passenger compartment with exterior air to improve the temperature experienced on entering the
vehicle in summer.

100
Comfort

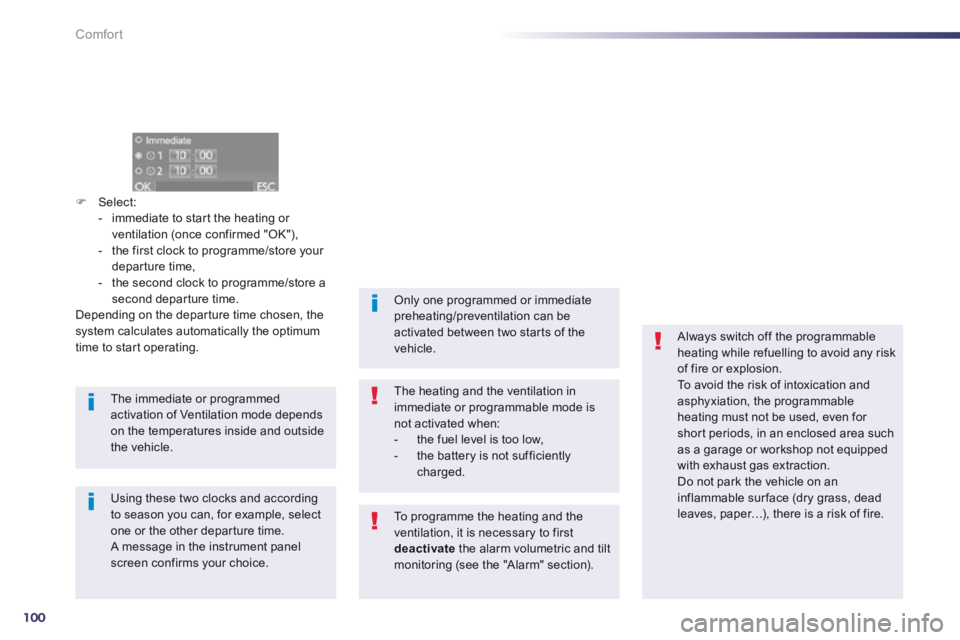

 Select: - immediate to start the heating or ventilation (once confirmed "OK"), - the first clock to programme/store your departure time, - the second clock to programme/store a second departure time. Depending on the departure time chosen, the system calculates automatically the optimum time to start operating.
The immediate or programmed activation of Ventilation mode depends on the temperatures inside and outside the vehicle.
Always switch off the programmable heating while refuelling to avoid any risk of fire or explosion. To avoid the risk of intoxication and asphyxiation, the programmable heating must not be used, even for
short periods, in an enclosed area such as a garage or workshop not equipped with exhaust gas extraction. Do not park the vehicle on an inflammable sur face (dry grass, dead leaves, paper…), there is a risk of fire. Using these two clocks and according to season you can, for example, select one or the other departure time. A message in the instrument panel screen confirms your choice.
Only one programmed or immediate preheating/preventilation can be activated between two starts of the vehicle.
The heating and the ventilation in immediate or programmable mode is not activated when: - the fuel level is too low, - the battery is not sufficiently charged.
To programme the heating and the ventilation, it is necessary to first deactivate the alarm volumetric and tilt monitoring (see the "Alarm" section).

4
101
Driving

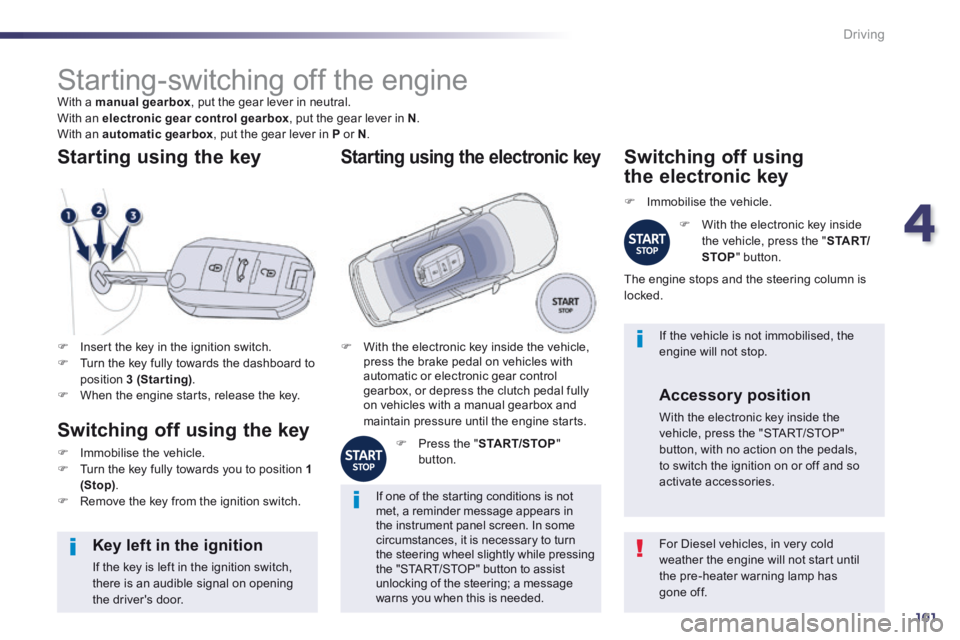

Starting-switching off the engine With a manual gearbox , put the gear lever in neutral. With an electronic gear control gearbox , put the gear lever in N . With an automatic gearbox , put the gear lever in P or N .
 Insert the key in the ignition switch.  Turn the key fully towards the dashboard to position 3 (Starting) .  When the engine starts, release the key.
Starting using the key
Switching off using the key
 Immobilise the vehicle.  Turn the key fully towards you to position 1 (Stop) .  Remove the key from the ignition switch.
For Diesel vehicles, in very cold weather the engine will not start until the pre-heater warning lamp has gone off.
Key left in the ignition
If the key is left in the ignition switch, there is an audible signal on opening the driver's door.
If one of the starting conditions is not met, a reminder message appears in the instrument panel screen. In some circumstances, it is necessary to turn the steering wheel slightly while pressing the "START/STOP" button to assist unlocking of the steering; a message warns you when this is needed.
If the vehicle is not immobilised, the engine will not stop.  With the electronic key inside the vehicle, press the brake pedal on vehicles with automatic or electronic gear control gearbox, or depress the clutch pedal fully on vehicles with a manual gearbox and maintain pressure until the engine starts.
Starting using the electronic key
 Press the " START/STOP " button.
Switching off using
the electronic key
 Immobilise the vehicle.
 With the electronic key inside the vehicle, press the " S TA R T/STOP " button.
The engine stops and the steering column is locked.
Accessory position
With the electronic key inside the vehicle, press the "START/STOP" button, with no action on the pedals, to switch the ignition on or off and so activate accessories.

102
Driving

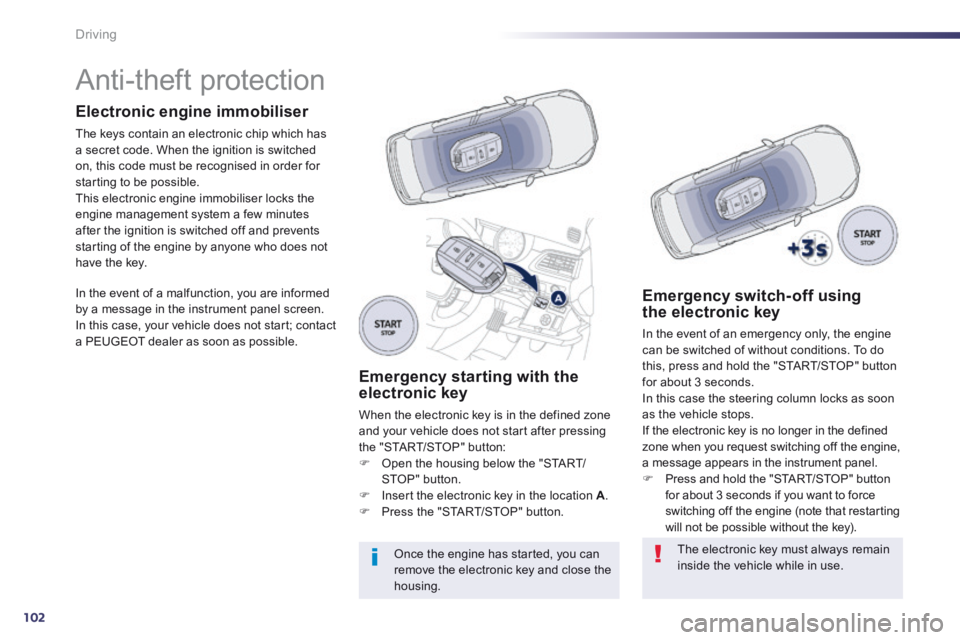

Anti-theft protection
Electronic engine immobiliser
The keys contain an electronic chip which has a secret code. When the ignition is switched on, this code must be recognised in order for starting to be possible. This electronic engine immobiliser locks the engine management system a few minutes after the ignition is switched off and prevents starting of the engine by anyone who does not have the key.
In the event of a malfunction, you are informed by a message in the instrument panel screen. In this case, your vehicle does not start; contact a PEUGEOT dealer as soon as possible.
Emergency starting with the electronic key
When the electronic key is in the defined zone and your vehicle does not start after pressing the "START/STOP" button:  Open the housing below the "START/STOP" button.  Insert the electronic key in the location A .  Press the "START/STOP" button.
Once the engine has started, you can remove the electronic key and close the housing.
Emergency switch-off using the electronic key
In the event of an emergency only, the engine can be switched of without conditions. To do this, press and hold the "START/STOP" button for about 3 seconds. In this case the steering column locks as soon as the vehicle stops. If the electronic key is no longer in the defined zone when you request switching off the engine, a message appears in the instrument panel.  Press and hold the "START/STOP" button for about 3 seconds if you want to force switching off the engine (note that restarting will not be possible without the key).
The electronic key must always remain inside the vehicle while in use.
