2014 Peugeot 508 Owner's Manual - RHD (UK, Australia)

.

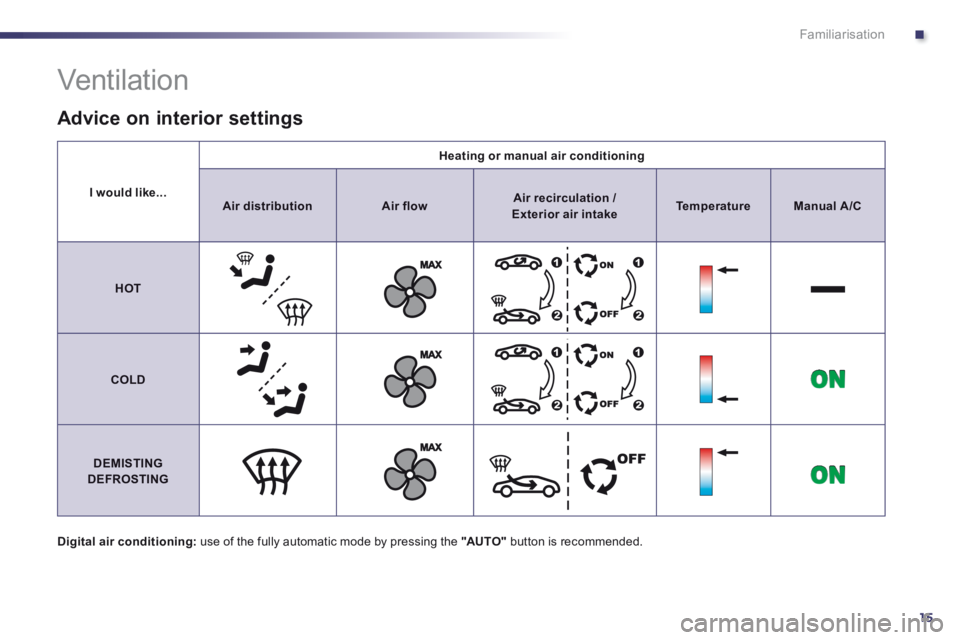

15
Familiarisation
I would like...
Heating or manual air conditioning
Air Air AirdistributionAir flowAir recirculation / Exterior air intakeTemperatureManual A/C
HOT
COLD
DEMISTING DEFROSTING
Ventilation
Digital air conditioning: use of the fully automatic mode by pressing the "AUTO" button is recommended.
Advice on interior settings

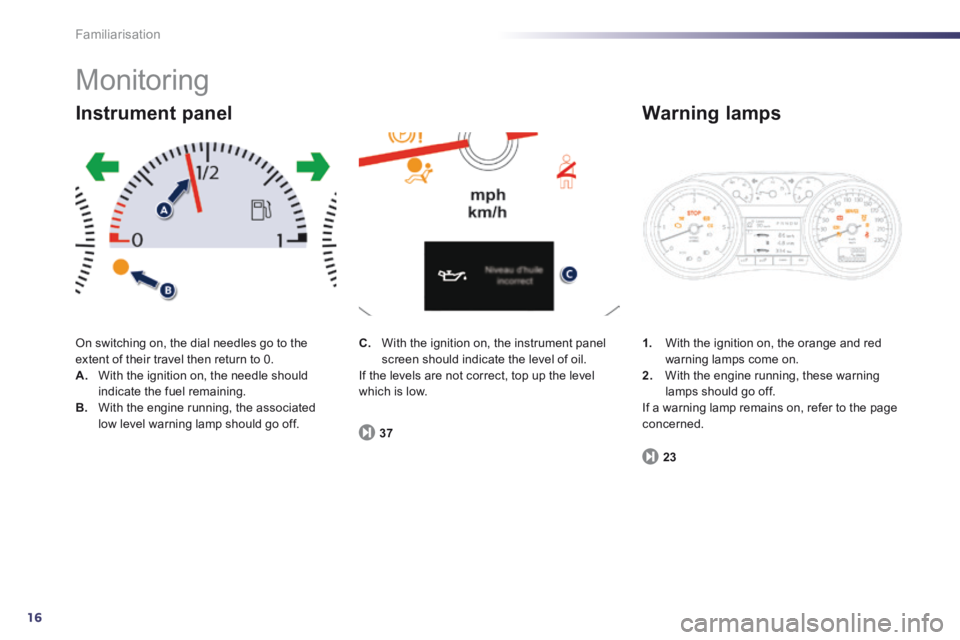

16
Familiarisation
Monitoring
On switching on, the dial needles go to the extent of their travel then return to 0. A. With the ignition on, the needle should indicate the fuel remaining. B. With the engine running, the associated low level warning lamp should go off.
Instrument panel
1. With the ignition on, the orange and red warning lamps come on. 2. With the engine running, these warning lamps should go off. If a warning lamp remains on, refer to the page concerned.
Warning lamps
23
C. With the ignition on, the instrument panel screen should indicate the level of oil. If the levels are not correct, top up the level which is low.
37

.

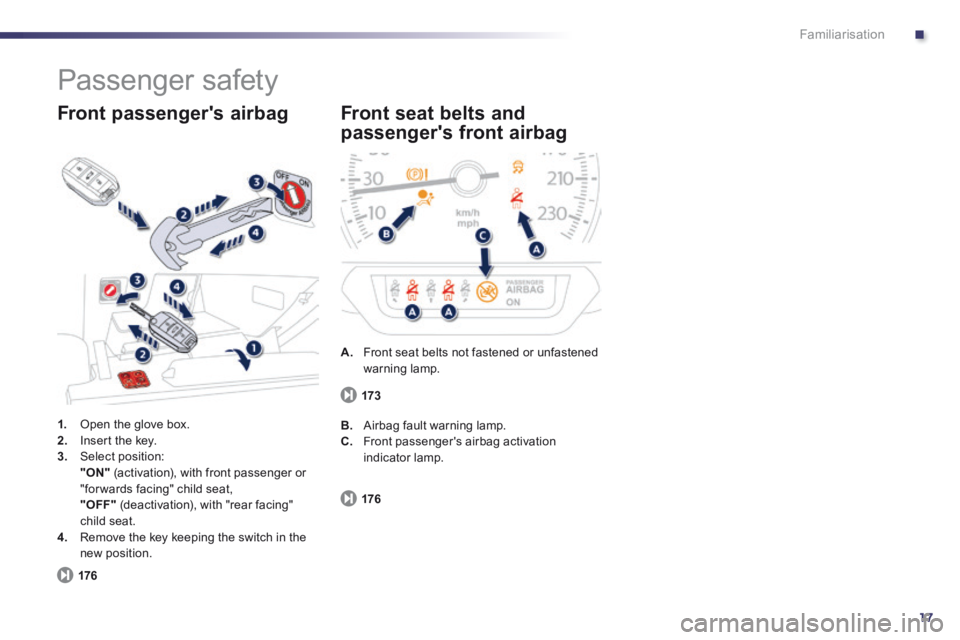

17
Familiarisation
Passenger safety
1. Open the glove box. 2. Insert the key. 3. Select position: "ON" (activation), with front passenger or "for wards facing" child seat, "OFF" (deactivation), with "rear facing" child seat. 4. Remove the key keeping the switch in the new position.
Front passenger's airbag
176
A. Front seat belts not fastened or unfastened warning lamp.
Front seat belts and
passenger's front airbag
176
B. Airbag fault warning lamp. C. Front passenger's airbag activation indicator lamp.
173

18
Familiarisation
Driving safely
Stop & Start
Going into engine STOP mode
121
The "ECO" warning lamp comes on in the instrument panel and the engine goes into standby;
with an electronic gear control gearbox and speeds below 4 mph (6 km/h), press the brake pedal or put the gear lever in position N .
Going into engine START mode
Deactivation / Reactivation
You can deactivate the system at any time by pressing the "ECO OFF" button; the button's warning lamp comes on.
122
122
The system is automatically reactivated every time the engine is started with the key.
Before refuelling or doing anything under the bonnet, you must switch off the ignition with the key.
The "ECO" warning lamp goes off and the engine restarts with an electronic gear control gearbox :
- with the gear lever in position A or Mrelease the brake pedal, - or with the gear lever in position N and brake pedal released, move the gear lever to position A or M , - or engage reverse.
In certain circumstances, the STOP mode may not be available; the "ECO" warning lamp flashes for a few seconds, then goes off.
In certain circumstances, START mode may be invoked automatically; the "ECO" warning lamp flashes for a few seconds, then goes off.

.

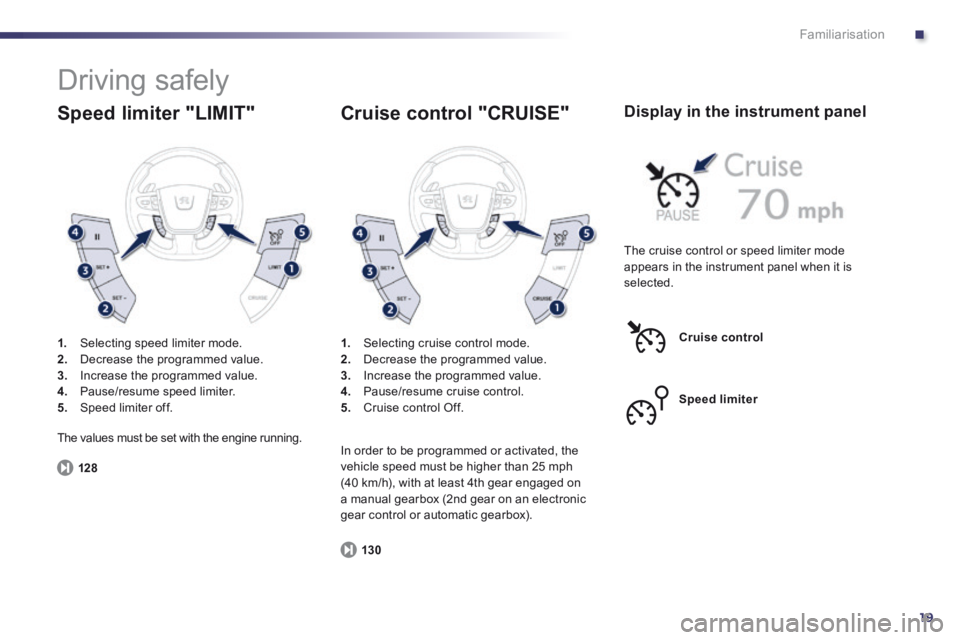

19
Familiarisation
Driving safely
1. Selecting speed limiter mode. 2. Decrease the programmed value. 3. Increase the programmed value. 4. Pause/resume speed limiter. 5. Speed limiter off.
Speed limiter "LIMIT"
128
1. Selecting cruise control mode. 2. Decrease the programmed value. 3. Increase the programmed value. 4. Pause/resume cruise control. 5. Cruise control Off.
Cruise control "CRUISE"
130
The cruise control or speed limiter mode appears in the instrument panel when it is selected.
Display in the instrument panel
Cruise control
Speed limiter
The values must be set with the engine running. In order to be programmed or activated, the vehicle speed must be higher than 25 mph (40 km/h), with at least 4th gear engaged on a manual gearbox (2nd gear on an electronic gear control or automatic gearbox).

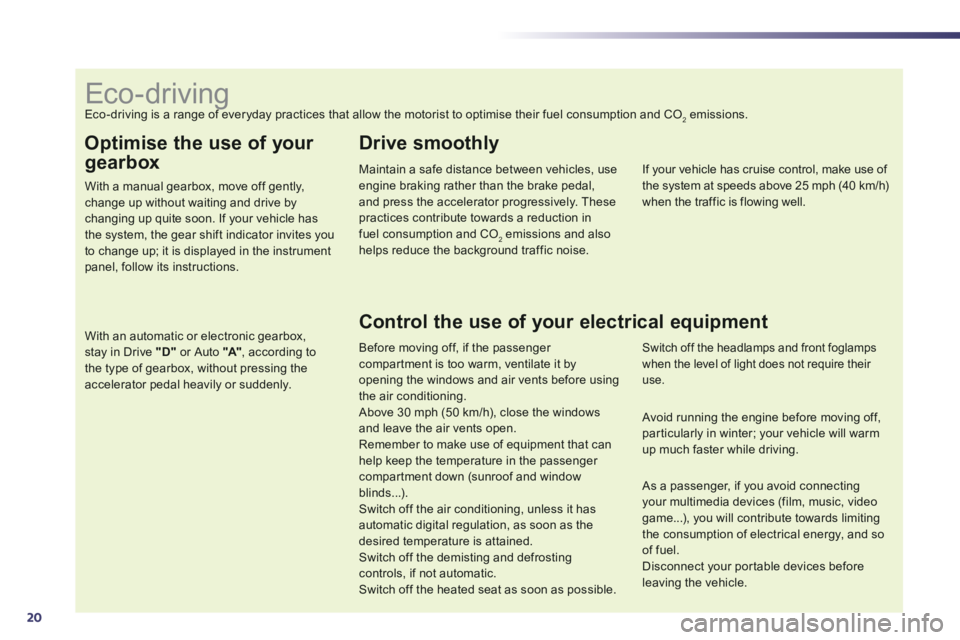

20
Optimise the use of your
gearbox
With a manual gearbox, move off gently, change up without waiting and drive by changing up quite soon. If your vehicle has
the system, the gear shift indicator invites you to change up; it is displayed in the instrument panel, follow its instructions.
With an automatic or electronic gearbox, stay in Drive "D" or Auto "A" , according to the type of gearbox, without pressing the accelerator pedal heavily or suddenly.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. These practices contribute towards a reduction in
fuel consumption and CO2 emissions and also helps reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.
Control the use of your electrical equipment
Before moving off, if the passenger compartment is too warm, ventilate it by opening the windows and air vents before using the air conditioning. Above 30 mph (50 km/h), close the windows and leave the air vents open.
Remember to make use of equipment that can help keep the temperature in the passenger compartment down (sunroof and window blinds...). Switch off the air conditioning, unless it has automatic digital regulation, as soon as the desired temperature is attained. Switch off the demisting and defrosting controls, if not automatic. Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light does not require their use.
Avoid running the engine before moving off, particularly in winter; your vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices (film, music, video game...), you will contribute towards limiting the consumption of electrical energy, and so of fuel. Disconnect your portable devices before leaving the vehicle.
Eco-driving Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.

.

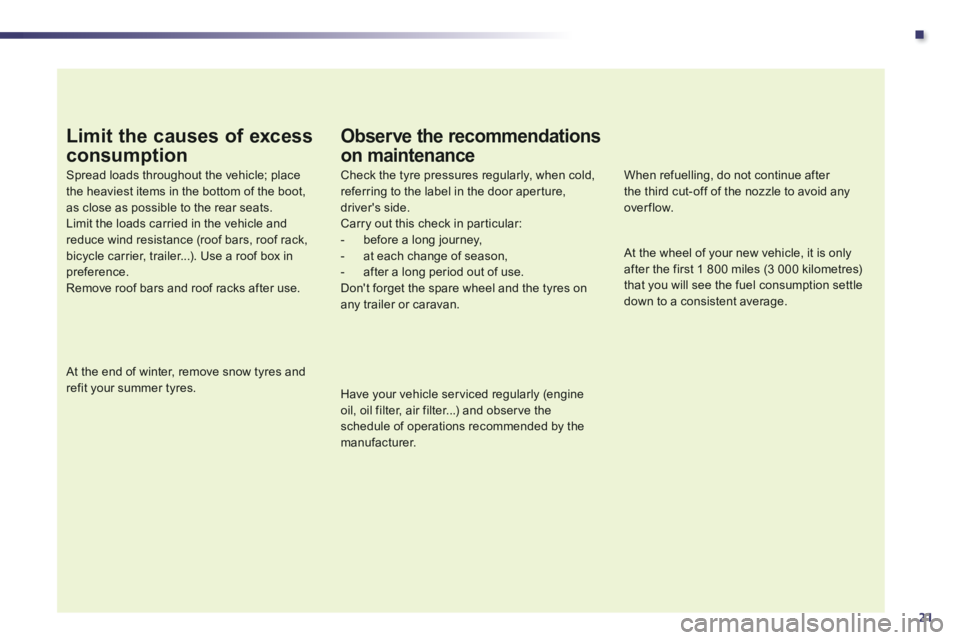

21
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot, as close as possible to the rear seats. Limit the loads carried in the vehicle and reduce wind resistance (roof bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference. Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when cold, referring to the label in the door aperture, driver's side.
Carry out this check in particular: - before a long journey, - at each change of season, - after a long period out of use. Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter...) and observe the schedule of operations recommended by the manufacturer.
When refuelling, do not continue after the third cut-off of the nozzle to avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settle down to a consistent average.

22
Monitoring

Petrol-Diesel instrument panel
1. Rev counter (x 1 000 tr/min or rpm), graduation according to engine (petrol or Diesel). 2. Engine oil temperature gauge. 3. Fuel gauge. 4. Engine coolant temperature gauge. 5. Speedometer (mph or km/h). 6. Cruise control or speed limiter settings.
7. Gear shift indicator for a manual gearbox or gear lever position and gear for an electronic gear control or automatic gearbox.
A. Main lighting dimmer. B. Display of alert log. Recall of the service information. C. Reset the trip distance recorder.
8. Display zone: alert messages or state of functions, trip computer. 9. Trip distance recorder (miles or km). 10. Automatic wipers Service indicator (miles or km) then, total distance recorder. These two functions are displayed
successively when switching on the ignition.
Dials and screens Control buttons
