2014 MITSUBISHI LANCER SPORTBACK Owners Manual

Engine hood 9-4 Vehicle care and maintenance
9
Pull the lever toward you to release the engine hood latch.
Release the safety lever and lift the engine hood.
Support the engine hood with the hood prop. Insert the hood prop securely in the opening under the hood marked with an arrow.
WA R N I N G Never use the release lever to unlatch the engine hood while the vehicle is in motion.  Do not drive your vehicle unless the engine hood is locked.
NOTE
 To prevent damage to the engine hood and wipers, make sure the wipers are at restingposition when you open the engine hood.
CAUTION Always insert the support prop into the hole specially made for it. Propping the engine hood at any other place could cause the propto slip out and lead to an accident.  The hood prop can fall out if the hood is lifted by a strong wind.
BK0200700US.bo
ok 4 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

View of the engine compartment
Vehicle care and maintenance 9-5
9
Unlatch the prop from the engine hood and put it back in its retainer. Slowly lower the engine hood about 8 inches (20 cm), then let it drop from its own weight.
N00937600670
N00937701968
It is normal for an engi
ne to use oil. You may
need to add oil between the recommended oil
To close
CAUTION Be careful not to trap your hands or fingers when closing the engine hood.  Make sure the engine hood is firmly closed before driving. If you drive without the engine hood com-pletely closed, it could open up while driv- ing.NOTE
 If this does not close the engine hood prop- erly, drop it again from a slightly higher position.
 Do not push down strongly on the engine hood. Depending on how strongly or where you push down, you could create a dent in the vehicle body.  If you drive with the engine hood left open, warning display is displayed on the informa- tion screen in the multi-information display.
Type 1 Type 2View of the engine compart- ment
NOTE
Except for vehicles with turbocharger
1- Power steering fluid reservoir (if so
equipped)
2- Air cleaner filter 3- Brake fluid/Clutch fluid reservoir (if so
equipped)
4- Engine coolant reservoir 5- Windshield washer fluid reservoir6- Engine oil level dipstick7- Radiator cap 8- Engine oil filler cap 9- Battery Engine oil and oil filter To check and refill engine oil Vehicles with turbocharger
BK0200700US.bo
ok 5 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Engine oil and oil filter 9-6 Vehicle care and maintenance
9
change intervals. Before starting the engine, check the engine oil level. Refill if necessary. To check the oil level, remove the dipstick, wipe it off, and gently insert it all the way into the crankcase. Slowly remove it again.The oil level must not go above the line on the dipstick. If the level does not reach the line, which shows the smallest amount of oil required,remove the oil filler cap on the engine valvecover, and fill to within the “Good” range.
Mitsubishi Motors recommends using only engine oils with the ILSAC certification sym- bol on the front of the container.
Except for vehicles with turbocharger
Good
CAUTION Overfilling the crankcase will cause oil aera- tion and loss of oil pressure, which could damage the engine. For vehicles equipped with turbocharger, engine oil must be properly maintained to avoid engine and/or turbocharger damage.To better protect your engine and turbo- charger, use fully synthetic engine oil.WA R N I N G Used engine oil is poisonous, and can dam- age your skin. Prolonged and repeated contact may cause serious skin disorders, including dermatitis and cancer. Don’t letused oil touch your skin. Wash thoroughly after working with it. Keep used oil out of the reach of children.Vehicles with turbocharger
Good
NOTE
Engine oil consumption is greatly influenced by payload, engine speed, etc.  The engine oil will deteriorate rapidly if the vehicle is subjected to severe conditions (forexample, repeated operation on rough roads, in mountainous regions, on roads with many uphill and downhill gradients, or over shortdistances). Consequently, the oil will require earlier replacement in accordance with the schedule in the “WARRANTY AND MAIN-TENANCE MANUAL”.
Engine oil identification mark ILSAC certification symbol
BK0200700US.bo
ok 6 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Engine oil and oil filter
Vehicle care and maintenance 9-7
9
If you cannot find oils with the ILSAC certi- fication symbol, use an API classification SN or higher oil with the following label. This mark appears on th
e top of the oil con-
tainer and tells you two important things about the oil.
N00955000083
Use engine oil with the proper thickness for the outdoor temperatures where you will be driving.
SAE 0W-20 engine oil is strongly recom- mended for optimum fuel economy and cold starting. If SAE 0W-20 is not available, the ILSACcertification oil of other viscosity grades can be temporarily used.
N00955100055
The oil filter should be
replaced at the time or
mileage specified in the “WARRANTY AND MAINTENANCE MANUAL”. Only use high quality replacement filters onthis vehicle. The manufacturer’s specifica- tions for Genuine Mitsubishi oil filters
1- The top portion shows the quality of
the oil.
2- The center portion shows the SAE
grade of the oil viscosity.
Recommended engine oil vis- cosity API service symbol
Except for vehicles equipped with turbocharger
Vehicles equipped with turbo-charger
NOTE
 Select engine oil of the proper SAE viscosity number according to the atmospheric tem- perature.  SAE 0W-30 and 0W-40 engine oil are rec- ommended to use to improve engine start- ability on a very cold weather condition.
To replace the oil filter
BK0200700US.bo
ok 7 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Engine coolant 9-8 Vehicle care and maintenance
9
require that the filter can withstand a pressure of 256 psi (1.8 MPa). A Genuine Mitsubishi oil filter is the best replacement filter. Follow the installation
instructions printed on
the filter.
N00937800555
The coolant reserve tank (A) lets you quicklysee when you need to add coolant. When theengine is cold, the level in the reserve tank should be between the “FULL” and “LOW” marks. The radiator usually stays full so thereis no reason to remove the radiator cap (B) except when you check the coolant freeze point or replace the antifreeze coolant.
Mitsubishi Motors Genuine Coolant provides excellent protection against corrosion and rust formation on all metals, including alumi- num, and prevents blockages in some parts ofengine. If you need to add co
olant often, or if the
level in the reserve tank does not drop whenthe engine cools, the cooling system shouldbe pressure-tested for leaks. Take your vehi- cle to an authorized
Mitsubishi Motors dealer
or a repair facility of your choice for testing.
Engine coolant To check the coolant level
* - Front of the vehicle
To add coolant Use “Mitsubishi Motors Genuine Super Long Life Coolant Premium” or an equivalent
*.
Except for vehicles with turbocharger
FULL LOW
Vehicles with turbocharger
FULL LOW
*: similar high quality et
hylene glycol based
non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid technologyCAUTION Do not use alcohol or methanol antifreeze or any engine coolants that contain them. Using the wrong antifreeze can corrode aluminumparts.  The required concentration of anti-freeze dif- fers depending on the expected ambient tem- perature. Above -31 °F (-35 °C) : 50 %concentration of anti-freeze Below -31 °F (-35 °C) : 60 %concentrationof anti-freeze You can check the concentration level with a gauge from an automotive supply store, oryour authorized Mitsubishi Motors dealer or service station can check it for you.
BK0200700US.bo
ok 8 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Air cleaner filter
Vehicle care and maintenance 9-9
9
The radiator cap must be tight sealed to pre- vent losing coolant which may result in engine damage. Only use a Genuine Mitsubi-shi Parts radiator cap, or an approved equiva- lent.  Do not overfill the reserve tank.
 Your vehicle uses a special radiator cap that stays sealed and lets the coolant flow from the reserve tank back to the radiator when the engine cools down. If you needto change the cap, use the exact same kind.  Check the coolant freeze point in the radi- ator with the proper gauge, and only when it is safe. If you add antifreeze, the con- tents of the reserve tank must be protectedagainst freezing.  Keep the front of the radiator and con- denser clean.  If the temperature of the engine coolant does not rise after th
e engine is warmed-
up, take your vehicle to an authorized Mitsubishi Motors dealer or a repair facil-ity of your choice to have the thermostat checked, and replaced if necessary.
N00937901436
The air cleaner filter w
ill get dirty and dusty
from use and not filter properly. Replace it with a new filter using the schedule in the“WARRANTY AND MAINTENANCE MANUAL”.
1. Remove the two clips (A), then remove the duct (B).
 Do not use water to adjust the concentration of coolant. Do not top off the tank with plain water only. Water by itself boils at a lower temperatureand does not stop rust
or freezing. If the
water freezes, it will damage your cooling system. Do not use tapwater. It can causecorrosion and rust.
Radiator cap
WA R N I N G Wait for the engine to cool down before opening the radiator cap. Otherwise hotsteam or boiling coolant could spray up from the radiator and scald you.
Points to remember
CAUTION
Air cleaner filter
Except for vehicles with turbochargerVehicles with turbocharger
BK0200700US.bo
ok 9 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

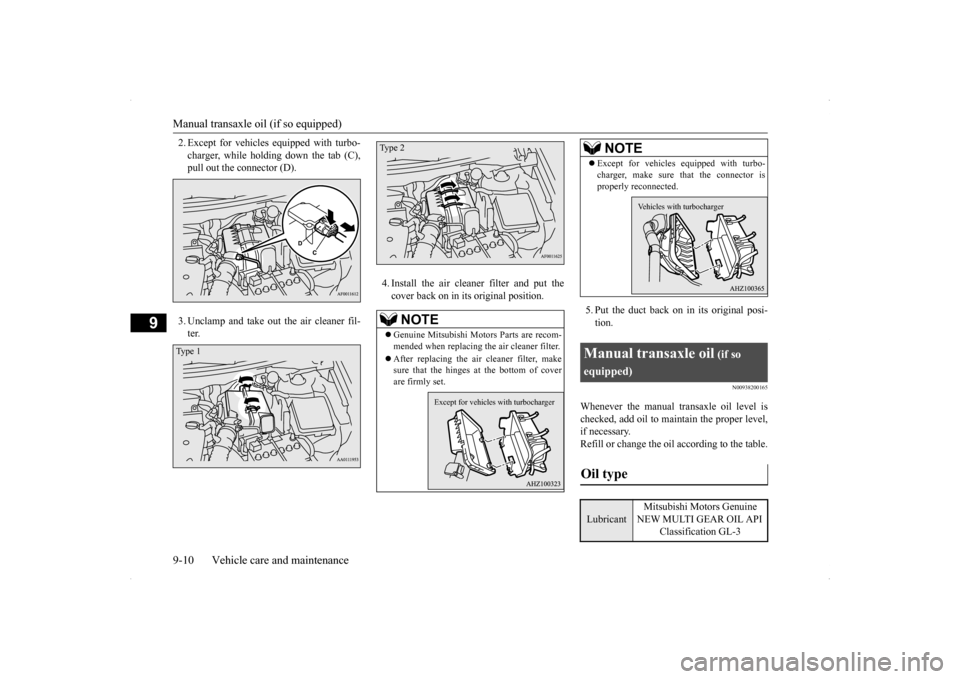

Manual transaxle oil (if so equipped) 9-10 Vehicle care and maintenance
9
2. Except for vehicles equipped with turbo- charger, while holding down the tab (C), pull out the connector (D). 3. Unclamp and take out the air cleaner fil- ter.
4. Install the air cleaner filter and put the cover back on in its original position.
5. Put the duct back on in its original posi- tion.
N00938200165
Whenever the manual transaxle oil level ischecked, add oil to maintain the proper level, if necessary. Refill or change the oil according to the table.
Type 1
NOTE
 Genuine Mitsubishi Motors Parts are recom- mended when replacing the air cleaner filter.  After replacing the air cleaner filter, make sure that the hinges at the bottom of cover are firmly set.
Type 2
Except for vehicles with turbocharger
 Except for vehicles equipped with turbo- charger, make sure that the connector is properly reconnected.
Manual transaxle oil
(if so
equipped)Oil type

Lubricant
Mitsubishi Motors Genuine NEW MULTI GEAR OIL API
Classification GL-3
NOTE
Vehicles with turbocharger
BK0200700US.bo
ok 10 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Continuously variable transmissi
on (CVT) fluid (if so equipped)
Vehicle care and maintenance 9-11
9
N00938100063
The continuously variable transmission (CVT) should be maintained and serviced by an authorized Mitsubishi Motors dealer or a repair facility of your choice to obtain thebest performance and longest life. It is impor-tant that the transmission fluid is kept at the correct level. Use only “Mitsubishi Motors Genuine CVTF-J4” transmission fluid to ensure opti- mum transmission performance. Mitsubishi Motors Corporation does not rec- ommend the addition of any fluid additives tothe transmission.
N00938300049
The Twin Clutch Sportronic shift transmis-sion (Twin Clutch SST) should be maintained and serviced by an authorized Mitsubishi Motors dealer or a repair facility of yourchoice to obtain the best performance andlongest life. It is impor
tant that the transmis-
sion fluid is kept at the correct level. Use only Mitsubishi Motors Genuine SSTF-I to ensure optimum transmission performance. Mitsubishi Motors Corporation does not rec- ommend the addition of any fluid additives to the transmission.
N00938400242
Whenever the transfer oil level is checked, add oil as necessary to maintain the properlevel. Fill or change the oil according the table.
N00915200230
Whenever the oil level is checked, add oil as necessary to maintain the proper level.Fill or change oil according to the table.
Viscosity range
SAE 75W-80
Continuously variable transmission (CVT) fluid
(if
so equipped)Fluid type

Special additives

Twin Clutch Sportronic shift transmission (Twin Clutch SST) fluid
(if so equipped)
Fluid type

CAUTION Using the improper transmission fluid may damage the transaxle.
Special additives

Transfer oil (All-wheel drive models) Oil type Lubricant
Mitsubishi Motors Genuine LSD gear oil or equivalent
Rear axle oil (All-wheel drive models) Oil type Lubricant
Mitsubishi Motors Genuine LSD gear oil or equivalent
