2014 MITSUBISHI LANCER SPORTBACK Owners Manual

Vehicle labeling 11-2 Specifications
11
N01147400700
Keep a record of the chassis number and vehicle identification number. Such informa-tion will assist the police if your vehicle is stolen.
The vehicle emission control information label is affixed on the inside panel of the engine hood. The vehicle identification number is stamped on the plate riveted to the left front corner of the vehicle body. It is visible from outside ofthe vehicle through the windshield. The air conditioning label is affixed on the inside panel of the engine compartment.
The vehicle information code plate is located on the front passenger door sill. The chassis number is stamped on the floor under the front passenger
seat. It is visible by
pulling back the carpet flap as shown in the illustration. The engine serial number is stamped on the cylinder block as shown in the illustration.
Vehicle labeling Except for vehicles with turbochargerVehicles with turbocharger
1 - Vehicle emission control information label 2 - Vehicle identification num- ber plate 3 - Air conditioning label
4 - Vehicle information code plate Chassis number Engine serial number
BK0200700US.bo
ok 2 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Vehicle labeling
Specifications 11-3
11
N01148100557

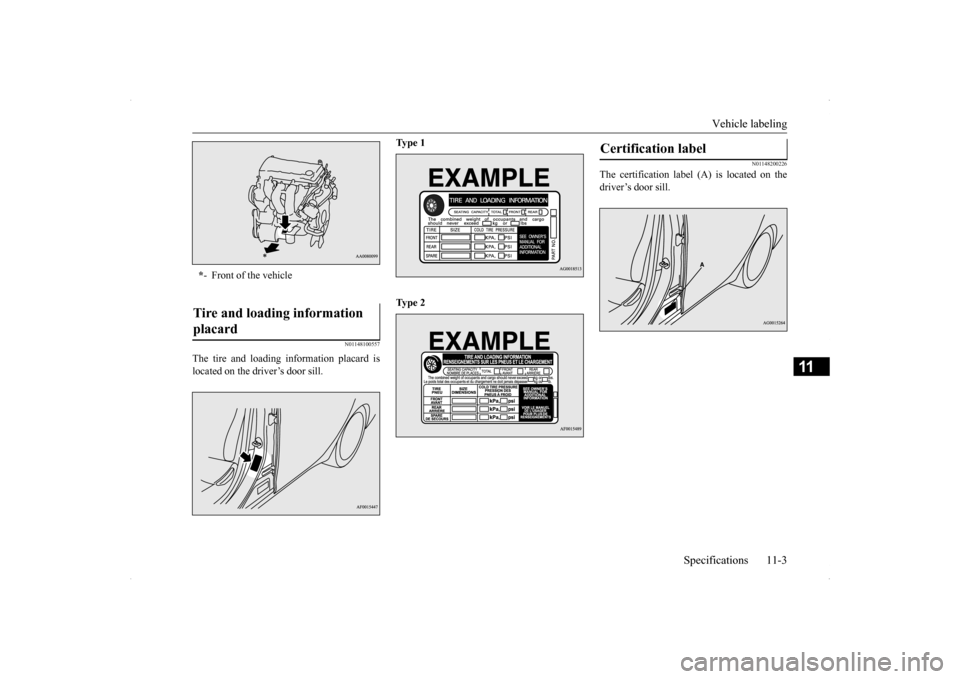

The tire and loading information placard is located on the driver’s door sill.
Ty p e 1 Ty p e 2
N01148200226
The certification label (A) is located on the driver’s door sill.
* - Front of the vehicleTire and loading information placard
Certification label
BK0200700US.bo
ok 3 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Vehicle dimensions 11-4 Specifications
11
N01147500509 N01147600887
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Vehicle dimensions Overall length
180.4 in (4,585 mm)
Overall width
69.4 in (1,760 mm)
Overall height
Vehicles with 16 inch tire 59.3 in (1,505 mm)Vehicles with 18 inch tire 59.7 in (1,515 mm)
Wheel base
103.7 in (2,635 mm)
Vehicle weights
Item
2.0 liter
2.4 liter
Vehicles without turbo-
charger
Vehicles with turbo-
charger
Gross vehicle weight rating (GVWR) 4,013 lb
(1,820 kg) 4,509 lb (2
,045 kg) 4,190 lb (1,900 kg)
Gross axle weight rating (GAWR)
Front 2,227 lb (1,010 kg) 2,381
lb (1,080 kg) 2,227 lb (1,010 kg)
Rear 2,117 lb (960 kg) 2,238 lb
(1,015 kg) 2,117 lb (960 kg)
Vehicle capacity weight 827 lb (375 kg)Maximum roof load 110 lb (50 kg)Seating capacity 5 persons
NOTE
Roof load is important because it affects the vehicle capacity
weight. Refer to “Loading cargo on the roof” on page 6-10.
BK0200700US.bo
ok 4 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Engine specifications Specifications 11-5
11
Seating capacity: the number of maximum occupants
N01147700471
N01147800182
Battery is a 12 volt type.
N01147901757
PCD: Pitch Circle Diameter (installation holes)
Engine specifications
Item
2.0 liter
2.4 liter
Vehicles without turbocharger
Vehicles with turbocharger
Engine model 4B11 4B12Engine displacement 121.9 CID
(1,998 cm³) 144.0 CID (2,360 cm³)
No. of cylinders and cylinder arrangement 4 in-lineBore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 9.0 10.5Thermostat valve opening temperature 189 °F
(87.0 °C) 180 °F (82.0 °C) 189 °F (87.0 °C)
Spark plugs
NGK DIFR6C11 DILKR7B6 DIFR5C11
Spark plug gap
.040 to .043 in (1.0 to 1.1 mm)
.020 to .023 in (0.5 to 0.6 mm)
.040 to .043 in (1.0 to 1.1 mm)
Firing order
1-3-4-2
Battery
75D23L
Tires and wheels Tire
P205/60R16
91H
P215/45R18
89V
Wheel
Size
16 x 6 1/2JJ, 16 x 6 1/2J
18 x 7J
PCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0200700US.bo
ok 5 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Refill capacities 11-6 Specifications
11
N01148001029
NOTE
 Contact an authorized Mitsubishi Motors dealer for details on the combination used on your vehicle.
 These tires satisfy vehicle loading conditions described in this owner’s manual.NOTE
Refill capacities
Item
Capacity
Lubricants
Fuel (approximate)
Vehicles without turbocharger 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 3-2.
Vehicles with turbocharger 14.5 gal (55.0 L)
Engine oil
2.0 liter
Vehicles without turbocharger
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark (“starburst” symbol) on the container.If these oils are not available, an API classification SN or higher can be used.
Oil filter .32 qt (0.3 L)
Vehicles with turbocharger
Oil pan 5.1 qt (4.8 L)Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering(vehicles equipped with the hydr
aulic power steering system)
As required Mitsubishi Motors Genuine Power Steering Fluid
Manual transaxle 2.6 qt (2.5 L)
Mitsubishi Motors Genuine NEW MULTI GEAR OIL API classification GL-3 SAE 75W-80
Continuously variable transmission (CVT) 7.5 qt
(7.1 L) Mitsubishi Motors Genuine CVTF-J4
Twin Clutch SST {includes .53 qt (0.5 L) in oil cooler}
8.0 qt (7.6 L) Mitsubishi Motors Genuine SSTF-I
BK0200700US.bo
ok 6 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Refill capacities
Specifications 11-7
11
Transfer oil .85 qt (0.8 L) Mitsubishi Motors Genuine LSD gear oilAWC control fluid (includes hydraulic
piping) .95 qt (0.9 L) DIAMOND ATF SP III
Rear differential oil .58 qt (0.55 L) Mitsubishi Motors Genuine LSD gear oilBrake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As
required Multipurpose type grease NLGI Grade 2
Engine coolant {includes .63 qt (0.65 L) in reserve tank}
Manual transaxle
7.4 qt (7.0 L)
Mitsubishi Motors Genuine Super Long Life Coolant Premium or equivalent
*
CVT 7.4 qt (7.0 L)Tw i n Clutch SST
7.9 qt (7.5 L)
Washer fluid 4.3 qt (4.0 L) — Refrigerant (air conditioning)
Refer to “Air con- ditioning label” on
page 11-2.
HFC-134a
*: similar high quality ethylene glycol based non-silicate, non
-amine, non-nitrate and non-borate
coolant with long life hybrid
organic acid
technology
LSD: Limited slip differential
Item
Capacity
Lubricants
BK0200700US.bo
ok 7 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

BK0200700US.book 8 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Alphabetical index
12-1
12
A
Accessory (installation)
.........................
3-6
ACD (Active center differential system) 5-83Active stability control (ASC)
..............
5-91
Air cleaner filter
...................
................
9-9
Air conditioning
Automatic air conditioning
.....
7-14
, 7-20
Important air conditioning operating tips
..
7-25Manual air conditioning
.............
7-4
, 7-9
Air purifier
....................
.....................
7-26
All-wheel drive system
........................
5-82
Aluminum wheels
...............................
9-52
AM/FM radio
....................
.................
7-26
Antenna
Roof antenna
.................
.................
7-59
Anti-lock braking system
.....................
5-88
Warning light / display
....................
5-89
Arm rest
........................
.......................
4-5
Assist grip
.....................
...................
5-192
Audio
AM/FM radio
................
.................
7-26
CD player
.....................
.................
7-26
Troubleshooting
.............................
7-57
Automatic air conditioning
.........
7-14
, 7-20
B
Back-up lights
Bulb capacity
..................
...............
9-33
replacement
....................
...............
9-44
Ball joint, steering linkage seals and drive shaft boots
.....................
..................
9-27
Battery
........................
......................
9-14
Charging system warning light
.......
5-143
Disconnection and connection
.........
9-16
During cold weather
.......................
9-16
Specification
...................
...............
11-5
Bluetooth 2.0 interface
.......................
5-158
Bottle holder
....................
.................
5-190
Brake
Anti-lock braking system
................
5-88
Braking
.......................
....................
6-5
Fluid
....................
.................
9-13
, 11-6
Hose
.......................
......................
9-26
Parking brake
..................
...............
5-49
Parking brake lever stroke
...............
9-24
Pedal
.......................
......................
5-85
Pedal free play
................
...............
9-24
Power brakes
..................
...............
5-86
Service brake
..................
...............
5-85
Brake assist
......................
..................
5-87
Break-in recommendations
....................
5-3
Bulb capacity
...................
..................
9-33
C
California Perchlorate Materials Requirements
.....................
................
3-7
Capacities
.....................
.....................
11-6
Card holder
............................
5-183
, 5-187
Cargo floor boxes
.............................
5-189
Cargo loads
...................
.....................
6-10
Cargo room light
Bulb capacity
................
.................
9-35
Replacement
..................
.................
9-47
Switch
......................
...................
5-186
Catalytic converter
................
................
9-2
CD player
......................
.....................
7-26
Certification label
...............................
11-3
Charging system warning light
...........
5-143
Chassis number
..................
.................
11-2
Child restraint
....................
.................
4-15
Child safety locks for rear door
............
5-39
Cleaning
Inside of your vehicle
......................
9-48
Outside of your vehicle
...................
9-49
Clutch
Fluid
..................
...................
9-13
, 11-6
Pedal free play
...............
.................
9-24
Coat hooks
....................
...................
5-192
Combination headlights and dimmer switch
.
5-145
