2014 MITSUBISHI LANCER SPORTBACK turn signal bulb

Indicators
Features and controls 5-141
5
N00519900127 N00520000229
The arrows will flash in
time with the corre-
sponding exterior turn signals when the turn signal lever is used. Both arrows will flas
h when the hazard warn-
ing flasher switch is pressed.
N00520100086
A blue light comes on when the headlightsare on high beam.
N00520200218
This indicator comes on while the front foglights are on.
N00551300026
This indicator light illuminates while theposition lights are on.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest. Use this display as rough guide for taking rests during a long drive.The interval from the start of your trip until this message is displayed can be set.Refer to “Changing the function settings (With ig
nition switch in the “ON” position)” on page
5-121. The display and buzzer alert the driver when the
set time is reached. If you continue to drive
without having a rest, the buzzer sounds about every 5 minutes to encourage you to take a rest.  In the following cases, the time driven is rese
t and the display returns to the previous dis-
play screen. After this, when the set time is
reached again, the display and buzzer encourage
you to take a rest. • The buzzer sounds 3 times. • The ignition switch is turned to the “OFF” position.• The multi-information meter switch is held (for about 2 seconds or more).
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on without flashing, check for a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator
Front fog light indicator Position indicator
BK0200700US.book
141 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Hazard warning flasher switch Features and controls 5-151
5
cator light in the instrument cluster will flash three times.
N00522700233
If you press the flasher switch, the front andrear turn signals will flash intermittently, and so will the hazard warning lights. This is an emergency warning system and should not beused when the vehicle is in motion, except for emergencies. If you need to leave your vehicle, the flasherswill keep working after the ignition switch is turned off.
N00522800407
The front fog lights illuminate only when the headlights are on low beam. Turning the knob in the direction of the “ON” position turns on the front fog lights as wellas the indicator in the instrument cluster. To turn them off, turn the knob in the direction of the “OFF” position.The knob will return to the neutral position when it is released.
NOTE
 A light in the instrument panel flashes to show when the front and rear turn signal lights are working properly. If this light flashes faster than usual, checkfor a burned out light bulb or malfunctioning connection. If the panel light does not come on when thelever is moved, check for a blown fuse or a burned out bulb in the panel. Have the vehicle inspected by an authorizedMitsubishi Motors dealer or a repair facility of your choice.  It is possible to modify functions as follows: • Deactivate the turn signal light 3-flash function for lane changes. • Adjust the time required to operate the lever for the 3-flash function.
See your authorized Mitsubishi Motors dealer for details.
Hazard warning flasher switch
NOTE
NOTE
 If you keep the flashers on for several hours with the engine turned off, the battery will run down.
Front fog light switch
(if so
equipped)
BK0200700US.book
151 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Replacement of light bulbs
Vehicle care and maintenance 9-33
9
N00942900219
Before replacing a bulb, be sure the light is off. Do not touch the glass part of the newbulb with your bare fingers; the oil from your skin will stay on the glass and dim or destroy the bulb when it gets hot.
N00943000158
The bulb should only be replaced with a newbulb with the same rating and type. The typeand rating are listed on the base of the bulb.
N00950300818
[For vehicles without high intensity dischargeheadlights]
 If the replacement fuse blows again after a short time, have the electrical system checked by an authorized Mitsubishi Motors dealer or a repair faci
lity of your choice to
find and correct the cause.
Replacement of light bulbs
CAUTION Bulbs are extremely hot immediately after being turned off. When replacing a bulb, wait for it to coolsufficiently before touching it. You could otherwise be burned.NOTE
 If you are unsure of how to carry out the work as required, it is recommended that these procedures be carried out by an autho-rized Mitsubishi Motors dealer or a repair facility of your choice.  Be careful not to scratch the vehicle body when removing a light and lens.CAUTION
 When it rains, or when the vehicle has been washed, the inside of the lens sometimes becomes temporarily foggy. This is the same phenomenon as when window glass mists up on a humid day, and does not indicate a func-tional problem. When the light is switched on, the heat will remove the fog. However, if water gathersinside the light, please have it checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice.
Bulb capacity Outside
NOTE
Front
Description
Wattage
ANSI Trade No. or Bulb
type
1-
Front turn signal light
21 W WY21W
2-
Headlight, high beam
60 W
9005 HB3
3-
Headlight, low beam (Halogen bulb)
51 W
9006 HB4
4- Front fog
light
55 W H11
5-
Front side- marker and parking light
5 W WY5W
6- Side turn sig-
nal light
5 W —
SC00001000-7.f
m 33 ページ ２０１３年２月１５日　金曜日　午後４時２０分

Replacement of light bulbs 9-34 Vehicle care and maintenance
9
[For vehicles equipped with high intensity discharge headlights]
Description
Wattage or Can- dle power
ANSI Trade No. or Bulb type
1-
Front turn signal light
21 W WY21W
2-
Daytime run- ning light
27 W 32 cp
1156
3-
Headlight, low/high beam (Dis- charge bulb)
35 W —
4- Front fog
light
55 W H11
5-
Front side- marker and parking light
5 W WY5W
6- Side turn sig-
nal light
5 W —
WA R N I N G Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when it is necessary to repair a dis- charge headlight or to replace the bulb. The power circuit, bulb and electrodesgenerate high voltages that may cause a severe electrical shock.NOTE
 It is not possible to re
pair or replace only the
bulb for the side turn signal light. Check with an authorized Mitsubishi Motors dealer or a repair
facility of your choice
when the light needs to be repaired or replaced.
Rear
Description
Wattage
ANSI Trade No. or Bulb type
7-
High- mounted stop light
——
8-
License plate light
5 W W5W
9- Back-up light 18 W W16W 10-
Tail and stop light
21/5 W W21/5W
11-
Rear turn sig- nal light
21 W WY21W
12-
Rear side- marker light
5 W W5W
NOTE
 The high-mounted stop light uses LEDs rather than bulbs. For repair and replace- ment, contact an authorized Mitsubishi Motors dealer or a repair facility of yourchoice.
SC00001000-7.f
m 34 ページ ２０１３年２月１５日　金曜日　午後４時２０分

Replacement of light bulbs 9-40 Vehicle care and maintenance
9
N00943400325
1. Remove the clips (A) and clips (B), then remove the duct (C) and the upper cover(D).
2. Remove the entire socket and bulb assem- bly (E) by turning it counterclockwise.
3. Remove the bulb by pulling it out. 4. To install the bulb, perform the removal steps in reverse.
N00943601786
1. Remove the screw (A) and pull the coverout.
Front turn signal lights Except for vehicles with turbocharger
* - Front of the vehicle
Vehicles with turbocharger
Front fog lights (Type 1)
(if so
equipped)
BK0200700US.bo
ok 40 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

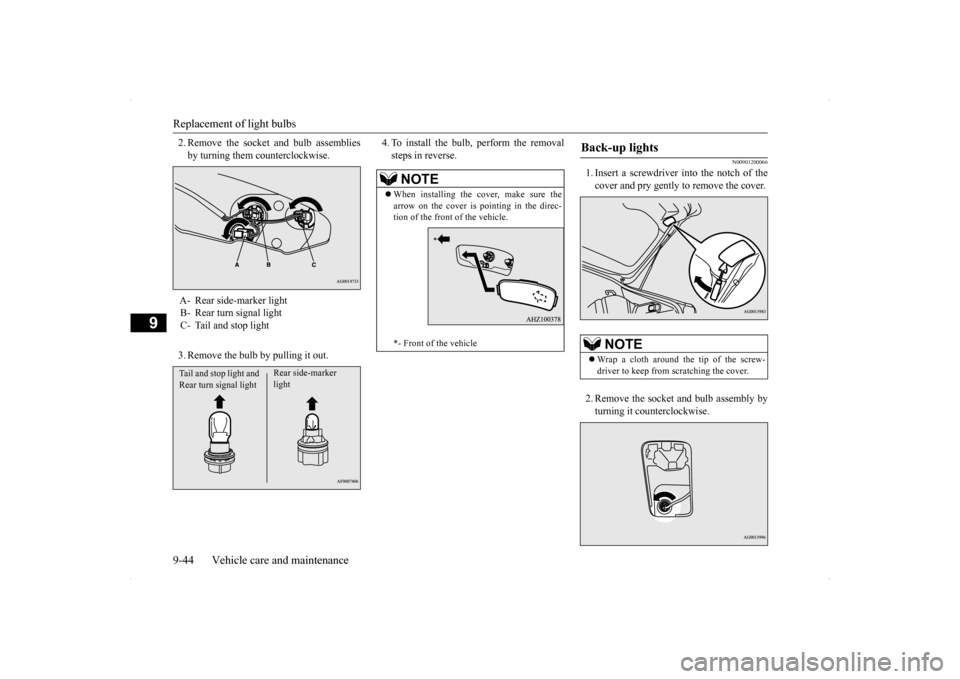

Replacement of light bulbs 9-44 Vehicle care and maintenance
9
2. Remove the socket and bulb assemblies by turning them counterclockwise. 3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
N00901200066
1. Insert a screwdriver into the notch of thecover and pry gently to remove the cover. 2. Remove the socket and bulb assembly by turning it counterclockwise.
A- Rear side-marker light B- Rear turn signal light C- Tail and stop light
Rear side-marker light
Tail and stop light and Rear turn signal light
NOTE
 When installing the cover, make sure the arrow on the cover is pointing in the direc-tion of the front of the vehicle. *- Front of the vehicle
Back-up lights
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the cover.
BK0200700US.bo
ok 44 ページ ２０１３年２月１５日　金曜日　午後１２時１７分
