Head restraints 4-6 Seat and restraint systems
4
N00404300467 N00409400014

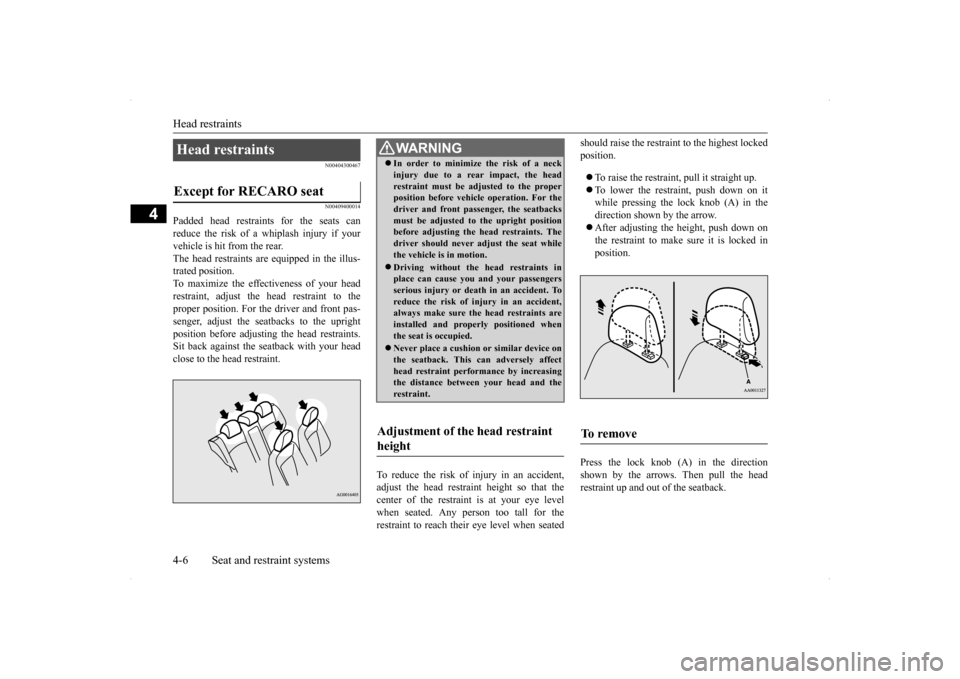

Padded head restraints for the seats can reduce the risk of a whiplash injury if yourvehicle is hit from the rear. The head restraints are equipped in the illus- trated position.To maximize the effectiveness of your headrestraint, adjust the head restraint to the proper position. For the driver and front pas- senger, adjust the seatbacks to the uprightposition before adjusting the head restraints. Sit back against the seatback with your head close to the head restraint.
To reduce the risk of injury in an accident, adjust the head restraint height so that thecenter of the restraint is at your eye level when seated. Any person too tall for the restraint to reach their eye level when seated
should raise the restraint to the highest locked position. To raise the restraint, pull it straight up. To lower the restraint, push down on it while pressing the lock knob (A) in thedirection shown by the arrow. After adjusting the height, push down on the restraint to make sure it is locked inposition.
Press the lock knob (A) in the direction shown by the arrows. Then pull the headrestraint up and out of the seatback.
Head restraints Except for RECARO seat
WA R N I N G In order to minimize the risk of a neck injury due to a rear impact, the head restraint must be adjusted to the proper position before vehi
cle operation. For the
driver and front passenger, the seatbacksmust be adjusted to the upright position before adjusting the head restraints. The driver should never adjust the seat whilethe vehicle is in motion. Driving without the head restraints in place can cause you and your passengers serious injury or death in an accident. To reduce the risk of injury in an accident,always make sure the head restraints are installed and properly positioned when the seat is occupied. Never place a cushion or similar device on the seatback. This can adversely affecthead restraint performance by increasing the distance between your head and the restraint.
Adjustment of the head restraint height
To remove
BK0200700US.bo
ok 6 ページ ２０１３年２月１５日 金曜日 午後１２時１７分
Head restraints
Seat and restraint systems 4-7
4

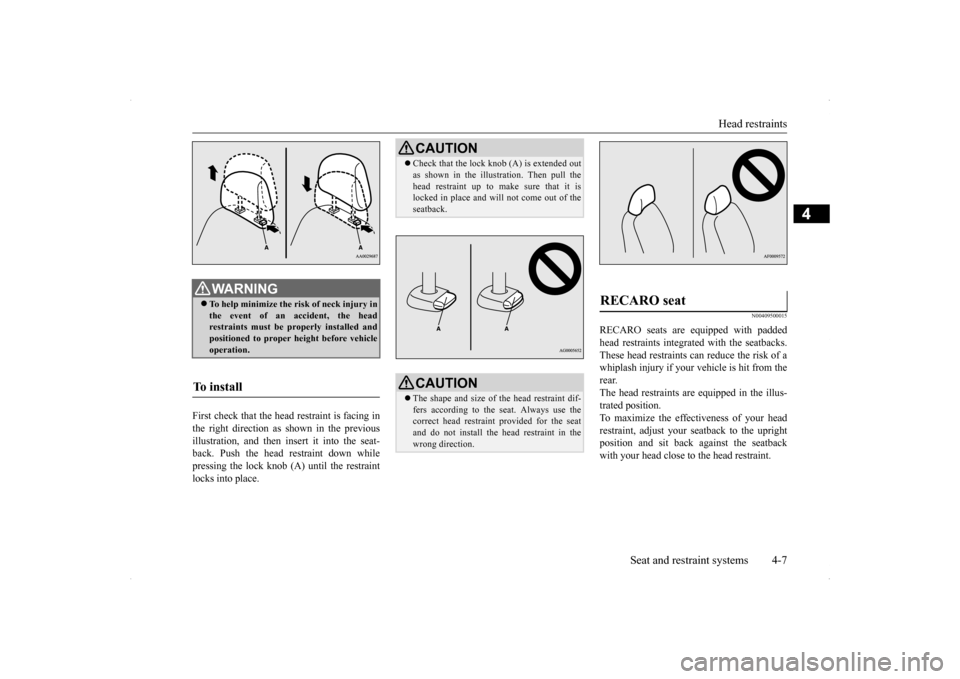

First check that the head restraint is facing in the right direction as shown in the previous illustration, and then insert it into the seat-back. Push the head restraint down while pressing the lock knob (A) until the restraint locks into place.
N00409500015
RECARO seats are equipped with paddedhead restraints integrated with the seatbacks. These head restraints can reduce the risk of a whiplash injury if your vehicle is hit from therear. The head restraints are equipped in the illus- trated position. To maximize the effectiveness of your headrestraint, adjust your seatback to the upright position and sit back against the seatback with your head close to the head restraint.
WA R N I N G To help minimize the risk of neck injury in the event of an accident, the head restraints must be properly installed andpositioned to proper height before vehicle operation.
To install
CAUTION Check that the lock knob (A) is extended out as shown in the illustration. Then pull the head restraint up to make sure that it is locked in place and will not come out of the seatback.CAUTION The shape and size of the head restraint dif- fers according to the seat. Always use the correct head restraint provided for the seatand do not install the head restraint in the wrong direction.
RECARO seat
BK0200700US.bo
