2013 RENAULT KANGOO Petrol V42 Injection Workshop Manual

17B-49
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$081.mif

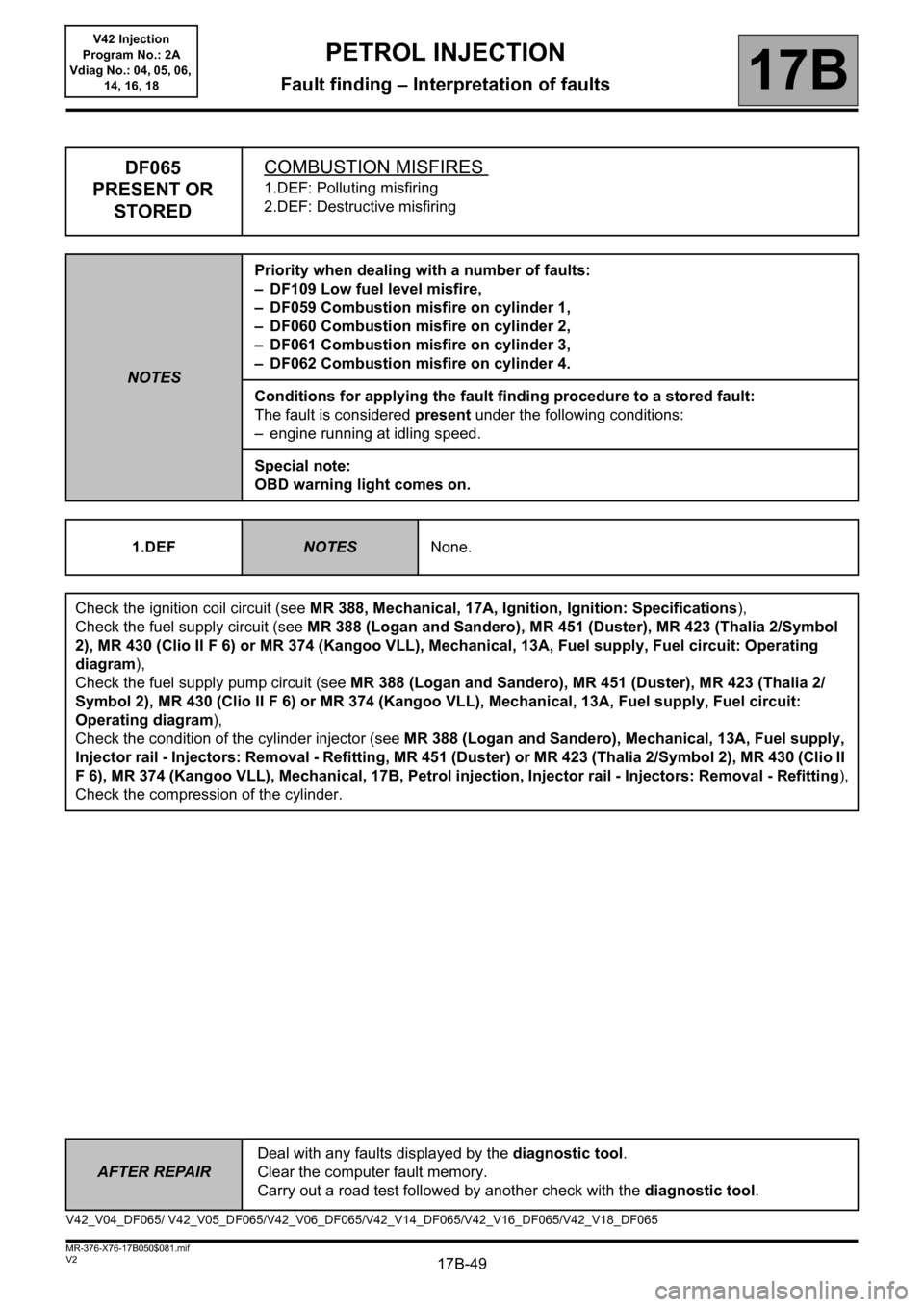

PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF065
PRESENT OR
STOREDCOMBUSTION MISFIRES
1.DEF: Polluting misfiring
2.DEF: Destructive misfiring
NOTESPriority when dealing with a number of faults:
– DF109 Low fuel level misfire,
– DF059 Combustion misfire on cylinder 1,
– DF060 Combustion misfire on cylinder 2,
– DF061 Combustion misfire on cylinder 3,
– DF062 Combustion misfire on cylinder 4.
Conditions for applying the fault finding procedure to a stored fault:
The fault is considered present under the following conditions:
– engine running at idling speed.
Special note:
OBD warning light comes on.
1.DEF
NOTESNone.
Check the ignition coil circuit (see MR 388, Mechanical, 17A, Ignition, Ignition: Specifications),
Check the fuel supply circuit (see MR 388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol
2), MR 430 (Clio II F 6) or MR 374 (Kangoo VLL), Mechanical, 13A, Fuel supply, Fuel circuit: Operating
diagram),
Check the fuel supply pump circuit (see MR 388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/
Symbol 2), MR 430 (Clio II F 6) or MR 374 (Kangoo VLL), Mechanical, 13A, Fuel supply, Fuel circuit:
Operating diagram),
Check the condition of the cylinder injector (see MR 388 (Logan and Sandero), Mechanical, 13A, Fuel supply,
Injector rail - Injectors: Removal - Refitting, MR 451 (Duster) or MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II
F 6), MR 374 (Kangoo VLL), Mechanical, 17B, Petrol injection, Injector rail - Injectors: Removal - Refitting),
Check the compression of the cylinder.
V42_V04_DF065/ V42_V05_DF065/V42_V06_DF065/V42_V14_DF065/V42_V16_DF065/V42_V18_DF065

17B-50
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$081.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF065
CONTINUED
After repair, check that the catalytic converter was not damaged by the misfire.
To do this, switch on the ignition, run the catalytic converter test SC006 Run OBD test: Catalytic converter and
start the engine (only depress the brake pedal to authorise the starting of the engine,
do not touch the accelerator pedal or clutch pedal).
At the end, check the test results:
STATUS1: Fault finding was not performed/impossible to obtain the necessary conditions
STATUS2: The component is in an average condition - sensor OK
STATUS3: The component is in a good condition - sensor OK
STATUS4: The component is in poor condition - replace the catalytic converter (see MR 388 (Logan and
Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II F 6) or MR 374 (Kangoo VLL),
Mechanical, 19B, Exhaust, Catalytic converter: Removal - Refitting).
2.DEF
NOTESNone.
Check the ignition coil circuit (see MR 388, Mechanical, 17A, Ignition, Ignition: Specifications),
Check the fuel supply circuit (see MR 388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol
2), MR 430 (Clio II F 6) or MR 374 (Kangoo VLL), Mechanical, 13A, Fuel supply, Fuel circuit: Operating
diagram),
Check the fuel supply pump circuit (see MR 388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/
Symbol 2), MR 430 (Clio II F 6) or MR 374 (Kangoo VLL), Mechanical, 13A, Fuel supply, Fuel circuit:
Operating diagram),
Check the condition of the cylinder injector (see MR 388 (Logan and Sandero), Mechanical, 13A, Fuel supply,
Injector rail - Injectors: Removal - Refitting, MR 451 (Duster) or MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II
F 6), MR 374 (Kangoo VLL), Mechanical, 17B, Petrol injection, Injector rail - Injectors: Removal - Refitting),
Check the compression of the cylinder.

17B-51
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$081.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF078
PRESENT OR
STOREDMOTORISED THROTTLE CONTROL CIRCUIT
1.DEF: Motorised throttle general control fault
WARNING:
Never drive the vehicle without having confirmed that no faults involving the throttle valve are present.
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is considered present if:
– the engine speed varies,
– the AC027 Motorised throttle command is activated.
Special notes:
OBD warning light and level 1 fault warning light illuminated.
See the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
Check the cleanliness and condition of the injection computer connector, component code 120 and the throttle
valve connector, component code 1076.
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connections:
–3AJB between components 120 and 1076,
–3AJC between components 120 and 1076.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline
V42_V04_DF078/ V42_V05_DF078/V42_V06_DF078/V42_V14_DF078/V42_V16_DF078/V42_V18_DF078

17B-52V2 MR-376-X76-17B050$081.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
AFTER REPAIRFollow the instructions to confirm repair.
Deal with any other faults.
Clear the stored faults.
DF079
PRESENT OR
STOREDMOTORISED THROTTLE VALVE SERVO1.DEF: Motorised throttle rest position programming error
2.DEF: Values outside permitted tolerance
3.DEF: Incorrect position of throttle valve in safe mode
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present:
– switch on the powerlatch phase - switch off + after ignition feed and switch on the
+ after ignition feed again
Special notes:
OBD warning light and level 1 fault warning light illuminated.
See the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
Check the cleanliness and condition of the injection computer connector, component code 120 and the throttle
valve connector, component code 1076.
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
If the fault is still present, manually check that the throttle valve rotates correctly.
Repair if necessary (see MR 388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430
(Clio II F 6) or MR 374 (Kangoo VLL), Mechanical, 12A, Fuel mixture, Throttle valve: Cleaning).
Accelerate a couple of times and check that the values of PR538 Measured voltage gang 2 and PR539 Measured
voltage gang 1 vary according to acceleration.
If the fault is still present, disconnect the battery and the injection computer.
Check the insulation, continuity and absence of interference resistance of the following connections:
–3AJB between components 120 and 1076,
–3AJC between components 120 and 1076,
–3MO between components 120 and 1076,
–3MP between components 120 and 1076,
–3MN between components 120 and 1076,
–3MQbetween components 120 and 1076.
If the connections are faulty and if there is a repair procedure (see Technical Note 6015A, Electrical wiring
repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring
If the throttle valve has been replaced, reinitialise the programming by running command RZ031 Throttle stop
programming.
If the fault is still present, contact Techline.
V42_V04_DF079/ V42_V05_DF079/V42_V06_DF079/V42_V14_DF079/V42_V16_DF079/V42_V18_DF079

17B-53
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$081.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF080
PRESENT
OR STOREDCAMSHAFT DEPHASER CIRCUITCO: Open circuit
CC.0: Short circuit to earth
CC.1: Short circuit to +12 V
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is considered present when the engine is running.
See the Wiring Diagrams Technical Note for Duster.
See Technical Note 6506A, Injection fault finding, Camshaft dephaser, ALP4 Electrical fault (status CO,
CC.1, CC.O) on the camshaft dephaser detected using Clip: DF080 "Camshaft dephaser circuit" or DF063
"Camshaft dephaser" (K4M and F4R 830 Clio III RS).
If the fault is still present, contact Techline.
V42_V04_DF080/V42_V05_DF080/V42_V06_DF080/V42_V14_DF080/V42_V16_DF080/V42_V18_DF080

17B-54V2 MR-376-X76-17B050$081.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
AFTER REPAIRFollow the instructions to confirm repair.
Deal with any other faults.
Clear the stored faults.
DF081
PRESENT OR
STOREDCANISTER BLEED SOLENOID VALVE CIRCUITCO: Open circuit
CC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
NOTESSee the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
Special notes:
For CO and CC.1, the OBD warning light and level 1 fault warning light illuminate.
Check the cleanliness and condition of the connector of the injection computer, component code 120 and of the
connector of the fuel vapour absorber bleed solenoid valve, component code 371.
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connections:
–3FB between components 371 and 1047 (for Logan, Sandero, Duster) or 238 (for Thalia 2/Symbol 2, Kangoo
VLL) or 983 (for Clio II F 6),
–3BB between components 371 and 120.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
With the ignition on, check for + 12 V on connection 3FB of component 371.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the operation of the canister bleed solenoid valve using command AC017 Canister bleed solenoid valve.
Measure the resistance of the fuel vapour absorber bleed solenoid valve, component code 371.
If the resistance of the fuel vapour absorber bleed solenoid valve is not between: 24  < X < 30  or 22  < X <
30  (Duster F4R and K4M engine) between 0°C and 40°C,
replace the fuel vapour absorber bleed solenoid valve,
component code 371 (see MR 388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR
430 (Clio II F 6) or MR 374 (Kangoo VLL), Mechanical, 14A, Emission control, Fuel vapour absorber:
Removal - Refitting).
If the fault is still present, contact Techline.
V42_V04_DF081/ V42_V05_DF081/V42_V06_DF081/V42_V14_DF081/V42_V16_DF081/V42_V18_DF081

17B-55V2 MR-376-X76-17B050$081.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
AFTER REPAIRFollow the instructions to confirm repair.
Deal with any other faults.
Clear the stored faults.
DF082
PRESENT OR
STOREDUPSTREAM OXYGEN SENSOR HEATING CIRCUITCO: Open circuit
CC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
NOTESSee the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
Special notes:
For CO and CC.1, the OBD warning light illuminates.
Check the condition of the supply circuit fuse for the upstream oxygen sensor, component code 887.
If the fuse is faulty, replace the fuse (see MR 388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/
Symbol 2), MR 430 (Clio II F 6) or MR 374 (Kangoo VLL), Mechanical, 81C, Fuses, Fuses: List and location
of components).
Check the cleanliness and condition of the injection computer connector, component code 120 and of the
upstream oxygen sensor connector, component code 887.
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
With the ignition on, check for + 12 V on connection 3FB of component 887.
Check the insulation, continuity and the absence of interference resistance on the following connection:
–3FB between components 1047 (for Logan, Sandero, Duster) or 238 (for Thalia 2/Symbol 2, Kangoo VLL) or
983 (for Clio II F 6) and 887,
–3GF between components 120 and 887.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
If all the checks are correct, replace the upstream oxygen sensor, component code 887 (see MR 388 (Logan and
Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II F 6) or MR 374 (Kangoo VLL),
Mechanical, 17B, Petrol injection, Oxygen sensors: Removal - Refitting).
If the fault is still present, contact the Techline.
V42_V04_DF082/ V42_V05_DF082/V42_V06_DF082/V42_V14_DF082/V42_V16_DF082/V42_V18_DF082

17B-56V2 MR-376-X76-17B050$081.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
AFTER REPAIRFollow the instructions to confirm repair.
Deal with any other faults.
Clear the stored faults.
DF083
PRESENT OR
STOREDDOWNSTREAM OXYGEN SENSOR HEATING CIRCUITCO: Open circuit
CC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
NOTESSee the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
Special notes:
For CO and CC.1, the OBD warning light and level 1 fault warning light illuminate.
Check the condition of the fuse of the supply circuit for the downstream oxygen sensor, component code 242.
If the fuse is faulty, replace the fuse (see MR 388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/
Symbol 2), MR 430 (Clio II F 6) or MR 374 (Kangoo VLL), Mechanical, 81C, Fuses, Fuses: List and location
of components).
Check the cleanliness and condition of the injection computer connector, component code 120 and of the
connector of the downstream oxygen sensor, component code 242.
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
With the ignition on, check for + 12 V on connection 3FB of component 242.
Check the insulation, continuity and the absence of interference resistance of the following connection:
–3FB between components 1047 (for Logan, Sandero, Duster) or 238 (for Thalia 2/Symbol 2, Kangoo VLL) or
983 (for Clio II F 6) and 242,
–3GG between components 120 and 242.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
If all the checks are correct, replace the downstream oxygen sensor, component code 242 (see MR 388 (Logan
and Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II F 6) or MR 374 (Kangoo VLL),
Mechanical, 17B, Petrol injection, Oxygen sensors: Removal - Refitting).
If the fault is still present, contact the Techline.
V42_V04_DF083/ V42_V05_DF083/V42_V06_DF083/V42_V14_DF083/V42_V16_DF083/V42_V18_DF083
