PETROL INJECTION
Fault finding – Test summary table17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
Fan relay checkTEST 16
Upstream O2 sensor check TEST 17
Downstream O2 sensor check TEST 18
Fuel conformity checkTEST 19
Camshaft sensor checkTEST 20

17B-250
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V2 MR-376-X76-17B050$180.mif
PETROL INJECTION
Fault finding – Tests17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
TEST 1 Fuel supply pump relay check
NOTESSee the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
Listen for the operation of the fuel supply pump and the fuel pump relay while running command AC015 Petrol
pump relay.
Check the supply of the fuel pump on connection 3NA (for Logan, Sandero, Duster) or 3N (for Thalia 2/Symbol
2) by running command AC015.
Check the continuity, insulation, and absence of interference resistance on the following connections:
For Logan, Sandero, Duster:
–3NA between components 1047 and 833,
–MG between component 833 and earth.
For Thalia 2/Symbol 2, Clio II F 6:
–3N between components 236 and 218,
–M between component218 and earth.
For Kangoo VLL:
–3NA between components 236 and 218,
–MK between component 218 and earth.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the techline.
V42_V04_TEST1/V42_V05_TEST1/V42_V06_TEST1/V42_V14_TEST1/V42_V16_TEST1/V42_V18_TEST1
PETROL INJECTION
Fault finding – Tests

17B-251
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V2 MR-376-X76-17B050$180.mif
PETROL INJECTION
Fault finding – Tests17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
TEST 2 Alternator signal module check
NOTESSee the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
With the engine running, check the alternator charge without any electrical consumers switched on using PR002
Alternator charge, then switch on the consumers and check the increase in PR002.
Check the cleanliness and condition of the alternator connector, component code 103 and of the injection
computer connector, component code 120.
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connection.
–2K between components 103 and 120.
If the connection is faulty and if there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the check is correct, replace the alternator signal module, component code 103 (see MR 388 (Logan and
Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II F 6) or MR 374 (Kangoo VLL),
Mechanical, 16A, Starting - Charging, Alternator: Removal - Refitting).
If the fault is still present, contact the techline.
V42_V04_TEST2/V42_V05_TEST2/V42_V06_TEST2/V42_V14_TEST2/V42_V16_TEST2/V42_V18_TEST2

17B-252
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V2 MR-376-X76-17B050$180.mif
PETROL INJECTION
Fault finding – Tests17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
TEST 3 Throttle valve check
NOTESNone.
Check that parameter PR444 Idle speed regulation integral correction is between:
5 N.m < PR444 < 10 N.m (K4M, K7M engine) or -5 N.m < PR444 < 5 N.m (D4D, F4R and K4M engine of Duster).
The attempt is made with the engine idling and warm (75°C), without any electrical consumers switched on. The
value of PR444 must be read at least 20 minutes after the engine coolant temperature has reached 75°C.
If the value of PR444 is greater than 10 N.m (K4M, K7M engine) or 5 N.m (D4D, F4R and K4M engine of Duster),
reprogram the throttle valve using command RZ031 Throttle stop programming.
If the value of PR444 is less than -5 N.m, check the fitting of the throttle and check for possible air leaks (see MR
388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II F 6) or MR 374
(Kangoo VLL), Mechanical, 12A, Fuel mixture, Throttle valve: Removal - Refitting).
If the fault is still present, contact the techline.
V42_V04_TEST3/V42_V05_TEST3/V42_V06_TEST3/V42_V14_TEST3/V42_V16_TEST3/V42_V18_TEST3

17B-253
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V2 MR-376-X76-17B050$180.mif
PETROL INJECTION
Fault finding – Tests17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18

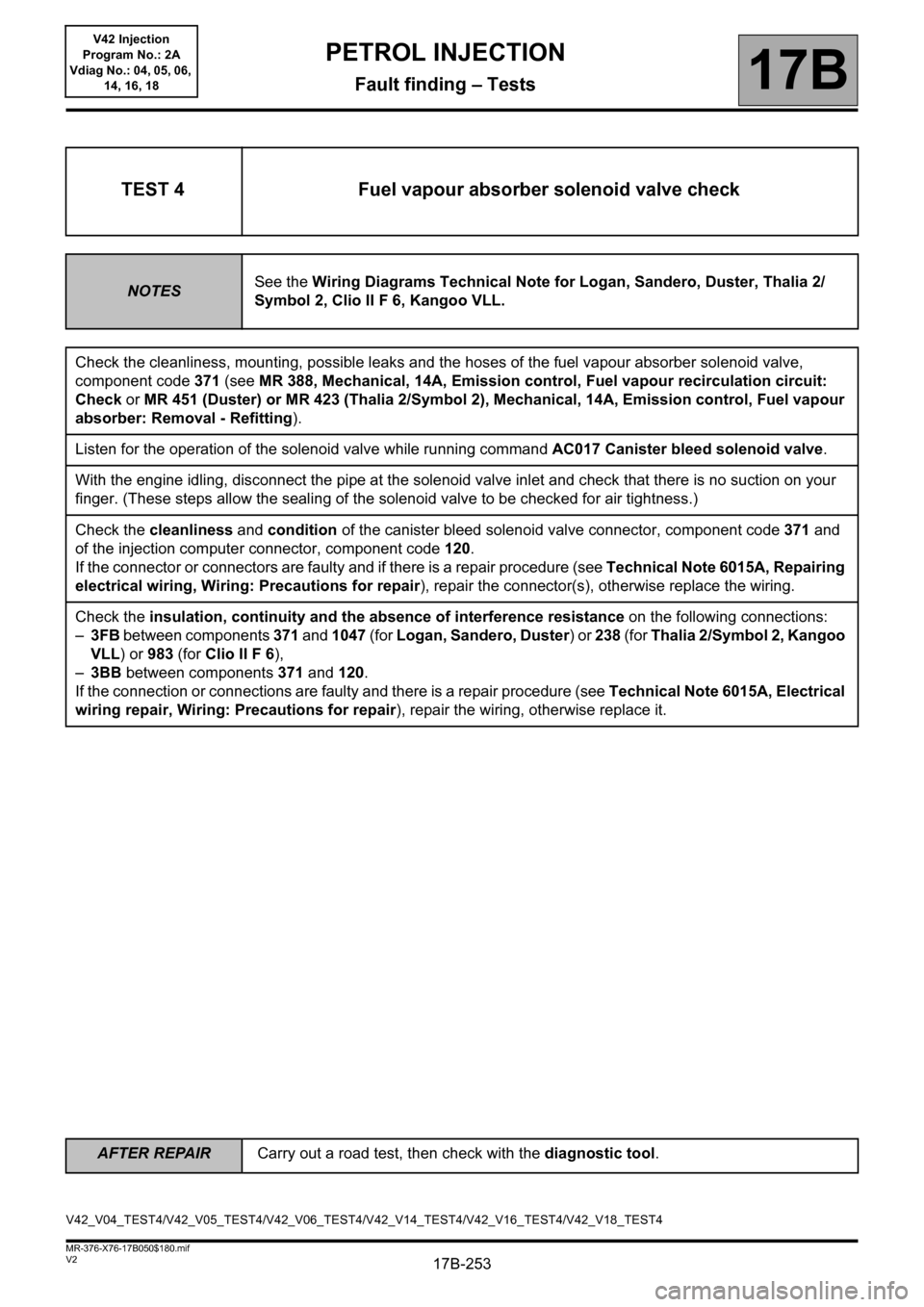

TEST 4 Fuel vapour absorber solenoid valve check
NOTESSee the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
Check the cleanliness, mounting, possible leaks and the hoses of the fuel vapour absorber solenoid valve,
component code 371 (see MR 388, Mechanical, 14A, Emission control, Fuel vapour recirculation circuit:
Check or MR 451 (Duster) or MR 423 (Thalia 2/Symbol 2), Mechanical, 14A, Emission control, Fuel vapour
absorber: Removal - Refitting).
Listen for the operation of the solenoid valve while running command AC017 Canister bleed solenoid valve.
With the engine idling, disconnect the pipe at the solenoid valve inlet and check that there is no suction on your
finger. (These steps allow the sealing of the solenoid valve to be checked for air tightness.)
Check the cleanliness and condition of the canister bleed solenoid valve connector, component code 371 and
of the injection computer connector, component code 120.
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connections:
–3FB between components 371 and 1047 (for Logan, Sandero, Duster) or 238 (for Thalia 2/Symbol 2, Kangoo
VLL) or 983 (for Clio II F 6),
–3BB between components 371 and 120.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
V42_V04_TEST4/V42_V05_TEST4/V42_V06_TEST4/V42_V14_TEST4/V42_V16_TEST4/V42_V18_TEST4

17B-254
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V2 MR-376-X76-17B050$180.mif
PETROL INJECTION
Fault finding – Tests17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
TEST 4
CONTINUED
With the ignition on, check for + 12 V on connection 3FB of component 371.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the resistance of the fuel vapour absorber bleed solenoid valve.
If the resistance of the fuel vapour absorber bleed solenoid valve is not between: 24  < X < 30  or 22  < X <
30  (F4R engine on Duster) between 0°C and 40°C, replace the fuel vapour absorber bleed solenoid valve (see
MR 388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II F 6) or MR 374
(Kangoo VLL), Mechanical, 14A, Emission control, Fuel vapour absorber: Removal - Refitting).
If the fault is still present, contact the techline.

17B-255
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V2 MR-376-X76-17B050$180.mif
PETROL INJECTION
Fault finding – Tests17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
TEST 5 Additional fuel tank check
NOTESSee the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
Check the cleanliness, the mounting and for possible leaks of the hoses of the solenoid valve (see MR 388 (Logan
and Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II F 6) or MR 374 (Kangoo VLL),
Mechanical, 19C, Tank, Fuel pump of the additional fuel tank: Removal - Refitting).
Listen to the operation of the solenoid valve by running command AC217 Additional petrol circuit solenoid
valve.
Check the cleanliness and condition of the connector of the additional petrol circuit solenoid valve, component
code 1640 and the connector of the injection computer, component code 120.
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
V42_V04_TEST5/V42_V05_TEST5/V42_V06_TEST5/V42_V14_TEST5/V42_V16_TEST5/V42_V18_TEST5

17B-256
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V2 MR-376-X76-17B050$180.mif
PETROL INJECTION
Fault finding – Tests17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
TEST 5
CONTINUED
Check the continuity, insulation, and absence of interference resistance on the following connections:
For Logan, Sandero, Duster:
–3ACM between components 1640 and 120,
–3FB between components 1640 and 1047,
For Thalia 2/Symbol 2, Kangoo VLL:
–3ACM between components 1640 and 120,
–3FB between components 1640 and 238,
For Clio II F 6:
–3ACM between components 1640 and 120,
–3FB between components 1640 and 983.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the supply of the solenoid valve using a test light, by running command AC224 Additional petrol circuit
pump relay.
Check the internal resistance of the solenoid valve, component code 1640 on the connector of the computer,
component code 120. Its value must be between: 24  < X  30  12  £ X £ 16  (Duster F4R engine) or 22 
X  30
 (Duster K4M engine) (between 0°C and 40°C). If the resistance is not correct, replace the solenoid
valve (see MR 388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II F 6)
or MR 374 (Kangoo VLL), Mechanical, 19C, Tank, Fuel pump of the additional fuel tank: Removal -
Refitting).
If the fault is still present, contact the techline.
