2013 RENAULT KANGOO Petrol V42 Injection Workshop Manual

17B-145
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF1074
PRESENT OR
STOREDMOTORISED THROTTLE POSITION INCONSISTENT1.DEF: Inconsistency between throttle valve position and control.
2.DEF: Inconsistent signal.
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is considered present under the following conditions:
–For 1.DEF engine running at idle speed.
Special note:
For 1.DEF, the OBD warning light illuminates,
For 2.DEF, the OBD warning light and level 2 fault warning light illuminate.
See the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
Check the connection and condition of the motorised throttle valve connector, component code 1076 and the
injection computer connector, component code 120.
If the connector or connectors are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connections:
–3AJB between components 1076 and 120,
–3AJC between components 1076 and 120,
–3MP between components 1076 and 120,
–3MQ between components 1076 and 120,
–3MO between components 1076 and 120.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
V42_V04_DF1074/V42_V05_DF1074/V42_V06_DF1074/V42_V14_DF1074/V42_V16_DF1074/V42_V18_DF1074

17B-146
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF1235
PRESENT OR
STOREDAUTOMATIC TRANSMISSION
1.DEF: Invalid multiplex signals generated by computer
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is present with the engine idling.
Special note:
OBD warning light comes on.
Run fault finding on the ETC (see 26A, 4X4 Driveshaft).
V42_V04_DF1235/V42_V05_DF1235/V42_V06_DF1235/V42_V14_DF1235/V42_V16_DF1235/V42_V18_DF1235

17B-147
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 18
DF1265
PRESENT OR
STOREDLPG PRESSURE SENSOR CIRCUITCO: Open circuit
CC.0: short circuit to earth
CC.1: short circuit to +12 V
NOTESNone.
See Technical Note 6520 Fault finding of the Euro V Landi Renzo LPG system. (D4F734 engine on Logan
and Sandero) or Technical Note 6524 "Landi Renzo Euro V LPG system fault finding" (K4M616 engine on
Duster).
V42_V18_DF1265

17B-148
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 18
DF1267
PRESENT OR
STOREDLPG TEMPERATURE SENSOR CIRCUIT1.DEF: Temperature measured too low
2.DEF: Temperature measured too high
NOTESNone.
See Technical Note 6520 Fault finding of the Euro V Landi Renzo LPG system. (D4F734 engine on Logan
and Sandero) or Technical Note 6524 "Landi Renzo Euro V LPG system fault finding" (K4M616 engine on
Duster).
V42_V18_DF1267

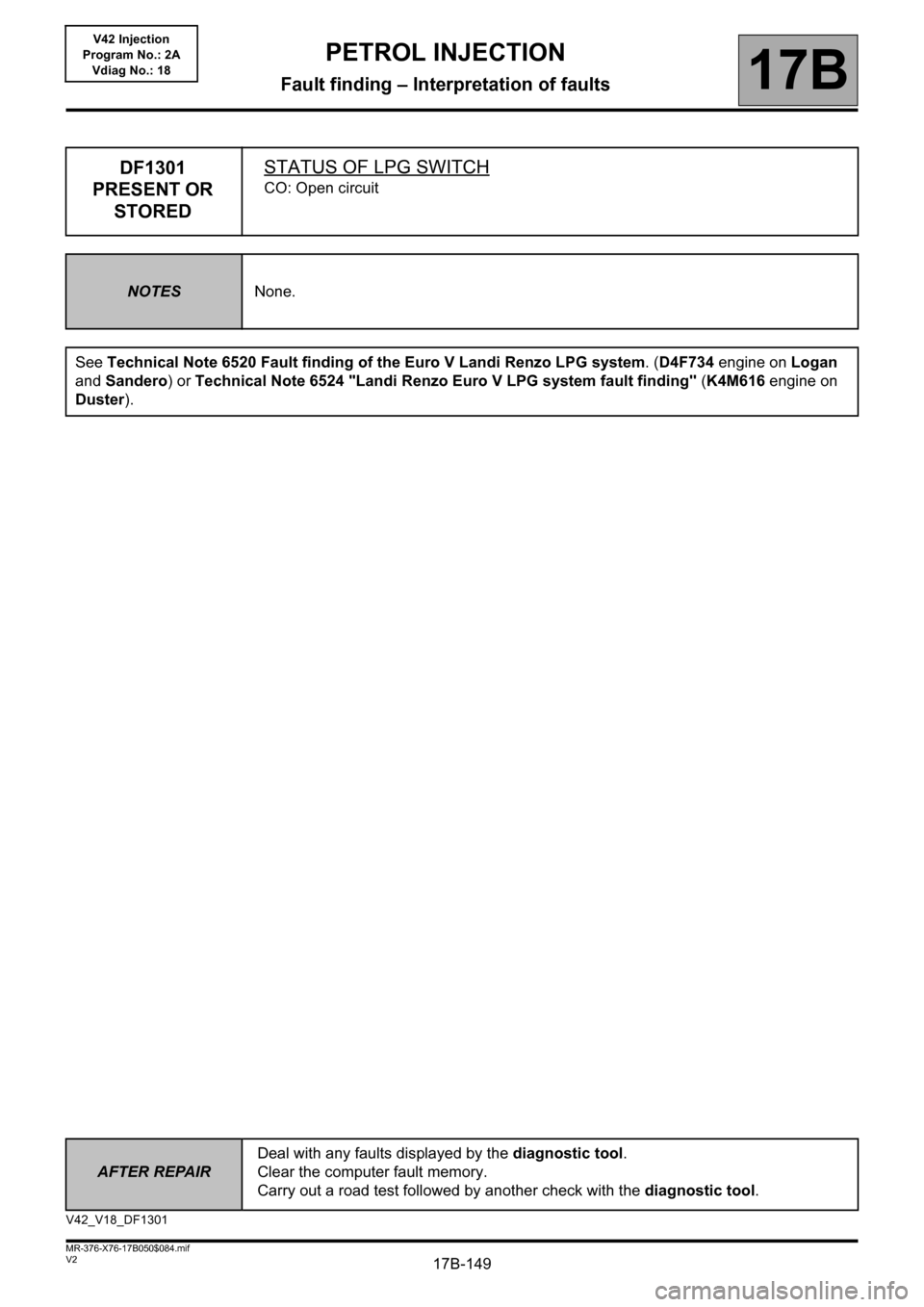

17B-149
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 18
DF1301
PRESENT OR
STOREDSTATUS OF LPG SWITCH
CO: Open circuit
NOTESNone.
See Technical Note 6520 Fault finding of the Euro V Landi Renzo LPG system. (D4F734 engine on Logan
and Sandero) or Technical Note 6524 "Landi Renzo Euro V LPG system fault finding" (K4M616 engine on
Duster).
V42_V18_DF1301

17B-150
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF1355
PRESENT OR
STOREDMULTIPLEX TORQUE REGULATOR CONNECTION
1.DEF: Inconsistent signal.
2.DEF: Invalid multiplex signals generated by computer.
NOTESNone.
Perform fault finding on the electromagnetic torque management computer.
V42_V04_DF1355/V42_V05_DF1355/V42_V06_DF1355/V42_V14_DF1355/V42_V16_DF1355/V42_V18_DF1355

17B-151
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 18
DF1361
PRESENT OR
STOREDLPG TEMPERATURE SENSOR CIRCUITCO.1: open circuit or short circuit to +12 V
CC.0: short circuit to earth
NOTESNone.
See Technical Note 6520 Fault finding of the Euro V Landi Renzo LPG system. (D4F734 engine on Logan
and Sandero) or Technical Note 6524 "Landi Renzo Euro V LPG system fault finding" (K4M616 engine on
Duster).
V42_V18_DF1361

17B-152
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 18
DF1362
PRESENT OR
STOREDTANK SOLENOID VALVE CIRCUITCO.1: open circuit or short circuit to +12 V
CC.0: short circuit to earth
NOTESNone.
See Technical Note 6520 Fault finding of the Euro V Landi Renzo LPG system. (D4F734 engine on Logan
and Sandero) or Technical Note 6524 "Landi Renzo Euro V LPG system fault finding" (K4M616 engine on
Duster).
V42_V18_DF1362
