17B-113
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$083.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 18
DF637
CONTINUED 2
2.DEFNOTESNone.
Check the ignition coil circuit (see MR 388, Mechanical, 17A, Ignition, Ignition: Specifications),
Check the fuel supply circuit (see MR 388 (Logan and Sandero), MR 451 (Duster) or MR 423 (Thalia 2/Symbol
2), Mechanical, 13A, Fuel supply, Fuel circuit: Operating diagram),
Check the fuel supply pump circuit (see MR 388 (Logan and Sandero), MR 451 (Duster) or MR 423 (Thalia 2/
Symbol 2), Mechanical, 13A, Fuel supply, Fuel circuit: Operating diagram),
Check the condition of the cylinder 3 injector (see MR 388 (Logan and Sandero), Mechanical, 13A, Fuel supply,
Injector rail - Injectors: Removal - Refitting, MR 451 (Duster) or MR 423 (Thalia 2/Symbol 2), Mechanical,
17B, Petrol injection, Injector rail - Injectors: Removal - Refitting),
Check the compression of cylinder 3.

17B-114
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$083.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 18
DF638
PRESENT OR
STOREDLPG CYLINDER 4 COMBUSTION MISFIRE1.DEF: Polluting misfiring.
2.DEF: Destructive misfiring.
NOTESPriority when dealing with a number of faults:
– DF109 Low fuel level misfire.
Conditions for applying the fault finding procedure to stored faults:
The fault is considered present under the following conditions:
– engine running at idling speed.
Special note:
OBD warning light comes on.
1.DEF
NOTESNone.
Check the ignition coil circuit (see MR 388, Mechanical, 17A, Ignition, Ignition: Specifications),
Check the fuel supply circuit (see MR 388 (Logan and Sandero), MR 451 (Duster) or MR 423 (Thalia 2/Symbol
2), Mechanical, 13A, Fuel supply, Fuel circuit: Operating diagram),
Check the fuel supply pump circuit (see MR 388 (Logan and Sandero), MR 451 (Duster) or MR 423 (Thalia 2/
Symbol 2), Mechanical, 13A, Fuel supply, Fuel circuit: Operating diagram),
Check the condition of the cylinder 4 injector (see MR 388 (Logan and Sandero), Mechanical, 13A, Fuel supply,
Injector rail - Injectors: Removal - Refitting, MR 451 (Duster) or MR 423 (Thalia 2/Symbol 2), Mechanical,
17B, Petrol injection, Injector rail - Injectors: Removal - Refitting),
Check the compression of cylinder 4.
V42_V18_DF638

17B-115
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$083.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 18

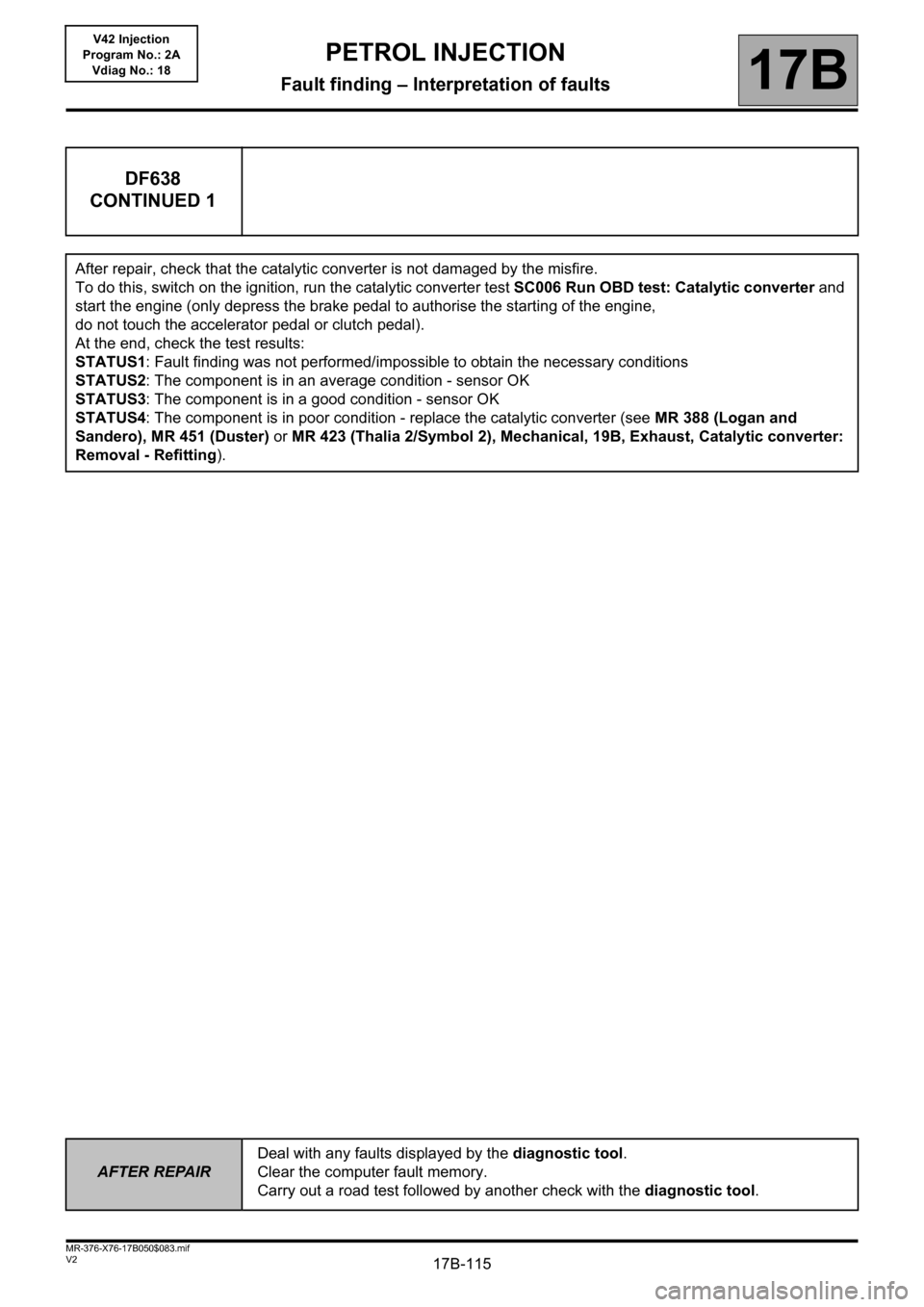

DF638
CONTINUED 1
After repair, check that the catalytic converter is not damaged by the misfire.
To do this, switch on the ignition, run the catalytic converter test SC006 Run OBD test: Catalytic converter and
start the engine (only depress the brake pedal to authorise the starting of the engine,
do not touch the accelerator pedal or clutch pedal).
At the end, check the test results:
STATUS1: Fault finding was not performed/impossible to obtain the necessary conditions
STATUS2: The component is in an average condition - sensor OK
STATUS3: The component is in a good condition - sensor OK
STATUS4: The component is in poor condition - replace the catalytic converter (see MR 388 (Logan and
Sandero), MR 451 (Duster) or MR 423 (Thalia 2/Symbol 2), Mechanical, 19B, Exhaust, Catalytic converter:
Removal - Refitting).

17B-116
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$083.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 18
DF638
CONTINUED 2
1.DEFNOTESNone.
Check the ignition coil circuit (see MR 388, Mechanical, 17A, Ignition, Ignition: Specifications),
Check the fuel supply circuit (see MR 388 (Logan and Sandero), MR 451 (Duster) or MR 423 (Thalia 2/Symbol
2), Mechanical, 13A, Fuel supply, Fuel circuit: Operating diagram),
Check the fuel supply pump circuit (see MR 388 (Logan and Sandero), MR 451 (Duster) or MR 423 (Thalia 2/
Symbol 2), Mechanical, 13A, Fuel supply, Fuel circuit: Operating diagram),
Check the condition of the cylinder 4 injector (see MR 388 (Logan and Sandero), Mechanical, 13A, Fuel supply,
Injector rail - Injectors: Removal - Refitting, MR 451 (Duster) or MR 423 (Thalia 2/Symbol 2), Mechanical,
17B, Petrol injection, Injector rail - Injectors: Removal - Refitting),
Check the compression of cylinder 4.

17B-117
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$083.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 18

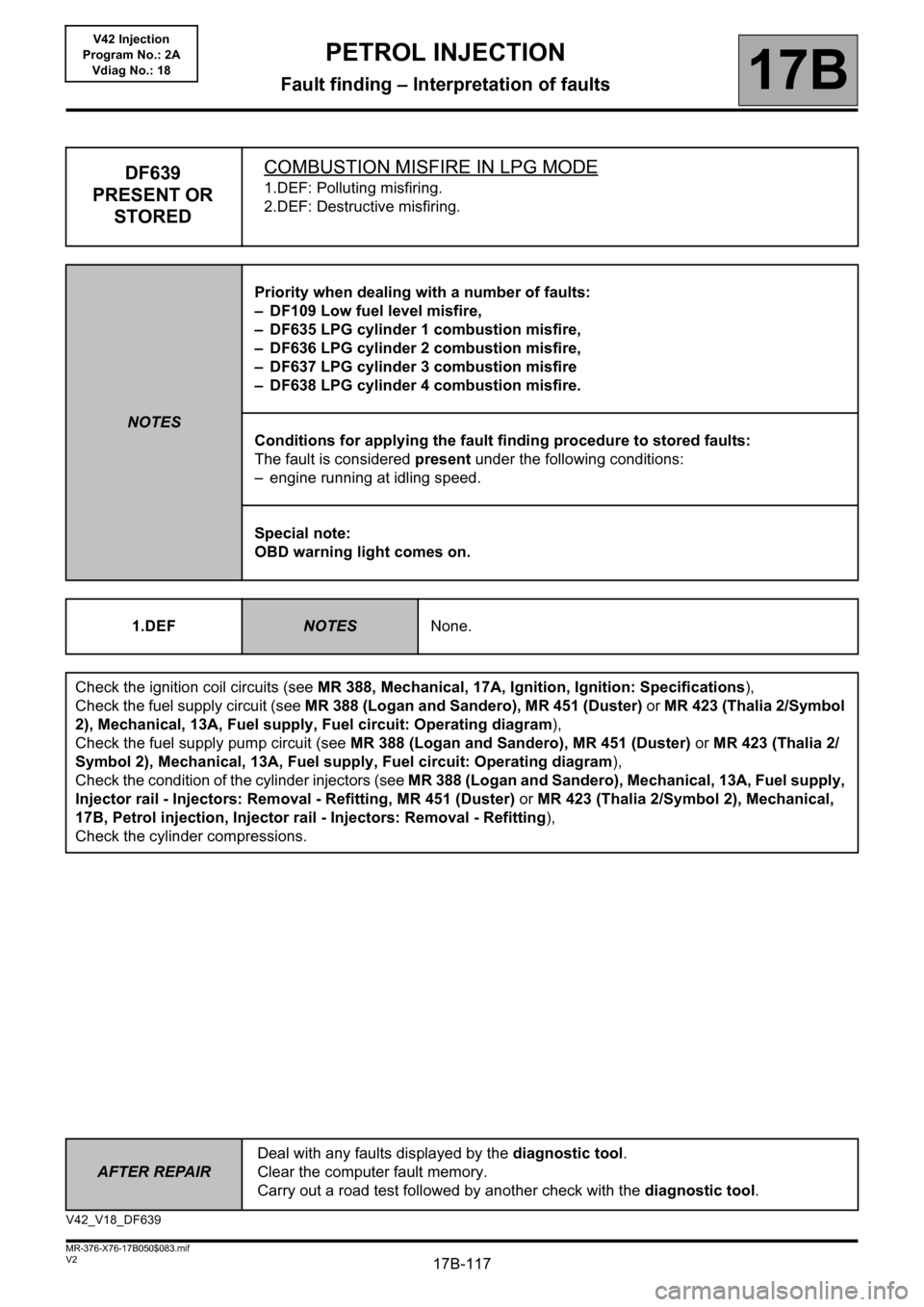

DF639
PRESENT OR
STOREDCOMBUSTION MISFIRE IN LPG MODE1.DEF: Polluting misfiring.
2.DEF: Destructive misfiring.
NOTESPriority when dealing with a number of faults:
– DF109 Low fuel level misfire,
– DF635 LPG cylinder 1 combustion misfire,
– DF636 LPG cylinder 2 combustion misfire,
– DF637 LPG cylinder 3 combustion misfire
– DF638 LPG cylinder 4 combustion misfire.
Conditions for applying the fault finding procedure to stored faults:
The fault is considered present under the following conditions:
– engine running at idling speed.
Special note:
OBD warning light comes on.
1.DEF
NOTESNone.
Check the ignition coil circuits (see MR 388, Mechanical, 17A, Ignition, Ignition: Specifications),
Check the fuel supply circuit (see MR 388 (Logan and Sandero), MR 451 (Duster) or MR 423 (Thalia 2/Symbol
2), Mechanical, 13A, Fuel supply, Fuel circuit: Operating diagram),
Check the fuel supply pump circuit (see MR 388 (Logan and Sandero), MR 451 (Duster) or MR 423 (Thalia 2/
Symbol 2), Mechanical, 13A, Fuel supply, Fuel circuit: Operating diagram),
Check the condition of the cylinder injectors (see MR 388 (Logan and Sandero), Mechanical, 13A, Fuel supply,
Injector rail - Injectors: Removal - Refitting, MR 451 (Duster) or MR 423 (Thalia 2/Symbol 2), Mechanical,
17B, Petrol injection, Injector rail - Injectors: Removal - Refitting),
Check the cylinder compressions.
V42_V18_DF639

17B-118
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$083.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 18
DF639
CONTINUED 1
After repair, check that the catalytic converter is not damaged by the misfire.
To do this, switch on the ignition, run the catalytic converter test SC006 Run OBD test: Catalytic converter and
start the engine (only depress the brake pedal to authorise the starting of the engine,
do not touch the accelerator pedal or clutch pedal).
At the end, check the test results:
STATUS1: Fault finding was not performed/impossible to obtain the necessary conditions
STATUS2: The component is in an average condition - sensor OK
STATUS3: The component is in a good condition - sensor OK
STATUS4: The component is in poor condition - replace the catalytic converter (see MR 388 (Logan and
Sandero), MR 451 (Duster) or MR 423 (Thalia 2/Symbol 2), Mechanical, 19B, Exhaust, Catalytic converter:
Removal - Refitting).

17B-119
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$083.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 18
DF639
CONTINUED 2
2.DEFNOTESNone.
Check the ignition coil circuits (see MR 388, Mechanical, 17A, Ignition, Ignition: Specifications),
Check the fuel supply circuit (see MR 388 (Logan and Sandero), MR 451 (Duster) or MR 423 (Thalia 2/Symbol
2), Mechanical, 13A, Fuel supply, Fuel circuit: Operating diagram),
Check the fuel supply pump circuit (see MR 388 (Logan and Sandero), MR 451 (Duster) or MR 423 (Thalia 2/
Symbol 2), Mechanical, 13A, Fuel supply, Fuel circuit: Operating diagram),
Check the condition of the cylinder injectors (see MR 388 (Logan and Sandero), Mechanical, 13A, Fuel supply,
Injector rail - Injectors: Removal - Refitting, MR 451 (Duster) or MR 423 (Thalia 2/Symbol 2), Mechanical,
17B, Petrol injection, Injector rail - Injectors: Removal - Refitting),
Check the cylinder compressions.

17B-120
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$083.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF648
PRESENT OR
STOREDCOMPUTER
NOTESSpecial notes:
the OBD warning light is on.
Contact the Techline.
V42_V04_DF648/V42_V05_DF648/V42_V06_DF648/V42_V14_DF648/V42_V16_DF648/V42_V18_DF648
