Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
Injection computer:
The injection computer is located in the engine compartment, behind the battery.
TDC sensor:
This sensor is located on the gearbox casing, behind the engine.
Pinking sensor:
This sensor is located between the four injectors.
Refrigerant pressure sensor:
This sensor is located on the air conditioning circuit.
Injection coolant temperature sensor:
This sensor is located on the engine water chamber.
Injection air temperature sensor:
The air temperature sensor is located at the air circuit inlet.
Downstream oxygen sensor:
The downstream oxygen sensor is located on the exhaust pipe downstream of the catalytic converter.
Upstream oxygen sensor:
The upstream oxygen sensor is located on the exhaust pipe after the manifold.
Accelerator potentiometer:
The potentiometer is located on the accelerator pedal.
Brake light switch:
The switch is located on the brake pedal.
Injectors 1, 2, 3, 4:
The injectors are mounted on the engine.
Motorised throttle valve:
The damper valve is located in front of the inlet manifold.
Quadruple ignition coil module (D4D and K7M engines):
The coil module is located in the engine compartment.
Cylinder 1, 2, 3, 4 pencil coils (K4M engine):
They are located on the cylinder head.
Catalytic converter:
The catalytic converter is located on the exhaust pipe downstream of the catalytic pre-converter.
Fan unit relay:
The relay is located on the cooling radiator.
PETROL INJECTION
Fault finding – List and location of components

17B-5V2 MR-376-X76-17B050$030.mif
17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
Injection computer:
The injection computer receives information from various sensors and sends control signals to various actuators
according to mappings that it has stored in the memory.
TDC sensor:
This sensor allows the computer to provide synchronisation as well as to know the position Top Dead Centre for
injection phasing.
Pinking sensor:
This sensor allows the computer to correct the ignition advance under high engine load to avoid damaging the
engine.
Refrigerant pressure sensor:
The role of the sensor is to measure the refrigerant fluid pressure in the air conditioning circuit.
Injection coolant temperature sensor:
The engine coolant temperature sensor informs the computer about the engine coolant temperature.
Injection air temperature sensor:
The air temperature sensor provides the computer with the temperature of air taken in by the engine.
Oxygen sensors:
The oxygen sensors allow the catalytic converter to correctly perform engine emission control tasks.
Accelerator potentiometer:
The potentiometer allows the computer to take into account driver requests expressed using the accelerator pedal.
Clutch pedal switch:
This switch allows the computer to convert to anti-jerking mode when the clutch pedal is depressed.
Brake light switch:
The brake light switch informs the computer of the brake pedal status.
Two gangs are used if the cruise control function exists.
Injectors:
These injectors enable rapid, precise metering of the quantity of fuel injected, with excellent injection process
repetitiveness.
PETROL INJECTION
Fault finding – Role of components

17B-7V2 MR-376-X76-17B050$040.mif
17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
For flex-fuel engines
1. Air filter
2. Motorised throttle valve
3. Injection air temperature sensor
4. Manifold pressure
5. Injectors
6. Ignition coils
7. Injection coolant temperature sensor
8. Pinking sensor
9. TDC sensor
10. Upstream oxygen sensors
11. Downstream oxygen sensors
12. Injection computer
13. Auxiliary cold starting system
14. Auxiliary fuel tank
15. Auxiliary fuel
16. Petrol/alcohol tank
17. Petrol pump
18. Bleed valve
PETROL INJECTION
Fault finding – Operating diagram

17B-8V2 MR-376-X76-17B050$040.mif
PETROL INJECTION
Fault finding – Operating diagram17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
For petrol and bio-petrol engines
1. Air filter
2. Motorised throttle valve
3. Injection air temperature sensor
4. Manifold pressure
5. Injectors
6. Ignition coils
7. Injection coolant temperature sensor
8. Pinking sensor
9. TDC sensor
10. Upstream oxygen sensors
11. Downstream oxygen sensors
12. Injection computer
13. Petrol tank
14. Petrol pump
15. Bleed valve

17B-9V2 MR-376-X76-17B050$050.mif
17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
Engine immobiliser
This Verlog 2 type immobiliser function is managed by the UCH computer and the injection computer.
Before any starting request, the injection computer is protected.
When a starting request is made, the injection computer and the Passenger Compartment Control Unit (UCH)
exchange authentication data via the multiplex network. This determines whether the engine start is authorised or
denied.
After more than five consecutive failed authentication attempts, the injection computer goes into protection (anti-
scanning) mode and no longer tries to authenticate the UCH computer. It only leaves this mode when the following
sequence of operations is carried out:
– the ignition is left on for at least 20 seconds,
– the message is switched off,
– the end of the injection computer self-feed is adhered to (the length of time varies depending on engine
temperature).
After this, one and only one authentication attempt is allowed. If this fails again, repeat the sequence of operations
described above.
If the injection computer still fails to unlock, contact the Techline.
Impact detected
If an impact has been stored by the injection computer, turn off the ignition for 10 seconds, then switch it back on to
start the engine. Clear the faults using the control RZ001 Fault memory.
ENGINE SPEED MANAGEMENT
Engine speed management is based on the following programs:
– Engine speed management when starting
– Engine speed management according to engine vibrations
– Idle speed management
– Engine speed restriction
– Engine speed management according to its status
Engine speed management when starting
This programming is used:
– To set the injection timing when starting, using the TDC (Top Dead Centre) sensor
– To calculate the amount of fuel to be injected into the cylinders to avoid flooding the engine.
Preventive correction of engine speed linked to vibrations
Programming that enables user comfort to be optimised during acceleration or deceleration which causes a harsh
change in engine torque and therefore vibration in the driveshaft. Torque management is important during these
situations.
Curative correction of engine speed linked to vibrations
This programming is used to absorb the oscillations in engine speed caused by vibration in the driveshaft.WARNING
Disconnect the injection system computer when carrying out any welding work on the vehicle.
PETROL INJECTION
Fault finding – Features

17B-10V2 MR-376-X76-17B050$050.mif
PETROL INJECTION
Fault finding – Features17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
Idle speed management
This programming is used to calculate the adapted idle speed according to the conditions of use (cold engine, air
conditioning requests, electrical consumer use etc.).
Air supply
This is managed by a motorised throttle valve which is controlled by the injection computer.
The injection computer also performs the following tasks using the motorised throttle:
– management of valve oscillations which can produce undesirable torque,
– management of valve movement subject to mechanical faults when the valve reaches its mechanical boundaries,
– management of acoustic faults by limiting throttle opening at a certain engine speed and when stopping the engine.
Torque management
The torque structure is the system for managing engine torque. It is necessary for some functions such as the
electronic stability program (ESP), automatic transmission (BVA) or sequential gearbox (BVR).
Each computer (ESP, sequential gearbox, automatic transmission) sends a request for torque via the multiplex
network to the injection computer. This arbitrates between the various torque requests and the driver's request
(made via the accelerator pedal or the cruise control/speed limiter).
The result of this arbitration gives the torque setpoint. The computer then calculates the throttle position setpoint, the
ignition advance and the wastegate setpoint (if a turbocharged engine) in order to provide the necessary torque.
Ignition management
Management of ignition advance enables the combustion quality to be managed and therefore engine operation to
be optimised. For a positive advance, the ignition point will be before TDC*, however the advance can have a
negative value.
TDC*: Top Dead Centre.
Fuel supply management
The fuel pump ensures the supply of fuel. It is activated for one second each time the + after ignition feed is switched
on. It ensures the correct level of pressure in the circuit and thereby achieves correct engine starting, particularly if
the vehicle has not been used for a long time. When the engine is running, the pump relay is controlled and
therefore the pump is always active.
The petrol vapour absorber enables petrol vapour to be collected in order to limit its release into the atmosphere.
Richness adjustment
Richness is managed using the upstream and downstream oxygen sensors located on the exhaust. For the sensors
to be operational quickly, they need to be heated by the exhaust gas and by a resistor internal to the sensor. These
sensors reflect the efficiency of combustion and, using information sent to the computer, they enable the quantity of
fuel injected to be managed in order to meet the emission control standards and to ensure optimum engine
operation.

17B-13V2 MR-376-X76-17B050$060.mif
PETROL INJECTION
Fault finding – Replacement of components17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
Programming the alcohol level
– Put the vehicle under + after ignition and wait for the value of parameter PR064 Coolant temperature to be greater
than or equal to 80°C.
– There must be no present or stored faults.
– With the ignition on and engine stopped, note the value of PR743 Estimated alcohol level in the tank.
– Carry out resetting using command RZ064 Programming the alcohol level.
– Start the engine and allow the engine to idle for 5 minutes.
– Check the correct programming using parameter PR743; its value must have changed.
– If programming was not performed correctly, repeat the operation from the start.
– If the fault is still present, contact the Techline.
Injection computer initialisation
Start and stop the engine to initialise the computer and wait for the loss of communication message to appear on the
diagnostic tool. If the message does not appear, wait for 9 minutes.
The computer is automatically configured according to the sensors and options present on the vehicle.
If the data were not saved before the operation, carry out the following operations:
– Programming the VIN code
– Enter the V.I.N. using command VP010 Enter VIN.
– Injector programming
Program the injectors by accessing the sub-section entitled Injector replacement operations.
– Programming the TDC sensor
Program the TDC sensor by accessing the sub-section entitled TDC (Top Dead Centre) sensor replacement
operations.
– Programming the motorised throttle
Program the motorised throttle by accessing the sub-section entitled Throttle valve replacement operations.
– Injection computer initialisation
Start and stop the engine to initialise the computer and wait for the loss of communication message to appear on the
diagnostic tool, if the message does not appear, wait for 9 minutes.
The computer is automatically configured according to the sensors and options present on the vehicle.

17B-14V2 MR-376-X76-17B050$060.mif
PETROL INJECTION
Fault finding – Replacement of components17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18

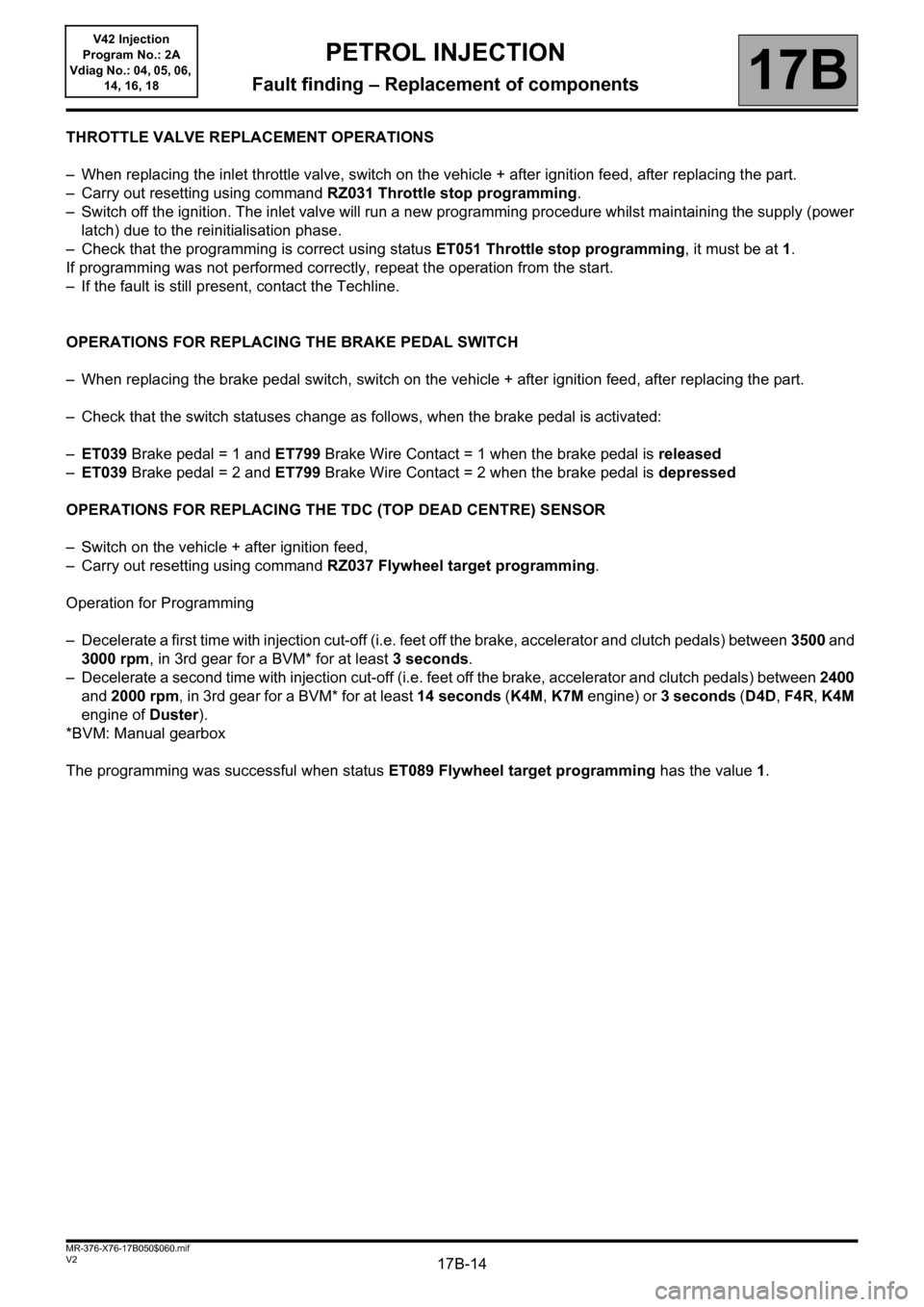

THROTTLE VALVE REPLACEMENT OPERATIONS

– When replacing the inlet throttle valve, switch on the vehicle + after ignition feed, after replacing the part.
– Carry out resetting using command RZ031 Throttle stop programming.
– Switch off the ignition. The inlet valve will run a new programming procedure whilst maintaining the supply (power
latch) due to the reinitialisation phase.
– Check that the programming is correct using status ET051 Throttle stop programming, it must be at 1.
If programming was not performed correctly, repeat the operation from the start.
– If the fault is still present, contact the Techline.
OPERATIONS FOR REPLACING THE BRAKE PEDAL SWITCH
– When replacing the brake pedal switch, switch on the vehicle + after ignition feed, after replacing the part.
– Check that the switch statuses change as follows, when the brake pedal is activated:
–ET039 Brake pedal = 1 and ET799 Brake Wire Contact = 1 when the brake pedal is released
–ET039 Brake pedal = 2 and ET799 Brake Wire Contact = 2 when the brake pedal is depressed
OPERATIONS FOR REPLACING THE TDC (TOP DEAD CENTRE) SENSOR
– Switch on the vehicle + after ignition feed,
– Carry out resetting using command RZ037 Flywheel target programming.
Operation for Programming
– Decelerate a first time with injection cut-off (i.e. feet off the brake, accelerator and clutch pedals) between 3500 and
3000 rpm, in 3rd gear for a BVM* for at least 3 seconds.
– Decelerate a second time with injection cut-off (i.e. feet off the brake, accelerator and clutch pedals) between 2400
and 2000 rpm, in 3rd gear for a BVM* for at least 14 seconds (K4M, K7M engine) or 3 seconds (D4D, F4R, K4M
engine of Duster).
*BVM: Manual gearbox
The programming was successful when status ET089 Flywheel target programming has the value1.
