2012 MITSUBISHI OUTLANDER SPORT Owners Manual

BK0140300US.book 8 ページ ２０１１年６月２８日　火曜日　午後５時１８分

1

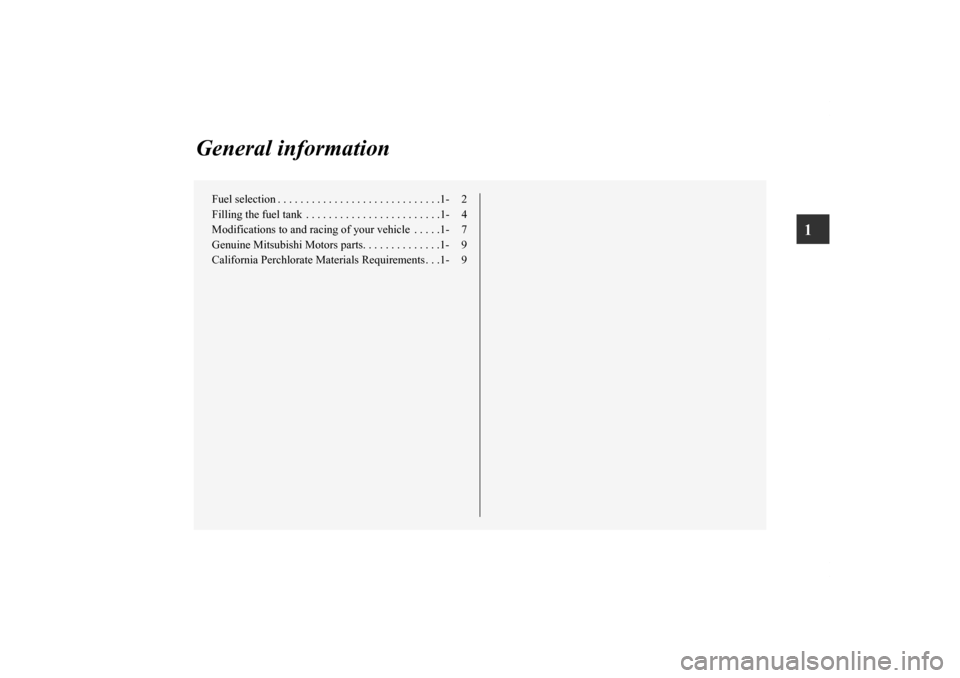

General information
Fuel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 2
Filling the fuel tank . . . . . . . . . . . . . . . . . . . . . . . .1- 4
Modifications to and racing of your vehicle . . . . .1- 7
Genuine Mitsubishi Motors parts. . . . . . . . . . . . . .1- 9
California Perchlorate Materials Requirements . . .1- 9
BK0140300US.book 1 ページ ２０１１年６月２８日　火曜日　午後５時１８分

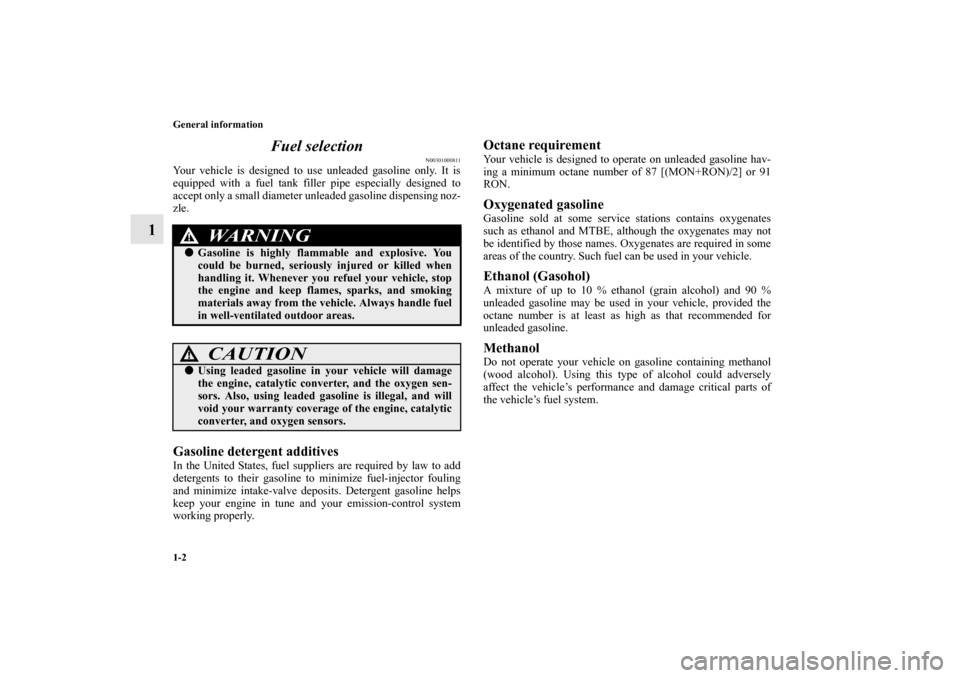

1-2 General information
1Fuel selection
N00301000811
Your vehicle is designed to use unleaded gasoline only. It is
equipped with a fuel tank filler pipe especially designed to
accept only a small diameter unleaded gasoline dispensing noz-
zle.Gasoline detergent additivesIn the United States, fuel suppliers are required by law to add
detergents to their gasoline to minimize fuel-injector fouling
and minimize intake-valve deposits. Detergent gasoline helps
keep your engine in tune and your emission-control system
working properly.
Octane requirementYour vehicle is designed to operate on unleaded gasoline hav-
ing a minimum octane number of 87 [(MON+RON)/2] or 91
RON.Oxygenated gasolineGasoline sold at some service stations contains oxygenates
such as ethanol and MTBE, although the oxygenates may not
be identified by those names. Oxygenates are required in some
areas of the country. Such fuel can be used in your vehicle.Ethanol (Gasohol)A mixture of up to 10 % ethanol (grain alcohol) and 90 %
unleaded gasoline may be used in your vehicle, provided the
octane number is at least as high as that recommended for
unleaded gasoline.MethanolDo not operate your vehicle on gasoline containing methanol
(wood alcohol). Using this type of alcohol could adversely
affect the vehicle’s performance and damage critical parts of
the vehicle’s fuel system.
WA R N I N G
!
Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. Whenever you refuel your vehicle, stop
the engine and keep flames, sparks, and smoking
materials away from the vehicle. Always handle fuel
in well-ventilated outdoor areas.
CAUTION
!
Using leaded gasoline in your vehicle will damage
the engine, catalytic converter, and the oxygen sen-
sors. Also, using leaded gasoline is illegal, and will
void your warranty coverage of the engine, catalytic
converter, and oxygen sensors.
BK0140300US.book 2 ページ ２０１１年６月２８日　火曜日　午後５時１８分

General information
1-3
1
Reformulated gasolineMany areas of the country require the use of cleaner burning
fuel referred to as “Reformulated Gasoline”.
Reformulated gasoline contains oxygenates and is specially
blended to reduce vehicle emissions and improve air quality.
Mitsubishi Motors Corporation strongly supports the use of
reformulated gasoline. Properly blended reformulated gasoline
has no adverse effect on vehicle performance or the durability
of engine and fuel system.MMT (methylcyclopentadienyl manganese tri-
carbonyl)MMT is a manganese-containing metallic additive that is
blended into some gasolines to increase the octane number.
Mitsubishi Motors Corporation recommends using gasolines
without MMT.
Use of gasolines blended with MMT may adversely affect per-
formance, and cause the malfunction indicator on your instru-
ment panel to come on. If this happens, contact an authorized
Mitsubishi Motors dealer or a repair facility of your choice for
assistance.Sulfur in gasolineYour vehicle may have been designed to satisfy California’s
low-emission regulations based on clean-burning low-sulfur
gasoline. Gasoline sold in parts of the country other than Cali-
fornia is allowed to have a higher sulfur content. Using such
gasoline could adversely affect the vehicle’s catalytic converter
and cause the engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”) to come on. Illumi-
nation of this indicator while you are using high-sulfur gaso-
line does not necessarily mean the vehicle’s emission-controlsystem is malfunctioning. Your authorized Mitsubishi Motors
dealer may suggest you try using a different, lower-sulfur
brand of unleaded gasoline to determine whether the problem
is fuel-related.
NOTE
Poor-quality gasoline can cause problems such as poor
starting, stalling during idling, abnormal engine noise, and
poor acceleration. If you experience any of these prob-
lems, try using a different brand of gasoline. If the engine
malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”) flashes, have the vehicle inspected
as soon as possible by the nearest authorized Mitsubishi
Motors dealer or a repair facility of your choice.

Repeatedly driving short distances at low speeds can
cause deposits to form in the fuel system and engine,
resulting in poor starting and poor acceleration. If these
problems occur, you are advised to add a detergent addi-
tive to the gasoline when you refuel the vehicle. The addi-
tive will remove the deposits, thereby returning the engine
to a normal condition. Be sure to use a genuine Mitsubishi
cleaning additive. Using an unsuitable additive could
make the engine malfunction. For details, please contact
the nearest authorized Mitsubishi Motors dealer.
BK0140300US.book 3 ページ ２０１１年６月２８日　火曜日　午後５時１８分

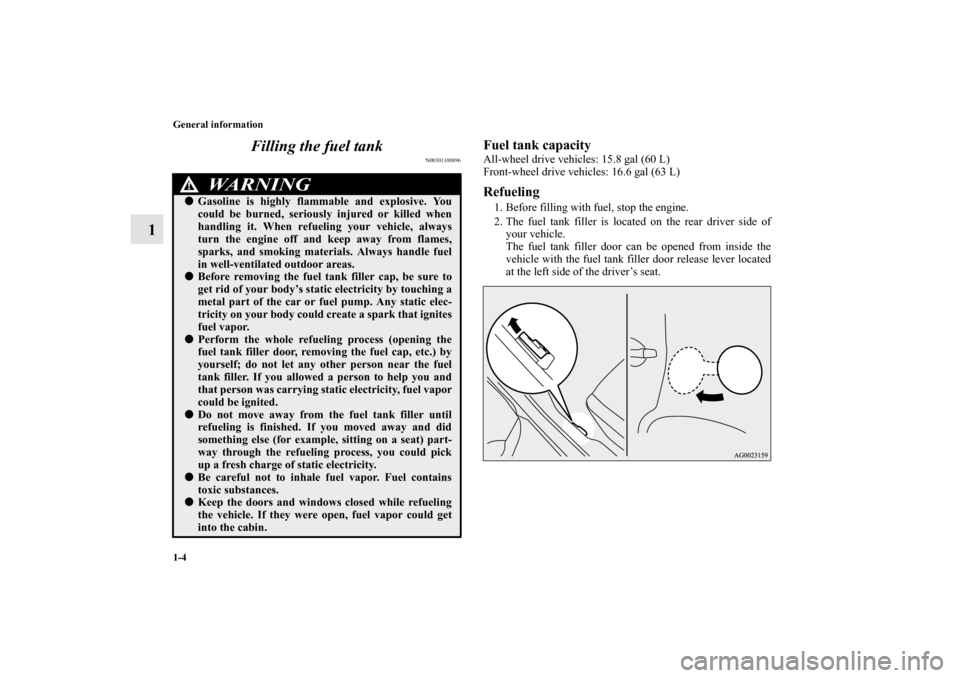

1-4 General information
1Filling the fuel tank
N00301100896
Fuel tank capacityAll-wheel drive vehicles: 15.8 gal (60 L)
Front-wheel drive vehicles: 16.6 gal (63 L)Refueling1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear driver side of
your vehicle.
The fuel tank filler door can be opened from inside the
vehicle with the fuel tank filler door release lever located
at the left side of the driver’s seat.
WA R N I N G
!
Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. When refueling your vehicle, always
turn the engine off and keep away from flames,
sparks, and smoking materials. Always handle fuel
in well-ventilated outdoor areas.
Before removing the fuel tank filler cap, be sure to
get rid of your body’s static electricity by touching a
metal part of the car or fuel pump. Any static elec-
tricity on your body could create a spark that ignites
fuel vapor.
Perform the whole refueling process (opening the
fuel tank filler door, removing the fuel cap, etc.) by
yourself; do not let any other person near the fuel
tank filler. If you allowed a person to help you and
that person was carrying static electricity, fuel vapor
could be ignited.
Do not move away from the fuel tank filler until
refueling is finished. If you moved away and did
something else (for example, sitting on a seat) part-
way through the refueling process, you could pick
up a fresh charge of static electricity.
Be careful not to inhale fuel vapor. Fuel contains
toxic substances.
Keep the doors and windows closed while refueling
the vehicle. If they were open, fuel vapor could get
into the cabin.
BK0140300US.book 4 ページ ２０１１年６月２８日　火曜日　午後５時１８分

General information
1-5
1

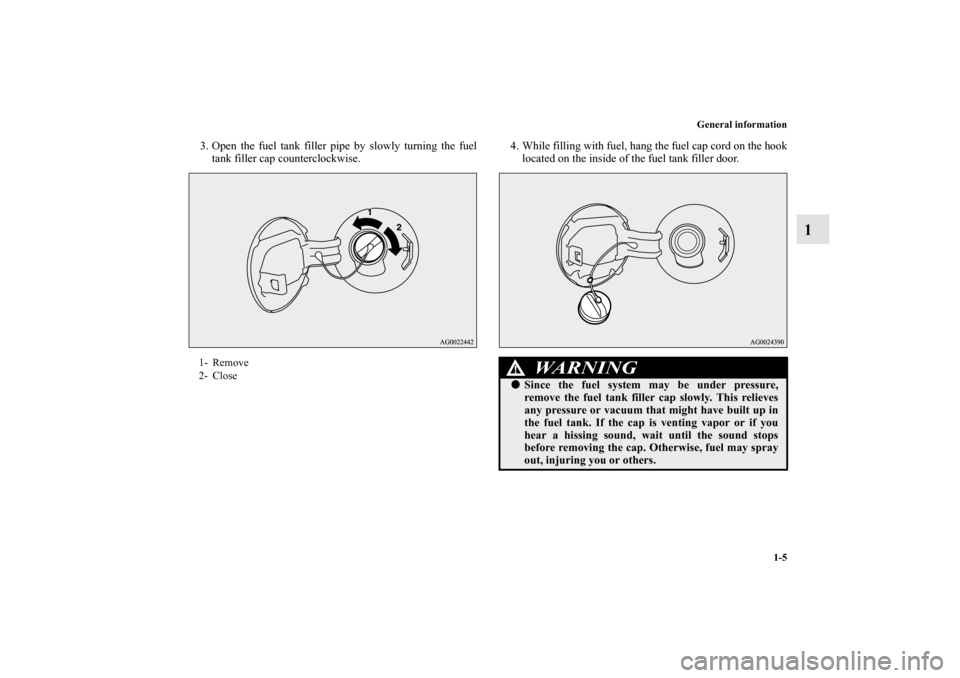

3. Open the fuel tank filler pipe by slowly turning the fuel
tank filler cap counterclockwise.4. While filling with fuel, hang the fuel cap cord on the hook
located on the inside of the fuel tank filler door.1- Remove
2- Close
WA R N I N G
!
Since the fuel system may be under pressure,
remove the fuel tank filler cap slowly. This relieves
any pressure or vacuum that might have built up in
the fuel tank. If the cap is venting vapor or if you
hear a hissing sound, wait until the sound stops
before removing the cap. Otherwise, fuel may spray
out, injuring you or others.
BK0140300US.book 5 ページ ２０１１年６月２８日　火曜日　午後５時１８分

1-6 General information
1
5. To fill with fuel correctly depends mainly on correct han-
dling of the fuel filler nozzle. Do not tilt the nozzle. Insert
the nozzle in the fuel tank filler port as far as it goes.
6. When the nozzle stops automatically, do not try to add
more fuel.
7. To close, turn the fuel tank filler pipe cap slowly clock-
wise until you hear clicking sounds, then gently push the
fuel tank filler door closed.
NOTE
If the fuel tank filler cap is not tight while driving, the
engine malfunction indicator (“SERVICE ENGINE
SOON” or “Check engine light”) may come on when the
onboard diagnostic (OBD) system performs a self check.
Always tighten the fuel tank filler cap until you hear at
least 3 clicks.
The indicator will go off after driving several times. If the
indicator does not go off, contact your authorized Mitsub-
ishi Motors dealer or a repair facility of your choice as
soon as possible.
CAUTION
!
Your vehicle can only be operated using unleaded
gasoline. Serious engine and catalytic converter
damage will result if leaded gasoline is filled into
these vehicles, and consequently, this must never be
attempted.
CAUTION
!
To avoid fuel spillage and overfilling, do not “top-
off” the fuel tank. Spilled fuel could discolor, stain,
or crack the vehicle’s paintwork. If fuel spills on the
paintwork, wipe it off with a soft cloth.
WA R N I N G
!
Make sure the fuel tank filler cap is securely closed.
If the fuel cap were loose, fuel could leak, resulting
in a fire.
CAUTION
!
If you need to replace the fuel tank filler cap, use
only the cap specified for your model vehicle.
BK0140300US.book 6 ページ ２０１１年６月２８日　火曜日　午後５時１８分

General information
1-7

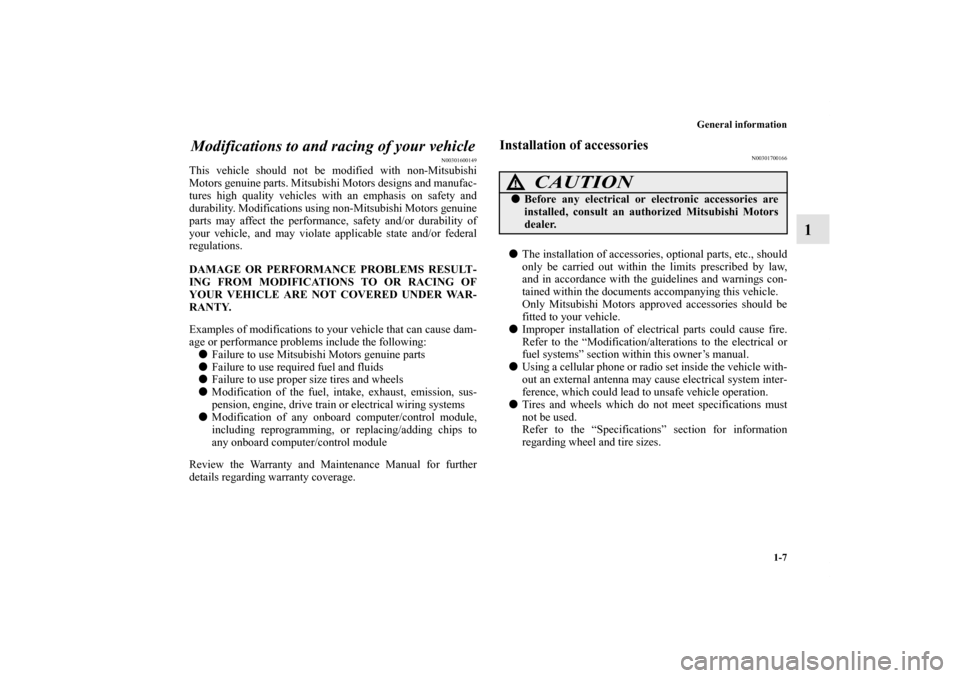

1 Modifications to and racing of your vehicle
N00301600149
This vehicle should not be modified with non-Mitsubishi
Motors genuine parts. Mitsubishi Motors designs and manufac-
tures high quality vehicles with an emphasis on safety and
durability. Modifications using non-Mitsubishi Motors genuine
parts may affect the performance, safety and/or durability of
your vehicle, and may violate applicable state and/or federal
regulations.
DAMAGE OR PERFORMANCE PROBLEMS RESULT-
ING FROM MODIFICATIONS TO OR RACING OF
YOUR VEHICLE ARE NOT COVERED UNDER WAR-
RANTY.
Examples of modifications to your vehicle that can cause dam-
age or performance problems include the following:

Failure to use Mitsubishi Motors genuine parts

Failure to use required fuel and fluids

Failure to use proper size tires and wheels

Modification of the fuel, intake, exhaust, emission, sus-
pension, engine, drive train or electrical wiring systems

Modification of any onboard computer/control module,
including reprogramming, or replacing/adding chips to
any onboard computer/control module
Review the Warranty and Maintenance Manual for further
details regarding warranty coverage.
Installation of accessories
N00301700166

The installation of accessories, optional parts, etc., should
only be carried out within the limits prescribed by law,
and in accordance with the guidelines and warnings con-
tained within the documents accompanying this vehicle.
Only Mitsubishi Motors approved accessories should be
fitted to your vehicle.

Improper installation of electrical parts could cause fire.
Refer to the “Modification/alterations to the electrical or
fuel systems” section within this owner’s manual.

Using a cellular phone or radio set inside the vehicle with-
out an external antenna may cause electrical system inter-
ference, which could lead to unsafe vehicle operation.

Tires and wheels which do not meet specifications must
not be used.
Refer to the “Specifications” section for information
regarding wheel and tire sizes.
CAUTION
!
Before any electrical or electronic accessories are
installed, consult an authorized Mitsubishi Motors
dealer.
