2012 MITSUBISHI OUTLANDER SPORT Owners Manual

5-88 Comfort controls
5To play tracks from a Bluetooth
® device
(vehicles with Bluetooth
® 2.0 interface)
N00765300090
You can wirelessly connect a digital audio player or cellular
phone supporting Bluetooth
® to listen to the tracks on the con-
nected device.
Refer to “Bluetooth
® 2.0 interface” for the connecting method,
etc. on page 3-210.
The following explains the basic playback method.
NOTE
Depending on the connected device, operation of the con-
nected device is limited to its available functions.

Depending on the connected device, the device may not
operate correctly.

A file protected by copyright might not be able to start
playback.

It is recommended to leave the equalizer of the connected
device flat.

The voice operation is not available to access music files
on the connected Bluetooth
® device.

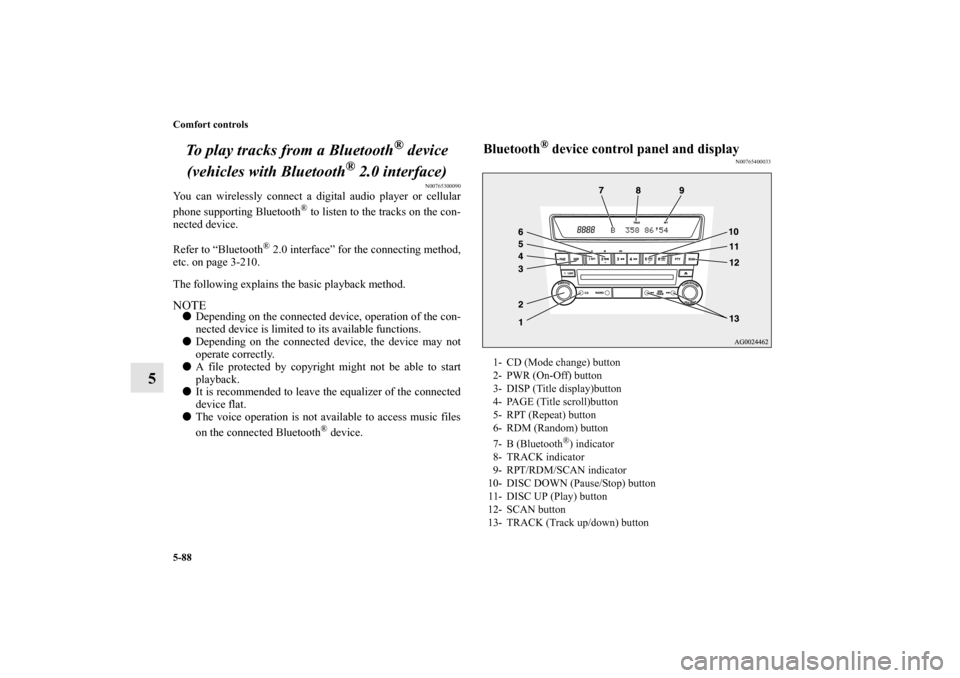

Bluetooth
® device control panel and display
N00765400033
1- CD (Mode change) button
2- PWR (On-Off) button
3- DISP (Title display)button
4- PAGE (Title scroll)button
5- RPT (Repeat) button
6- RDM (Random) button
7- B (Bluetooth
®) indicator
8- TRACK indicator
9- RPT/RDM/SCAN indicator
10- DISC DOWN (Pause/Stop) button
11- DISC UP (Play) button
12- SCAN button
13- TRACK (Track up/down) button
BK0140300US.book 88 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Comfort controls
5-89
5

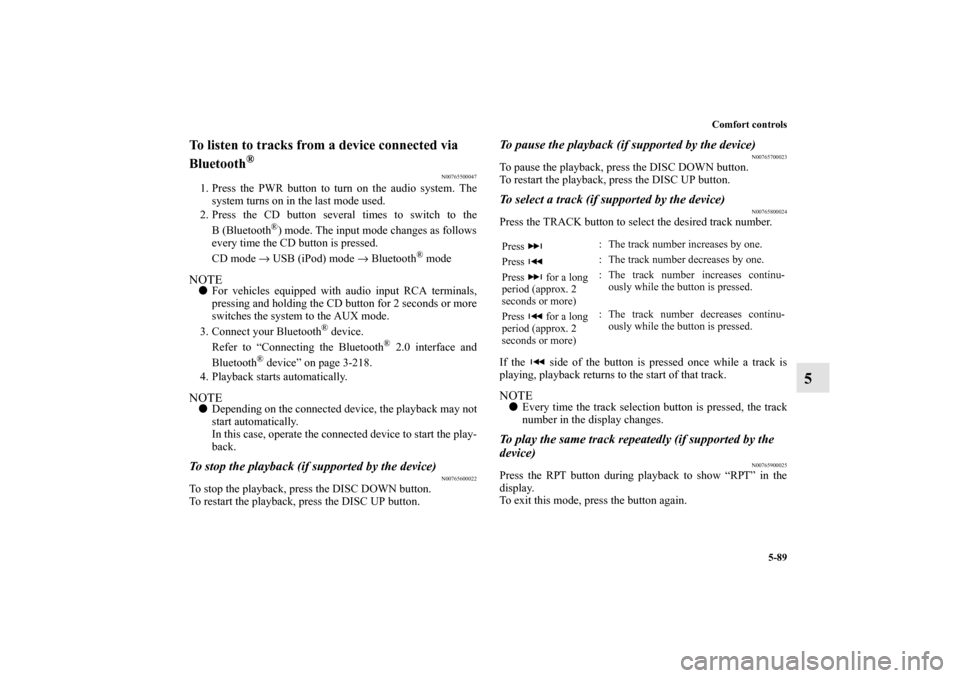

To listen to tracks from a device connected via
Bluetooth
®
N00765500047
1. Press the PWR button to turn on the audio system. The
system turns on in the last mode used.
2. Press the CD button several times to switch to the
B(Bluetooth
®) mode. The input mode changes as follows
every time the CD button is pressed.
CD mode → USB (iPod) mode → Bluetooth
® mode
NOTE
For vehicles equipped with audio input RCA terminals,
pressing and holding the CD button for 2 seconds or more
switches the system to the AUX mode.
3. Connect your Bluetooth
® device.
Refer to “Connecting the Bluetooth
® 2.0 interface and
Bluetooth
® device” on page 3-218.
4. Playback starts automatically.
NOTE
Depending on the connected device, the playback may not
start automatically.
In this case, operate the connected device to start the play-
back.To stop the playback (if supported by the device)
N00765600022
To stop the playback, press the DISC DOWN button.
To restart the playback, press the DISC UP button.
To pause the playback (if supported by the device)
N00765700023
To pause the playback, press the DISC DOWN button.
To restart the playback, press the DISC UP button.To select a track (if supported by the device)
N00765800024
Press the TRACK button to select the desired track number.
If the side of the button is pressed once while a track is
playing, playback returns to the start of that track.NOTE
Every time the track selection button is pressed, the track
number in the display changes.To play the same track repeatedly (if supported by the
device)
N00765900025
Press the RPT button during playback to show “RPT” in the
display.
To exit this mode, press the button again.Press : The track number increases by one.
Press : The track number decreases by one.
Press for a long
period (approx. 2
seconds or more): The track number increases continu-
ously while the button is pressed.
Press for a long
period (approx. 2
seconds or more): The track number decreases continu-
ously while the button is pressed.
BK0140300US.book 89 ページ ２０１１年６月２８日　火曜日　午後５時１８分

5-90 Comfort controls
5

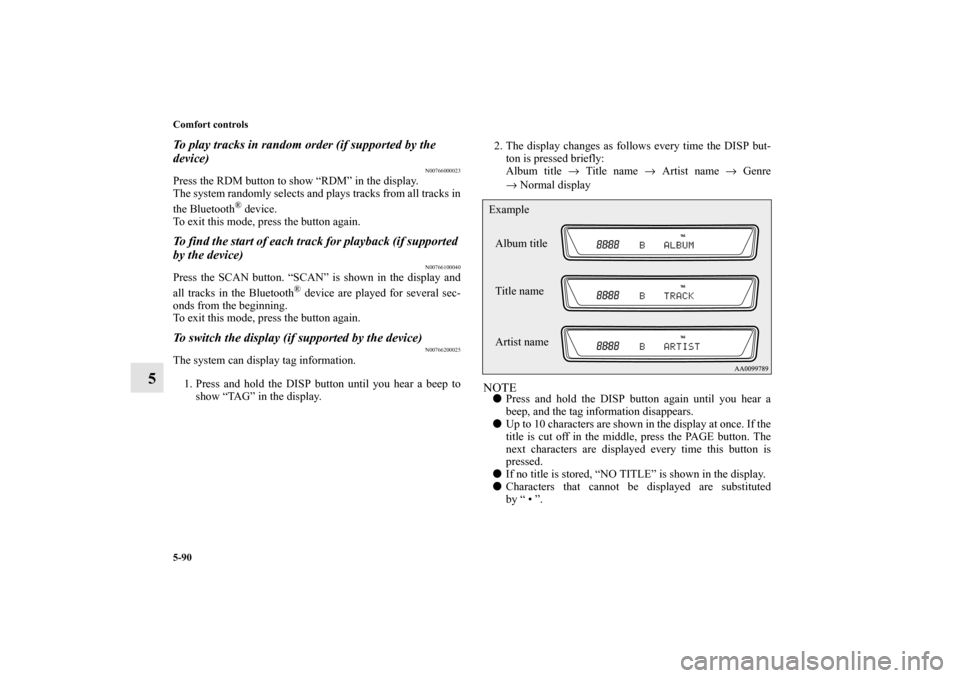

To play tracks in random order (if supported by the
device)
N00766000023
Press the RDM button to show “RDM” in the display.
The system randomly selects and plays tracks from all tracks in
the Bluetooth
® device.
To exit this mode, press the button again.
To find the start of each track for playback (if supported
by the device)
N00766100040
Press the SCAN button. “SCAN” is shown in the display and
all tracks in the Bluetooth
® device are played for several sec-
onds from the beginning.
To exit this mode, press the button again.
To switch the display (if supported by the device)
N00766200025
The system can display tag information.
1. Press and hold the DISP button until you hear a beep to
show “TAG” in the display.2. The display changes as follows every time the DISP but-
ton is pressed briefly:
Album title → Title name → Artist name → Genre
→Normal display
NOTE
Press and hold the DISP button again until you hear a
beep, and the tag information disappears.

Up to 10 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button. The
next characters are displayed every time this button is
pressed.

If no title is stored, “NO TITLE” is shown in the display.

Characters that cannot be displayed are substituted
by “ • ”.Album title
Title name Example
Artist name
BK0140300US.book 90 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Comfort controls
5-91
5 To use the external audio input function
(if
so equipped)
N00702200175
You can listen to commercially available audio equipment,
such as a portable audio system, from your vehicle’s speakers,
by connecting the audio equipment to the audio input connec-
tors, which are external input connectors (pin jacks).
To activate the external audio input mode1. Use a commercially available audio cable to connect the
audio equipment to the internal audio input connector.
2. Press the CD button for more than 2 seconds.
The display will show “AUX” and then the external audio
input mode will be activated.
Auxiliary Audio connector (RCA)
A- Left audio input connector (white)
B- Right audio input connector (red)
Auxiliary Audio connector (RCA)
A- CD button
B- RADIO button
BK0140300US.book 91 ページ ２０１１年６月２８日　火曜日　午後５時１８分

5-92 Comfort controls
5
3. To deactivate the external audio input mode, press the
RADIO button or the CD button to switch to another
mode.NOTE
The connected audio equipment cannot be operated with
the vehicle’s audio system.

Depending on the connected audio equipment, it may pro-
duce noise from the speakers.

For information on how to connect and operate the audio
equipment, refer to the owner’s manual for the equipment.

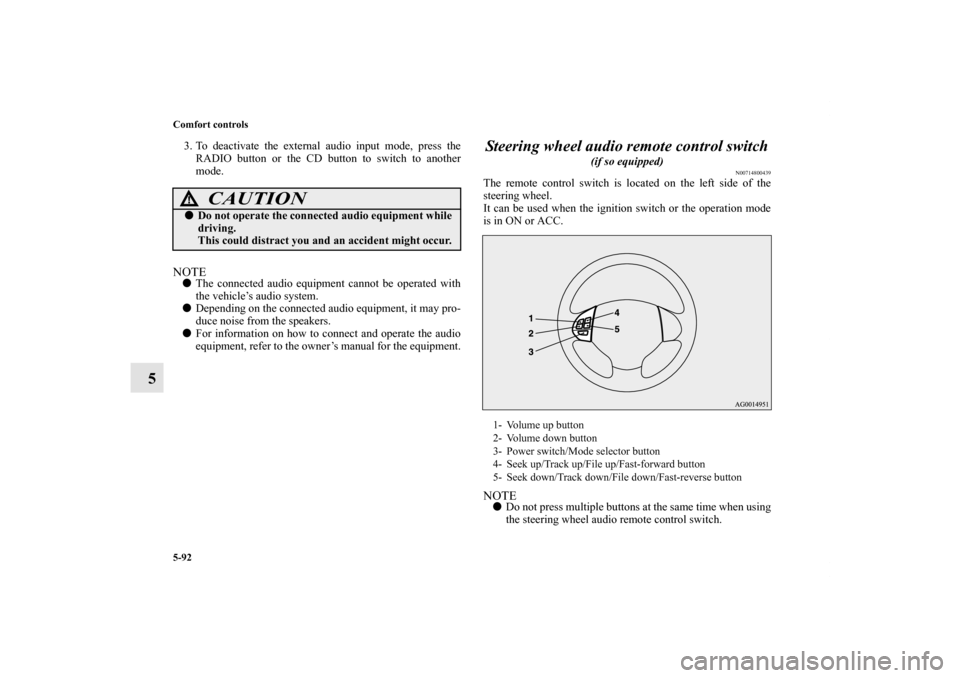

Steering wheel audio remote control switch

(if so equipped)
N00714800439
The remote control switch is located on the left side of the
steering wheel.
It can be used when the ignition switch or the operation mode
is in ON or ACC.NOTE
Do not press multiple buttons at the same time when using
the steering wheel audio remote control switch.
CAUTION
!
Do not operate the connected audio equipment while
driving.
This could distract you and an accident might occur.
1- Volume up button
2- Volume down button
3- Power switch/Mode selector button
4- Seek up/Track up/File up/Fast-forward button
5- Seek down/Track down/File down/Fast-reverse button
BK0140300US.book 92 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Comfort controls
5-93
5

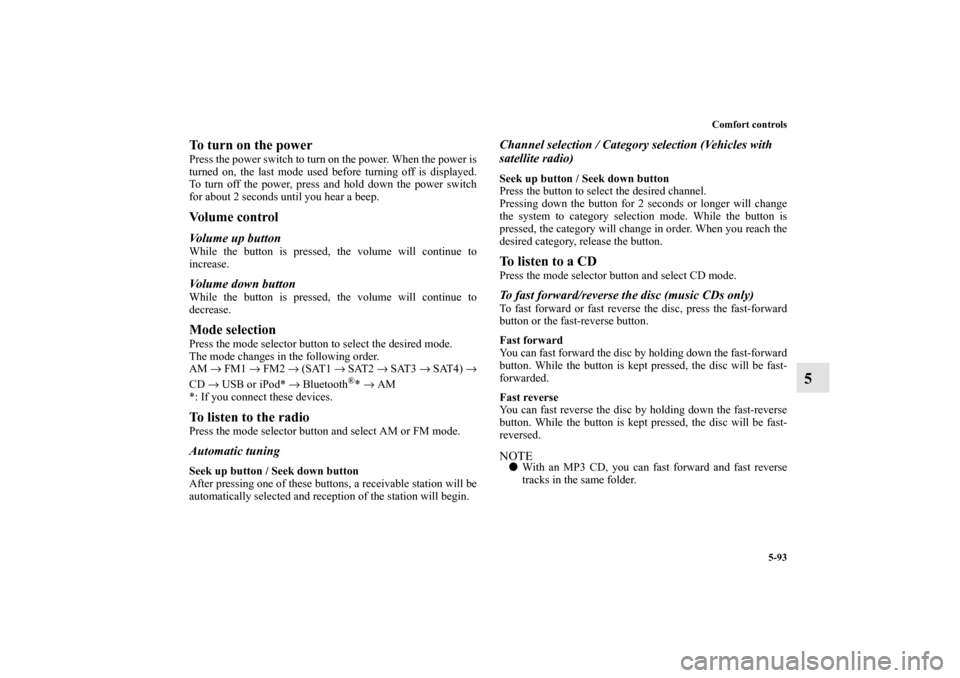

To turn on the powerPress the power switch to turn on the power. When the power is
turned on, the last mode used before turning off is displayed.
To turn off the power, press and hold down the power switch
for about 2 seconds until you hear a beep.Vo l u m e c o n t r o lVolume up buttonWhile the button is pressed, the volume will continue to
increase.Volume down buttonWhile the button is pressed, the volume will continue to
decrease.Mode selectionPress the mode selector button to select the desired mode.
The mode changes in the following order.
AM → FM1 → FM2 → (SAT1 → SAT2 → SAT3 → SAT4) →
CD → USB or iPod* → Bluetooth
®* → AM
*: If you connect these devices.
To listen to the radioPress the mode selector button and select AM or FM mode.Automatic tuningSeek up button / Seek down button
After pressing one of these buttons, a receivable station will be
automatically selected and reception of the station will begin.
Channel selection / Category selection (Vehicles with
satellite radio)Seek up button / Seek down button
Press the button to select the desired channel.
Pressing down the button for 2 seconds or longer will change
the system to category selection mode. While the button is
pressed, the category will change in order. When you reach the
desired category, release the button.To listen to a CDPress the mode selector button and select CD mode.To fast forward/reverse the disc (music CDs only)To fast forward or fast reverse the disc, press the fast-forward
button or the fast-reverse button.
Fast forward
You can fast forward the disc by holding down the fast-forward
button. While the button is kept pressed, the disc will be fast-
forwarded.
Fast reverse
You can fast reverse the disc by holding down the fast-reverse
button. While the button is kept pressed, the disc will be fast-
reversed.NOTE
With an MP3 CD, you can fast forward and fast reverse
tracks in the same folder.
BK0140300US.book 93 ページ ２０１１年６月２８日　火曜日　午後５時１８分

5-94 Comfort controls
5

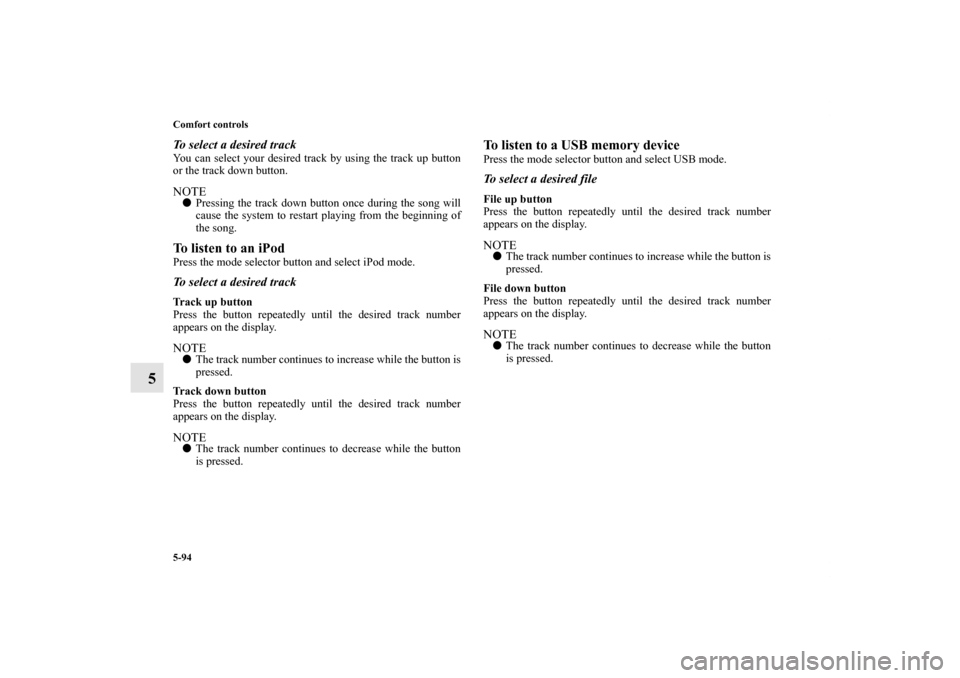

To select a desired trackYou can select your desired track by using the track up button
or the track down button.NOTE
Pressing the track down button once during the song will
cause the system to restart playing from the beginning of
the song.To listen to an iPodPress the mode selector button and select iPod mode.To select a desired trackTrack up button
Press the button repeatedly until the desired track number
appears on the display.NOTE
The track number continues to increase while the button is
pressed.
Track down button
Press the button repeatedly until the desired track number
appears on the display.NOTE
The track number continues to decrease while the button
is pressed.
To listen to a USB memory devicePress the mode selector button and select USB mode.To select a desired fileFile up button
Press the button repeatedly until the desired track number
appears on the display.NOTE
The track number continues to increase while the button is
pressed.
File down button
Press the button repeatedly until the desired track number
appears on the display.NOTE
The track number continues to decrease while the button
is pressed.
BK0140300US.book 94 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Comfort controls
5-95

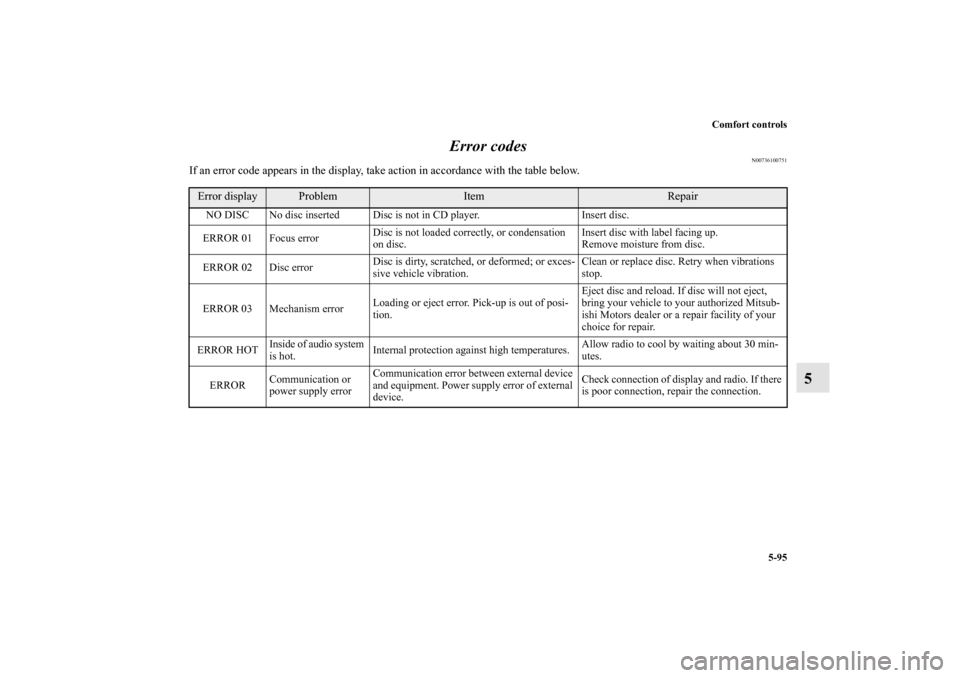

5 Error codes
N00736100751
If an error code appears in the display, take action in accordance with the table below.Error display
Problem
Item
Repair
NO DISC No disc inserted Disc is not in CD player. Insert disc.
ERROR 01 Focus errorDisc is not loaded correctly, or condensation
on disc.Insert disc with label facing up.
Remove moisture from disc.
ERROR 02 Disc errorDisc is dirty, scratched, or deformed; or exces-
sive vehicle vibration.Clean or replace disc. Retry when vibrations
stop.
ERROR 03 Mechanism errorLoading or eject error. Pick-up is out of posi-
tion.Eject disc and reload. If disc will not eject,
bring your vehicle to your authorized Mitsub-
ishi Motors dealer or a repair facility of your
choice for repair.
ERROR HOTInside of audio system
is hot.Internal protection against high temperatures.Allow radio to cool by waiting about 30 min-
utes.
ERRORCommunication or
power supply errorCommunication error between external device
and equipment. Power supply error of external
device.Check connection of display and radio. If there
is poor connection, repair the connection.
