7-44 Vehicle care and maintenance
7
No.
Symbol
Electrical system
Capacity
1 Front fog lights 15 A
2 Engine 7.5 A
3 Automatic transaxle 20 A
4 Horn 10 A
5 Alternator 7.5 A
6 Headlight washer 20 A
7 Air conditioning 10 A
8ETV/Oil cooler fan
(Twin Clutch SST)15 A
9 Security horn 20 A
10 Wiper deicer 15 A
11 — — —
12 Power gate 30 A
13 Daytime running lights 10 A
14Headlight
(high beam) (left)10 A
15Headlight
(high beam) (right)10 A
16Headlight
(low beam)
(left)Discharge 20 A
17Headlight
(low beam)
(right)Discharge 20 A
18Headlight
(low beam)
(left)Halogen 10 A
19Headlight
(low beam)
(right)Halogen 10 A
20 ENG/POWER 10 A
21 Ignition coil 10 A
22ENG/POWER 20 A
Fuel line heater 25 A
23 Fuel pump 15 A
24 Starter 30 A*
25 — — —
26 Anti-lock braking system 40 A*
27 Anti-lock braking system 30 A*
28Air conditioning condenser fan
motor30 A*
29 Radiator fan 40 A*
30 IOD IOD 30 A
31 Audio amplifier 30 ANo.
Symbol
Electrical system
Capacity
BK0140300US.book 44 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Vehicle care and maintenance
7-45
7
*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
There are no 7.5 A, 25 A or 30 A spare fuses. If a fuse of one of
these capacities blows, replace it temporarily by borrowing one
of the fuses indicated below.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio amplifier fuse
Replace the borrowed fuse with a fuse that has the correct
capacity as soon as possible.

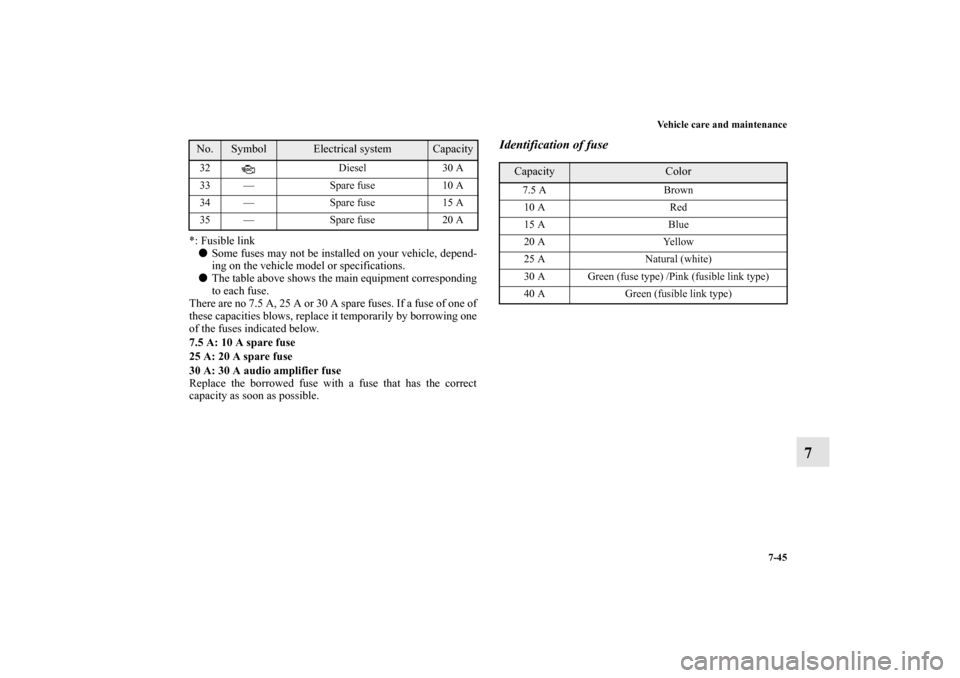

Identification of fuse
32 Diesel 30 A
33 — Spare fuse 10 A
34 — Spare fuse 15 A
35 — Spare fuse 20 ANo.
Symbol
Electrical system
Capacity
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (white)
30 A Green (fuse type) /Pink (fusible link type)
40 A Green (fusible link type)
BK0140300US.book 45 ページ ２０１１年６月２８日　火曜日　午後５時１８分

7-46 Vehicle care and maintenance
7

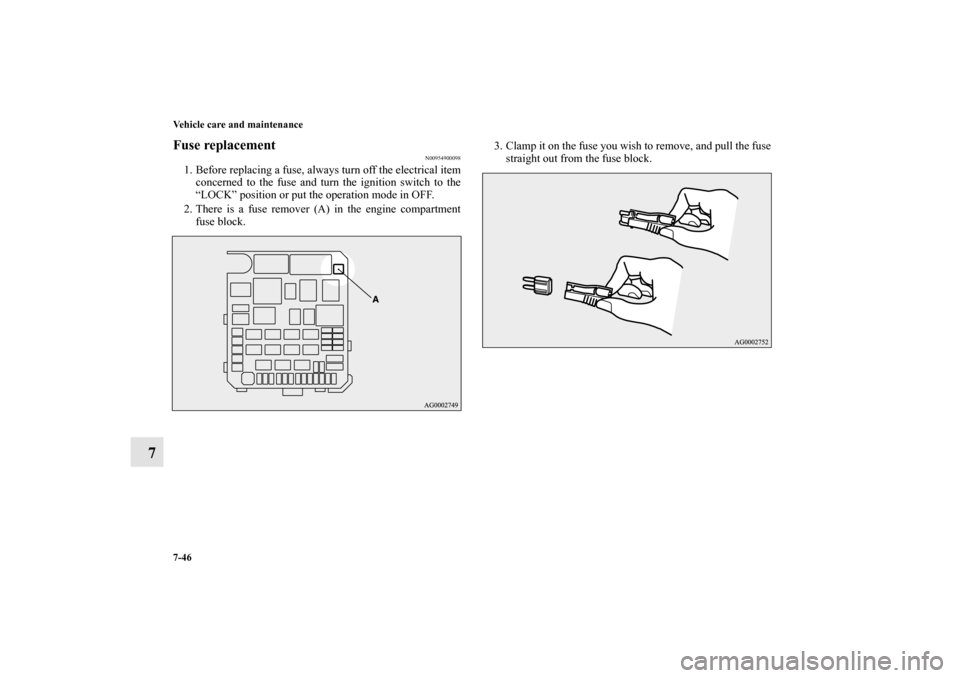

Fuse replacement
N00954900098
1. Before replacing a fuse, always turn off the electrical item
concerned to the fuse and turn the ignition switch to the
“LOCK” position or put the operation mode in OFF.
2. There is a fuse remover (A) in the engine compartment
fuse block.3. Clamp it on the fuse you wish to remove, and pull the fuse
straight out from the fuse block.
BK0140300US.book 46 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Vehicle care and maintenance
7-47
7

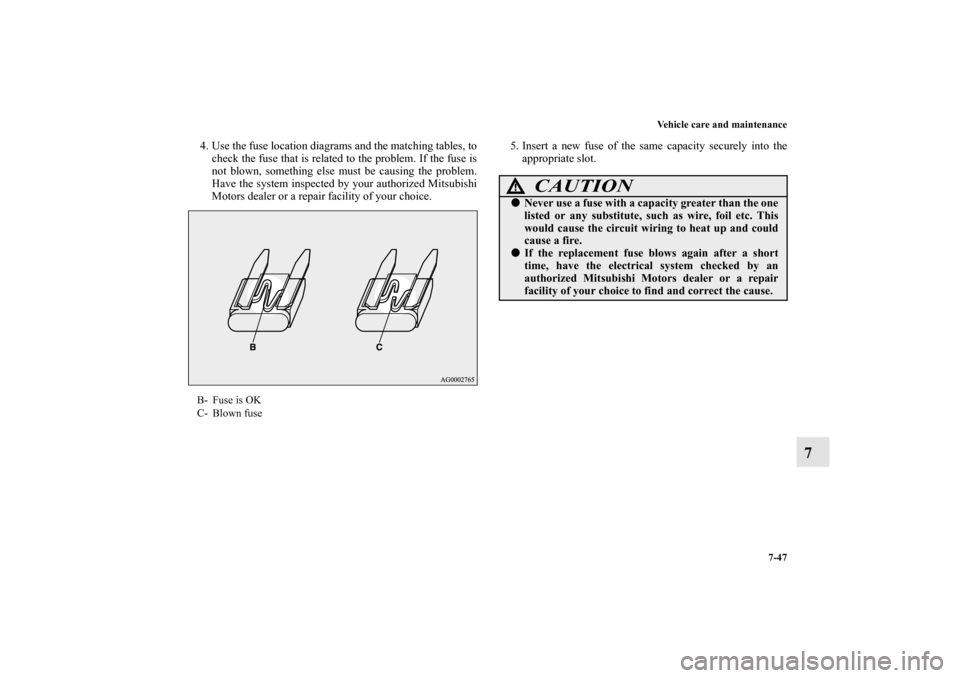

4. Use the fuse location diagrams and the matching tables, to
check the fuse that is related to the problem. If the fuse is
not blown, something else must be causing the problem.
Have the system inspected by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.5. Insert a new fuse of the same capacity securely into the
appropriate slot.B- Fuse is OK
C- Blown fuse
CAUTION
!
Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.
If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
BK0140300US.book 47 ページ ２０１１年６月２８日　火曜日　午後５時１８分

7-48 Vehicle care and maintenance
7Replacement of light bulbs
N00942900310
Before replacing the bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.NOTE
If you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.

Be careful not to scratch the vehicle body when removing
a light and lens.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.

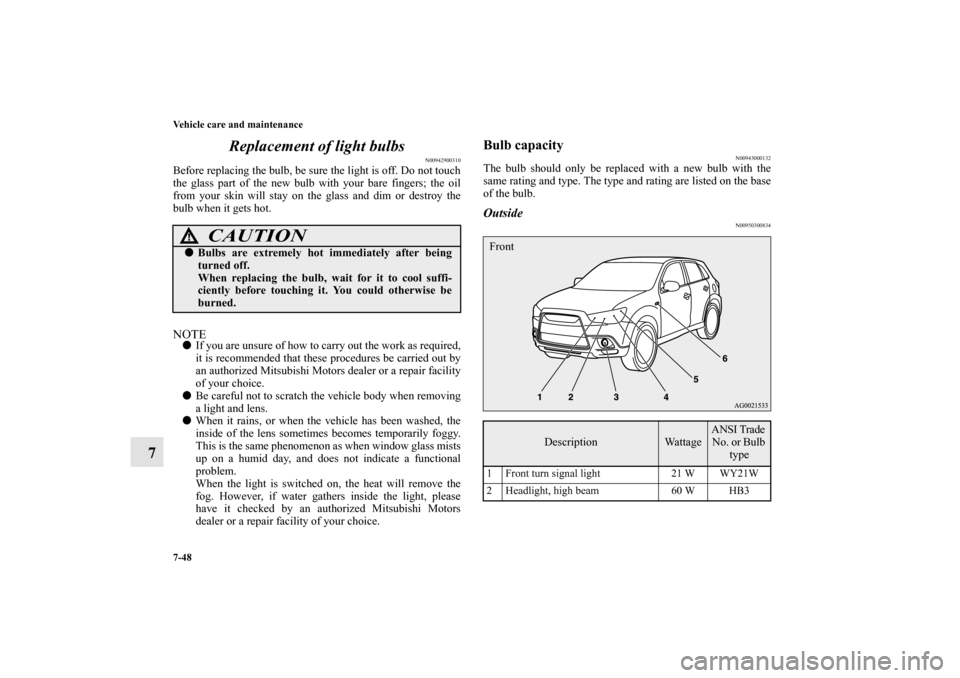

Bulb capacity
N00943000132
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300834
CAUTION
!
Bulbs are extremely hot immediately after being
turned off.
When replacing the bulb, wait for it to cool suffi-
ciently before touching it. You could otherwise be
burned.
Description
Wattage
ANSI Trade
No. or Bulb
type
1 Front turn signal light 21 W WY21W
2 Headlight, high beam 60 W HB3Front
BK0140300US.book 48 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Vehicle care and maintenance
7-49
7
NOTE
It is not possible to repair or replace only the bulb for the
side turn signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.

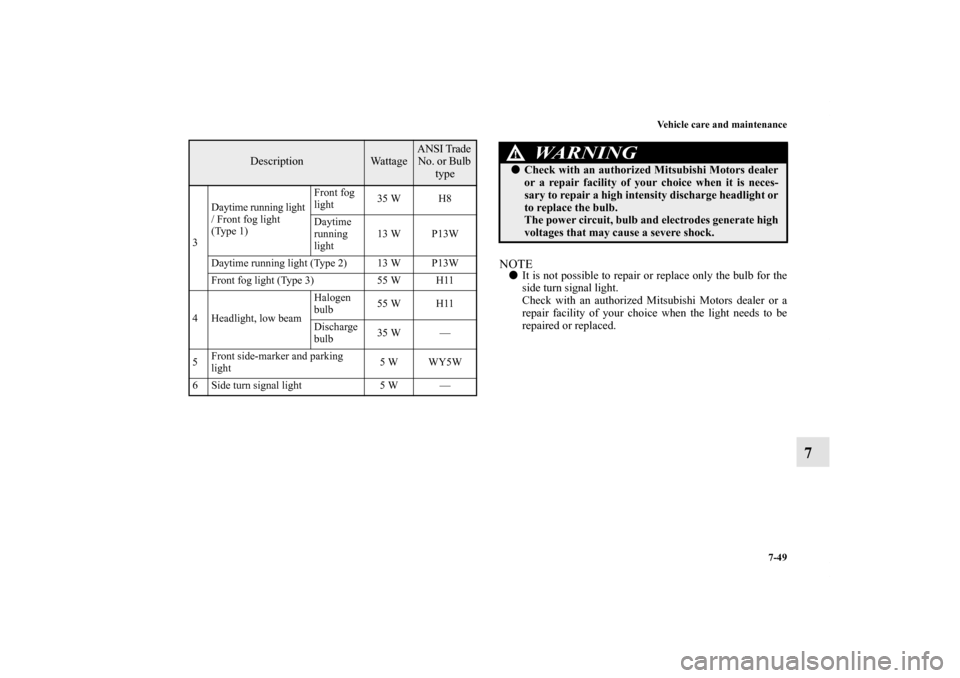

3Daytime running light
/ Front fog light
(Type 1) Front fog
light35 W H8
Daytime
running
light13 W P13W
Daytime running light (Type 2) 13 W P13W
Front fog light (Type 3) 55 W H11
4 Headlight, low beamHalogen
bulb55 W H11
Discharge
bulb35 W —
5 Front side-marker and parking
light5 W WY5W
6 Side turn signal light 5 W —
Description
Wattage
ANSI Trade
No. or Bulb
type
WA R N I N G
!
Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when it is neces-
sary to repair a high intensity discharge headlight or
to replace the bulb.
The power circuit, bulb and electrodes generate high
voltages that may cause a severe shock.
BK0140300US.book 49 ページ ２０１１年６月２８日　火曜日　午後５時１８分

7-50 Vehicle care and maintenance
7
NOTE
The rear side-marker light, the tail and stop light and the
high-mounted stop light use an LED instead of the bulb.
Check with an authorized Mitsubishi Motors dealer or
repair facility of your choice when either light needs to be
repaired or replaced.

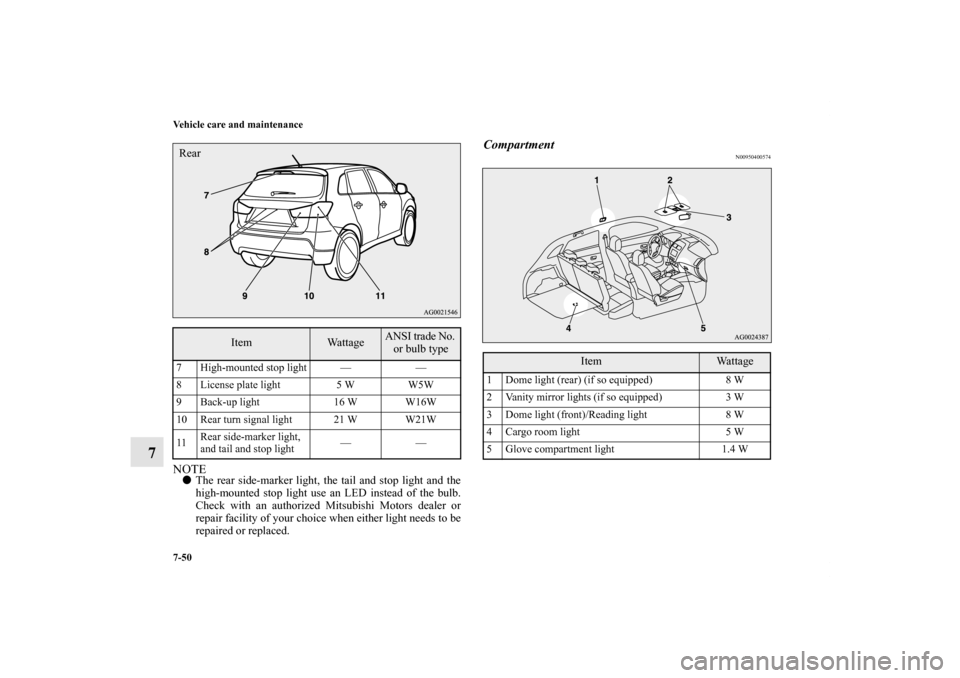

Compartment
N00950400574
Item
Wa t t a g e
ANSI trade No.
or bulb type
7 High-mounted stop light — —
8 License plate light 5 W W5W
9 Back-up light 16 W W16W
10 Rear turn signal light 21 W W21W
11Rear side-marker light,
and tail and stop light——Rear
Item
Wa t t a g e
1 Dome light (rear) (if so equipped) 8 W
2 Vanity mirror lights (if so equipped) 3 W
3 Dome light (front)/Reading light 8 W
4 Cargo room light 5 W
5 Glove compartment light 1.4 W
BK0140300US.book 50 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Vehicle care and maintenance
7-51
7

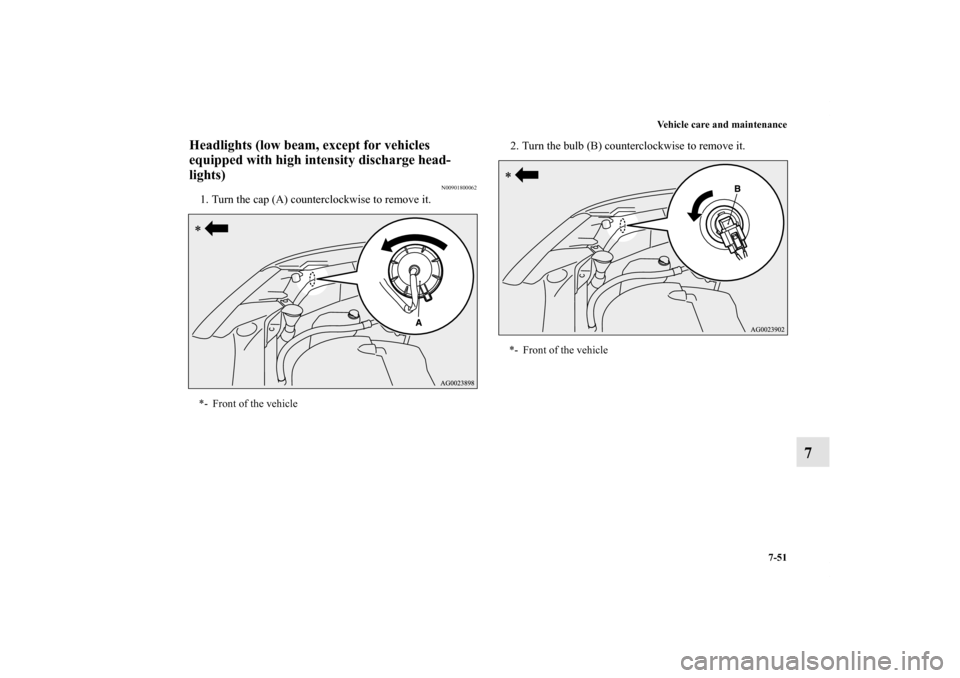

Headlights (low beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901800062
1. Turn the cap (A) counterclockwise to remove it.2. Turn the bulb (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
