2012 MITSUBISHI OUTLANDER SPORT Owners Manual

3-8 Features and controls
3Keyless entry system
(if so equipped)
N00509000864
Press the remote control transmitter buttons to lock or unlock
the doors and the liftgate.
It can also help you signal for attention by setting off the panic
alarm.
To l o c kPress the LOCK button (1) to lock all the doors and the liftgate.
The turn signal lights will also blink once.NOTE
If you press the LOCK button (1) twice the horn will
sound once.To u n l o c kPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and liftgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
The front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-194.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

The door and liftgate unlock function can be set so that all
doors and liftgate unlock when the UNLOCK button (2) is
pressed once.
Refer to “Setting of door and liftgate unlock function” on
page 3-9.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button
4- Indicator light
BK0140300US.book 8 ページ ２０１１年６月２８日　火曜日　午後５時１８分

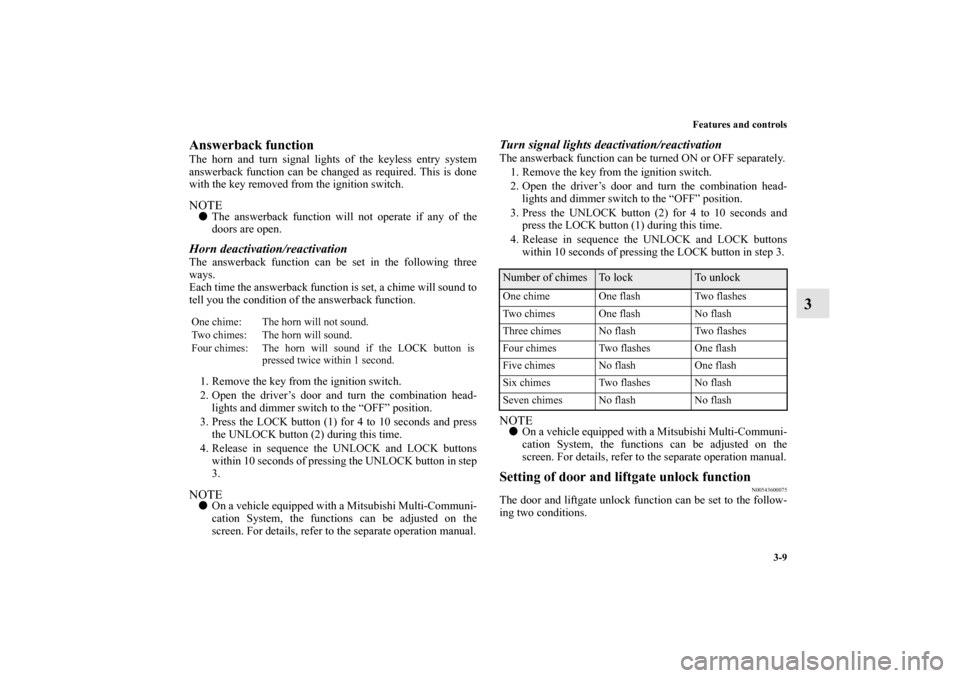

Features and controls
3-9
3
Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.NOTE
The answerback function will not operate if any of the
doors are open.Horn deactivation/reactivationThe answerback function can be set in the following three
ways.
Each time the answerback function is set, a chime will sound to
tell you the condition of the answerback function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Turn signal lights deactivation/reactivationThe answerback function can be turned ON or OFF separately.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Setting of door and liftgate unlock function
N00543600075
The door and liftgate unlock function can be set to the follow-
ing two conditions.
One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
BK0140300US.book 9 ページ ２０１１年６月２８日　火曜日　午後５時１８分

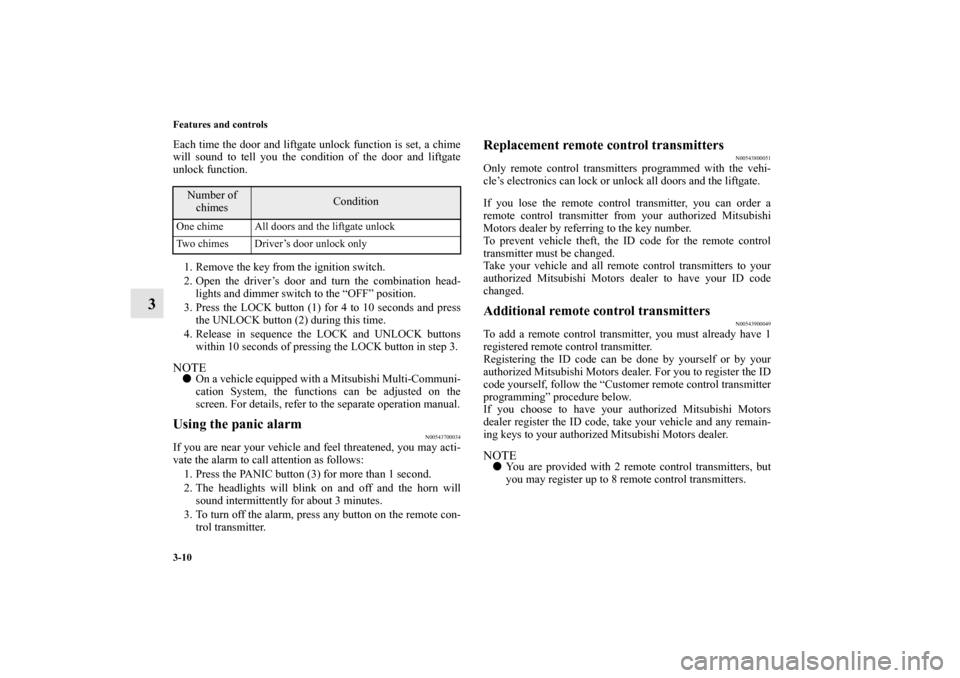

3-10 Features and controls
3
Each time the door and liftgate unlock function is set, a chime
will sound to tell you the condition of the door and liftgate
unlock function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Using the panic alarm
N00543700034
If you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
Replacement remote control transmitters
N00543800051
Only remote control transmitters programmed with the vehi-
cle’s electronics can lock or unlock all doors and the liftgate.
If you lose the remote control transmitter, you can order a
remote control transmitter from your authorized Mitsubishi
Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the remote control
transmitter must be changed.
Take your vehicle and all remote control transmitters to your
authorized Mitsubishi Motors dealer to have your ID code
changed.Additional remote control transmitters
N00543900049
To add a remote control transmitter, you must already have 1
registered remote control transmitter.
Registering the ID code can be done by yourself or by your
authorized Mitsubishi Motors dealer. For you to register the ID
code yourself, follow the “Customer remote control transmitter
programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and any remain-
ing keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 remote control transmitters, but
you may register up to 8 remote control transmitters.
Number of
chimes
Condition
One chime All doors and the liftgate unlock
Two chimes Driver’s door unlock onlyBK0140300US.book 10 ページ ２０１１年６月２８日　火曜日　午後５時１８分

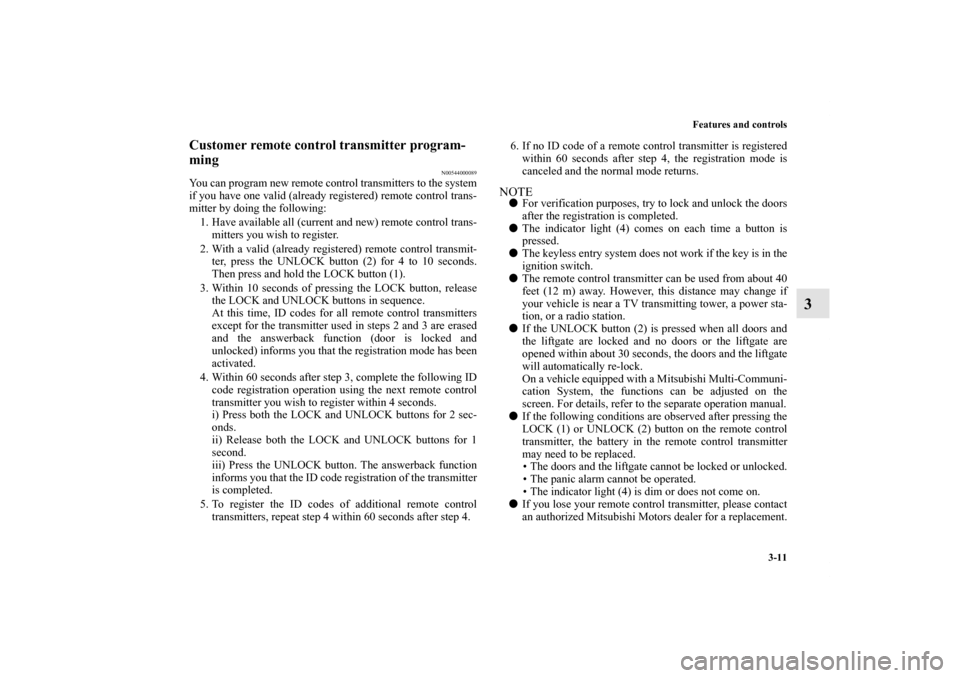

Features and controls
3-11
3
Customer remote control transmitter program-
ming
N00544000089
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:
1. Have available all (current and new) remote control trans-
mitters you wish to register.
2. With a valid (already registered) remote control transmit-
ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release
the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door is locked and
unlocked) informs you that the registration mode has been
activated.
4. Within 60 seconds after step 3, complete the following ID
code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i) Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii) Release both the LOCK and UNLOCK buttons for 1
second.
iii) Press the UNLOCK button. The answerback function
informs you that the ID code registration of the transmitter
is completed.
5. To register the ID codes of additional remote control
transmitters, repeat step 4 within 60 seconds after step 4.6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.
NOTE
For verification purposes, try to lock and unlock the doors
after the registration is completed.

The indicator light (4) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed when all doors and
the liftgate are locked and no doors or the liftgate are
opened within about 30 seconds, the doors and the liftgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
BK0140300US.book 11 ページ ２０１１年６月２８日　火曜日　午後５時１８分

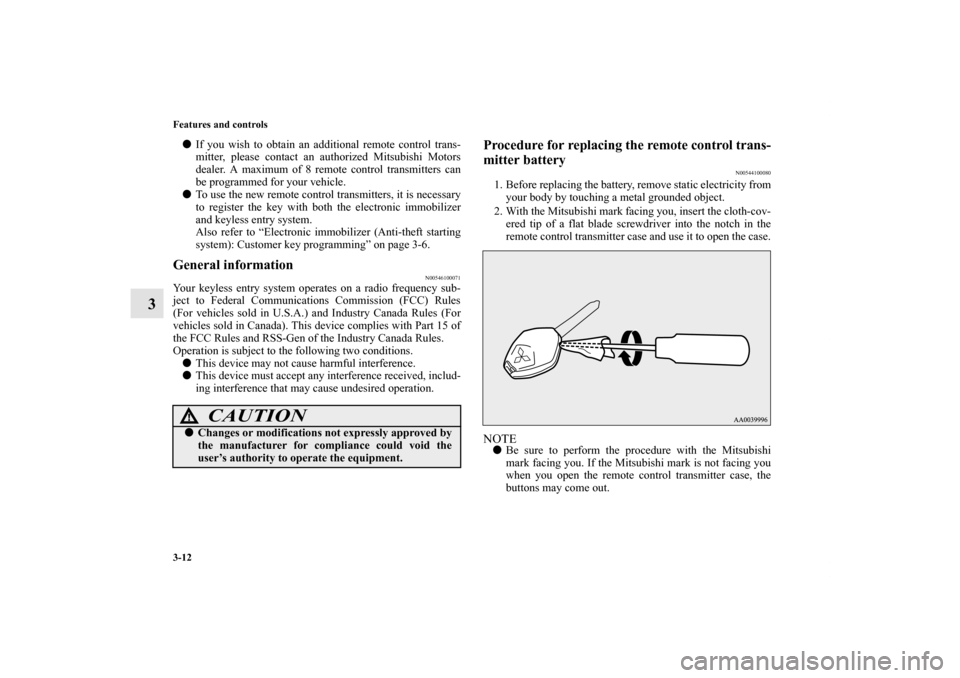

3-12 Features and controls
3

If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of 8 remote control transmitters can
be programmed for your vehicle.

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer key programming” on page 3-6.General information
N00546100071
Your keyless entry system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-Gen of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Procedure for replacing the remote control trans-
mitter battery
N00544100080
1. Before replacing the battery, remove static electricity from
your body by touching a metal grounded object.
2. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0140300US.book 12 ページ ２０１１年６月２８日　火曜日　午後５時１８分

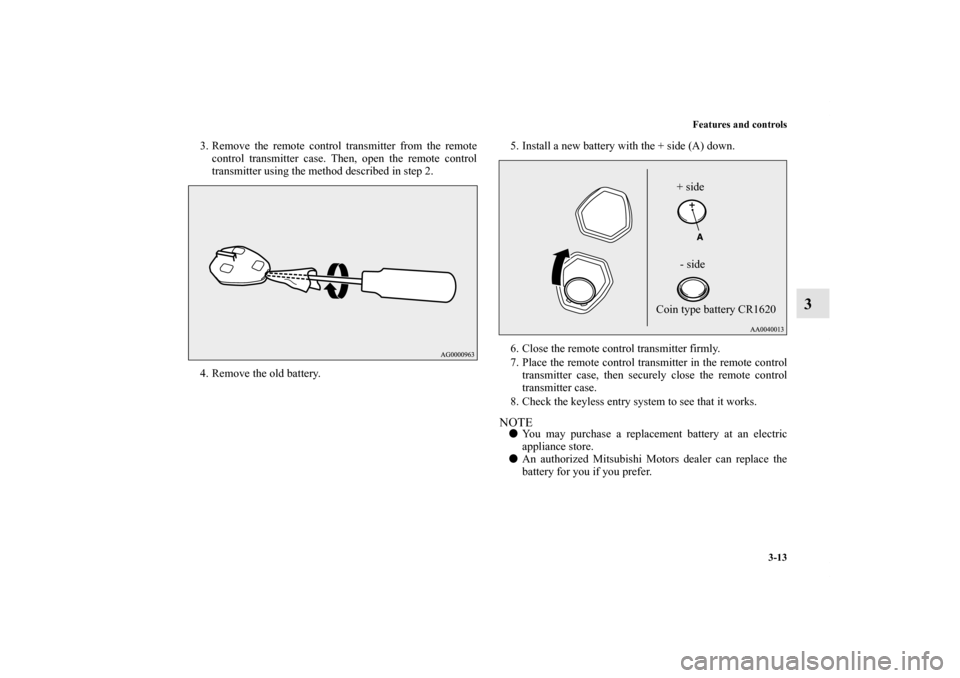

Features and controls
3-13
3
3. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 2.
4. Remove the old battery.5. Install a new battery with the + side (A) down.
6. Close the remote control transmitter firmly.
7. Place the remote control transmitter in the remote control
transmitter case, then securely close the remote control
transmitter case.
8. Check the keyless entry system to see that it works.
NOTE
You may purchase a replacement battery at an electric
appliance store.

An authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
+ side
- side
Coin type battery CR1620
BK0140300US.book 13 ページ ２０１１年６月２８日　火曜日　午後５時１８分

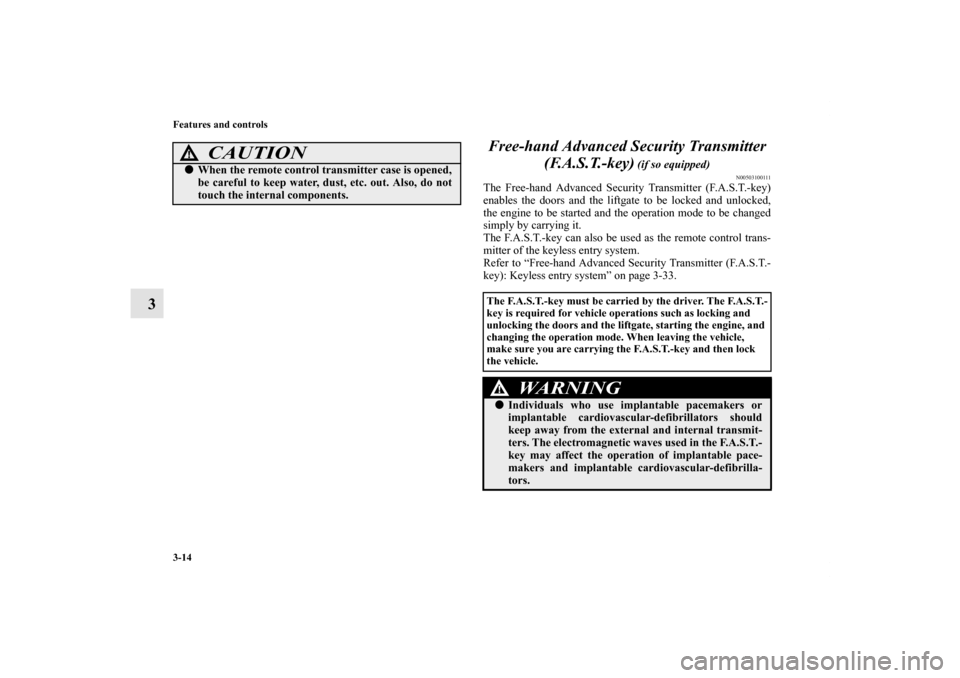

3-14 Features and controls
3Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100111
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the liftgate to be locked and unlocked,
the engine to be started and the operation mode to be changed
simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key): Keyless entry system” on page 3-33.
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors and the liftgate, starting the engine, and
changing the operation mode. When leaving the vehicle,
make sure you are carrying the F.A.S.T.-key and then lock
the vehicle.
WA R N I N G
!
Individuals who use implantable pacemakers or
implantable cardiovascular-defibrillators should
keep away from the external and internal transmit-
ters. The electromagnetic waves used in the F.A.S.T.-
key may affect the operation of implantable pace-
makers and implantable cardiovascular-defibrilla-
tors.
BK0140300US.book 14 ページ ２０１１年６月２８日　火曜日　午後５時１８分

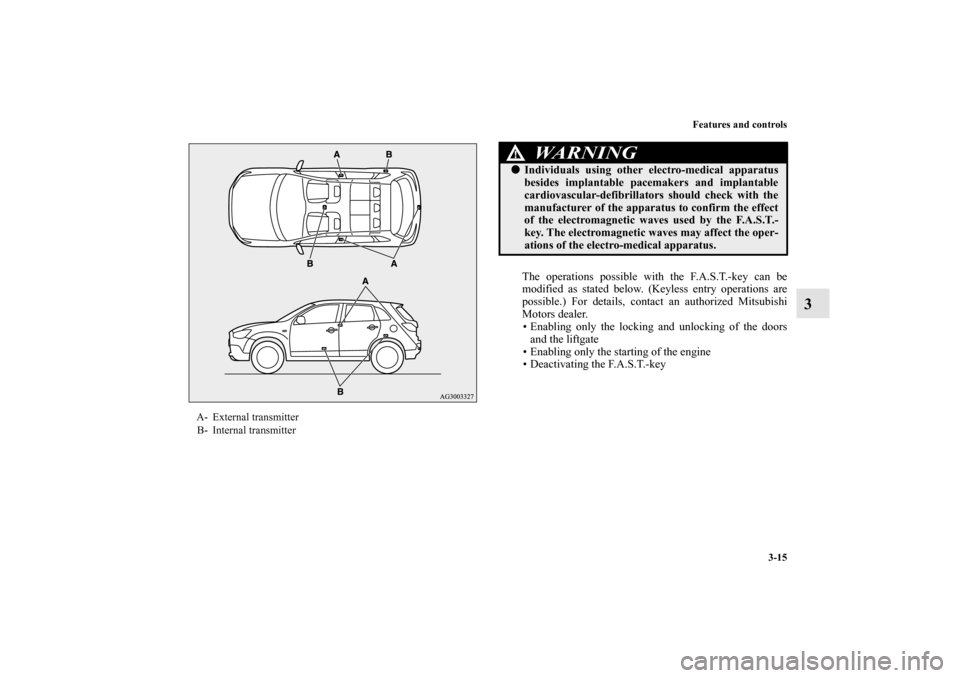

Features and controls
3-15
3
The operations possible with the F.A.S.T.-key can be
modified as stated below. (Keyless entry operations are
possible.) For details, contact an authorized Mitsubishi
Motors dealer.
• Enabling only the locking and unlocking of the doors
and the liftgate
• Enabling only the starting of the engine
• Deactivating the F.A.S.T.-key
A- External transmitter
B- Internal transmitter
WA R N I N G
!
Individuals using other electro-medical apparatus
besides implantable pacemakers and implantable
cardiovascular-defibrillators should check with the
manufacturer of the apparatus to confirm the effect
of the electromagnetic waves used by the F.A.S.T.-
key. The electromagnetic waves may affect the oper-
ations of the electro-medical apparatus.
BK0140300US.book 15 ページ ２０１１年６月２８日　火曜日　午後５時１８分
