2012 MITSUBISHI OUTLANDER SPORT Owners Manual

3-128 Features and controls
3
To change the language of warning text (3)1. Turn the ignition switch to the “ON” position or put the
operation mode in ON.
2. Put the gearshift lever or the selector lever in the “R” posi-
tion.
3. Press and hold down the switch (1) to enter language
selection mode (for 6 to 11 seconds).
In this mode, the image appears and the green indicator
(2) comes on.
4. Press the switch until the desired language appears on the
display.
Each time you press the switch, the language will change
to the next one. When the warning text flashes, setting is
completed.

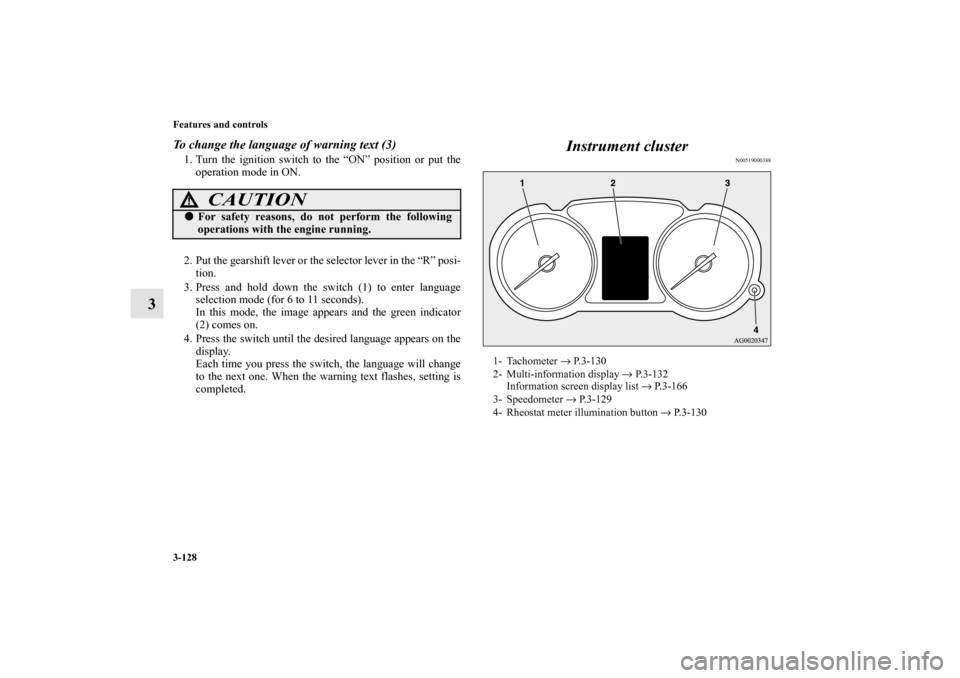

Instrument cluster
N00519000388
CAUTION
!
For safety reasons, do not perform the following
operations with the engine running.
1- Tachometer → P.3-130
2- Multi-information display → P. 3 - 1 3 2
Information screen display list → P.3-166
3- Speedometer → P. 3 - 1 2 9
4- Rheostat meter illumination button → P.3-130
BK0140300US.book 128 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-129
3

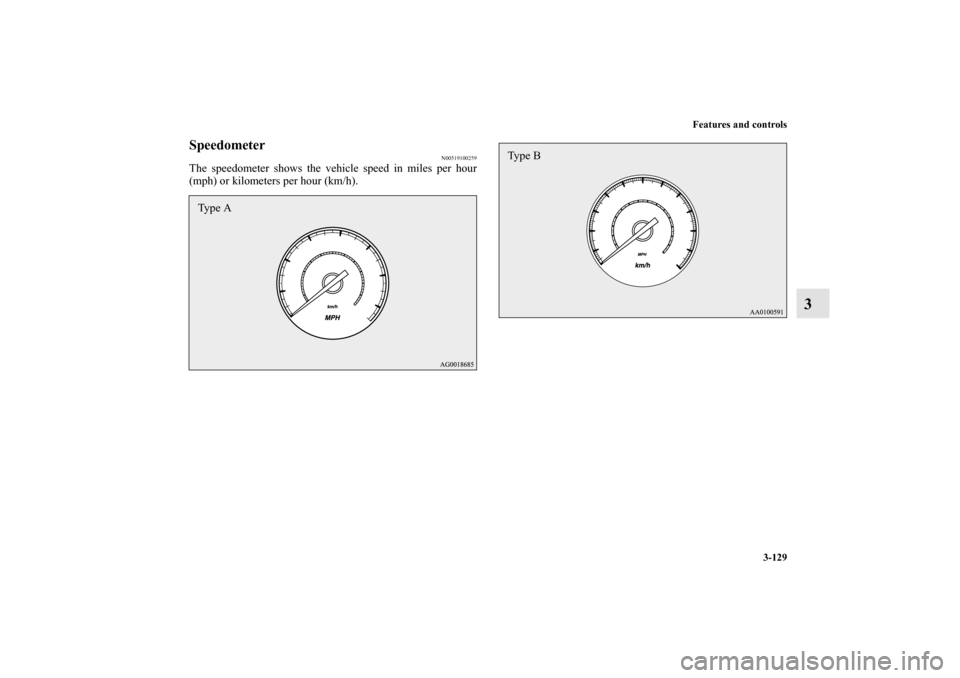

Speedometer
N00519100259
The speedometer shows the vehicle speed in miles per hour
(mph) or kilometers per hour (km/h).Type A
Type B
BK0140300US.book 129 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-130 Features and controls
3

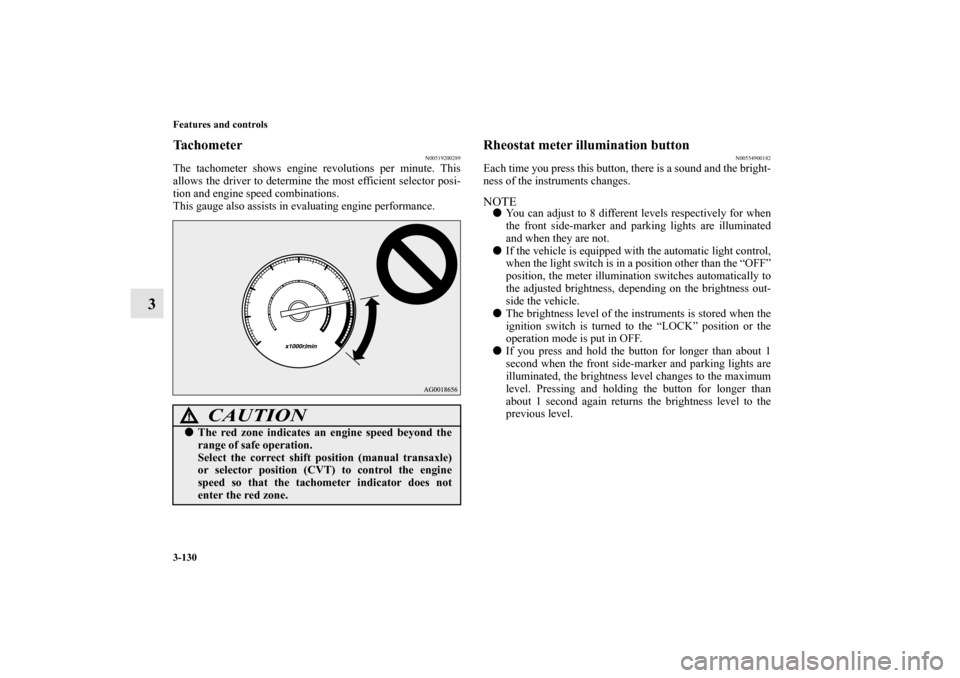

Tachometer
N00519200289
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient selector posi-
tion and engine speed combinations.
This gauge also assists in evaluating engine performance.
Rheostat meter illumination button
N00554900182
Each time you press this button, there is a sound and the bright-
ness of the instruments changes.NOTE
You can adjust to 8 different levels respectively for when
the front side-marker and parking lights are illuminated
and when they are not.

If the vehicle is equipped with the automatic light control,
when the light switch is in a position other than the “OFF”
position, the meter illumination switches automatically to
the adjusted brightness, depending on the brightness out-
side the vehicle.

The brightness level of the instruments is stored when the
ignition switch is turned to the “LOCK” position or the
operation mode is put in OFF.

If you press and hold the button for longer than about 1
second when the front side-marker and parking lights are
illuminated, the brightness level changes to the maximum
level. Pressing and holding the button for longer than
about 1 second again returns the brightness level to the
previous level.
CAUTION
!
The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct shift position (manual transaxle)
or selector position (CVT) to control the engine
speed so that the tachometer indicator does not
enter the red zone.
BK0140300US.book 130 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-131
3

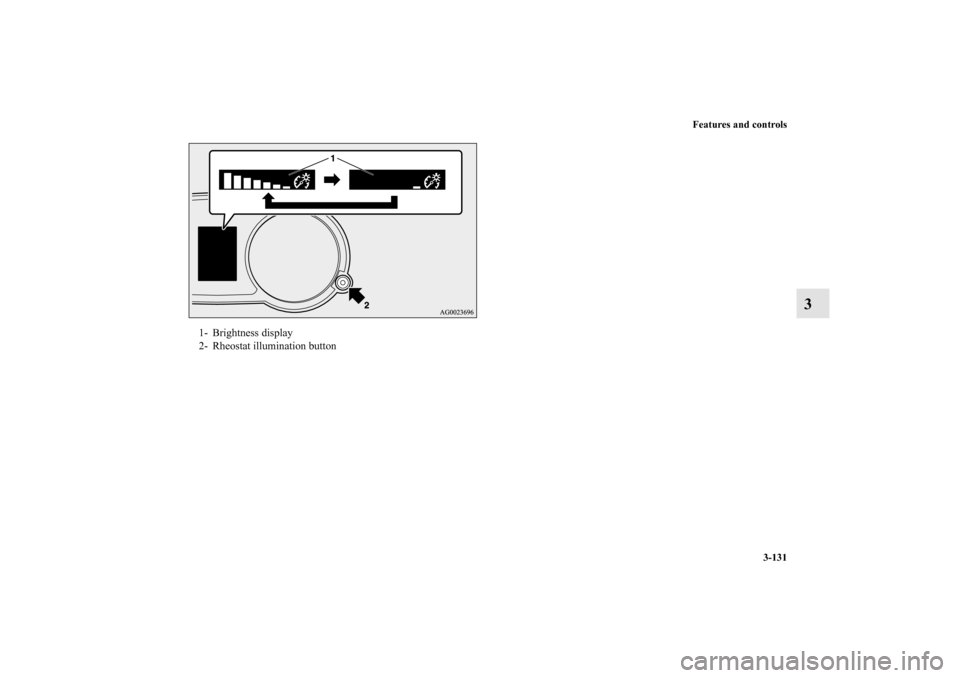

1- Brightness display
2- Rheostat illumination button
BK0140300US.book 131 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-132 Features and controls

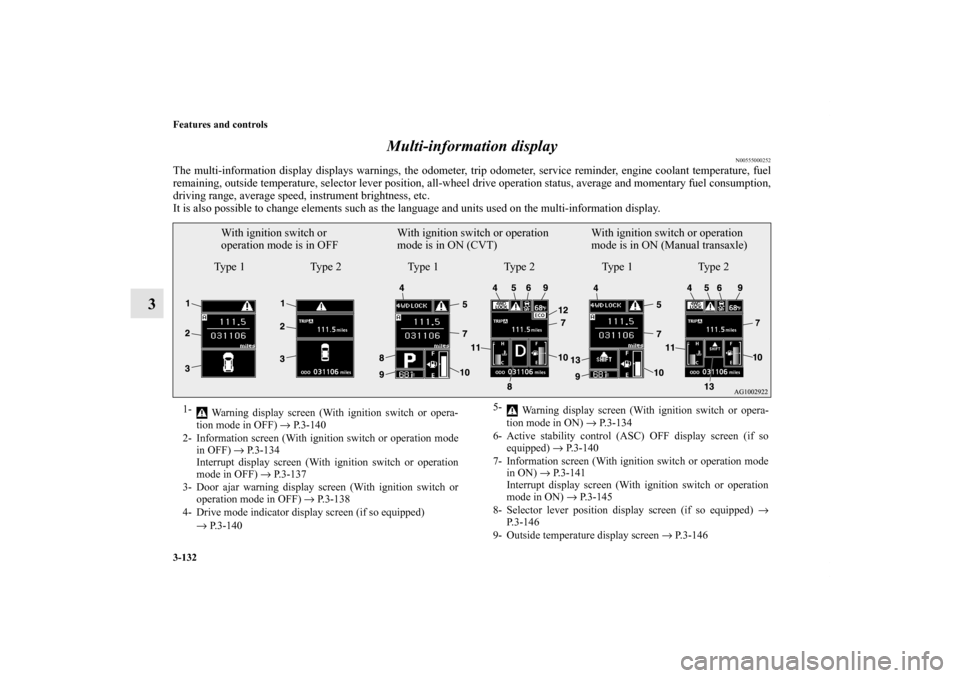

3Multi-information display
N00555000252
The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, all-wheel drive operation status, average and momentary fuel consumption,
driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch or
operation mode is in OFFWith ignition switch or operation
mode is in ON (CVT)
Type 1 Type 2With ignition switch or operation
mode is in ON (Manual transaxle)
Type 1 Type 2 Type 1 Type 2
1-
Warning display screen (With ignition switch or opera-
tion mode in OFF) → P.3-140
2- Information screen (With ignition switch or operation mode
in OFF) → P.3-134
Interrupt display screen (With ignition switch or operation
mode in OFF) → P. 3 - 1 3 7
3- Door ajar warning display screen (With ignition switch or
operation mode in OFF) → P.3-138
4- Drive mode indicator display screen (if so equipped)
→ P. 3 - 1 4 0
5-
Warning display screen (With ignition switch or opera-
tion mode in ON) → P.3-134
6- Active stability control (ASC) OFF display screen (if so
equipped) → P.3-140
7- Information screen (With ignition switch or operation mode
in ON) → P. 3 - 1 4 1
Interrupt display screen (With ignition switch or operation
mode in ON) → P. 3 - 1 4 5
8- Selector lever position display screen (if so equipped) →
P. 3 - 1 4 6
9- Outside temperature display screen → P.3-146
BK0140300US.book 132 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-133
3

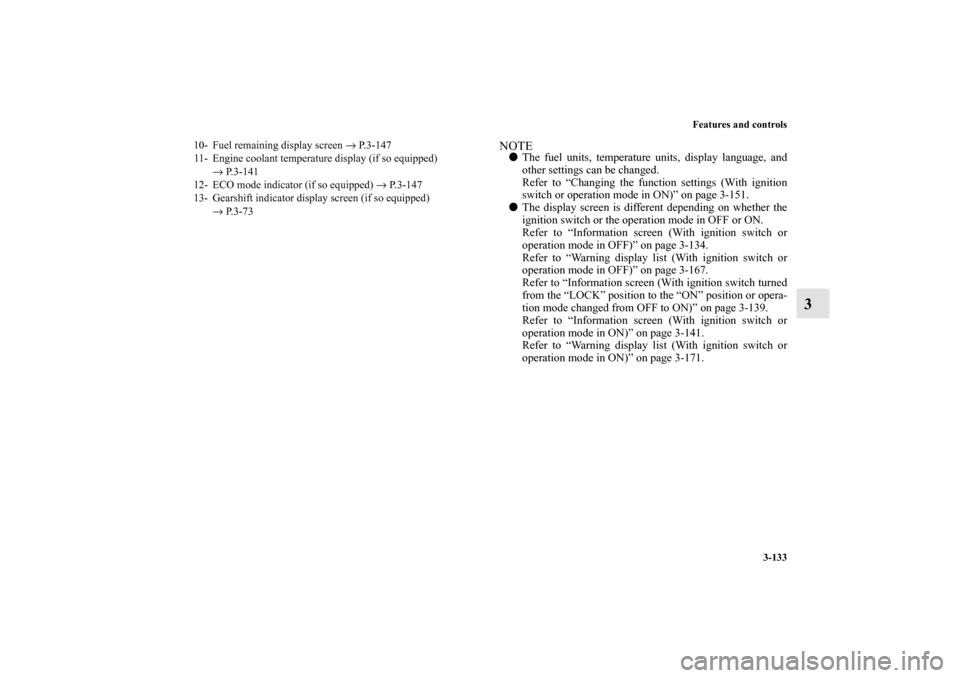

NOTE
The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-151.

The display screen is different depending on whether the
ignition switch or the operation mode in OFF or ON.
Refer to “Information screen (With ignition switch or
operation mode in OFF)” on page 3-134.
Refer to “Warning display list (With ignition switch or
operation mode in OFF)” on page 3-167.
Refer to “Information screen (With ignition switch turned
from the “LOCK” position to the “ON” position or opera-
tion mode changed from OFF to ON)” on page 3-139.
Refer to “Information screen (With ignition switch or
operation mode in ON)” on page 3-141.
Refer to “Warning display list (With ignition switch or
operation mode in ON)” on page 3-171.
10- Fuel remaining display screen → P.3-147
11- Engine coolant temperature display (if so equipped)
→ P.3-141
12- ECO mode indicator (if so equipped) → P.3-147
13- Gearshift indicator display screen (if so equipped)
→ P.3-73
BK0140300US.book 133 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-134 Features and controls
3

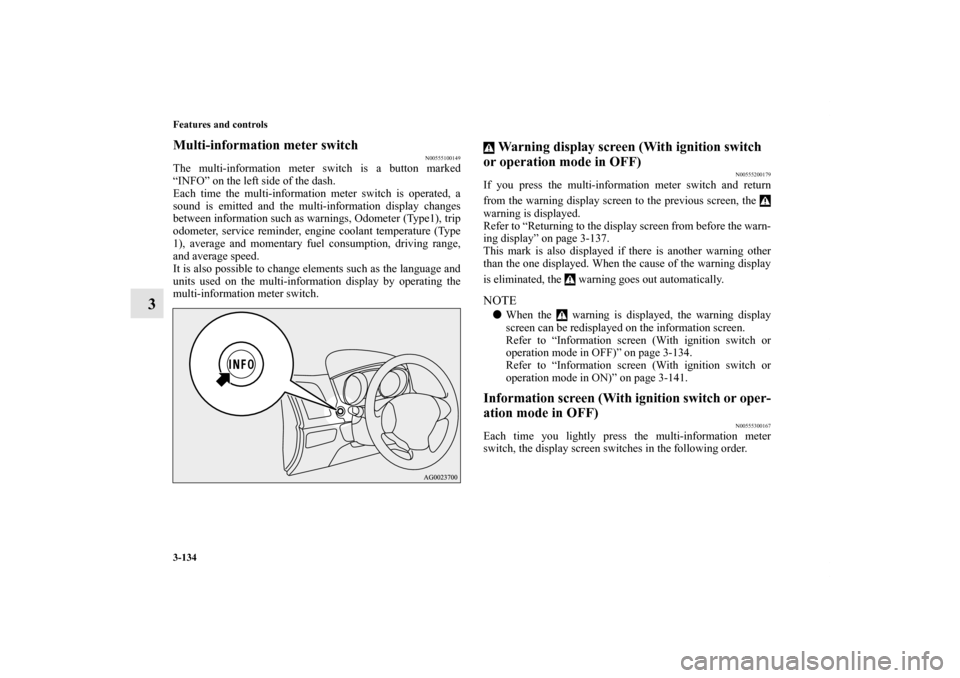

Multi-information meter switch
N00555100149
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, Odometer (Type1), trip
odometer, service reminder, engine coolant temperature (Type
1), average and momentary fuel consumption, driving range,
and average speed.
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
Warning display screen (With ignition switch
or operation mode in OFF)
N00555200179
If you press the multi-information meter switch and return
from the warning display screen to the previous screen, the
warning is displayed.
Refer to “Returning to the display screen from before the warn-
ing display” on page 3-137.
This mark is also displayed if there is another warning other
than the one displayed. When the cause of the warning display
is eliminated, the warning goes out automatically.NOTE
When the warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch or
operation mode in OFF)” on page 3-134.
Refer to “Information screen (With ignition switch or
operation mode in ON)” on page 3-141.Information screen (With ignition switch or oper-
ation mode in OFF)
N00555300167
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.
BK0140300US.book 134 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-135
3

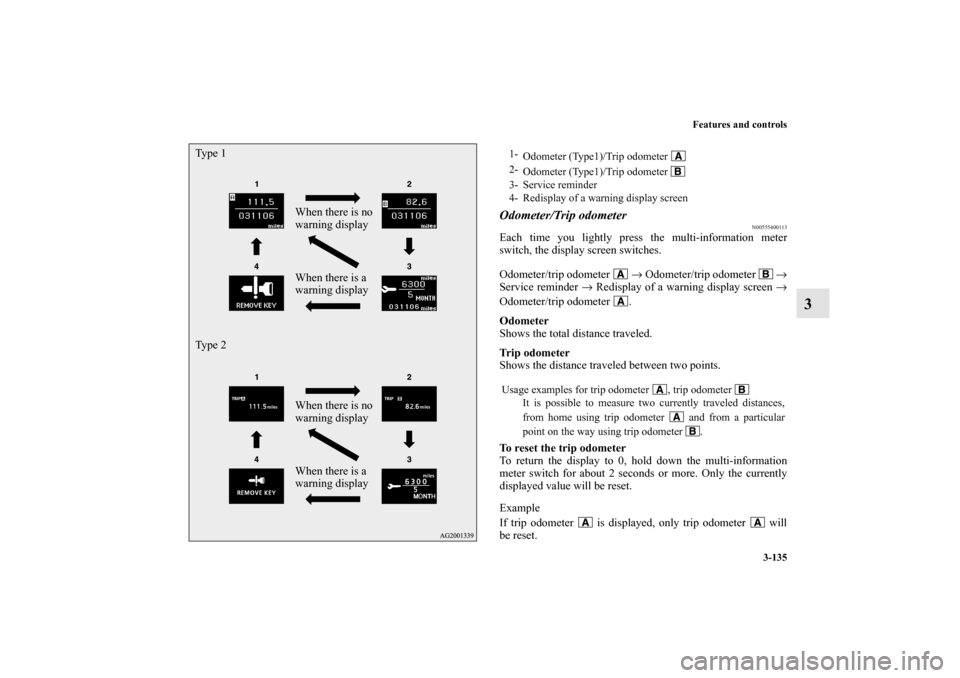

Odometer/Trip odometer
N00555400113
Each time you lightly press the multi-information meter
switch, the display screen switches.
Odometer/trip odometer → Odometer/trip odometer →
Service reminder → Redisplay of a warning display screen →
Odometer/trip odometer .
Odometer
Shows the total distance traveled.
Trip odometer
Shows the distance traveled between two points.
To reset the trip odometer
To return the display to 0, hold down the multi-information
meter switch for about 2 seconds or more. Only the currently
displayed value will be reset.
Example
If trip odometer is displayed, only trip odometer will
be reset.
When there is no
warning display
When there is a
warning display Ty p e 1
Ty p e 2
When there is no
warning display
When there is a
warning display
1-
Odometer (Type1)/Trip odometer
2-
Odometer (Type1)/Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
Usage examples for trip odometer , trip odometer
It is possible to measure two currently traveled distances,
from home using trip odometer and from a particular
point on the way using trip odometer .
BK0140300US.book 135 ページ ２０１１年６月２８日　火曜日　午後５時１８分
