2012 MITSUBISHI OUTLANDER SPORT Owners Manual

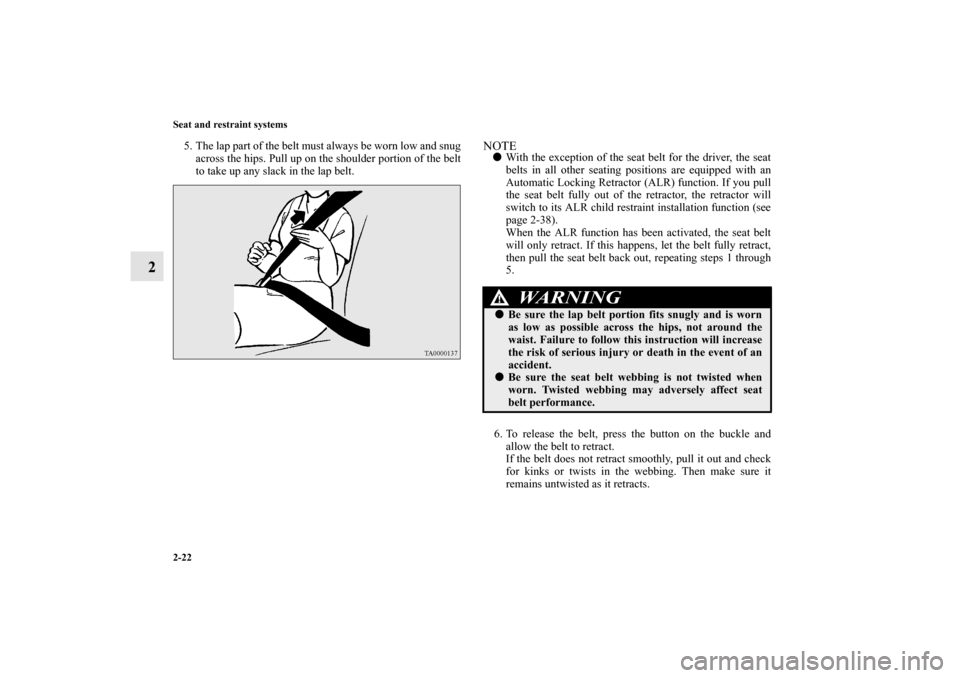

2-22 Seat and restraint systems
2
5. The lap part of the belt must always be worn low and snug
across the hips. Pull up on the shoulder portion of the belt
to take up any slack in the lap belt.
NOTE
With the exception of the seat belt for the driver, the seat
belts in all other seating positions are equipped with an
Automatic Locking Retractor (ALR) function. If you pull
the seat belt fully out of the retractor, the retractor will
switch to its ALR child restraint installation function (see
page 2-38).
When the ALR function has been activated, the seat belt
will only retract. If this happens, let the belt fully retract,
then pull the seat belt back out, repeating steps 1 through
5.
6. To release the belt, press the button on the buckle and
allow the belt to retract.
If the belt does not retract smoothly, pull it out and check
for kinks or twists in the webbing. Then make sure it
remains untwisted as it retracts.
WA R N I N G
!
Be sure the lap belt portion fits snugly and is worn
as low as possible across the hips, not around the
waist. Failure to follow this instruction will increase
the risk of serious injury or death in the event of an
accident.
Be sure the seat belt webbing is not twisted when
worn. Twisted webbing may adversely affect seat
belt performance.
BK0140300US.book 22 ページ ２０１１年６月２８日　火曜日　午後５時１８分

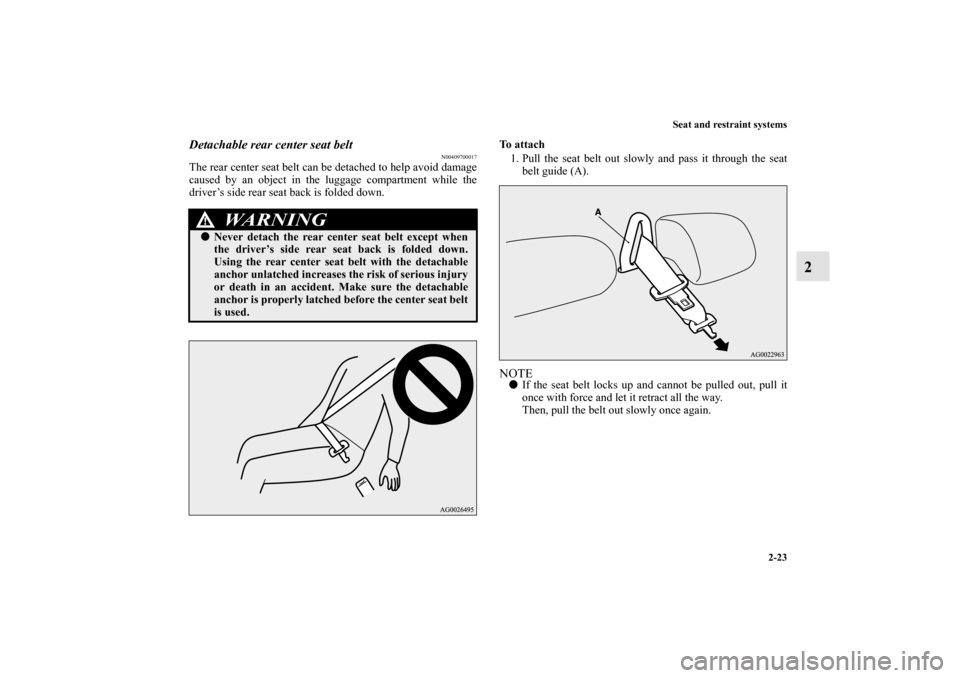

Seat and restraint systems
2-23
2
Detachable rear center seat belt
N00409700017
The rear center seat belt can be detached to help avoid damage
caused by an object in the luggage compartment while the
driver’s side rear seat back is folded down.To a t t a c h
1. Pull the seat belt out slowly and pass it through the seat
belt guide (A).
NOTE
If the seat belt locks up and cannot be pulled out, pull it
once with force and let it retract all the way.
Then, pull the belt out slowly once again.
WA R N I N G
!
Never detach the rear center seat belt except when
the driver’s side rear seat back is folded down.
Using the rear center seat belt with the detachable
anchor unlatched increases the risk of serious injury
or death in an accident. Make sure the detachable
anchor is properly latched before the center seat belt
is used.
BK0140300US.book 23 ページ ２０１１年６月２８日　火曜日　午後５時１８分

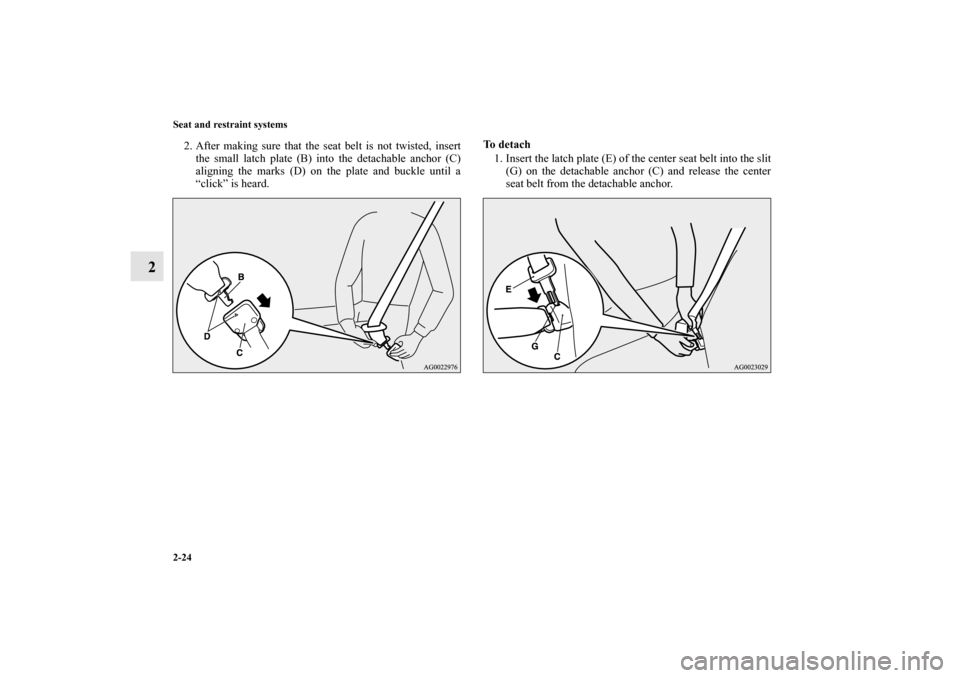

2-24 Seat and restraint systems
2
2. After making sure that the seat belt is not twisted, insert
the small latch plate (B) into the detachable anchor (C)
aligning the marks (D) on the plate and buckle until a
“click” is heard.To d e t a c h
1. Insert the latch plate (E) of the center seat belt into the slit
(G) on the detachable anchor (C) and release the center
seat belt from the detachable anchor.
BK0140300US.book 24 ページ ２０１１年６月２８日　火曜日　午後５時１８分

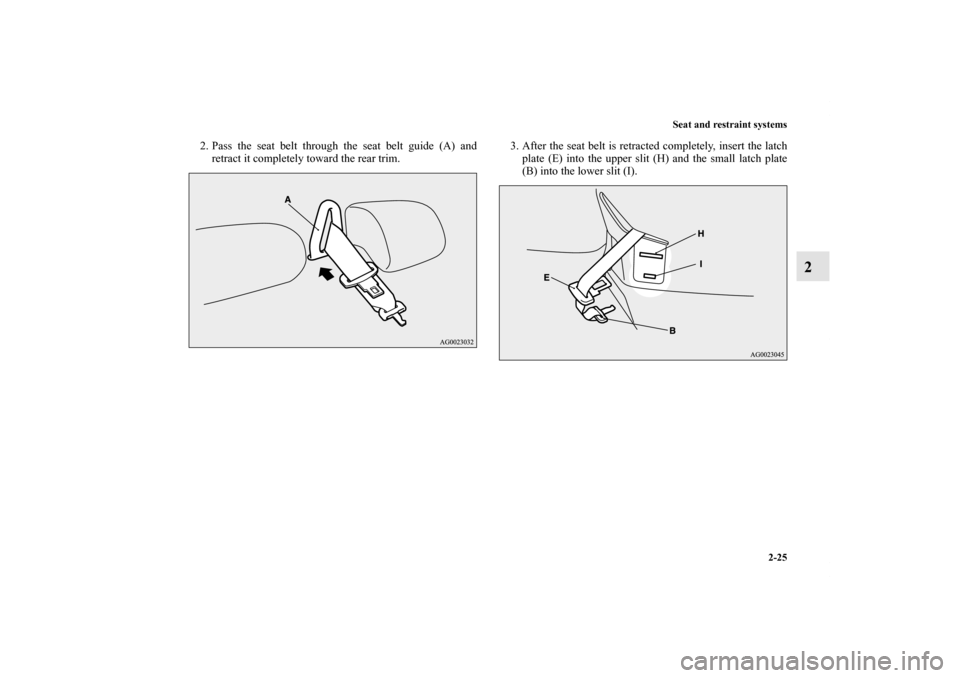

Seat and restraint systems
2-25
2
2. Pass the seat belt through the seat belt guide (A) and
retract it completely toward the rear trim.3. After the seat belt is retracted completely, insert the latch
plate (E) into the upper slit (H) and the small latch plate
(B) into the lower slit (I).
BK0140300US.book 25 ページ ２０１１年６月２８日　火曜日　午後５時１８分

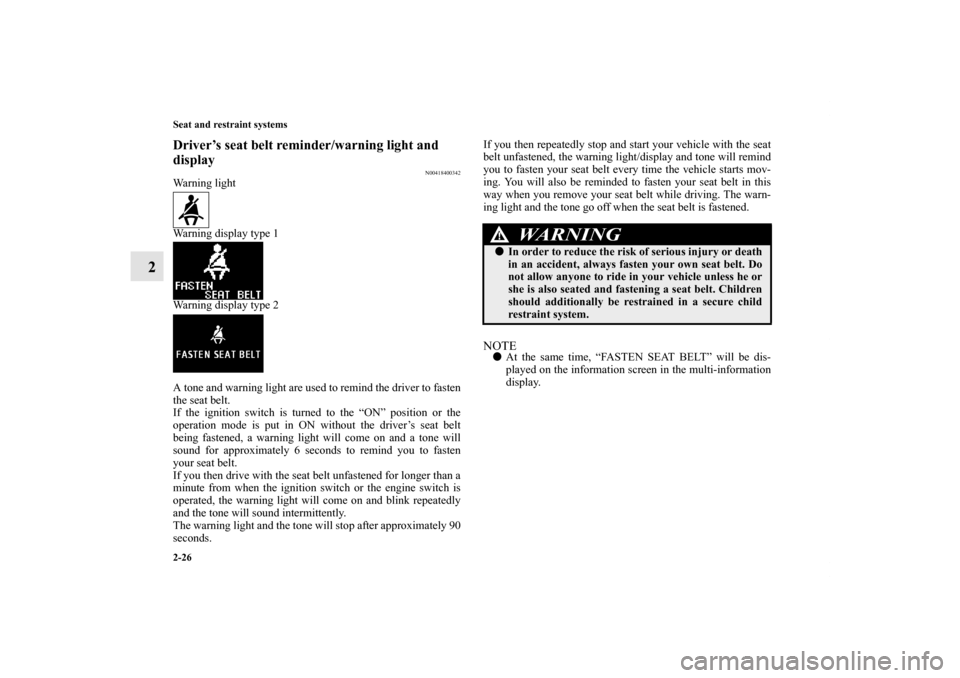

2-26 Seat and restraint systems
2
Driver’s seat belt reminder/warning light and
display
N00418400342
Warning light
Warning display type 1
Warning display type 2
A tone and warning light are used to remind the driver to fasten
the seat belt.
If the ignition switch is turned to the “ON” position or the
operation mode is put in ON without the driver’s seat belt
being fastened, a warning light will come on and a tone will
sound for approximately 6 seconds to remind you to fasten
your seat belt.
If you then drive with the seat belt unfastened for longer than a
minute from when the ignition switch or the engine switch is
operated, the warning light will come on and blink repeatedly
and the tone will sound intermittently.
The warning light and the tone will stop after approximately 90
seconds.If you then repeatedly stop and start your vehicle with the seat
belt unfastened, the warning light/display and tone will remind
you to fasten your seat belt every time the vehicle starts mov-
ing. You will also be reminded to fasten your seat belt in this
way when you remove your seat belt while driving. The warn-
ing light and the tone go off when the seat belt is fastened.
NOTE
At the same time, “FASTEN SEAT BELT” will be dis-
played on the information screen in the multi-information
display.
WA R N I N G
!
In order to reduce the risk of serious injury or death
in an accident, always fasten your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and fastening a seat belt. Children
should additionally be restrained in a secure child
restraint system.
BK0140300US.book 26 ページ ２０１１年６月２８日　火曜日　午後５時１８分

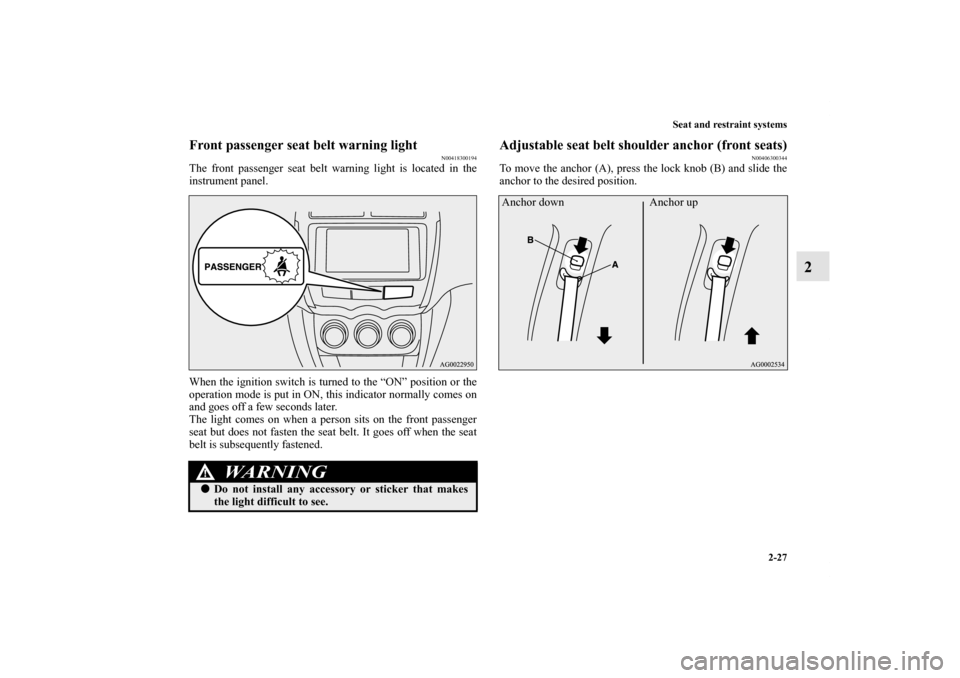

Seat and restraint systems
2-27
2
Front passenger seat belt warning light
N00418300194
The front passenger seat belt warning light is located in the
instrument panel.
When the ignition switch is turned to the “ON” position or the
operation mode is put in ON, this indicator normally comes on
and goes off a few seconds later.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt. It goes off when the seat
belt is subsequently fastened.
Adjustable seat belt shoulder anchor (front seats)
N00406300344
To move the anchor (A), press the lock knob (B) and slide the
anchor to the desired position.
WA R N I N G
!
Do not install any accessory or sticker that makes
the light difficult to see.
Anchor down Anchor up
BK0140300US.book 27 ページ ２０１１年６月２８日　火曜日　午後５時１８分

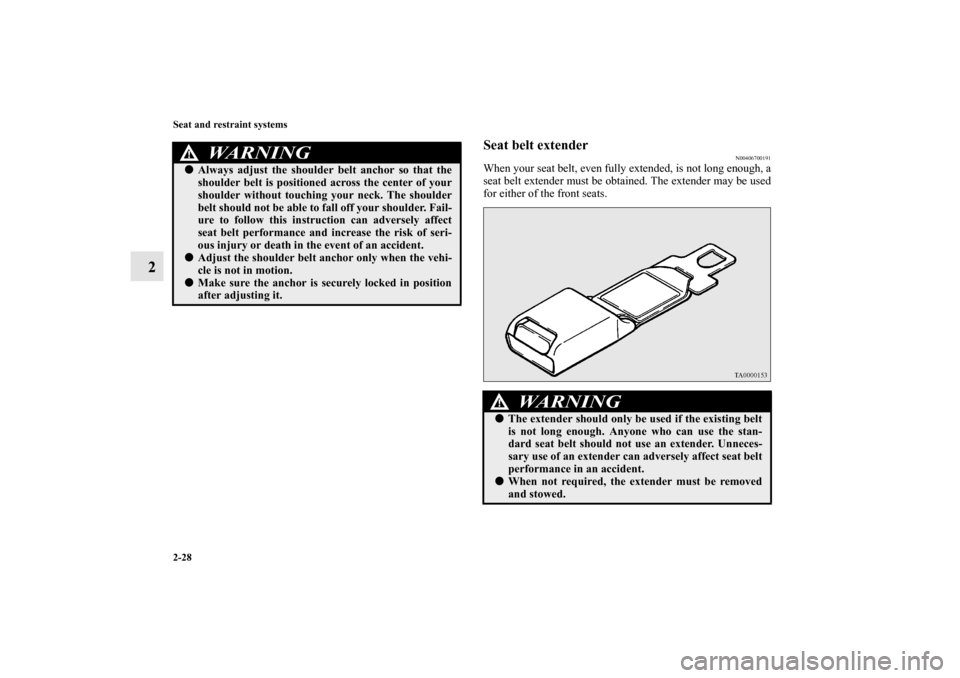

2-28 Seat and restraint systems
2
Seat belt extender
N00406700191
When your seat belt, even fully extended, is not long enough, a
seat belt extender must be obtained. The extender may be used
for either of the front seats.
WA R N I N G
!
Always adjust the shoulder belt anchor so that the
shoulder belt is positioned across the center of your
shoulder without touching your neck. The shoulder
belt should not be able to fall off your shoulder. Fail-
ure to follow this instruction can adversely affect
seat belt performance and increase the risk of seri-
ous injury or death in the event of an accident.
Adjust the shoulder belt anchor only when the vehi-
cle is not in motion.
Make sure the anchor is securely locked in position
after adjusting it.
WA R N I N G
!
The extender should only be used if the existing belt
is not long enough. Anyone who can use the stan-
dard seat belt should not use an extender. Unneces-
sary use of an extender can adversely affect seat belt
performance in an accident.
When not required, the extender must be removed
and stowed.
BK0140300US.book 28 ページ ２０１１年６月２８日　火曜日　午後５時１８分

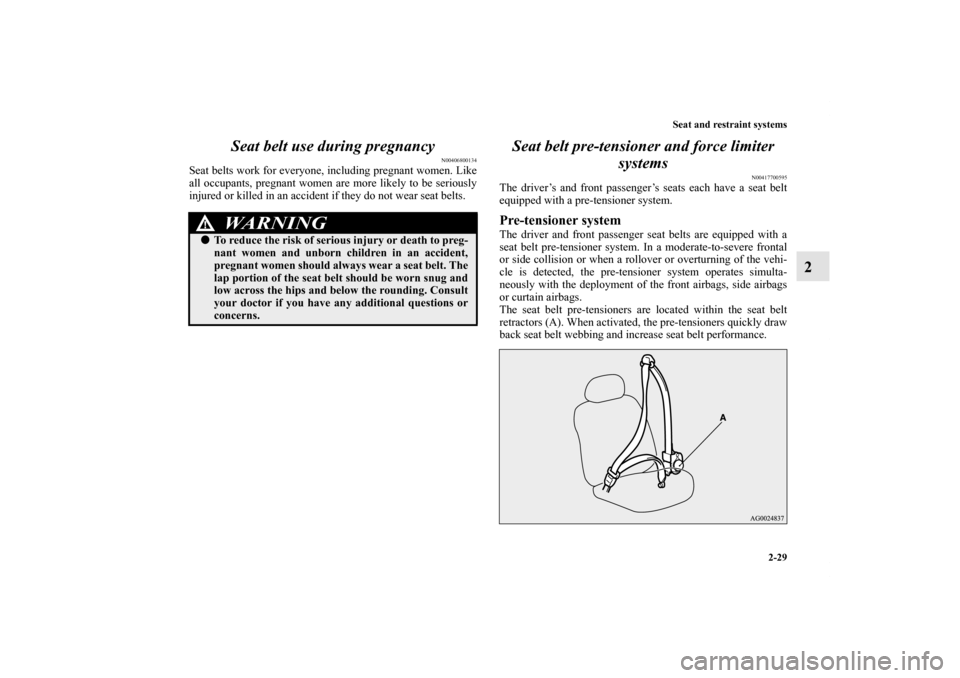

Seat and restraint systems
2-29
2 Seat belt use during pregnancy
N00406800134
Seat belts work for everyone, including pregnant women. Like
all occupants, pregnant women are more likely to be seriously
injured or killed in an accident if they do not wear seat belts.
Seat belt pre-tensioner and force limiter
systems
N00417700595
The driver’s and front passenger’s seats each have a seat belt
equipped with a pre-tensioner system.Pre-tensioner systemThe driver and front passenger seat belts are equipped with a
seat belt pre-tensioner system. In a moderate-to-severe frontal
or side collision or when a rollover or overturning of the vehi-
cle is detected, the pre-tensioner system operates simulta-
neously with the deployment of the front airbags, side airbags
or curtain airbags.
The seat belt pre-tensioners are located within the seat belt
retractors (A). When activated, the pre-tensioners quickly draw
back seat belt webbing and increase seat belt performance.
WA R N I N G
!
To reduce the risk of serious injury or death to preg-
nant women and unborn children in an accident,
pregnant women should always wear a seat belt. The
lap portion of the seat belt should be worn snug and
low across the hips and below the rounding. Consult
your doctor if you have any additional questions or
concerns.
