2012 MITSUBISHI OUTLANDER SPORT Owners Manual

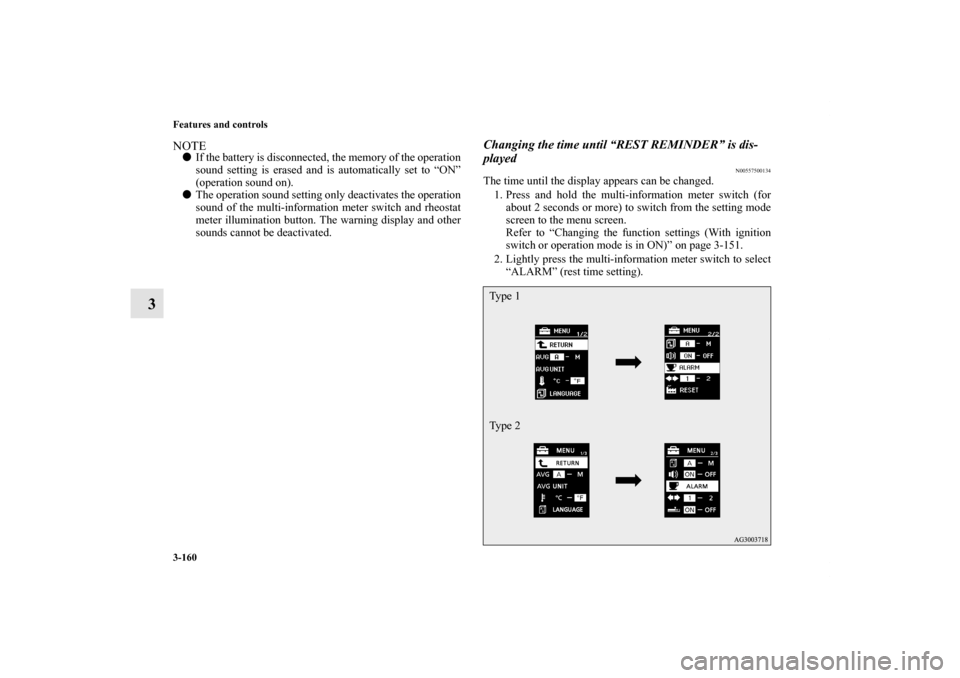

3-160 Features and controls
3
NOTE
If the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).

The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
Changing the time until “REST REMINDER” is dis-
played
N00557500134
The time until the display appears can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-151.
2. Lightly press the multi-information meter switch to select
“ALARM” (rest time setting).Ty p e 1
Ty p e 2
BK0140300US.book 160 ページ ２０１１年６月２８日　火曜日　午後５時１８分

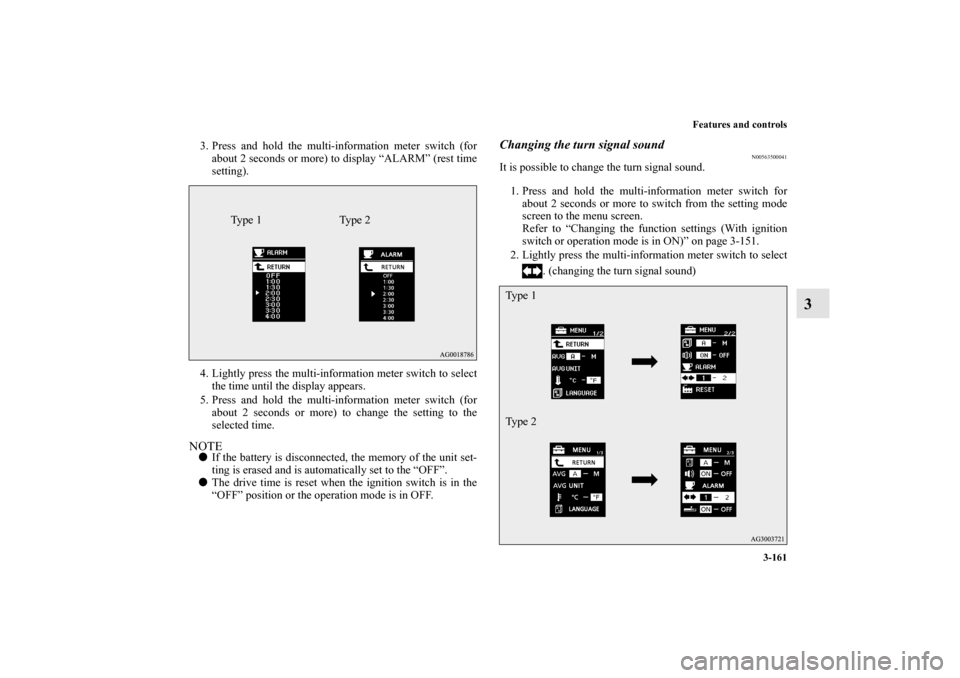

Features and controls
3-161
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ALARM” (rest time
setting).
4. Lightly press the multi-information meter switch to select
the time until the display appears.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected time.NOTE
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to the “OFF”.

The drive time is reset when the ignition switch is in the
“OFF” position or the operation mode is in OFF.
Changing the turn signal sound
N00563500041
It is possible to change the turn signal sound.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-151.
2. Lightly press the multi-information meter switch to select
. (changing the turn signal sound)
Ty p e 1 Ty p e 2
Ty p e 1
Ty p e 2
BK0140300US.book 161 ページ ２０１１年６月２８日　火曜日　午後５時１８分

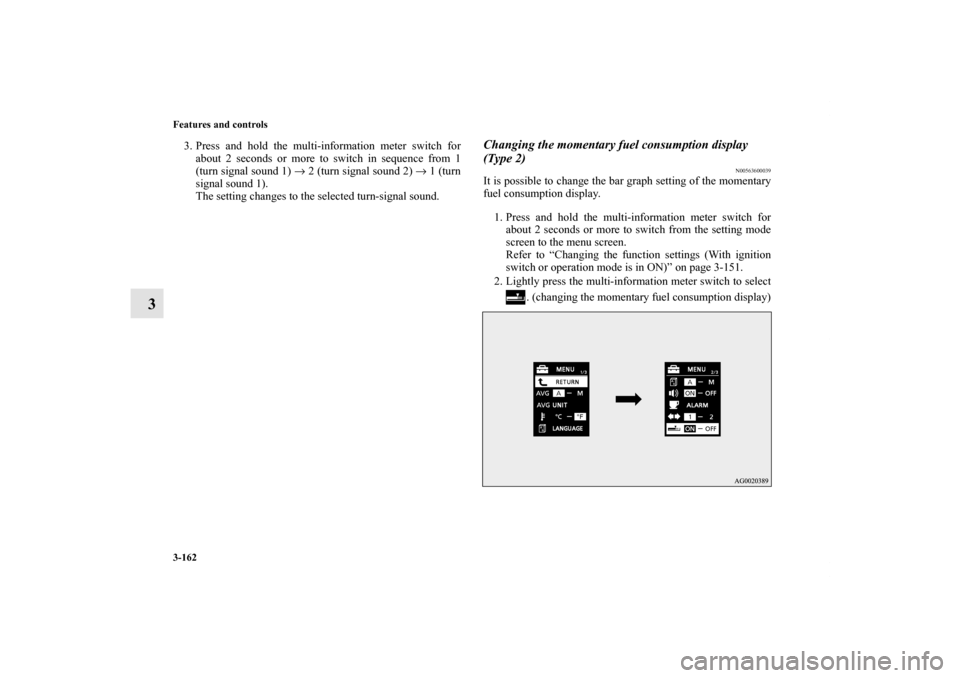

3-162 Features and controls
3
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from 1
(turn signal sound 1) → 2 (turn signal sound 2) → 1 (turn
signal sound 1).
The setting changes to the selected turn-signal sound.
Changing the momentary fuel consumption display
(Type 2)
N00563600039
It is possible to change the bar graph setting of the momentary
fuel consumption display.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-151.
2. Lightly press the multi-information meter switch to select
. (changing the momentary fuel consumption display)
BK0140300US.book 162 ページ ２０１１年６月２８日　火曜日　午後５時１８分

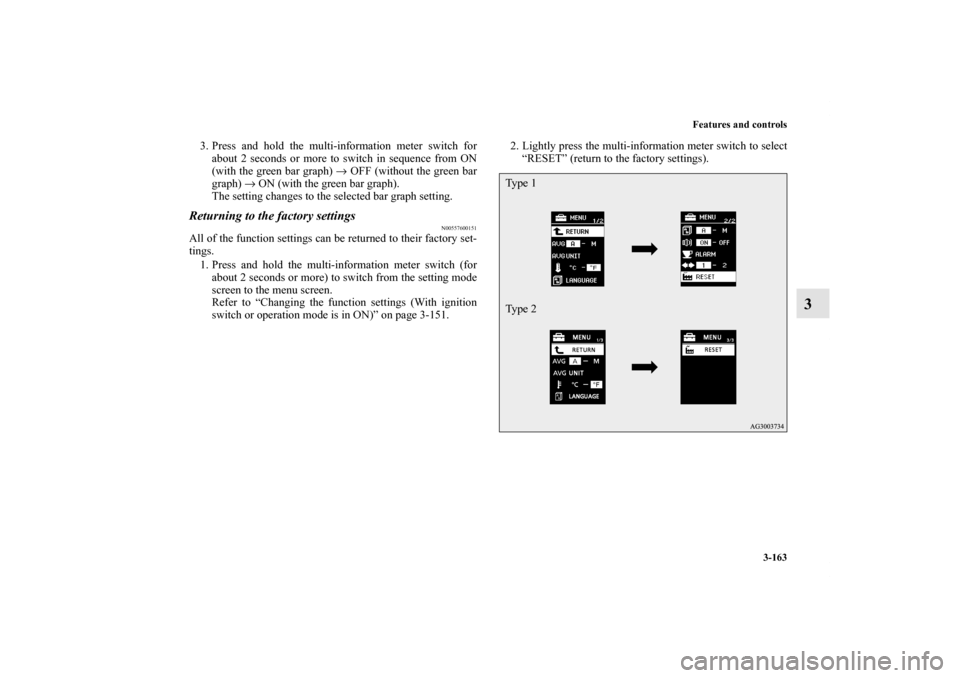

Features and controls
3-163
3
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from ON
(with the green bar graph) → OFF (without the green bar
graph) → ON (with the green bar graph).
The setting changes to the selected bar graph setting.Returning to the factory settings
N00557600151
All of the function settings can be returned to their factory set-
tings.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-151.2. Lightly press the multi-information meter switch to select
“RESET” (return to the factory settings).
Ty p e 1
Ty p e 2
BK0140300US.book 163 ページ ２０１１年６月２８日　火曜日　午後５時１８分

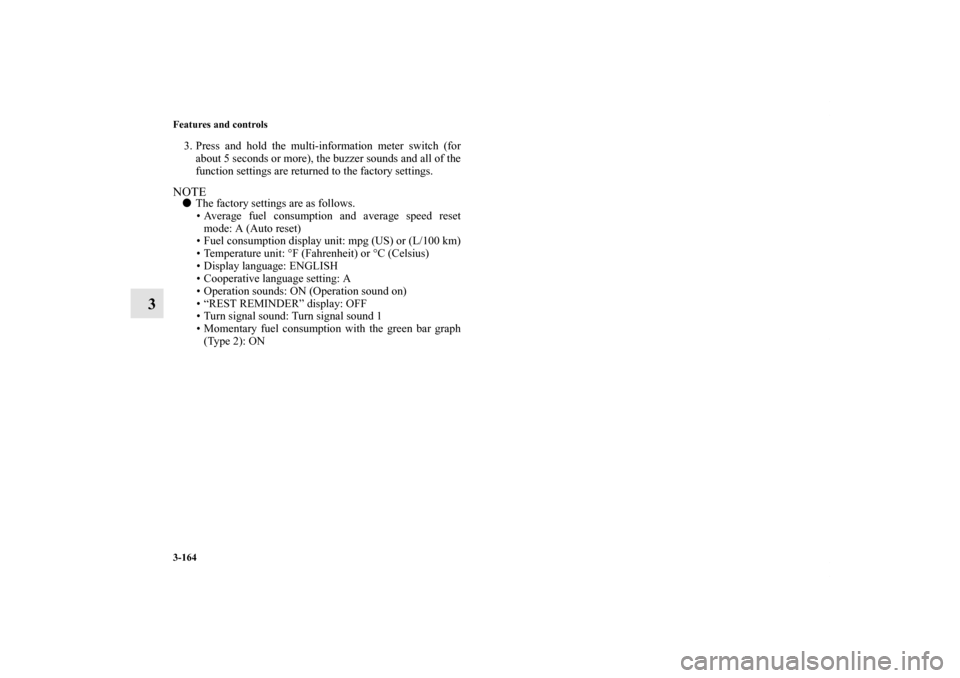

3-164 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.NOTE
The factory settings are as follows.
• Average fuel consumption and average speed reset
mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or (L/100 km)
• Temperature unit: °F (Fahrenheit) or °C (Celsius)
• Display language: ENGLISH
• Cooperative language setting: A
• Operation sounds: ON (Operation sound on)
• “REST REMINDER” display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph
(Type 2): ON
BK0140300US.book 164 ページ ２０１１年６月２８日　火曜日　午後５時１８分

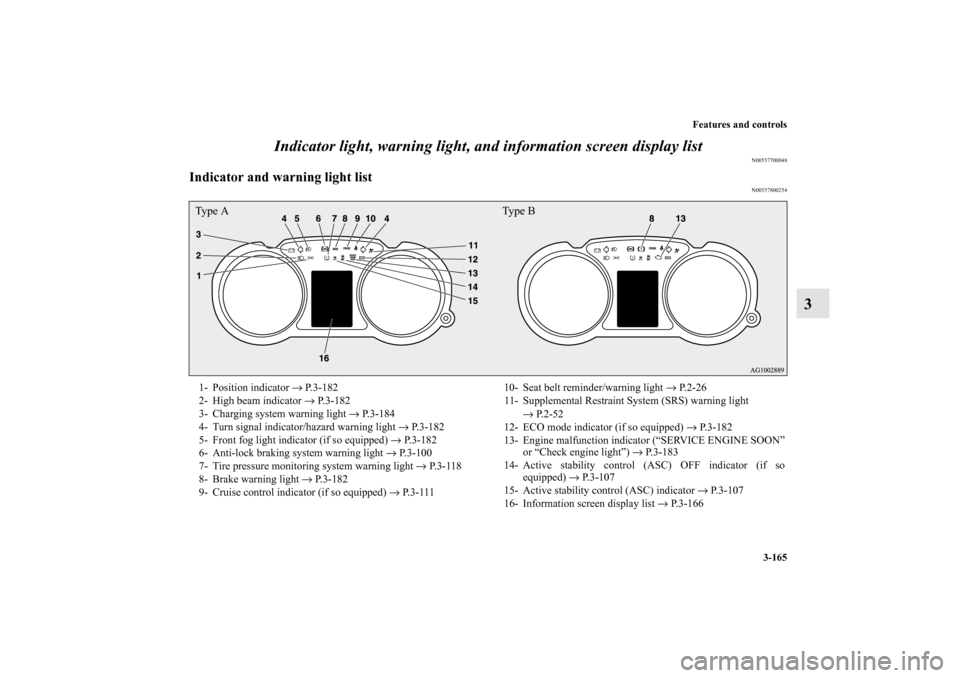

Features and controls
3-165
3 Indicator light, warning light, and information screen display list
N00557700048
Indicator and warning light list
N00557800254
Type A Type B1- Position indicator → P.3-182
2- High beam indicator → P.3-182
3- Charging system warning light → P.3-184
4- Turn signal indicator/hazard warning light → P.3-182
5- Front fog light indicator (if so equipped) → P.3-182
6- Anti-lock braking system warning light → P.3-100
7- Tire pressure monitoring system warning light → P. 3 - 1 1 8
8- Brake warning light → P.3-182
9- Cruise control indicator (if so equipped) → P. 3 - 1 1 110- Seat belt reminder/warning light → P.2-26
11- Supplemental Restraint System (SRS) warning light
→ P. 2 - 5 2
12- ECO mode indicator (if so equipped) → P. 3 - 1 8 2
13- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-183
14- Active stability control (ASC) OFF indicator (if so
equipped) → P. 3 - 1 0 7
15- Active stability control (ASC) indicator → P.3-107
16- Information screen display list → P.3-166
BK0140300US.book 165 ページ ２０１１年６月２８日　火曜日　午後５時１８分

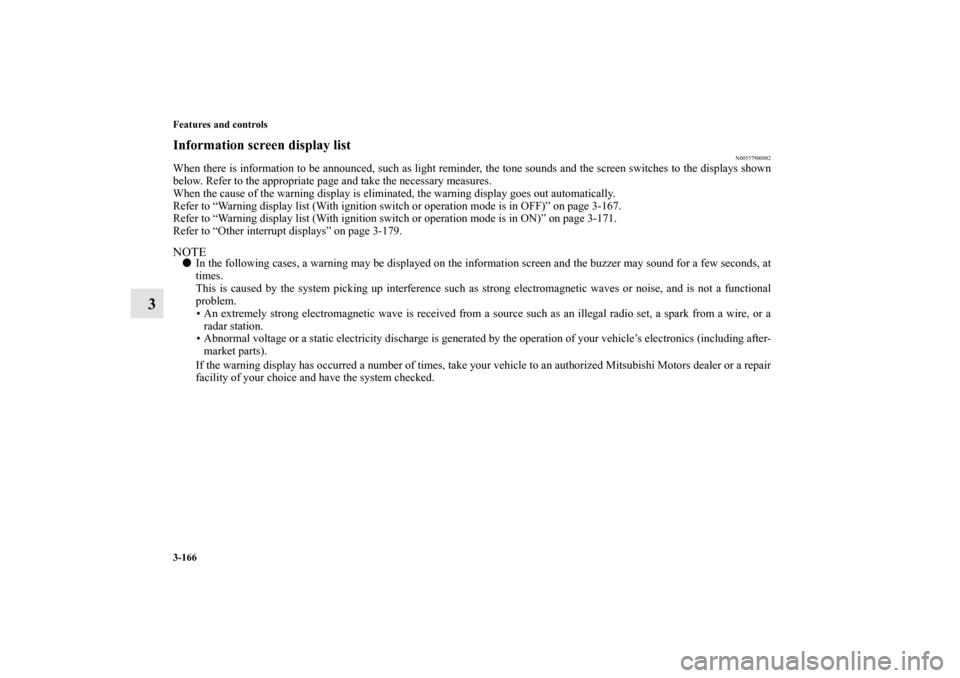

3-166 Features and controls
3
Information screen display list
N00557900082
When there is information to be announced, such as light reminder, the tone sounds and the screen switches to the displays shown
below. Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to “Warning display list (With ignition switch or operation mode is in OFF)” on page 3-167.
Refer to “Warning display list (With ignition switch or operation mode is in ON)” on page 3-171.
Refer to “Other interrupt displays” on page 3-179.NOTE
In the following cases, a warning may be displayed on the information screen and the buzzer may sound for a few seconds, at
times.
This is caused by the system picking up interference such as strong electromagnetic waves or noise, and is not a functional
problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a
radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of your vehicle’s electronics (including after-
market parts).
If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
BK0140300US.book 166 ページ ２０１１年６月２８日　火曜日　午後５時１８分

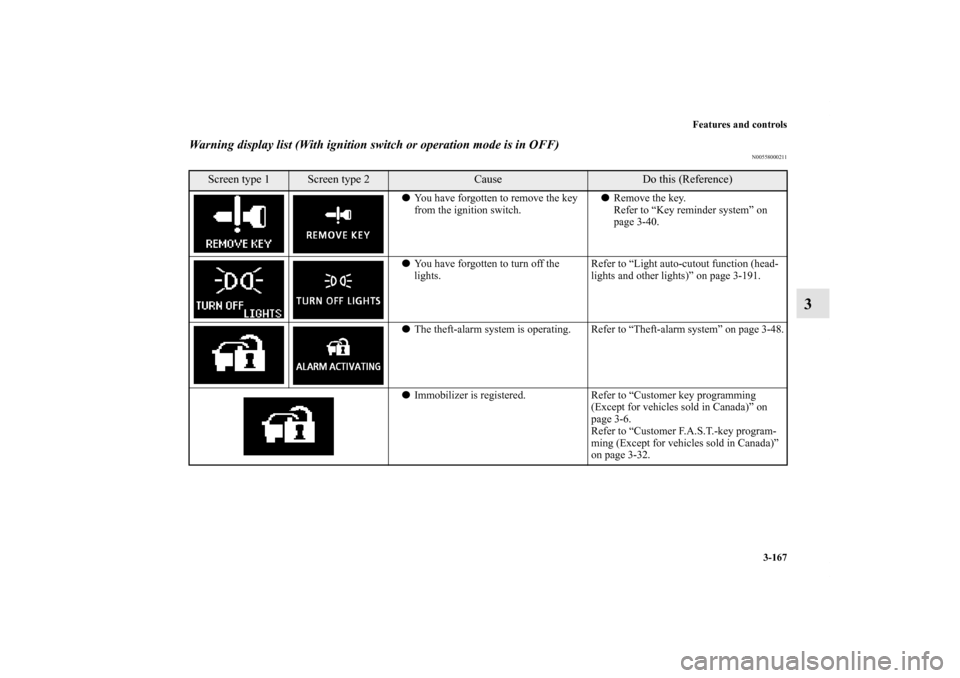

Features and controls
3-167
3
Warning display list (With ignition switch or operation mode is in OFF)
N00558000211
Screen type 1
Screen type 2
Cause
Do this (Reference)

You have forgotten to remove the key
from the ignition switch.
Remove the key.
Refer to “Key reminder system” on
page 3-40.

You have forgotten to turn off the
lights.Refer to “Light auto-cutout function (head-
lights and other lights)” on page 3-191.

The theft-alarm system is operating. Refer to “Theft-alarm system” on page 3-48.

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-6.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-32.
