2012 MITSUBISHI OUTLANDER SPORT Owners Manual

2-62 Seat and restraint systems
2
WA R N I N G
!

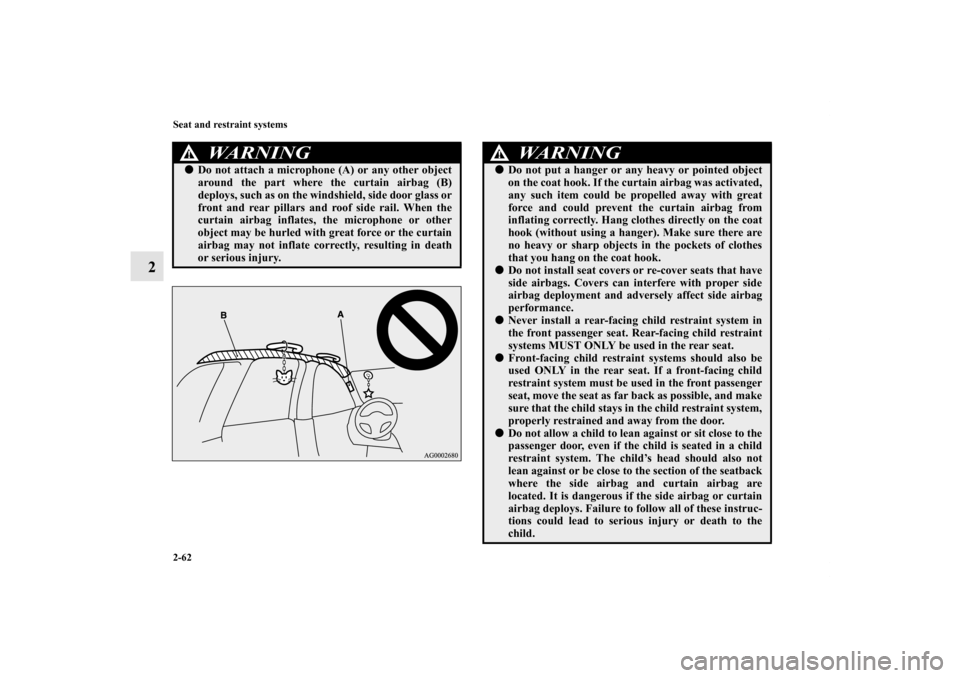

Do not attach a microphone (A) or any other object
around the part where the curtain airbag (B)
deploys, such as on the windshield, side door glass or
front and rear pillars and roof side rail. When the
curtain airbag inflates, the microphone or other
object may be hurled with great force or the curtain
airbag may not inflate correctly, resulting in death
or serious injury.
WA R N I N G
!
Do not put a hanger or any heavy or pointed object
on the coat hook. If the curtain airbag was activated,
any such item could be propelled away with great
force and could prevent the curtain airbag from
inflating correctly. Hang clothes directly on the coat
hook (without using a hanger). Make sure there are
no heavy or sharp objects in the pockets of clothes
that you hang on the coat hook.
Do not install seat covers or re-cover seats that have
side airbags. Covers can interfere with proper side
airbag deployment and adversely affect side airbag
performance.
Never install a rear-facing child restraint system in
the front passenger seat. Rear-facing child restraint
systems MUST ONLY be used in the rear seat.
Front-facing child restraint systems should also be
used ONLY in the rear seat. If a front-facing child
restraint system must be used in the front passenger
seat, move the seat as far back as possible, and make
sure that the child stays in the child restraint system,
properly restrained and away from the door.
Do not allow a child to lean against or sit close to the
passenger door, even if the child is seated in a child
restraint system. The child’s head should also not
lean against or be close to the section of the seatback
where the side airbag and curtain airbag are
located. It is dangerous if the side airbag or curtain
airbag deploys. Failure to follow all of these instruc-
tions could lead to serious injury or death to the
child.
BK0140300US.book 62 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Seat and restraint systems
2-63
2

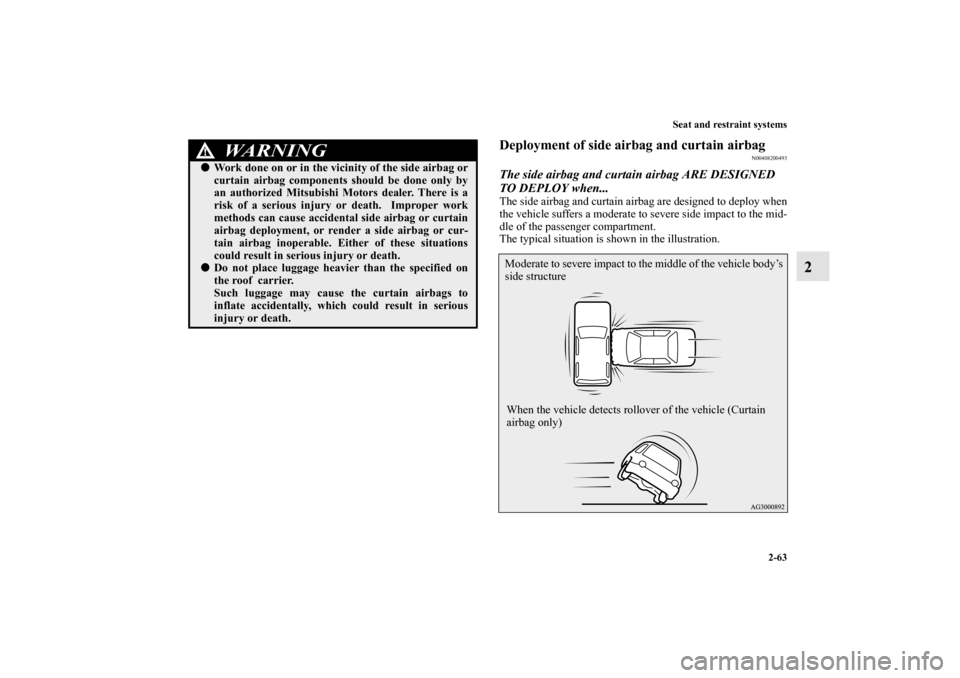

Deployment of side airbag and curtain airbag
N00408200493
The side airbag and curtain airbag ARE DESIGNED
TO DEPLOY when...The side airbag and curtain airbag are designed to deploy when
the vehicle suffers a moderate to severe side impact to the mid-
dle of the passenger compartment.
The typical situation is shown in the illustration.

Work done on or in the vicinity of the side airbag or
curtain airbag components should be done only by
an authorized Mitsubishi Motors dealer. There is a
risk of a serious injury or death. Improper work
methods can cause accidental side airbag or curtain
airbag deployment, or render a side airbag or cur-
tain airbag inoperable. Either of these situations
could result in serious injury or death.
Do not place luggage heavier than the specified on
the roof carrier.
Such luggage may cause the curtain airbags to
inflate accidentally, which could result in serious
injury or death.
WA R N I N G
!
Moderate to severe impact to the middle of the vehicle body’s
side structure
When the vehicle detects rollover of the vehicle (Curtain
airbag only)
BK0140300US.book 63 ページ ２０１１年６月２８日　火曜日　午後５時１８分

2-64 Seat and restraint systems
2

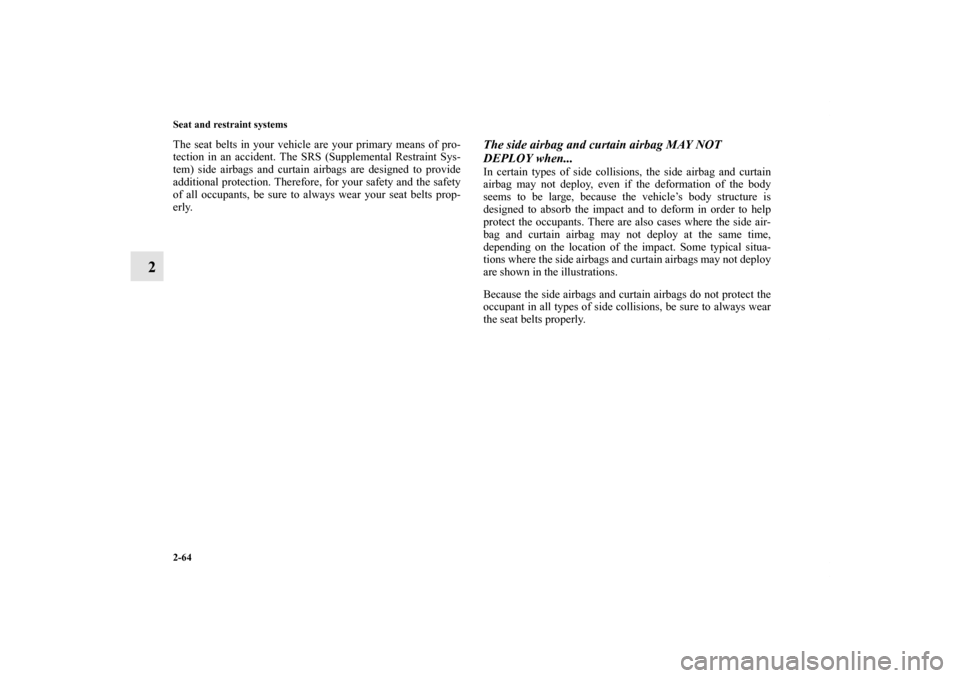

The seat belts in your vehicle are your primary means of pro-
tection in an accident. The SRS (Supplemental Restraint Sys-
tem) side airbags and curtain airbags are designed to provide
additional protection. Therefore, for your safety and the safety
of all occupants, be sure to always wear your seat belts prop-
erly.
The side airbag and curtain airbag MAY NOT
DEPLOY when...In certain types of side collisions, the side airbag and curtain
airbag may not deploy, even if the deformation of the body
seems to be large, because the vehicle’s body structure is
designed to absorb the impact and to deform in order to help
protect the occupants. There are also cases where the side air-
bag and curtain airbag may not deploy at the same time,
depending on the location of the impact. Some typical situa-
tions where the side airbags and curtain airbags may not deploy
are shown in the illustrations.
Because the side airbags and curtain airbags do not protect the
occupant in all types of side collisions, be sure to always wear
the seat belts properly.
BK0140300US.book 64 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Seat and restraint systems
2-65
2

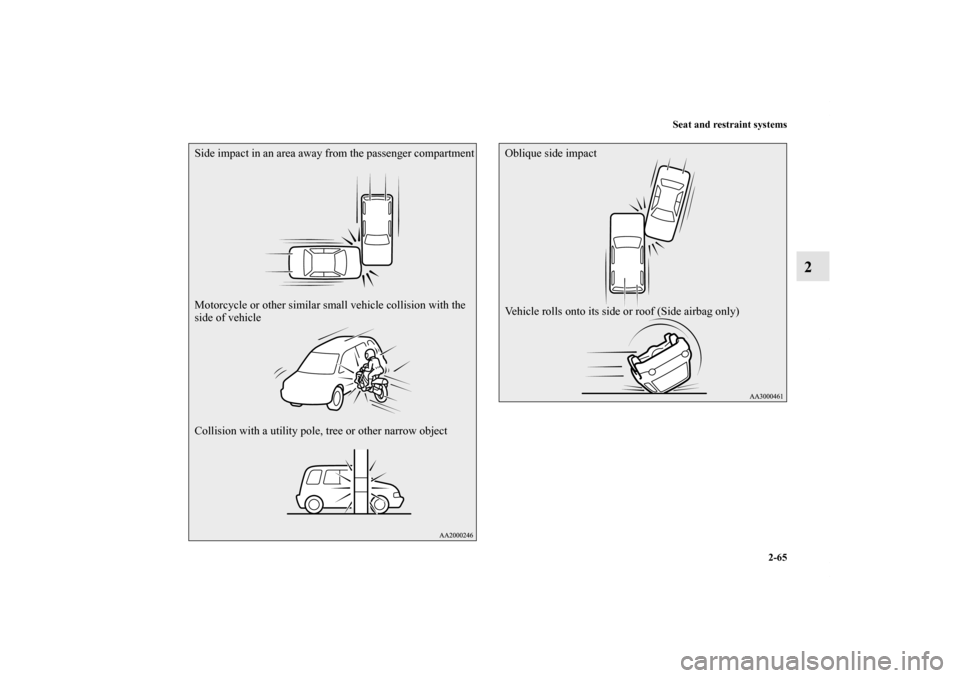

Side impact in an area away from the passenger compartment
Motorcycle or other similar small vehicle collision with the
side of vehicle
Collision with a utility pole, tree or other narrow object
Oblique side impact
Vehicle rolls onto its side or roof (Side airbag only)
BK0140300US.book 65 ページ ２０１１年６月２８日　火曜日　午後５時１８分

2-66 Seat and restraint systems
2

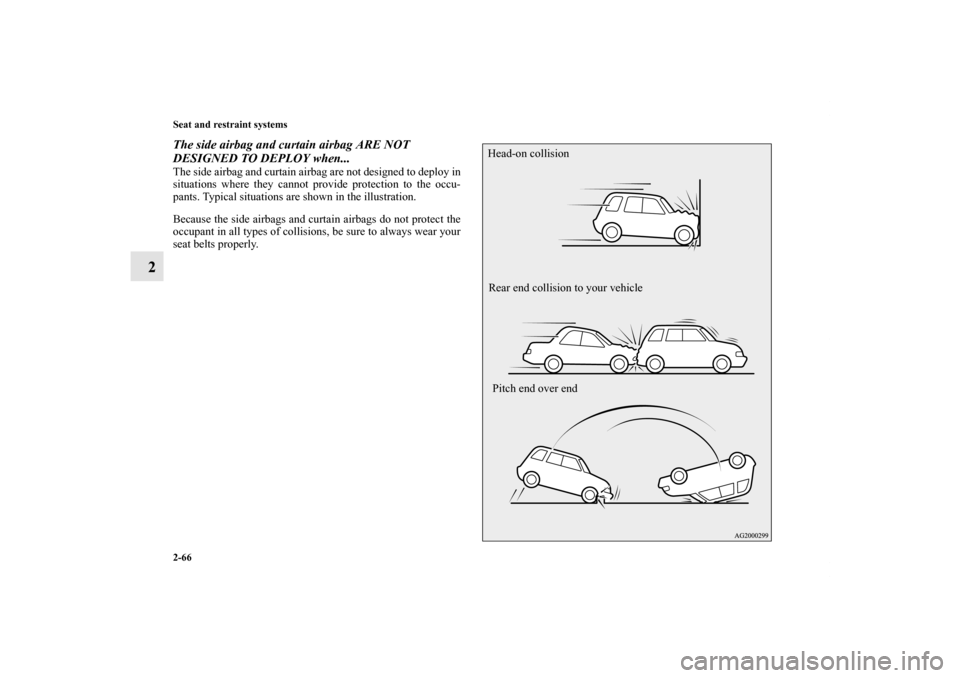

The side airbag and curtain airbag ARE NOT
DESIGNED TO DEPLOY when...The side airbag and curtain airbag are not designed to deploy in
situations where they cannot provide protection to the occu-
pants. Typical situations are shown in the illustration.
Because the side airbags and curtain airbags do not protect the
occupant in all types of collisions, be sure to always wear your
seat belts properly.
Head-on collision
Rear end collision to your vehicle
Pitch end over end
BK0140300US.book 66 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Seat and restraint systems
2-67
2

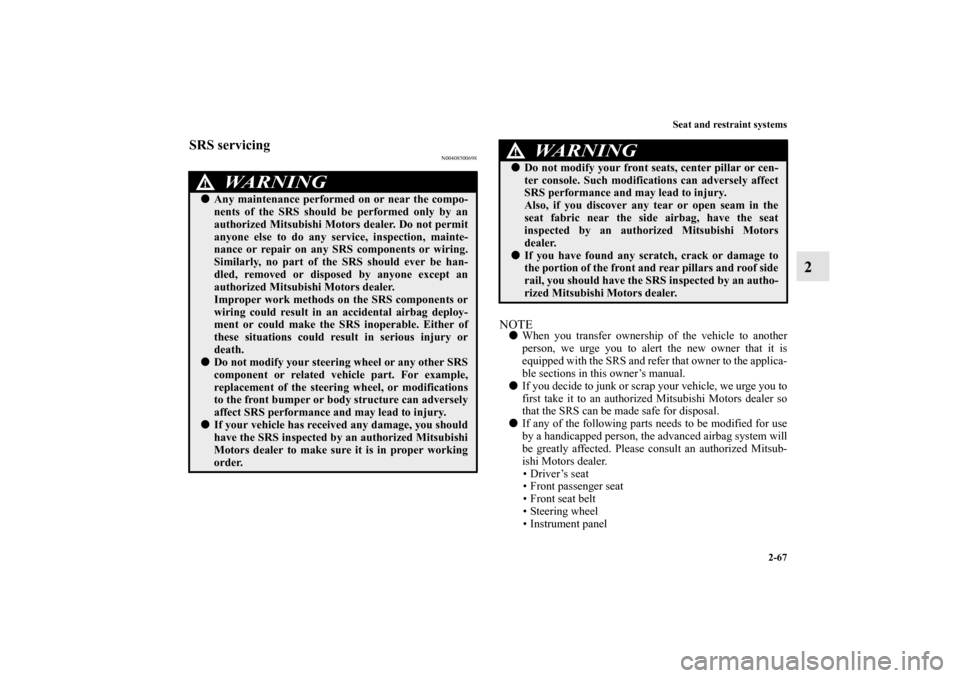

SRS servicing
N00408500698
NOTE
When you transfer ownership of the vehicle to another
person, we urge you to alert the new owner that it is
equipped with the SRS and refer that owner to the applica-
ble sections in this owner’s manual.

If you decide to junk or scrap your vehicle, we urge you to
first take it to an authorized Mitsubishi Motors dealer so
that the SRS can be made safe for disposal.

If any of the following parts needs to be modified for use
by a handicapped person, the advanced airbag system will
be greatly affected. Please consult an authorized Mitsub-
ishi Motors dealer.
• Driver’s seat
• Front passenger seat
• Front seat belt
• Steering wheel
• Instrument panel
WA R N I N G
!
Any maintenance performed on or near the compo-
nents of the SRS should be performed only by an
authorized Mitsubishi Motors dealer. Do not permit
anyone else to do any service, inspection, mainte-
nance or repair on any SRS components or wiring.
Similarly, no part of the SRS should ever be han-
dled, removed or disposed by anyone except an
authorized Mitsubishi Motors dealer.
Improper work methods on the SRS components or
wiring could result in an accidental airbag deploy-
ment or could make the SRS inoperable. Either of
these situations could result in serious injury or
death.
Do not modify your steering wheel or any other SRS
component or related vehicle part. For example,
replacement of the steering wheel, or modifications
to the front bumper or body structure can adversely
affect SRS performance and may lead to injury.
If your vehicle has received any damage, you should
have the SRS inspected by an authorized Mitsubishi
Motors dealer to make sure it is in proper working
order.

Do not modify your front seats, center pillar or cen-
ter console. Such modifications can adversely affect
SRS performance and may lead to injury.
Also, if you discover any tear or open seam in the
seat fabric near the side airbag, have the seat
inspected by an authorized Mitsubishi Motors
dealer.
If you have found any scratch, crack or damage to
the portion of the front and rear pillars and roof side
rail, you should have the SRS inspected by an autho-
rized Mitsubishi Motors dealer.
WA R N I N G
!
BK0140300US.book 67 ページ ２０１１年６月２８日　火曜日　午後５時１８分

2-68 Seat and restraint systems
2

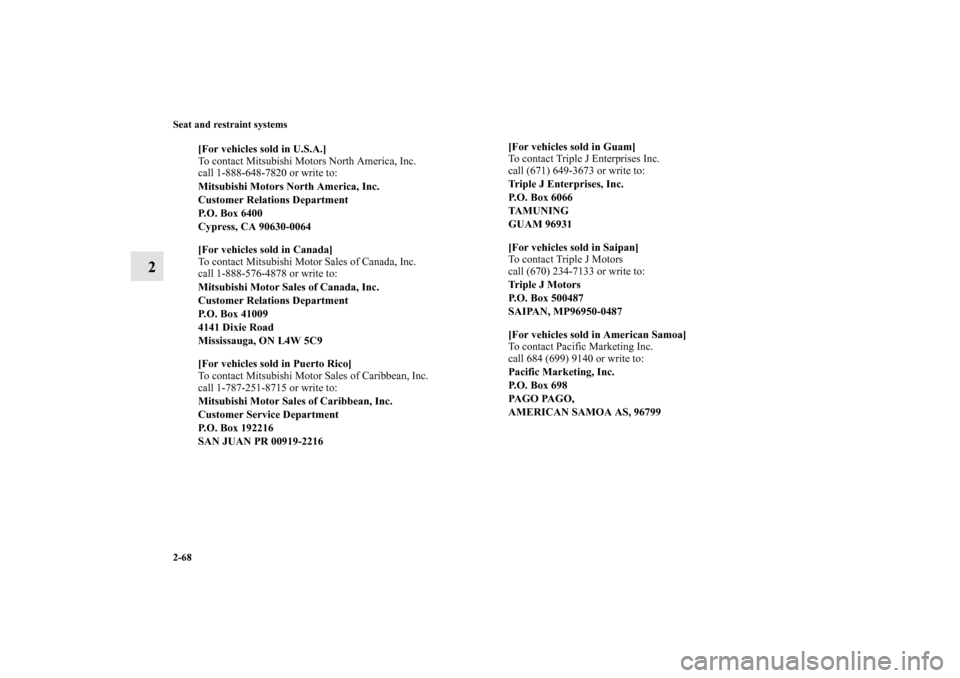

[For vehicles sold in U.S.A.]
To contact Mitsubishi Motors North America, Inc.
call 1-888-648-7820 or write to:
Mitsubishi Motors North America, Inc.
Customer Relations Department
P.O. Box 6400
Cypress, CA 90630-0064
[For vehicles sold in Canada]
To contact Mitsubishi Motor Sales of Canada, Inc.
call 1-888-576-4878 or write to:
Mitsubishi Motor Sales of Canada, Inc.
Customer Relations Department
P.O. Box 41009
4141 Dixie Road
Mississauga, ON L4W 5C9
[For vehicles sold in Puerto Rico]
To contact Mitsubishi Motor Sales of Caribbean, Inc.
call 1-787-251-8715 or write to:
Mitsubishi Motor Sales of Caribbean, Inc.
Customer Service Department
P.O. Box 192216
SAN JUAN PR 00919-2216[For vehicles sold in Guam]
To contact Triple J Enterprises Inc.
call (671) 649-3673 or write to:
Triple J Enterprises, Inc.
P.O. Box 6066
TAMUNING
GUAM 96931
[For vehicles sold in Saipan]
To contact Triple J Motors
call (670) 234-7133 or write to:
Triple J Motors
P.O. Box 500487
SAIPAN, MP96950-0487
[For vehicles sold in American Samoa]
To contact Pacific Marketing Inc.
call 684 (699) 9140 or write to:
Pacific Marketing, Inc.
P. O . B o x 6 9 8
PA G O PA G O ,
AMERICAN SAMOA AS, 96799
BK0140300US.book 68 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Seat and restraint systems
2-69
2

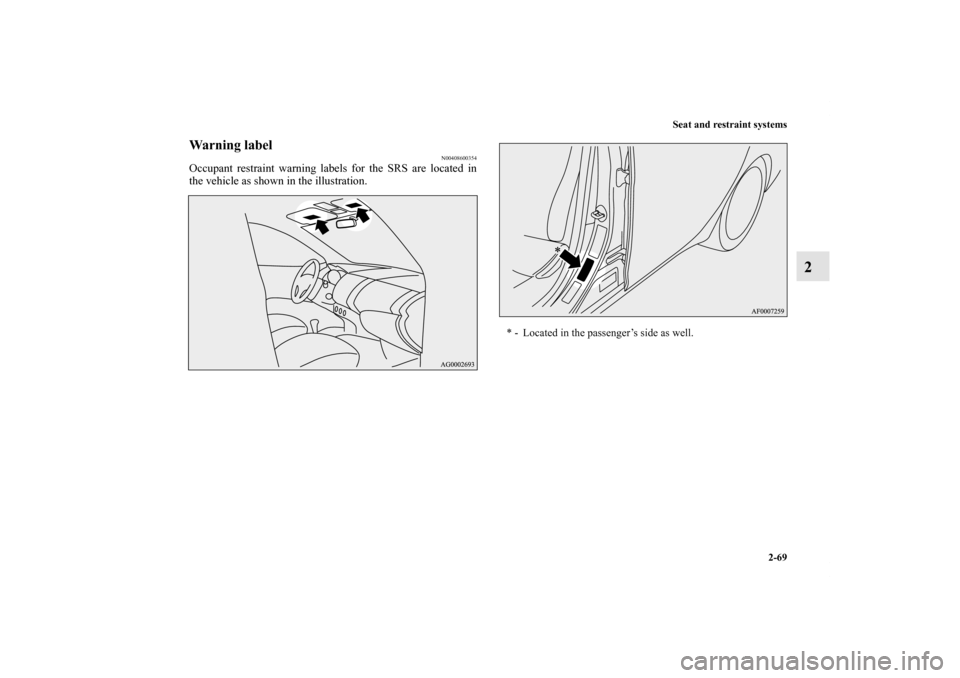

Warning label
N00408600354
Occupant restraint warning labels for the SRS are located in
the vehicle as shown in the illustration.
* - Located in the passenger’s side as well.
