2012 MITSUBISHI OUTLANDER SPORT Owners Manual

3-168 Features and controls
3
—

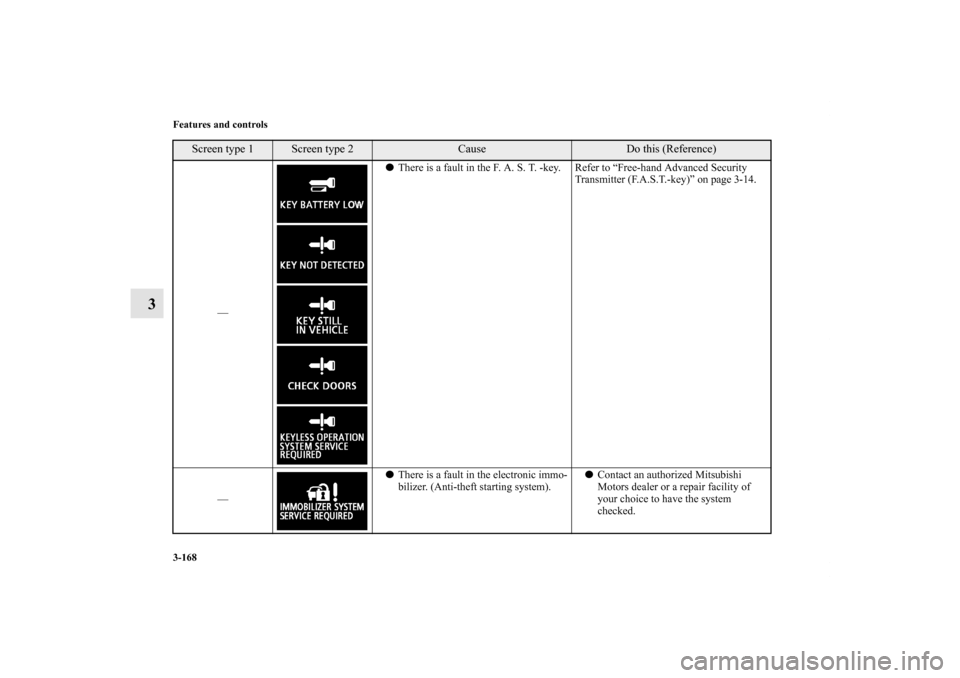

There is a fault in the F. A. S. T. -key. Refer to “Free-hand Advanced Security
Transmitter (F.A.S.T.-key)” on page 3-14.
—
There is a fault in the electronic immo-
bilizer. (Anti-theft starting system).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 168 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-169
3
—

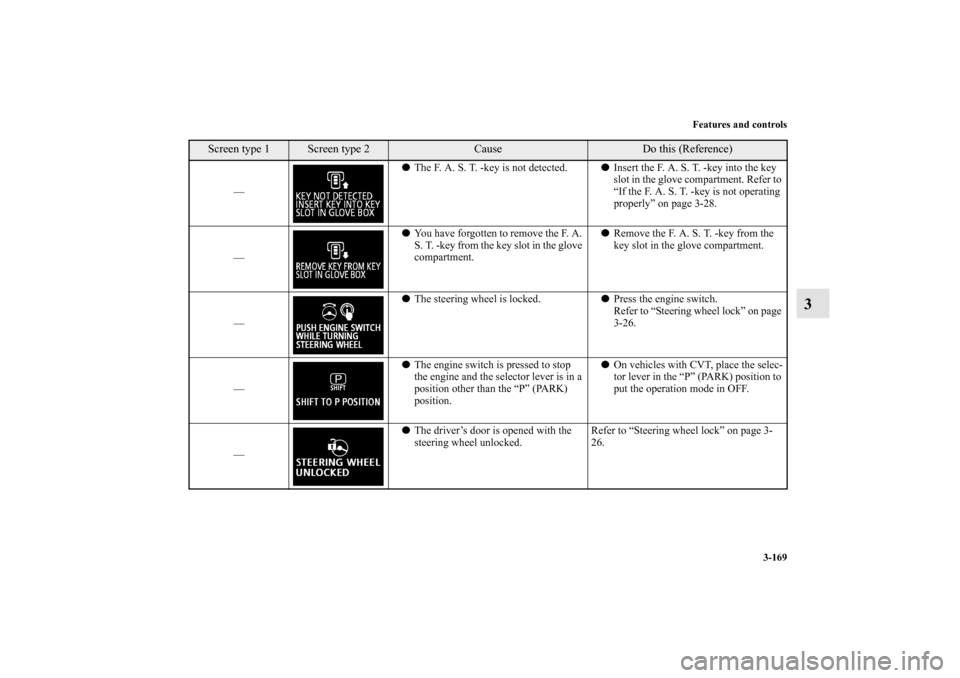

The F. A. S. T. -key is not detected.
Insert the F. A. S. T. -key into the key
slot in the glove compartment. Refer to
“If the F. A. S. T. -key is not operating
properly” on page 3-28.
—
You have forgotten to remove the F. A.
S. T. -key from the key slot in the glove
compartment.
Remove the F. A. S. T. -key from the
key slot in the glove compartment.
—
The steering wheel is locked.
Press the engine switch.
Refer to “Steering wheel lock” on page
3-26.
—
The engine switch is pressed to stop
the engine and the selector lever is in a
position other than the “P” (PARK)
position.
On vehicles with CVT, place the selec-
tor lever in the “P” (PARK) position to
put the operation mode in OFF.
—
The driver’s door is opened with the
steering wheel unlocked.Refer to “Steering wheel lock” on page 3-
26.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 169 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-170 Features and controls
3
—

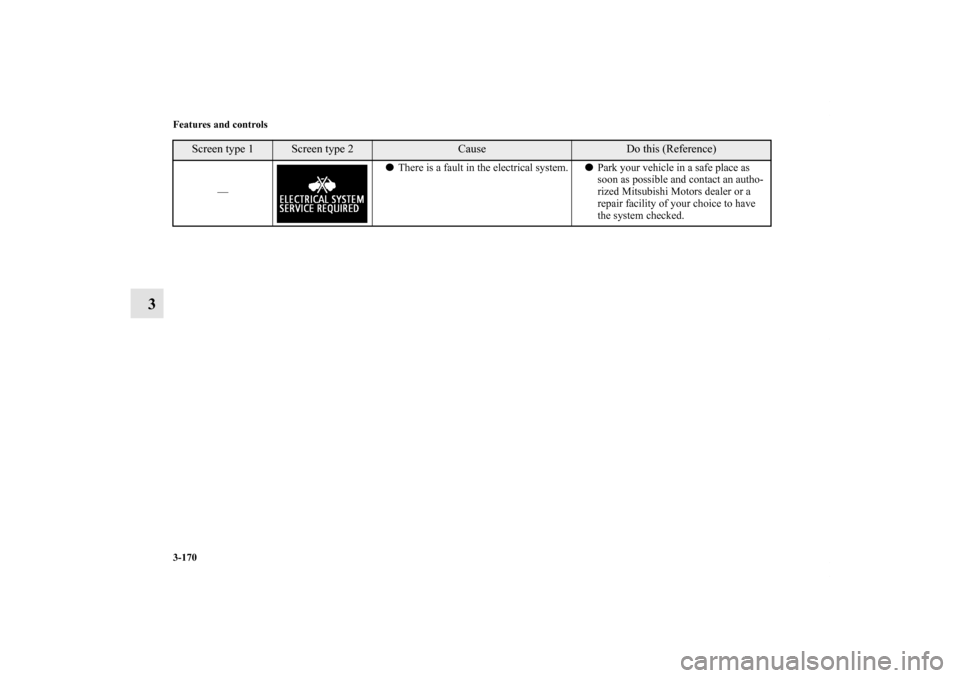

There is a fault in the electrical system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 170 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-171
3

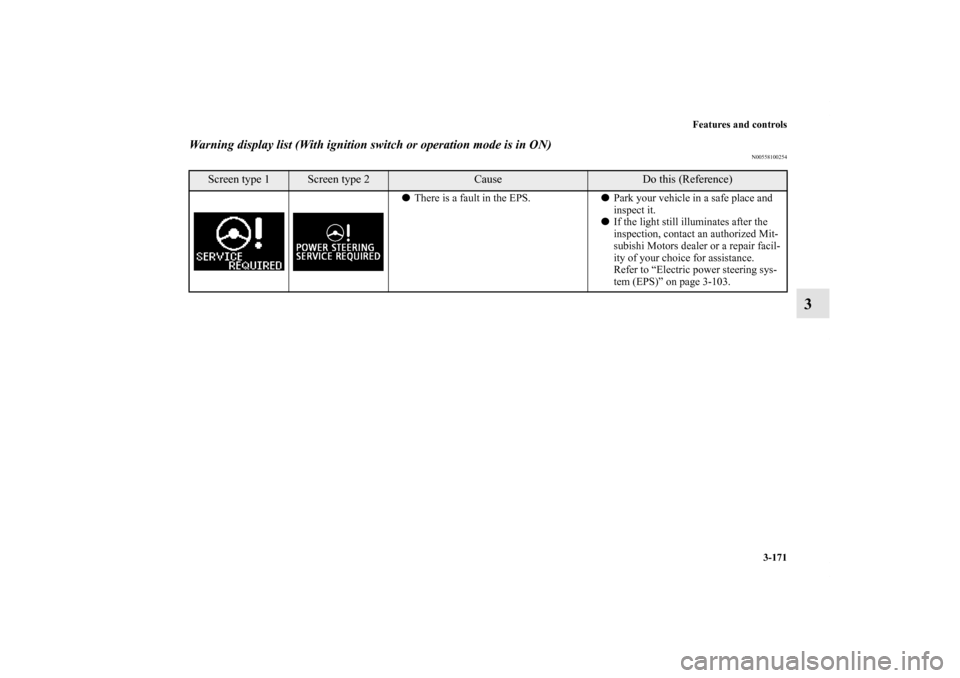

Warning display list (With ignition switch or operation mode is in ON)
N00558100254
Screen type 1
Screen type 2
Cause
Do this (Reference)

There is a fault in the EPS.
Park your vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Electric power steering sys-
tem (EPS)” on page 3-103.
BK0140300US.book 171 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-172 Features and controls
3
—

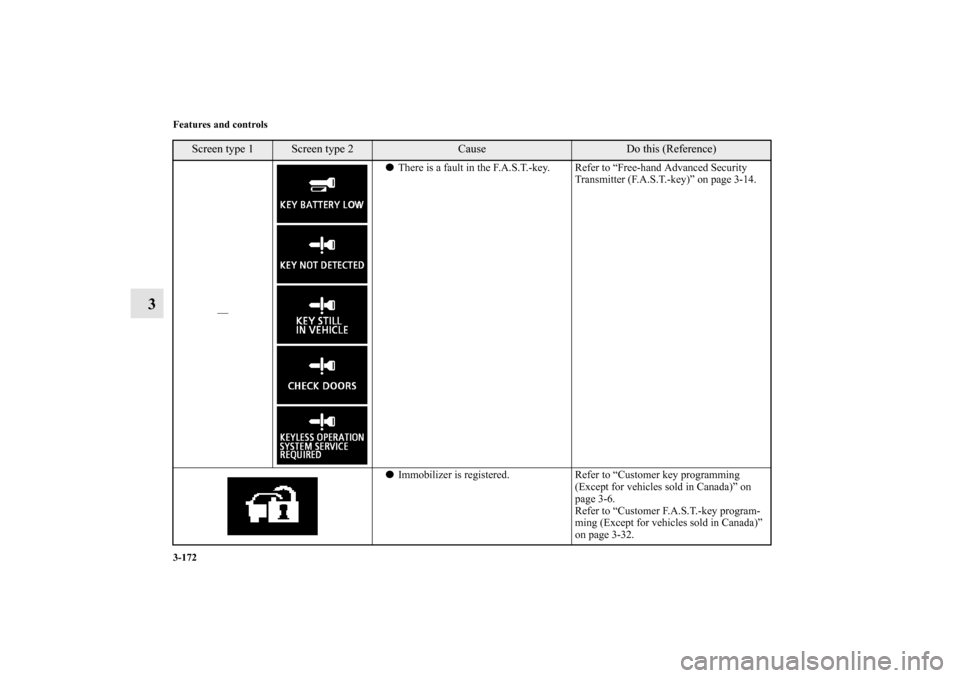

There is a fault in the F.A.S.T.-key. Refer to “Free-hand Advanced Security
Transmitter (F.A.S.T.-key)” on page 3-14.

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-6.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-32.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 172 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-173
3

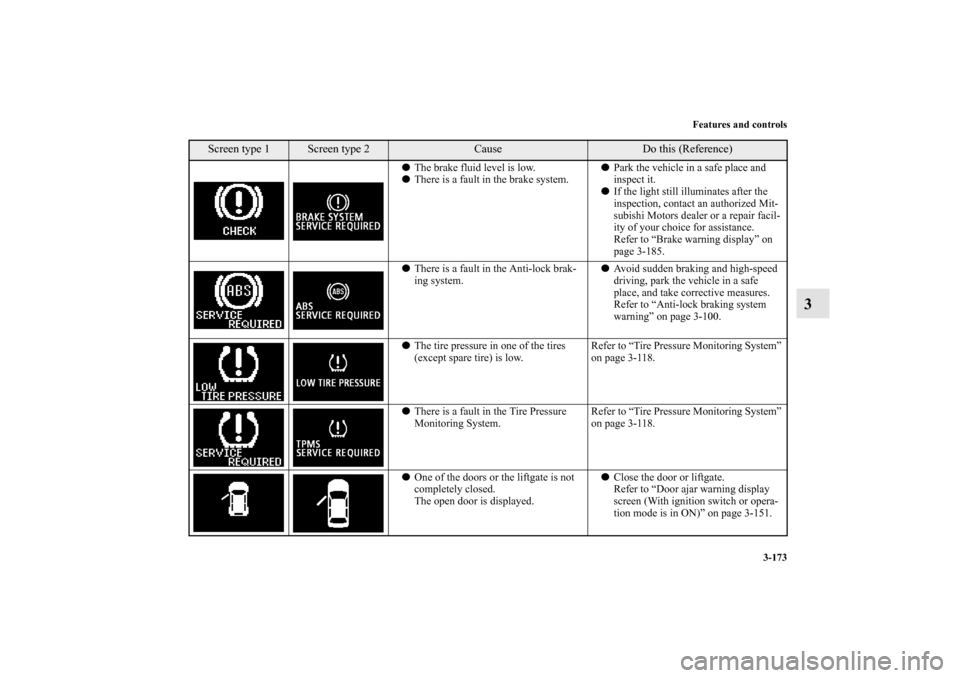

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Brake warning display” on
page 3-185.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning” on page 3-100.

The tire pressure in one of the tires
(except spare tire) is low.Refer to “Tire Pressure Monitoring System”
on page 3-118.

There is a fault in the Tire Pressure
Monitoring System.Refer to “Tire Pressure Monitoring System”
on page 3-118.

One of the doors or the liftgate is not
completely closed.
The open door is displayed.
Close the door or liftgate.
Refer to “Door ajar warning display
screen (With ignition switch or opera-
tion mode is in ON)” on page 3-151.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 173 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-174 Features and controls
3

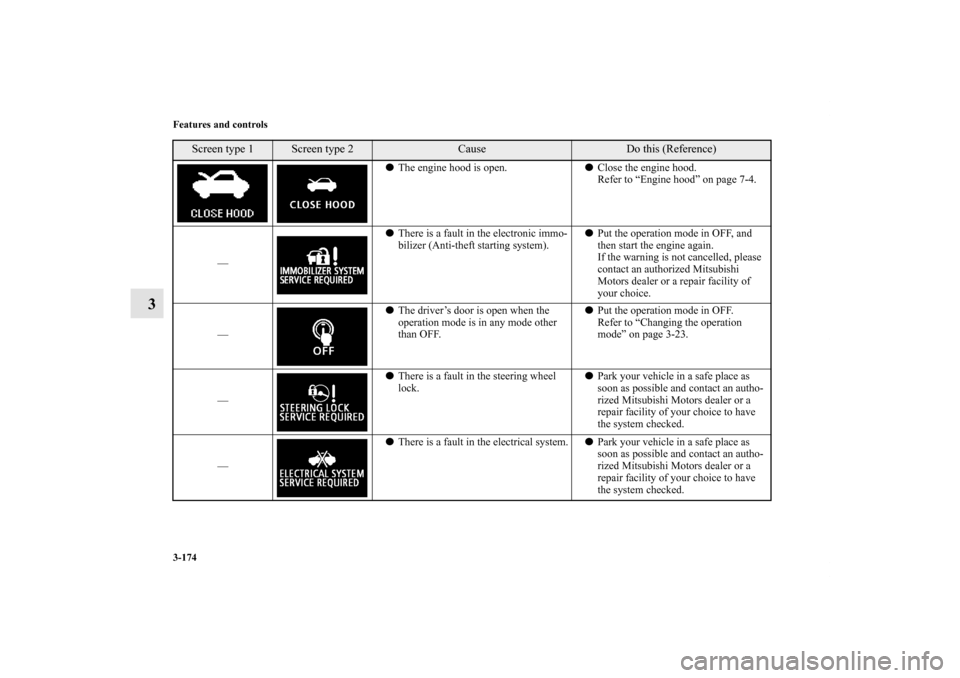

The engine hood is open.
Close the engine hood.
Refer to “Engine hood” on page 7-4.
—
There is a fault in the electronic immo-
bilizer (Anti-theft starting system).
Put the operation mode in OFF, and
then start the engine again.
If the warning is not cancelled, please
contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice.
—
The driver’s door is open when the
operation mode is in any mode other
than OFF.
Put the operation mode in OFF.
Refer to “Changing the operation
mode” on page 3-23.
—
There is a fault in the steering wheel
lock.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
—
There is a fault in the electrical system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 174 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-175
3

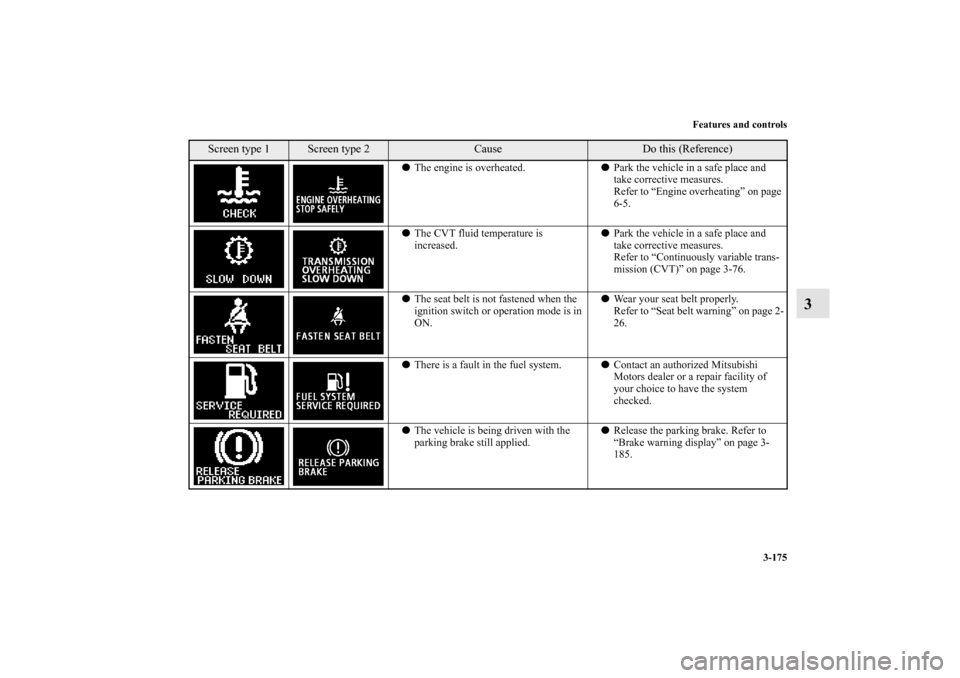

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on page
6-5.

The CVT fluid temperature is
increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-76.

The seat belt is not fastened when the
ignition switch or operation mode is in
ON.
Wear your seat belt properly.
Refer to “Seat belt warning” on page 2-
26.

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.

The vehicle is being driven with the
parking brake still applied.
Release the parking brake. Refer to
“Brake warning display” on page 3-
185.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 175 ページ ２０１１年６月２８日　火曜日　午後５時１８分
