3-112 Features and controls
3

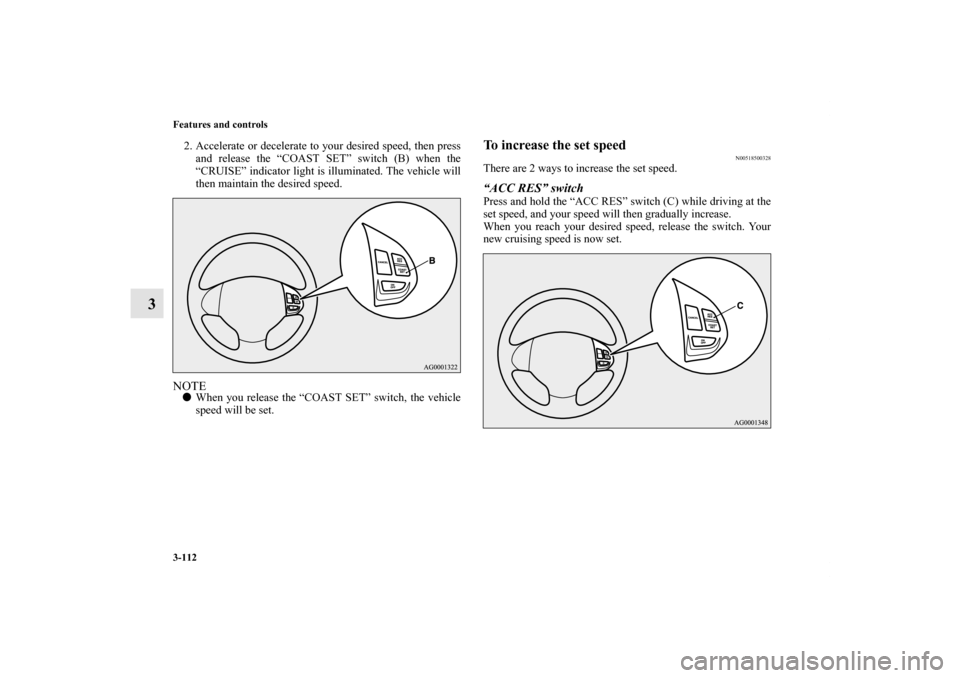

2. Accelerate or decelerate to your desired speed, then press
and release the “COAST SET” switch (B) when the
“CRUISE” indicator light is illuminated. The vehicle will
then maintain the desired speed.NOTE
When you release the “COAST SET” switch, the vehicle
speed will be set.
To increase the set speed
N00518500328
There are 2 ways to increase the set speed.“ACC RES” switchPress and hold the “ACC RES” switch (C) while driving at the
set speed, and your speed will then gradually increase.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.
BK0140300US.book 112 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-113
3

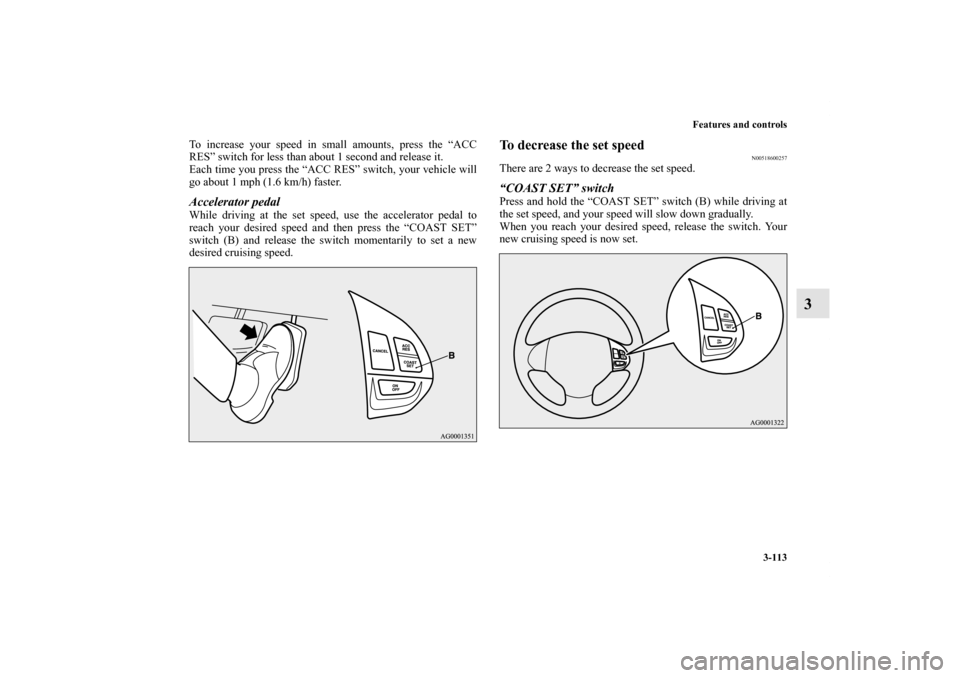

To increase your speed in small amounts, press the “ACC
RES” switch for less than about 1 second and release it.
Each time you press the “ACC RES” switch, your vehicle will
go about 1 mph (1.6 km/h) faster.Accelerator pedalWhile driving at the set speed, use the accelerator pedal to
reach your desired speed and then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
To decrease the set speed
N00518600257
There are 2 ways to decrease the set speed.“COAST SET” switchPress and hold the “COAST SET” switch (B) while driving at
the set speed, and your speed will slow down gradually.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.
BK0140300US.book 113 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-114 Features and controls
3

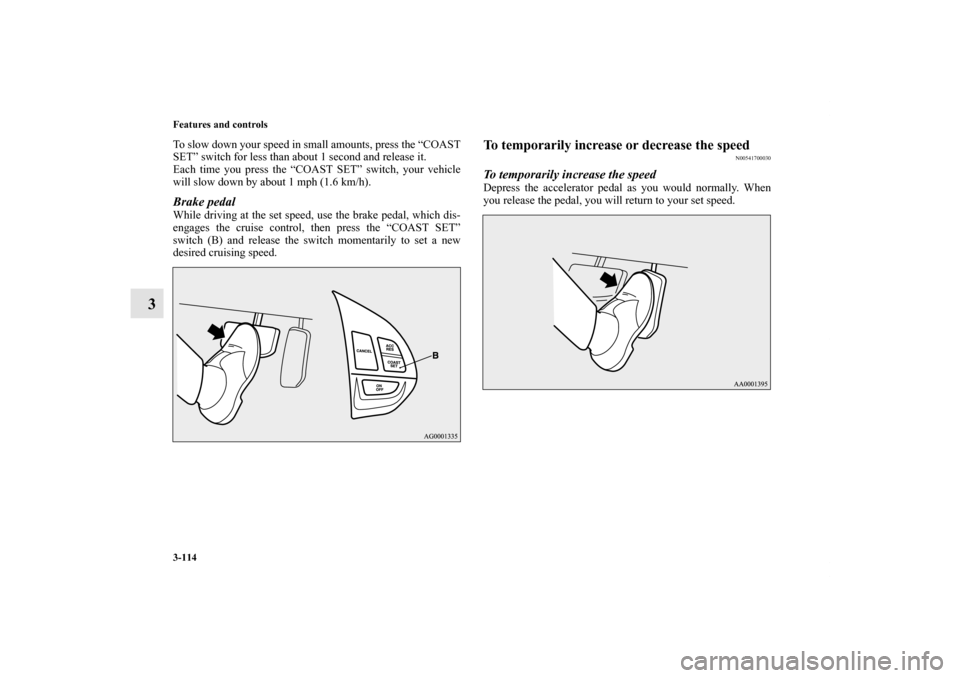

To slow down your speed in small amounts, press the “COAST
SET” switch for less than about 1 second and release it.
Each time you press the “COAST SET” switch, your vehicle
will slow down by about 1 mph (1.6 km/h).Brake pedalWhile driving at the set speed, use the brake pedal, which dis-
engages the cruise control, then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
To temporarily increase or decrease the speed
N00541700030
To temporarily increase the speedDepress the accelerator pedal as you would normally. When
you release the pedal, you will return to your set speed.
BK0140300US.book 114 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-115
3

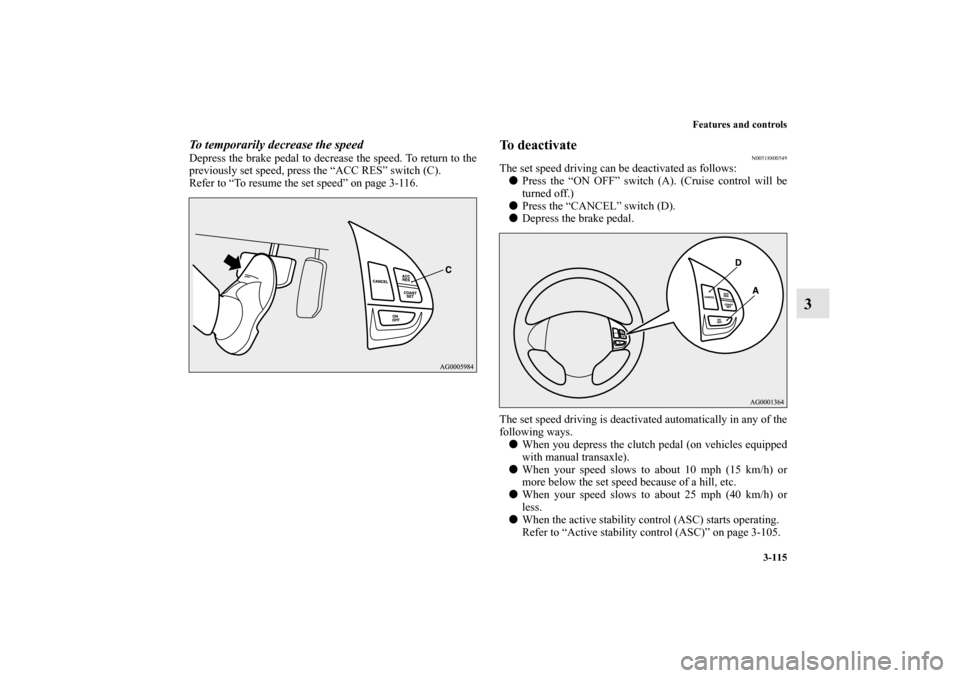

To temporarily decrease the speedDepress the brake pedal to decrease the speed. To return to the
previously set speed, press the “ACC RES” switch (C).
Refer to “To resume the set speed” on page 3-116.
To deactivate
N00518800549
The set speed driving can be deactivated as follows:

Press the “ON OFF” switch (A). (Cruise control will be
turned off.)

Press the “CANCEL” switch (D).

Depress the brake pedal.
The set speed driving is deactivated automatically in any of the
following ways.

When you depress the clutch pedal (on vehicles equipped
with manual transaxle).

When your speed slows to about 10 mph (15 km/h) or
more below the set speed because of a hill, etc.

When your speed slows to about 25 mph (40 km/h) or
less.

When the active stability control (ASC) starts operating.
Refer to “Active stability control (ASC)” on page 3-105.
BK0140300US.book 115 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-116 Features and controls
3

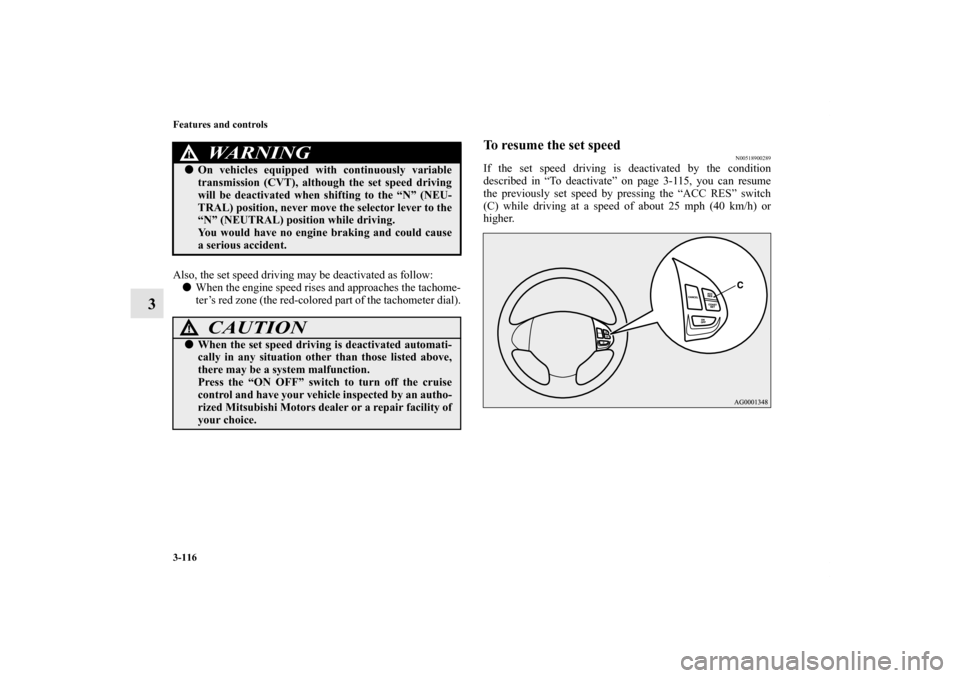

Also, the set speed driving may be deactivated as follow:

When the engine speed rises and approaches the tachome-
ter’s red zone (the red-colored part of the tachometer dial).
To resume the set speed
N00518900289
If the set speed driving is deactivated by the condition
described in “To deactivate” on page 3-115, you can resume
the previously set speed by pressing the “ACC RES” switch
(C) while driving at a speed of about 25 mph (40 km/h) or
higher.
WA R N I N G
!
On vehicles equipped with continuously variable
transmission (CVT), although the set speed driving
will be deactivated when shifting to the “N” (NEU-
TRAL) position, never move the selector lever to the
“N” (NEUTRAL) position while driving.
You would have no engine braking and could cause
a serious accident.
CAUTION
!
When the set speed driving is deactivated automati-
cally in any situation other than those listed above,
there may be a system malfunction.
Press the “ON OFF” switch to turn off the cruise
control and have your vehicle inspected by an autho-
rized Mitsubishi Motors dealer or a repair facility of
your choice.
BK0140300US.book 116 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-117
3

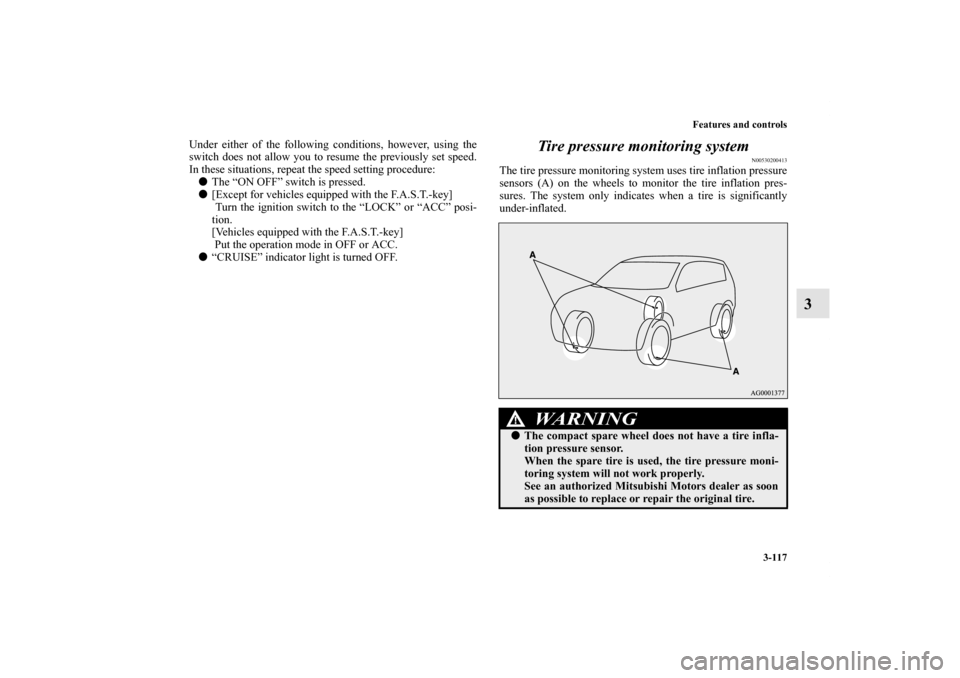

Under either of the following conditions, however, using the
switch does not allow you to resume the previously set speed.
In these situations, repeat the speed setting procedure:

The “ON OFF” switch is pressed.

[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “LOCK” or “ACC” posi-
tion.
[Vehicles equipped with the F.A.S.T.-key]
Put the operation mode in OFF or ACC.

“CRUISE” indicator light is turned OFF.
Tire pressure monitoring system
N00530200413
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
WA R N I N G
!
The compact spare wheel does not have a tire infla-
tion pressure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
BK0140300US.book 117 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-118 Features and controls
3

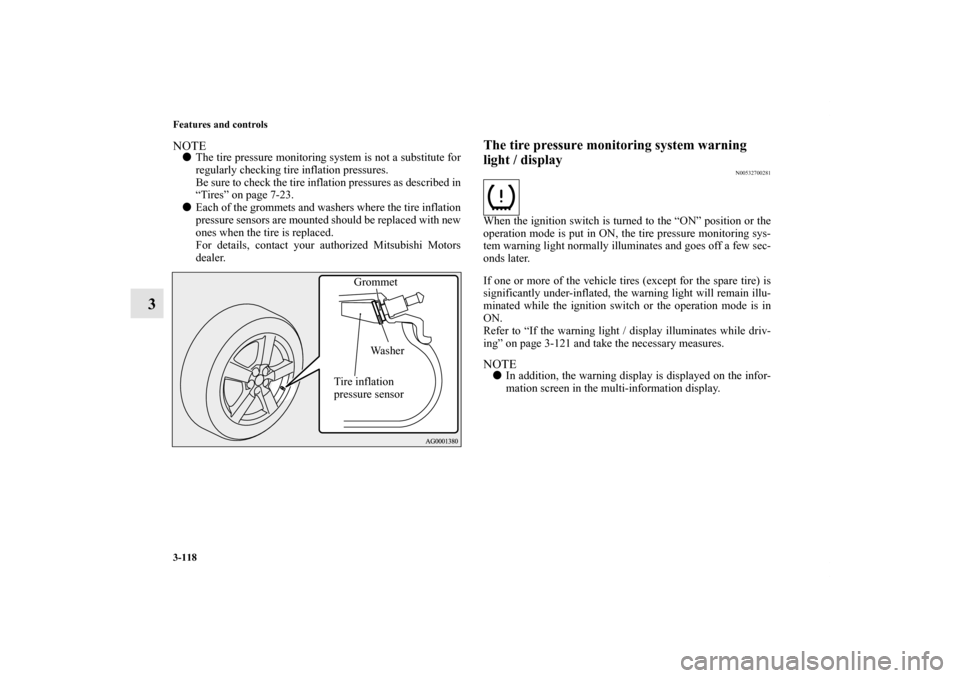

NOTE
The tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-23.

Each of the grommets and washers where the tire inflation
pressure sensors are mounted should be replaced with new
ones when the tire is replaced.
For details, contact your authorized Mitsubishi Motors
dealer.
The tire pressure monitoring system warning
light / display
N00532700281
When the ignition switch is turned to the “ON” position or the
operation mode is put in ON, the tire pressure monitoring sys-
tem warning light normally illuminates and goes off a few sec-
onds later.
If one or more of the vehicle tires (except for the spare tire) is
significantly under-inflated, the warning light will remain illu-
minated while the ignition switch or the operation mode is in
ON.
Refer to “If the warning light / display illuminates while driv-
ing” on page 3-121 and take the necessary measures.NOTE
In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
Grommet
Tire inflation
pressure sensorWa s h e r
BK0140300US.book 118 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-119
3

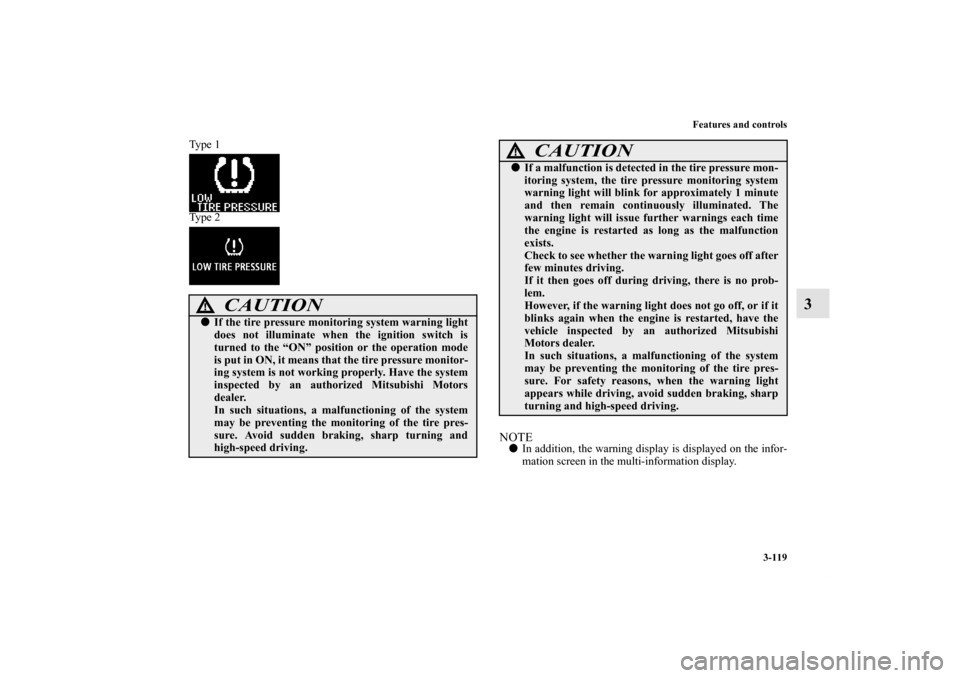

Ty p e 1
Ty p e 2
NOTE
In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
CAUTION
!
If the tire pressure monitoring system warning light
does not illuminate when the ignition switch is
turned to the “ON” position or the operation mode
is put in ON, it means that the tire pressure monitor-
ing system is not working properly. Have the system
inspected by an authorized Mitsubishi Motors
dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. Avoid sudden braking, sharp turning and
high-speed driving.

If a malfunction is detected in the tire pressure mon-
itoring system, the tire pressure monitoring system
warning light will blink for approximately 1 minute
and then remain continuously illuminated. The
warning light will issue further warnings each time
the engine is restarted as long as the malfunction
exists.
Check to see whether the warning light goes off after
few minutes driving.
If it then goes off during driving, there is no prob-
lem.
However, if the warning light does not go off, or if it
blinks again when the engine is restarted, have the
vehicle inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. For safety reasons, when the warning light
appears while driving, avoid sudden braking, sharp
turning and high-speed driving.
CAUTION
!
